Whether you need aerospace parts or customized medical implants, 5 axis CNC machines offer accuracy that basic setups cannot match. Yet the hourly cost linked to that technology often creates doubt and confusion among buyers. In this blog post we will help you understand the effect of machine, labor and setup on the per hour cost of CNC machining so you make the right choice in selecting machining partner for your next project.
Typical Hourly Rates of 5 Axis CNC Machining
The sections below show how most shops set up their CNC pricing.
Core Machine Time in U.S. job shops
U.S. shops usually charge between $100 and more than $200 per hour for core 5 axis machine time. In contrast, running a standard 3 axis machine may only cost $40 to $80 each hour. The higher rate for 5-axis comes from the equipment’s purchase price, its added capabilities and the tighter tolerances it achieves.
Programming and Setup
Machine time is only part of the bill; setup and programming add more. Because 5 axis CAM programming needs specialized skills, U.S. rates typically land between $36 and $54 per hour.
Regional Benchmarks
Location also affects the hourly rate. European shops usually quote around $75 to $150 per hour for multi axis jobs. Whereas Chinese vendors often come in cheaper, having quotes spanning $50 to $120 per hour.
Factors which Drive the Hourly Rate of 5 Axis CNC Machining
Machine Ownership Cost Per Hour
Buying a 5 axis CNC machine is a large investment, usually $200,000–$500,000. Top models raise the price above $1 million. Shops normally spread that cost over five to seven years through depreciation. Even before any other expense appears, depreciation alone can raise the hourly rate by about $100.
Programming and Setup Across the Run
Creating and checking toolpaths for complicated parts takes many CAM programming hours. Shops spread the resulting programming, setup and fixture-design costs across the total number of parts in the run.
Labor Cost
5 axis machining cannot run without skilled people. Although experienced operators and programmers earn higher pay, they often cut errors and shorten cycle times. Labor costs mostly include wages, benefits, payroll taxes as well as extra pay for evening or overnight work.
Cutting Tools
Special high performance tooling is essential for 5 axis work. Probes, cutters and custom holders all add to the hourly bill. Shops estimate each tool’s cost over its expected life then assign that amount to the machine’s hourly rate.
Other Facilities
The shop itself adds more overhead. Compressed air, electricity, coolant and floor space all must be paid for. Since utility prices vary by area therefore the part’s hourly rate can change according to location.
Typical Hourly Ranges (By Machine Class and Region)
There is no fixed number for 5 axis machining rates because the machine’s features and the job’s region strongly shape the final hourly charge.
Compact/ Trunnion Add-on on Mid-range VMCs
Entry level 5 axis units serve prototype work and limited production runs especially well. Shops usually quote these machines at $75 to $100 per hour, a relatively low bracket. However, spending less also means lower accuracy and slower cutting speeds compared with top‐tier equipment.
Full 5 Axis (Head Table or Table Table) Production Machines
In many job shops, these machines act as main machines built to boost output. Hourly pricing for the mid‐range group usually falls between $100 & $200 per hour. From these machines users get a good mix of speed, accuracy as well as flexibility. This lets one cell handle a wide range of parts.
High End Simultaneous Cells for Aero/ Med‐mold & More
At the top of the market, high precision machines make the complicated parts needed by medical and aerospace programs. Shops charge the highest rates—$175 to over $250 per hour for these machines. That premium reflects extraordinary accuracy, high speed spindles and advanced options such as automation and in‐process probing.

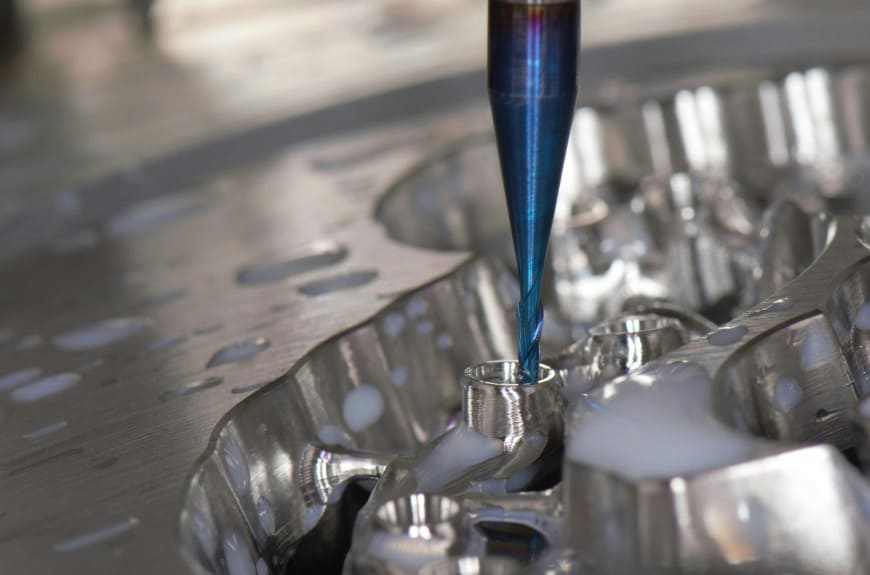

Simultaneous 5 Axis, 3+2 & Straight 3 Axis: How a Higher Hourly Rate May Saves Money
Although 5 axis machining has a higher hourly price, the overall project cost often drops.
Fewer Setups
Nearly every surface can be reached in one setup when a 5 axis machine is used. By removing the repeated repositioning that a 3 axis unit requires, the shop saves labor. It also removes many chances for error. As a result fewer setups lead to better accuracy and shorter downtime.
Cycle Time Advantages on Complicated Geometry
Complicated, sculpted surfaces highlight the true strengths of 5 axis machining. Tilting the tool to keep the best cutting angle allows faster material removal and higher feed rates. Short, rigid tools also cut vibration therefore surface finish improves and cycle times shrink.
Fixture Simplification & Risk Reduction
Complicated parts on a 3 axis machine mostly need expensive, custom fixtures. With 5 axis equipment, simpler fixtures are enough because the spindle, not the fixture, adjusts the angles. The result is lower tooling cost and less part handling.
When Does 3 Axis Machining Make Sense
Even with those benefits, 5 axis is not always the best choice. Simple, prismatic parts with loose tolerances can be machined cheaper on a 3 axis machine. Paying extra for 5 axis makes little sense here when the design doesn’t need it.
Comparing the Different Pricing Models
One Flat Shop Rate vs Tiered Machine Rates
Many shops offer one flat hourly rate regardless of which machine runs the job. This method gives simplicity and predictability. Other shops use tiered pricing which sets different rates for 3 axis, 4 axis and 5 axis equipment. For simple parts, the tiered structure usually provides a lower quote. It keeps you from paying for capabilities the project never uses.
Direct Shop Quotes vs Platform Quotes
Online platforms provide instant, very convenient quotes. This speed is perfect for rapid prototyping. Yet the convenience often comes with extra markups. For repeat or large runs, going straight to shops mostly cuts cost, though it requires extra work finding suppliers.
Calculate 5 Axis Hourly Rate for Your Own Part
To estimate what an hour on the machine really costs, use the simple formula below:
Total Hourly Rate = (TCO per year ÷ productive hours) + labor burden + consumables + overhead + profit margin
Within TCO are depreciation, rent, insurance, upkeep, software and the share of utilities assigned to each machine.
Quote Anatomy: What’s in vs Out of the “Hourly” Tag
Treat the quoted hourly rate as only a starting point; knowing which expenses are merged in that number—and which aren’t—avoids unwelcome surprises.
Lot Size Effects
When order volume climbs, the price per unit falls. Fixed programming and setup charges are spread across more pieces. Consequently a small batch carries a higher per‐part cost as compared to a large run.
Programming Hours
Programming often becomes a large upfront cost on complicated 5 axis jobs. Shops usually list it as a separate, one time line item. You will therefore see one fee covering CAM programming & simulation before machining starts.
Raw Material Preparation
Getting the raw stock ready seldom falls under the posted hourly rate. Expect extra charges for cutting material to length or for buying certified stock with heat lot paperwork.
Inspection Scope
Basic quality checks are usually a part of the quote. Detailed CMM inspections or First Article Inspection Reports (FAIRs) appear as extra costs.
Secondary Processes and Logistics
Cutting time is all that the machine rate covers. Steps like heat treatment, custom packaging or anodizing bring separate charges and the same goes for handling and shipping.
Tricks to Keep Your Hourly Cost Down in 5 Axis CNC Machining
5 axis machining often costs more yet a few particular practices let you control and reduce the bill.
Design for Manufacturability (DFM)
In machining, nothing affects cost more than the number of minutes the machine must run. By simplifying your part geometry, you shorten that run time. Relaxing non critical tolerances and providing clear tool access may remove hours from the schedule. Even small tweaks—rounding internal corners, for instance—drive expenses down further.
At RICHCONN, our team regularly reviews models at the concept stage to find savings such as easing tight tolerances or changing details for standard tools.
Automation/ Palletization to Keep Spindle Turning
Automation keeps the spindle active and performs cutting. With pallet systems, shops can run parts around the clock and this includes unattended nights. Higher utilization spreads the machine’s high fixed cost across more productive hours which pushes the cost per part lower.
Leverage 5 Axis to Consolidate Operations
Make use of every capability 5 axis machine provide. Aim for part geometries that finish in one setup thus cutting down fixture requirements. By doing so, you eliminate repositioning time. Labor charges drop as well and the chance of mistakes shrinks.
Sourcing Strategy
Match your sourcing method to the part’s complexity. Online machining services work well when the job is a simple one-off. When orders are complicated or repeated often, a long term partnership with a direct manufacturer such as RICHCONN makes sense. Over time, that relationship usually brings lower rates and better support.
Beyond day‐to‐day pricing, a committed partner guides your entire production strategy whether it is the use of CNC machining, sheet metal fabrication or the integrating of carbon fiber parts.
To Sum Up
Advanced capabilities and the large capital investment behind 5 axis CNC machining drive its hourly rate up. Once you look at the cost drivers it becomes clear that, despite its high upfront cost, 5 axis machining often provides affordable results for complicated components. If you want clear pricing along with accurate 5 axis results then Richconn is your best option. You can contact us anytime.
Related Questions
Higher purchase price, added operating complexity and more advanced programming linked to 5 axis equipment drive its hourly rate up. Even though these machines can reduce the total machining time on complicated parts, the hourly charge stays above that of a 3 axis machine.
The number of programming hours depends on the part’s shape, tolerance requirements and fixturing needs. Simple parts may need only a few hours whereas complicated 5 axis surfaces may need several days.
Choosing a fixed price per part saves you from unexpected time overruns and keeps costs stable. Whereas paying by the hour lets you see exactly what you are spending on programming, setup & machine operation.
