5-Axis CNC Machining Services for Complex Precision Parts
Richconn provides 5-axis CNC machining services for complex precision parts that require multi-face machining, compound angles, tight positional tolerances, and high-quality surface finishes. Our engineers support prototypes, low-volume production, and batch manufacturing for robotics, aerospace, medical devices, semiconductor equipment, automotive, and industrial automation applications.
- Tolerances down to ±0.01 mm
- Aluminum, stainless steel, titanium, brass, copper, PEEK
- Free DFM review and global delivery from China
Use 5-axis CNC machining when your part needs angled features, curved surfaces, deep pockets, or machining on multiple faces with consistent positional accuracy.
Richconn 5-Axis CNC Machining Capabilities at a Glance
Use this capability summary to quickly check whether Richconn is a fit for your complex CNC machined parts before sending drawings.
Process
3+2 indexed machining, simultaneous 5-axis machining, multi-face milling, complex surface machining.
Suitable Parts
Robotic joints, aerospace brackets, medical instrument bodies, semiconductor fixtures, complex housings, optical mounts.
Materials
Aluminum 6061/7075, stainless steel 304/316/17-4PH, titanium Grade 5, brass, copper, tool steel, PEEK, POM.
Tolerance
General ±0.05 mm. Precision features down to ±0.01 mm depending on material, geometry, setup, and inspection requirements.
Surface Finish
Ra 1.6 μm standard. Ra 0.8 μm or Ra 0.4 μm may be available depending on material and process route.
Production Volume
Prototype validation, low-volume production, bridge production, and repeat batch manufacturing.
Inspection
CMM inspection, first article inspection, in-process checks, final dimensional reports, surface finish verification.
Files Accepted
STEP, STP, IGS, IGES, X_T, DWG, DXF, PDF drawings with GD&T, material, finish, and quantity.
Engineering note: 5-axis machining is not always the most cost-effective process. Richconn reviews your part geometry and recommends 3-axis, 4-axis, 5-axis, Swiss machining, or turn-mill machining based on tolerance, material, volume, and tool access.
Best-fit 5-axis projects
- Multiple machined faces in one setup
- Compound angles or curved surfaces
- Datum-critical mating features
- Deep pockets or difficult tool access
- High-value complex precision parts
What Is 5-Axis CNC Machining?
5-axis CNC machining is a precision milling process where the cutting tool or workpiece moves along three linear axes and two rotational axes. Compared with 3-axis machining, 5-axis machining allows the tool to approach the part from multiple directions, making it possible to machine complex surfaces, undercuts, angled holes, and features on several faces in fewer setups.
For complex precision parts, fewer setups can mean less datum transfer error, better positional accuracy, improved surface finish, and more consistent part-to-part repeatability. This is why 5-axis CNC machining is commonly used for robotic components, aerospace brackets, medical device parts, semiconductor fixtures, optical mounts, and complex housings.
When Should You Choose 5-Axis CNC Machining?
Choose 5-axis CNC machining when your part has features on multiple faces, compound angles, curved surfaces, deep pockets, tight positional tolerances, or difficult tool access. It is especially useful for high-value parts where reducing setup errors is more important than choosing the lowest-cost machining route.
For simple plates, flat brackets, and parts with features only on one or two sides, 3-axis CNC milling is usually more cost-effective. Richconn reviews your drawings before quoting and recommends the most suitable machining process based on geometry, tolerance, material, and production volume.
3-Axis vs 4-Axis vs 5-Axis CNC Machining
Not every part needs 5-axis machining. The right choice depends on geometry, access, tolerance stack-up, and production cost.
| Process | Best For | Limitation | Richconn Recommendation |
|---|---|---|---|
| 3-Axis CNC Milling | Plates, pockets, simple housings, flat brackets, and features on one primary side. | Requires multiple setups for multi-face features, which can increase datum transfer error. | Best for cost-effective simple parts with moderate geometry complexity. |
| 4-Axis CNC Milling | Indexed parts, side holes, repeated angular features, and cylindrical components needing one rotary axis. | Better access than 3-axis, but limited compared with full 5-axis machining. | Useful when the part needs rotation around one axis but not simultaneous multi-angle tool access. |
| 5-Axis CNC Machining | Complex housings, compound angles, curved surfaces, deep pockets, multi-face datum-critical parts. | Higher programming and machine cost, so it should be used when geometry or tolerance justifies it. | Best for complex precision parts where fewer setups and positional accuracy matter. |
Our 5-Axis CNC Machining Capabilities
Richconn supports complex 5-axis machining projects from early design review to inspected production parts. Each machining route is selected based on your part geometry, datum strategy, tolerance requirements, and production volume.
3+2 Indexed 5-Axis Machining
3+2 machining positions the part at fixed angles before using 3-axis milling movements. It is often ideal for multi-face parts that do not need continuous simultaneous 5-axis motion but benefit from reduced re-fixturing.
Simultaneous 5-Axis Machining
Simultaneous 5-axis machining moves linear and rotary axes together, allowing the tool to maintain a better cutting angle on curved surfaces and complex profiles.
Complex Surface Machining
For parts with sculpted geometry, organic curves, or aerospace-style lightweighting pockets, 5-axis machining helps keep tool engagement stable and surface finish consistent.
Tight-Tolerance Multi-Face Machining
For parts where holes, mating faces, and mounting features must align across several sides, fewer setups can reduce accumulated tolerance stack-up and improve assembly fit.
Have a complex part that may need 5-axis machining?
Send your 3D CAD file and 2D drawing. Richconn engineers will review tool access, tolerance feasibility, material, surface finish, and whether 5-axis machining is the right process.
5-Axis CNC Machined Parts We Manufacture
Richconn focuses on complex precision parts where 5-axis machining can reduce setup changes, improve datum control, or enable features that are difficult to machine with conventional 3-axis methods.
| Part Category | Example Parts | Typical Materials | Why 5-Axis Helps |
|---|---|---|---|
| Robotics & Automation | Robotic joint housings, actuator brackets, end-effector mounts, sensor housings. | Aluminum 7075, stainless steel 316, titanium Grade 5. | Maintains positional accuracy across angled mating faces and compact assembly features. |
| Aerospace & UAV | Lightweight brackets, sensor mounts, drone structural parts, complex aluminum fittings. | Aluminum 6061/7075, titanium Grade 5, stainless steel 17-4PH. | Supports weight-reduction pockets, compound angles, and datum-critical mounting features. |
| Medical Devices | Surgical instrument bodies, orthopedic trial parts, device housings, titanium components. | Titanium Grade 5, stainless steel 316L, PEEK. | Enables complex ergonomic shapes and smooth transitions with inspected functional surfaces. |
| Semiconductor Equipment | Precision fixtures, wafer positioning parts, vacuum-compatible aluminum parts, test components. | Aluminum 6061/7075, stainless steel 304/316, PEEK. | Improves alignment of multi-face features and reduces fixture transfer errors. |
| Optical & Test Instruments | Optical mounts, alignment plates, lens fixtures, precision enclosures. | Aluminum 6061, brass, stainless steel, POM. | Supports angled holes, precision datum faces, and stable assembly alignment. |
| Complex Housings | Sensor housings, electronic enclosures, manifold-style blocks, heat sink housings. | Aluminum 6061/6082/7075, copper, stainless steel. | Reduces setup changes when features appear on five sides or around deep cavities. |
Materials for 5-Axis CNC Machining
Material choice affects machining cost, tolerance stability, surface finish, strength, weight, corrosion resistance, and lead time. Richconn can help select a practical grade based on your part function and production requirements.
| Material | Common Grades | Typical 5-Axis Parts |
|---|---|---|
| Aluminum | 6061, 7075, 6082, 2024 | Robotic housings, aerospace brackets, optical fixtures, heat sink housings. |
| Stainless Steel | 303, 304, 316, 316L, 17-4PH | Medical components, precision fixtures, corrosion-resistant housings, instrument parts. |
| Titanium | Grade 2, Grade 5 | Aerospace parts, medical components, lightweight high-strength structural parts. |
| Brass | C360, H59, H62 | Connector components, precision fittings, optical adjustment parts. |
| Copper | C110, C101 | Heat transfer components, conductive parts, electrical fixtures. |
| Tool Steel | D2, H13, SKD11, A2 | Tooling inserts, wear-resistant fixtures, die components, molds. |
| Engineering Plastics | PEEK, POM, PTFE, Nylon, PC | Insulating parts, low-friction components, lightweight fixtures, prototype housings. |
Surface Finishes for 5-Axis CNC Machined Parts
Surface finishes protect parts from corrosion, improve cosmetic appearance, control wear, or meet functional assembly requirements. Critical dimensions should specify whether the final tolerance applies before or after finishing.
| Finish | Suitable Materials | Purpose |
|---|---|---|
| As-Machined | Metals and plastics | Functional prototypes, fastest delivery, visible tool marks acceptable. |
| Anodizing | Aluminum | Corrosion resistance, color, improved surface durability. |
| Hardcoat Anodizing | Aluminum | Higher wear resistance for sliding or high-friction surfaces. |
| Bead Blasting | Aluminum, stainless steel, brass | Uniform matte cosmetic finish. |
| Passivation | Stainless steel | Improves corrosion resistance by enhancing the chromium oxide layer. |
| Polishing | Stainless steel, aluminum, brass | Smoother surface, cosmetic appearance, reduced roughness. |
| Electroplating | Brass, copper, steel | Conductivity, corrosion protection, gold/nickel/zinc/chrome finishes. |
| Heat Treatment | Steel, titanium, aluminum alloys | Hardness, strength, dimensional stability, wear resistance. |
| Laser Marking | Metals and some plastics | Permanent part numbers, batch codes, logos, traceability. |
5-Axis CNC Machining Tolerances and Quality Control
Richconn does not publish unrealistic one-piece extreme tolerances as production guarantees. Final achievable tolerance depends on material, part size, wall thickness, geometry, fixture strategy, surface finish, and inspection method.
Standard Tolerance
For general 5-axis CNC machined parts, Richconn can follow ISO 2768 or drawing-based tolerance requirements. Non-critical dimensions should use practical tolerances to control cost.
Precision Features
Critical features can be machined down to ±0.01 mm when part geometry, material, fixture strategy, and inspection conditions support the requirement.
Inspection Reports
CMM inspection, first article inspection, material certificates, surface treatment reports, and full dimensional reports are available based on project requirements.
Honesty note: If your drawing requires tighter tolerance than the selected process can stably hold, Richconn will flag it during DFM review and recommend a revised tolerance, fixture method, post-machining process, or inspection plan.
5-Axis CNC Machining Application Industries
5-axis CNC machining revolutionizes manufacturing by enabling the creation of complex and precise components across various industries. Discover how our advanced 5-axis CNC machining capabilities serve a wide range of sectors.
Aerospace Industry
- Turbine Blades
- Aircraft Structures
- Engine Components
Automotive Industry
- Prototyping
- Engine Parts
- Custom Components
Medical Industry
- Implants
- Surgical Instruments
- Dental Products
Defense Industry
- Weapon Components
- Military Vehicles
- Communication Devices
Energy Industry
- Wind Turbine Parts
- Oil and Gas Equipment
- Nuclear Power Components
Marine Industry
- Propellers
- Hull Components
- Engine Parts
Electronics Industry
- Heat Sinks
- Housings
- Connector Parts
Tool and Die Industry

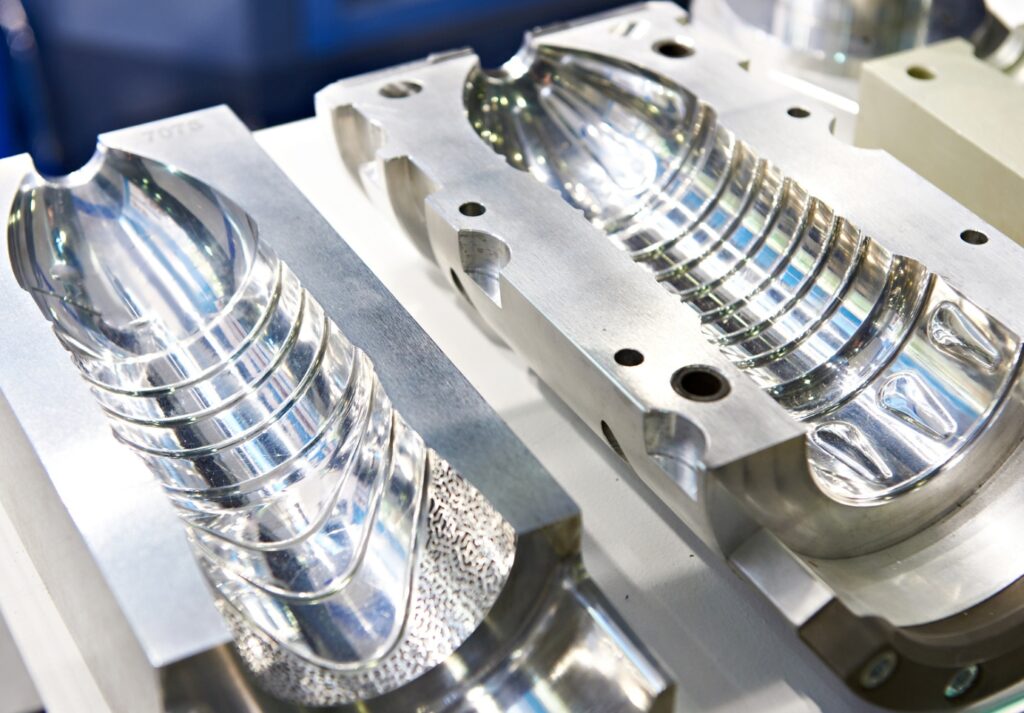

- Molds
- Die Sets
- Fixtures and Jigs
Design Guidelines for 5-Axis CNC Machined Parts
Good 5-axis machining starts before programming. These design rules help reduce machining time, avoid tolerance disputes, and improve part consistency.
Internal Radii
Avoid sharp internal corners. CNC milling tools are round, so internal corners require a radius. Larger internal radii allow stronger tools, shorter machining time, and lower cost. If a mating part needs a sharp inside corner, consider a dog-bone relief or discuss the assembly requirement during DFM review.
Thin Walls
Thin walls may deflect during machining, especially in aluminum and plastics. Wall thickness should be reviewed based on material, wall height, tool access, and tolerance requirements. If thin walls are unavoidable, Richconn may recommend fixture support, revised toolpath strategy, or tolerance adjustment for non-critical areas.
Deep Cavities
Deep cavities require longer tools, which can increase vibration and reduce accuracy. 5-axis machining can improve tool access by tilting the tool or workpiece, but cavity depth, corner radius, and tool reach still need DFM review before quoting.
Tight Tolerances
Apply tight tolerances only to functional features such as bearing seats, sealing surfaces, mating faces, datum holes, and alignment features. Over-tolerancing non-critical surfaces increases machining time, inspection cost, and scrap risk without improving function.
Datum Strategy
For multi-face parts, define clear datums on the 2D drawing. A practical datum strategy helps maintain positional accuracy across several machined faces and allows CMM inspection to verify the part against the same reference structure used in assembly.
Surface Finish Allowance
Anodizing, plating, polishing, and heat treatment may affect final dimensions. Critical features should specify whether dimensions apply before or after surface treatment. This is especially important for holes, bearing seats, sliding surfaces, and threaded features.
Why Choose RICHCONN's 5-Axis CNC Machining Services?
We have consistently produced the highest quality parts to the highest standards for our customers for more than two decades, and we continue to improve our service capabilities to stand out from the crowd.
Unmatched Precision
Our 5-axis CNC machining achieves tolerances as tight as ±0.002mm, ideal for industries where precision is critical.
Efficient Production
5-axis machining reduces production time by up to 30%, providing faster turnaround times compared to traditional methods.
Superior Surface Finishes
We deliver top-quality finishes with surface roughness as low as 0.4µm, minimizing the need for secondary operations.
Complex Geometry
We produce intricate parts with complex geometries efficiently, perfect for detailed designs and undercuts.
Quality Assurance
Utilizing advanced inspection tools such as the CMM, our defect rate is less than 0.01%, ensuring that you receive high quality parts.
Global Reach and Service
With offices in Shenzhen and Hong Kong, we serve customers worldwide. Our customer management system provides real-time order tracking for transparency.
Advanced 5-Axis CNC Machining Machines
We pride ourselves on using the most advanced 5-axis CNC machining machines available.

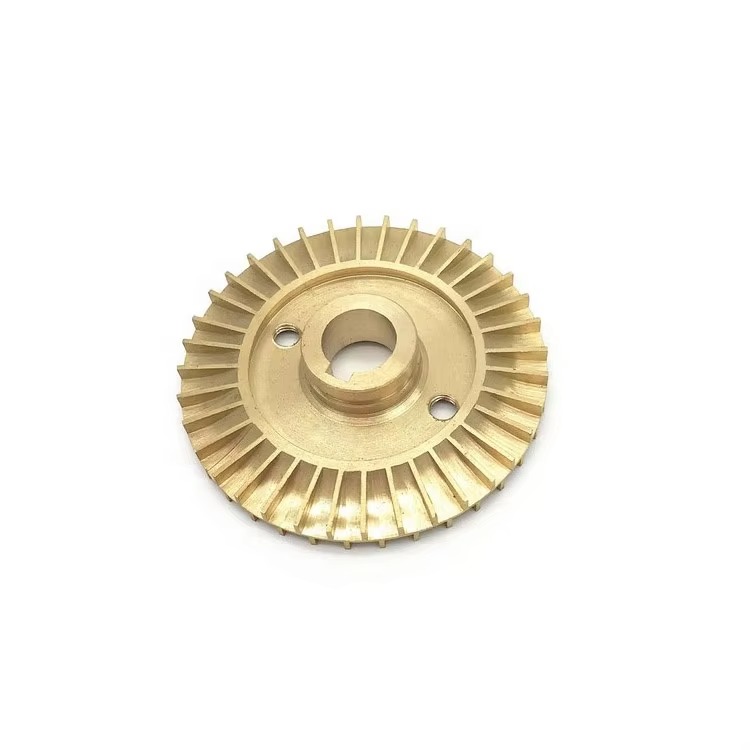

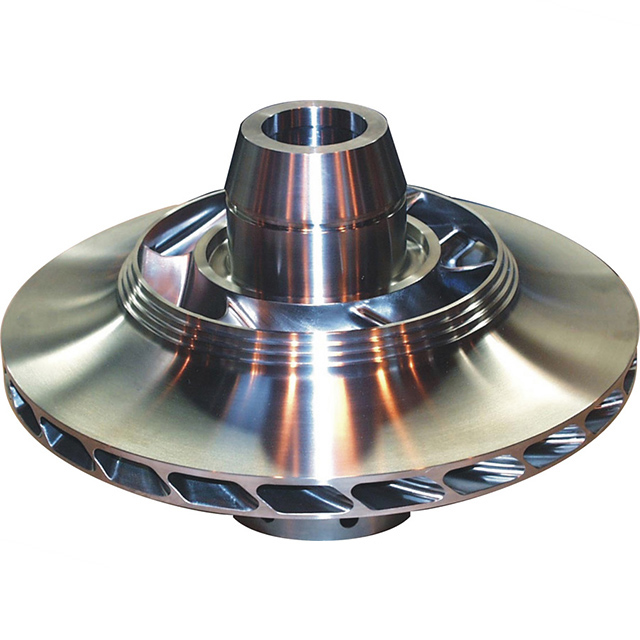

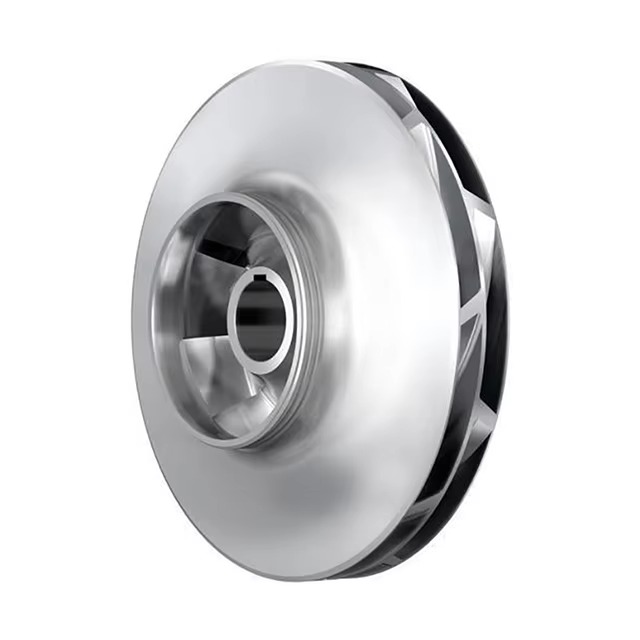

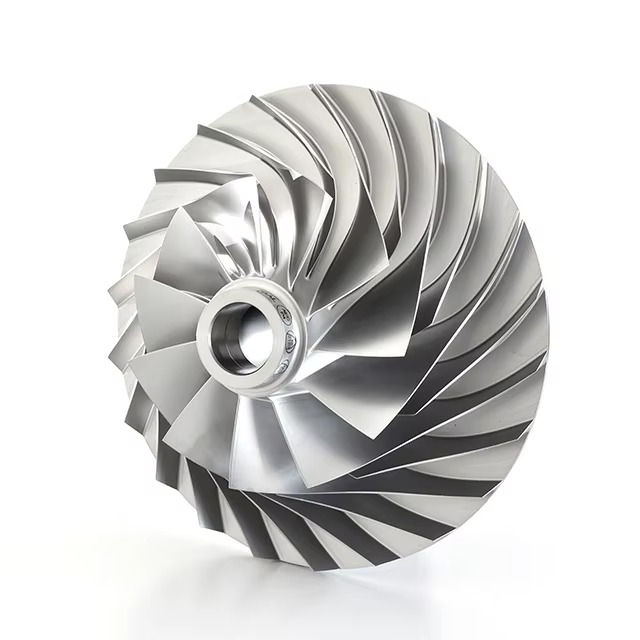

5-Axis CNC Machining Parts Gallery
FAQs about 5-Axis CNC Machining Services
Below are some of the most frequently asked questions to help you better understand our capabilities, processes, and the benefits of working with us.
We specialize in machining various materials such as aluminum, steel, titanium, brass, copper, and an array of plastics.
Our 5-axis CNC machines can handle parts up to 54.53 inches in length, 47.24 inches in width, and 35.43 inches in height.
Absolutely. Our engineering team provides comprehensive design and consultation services to optimize your projects for 5-axis CNC machining.
Typically, we deliver prototypes within 2-3 weeks and production runs within 4-6 weeks. We also offer expedited services for urgent projects.
We assign a dedicated project manager to each client who serves as the main point of contact. Regular updates are provided throughout the project, ensuring transparency and prompt communication.
Yes, we provide a range of post-machining services including assembly, finishing, coating, and heat treatment.
Ready to Experience Our 5-Axis CNC Machining Services?
Choose Richconn for your next project and benefit from our precision, efficiency, and expertise. Contact us today to discuss your requirements!
