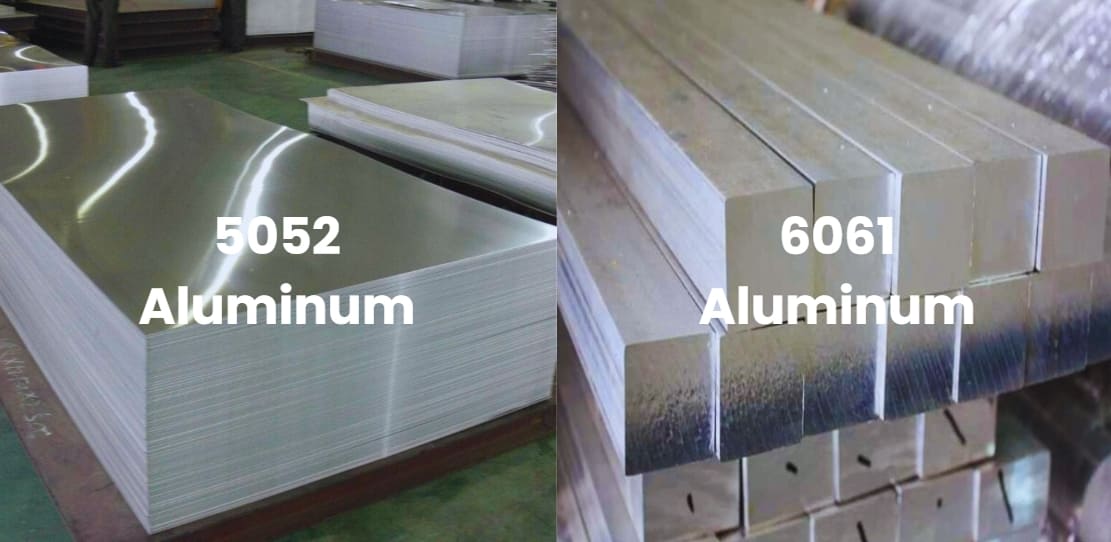

In manufacturing and engineering fields, 5052 and 6061 aluminum alloys are used a lot. These both have their own distinct properties and meet unique industrial needs.
This blogpost presents a clear comparison of their uses, performance characteristics as well as properties. This will help you pick the right one for your specific use case.
Chemical Composition
5052 Aluminum
Magnesium is the main alloying element in 5052 aluminum which accounts for about 2.2% to 2.8%. Moreover it contains chromium in the range of 0.15% to 0.35%. The remainder is aluminum which accounts for approximately 97.25% of alloy.
6061 Aluminum
Alloy 6061 contains silicon (0.4% to 0.8%) and magnesium (0.8% to 1.2%) as the primary additives. It also contains little amounts of chromium (0.04% to 0.35%) and copper (0.15% to 0.4%). The remainder is aluminum which is almost 95.85% to 98.56%.
Also See: 2024 Aluminum vs. 6061 Aluminum_ A Complete Guide
Mechanical Properties
Yield Strength
The yield strength of 5052 aluminum is approximately 130 MPa which allows it to handle adequate loads without deforming. However 6061 aluminum is notably ahead of 5052 in this regard as it has a yield strength of about 240 MPa. This greater yield strength enables 6061 to withstand higher stresses in intensive uses.
Tensile Strength
The tensile strength of 5052 aluminum ranges from 210 MPa to 260 MPa which makes it good for moderate strength uses. On the other hand the tensile strength of aluminum 6061 is around 290 MPa to 310 MPa. This higher strength makes 6061 better suited for more load‐bearing and heavy‐duty uses.
Fatigue Strength
5052 aluminum exhibits better fatigue strength with a fatigue tolerance of about 115 MPa to 125 MPa. This performance is better than 6061 aluminum whose fatigue strength is usually between 96.5 MPa to 97 MPa.
Hardness (Brinell)
The Brinell hardness of 5052 aluminum is roughly 60HB to 61HB. This comparatively low hardness indicates that it is soft & easy to shape.
Whereas 6061 aluminum shows a higher hardness of approximately 93HB to 95HB. This greater hardness gives better resistance to wear and stress.
Effect on Applications
The superior strength and hardness of 6061 aluminum make it a great material for aerospace, structural and heavy‐load parts. In contrast the impressive formability and fatigue strength of 5052 aluminum make it useful for marine, automotive and other uses where continuous bending or vibration is involved.
Corrosion Resistance
5052 Aluminum:
Because of the absence of copper and its high magnesium content, 5052 aluminum effectively resists corrosion. It performs particularly well in seawater and marine conditions. If your intended use involves constantly being exposed to harsh conditions then 5052 aluminum is a better choice.
6061 Aluminum:
6061 aluminum offers good overall corrosion resistance. However the presence of copper in it decreases its performance in marine settings in contrast to 5052 aluminum. You can increase its corrosion resistance through applying protective coatings or by anodizing.
Formability and Workability
5052 Aluminum:

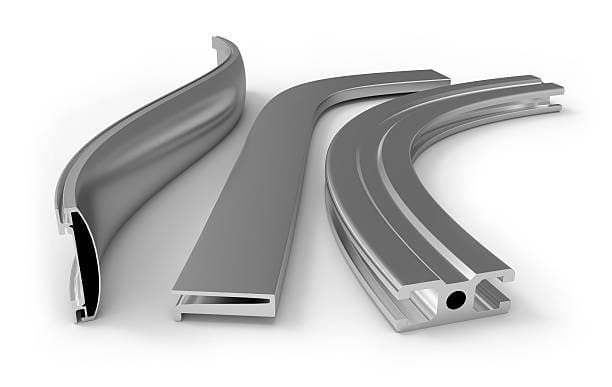

5052 alloy gives excellent formability. You can perform deep draws & intricate bends with no danger of cracking. Its bendability and high ductility are beneficial for uses that demand continuous forming operations or detailed shapes.
6061 Aluminum:
In completely annealed (O) temper, 6061 aluminum offers fine formability. Nonetheless it becomes less flexible in the T6 & T4 tempers. In these situations larger bend radii are required to avoid cracking. This is why 6061 aluminum is more appropriate for applications with typical forming requirements.
Weldability and Machinability
5052 Aluminum:

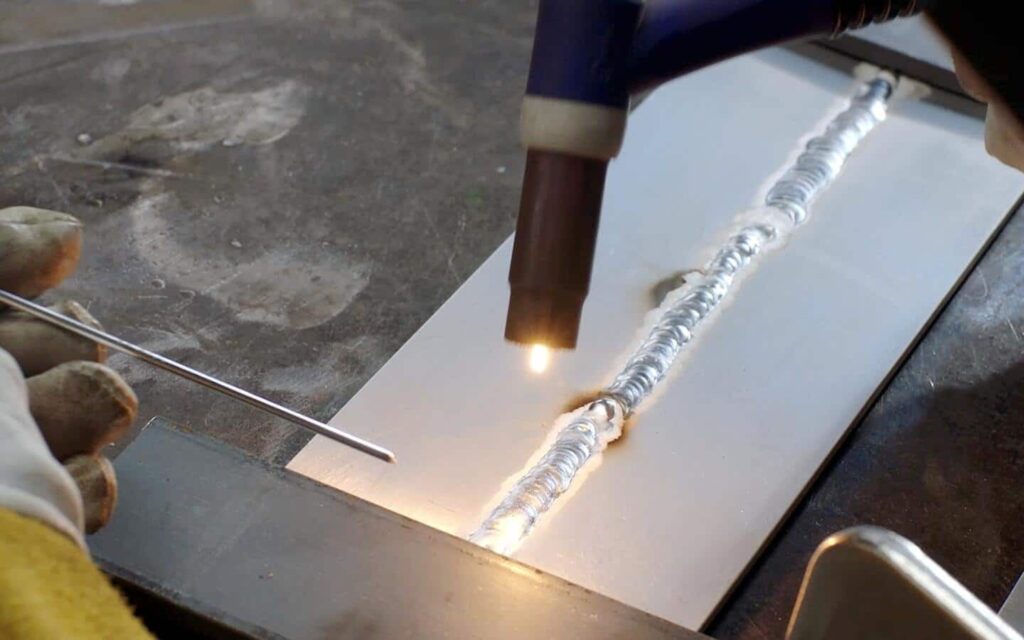

5052 aluminum has superior weldability particularly in marine environments. It has a low risk of cracking and does not need post‐weld heat treatment. However 5052 can be difficult to machine because of its soft properties. You should operate on low machining speeds (around 8000 RPM) and use sharp tools to avoid galling.
6061 Aluminum:
Welding 6061 aluminum needs careful processes. To prevent hot cracking it is required to preheat the alloy to 150°C to 200°C and also use 5356 or 4043 filler metals. At RICHCONN, our expert welders adhere to these recommended procedures. After welding, personalized surface finishes are applied to obtain the required strength and aesthetics.
Heat Treatment and Hardening
5052 Aluminum:
5052 aluminum cannot be strengthened by heat treatment because it is non‐heat‐treatable. Alternatively, cold working processes – such as bending or rolling – enhances its strength and hardness.
6061 Aluminum:

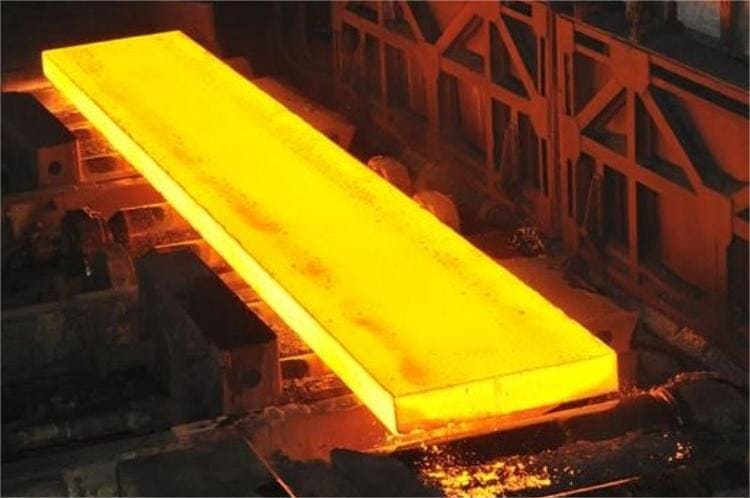

As compared to 5052, 6061 aluminum can be heat treated. It gains greater strength by artificial aging – usually to a T6 temper – after solution heat treatment. The alloy is first heated to about 985°F then quenched immediately, and then aged at 325°F to 400°F. This procedure greatly increases its strength and hardness.
For precision parts such as medical device components, RICHCONN carefully balances controlled heat treatment and surface finishing. This guarantees the best visually appealing appearance and mechanical performance of your products.
Cost and Availability
5052 Aluminum:
5052 Aluminum is usually more budget‐friendly – priced between $1.90 & $3.90 per kilogram – which relies on the thickness and supplier. Its widespread use in the automotive and marine industries ensure stable availability worldwide.
6061 Aluminum:
6061 aluminum is a bit expensive which costs around $2.20 to $4.00 per kg for plates and sheets. T6 tempers generally fall in higher price range. However due to its widespread use in structural and aerospace sectors, 6061 aluminum is conveniently available from international suppliers.
Common Uses
5052 Aluminum:

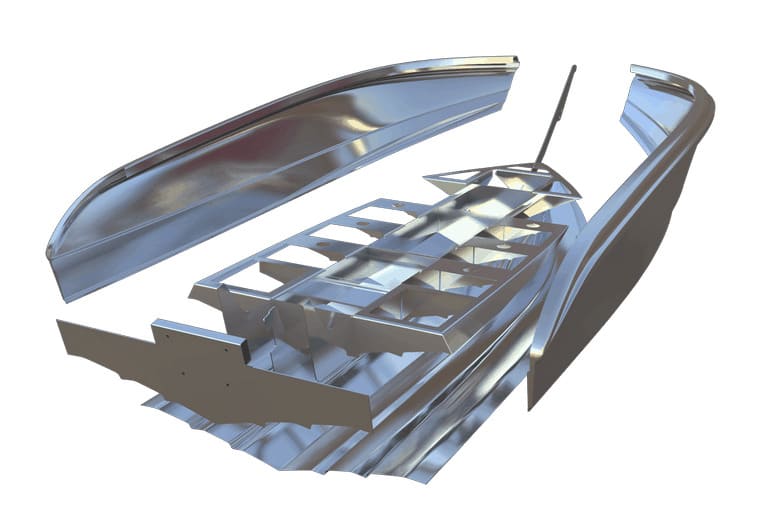

Because of its resistance to corrosion, it is greatly appreciated for marine uses which comprise decks, boat hulls as well as fuel tanks. For example at RICHCONN, we typically pick 5052‐H32 aluminum for waterproof electrical enclosures where durability & light‐weight strength are very important.
6061 Aluminum:

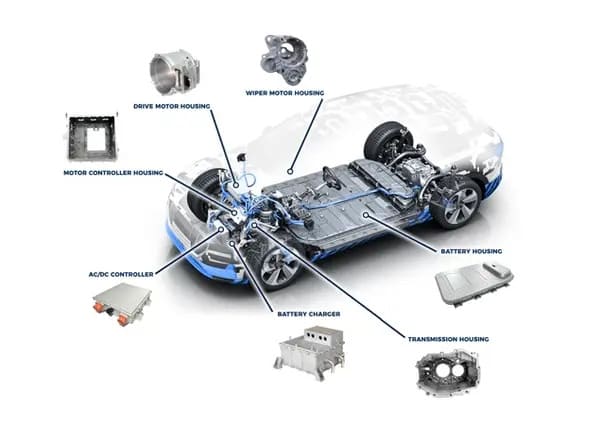

6061 aluminum is excellent for high‐strength and structural use cases. It’s commonly used to make automotive & aircraft parts, bridge components, bicycle frames and construction frameworks.
Comparison Table: 5052 vs 6061 Aluminum
| Property | 5052 | 6061 |
|---|---|---|
| Yield Strength | approximately 130 MPa | approximately 240 MPa |
| Tensile Strength | 210 MPa to 260 MPa | 290 MPa to 310 MPa |
| Corrosion Resistance | Excellent (marine‐grade) | Good, less in saltwater |
| Brinell Hardness | ~61 HB | ~95 HB |
| Heat Treatable | No (cold working only) | Yes (particularly to T6 temper) |
| Density | 2.68 g/cm³ | 2.70 g/cm³ |
| Formability | Great; Perfect for bending & deep drawing | Adequate; superior in annealed state, less in T6 |
| Applications | Automotive, marine, enclosures | Automotive, aerospace, frames |
Selecting Between 5052 vs 6061 Aluminum
The particular requirements of your project will decide whether 5052 or 6061 aluminum is the better option.
If your project includes chemical exposures, marine settings or detailed sheet metal forming then 5052 aluminum is perfect. On the other hand 6061 aluminum is more appropriate for aerospace, structural or automotive parts.
Both alloys are readily available and reasonably priced. Proper matching of alloy properties to project requirements ensures optimal performance.
Also See: Comparing 6061 vs 7075 Aluminium_ Which is Right for You?
Case Study: Precision Machining 6061-T6 for Aerospace
The comparison between 5052 and 6061 aluminum outlined above points to a clear conclusion: 6061-T6 is the preferred choice when a part demands structural integrity, tight dimensional tolerances, and the ability to be machined to a precise finish. The following case from Richconn’s engineering team puts that conclusion to the test in a demanding aerospace context.
- Part: Bottom Housing
- Industry: Aerospace
- Material: 6061-T6 Aluminum
- Process: CNC Machining Center
- Quantity: 20 pieces
The Challenge
This thin-wall enclosure component had a nominal wall thickness of just 1 mm, with a tolerance of −0.05 mm. On top of that, the customer required a flatness of 0.05 mm and parallelism of 0.05 mm across the part — geometric tolerances that are difficult to achieve in any thin-wall aluminum part, let alone one being produced in a production run.
The root cause of the difficulty is the same property that makes 6061-T6 attractive in the first place: its strength. The T6 temper introduces residual stress into the material through solution heat treatment and artificial aging. When metal is then removed during machining, those internal stresses redistribute and cause the part to distort. In a thick section, distortion is manageable. In a 1 mm wall, even minor stress release pushes the part outside of a 0.05 mm flatness band. The customer had experienced high scrap rates and elevated production costs as a result.
The Solution: Stress Relief, High-Speed Machining, and 100% Inspection
Richconn’s engineering team addressed the problem across three process stages:
- Pre-machining annealing — The raw 6061-T6 stock was annealed before any cutting began. This step releases the residual stress locked in by the T6 temper, giving the material a more neutral internal state before metal removal starts. Without this step, even a well-planned machining sequence will fight against internal forces it cannot see.
- High-speed roughing with a custom vacuum fixture — A machining center running at 20,000 RPM was selected to minimize cutting forces and heat input. The part was first rough-machined with 0.5 mm stock left on all surfaces, then repositioned in a purpose-built vacuum fixture for the finish pass. Vacuum fixturing is critical for thin-wall parts: conventional clamping introduces clamping deformation that disappears when the part is released, making in-process measurements unreliable. Vacuum holding distributes load evenly across the face and does not distort the part during cutting.
- 100% in-process and post-surface-treatment inspection — Given the tight tolerances and thin walls, sampling inspection was not sufficient. Every part was checked during machining. After surface treatment — which can itself introduce minor dimensional changes — all 20 pieces were inspected again before shipment.
The Result
The adjusted process brought the pass rate to 99%, eliminating the scrap and rework that had driven up the customer’s costs. All parts shipped with flatness and parallelism within the 0.05 mm requirement, satisfying the aerospace customer’s dimensional requirements in full.
What This Case Illustrates
This project reinforces a point that the 5052 vs. 6061 comparison raises but does not fully resolve: choosing 6061-T6 for a precision machined part is the right call for strength and machinability, but it shifts the manufacturing challenge from material selection to process design. The T6 temper that gives 6061 its structural performance is also the source of the residual stress that makes thin-wall machining difficult. Managing that stress — through annealing, staged material removal, appropriate fixturing, and rigorous inspection — is what separates a reliable production process from one that generates scrap.
For engineers specifying 6061-T6 in thin-wall or close-tolerance applications, the takeaway is straightforward: the alloy can meet demanding geometric requirements, but only when the machining process is engineered around the material’s behavior, not just its nominal properties.
To Sum Up
Each aluminum alloy – 5052 & 6061 – has its own special qualities. 6061 provides better machinability and strength. On the other hand 5052 offers superior formability and corrosion resistance. The choice between these two alloys should match specific needs of your particular project.
Whether you need the structural strength of 6061 or the corrosion resistance of marine‐grade 5051 Richconn can help you with their CNC machining & sheet metal fabrication services. You can contact us anytime.
Related Questions
Can 5052 aluminum undergo heat treatment in the same way as 6061?
No you cannot heat treat 5052 to increase its strength. 5052 is a non‐heat‐treatable alloy. The only way to enhance its strength is by cold working.
Which aluminum alloy is more appropriate for marine use, 5052 or 6061?
For marine uses 5052 aluminum is better. It has superior resistance to corrosion in salt water. This is why 5052 is usually chosen for marine tanks, boat hulls and other marine structures.
How is machinability of 5052 different from 6061 in manufacturing procedures?
Machinability of 6061 aluminum is better compared to 5052. It causes less tool wear and also makes smaller chips. Whereas the ductility of 5052 makes it very hard to machine.
Is 6061 aluminum appropriate for aviation purposes?
Yes 6061 aluminum is often chosen for aviation purposes. It offers better mechanical properties & strength. 6061 aluminum is frequently used in wings, aircraft frames & structural parts.
Can 5052 aluminum be used for structural uses like 6061?
5052 aluminum is good for some structural applications. But for load‐bearing or heavy structural uses 6061 aluminum is better decision. It provides superior stiffness & strength.
How is strength‐to‐weight ratio of 5052 in contrast to 6061?
6061 aluminum has a higher strength‐to‐weight ratio than 5052. Although there is a slight difference in density of these two alloys; even so 6061 offers greater yield & tensile strength.
Which aluminum alloy is more budget‐friendly, 5052 or 6061?
Usually 5052 aluminum is less expensive as compared to 6061 aluminum. The reason is its simpler chemical composition and relatively less alloying elements.
