Aerospace CNC Machining: Materials, Techniques, DFM & Guide

Aerospace components must withstand high temperatures, intense stress and harsh environments. CNC machining meets these challenges with computer-controlled precision. This technology delivers consistent quality and reliability.

In this blog post you will learn key materials, core techniques as well as practical design tips for machining parts in aerospace. This will show you why CNC machining is compulsory for modern aerospace manufacturing.

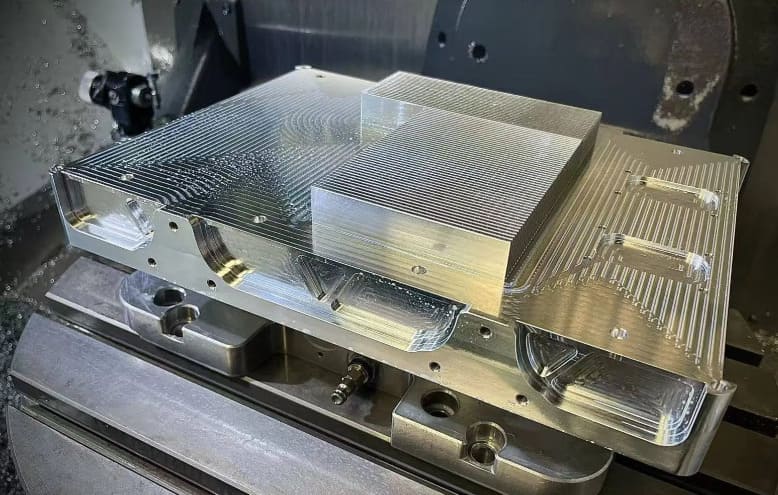

What is Aerospace CNC Machining

Aerospace CNC machining uses advanced machines controlled by computers to make accurate parts for aircraft & spacecraft. These machines achieve tolerances as tight as ±0.005 mm and this meets strict safety & performance standards. This process allows for complicated shapes and exact fits along with high reliability in flight‐critical components.

Materials Mostly Used in Aerospace CNC

Specialized materials are vital in aerospace CNC machining. They combine low weight, high strength and resistance to heat or corrosion. Every material offers unique benefits. Therefore choice of the right one affects how the part performs, its safety as well as the overall project cost.

Material	Key Properties	Common Applications	Machinability Challenges
Aluminum Alloys (7075, 2024)	High strength-to-weight, <2.8 g/cm³ density, good corrosion resistance	Fuselages, wings, spars	Easier to machine at 800-1,200 SFM; minimal tool wear
Titanium Alloys (Ti-6Al-4V)	Strength comparable to steel, 40% lighter, withstands 600°C+	Landing gear, engine mounts	Low thermal conductivity causes work hardening; needs 50‐150 SFM speeds
Nickel Superalloys (Inconel 718)	Maintains 150,000 PSI yield strength at 1,200°F	Turbine blades, combustion chambers	Generates cutting forces 2.5x greater than steel; demands 30‐60 SFM speeds
Tool Steels (H13)	Hardness range 44‐54 HRC; excellent thermal fatigue resistance	Dies, molds, tooling fixtures	Requires carbide tooling; heat treatment affects machinability
Exotic materials	Varies (e.g., Inconel: heat‐resistant; Beryllium: lightweight)	Satellite, electronic parts	Varies, safety/ process limits
Composites (CFRP, PEEK)	High stiffness-to-weight, low thermal expansion	Control surfaces, interiors, UAVs	Delamination risk; requires diamond-coated tools

Also See: Guide to Aluminium CNC Machining

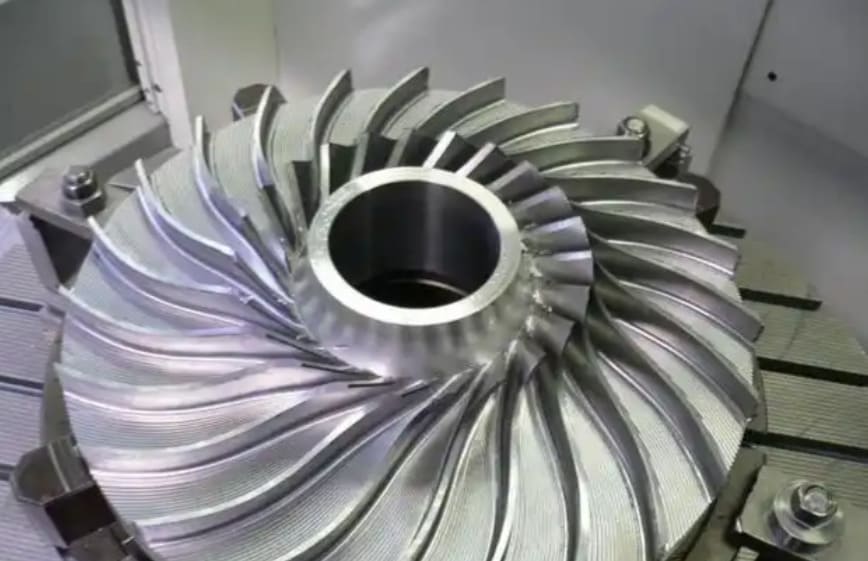

Machining Processes & Techniques in Aerospace

Aerospace manufacturing relies on particular machining operations to form parts with complicated shapes and high precision. Every technique serves different geometry and material needs.

1. Milling (3-, 4-, 5-axis CNC)

CNC milling forms aerospace parts by cutting away material with fast‐spinning tools. 3‐axis milling handles basic shapes. Whereas 5‐axis machines can produce complicated profiles, such as turbine blades, with tolerances as close as ±0.001 mm. Using multi‐axis milling, designers add intricate features and reduce the number of setups which speeds up production.

2. Turning & Mill‐Turn

CNC turning forms round parts like shafts, fasteners as well as bushings for aircrafts. This process uses a cutting tool that stays still while the material rotates.

Mill‐turn machines, on the other hand, combine turning and milling in one unit. This integration makes it easier to produce complicated shapes. Moreover, using both functions together removes the need for multiple fixtures and cuts down production time.

3. Drilling

CNC drilling makes accurate holes for fasteners, wiring and hydraulic lines. This process can reach tolerances of ±0.005 inches. Aerospace drilling often uses solid carbide or diamond coated bits to work with hard materials such as titanium. Additionally peck drilling helps avoid chip buildup and keeps holes clean, in particular for deep drilling.

4. Boring

Boring enlarges holes that have already been drilled, and fixes any size errors. This method improves concentricity and gives a better surface finish as compared to drilling alone. Fine boring can reach depth‐to‐diameter ratios up to 6D while holding tight tolerances. This process is important for parts like turbine housings, landing gear & engine blocks.

Also See: CNC Drilling vs CNC Boring

5. Tapping

Tapping creates internal threads in holes that have been drilled before. Aerospace parts often use UNJ thread standards to improve fatigue resistance.

Chip control depends on tool style: spiral point taps move chips forward in through‐holes while spiral flute taps pull them back.

When tapping titanium, the whole size should be 78‐82% of the thread size. This size is higher than the usual 75‐77% to reduce friction.

6. Threading

CNC threading is used to cut screw threads, both inside & outside, on parts such as shafts and fittings. Thread mills or lathes are used to produce fine threads with micron‐level precision. This process is vital for moving parts and critical joins in aerospace. It can create threads with pitches as small as 0.5 mm. It assures strength and proper fit along with vibration resistance – all of which are important for flight safety.

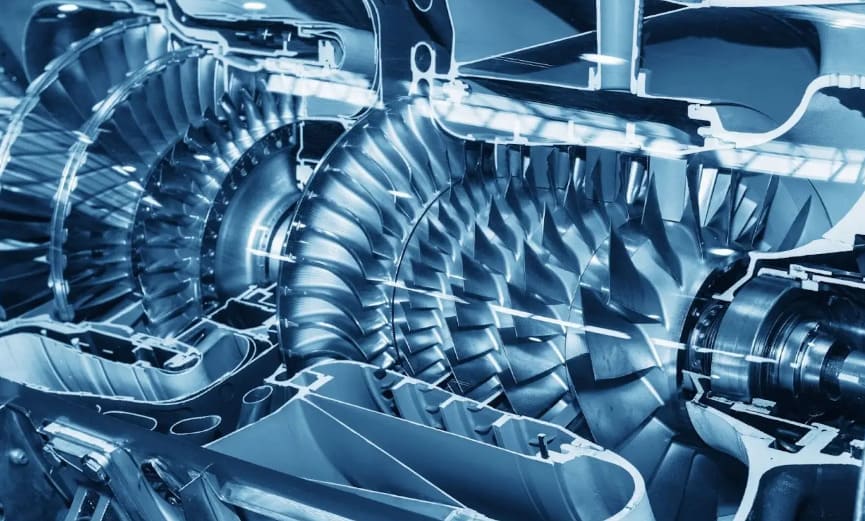

Design for Manufacturability (DFM) in Aerospace CNC

Design for Manufacturability (DFM) has a key role to keep aerospace machining affordable. DFM links design objectives with actual manufacturing processes. You have to follow DfM principles to cut production costs by 15 to 40%.

• Optimize Tolerances: Focus on tolerances that are vital for the part’s function. Setting tolerances tighter than ±0.05 mm mostly raises both machining time & expenses. Use looser tolerances for non critical features to make machining easier.
• Add corner radii: Use a minimum internal corner radius of 0.030″ (0.76 mm). This is necessary as sharp corners force the use of small diameter tools which can double programming time.
• Maintain consistent wall thickness: Keep wall thickness above 0.8mm (0.03 inches). Thicker walls help prevent warping & vibration during machining. On the other hand, thin walls are more likely to deform under cutting forces and cause errors.
• Align features with axes: Place holes and slots so they run parallel to the X, Y or Z axes(along the 3-axis). This is because 5‐axis machining costs 300 to 600% more than 3‐axis work. Good alignment cuts down on setup changes and also avoids complicated programming.

If you are not sure your design is ready for machining, send your CAD file to RICHCONN. We provide a free DFM review to help you save money and speed up your project.

Challenges & Solutions

CNC machining for aerospace faces unique obstacles. Effective solutions are needed to keep parts accurate and production efficient. Some main challenges and their solutions are listed below.

1. Precision Tolerances & Complicated Designs: Aerospace parts often need tolerances as tight as ±0.002 mm and complicated 3D forms. Multi axis CNC machines and advanced CAD/ CAM software help here by creating optimized tool paths.
2. Hard‐to‐Machine Materials: Cutting materials like titanium, Inconel and advanced composites is difficult because they resist heat and wear. Use of specialized cutting tools such as those with carbide or DLC coatings along with adjusting feed rates for each material not only extends tool life but improves cutting results too.
3. Rigorous Quality Control: Each part must pass thorough inspections. Critical checks must take place at several stages. For this use in‐process metrology, non‐destructive testing as well as post‐process verification.

At richconn, our team meets these challenges by using advanced multi axis CNC machines, high performance tooling and digital inspection systems. We tailor these solutions for complicated aerospace projects.

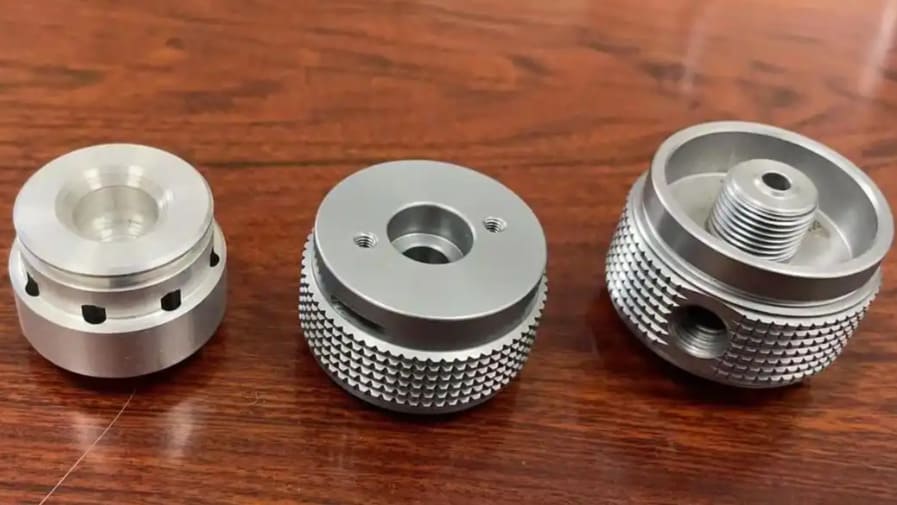

Uses of Aerospace CNC Machined Parts

Aircraft Structural Components

Manufacturers use CNC machining to create key aircraft structures such as fuselage frames, wing spars, landing gear, etc. High strength aluminum and titanium alloys are the most used materials for these parts. Five‐axis milling machines handle complicated contours on flaps and ailerons which reduces the number of setups needed.

Avionics & Electronics

CNC machines produce housings for avionics, connectors as well as for sensor mounts in control and monitoring systems. Many of these parts need features machined to ±0.05 mm for a secure fit and reliable electrical connections. High precision CNC work improves electromagnetic shielding, allows fast data transfer and also assures smooth integration with advanced flight electronics.

Spacecraft Components

CNC machining creates vital components for spacecraft and satellites such as thruster nozzles, propellant tanks and lightweight frames. Materials like Inconel & titanium resist extreme temperatures and survive in the vacuum of space. Therefore accurate machining is important for the reliability of probes and rovers during missions.

Engine Components

Aerospace engines rely on CNC machined parts for critical functions. Five‐axis milling shapes complicated turbine blades and compressor disks from superalloys. Fuel nozzles and diffusers are made with strict tolerances to achieve top performance. This precision assures engines operate dependably under intense heat & stress.

To Sum Up

CNC machining in aerospace delivers the precision and material flexibility needed for parts in aircraft, spacecraft and engines. Success in this sector depends on mastering advanced techniques, holding tight tolerances and using DFM principles to meet strict industry requirements.

For aerospace CNC machining that fulfills demanding standards and delivers precise results, choose Richconn. You can contact us anytime.
