The metal fabrication field has undergone a great transformation because of plasma cutting technology. This modern process gives great accuracy and performance which makes it the best choice for businesses that want to minimize expenses and boost productivity. Our all-inclusive guide will cover everything from the basic process and machinery types to safety precautions and different uses.

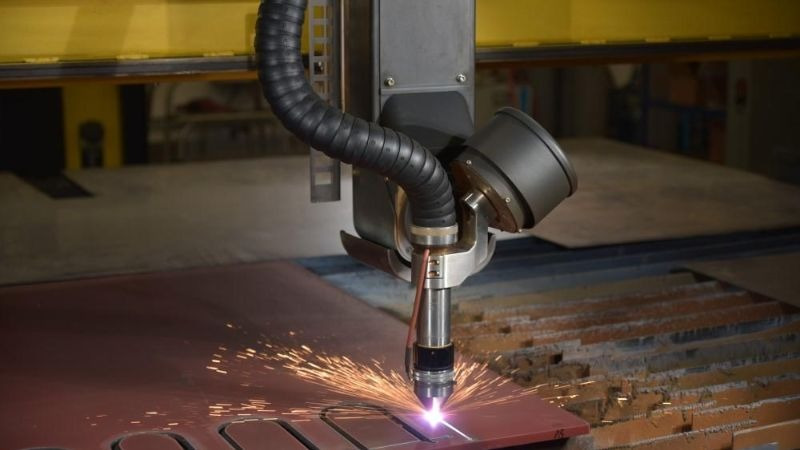

What is Plasma Cutting?
Plasma cutting is a complicated thermal cutting technique that uses the power of a high velocity jet of ionized gas. This jet which is known as plasma melts and removes conductive metals to create exact cuts in substances up to 150mm. The process uses very high temperatures which helps it to get extraordinary accuracy. Many fabrication operations use this method because of its ability to keep balance between fine-tuning, speed and affordability.
Plasma Cutting Process

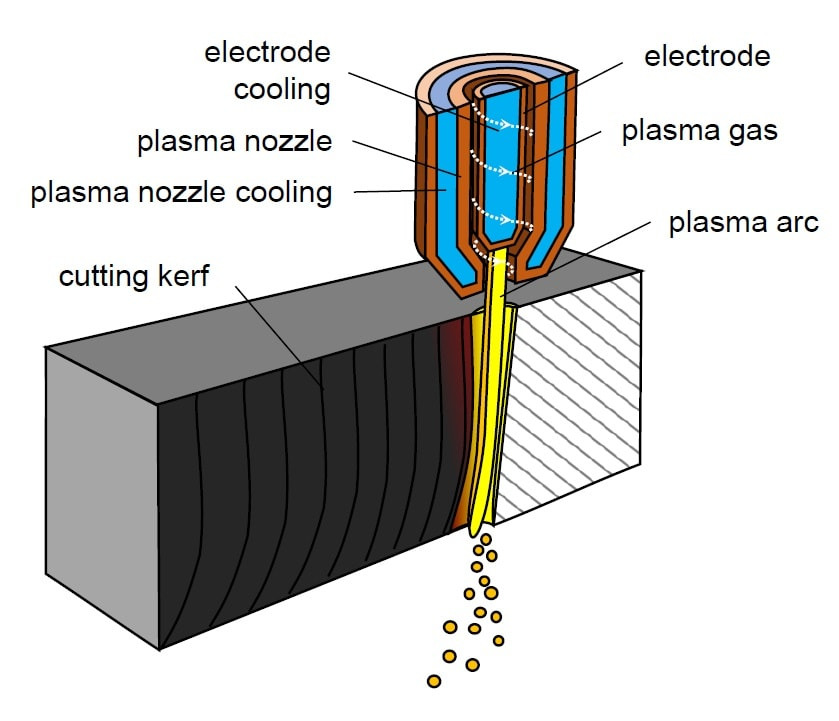

The plasma cutting process has different complicated steps, with pilot arc initiation as the very important starting point.
1. Pilot Arc Initiation
To start this cutting process, a lower current discharge known as the pilot arc is made. This arc is produced when a higher voltage potential is created between the nozzle and electrode. When gas goes along the torch, the pilot arc changes it into an ionized state and electrical pathway is made. Then, this ionized gas is moved to the workpiece and makes a path for the main cutting arc.
2. Main Arc Generation
After the formation of an electric connection by the pilot arc, the main cutting arc is produced. The power supply ramps up the current and this results in a greater energy plasma jet. With temperatures more than 20,000°C, this jet passes from the electrode through nozzle to the metal. For proficient cutting, the power connection to the nozzle is disconnected which concentrates the arc entirely between the component and electrode.
3. Melting and Heating
The nozzle narrows the high velocity jet which directs high thermal energy on a particular area of the workpiece. This heat increases the metal’s temperature very fast beyond its melting point. Also, the kinetic energy of plasma helps in breakdown of atomic bonds and this facilitates the material’s conversion from solid to liquid. Because of melting, a thin kerf is produced that assures accurate cutting.
4. Material Ejection
When a plasma jet liquefies the material, high speed gas throws out the melted substance from the kerf. This action produces a clean cut with low waste. For mild steel, removal rates can go 150 cm3/min. The performance of this ejection process depends on different factors such as cutting speed, gas pressure and properties of the substance.
5. Arc Movement
CNC systems control the plasma arc across the material automatically. These systems have cutting speeds under 100 inches per minute when working with 0.25” thick steel. To make sure of best cut quality, precision systems keep a stable distance between ±0.01” and 0.05”. This exact control permits bevel angles as low as 1 to 3 degrees.
Parts of a Plasma Cutting System
Learning about the necessary elements of a plasma cutting is very important to master the complexities of this method.
Power Supply
The main part of this system is power supply. It transforms AC into DC and delivers 200 to 400 VDC to regulate the plasma arc. The power supply changes current output according to the substance being cut and makes sure of best performance.

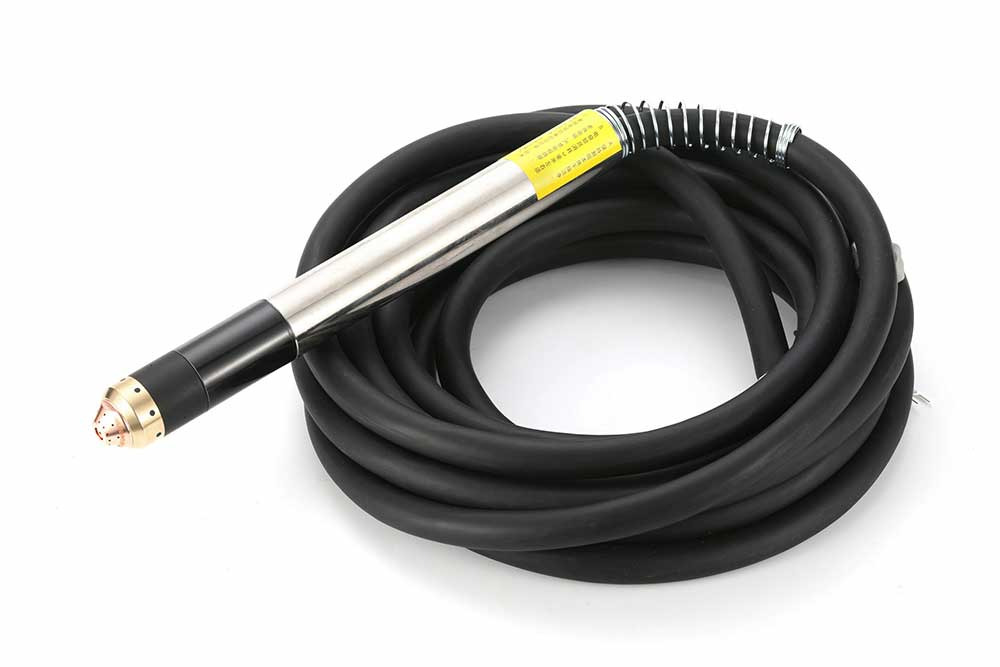

Plasma Torch
Directing the high temperature plasma jet onto the material is the job of the plasma torch. This component comprises a nozzle, electrode and shield cap. Its well-built construction can go through extreme temperatures (up to 16,650°C).
High Velocity Plasma Jet
The nozzle shrinks the arc and creates a high speed jet. This jet gains high temperatures and great speed up to 20,000 m/s. As it melts and removes substance, it helps in exact cutting.
CAD File
3D or 2D design is saved in CAD files, usually in .dxf format. These files perform a very important part in CNC plasma cutting, as they give the best translation of designs into G-code for machines to work.
CNC Machine
Torch movement is regulated with high precision by the CNC machine, with accuracy up to ±0.005“. By translating G-code from CAD files, this component can cut complicated workpieces at high speeds.
Arc Starting Console
To start plasma arc, the Arc Ignition Console produces a high voltage and high frequency spark. This process ionizes the gas which makes a current carrying passage between the nozzle and electrode.
Types of Plasma Cutting Machines
The plasma cutting industry has a broad range of machines, each made for particular uses.

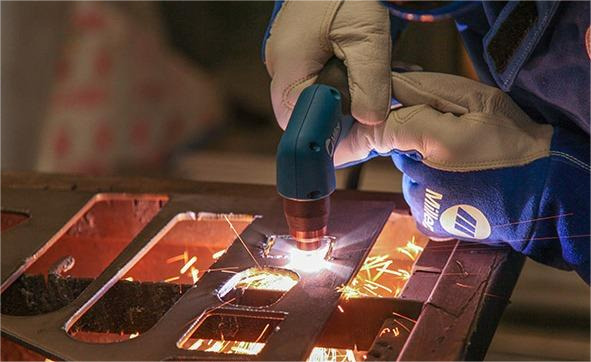

Handheld Plasma Cutters
Ease of use defines handheld plasma cutters which makes them best for manual work. These lightweight units run on 240V or 120V power sources and can cut materials almost 1.5″ thick. Their multifunctionality is useful in fabrication shops, maintenance tasks and DIY projects. Because of inverter technology, modern handheld cutters give better performance. Some models weigh as low as 19 lbs. that further increases their mobility.

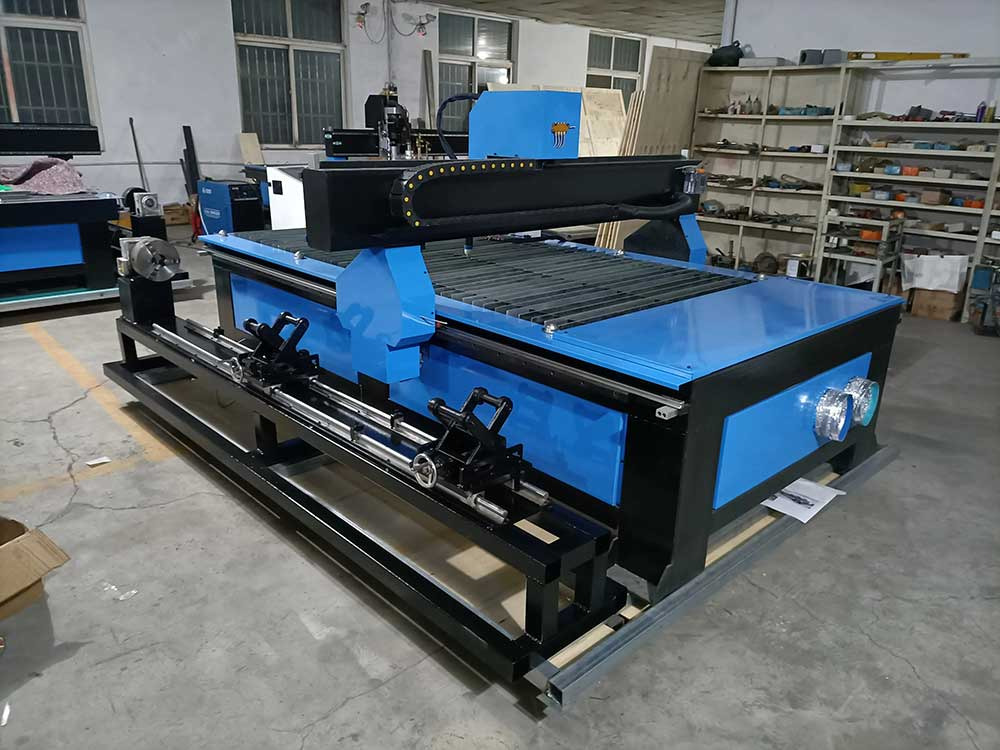

CNC Plasma Cutting Machines
Automation takes lead with CNC plasma cutting machines. These computer-regulated devices give precise cuts at impressive speeds of around 500″ /min. Their capability to handle thick materials makes them invaluable in automotive manufacturing, industrial fabrication and custom metal work.
Inverter vs. Analog Plasma Cutters
Inverter plasma cutters use very high frequency switching (10 to 200 kHz) technology. This tech greatly decreases transformer size and assures portable and lightweight parts. The benefits are not limited to size, as these cutters give better performance and increased arc stability. They can be run on generators also. Users mostly report top level cut quality and fast cutting speeds with inverter models.
On the other hand, analog plasma cutters depend on large mains-frequency transformers. While generally larger and less proficient than their inverter alternatives, analog cutters have their own advantages. Many users find them long lasting. For simple cutting business in fixed workshops, analog can be a budget friendly choice.
Safety Measures in Plasma Cutting
Personal Protective Equipment
Safety in plasma cutting begins with proper outfit. Fireproof clothes give safety from heat. UV protection is very important, so safety glasses with shade 10 to 11 are necessary. Ear safety plugs protect against noise, while heat resistant gloves protect hands. Complete body PPE acts as a main defense against UV radiation, burns and flying waste.
Workspace Safety
A clean and ventilated area is very important for plasma cutting. Proper ventilation systems completely remove harmful fumes. Employees should use a stable work surface and stay 35 feet away from flammable items. Implementing robust fire prevention strategies is very important and fire extinguishers must be easily accessible.
Emergency Procedures
Awareness of first aid kit locations and emergency exits is very important. If an accident happens, work must stop and medical aid should be called quickly. Safety hazards and machine malfunctions need urgent notification to supervisors to make sure of best actions for keeping a safe working environment.
Uses of Plasma Cutting

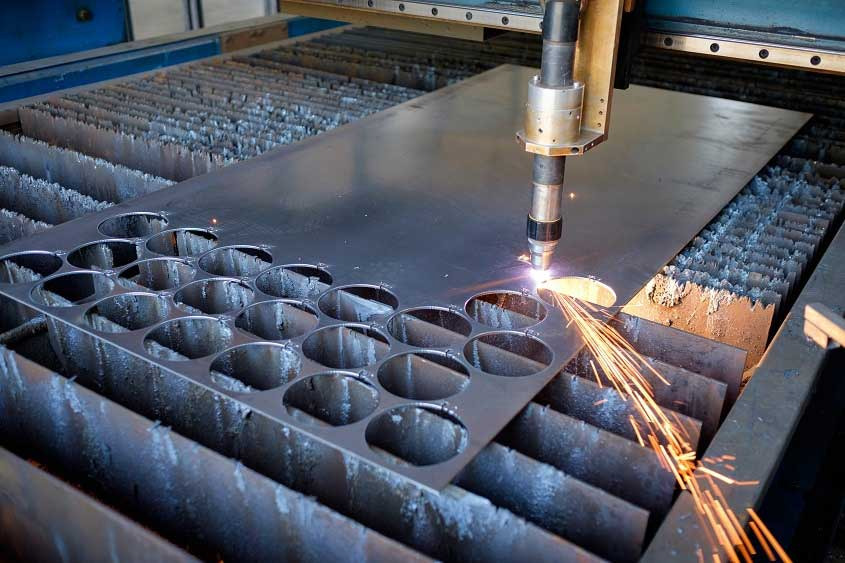

Industrial Manufacturing
In industries, metal fabrication is done using plasma cutting technology. This multifunctional process is best at making exact holes, complicated shapes and surface markings. For substances around 6” thick, plasma cutting is particularly useful. When working with thin substances, it obtains extraordinary cutting speeds.

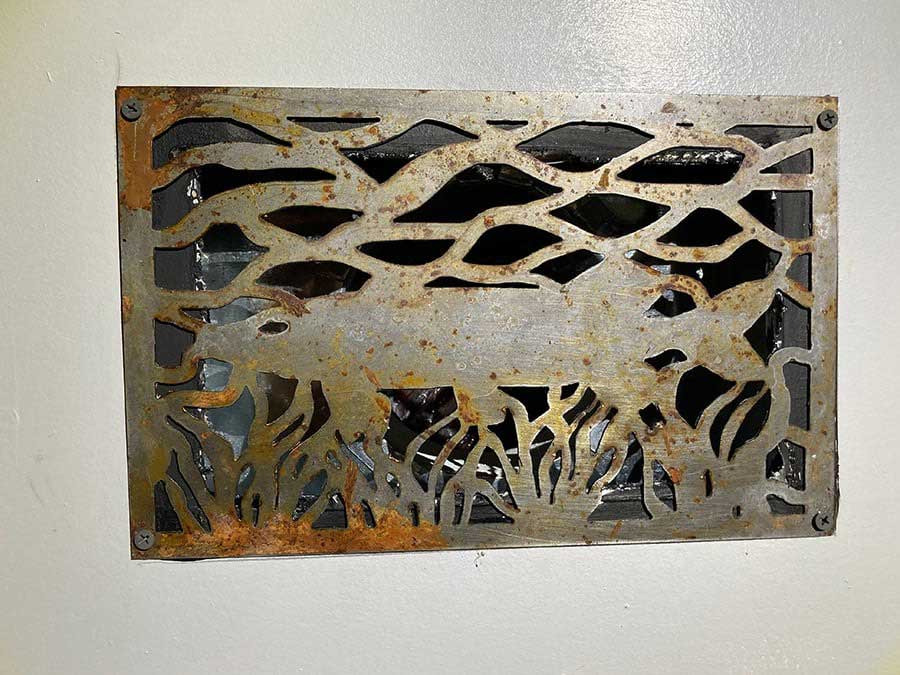

Artistic and Custom Works
Accuracy of plasma cutting has made it famous among carvers and artists. Its abilities are used to make beautiful wall art and designs of metals. These designs are possible in different metals such as brass, aluminum and copper. Because of this, plasma cutting is mostly used in personal works and custom machining.

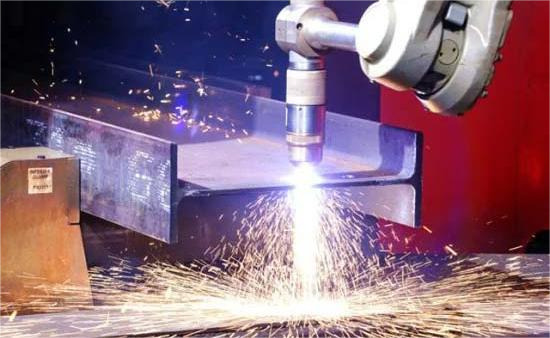

Maintenance and Construction
Construction fields benefit greatly from plasma cutting methods. The mechanism facilitates exact weld gouging, beveling of steel beams and accurate cutting of structural elements. Other than construction, plasma cutting performs a necessary part in demolition works which helps in safe and fast removal of metal structures such as bridges and pipelines.
Benefits of Plasma Cutting
- Speed: Plasma cutting proves is a very fast procedure particularly for metals less than 1″. It works two times faster than oxy-fuel and acquire speeds almost 500”/min on thin substances.
- Precision: High accuracy is a property of plasma cutters, with tolerances as fine as 0.2 mm. CNC tools are very proficient in creating complicated cuts with very little bends. This reduces the need for rework.
- Versatility: A broad type of conductive metals, such as aluminum, steel and copper, can be processed using plasma cutting. It also cut thick substances successfully which make it valuable in different fields.
- Cost-effectiveness: Plasma cutting gives cost benefits by cutting fast and using less energy. The minimum prep work for plasma cutting also helps to decrease overall expenses and increase productivity.
Limitations of Plasma Cutting
- Thickness Issues: For material exceeding 2” thickness, plasma cutting becomes less proficient. The cut quality suffers and this results in high tapering outcome and broader kerfs.
- Heat-Affected Zone: Plasma cutting produces a lot of heat which creates a heat-affected zone. This zone, generally 1 to 5 mm from the cut edge, can change the metal’s properties.
Conclusion
In modern metalworking, plasma cutting sets itself apart as a powerful tool. Its performance and multifunctionality make it necessary for many works. To get its full potential, users must understand about its process, components, and safety measures. From industrial fabrication to artist work, plasma cutting technology continues to shape the world of metal processing.
FAQ’s about Plasma Cutting
1. How thick can a plasma cutter cut?
Plasma cutters can normally cut materials almost 50 mm thick. High tech alternatives can cut up to 6 inches’ thick steel.
2. What are the common consumables used in plasma cutting?
Common plasma cutting consumables are nozzles, electrodes, swirl rings, shields and retaining caps. These parts expire over time and need replacement for maximum productivity.
3. Can plasma cutting be used for artistic operations?
Yes, plasma cutting can be used in artistic practices. Artists make complex decorative pieces, metal designs and wall art with extraordinary designs and accuracy using plasma cutting.
4. What types of gases are used in plasma cutting?
The gases used in plasma cutting are nitrogen, oxygen, hydrogen-nitrogen (F5) and argon-hydrogen (H35). Each gas is appropriate for different thickness and materials.
