By knowing the distinctions between stainless steel and alloy steel, you can save your time, cut costs, and maximize project results. You can make better choices about which type of steel to use by thoroughly comprehending their uses, distinctive characteristics and production methods.
This article will show the main differences between alloy steel and stainless steel. By knowing these differences you will be able to select the best type of steel for your work needs.
What is Alloy Steel?
Alloy steel is a special metal that mixes carbon and iron with particular alloying elements such as molybdenum, nickel or chromium. These additions increase its mechanical properties like resistance to corrosion, strength and toughness. Alloy steel is categorized into two types: low-alloy (having 1 to 5% alloying elements) and high-alloy (more than 5% alloying elements). Every type is designed for explicit industrial uses that demand better performance under difficult circumstances. For example, low-alloy steels are generally used in the automotive industry as in gears and crankshafts. On the other hand, high-alloy steels are used in chemical processing machinery and aerospace structures.
What is Stainless Steel?
Stainless steel is an alloy that resists corrosion and has a min. of 10.5% chromium. This chromium makes a protective oxide layer known as a “passive film“. This film protects the base metal from more oxidation. Generally, stainless steel is composed of 7-9% nickel, 72% iron and 17-19% chromium. They also contain small amounts of manganese, silicon and carbon. Its extraordinary multifunctionality and durability makes it a necessary substance in different sectors ranging from food processing to automotive.
Composition and Alloying Elements
| Element | Alloy Steel (%) | Stainless Steel (%) | Primary Effects |
| Iron (Fe) | 95-98 | 50-74 | Base metal |
| Carbon (C) | 0.1-1.5 | 0.03-1.2 | Increases hardness and strength |
| Nickel (Ni) | 0-20 | 0-22 | Increases ductility and toughness |
| Chromium (Cr) | 0.5-18 | 10.5-30 | Improves corrosion resistance |
| Manganese (Mn) | 0.25-2 | 0-2 | Increases hardenability |
| Molybdenum (Mo) | 0.2-5 | 0-4 | Improves strength at high temperatures |
| Silicon (Si) | 0.2-2 | 0-1 | Increases oxidation resistance |
| Vanadium (V) | 0-0.15 | 0-0.15 | Promotes fine grain structure |
| Tungsten (W) | 0-2 | 0-0.5 | Improves hardness at high temperatures |
| Copper (Cu) | 0-0.5 | 0-0.5 | Increases corrosion resistance |
| Nitrogen (N) | 0-0.2 | 0-0.5 | Increases strength |
Mechanical and Physical Properties
When deciding between stainless steel and alloy steel, it’s very important to understand their physical and mechanical properties. Let’s explore these features.
Strength and Durability
Alloy steel generally surpasses stainless steel in durability and strength. Its ultimate strength ranges from 758-1882 MPa which is greater than stainless steel’s 515-827 MPa range . Additionally, alloy steel shows better shock resistance with Charpy V-notch values and it usually surpasses 100 J as compared to the typical 50-80 J of stainless steel. Moreover, alloy steel shows greater fatigue resistance which makes it perfect for operations with cyclic loading.
Corrosion Resistance
Both alloy and stainless steel bring distintive benefits but their corrosion resistance characteristics differ greatly. Stainless steel outshines in this area thanks to its chromium content which forms a preventive oxide layer. It handles crevice, pitting and stress corrosion cracking better than alloy steel. However, coatings and the right surface treatments may help alloy steel to increase its corrosion resistance. Still, it typically doesn’t match stainless steel’s inherent protection in harsh circumstances.
Thermal and Electrical Conductivity
When examining thermal and electrical characteristics of stainless steel and alloy steel. They show distinct traits. Alloy steel usually has greater thermal conductivity that ranges from 40-50 W/(m·K). while stainless steel’s range of thermal conductivity is lower at 14-16 W/(m·K). This makes alloy steel a better choice for heat transfer tasks. In terms of electricity, alloy steel’s resistivity is lower (0.1-0.2 µΩ·m) than stainless steel’s (0.7-1.1 µΩ·m)[2] which shows better electrical conductivity. These differences arise from their crystalline structures and distinctive compositions which determine their performance for different industrial uses.
Manufacturing Processes and Treatment
Grasping the treatments and production processes of stainless steel and alloy steel is very important to maximize their performance across different operations. Let’s delve into the main differences in their manufacturing procedures.
Heat Treatment
Both stainless steel and alloy steels go through heat treatment but through definite methods. Alloy steel mostly needs tempering and quenching. Temperature for quenching ranges from 815-980°C while tempering occurs between 205-705°C.
Stainless steel, in particular austenitic grades at 1010-1120°C goes through solution annealing. This method dissolves carbides and increases corrosion resistance. Martensitic stainless steels are processed at 980-1065°C then tempered at 205-370°C to get maximum toughness and strength.
Weldability and Machinability
Both alloy and stainless steels can be welded but their weldability traits differ greatly.
Alloy steels usually display better weldability because of their lower risk for cracking and distortion. They generally need preheating to 150-400°C on the basis of carbon content. Stainless steels (austenitic grades) are more susceptible to distortion owing to its higher thermal expansion. TIG welding is mainly the preferred method for stainless steel and it uses argon protective gas.
Machinability also differs; alloy steels are generally simpler to machine. While, stainless steels may need lower speeds and particular cutting tools to avoid work hardening.
Application Scenarios for Alloy Steels
Alloy steel shows distinctive features which makes it a top choice for different industries. So now let’s know about the particular uses of alloy steel.

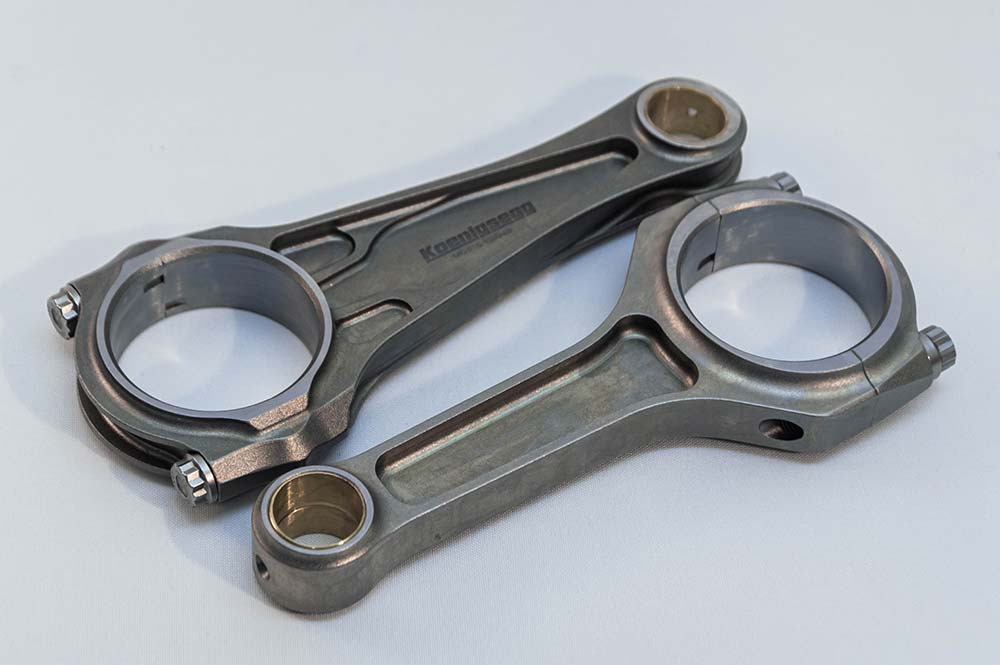

Automotive
In the automotive space, alloy steel performs a very important role in high-performance parts. It is used in engine parts, such as connecting rods and crankshafts, where its high strength-to-weight ratio increases fuel efficiency. The fatigue resistance of alloy steel that mainly surpasses 700 MPa in high-strength types, guarantees durability in main drivetrain parts. It is also used in transmission gears where its wear resistance greatly prolongs part.

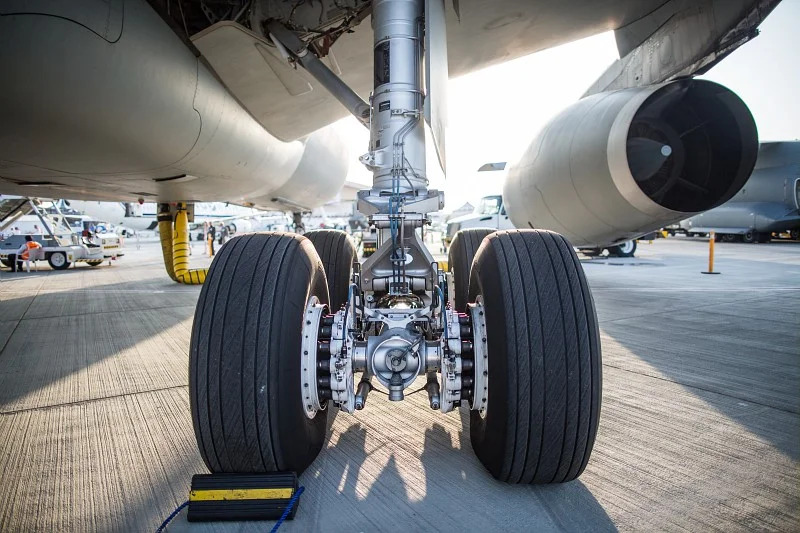

Aerospace
Aerospace operations require substances that have extraordinary reliability and strength. Alloy steels, in particular maraging steels, are used in rocket motor casings and aircraft landing gear instruments. These steels can reach their maximum strengths over 2000 MPa while retaining better toughness for fracture. In turbine engines, alloy steel parts go through very high temperatures (more than 540°C) and even then its structural integrity is not affected.

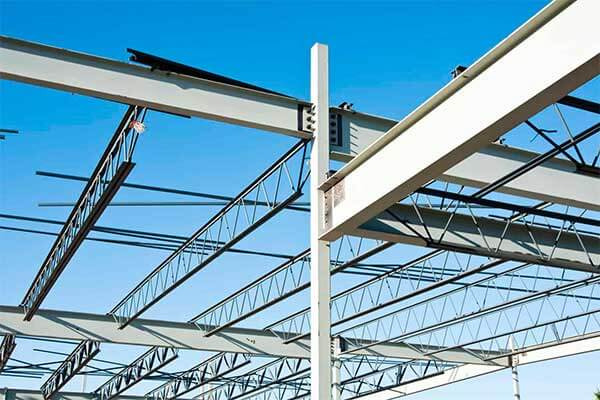

Construction
In construction, alloy steel is necessary because of its extraordinary strength-to-weight ratio. It’s used in structural parts such as girders and I-beams where its high yield strength (roughly 250-960 MPa) facilitates lighter and more proficient designs. Alloy steel has the potential to resist atmospheric corrosion, specially in weathering steel grades. This makes it best for exposed structures and bridges and decreases the costs for long-term maintenance.
Heavy-duty machinery
Alloy steel is fundamental in heavy-duty machinery where parts must go through considerable wear and stress. In mining gear, you’ll see alloy steel in crusher liners and excavator bucket teeth where its toughness (often over 500 HBW) guarantees durability.
For earth-moving machinery, alloy steel’s high pulling strength (up to 1960 MPa in some grades) is very important for parts like ripper shanks and bulldozer blades. This helps them to withstand corrosion and shock effects.
Stainless Steel Application Scenarios
While alloy steel is proficient in strength-focused tasks, stainless steel outshines where resistance to hygiene and corrosion are paramount. Let’s go through its main uses.

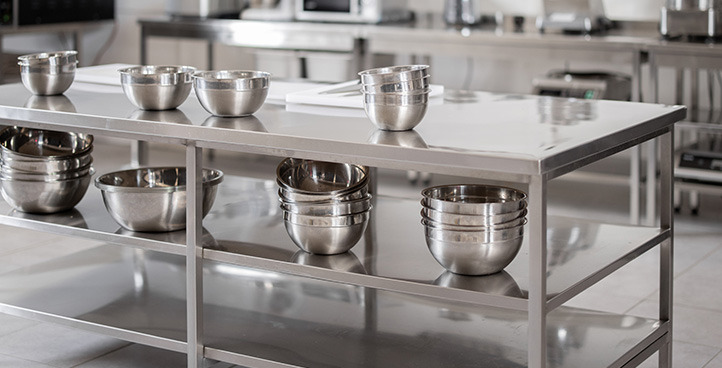

Food industry
In food processing, use of stainless steel is very important because of its ease of maintenance and resistance to corrosion. High alloy austenitic grades, for example 316L with 2-3% molybdenum are used to transport and store corrosive food items.
You’ll spot stainless steel in processing gear, commercial kitchen countertops and appliance exteriors. Its non-porous surface hinders bacterial growth and its resistance to acidic foods makes sure of durability in tough settings.

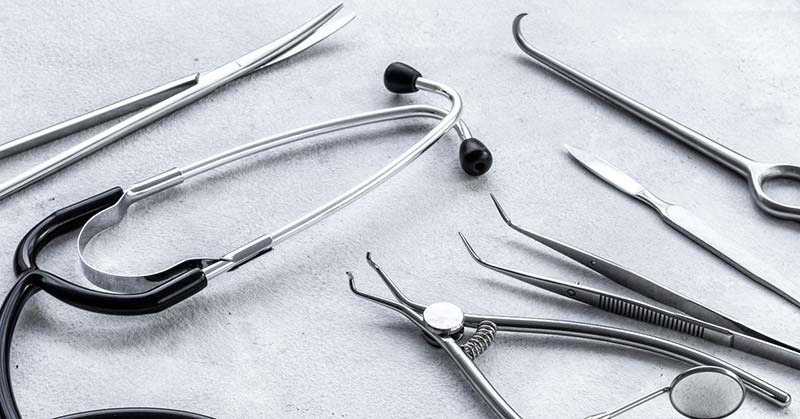

Medical field
Stainless steel has an important function in medical tools and devices. Austenitic stainless steel, particularly grade 316L is commonly used for surgical instruments such as scalpels, retractors, forceps. This is thanks to its extraordinary corrosion resistance and ability to go through sterilization.
In orthopedics, stainless steel is found in fracture fixation instruments and artificial joints. Here, its mechanical strength and biocompatibility are indispensable.

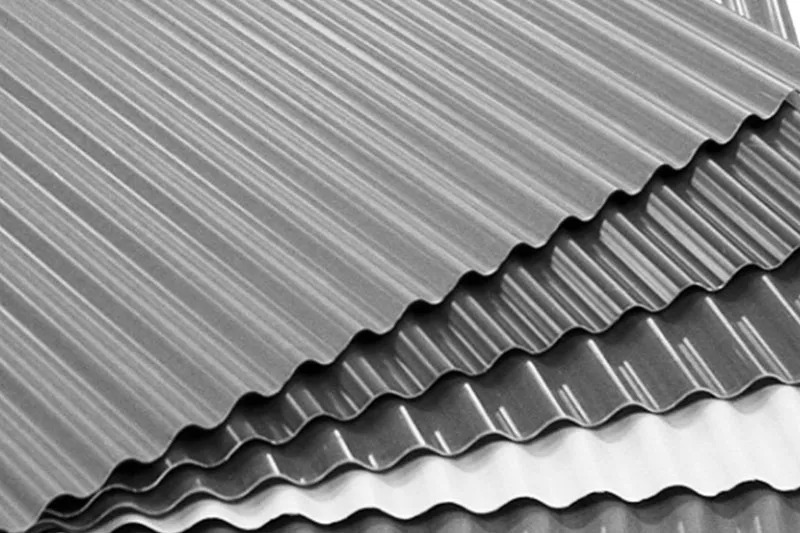

Architecture
Architects prize stainless steel for its appealing aesthetics and resistance to corrosion. It’s commonly used in roofing, curtain walls and structural elements. Grade 316L that contains 2-3% molybdenum is a popular choice for coastal areas due to its extraordinary resistance to chloride.
Duplex stainless steels like 2205 are favored for structures that bear loads. These give high strength (yield strength exceeding 450 MPa) and outstanding corrosion resistance which facilitates lighter and slimmer designs in skyscrapers and bridges.

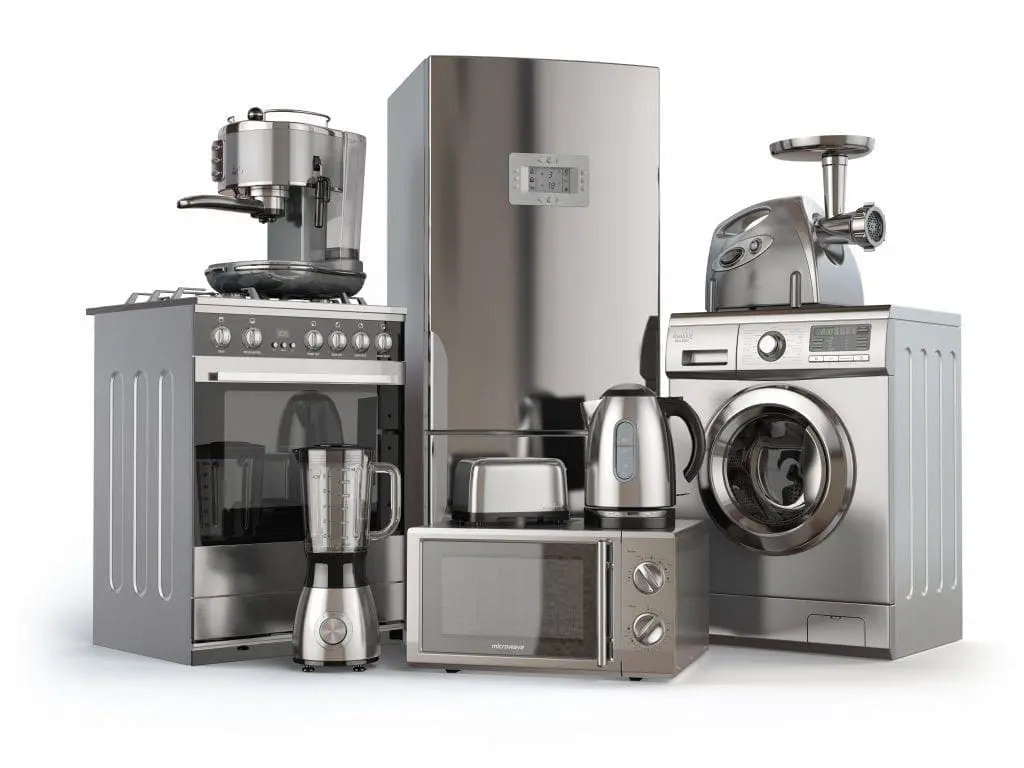

Household appliances
Stainless steel reigns in the appliance sector thanks to its hygienic properties and durability. Dishwashers and refrigerators generally possess austenitic grades such as 304 which resist acids from detergents and food.
For cooking appliances, ferritic grades such as 430 are prevalent. These supply good heat resistance up to 800°C and show low thermal expansion (10-12 × 10^-6/°C) which minimizes warping in cooktop surfaces and oven doors.
Cost Considerations
Cost plays an important role in the selection of stainless steel or alloy steel. Generally, alloy steel is the more affordable option that’s priced between $485 and $515 per metric tonne. Stainless steel owing to its higher chromium content, comes at a premium which is mainly more than $3,000 per metric tonne.
But, it’s necessary to think about long-term costs. Although alloy steel has a lower starting cost, it may need extra coatings or treatments to resist corrosion. On the other side, stainless steel’s natural corrosion resistance can balance out its higher upfront cost. This is due to its longer service life and decreased maintenance particularly in harsh circumstances.
Sustainability and Environmental Impact
As stability concerns increase, it’s very important to understand the environmental effects of stainless steel and alloy steel. Both steel varieties are entirely recyclable and stainless steel retains its qualities endlessly through recycling.
Energy use differs; making one ton of stainless steel needs 15-25 gigajoules while alloy steel generally uses less. Stainless steel’s durability mostly compensates for its greater production energy because its resistance to corrosion lessens the need for replacements.
Generally dust filtration systems in production eliminate 99% of particles and this decreases impact on the environment. When choosing between these steels, you must assess their complete lifecycle effect from use, production to recyclability.
How to Choose the Right Steel
Now that we’ve examined the traits of alloy and stainless steel, let’s discuss very important factors to guide you in picking the best choice for your project:
- Strength Requirements: If your contract requires high tensile strength (758-1882 MPa) you must go for alloy steel. For intermediate strength requirements (515-827 MPa) stainless steel will do the job.
- Resistance to Corrosion: Stainless steel is your best choice for environments that are prone to corrosion, specially grades high in chromium such as 316L.
- Formability: Alloy steels usually give better ductility. This makes them best for uses that need intricate shapes.
- Environmental Factors: Think about things like exposure to chemicals, temperature and humidity. Stainless steel performs well in these conditions.
- Cost Considerations: Analyze both original and long-term expenses. Although alloy steel is more affordable originally, stainless steel might prove more wallet-friendly over time due to lower maintenance.
Conclusion
In short, both stainless steel and alloy steel present distinct benefits for different use cases. Alloy steel shines for its durability and strength which makes it the top choice for aerospace and automotive industry. Meanwhile, stainless steel’s hygienic qualities and resistance to corrosion renders it a perfect fit for medical and food processing areas.
Select on the basis of your particular requirements by keeping in mind different variables such as long-term performance, environment and cost.
FAQ’S
1. What are the particular welding challenges linked with alloy steel as compared to stainless steel?
Alloy steels involve following challenges:
- Cracking because of high hardenability
- The frequent need for preheating
- The necessity for careful filler metal selection
Stainless steel welding has these challenges:
- Warping and distortion because of high thermal expansion
- Loss of corrosion resistance and sensitization
- The production of harmful chromium carbides
- The requirement for low heat input and proper protective gas
2. In which fields stainless steel is preferred over alloy steel and why?
Stainless steel is favored over alloy steel in areas where hygiene and resistance to corrosion are very important. These comprise:
- Food processing: Stainless steel is chosen for its simpler-to-clean and non-porous surface .
- Medical or pharmaceutical: It’s preferred for its biocompatibility and ability to be sterilized.
- Chemical processing: Stainless steel is best for its resistance to harsh chemicals.
- Architecture: It’s favored for its weather resistance and aesthetic appeal in outdoor uses.
3. What aspects should be considered when deciding between alloy steel and stainless steel for high temperature operations?
Weigh aspects like corrosion resistance, max working temperature, cost, thermal expansion and strength retention at increased temperatures. Generally, alloy steel gives greater strength and lower cost. On the other hand, stainless steel presents better corrosion resistance and protection against oxidation.
