Aluminum CNC Machining Services

Aluminum CNC Machining Services

Almost any shop can rough an aluminum block into shape. Far fewer can hand you a 1.2 mm-wall 6061-T6 housing that is still flat within 0.05 mm after the third operation, and still fits its bearing bore after hard anodizing. That gap — between cutting aluminum and controlling it — is where Richconn works.

We machine 6061, 6063, 6082, 5052, 5083, 7075, 2024 and cast tooling plate on 3-axis, 5-axis, turn-mill and Swiss equipment, from single prototypes to repeat production runs of tens of thousands. Every quote comes back with a DFM review, not just a price.

20+Years machining
100+CNC machines
10,000+Projects delivered
<0.5%Defect rate
ISO 9001:2015 certified
Why aluminum parts get rejected

Four ways an aluminum part goes out of spec — and what we do about each

Aluminum rarely fails because the cutter could not remove the material. It fails because the material moved: during roughing, during clamping, during aging, or during coating. These are the four we plan around before the first chip.

Failure mode 01 — Residual stress

The block bows after roughing

Rolled and heat-treated plate carries locked-in stress from quenching. Remove 70% of the mass and that stress rebalances — a plate that was flat in the saw cut comes off the machine with 0.3 mm of bow. 7075-T6 and thick 6061-T651 plate are the worst offenders, and the part usually passes first-article inspection before relaxing overnight.

How we control itStress-relief anneal before machining on high-risk geometries, symmetric roughing from both faces, a 0.3–0.5 mm finishing allowance, and a rest period between roughing and finishing so the part moves before the final pass, not after it.
Failure mode 02 — Deflection & chatter

Thin walls push away from the cutter

A 1 mm wall deflects under side load, so the cutter takes less than the programmed depth and the wall ends up thick, tapered, or chattered. Clamping is just as dangerous: a vise closing on a thin-wall frame prints its own distortion into the finished dimensions.

How we control itVacuum plates and custom soft jaws instead of point clamping, top-down waterline finishing so the uncut material below supports the wall, high-speed light radial passes, and sacrificial support ribs machined off in the last operation.
Failure mode 03 — Coating growth

The bore fits before anodizing, not after

Anodizing is conversion, not plating: roughly half the coating thickness grows outward from the original surface. A 25 µm hard anodize adds about 12 µm per surface — around 0.025 mm on a diameter. Bearing bores, dowel holes and sliding fits that were dead-on as-machined become interference fits after Type III.

How we control itWe machine to a pre-plate dimension calculated from your specified coating class, or mask the critical feature and leave it bare. We confirm which approach you want at quotation. Background: hard anodizing dimensional control.
Failure mode 04 — Built-up edge

Soft alloys smear instead of cutting

5052, 6063 and 1100 are gummy. Aluminum welds to the cutting edge, then breaks away and tears the surface — you get a torn Ra 6.3 finish where the drawing asked for 1.6, galled threads, and burrs that hand-deburring cannot fully remove from an internal corner.

How we control itPolished, high-helix uncoated carbide with wide chip gullets, high surface speed with a real chip load, through-coolant on deep features, and — when the drawing allows it — a switch to 6061 or 2011 for the free-machining behavior the feature needs.
Our dimensional stability route

Where the tolerance actually goes on a stress-prone aluminum part

For a straightforward bracket we run a conventional route. For thin walls, thick plate, 7075, or any part with a flatness or true-position callout under 0.05 mm, the job goes down this six-stage route instead. It costs more setups. It is the reason the parts stay in spec three weeks after they land.

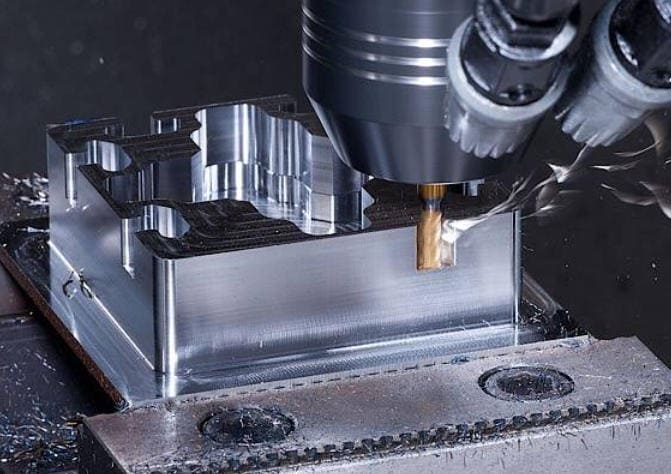

Vertical machining center cutting an aluminum workpiece
STAGE 01

Material & certs

Alloy and temper verified against the mill certificate before cutting. Substitutions never happen silently.

STAGE 02

Stress relief

Pre-machining anneal on high-risk plate and 7075 so the bulk stress is released off the machine.

STAGE 03

Symmetric roughing

Balanced material removal, 0.3–0.5 mm left everywhere, then a rest period to let the part settle.

STAGE 04

Re-fixture

Vacuum plate or soft jaws cut to the part's own profile. Clamping load spread, never concentrated.

STAGE 05

Finish to pre-plate size

Final passes cut to the compensated dimension when a coating is specified, not the drawing nominal.

STAGE 06

Post-coat verification

Critical features re-measured on the CMM after surface treatment — the dimension you actually receive.

Stage 02 and Stage 06 are the two most shops skip. They are also the two that decide whether a precision aluminum part passes incoming inspection at your end.

Alloy selection

The aluminum alloys we machine — and how each one behaves in the cut

Datasheets tell you tensile strength. They do not tell you which alloy will chatter on a thin rib, which one will smear a thread, or which one anodizes to a consistent black. This table is written from the machine side.

Aluminum alloys stocked and machined at Richconn
Alloy Typical temper Behavior in the cut Best suited to Anodizing response
6061 T6 / T651 The default benchmark. Predictable chips, clean threads, good finish. T651 plate carries meaningful residual stress on thin sections. General structural parts, housings, brackets, plates, fixtures Excellent, clear and Type II color; consistent
6082 T6 / T651 Machines almost identically to 6061, marginally stronger in thick plate. Slightly duller as-machined face. EN-standard drawings, European supply chains, structural plate Good; very close to 6061
6063 T5 / T6 Softer and gummier than 6061 — prone to built-up edge on finishing passes and burr formation at exits. Extruded profiles machined to length, enclosures, trim, heat-sink bodies Excellent — the standard choice for decorative anodizing
5052 H32 Non-heat-treatable and notably gummy. Needs sharp uncoated tooling and aggressive chip load to avoid smearing. Marine and outdoor parts, formed sheet components, fluid contact parts Good clear anodize; color can vary batch to batch
5083 H111 Tough and stringy; long chips need managed evacuation. Best corrosion resistance in the group, weldable. Marine hardware, cryogenic and pressure vessel components, weldments Acceptable clear; not recommended for cosmetic color
7075 T6 / T651 Steel-adjacent strength with good machinability, but the most stress-prone alloy we run. Thin walls and asymmetric pockets require staged roughing without exception. Aerospace structure, high-load brackets, mold plates, tooling Type II and Type III both viable; color runs darker and less even than 6061
7050 T7451 Similar to 7075 with better stress-corrosion behavior in thick sections; the preferred choice when 7075 plate is too unstable. Thick aerospace structure, high-strength machined plate Comparable to 7075
2024 T351 Machines cleanly with excellent chip control and strong fatigue performance. Poor corrosion resistance — needs a coating in almost every application. Aircraft fittings, fatigue-loaded structure, precision shafts Requires anodize or chem-film for corrosion protection
2017A T4 Free-machining behavior close to 2011; excellent for high-volume turned parts with fine threads. Turned fittings, connectors, threaded inserts Poor cosmetic result; specify chem-film instead
MIC-6 / ATP-5 Cast plate Cast and stress-relieved specifically for stability — essentially no residual stress, so it stays flat through heavy material removal. Softer and more porous than wrought. Fixture plates, jigs, base plates, optical and inspection tooling Uneven and porous — anodize only for protection, never cosmetics

Not sure which alloy to specify? Send the drawing and the load case — our engineers will recommend one and tell you what it costs against your current callout. Deeper reading: our guide to the aluminum CNC machining process.

Process routes

We pick the machine around your part, not the other way round

Aluminum is machined on every one of our platforms. The right route depends on geometry, setup count and how much of your tolerance budget you can afford to spend on re-fixturing.

3-axis CNC milling of an aluminum plate

CNC milling

Plates, covers, manifold bodies, brackets and enclosures. The workhorse route for prismatic aluminum parts and the most cost-effective at any volume.

5-axis CNC machining of an aluminum impeller

5-axis machining

Angled faces, undercuts and organic surfaces in one setup. Fewer setups means fewer re-fixturing errors — the single biggest source of true-position drift on complex housings.

CNC turning of an aluminum shaft on a lathe

CNC turning

Shafts, spacers, bushings, adapters and flanged bodies. Live tooling handles cross-holes and flats without a second machine.

Turn-mill machining of an aluminum part with live tooling

Turn-mill machining

Rotational parts with milled features completed in one clamping. Concentricity between turned and milled features holds because the part never leaves the spindle.

Swiss-machined small aluminum pins, shafts and connectors

Swiss aluminum machining

Small-diameter, long-aspect aluminum parts — pins, contacts, micro shafts. Guide-bushing support keeps slender aluminum from whipping.

Wire EDM cutting sharp internal corners in an aluminum part

Wire EDM

Sharp internal corners and thin profiles a cutter cannot reach, with zero cutting force — useful on features that would otherwise deflect.

Tolerance capability

What we hold, and what it costs you to ask for it

Tolerance is a budget, not a badge. We can hold ±0.005 mm — on a specific feature, in a specific setup, with in-process gauging. Applying that number to every dimension on the drawing multiplies your unit price for no functional gain. Below is what each band actually means in production.

Aluminum machining tolerance bands
Characteristic Standard (default) Precision (on request) Notes
Linear dimensions ISO 2768-m ISO 2768-f / ±0.01 mm Applied to all untoleranced dimensions unless your title block states otherwise
Critical features ±0.02 mm ±0.005 mm Per-feature, with dedicated setup and in-process measurement; call these out explicitly
Hole diameter H8 H7 (reamed / bored) H7 and tighter needs a reaming or boring operation — flag bearing and dowel bores
Flatness, ≤200 mm plate 0.1 mm 0.03 mm Tighter than 0.05 mm on wrought plate normally requires stress relief or a switch to MIC-6
Concentricity, turned 0.05 mm TIR 0.01 mm TIR Precision band requires single-setup turn-mill or Swiss machining
Surface finish, as-machined Ra 3.2 µm Ra 0.8 µm Ra 0.4 µm and below on aluminum needs polishing or diamond turning — ask before specifying
Angular ±0.5° ±0.1° 5-axis single setup recommended for the precision band

All final dimensions verified on coordinate measuring machines. Dimensional reports are supplied with every shipment; full first-article and PPAP documentation is available on request.

Surface finishing

Finishes, and exactly what each one does to your dimensions

Most finishing tables list appearance and corrosion resistance. The column that causes rejected parts is the dimensional one — so we put it first.

Blue anodized aluminum rings after CNC machining
Aluminum surface finishes and dimensional impact
Finish Typical thickness Dimensional change Why you would specify it
As-machined None Lowest cost; tool marks visible. Fine for internal and non-cosmetic parts
Bead blasting ≈0.01 mm removal Uniform matte texture; removes tool witness marks before anodizing
Anodizing Type II 5–25 µm ≈ +½ of thickness per surface Corrosion resistance plus color. The default for visible aluminum parts
Hard anodizing Type III 25–50 µm ≈ +12–25 µm per surface Wear surfaces, sliding fits, pneumatic bores. Mask or pre-compensate critical features
Chem film / chromate <1 µm Negligible Corrosion protection that keeps the surface electrically conductive — grounding and RF parts
Powder coating 60–120 µm Substantial — mask all fits Durable colored finish for enclosures and exterior housings
Electroless nickel 5–25 µm + full thickness per surface Hardness and wear resistance with uniform coverage into bores and blind features
Brushing / polishing 0.01–0.05 mm removal Cosmetic grain or mirror faces; usually followed by clear anodize
Laser marking None Permanent part numbers, logos, traceability codes and date coding

Tell us the coating class on the drawing and we will machine to the pre-plate dimension. If the drawing is silent, we ask — we do not guess.

Design for machinability

Design rules that take cost out of an aluminum part

Roughly 60–70% of the price of a machined aluminum part is decided by the model, not the quotation. These are the five changes that move the number most, and the limits we work to.

Engineering drawing with GD&T tolerance callouts for a machined part
Feature limits
FeatureRecommendedAchievable
Wall thickness1.5 mm0.8 mm
Internal corner radius≥ ⅓ cavity depthR0.5 mm
Pocket depth / tool dia.4 : 110 : 1
Hole depth / diameter4 : 110 : 1
Minimum hole diameter1.0 mm0.3 mm
Thread depth2× diameter3× diameter
Engraved text height2.0 mm0.5 mm
Boss / rib aspect ratio3 : 18 : 1 (supported)

Five changes that reliably cut the price

  • Round your internal corners generously. A cavity with R1 corners forces a 2 mm cutter and a slow feed. Opening the same corners to R3 lets us run a 6 mm tool at four times the material removal rate.
  • Tolerance only what mates. Give the bearing bore ±0.01 mm and let the outer profile sit at ISO 2768-m. Blanket-tight drawings add inspection time to every feature.
  • Keep deep pockets shallow where you can. Beyond about 4× tool diameter we switch to longer, more flexible tooling with lighter cuts — the same pocket takes two to three times longer.
  • Design for fewer setups. Every feature that requires a sixth face adds a setup, a fixture and a stack-up error. Consolidating onto five faces often removes a whole operation.
  • Say what the surface has to do. "Ra 0.8, cosmetic" and "Ra 0.8, sealing face" are different parts. Tell us which, and we will finish the one that matters and leave the other as-machined.

Send a STEP file and we will return a marked-up DFM report with the cost drivers identified — free, and before you commit to anything.

Request a DFM review
Applications

Aluminum parts we machine every week

Different industries stress different failure modes. What changes between them is not the alloy — it is which tolerance you cannot afford to lose.

5-axis machined aluminum aerospace structural component

Aerospace

7075 and 2024 structure where stress relief and full material traceability are non-negotiable.

Brackets · ribs · housings · fittings
Robotic arms handling aluminum parts in an automated production line

Robotics & automation

Lightweight 6061 and 7075 structure where mass at the end of an arm directly costs payload.

Joint housings · arm links · end-effector mounts
CNC machined aluminum EV battery housing

Automotive & EV

Battery housings, sensor brackets and prototype-to-production transitions on the same tooling.

Enclosures · brackets · fluid blocks
Anodized aluminum medical device housings and instrument bodies

Medical devices

Anodized 6061 instrument bodies and imaging frames with documented finishing processes.

Housings · frames · positioning components
Quality & documentation

What arrives with the parts

Every aluminum order ships with the paperwork your incoming inspection needs, because a part with no evidence behind it is a part your QA team has to re-measure from scratch.

  • Material certificate — mill test report identifying alloy, temper and heat lot
  • Dimensional report — CMM results against your drawing's critical characteristics
  • First-article inspection — full FAI or PPAP documentation on request for production programs
  • In-process control — first-piece, in-process and final inspection under our ISO 9001:2015 system
  • Post-coating verification — critical features re-measured after surface treatment, not before
  • Production visibility — MES tracking so you can see order status at any stage
CMM inspection of a CNC machined aluminum part Volume & lead time

From one part to a hundred thousand

We do not run a prototype shop and a production shop as separate businesses, which is what usually forces you to re-qualify a supplier at the worst possible moment.

StageQuantityTypical lead time
Prototype1–107–10 days
Bridge / pilot10–50010–20 days
Production500–100,000+Scheduled release

Lead times depend on finish, alloy availability and inspection scope — confirmed with your quotation. No minimum order quantity.

Working with us

From drawing to delivered parts

Four stages, one engineer as your point of contact throughout.

CNC machine shop floor with rows of machining centers
STAGE 01

Send your files

STEP or IGES plus a dimensioned PDF. NDA in place first if you need one.

STAGE 02

Quote & DFM

Price, lead time and a marked-up manufacturability review within two working hours.

STAGE 03

Machining & inspection

Production under ISO 9001:2015 control, with first-piece approval before the run continues.

STAGE 04

Finishing & shipping

Surface treatment, post-coat verification, protective packing and worldwide delivery.

What to include in your RFQ

  • 3D model (STEP / IGES / X_T / SLDPRT)
  • 2D drawing with tolerances and datums
  • Alloy and temper, or the application if you want a recommendation
  • Which features are critical, and why
  • Surface finish and coating class
  • Whether coated dimensions are before or after plating
  • Quantity now, and expected annual volume
  • Required certifications or inspection documentation

Start your RFQ

Frequently asked

Aluminum CNC machining questions

Which aluminum alloy should I choose for CNC machining?

6061-T6 is the correct default for around 70% of machined parts — it balances strength, machinability, corrosion resistance and anodizing quality, and it is available everywhere. Choose 7075-T6 when you need steel-adjacent strength and can accept higher cost and stress-related distortion risk. Choose 5052 or 5083 for marine and corrosive environments. Choose 6063 when appearance and anodized color matter more than strength. Choose MIC-6 cast plate when flatness after heavy material removal is the requirement. If your drawing follows EN standards, 6082 is the direct counterpart to 6061.

How tight a tolerance can you hold on aluminum?

We hold ±0.005 mm on critical features with dedicated setups and in-process measurement. Our default for untoleranced dimensions is ISO 2768-m. The practical answer is that tolerance should be applied selectively: identify the two or three features that actually control fit and function, tighten those, and leave the rest at general tolerance. That approach delivers a part that works at a fraction of the cost of a uniformly tight drawing.

Will anodizing change my part's dimensions?

Yes, and this is the single most common cause of aluminum parts failing incoming inspection. Anodizing converts the surface rather than adding to it, so roughly half the coating thickness grows outward from the original surface. A 25 µm Type III hard anodize adds around 12 µm per surface, which is about 0.025 mm on a diameter — enough to turn a sliding fit into an interference fit. We either machine to a compensated pre-plate dimension or mask the critical feature, and we confirm which approach you want before machining starts.

Why did my thin-wall aluminum part warp?

Almost always residual stress. Rolled and heat-treated plate carries locked-in stress from quenching; when machining removes most of the mass, that stress rebalances and the part bows — often hours or days after it leaves the machine. Contributing factors include asymmetric material removal, clamping distortion and cutting heat. The fixes are stress-relief annealing before machining, balanced roughing with a finishing allowance, a settling period before the final passes, and vacuum or soft-jaw fixturing that spreads clamping load. We build these steps into the route for any part where flatness or true position is tighter than 0.05 mm.

What is the minimum wall thickness you can machine in aluminum?

0.8 mm is achievable with appropriate fixturing and finishing strategy; 1.5 mm is the thickness we recommend if your design has flexibility. Below about 1 mm the wall deflects under cutting load, which affects both dimensional accuracy and surface finish, and the part becomes sensitive to how it is clamped. Walls under 0.8 mm are possible on small parts with sacrificial supports, but we will discuss the geometry with you before quoting rather than after.

How much does aluminum CNC machining cost?

Cost is driven by machining time far more than material. The main variables are part complexity, number of setups, tolerance tightness, surface finish requirements, quantity and coating. Aluminum itself is inexpensive and cuts fast, which is why it is usually the most cost-effective machinable metal. The most effective way to reduce your price is a design review before release — send us a STEP file and we will identify the cost drivers in your model at no charge.

Do you machine both prototypes and production volumes?

Yes, with no minimum order quantity. We run single prototype parts and repeat production programs above 100,000 pieces in the same facility, which means you do not need to re-qualify a new supplier when a design moves from validation into volume. The process documentation created during prototyping carries forward into the production route.

What quality documentation do you provide with aluminum parts?

Standard shipments include a material certificate identifying alloy, temper and heat lot, plus a dimensional inspection report covering the critical characteristics on your drawing. Full first-article inspection and PPAP documentation are available for production programs. Our facility operates under ISO 9001:2015, and final dimensions are verified on coordinate measuring machines — after surface treatment where a coating is specified.

Send us the part that keeps coming back out of tolerance

Upload a STEP file and a drawing. You will get a price, a lead time and an engineer's assessment of what is likely to move — within two working hours.

Get your aluminum quote

All uploads confidential · NDA available on request · sales@richconn.com

Quick quote within 2 hours

Fill out our contact form below. By providing us with details about your needs, you enable our experts to tailor solutions that perfectly align with your specifications.

*If you have any design files that need to be sent, please email them to sales@richconn.com
