Battery contacts play a critical role in the dependable transfer of power to devices. Their performance relies on the use of correct manufacturing procedure, suitable materials & appropriate design choices.
In this blogpost you will know about the most important design considerations that relates to battery contacts. We will also see its production process as well as eight standard battery contact types. This will help you pick the best option for your requirements.

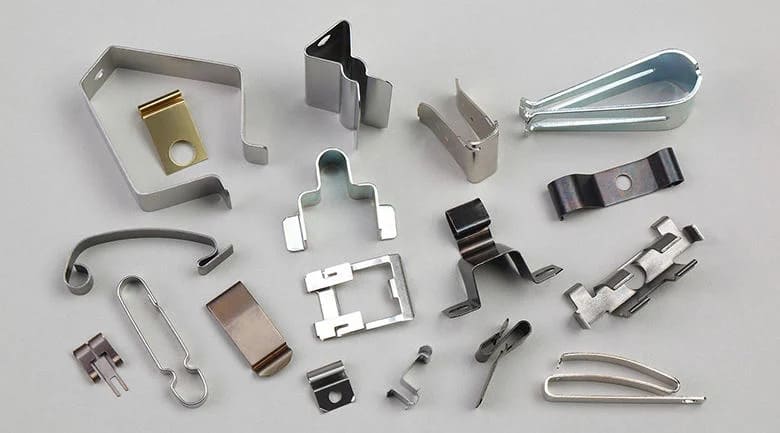

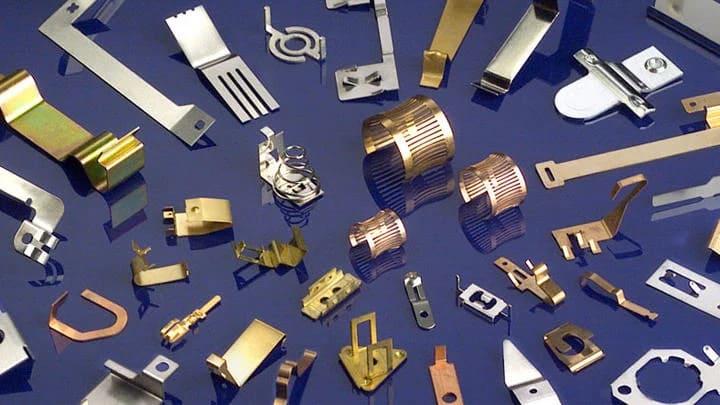

What are Battery Contacts?
To put it simply, battery contacts are metal connectors inside battery compartments which are usually manufactured in the form of metal strips or springs. They connect the negative & positive terminals of battery in a straight connection to internal circuitry of device. This connection permits electrical current to flow which gives power to devices. These devices range from remote controls to industrial units.
Manufacturing Process
With a complete understanding of battery contacts, now let’s see the production stages involved in their manufacturing.
Design Stage
Manufacturers initially use CAD software to create precise 3D models of battery contacts that meet particular mechanical & electrical specifications. Before physical production starts, these digital models go through full simulation on platforms such as SimScale or Ansys.
Manufacturers perform thermal, FEA and electrical tests to identify possible defects early. Doing these tests help manufacturers calibrate material thickness, geometry and contact positioning. This guarantee good functionality and safety before production.
Material Selection
Once the design is finalized, picking the appropriate material becomes extremely important. The material picked directly affects corrosion resistance and electrical conductivity. High conductivity decreases power drain whereas corrosion resistance guarantees prolonged dependable performance.
Appropriate Materials
Stainless steel
Recognized for its remarkable corrosion resistance and strength, stainless steel is specifically useful in harsh conditions.
Beryllium copper
It has great spring characteristics & electrical conductivity which makes it perfect for powerful battery contacts.
Phosphor bronze
This type of material offers excellent electrical conductivity as well as superior fatigue & corrosion resistance which makes it appropriate for reliable contacts.
Nickel‐plated steel
This common & low‐cost material provides high conductivity; but it is prone to corrosion after prolonged use.
Brass
A cost‐effective material that is easy to shape and has average conductivity.
Production Stage
In this phase engineers convert raw materials into usable battery contacts with three main methods.
Stamping
High‐speed presses which work at speeds of up to 1,200 strokes per minute shape sheet metal into contact blanks. Hardened dies obtain tight tolerances of ±0.05 mm. This stage decides the basic structure of contact which is appropriate for batteries of different sizes – from AA batteries to miniature IoT devices.
Also See: What is Metal Stamping
Forming
After stamping, manufacturers can convert contacts into three‐dimensional shapes – e.g. coil springs, leaf springs or tabs. They utilize special instruments such as CNC presses or fourslide machines to get these types of shapes.
Custom Fabrication
For use cases that require distinct battery contact configurations, personalized fabrication processes become essential.
Manufacturers like Richconn are best in using personalized manufacturing procedures to manage intricate settings effectively. These specialized processes usually involve wire EDM, CNC machining and special assembly methods. This is why engineers can create battery contacts with better performance for heavy uses.
Surface Treatment Stage
After forming, battery contacts need surface treatments to enhance their performance. Engineers usually use silver plating since it gives great corrosion protection and good electrical conductivity.
Other methods such as nickel plating is appropriate for high‐temperature uses whereas gold plating provides great corrosion resistance and conductivity. Conversely copper plating gives a more cost‐effective approach with better conductivity.
Moreover engineers today mostly use special coatings such as diamond‐like carbon or conductive polymers. They obtain consistent and accurate coverage through procedures such as vapor deposition or electroless plating.
See Also: Understand Metal Plating
Quality Assurance Stage
In battery contact production, quality assurance includes detailed inspections to confirm surface finish quality, dimensional accuracy as well as electrical conductivity. Engineers utilize modern techniques ─ such as non‐destructive testing, automated optical inspection and real‐time data super‐vision ─ to quickly find problems.
Design Considerations for Better Battery Contact Performance
Spring Force and Compression
Reliable battery contact requires thoughtfully calibrated spring force. Not enough force leads to a weak electrical connection while too much force can damage the contact or battery.
For example springs used for AA batteries apply about 1.75 pounds (0.8 kilogram) of force. This pressure holds the contact firmly without deformation. This balance is very important for increasing battery compartment life and best performance.
Contact Geometry
The surface area and geometry of your battery contacts have a profound effect on performance. An expanded surface area improves current flow, decreases electrical resistance and reduces power loss. Yet increasing contact’s size can increase volume and expense. This is why you must find an ideal balance that ensures smooth energy transfer without using non‐essential material.
Shock and Vibration Resistance
Battery contacts in devices subject to shock or vibration must remain steady under mechanical load. Stable mounting methods and durable spring designs help avoid contact loss or wear because of these types of stresses. Integrating these aspects guarantee that your device remains energized even in challenging situations.
Heat Management
Proper heat distribution is also important for battery contacts – particularly in high‐drain uses – to prevent thermal runaway. High resistance or poor thermal contact can cause area‐specific overheating which can damage your contacts & battery.
To avoid this, execute thermal testing in the design phase. Preliminary identification of possible hotspots helps you improve contact geometry for better heat distribution before you start manufacturing.
Environmental Factors
Battery contacts should be able to withstand extreme environmental situations, for example temperature changes, humidity & chemical exposure. Using protective coatings and picking corrosion‐resistant materials – such as gold or nickel plating – helps preserve electrical conductivity.
8 Typical Types of Battery Contacts
1. Leaf Spring Contacts
Leaf spring contacts are thin, flat metal strips with a rounded section to produce spring tension. They implicitly adjust to various battery lengths and provide continuous, accurate tension.
Uses
Pick leaf spring contacts for miniature electronic products with finite internal space. Common examples are watches, calculators and thin remote controls.

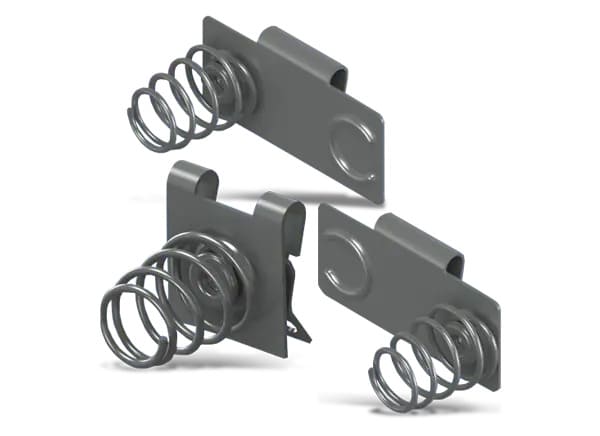

2. Coil Spring Contacts
These types of contacts use a spiral‐shaped coil that provides tension & strong compression. They can easily adapt to different battery length and maintains a smooth and stable electrical connection.
Uses
Coil spring contacts are a great choice in case your device needs regular battery replacement. Common uses are remote controls, toys and flashlights.

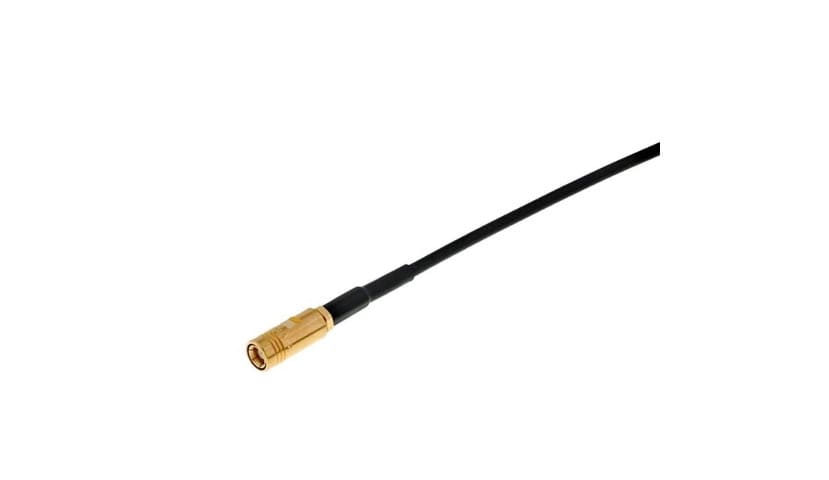

3. Snap‐On Connectors
Snap‐on connectors connect to battery terminals with a basic press‐down action. They provide dependable electrical contact as well as remarkable mechanical durability.
Uses
Snap‐on connectors are typically found on 9V batteries particularly in guitar pedals, smoke detectors and wireless microphones.

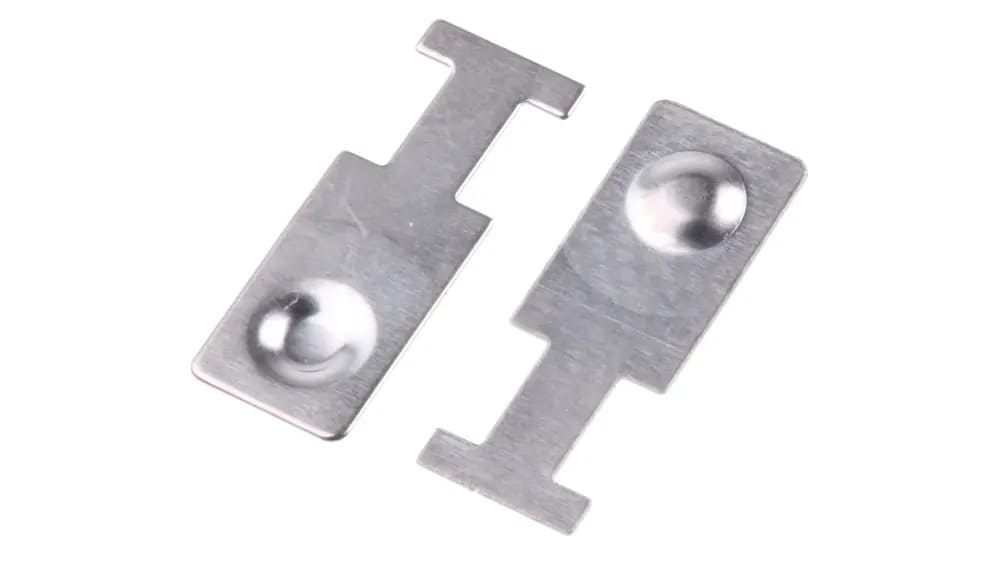

4. Button Contacts
Button contacts have flat, plain surfaces that are built to touch straight to battery terminals. Since they do not depend on spring tension they are particularly good for tight spaces. They provide a uniform electrical connection with low contact resistance.
Uses
You will usually see button contacts in consumer electronic equipment such as hearing aids, wristwatches and medical equipment.

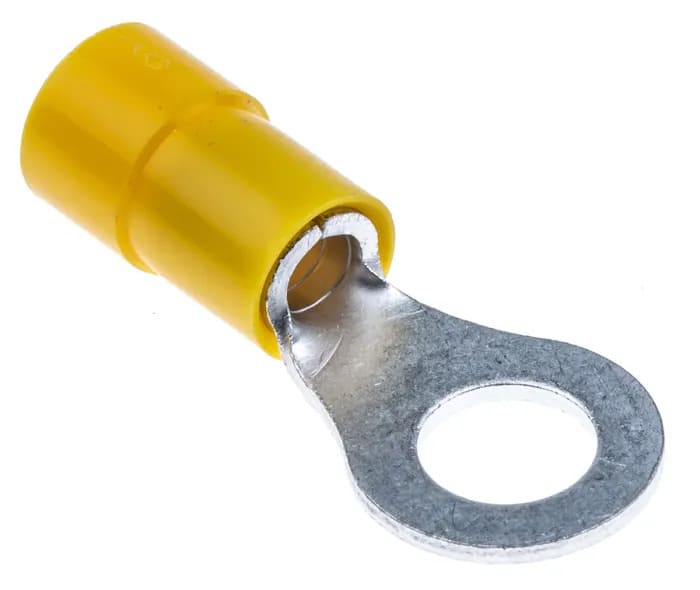

5. Ring Terminals
Ring terminals have a round hole that is built to fit tightly around battery bolts or post screws. They create a mechanically steady connection that stops unintentional disconnection and also tolerates vibrations.
Uses
Ring terminals are perfect for commercial vehicle electrical systems, automotive ignition systems as well as mechanical systems. They are crucial wherever well‐established, stable connections are required.
6. FASTON Tabs (Spade Terminals)
FASTON tabs are fast connect terminals manufactured with flat blades protruding at an angle from top or side of battery. Their plug‐in style permits fast connections without any instruments which guarantees reliable electrical contact.
Uses
Faston tabs are often used with airtight lead‐acid batteries in devices that encounter low movement. Common uses comprise UPS systems, emergency lighting systems and alarm systems.

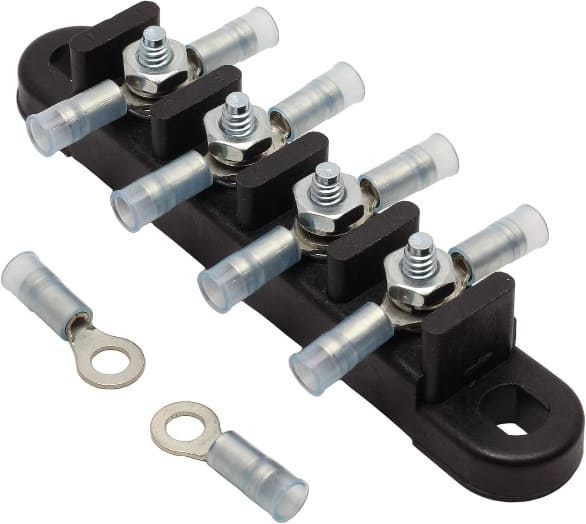

7. Stud Terminals
Stud terminals use threaded posts protruding from battery which connect firmly using washers & nuts. They are especially manufactured for high‐current uses which guarantees great conductivity and stability.
Uses
Stud terminals are frequently used in high‐current battery uses. For instance renewable energy storage systems, industrial batteries, telecommunications backup power and UPS systems.
8. Wire Leads with Connectors
Wire leads with connectors involve protected versatile wires that are factory‐assembled to terminals or plugs. This structure supports specialized wiring and allows for straightforward installation into electronic products.
Uses
You will commonly see wire leads with connectors in lithium polymer batteries. Typical examples are portable electronics, drones & RC vehicles.
Which Battery Contact Should I Pick?
The particular needs of your use case will decide which battery contact is appropriate. First, assess the space available in your device, the conditions under which it will operate and the power it will need.
If your intended use involves high currents then stud ring or terminal connectors are best. For vibration settings, snap‐on connectors provide the most optimal option. Leaf spring or button contacts are appropriate for devices where space is constrained.
Furthermore, make sure that the contact material meets your corrosion resistance & electrical conductivity requirements.
To Sum Up
Dependable power supply in electronic devices relies on optimal design & manufacturing of battery contacts. You can obtain best performance by understanding the manufacturing processes, types of battery contacts available and important design considerations．
If you need custom battery contacts, then Richconn is your best option. You can contact us anytime.
Related Questions
From where can we get personalized battery terminal contacts?
Richconn manufactures best quality personalized battery terminal contacts.
How does battery performance rely on selection of contact material?
The lifespan, performance and dependability of a battery are profoundly affected by contact material since it affects durability, electrical conductivity, corrosion resistance & level of resistance.
Which type of metal is best for battery contacts?
Stainless steel, phosphor bronze, beryllium copper & nickel‐plated steel are commonly used materials because they offer good conductivity, strength & corrosion resistance.
What do AAA & AA batteries refer to?
AAA & AA means the sizes of typical dry cell batteries. AAA batteries are more compact in size and are appropriate for devices with low power usage. AA batteries are physically larger & provide more capacity.
