Bearing housings perform an important part in keeping bearings working well in rotating equipment. Precise machining is essential for their effectiveness; as even a small defect can cause equipment to fail. In this blogpost we will cover what bearing housing machining is and its main types.
We will also see its main processes, materials and quality checks needed for long lasting, high-performing components.

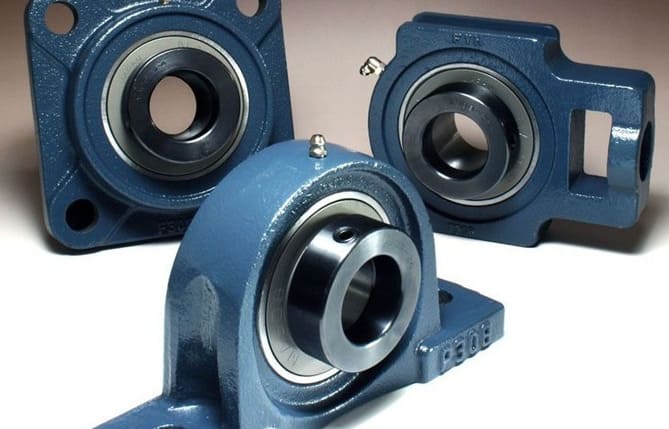

What is Bearing Housing Machining
In simple terms, bearing housing machining means shaping and finishing the plastic or metal case that holds a bearing. This process keeps the bearing aligned, shields it from contaminants and ensures the housing fits exactly. Boring, turning and grinding are common steps involved. These methods help reach tight tolerances often within 0.01 mm to ensure reliable function.
Main Types of Bearing Housings
Pillow blocks
Pillow block bearings use a housing shaped like a pillow and have a flat base for mounting on horizontal surfaces. These housings support shafts which run parallel to the mounting surface. Generally pillow blocks are used by motors and conveyor systems. In these blocks, standard bore sizes start at 12 mm and go up to 100 mm. Their strong design makes installation simple and guarantees dependable operation in tough conditions.
Flanged housings
Flanged bearing housings have a flat face for mounting and include two, three or four bolt holes. For vertical mounting such as in small motors and gearboxes, this design works very well. Flanged housings support shafts which are perpendicular to the mounting surface and provide accurate alignment. They can handle both radial and axial loads. Generally shaft diameters for these housings range from 20 mm to 400 mm.
Take-up units
Take-up units support applications where easy shaft alignment and tension adjustments are needed such as in conveyor systems. These housings do not split and include yoke shaped drawbar eyes which connect to tensioning devices. They can handle misalignments up to 5° and allow shafts to move linearly For standard duty application, their cast iron versions are used. Whereas pressed steel types fit light-duty needs.
Flange blocks
Flange blocks are used for heavy duty purposes and have a block-style flanged design. These units are distinguished from standard flanged units by including machined centering shoulders which ensure precise alignment. In these housings, a four-hole layout is used. And they are usually made from cast iron to support higher loads. They mount at right angles to shaft axes and compared to lighter flanged housings, they provide more stability.
Materials Used
Cast Iron
Cast iron serves as a primary material for bearing housings because it is durable, strong and it dampens vibration well. Moreover It resists both corrosion & wear and performs well under heavy loads. Depending on the grade, its tensile strength ranges from 200 to 450 N/mm².
Here at RICHCONN we adjust heat treatment methods for cast iron housings to improve vibration damping when loads are high.
Aluminum
Aluminum stands out for its strong corrosion resistance and low weight. These properties make it suitable for marine and aerospace. Certain alloys can reach tensile strengths up to 48,000 psi. Aluminum housings also conduct heat well and keep their shape in tough conditions.
Steel
Steel is chosen for bearing housings because it provides durability and high strength. Moreover this material handles high-speed machinery and heavy loads very well. Generally their tensile strength is over 400 N/mm². In tough environments such as automotive production or mining, they perform reliably. However steel housings weigh more and need protection to prevent corrosion.
Also See: Cast Iron vs Steel_ Which Material is Right for Your Project
Plastic composites
Plastic composite housings rely on glass fiber reinforced polyamide (PA6) for lighter applications. These materials resist chemicals, corrosion and moisture very well. For marine and food processing environments, they work best. Although they do not match steel’s strength, they provide great design flexibility.
Machining Processes for Bearing Housings
1. Material Preparation
The first step in bearing housing manufacturing is material preparation. This step shapes the raw stock and improves its properties for later precision operations. The process includes two main stages:
Casting or Forging
The initial shape of the housing comes from either casting or forging. Casting involves pouring molten metal, usually steel or cast iron into a mold to form a rough housing. Whereas forging shapes heated metal by compressing it which increases strength and density. Both casting and forging give the housing a strong foundation for further machining.
Also See: Forging vs Casting vs CNC Machining
Heat Treatment
After forming, heat treatment removes internal stress and improves mechanical properties. Components are heated to between 800°C and 1000°C. They stay at 850°C for about 2 hours. The material is then rapidly cooled by quenching in salt or oil baths. Following this, tempering is carried out to reduce brittleness. This sequence increases wear resistance, hardness and dimensional stability.
RICHCONN provides in-house casting and heat treatment. These services give your bearing housings the right structure and durability for demanding uses.
2. Machining Operations
Bearing housings go through several machining steps, after the raw material is prepared. Each operation focuses on attaining the required surface finishes and dimensions for dependable function.
Turning
Turning usually starts the machining process of most bearing housings. During this process, the workpiece rotates on a lathe and a cutting tool shapes the outer faces and diameter. This step forms accurate cylindrical shoulders and surfaces. For correct alignment and fit, these features are very important. Turning can handle diameters from just a few millimeters up to more than 500 mm and works well for making symmetrical parts.
Boring
Boring makes pre-drilled or cast holes larger and more precise. In this process, a single-point cutting tool is used that removes material from the inside surface. This action creates a round, smooth bore. For applications that need exact alignment and tight tolerances such as bearing seats or precision housings, boring work best.
Milling
Milling is used to create slots, flat areas and detailed features on the housing. The cutting tool spins and moves in several directions. This allows the machine to make mounting faces, holes, bolts or keyways. Milling machines can reach tolerances as close as ±0.01 mm. For precise and complex housing shapes, this level of accuracy is very important.
Drilling
Drilling forms holes for lubrication paths, mounting bolts or alignment points in the housing. Specialized twist drills are used which make sure holes are clean & straight, even in hard materials. Hole sizes for bearing housings generally range from 5 mm to over 30 mm.
Grinding
In grinding machines, abrasive wheels are used that remove small layers of material from mounting faces and bores. This method corrects flaws left by earlier processes and ensures tight tolerances. After grinding, surfaces can reach a roughness of Ra 0.2 to 0.4 µm. For the bearing’s fit and reliable operation, such smoothness is very important.
Honing
Honing takes the improvement further by enhancing straightness, roundness and the finish of internal bores. During this process, an abrasive tool moves back and forth inside the bore, taking off tiny amounts of material for high accuracy. This step corrects small geometric errors and creates crosshatch patterns which help retain lubrication.
Superfinishing
Superfinishing comes last to create precise geometry and extremely smooth surfaces. Fine abrasives or film are used that remove microscopic peaks and lower surface roughness to as little as 0.004 µm Ra. The process increases the load-bearing area from 15 to 40% after grinding up to 80 to 95%. As a result bearing life extends and wear resistance improves.
Electrical Discharge Machining (EDM)
Electrical Discharge Machining (EDM) forms complex or hard materials by using controlled electrical sparks rather than cutting tools. EDM can create deep holes, detailed features or fine details in hardened steel or alloys. Traditional machining generally fails to deliver these results. This method maintains tight tolerances and helps deliver excellent surface finishes.
Also See: Sinker EDM vs Wire EDM
Tolerances and Fits
To make good bearing housing, you need to manage tolerances and fits properly. Tolerances set the acceptable range for dimensional variation. Whereas fits describe the tightness between the bearing and its housing. International standards define both and engineers select them based on factors like speed, load and material.
ISO Standards
Global tolerance and fit requirements are established by ISO standards such as ISO 286-2 or ISO 286-1. These standards assign codes including H7 or j6 to indicate the permitted dimensional range. For housing bores, H7 is usually applied. Whereas shaft tolerances may use codes like m6 or j6.
Determining Appropriate Fits
Engineers choose the right fit according to temperature, load and mounting conditions. For heavy loads or rotating inner rings, interference fits are used. Whereas clearance fits are better for split or stationary housings. The material also affects the choice – aluminum expands more than steel so different fits are necessary.
Assembly and Installation
The way you assemble and install bearing housings has a direct impact on their lifespan and performance. Every stage, from preparation through alignment, perform an important part in ensuring reliability and extending service life
Preparation
Inspect each part for damage and cleanliness before starting assembly. Remove debris or dust from the shaft, housing and bearings by cleaning them thoroughly. Check that the shaft is straight and has the correct diameter. Make sure you have all necessary tools ready which include lubricants, feeler gauges and mounting hardware.
Mounting Methods
Select a mounting method that matches the bearing’s fit and size. Cold mounting with presses or fitting tools works better for small bearings. Whereas for larger housings, hydraulic or hot mounting methods are used. Apply pressure evenly to protect the bearing from damage. Gradually tighten bolts in a crosswise pattern to achieve even seating.
Alignment
For proper bearing function, precise alignment is very important. Start by tightening bolts with your fingers. Spin the shaft and tap the housing gently to help everything align in parallel. For checking accuracy, use dial indicators or alignment tools. Only tighten bolts to their specified torque after you’ve confirmed alignment; this helps prevent wear and vibration.
Quality Control and Inspection
To guarantee bearing housings meet industry standards, thorough quality control and inspection are needed. These processes identify defects early and help avoid expensive failures.
Dimensional Inspection
Inspectors check all key measurements such as bore width, diameter and mounting surfaces to confirm they meet design tolerances. For precise results, they use calipers, micrometers and coordinate measuring machines (CMMs). Even small measurement errors can impact how the bearing fits, its lifespan and its performance.
Surface Finish Evaluation
The surface finish affects both friction and heat transfer between the bearing and its housing. Generally bearing housings need a surface finish between 30 and 90 µinch Ra. Finer finishes lower wear and help improve heat flow. To verify that the finish meets requirements, inspectors use both surface roughness testers and visual checks.
Geometric Tolerances
Geometric tolerances set limits for the shape and alignment of features like mounting faces and bores. These checks make sure that flatness, roundness and concentricity stay within the required range. Proper alignment prevents misalignment and early failure. For these measurements, inspectors often use dial indicators and CMMs.
At RICHCONN we follow strict procedures and use advanced inspection equipment. Every housing must pass surface, dimensional and geometric checks before it leaves our facility.
To Sum Up
In short, achieving optimal bearing housing performance relies on precise manufacturing, careful material selection and rigorous quality checks. To succeed, one must use correct assembly methods, understand tolerance requirements and follow thorough inspection routines.
If you need any kind of CNC machining services for custom bearing housing then Richconn is your best option. You can contact us anytime.
Related Question
Using advanced CNC equipment, top grade materials, frequent dimensional inspections and following ISO rules for width, bore and runout all help maintain precise tolerances.
Machinists are required to keep tight tolerances, avoid heat-related distortion, manage surface finish and make sure alignment is correct for dependable bearing function.
Conduct dimensional checks using CMMs, perform roundness tests and measure surface roughness with profilometers. Moreover maintain a detailed documentation for traceability.
Modern methods like hard turning, CNC machining and EDM improve surface finish, boost accuracy and give repeatable results. These methods lower human error and raise the overall quality of bearing housings.
Precise machining reduces vibration and wear, ensures proper bearing fit and extends equipment life. Moreover it minimizes unplanned downtime, thus directly boosting machinery’s reliability.
