Black oxide coating is a surface treatment that greatly increases aesthetics and corrosion resistance. This multipurpose process increases the lifespan and appearance of metal parts across different fields, like aerospace, cars and medical devices. We’ll see the advantages, detailed steps and broad uses of black oxide coating in this post. This will give helpful knowledge for designers, engineers and manufacturing professionals.
What is Black Oxide Coating?
The black oxide coating is a chemical process that makes a thin layer of black oxide on metal surfaces. Mainly used on ferrous metals, this treatment increases wear and corrosion resistance while making components look better visually. So it’s become a popular procedure for many industrial operations.
Composition of Black Oxide Coating
| Component | Description | Concentration (parts by weight) |
| Magnetite (Fe3O4) | Primary black oxide layer formed on the substrate. | 1 to 2 mm thick |
| Sodium Hydroxide | Alkaline solution used in the blackening process. | 50 to 90 |
| Thiocyanates | Can reduce surface deposits; Increases blackening effect. | 0.1 to 25 |
| Nitrates and Nitrites | Oxidizing agents that facilitate the conversion process. | 0.1 to 50 |
| Cobalt/Nickel Salts | Optional additives to improve coating properties. | Up to 25 |
| Post-Treatment Waxes/Oils | Applied after coating for increased protection and finish. | Changes based on application |

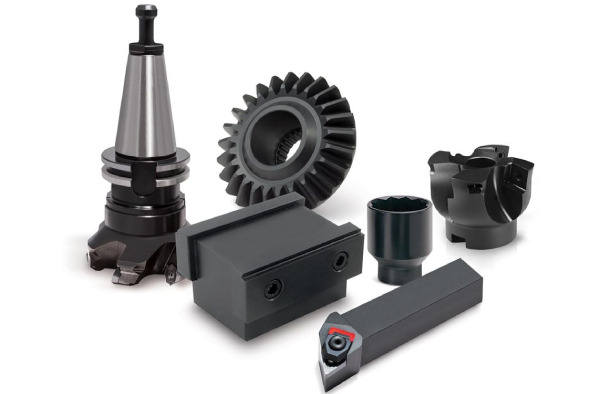

Types of Black Oxide Coatings
Black oxide coatings come in a number of varieties. These are all useful in different applications. Let’s see the most common types:
1. Hot Black Oxide
The processing of hot black oxide creates a magnetite layer on iron-based metals at 141°C. This method is the most used method in industry and produces a deep black finish with outstanding protection against corrosion.
2. Mid-Temperature Black Oxide
This black oxide works between 100 to 125 °C. It does not produce caustic fumes during magnetite formation on iron metals. This method is useful for stainless steel and it gives the same results as in the case of hot black oxide method. Moreover, it also prevents corrosion and has a nice look.
3. Cold Black Oxide
This method works at room temperature as compared to the other ones. It layers copper selenide instead of oxidizing the surface. Cold black oxide method produces a softer as well as less durable coating, but it is safe and faster than hot ways. A sealer is mostly added in the end to increase the corrosion protection of the surface.
4. Specialty Black Oxides
Some fields want black oxide finishes for particular properties. These treatments have formulas which are created for heat sensitive non-ferrous metals such as copper and aluminum. They give additional benefits like better electrical conductivity or lubrication. These oxides work in many industrial operations by meeting these explicit needs.
The Black Oxide Coating Process
It is important to understand how black oxide coating works to get the best results. Let’s break down the process step by step.
Surface Preparation
Recommended surface preparation makes sure of high quality and strong coating adhesion. This first step focuses on thoroughly cleaning the surface of metals by removing dirt, oils and oxides. This uses different methods like abrasive blasting, chemical etching or degreasing. A combo of alkaline cleaning and then acid pickling normally works best when working with intricate parts and this creates a clean surface.
Oxidizing Bath
The oxidizing bath is central to the black oxide process. This heated alkaline solution usually reaches 140 to 146°C and covers oxidizing agents and sodium hydroxide. Parts are soaked for 10 to 30 minutes which supports a chemical reaction. As a result, a magnetite layer forms on the metal surface that produces the signature black finish.
Post-Treatment
Once oxidation finishes, parts get a thorough rinse in order to remove any leftover chemicals and then a sealant is applied in the next step. Usually oil, lacquer or wax is used for this purpose. As the sealant sinks into the porous layer of oxide, it increases corrosion protection and gives the intended look. Wax makes a matte look, oil makes a glossy appearance and lacquer permits fast drying.
Key Variations in Process
The black oxide process is not one-size-fits-all. There are variations to work with many materials and needs. For example, aluminum goes through a zinc dipping pre-treatment while stainless steel needs special oxidizing solutions. Some operations use cold black oxide processes which rely on chemical reactions at room temperature. Others need electrolytic methods to increase oxidation. These changes make sure of the best results across a broad range of materials and specifications.
Benefits of Black Oxide Coating
Black oxide coating gives a range of advantages across different industries. One outstanding feature is its ability to protect against corrosion.
- Corrosion Resistance: The magnetite layer made by black oxide coating acts as a shield against chemicals and moisture which greatly increases corrosion resistance. With added sealants after treatment, this protective coat can last 100 to 200 hours in salt spray testing. It increases lifespan of metal parts, particularly for those metals in harsh circumstances.
- Dimensional Stability: One main advantage of black oxide coating is to keep exact dimensions. Only 0.5 to 1.5 microns’ addition to the surface makes sure of minimal size changes. This tiny growth is necessary for strict tolerances. This makes it best for parts in automotive, aerospace and medicine.
- Friction and Wear Reduction: Black oxide coating is extraordinary to minimize friction and increase wear resistance. Surface lubricity shows a clear boost when sealed with wax or oil. So parts have more protection from mild adhesive wears and better run-in performance. It also minimizes cracks, fretting and micro-pitting in rolling contacts.
- Aesthetic Appeal: Metal parts with black oxide coating get a stable and deep black finish which greatly boosts their visual appeal. This professional-looking matte surface works for many fields. Those products where looks are important took benefit from this coating, for example fine-tuning tools or luxury consumer goods as it preserves surface details.
- Thermal Stability: A major plus of black oxide coatings is extraordinary heat stability. The magnetite layer can handle temperatures up to 600 °F without damage. This makes the coating perfect for operations at high temperatures. Treated parts have consistent steady and performance in demanding heat scenarios such as in case of cars and planes.
Common Applications of Black Oxide Coating
You’ll find black oxide coating in many industries. The automotive sector, in particular, makes high use of this treatment.

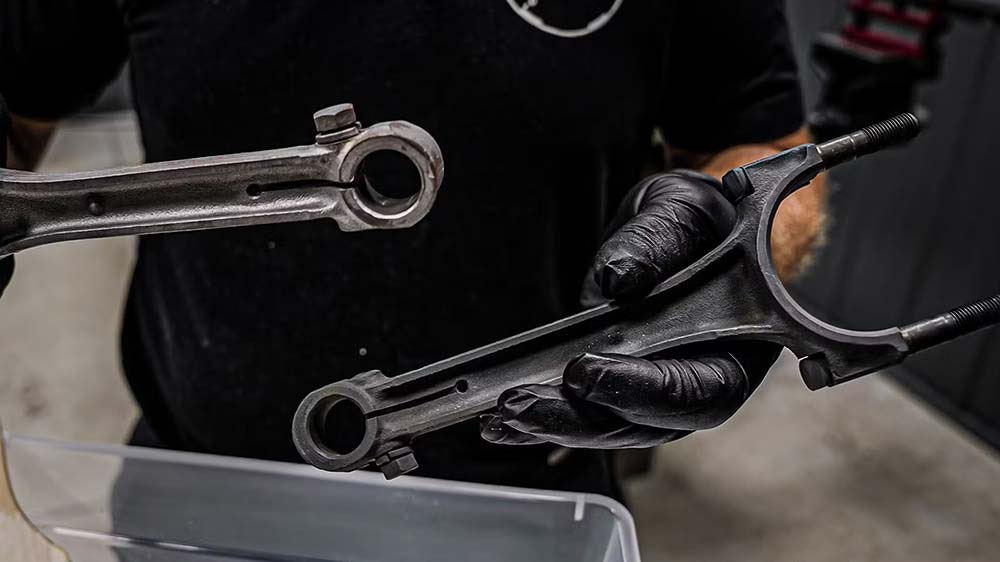

Automotive Industry
Black oxide coating is very important in making vehicles. Engine parts, gears, and fasteners benefit from its lubricating property and anti-rust abilities. The dimensional stability of coating is indispensable for precision components such as brake pistons and fuel injectors. It also improves the visual look of visible parts inside the vehicle.

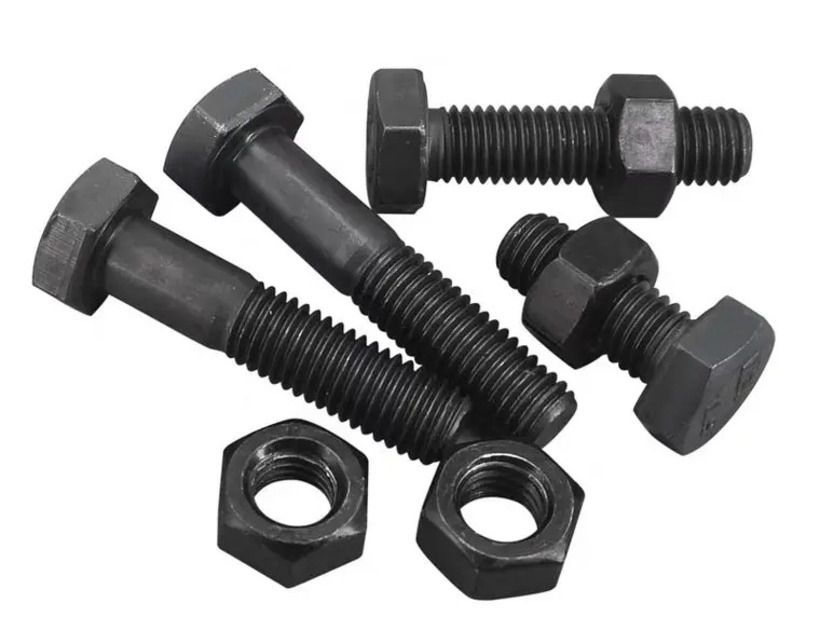

Aerospace Industry
Black oxide coating greatly boosts the quality of parts for the aerospace industry. Manufacturers apply it to important pieces like bolts, fittings and screws. Because of black oxide coating’s dimensional stability, anti-galling property and better lubrications, it proves indispensable in aerospace uses where quality and reliability cannot be negotiated.
Firearms and Military
The military and gun industry mostly uses black oxide coating for different parts. Bolts, receivers, triggers and gun barrels benefit from this coating. This coating increases wear and corrosion resistance and reduces glare in challenging conditions. Beyond firearms, the coating’s low reflection and durability make it fundamental for other military gear. Ammunition magazines, optical sights and rifle parts all depend on black oxide to keep peak operation during tactical missions.

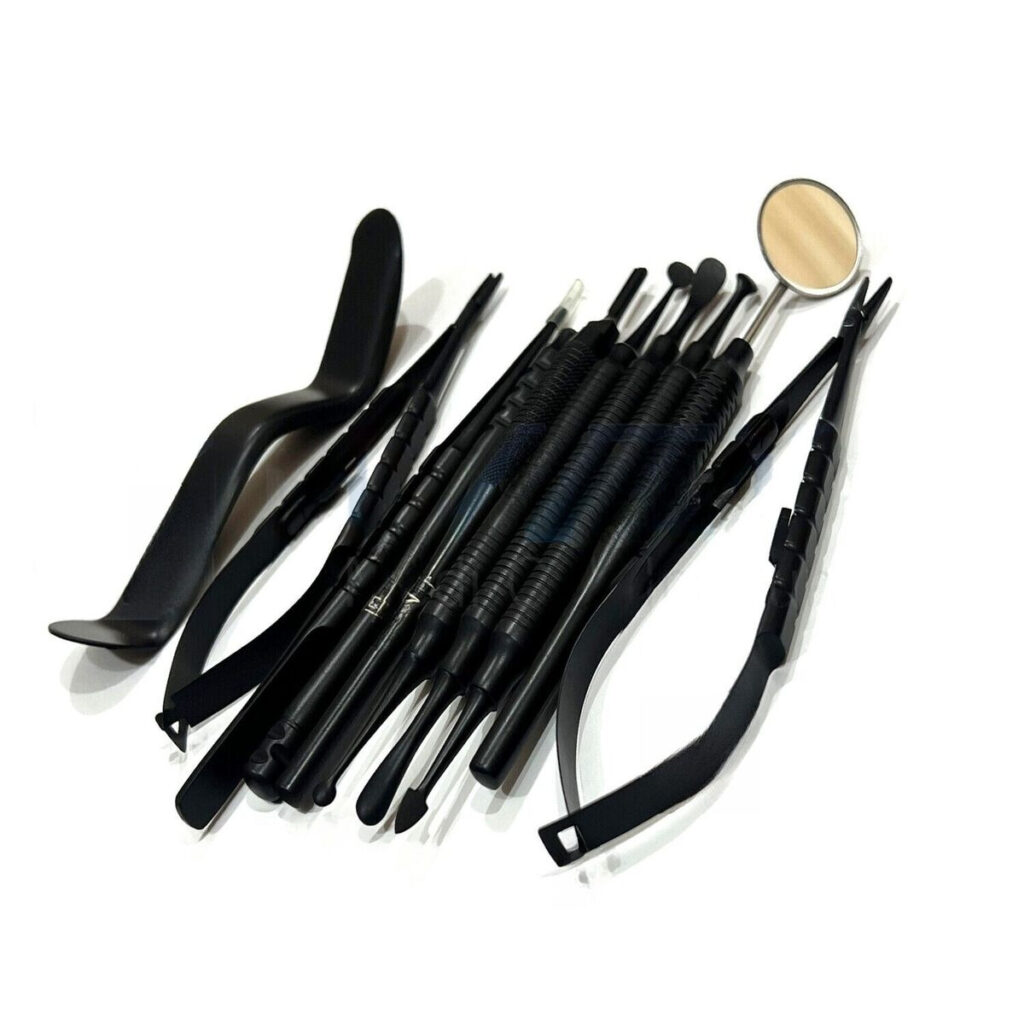

Medical Devices
Manufacturers of medical parts use black oxide coating a lot for its particular properties. The anti-corrosion ability and biocompatibility of this coating proves it a fantastic choice for diagnostic gear, implants and surgical tools. Exact functionality in medical gadgets depends on the black oxide coating to keep super narrow tolerances. Its non-reflective surface improves visibility and decreases glare in surgical procedures.
Limitations and Challenges
Black oxide coating has many benefits, yet it is not without drawbacks. It is important to consider these limitations for proper use:
- Thickness Limitations: One limitation of black oxide finishes is they are very thin, usually 0.5 to 1.5 microns. It can result in less protection in very harsh climates keeping the original dimensions accurate. You may need to check out other surface treatments when operations need thicker protective layers.
- Durability Concerns in Cold Process: Cold black oxide processes are although faster to apply but it might not give the same durability as hot processes. To handle this, makers usually choose hot black oxide or use high-quality sealants if maximum durability is necessary.
- Safety and Environmental Issues: Caustic chemicals used in hot black oxide processes raise environmental and safety worries. So, industry experts have created modern formulae and follow strict safety rules to reduce these dangers.
- Heat Resistance Limitations: Black oxide coats still have limits in extreme heat circumstances although they are effective up to 900 °F. Engineers should check out other coating choices for higher temperature uses.
Comparison with Other Coatings
To know what makes black oxide coating outstanding, let’s compare it to other popular surface treatments. We will start by looking at black oxide versus anodizing.
Black Oxide vs. Anodizing
Both have very different properties and processes. While black oxide makes a thin layer of magnetite, anodizing produces a much thicker oxide coating of aluminum. Anodizing is better for hardness and corrosion protection. On the other hand, black oxide keeps better dimensional precision and works best on ferrous metals. Another thing is, black oxide is usually faster to apply and cheaper than anodizing.
Black Oxide vs. Powder Coating
Powder and black oxide coatings vary a lot in their uses and traits. Black oxide is cheap and preserves accuracy in dimensions with a thickness of only 0.5 to 1.5 microns. On the other hand, powder coating is great for harsh environments as it gives durability and better corrosion resistance. Additionally, powder coating has a number of color options while black oxide usually gives a matte black finish.
Black Oxide vs. Bluing
Bluing and black oxide are different but related processes that are mostly used interchangeably. Both methods create a magnetite layer on metal surfaces. Even so, the finishes look different – bluing makes a blue-black appearance and black oxide gives a deeper black color. Firearms makers mostly prefer bluing but industrial fields usually choose black oxide treatments.
Conclusion
Black oxide coating serves as a multipurpose procedure for improving metal parts. This process not only increases corrosion and wear resistance but also gives an attractive matte finish. While it may not be as protective as some of its alternatives, black oxide’s minimal impact on dimensional tolerances and affordability make it a popular choice for precision components across different manufacturing fields. Black oxide coating deserves real consideration when weighing looks, quality and price in manufacturing.
FAQ’s about Black Oxide Coating
1. Can black oxide coating be applied to non-ferrous metals like aluminum, copper, or zinc?
Indeed, non-ferrous metals like copper, aluminum and zinc can acquire black oxide coatings too. But, these materials need customized chemical formulas and special methods to reach the intended results.
2. What are the environmental considerations and safety concerns when using black oxide coatings?
The black oxide process uses hazardous chemicals that need strict safety measures. Proper handling, worker protection and disposal protocols are indispensable to minimize health risks and environmental impact. Fortunately, industry best practices and modern formulations have greatly reduced these concerns.
3. How does black oxide coating compare to other surface treatments like anodizing or powder coating?
One key plus of black oxide coating is its ability to maintain stricter tolerances. It outperforms both powder coating and anodizing here with a layer thickness of just 0.5 to 1.5 microns. Additionally, black oxide is great to give better anti-galling and lubrication properties which makes it useful for moving components.
