Machining blind holes isn’t as simple as it looks. Limited access, heat buildup and poor chip evacuation can easily lead to errors. In this blog post you’ll learn how to plan, drill and finish blind holes with precision using the right speeds, tools and machining strategies.
What is Blind Hole Machining?
Blind hole machining involves creating cavities that stop at a particular depth without penetrating the workpiece’s opposite side. These features are essential for housing fasteners, creating sealed reservoirs or reducing weight while maintaining structural integrity. Unlike standard holes, they require precise depth control to prevent breakthrough errors.
Blind Hole vs Through Hole
Through holes extend completely so chips exit freely. In contrast, blind holes trap debris. This increases chip packing and tool breakage risks. That’s why blind holes demand specialized strategies like peck drilling cycles and flat‐bottom tooling to assure effective evacuation.
Blind Hole Machining Process
Executing a blind hole requires strict adherence to process stability and debris management to guarantee structural integrity and dimensional accuracy.
1. Workpiece Preparation
First of all, secure the material firmly using precision vises or clamps to eliminate vibration during the cutting cycle. Also ensure the top surface is clean and flat to prevent angular misalignment. Always mark the center with a center punch or spot drill to stop the bit from walking.
2. Drilling Blind Holes
Start with a pilot hole for larger diameters to reduce cutting resistance and to guide the main tool. Maintain consistent downward pressure and optimized spindle speeds to prevent tool deflection or breakage. Additionally use carbide drills with specialized geometries for harder materials to assure straightness and reduce friction.
3. Depth Control Techniques
For manual operations, use a mechanical depth stop or mark the drill bit for visual reference.
CNC machines on the other hand, utilize programmable Z‐axis coordinates and probing cycles to achieve tolerances as tight as ±0.05mm. This prevents over‐drilling that could compromise the part’s bottom wall thickness.
4. Debris & Chip Management
Chips accumulating at the bottom can cause heat buildup and tool breakage if not evacuated properly. To avoid this, implement peck drilling cycles to retract the tool periodically and to break long chips. High‐pressure coolant or air blasts also effectively flush out packed debris from the cavity.
At RICHCONN, we use high pressure systems (up to 70 bar) to clear chips quickly. This helps us maintain accuracy and avoid unnecessary rework.
Key Machining Parameters for Blind Holes

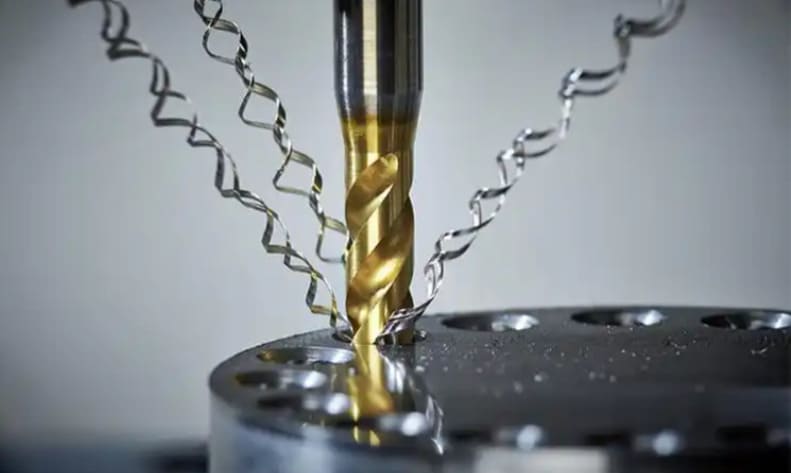

Setting precise parameters ensures process stability and prevents expensive scrap in blind hole operations.
Feed Rate & Spindle Speed
Balancing spindle speed (RPM) and feed rate is critical to manage heat and chip load. For drilling standard aluminum (e.g., 6061), a surface speed of 200 to 300 SFM with a feed of 0.004 to 0.010 IPR is typical. For harder steels, reduce speed to 70 to 100 SFM. Crucially, reduce the feed rate by 10 to 20% when approaching the hole’s bottom to minimize stress on the drill tip.
Related Blogpost: Feed Rates and Cutting Speed in CNC Machining
Cutting Depth & Peck Drilling

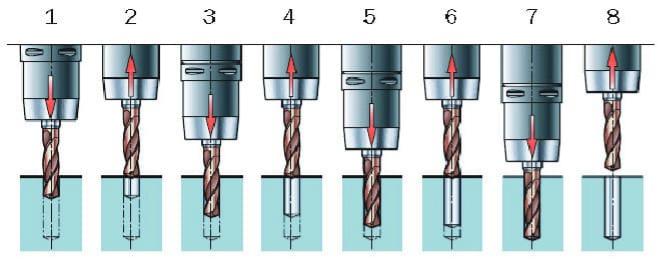

Peck drilling (G83 cycle) is essential for holes deeper than three times the diameter. This technique retracts the tool periodically to break long chips and prevent packing at the bottom. Also set the peck depth (Q value) between 0.5 to 1 times the drill diameter for optimal evacuation.
Coolant & Lubrication Strategies
Standard flood coolant frequently fails to reach the bottom of deep blind features. Utilizing high pressure through‐spindle coolant at 70 bar (1000 PSI) is superior. This hydraulic pressure forces chips upward and prevents dangerous heat accumulation at the drill tip during deep cuts.
Tolerance Requirement & Material Behavior
Blind holes frequently need reaming to achieve strict H7 tolerances or Ra 0.8 µm finishes. Moreover, you should exercise caution with work‐hardening materials like 304 stainless steel. You must also avoid dwelling at the bottom; as this hardens the surface and complicates subsequent tapping.
Suitable Tools for Blind Hole Drilling
Choice of the correct tooling is vital for achieving precision and to prevent tool breakage inside blind cavities. The right geometry and material ensure efficient material removal and extended tool life in demanding environments.
1. Drill Bits & Geometry
Standard twist drills can handle many tasks, but they leave a conical tip of 118° or 135° which limits the usable hole depth. For perfectly flat bottoms, specialized flat‐bottom drills or counter bores are needed. These tools feature high‐helix flutes to lift chips out of the hole efficiently.
2. End Mills for Special Blind Features
When precision milling is needed, center‐cutting end mills allow for “plunging” into the material to create flat‐bottom features. This approach is best for complicated geometries where drilling might fail. Interpolated milling paths also provide superior control over hole diameter and bottom surface finish.
3. Tapping Tools for Threaded Blind Holes
Never use spiral point taps for blind holes as they push chips forward into the bottom. Instead, use spiral flute taps which pull chips backward out of the hole like a corkscrew. For threading close to the bottom, finish with a bottoming tap which has only 1 to 2 tapered threads.
4. Tool Coatings & Materials
Carbide tools with AlTiN or TiAlN coatings offer the best performance for high temperature blind machining. AlTiN is superior for extreme heat while TiAlN provides high hardness and low friction.
Design & Engineering Considerations for CNC Machining Blind Holes
An effective blind hole design needs balancing functional needs with manufacturability to assure structural integrity and cost‐efficiency. Engineers must carefully specify geometry and materials to prevent machining failures.
Hole Geometry & Drawing Callouts
Use the blind hole depth symbol (↧) on drawings to make requirements clear. Clearly define the cylindrical depth separately from the drill tip angle (typically 118° or 135°). Always specify if the depth applies to the full diameter or the drill point to prevent assembly interferences.
Material Selection & Machinability
Material behavior dictates tool choice; ductile metals like aluminum require sharp, polished tools to prevent chip welding in the blind cavity. Conversely, abrasive composites need diamond‐coated bits to resist wear. Plastics like ABS, on the other hand, are prone to melting. Therefore designers should allow for lower spindle speeds and larger chip evacuation paths to prevent gumming.
Placement, Stress Concentration & Feature Interaction
Blind holes act as stress risers, concentrating mechanical forces near the hole bottom. Avoid placing them close to thin walls or edges as the pressure from tapping or thermal expansion can crack the material. Also maintain a wall thickness of at least half the hole diameter between the blind hole and adjacent features to assure structural integrity.
Tolerance Planning
Limit tight tolerances (e.g., H7) solely to critical alignment features (like dowel pins) to control machining costs. For standard clearance holes, looser tolerances (±0.2mm) are sufficient and significantly faster to machine.
Best Practices for Blind Hole Machining
Successful blind hole machining relies on strict process control and rigorous post‐production standards to assure consistency. Implementing the following practices minimizes errors and increases the longevity of both the tool and the final part.
Optimization for CNC Machining
Maintain tool runout below 0.005mm (5 microns) to prevent bell‐mouthing at the hole entrance. Use canned cycles like G83 to standardize peck depths and retraction movements for consistent chip breaking. Additionally, rigid workholding is essential to damp vibrations that can cause chatter marks on internal walls.
Related Blogpost: What is Precision CNC Machining
Quality Assurance & Inspection
Standard calipers cannot accurately measure deep blind features. Use calibrated Go/ No‐Go plug gauges for diameter verification and dedicated depth micrometers to check Z‐axis accuracy. For high precision parts, air plug gauges are superior as they can detect taper or out‐of‐roundness deep inside the bore without touching the walls.
Cleaning & Debris Removal
Chips often adhere to the bottom of blind holes because of coolant surface tension. Use ultrasonic cleaning tanks where cavitation bubbles penetrate deep cavities to dislodge micro‐particles. Another option is to use high-pressure air blasts together with magnetic wands. This method helps you pull out ferrous swarf from critical blind features by hand.
Tool Wear Management
Monitor spindle load meters closely; a spike in power consumption (around 5 to 10%) normally indicates dull cutting edges. Listen for changes in cutting noise—a high‐pitched screech often signals rubbing at the drill corners.
Replace tools immediately when these early warning signs appear to avoid scrapping expensive workpieces.
The Role of Blind Holes in Different Applications
Aerospace & Aviation
In airframe structures, blind holes are critical for fastener accommodation where aerodynamic smoothness is non‐negotiable. High-strength bolts can hold skin panels in place without passing through to the cabin. This keeps pressure seals intact. Additionally, they reduce weight by eliminating the need for heavy backup nuts and washers that are typically needed with through‐holes.
Automotive Manufacturing
Engine blocks and transmission cases rely heavily on blind holes to mount sensors, head bolts as well as manifolds. These cavities allow for secure, high‐torque threading without penetrating coolant or oil passages. This prevents catastrophic fluid leaks during engine operation.
Electronics & Consumer Devices
High‐density interconnect (HDI) circuit boards in smartphones utilize blind vias to connect outer layers to inner circuits without wasting space. This setup allows for tightly packed components. It also protects sensitive wiring inside the device from outside contact.
Medical Devices
Orthopedic implants, such as hip replacements, use threaded blind holes to securely fasten components without compromising surface biocompatibility. They also create non‐penetrating mounting points in surgical instruments to maintain a sterile barrier against contamination. This precision ensures mechanical stability in life‐critical healthcare applications.
Industrial Equipment & Machinery
Heavy machinery uses blind holes for mounting hydraulics and vibration‐dampening pads directly onto solid casting frames. This ensures robust attachment points that can withstand immense cyclic loads. By avoiding through-holes, the main chassis stays strong and does not lose structural integrity.
Common Challenges & How To Solve Them
Blind hole machining presents some unique obstacles, but advanced tooling & precise techniques can effectively mitigate these issues.

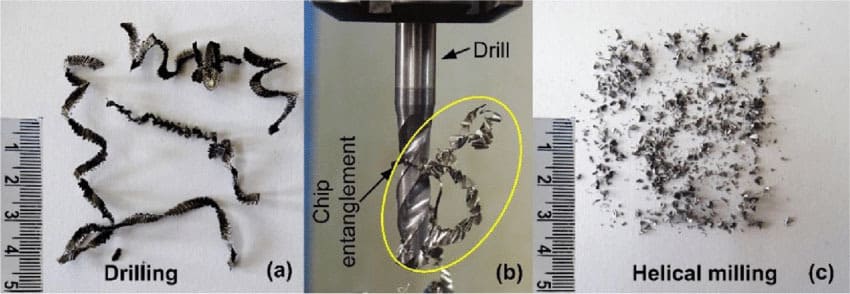

1. Chip Packing & Heat Buildup
Chips trapped at the bottom can cause catastrophic tool failure and poor surface finish.
Use High‐Pressure Coolant (HPC) systems (300–1000 psi) to flush debris upward and to cool the cutting zone. Alternatively, implement peck drilling cycles to break long chips and allow periodic evacuation.
At RICHCONNN, we combine controlled peck cycles with steady high‐pressure coolant. This keeps chips clearing smoothly on tough stainless jobs and helps extend tool life while also reducing cycle time.

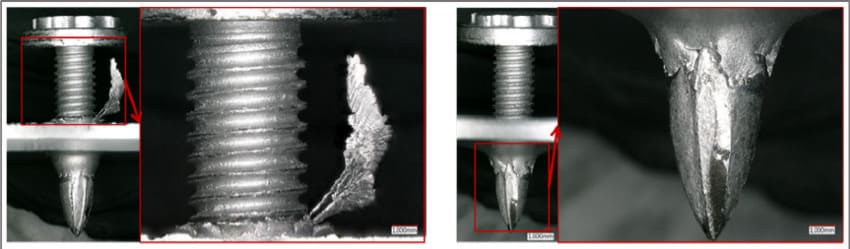

2. Tool Deflection & Breakage
Long drills in deep holes often deflect which lead to wandering or snapping.
Mitigate this by using rigid carbide tools with shorter flute lengths to increase stiffness. Additionally, start with a spot drill to establish a true center before engaging the main tool.
3. Depth Overshoot Risks
Inaccurate depth can compromise wall thickness or ruin threads.
You can prevent this by using CNC probes to verify tool length offsets before machining. For manual setups, utilize positive stops on the quill to physically limit travel and ensure consistent depth repeatability.
4. Material‐Specific Difficulties
Materials behave differently in confined spaces; stainless steel work‐hardens if dwell times are too long while plastics melt from friction.
Adjust your approach—lower the RPM when cutting plastics to keep them cool, and use greater feed rates on alloys to avoid rubbing & work hardening.
Case Study– Blind Hole Machining for Aerospace Fastening Feature
We recently machined critical blind holes in 7075‐T6 aluminum for a high‐stress aerospace structure. This design needed a 5mm diameter hole at 25mm depth with a ±0.05mm position tolerance. We chose solid carbide drills for this job.
To manage chips we used the G83 peck cycle, which allowed us to break up chips and remove them from the hole easily. High-pressure internal coolant quickly cleared away debris. This method prevented heat from building up & thus reduced thermal expansion. This kept the hole shape accurate and protected the required geometry. In the end we got a perfect fit that is needed for high-performance aircraft fasteners.
To Sum Up
Mastering blind hole machining needs a perfect balance of tool selection, chip management and precise parameter control. By implementing these expert strategies, you can prevent costly failures and ensure superior structural integrity in your components.
For complex projects requiring flawless execution, you can trust Richconn. Feel free to contact us today for high‐precision CNC machining services.
Related Questions
To avoid sudden breakage, use peck drilling (frequently retracting the bit) to clear chips and prevent jamming. Also apply ample cutting fluid and reduce feed rates near the bottom.
Select a tap based on upward chip removal to prevent packing at the bottom (e.g., spiral flute). If threads must reach the bottom, ensure the tap has a short chamfer (bottoming style).
Lasers can drill blind holes using controlled pulses; but waterjets are generally unsuitable due to poor depth control.
For standard drills, limit depth to 3-4 times the diameter in aluminum or 2-3 times in harder materials like steel.
