Brass unites the finest properties of zinc & copper. This makes it an alloy with many advantages. Its versatility and durability positions it as a top choice in industries like plumbing, electrical, automotive and decoration. In this blog post you will find information on brass parts manufacturing including material selection, production procedure, quality control and applications.
Why Choose Brass for Parts Manufacturing
Brass has many benefits which make it a preferred material for manufacturing:
Superior Machinability
You can machine brass with accuracy and very high speed. This property increases production efficiency and encourages high speed cutting.
Antimicrobial Properties
Brass reduces bacterial growth naturally. This makes it a smart choice for food industry & healthcare applications.
Corrosion Resistance
Brass resists chemicals and rust well. So brass parts will be reliable even in marine or harsh environment.
Aesthetic Appeal
Brass has a gold like shine. This gives products a premium and attractive look.
Versatility
Brass comes in many alloy types. You can choose the right alloy to match your requirements for hardness, strength or thermal properties.
Recyclability
Brass can be recycled 100% without losing its quality. This supports eco‐friendly manufacturing and reduces demand for new raw materials.
At RICHCONN we recycle almost all brass machining scraps in‐house. This helps you save costs while maintaining quality.
Brass Grade Selection for Parts Manufacturing
Selection of right brass grade depends on the performance & properties you need. Here are some of the best known grades and what sets each one apart.
Alpha Brass
Alpha brass shapes easily at room temperature and resists corrosion. You can use it for deep drawing & bending. Its composition is:
| Element | Percentage |
|---|---|
| Copper | 65 to 70% |
| Zinc | <37% |
Beta Brass
Beta brass has more hardness and strength. You should choose it for hot working or when your parts must be extra durable.
| Element | Percentage |
|---|---|
| Copper | 55 to 65% |
| Zinc | 35 to 45% |
Alpha‐Beta Brass
Alpha‐beta brass has both good workability and strength. This makes it appropriate for many uses. Its general composition is:
| Element | Percentage |
|---|---|
| Copper | 50 to 55% |
| Zinc | 45 to 50% |
C360 (Free‐Cutting Brass)
C360 is the most machinable. You will find it best for high speed and precise machining. Its composition is:
| Cu | Zn | Pb |
|---|---|---|
| 61.5% | 35.5% | 3% |
C464 (Naval Brass)
C464 resists seawater corrosion well as it has tin, thus you can use it for marine hardware.
| Cu | Zn | Sn |
|---|---|---|
| 60% | 39% | 1% |
C260 (Cartridge Brass)
C260 forms well and has moderate strength. It’s best for deep drawing & bending. Its composition is:
| Cu | Zn | Pb |
|---|---|---|
| 68.5 to 71.5% | 28.5 to 31.5% | <0.07% |
C353 (High Lead Brass/ Engraver’s Brass)
C353 gives a smooth finish and engraves easily. Its composition is:
| Cu | Zn | Pb |
|---|---|---|
| 62% | 36% | 2% |
If you are not sure which brass alloy is appropriate for your project then RICHCONN’s engineering team can help you choose the right one, considering your performance needs & industry standards.
Brass Parts Manufacturing Procedures
After you’ve chosen the brass grade, you need to choose the right manufacturing procedure. Different methods can turn raw brass into finished parts.
Casting
Sand Casting
Sand casting is one of the oldest ways to make brass parts. In this method sand molds are formed around a pattern and then filled with molten brass. It takes 8 to 24 hours to complete. You can use sand casting for small to large parts, from fittings to hardware.

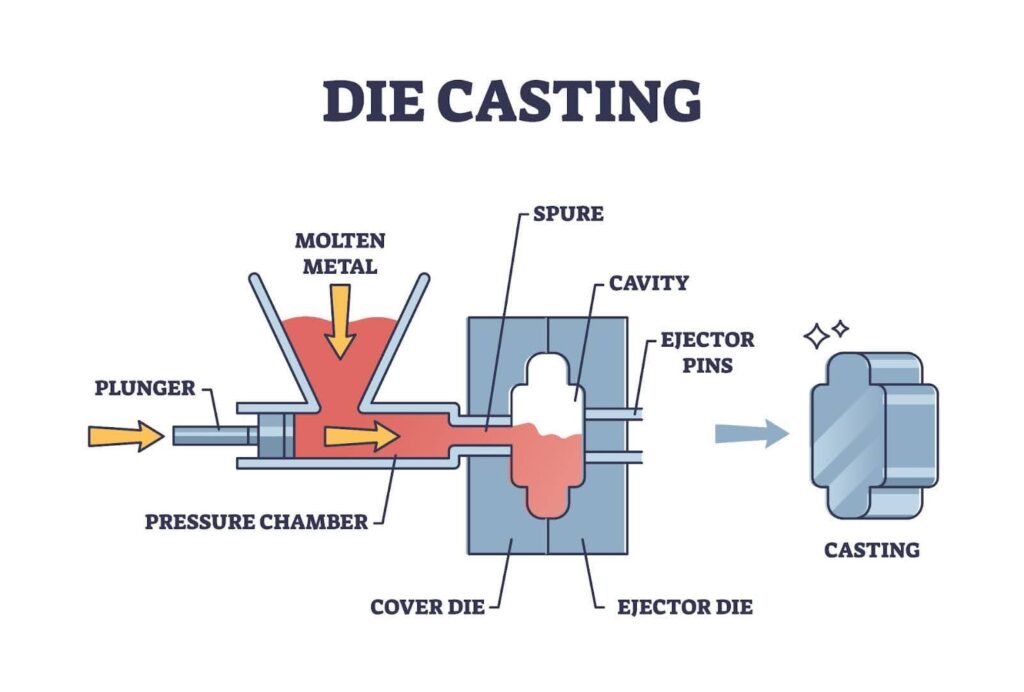

Die Casting
Die casting forcefully injects molten brass into steel molds at high pressure (mostly 150 to 1200 bar). It is best for making large quantities of small to medium sized brass parts. It handles complicated shapes well and produces great surface finish.

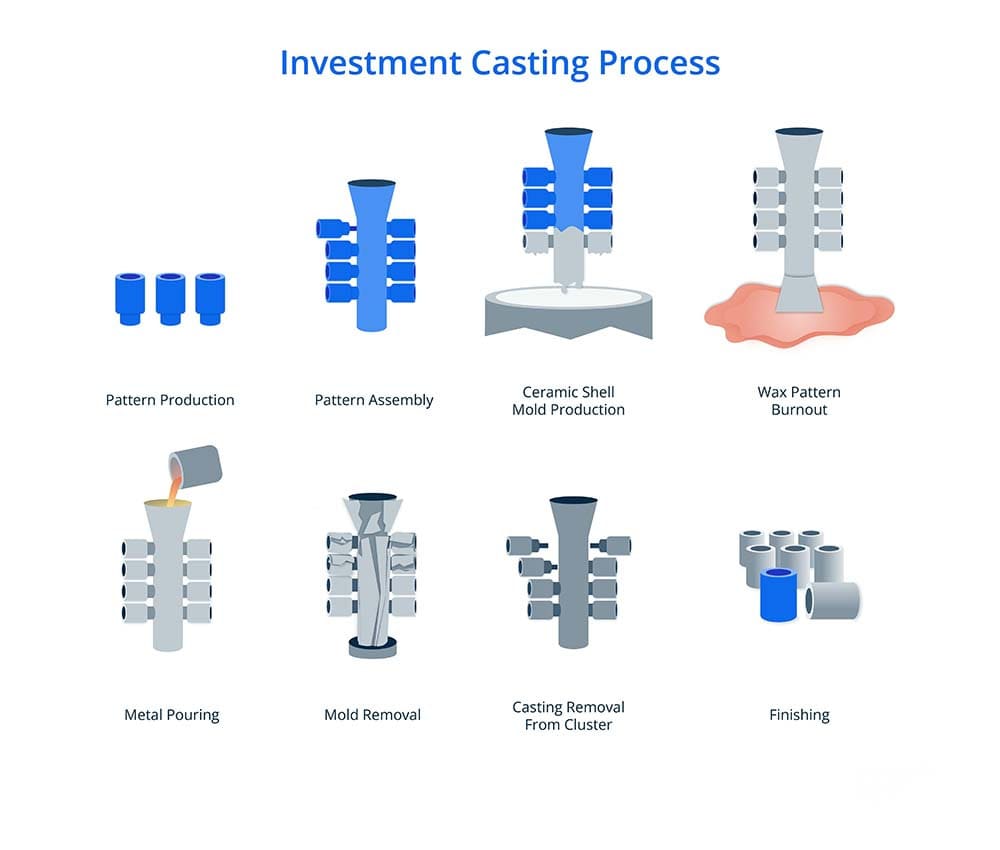

Investment Casting
Investment casting (or lost wax casting) produces brass parts with fine details. You start by coating a wax pattern with ceramic. After melting out the wax, the ceramic shell forms a cavity for molten brass. This is for parts that need a smooth surface and precise details like decorative fittings or valves.

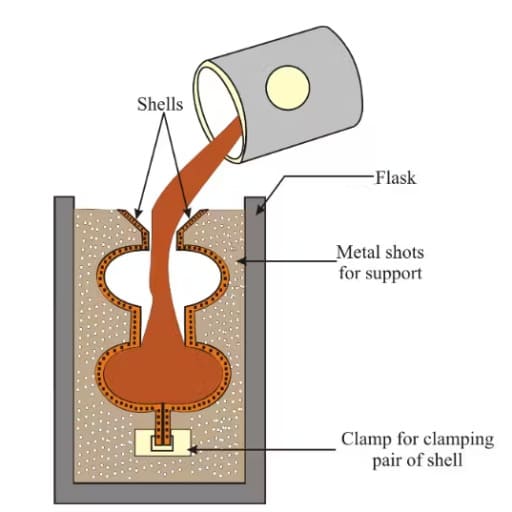

Shell Molding
Shell molding forms the mold from a thin shell of resin and sand. This gives better dimensional accuracy as compared to regular sand casting. It’s an affordable way to make complicated brass parts with minimal machining & good surface finish.
CNC Machining

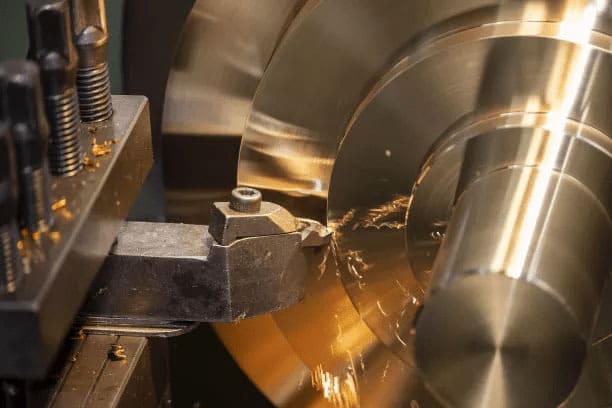

CNC Turning
A cutting tool shapes the brass rod as the machine spins it. This produces precise cylindrical parts e.g., connectors and bushings. Its tolerances can be within ±0.01 mm.

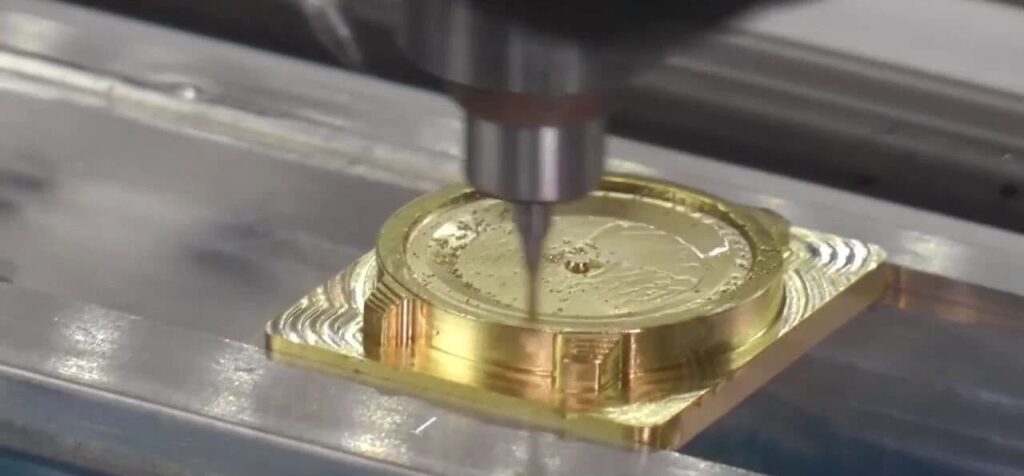

CNC Milling
Rotating cutters remove material from a stationary brass workpiece in CNC milling. This makes detailed features, pockets and slots easy. For brass, milling speeds are mostly between 200 and 400 feet per minute. By using milling you can get smooth surface finish and fast material removal.
Drilling and Tapping
Drilling forms accurate holes in brass components. Tapping then cuts internal threads. For 464 brass, the best drilling speeds are 250 to 350 RPM. These are important for parts like plumbing fittings and electrical connectors.
Also See: Drilling vs Tapping ─ What Are The Differences?
Grinding
Grinding polishes brass to give a mirror‐like finish. It also assures dimensions. You can use it when you need parts to look perfect or of very tight tolerance, like high end fittings or musical instruments.
Also See: What is Precision Grinding
Forming Methods for Brass Parts Production
Forming shapes brass by mechanical deformation not removal. These go beyond casting and machining. Here are some of the most used ways to form brass parts

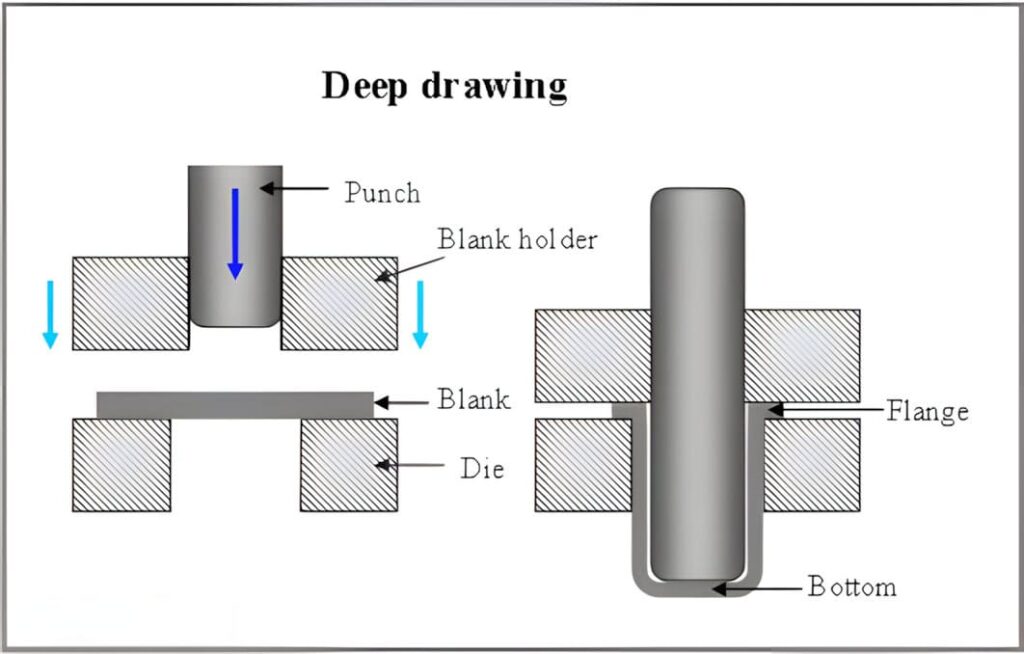

Deep Drawing
A punch and die turn flat brass sheets into hollow forms through deep drawing. Manufacturers mostly use this procedure to make brass shells and cups. To prevent wrinkles or cracks you must control material flow & strain carefully during forming.

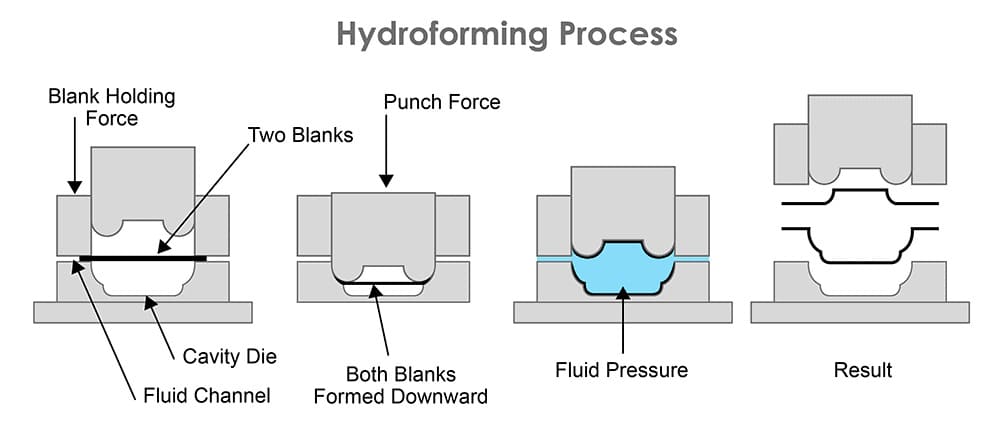

Hydroforming
Hydroforming shapes brass into complicated forms by applying high pressure hydraulic fluid. This reduces material waste and produces parts that are both light in weight and strong. You can use hydroforming for parts with detailed curves and contours like decorative or automotive items.
Stamping
Stamping forms or cuts brass sheets with a press and die. It is efficient and very quick. which is why it’s good for flat parts like brackets, washers & electrical contacts.
If you need hydroformed or deep drawn brass parts RICHCONN can support your project. You can order one‐off prototypes or large production runs. Each batch will be customized for your particular needs.
Also See: A Complete Guide to Metal Stamping
Heat Treatment and Surface Finishing for Brass Parts
Annealing
To anneal brass you heat it at 450°C to 600°C and hold it at that temperature. Then you cool it slowly. This increases ductility and relieves internal stresses. In this way, machining and forming become easier. Moreover annealed brass resists cracking during later processing.
Pickling
Pickling cleans brass parts by removing oxides and discoloration from the surface. You mostly use a solution of hydrogen peroxide (45 to 55%) and sulfuric acid at 44 to 46°C for about one minute. After pickling the surface becomes bright and clean, thus ready for more finishing steps.
Electroplating
Electroplating covers brass parts with a layer of metal like gold or nickel. This increases corrosion resistance. It also creates a shiny decorative finish which is good for parts that are visible or those which experience heavy wear.
Polishing and Buffing
Polishing and buffing use abrasives to smooth and brighten brass surfaces. These steps remove small imperfections and improve the look of each part. So the result is a premium professional finish.
Passivation
Passivation uses a passivating agent like benzotriazole (BTA) on the brass surface. This forms a thin oxide layer that protects the part. Parts’ corrosion resistance improves and it will last longer especailly if it is exposed to chemicals or moisture.
At RICHCONN our finishing experts make sure your parts meet your demand. Whether you need a strong plating, mirror polish or special passivation for harsh environments we will deliver the finish you need.
Inspection and Quality Control

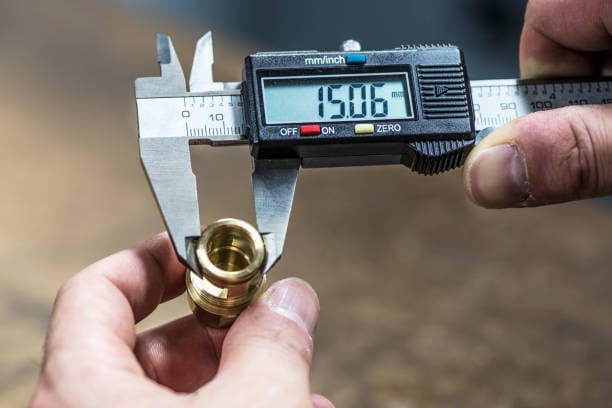

You use micrometers and calipers to measure each part. This step checks that every brass part fits its design and is within tolerance.
Mechanical Testing
Mechanical testing checks hardness, tensile strength as well as impact resistance. These tests show brass parts can withstand real world loads and stresses.
Surface Quality Checks
Surface inspections look for pits, cracks or discoloration. By inspection you can find surface defects and cosmetic flaws before sending parts for finishing.
Non Destructive Testing (NDT)
X‐ray and Ultrasonic testing are NDT methods which reveal hidden voids or cracks. You can use NDT to inspect safety critical parts like connectors and valves without damaging them.
Also See: What Is Non-Destructive Testing
Statistical Process Control (SPC)
SPC uses real time data and control charts to track production quality. By using SPC you can reduce defect rates, spot trends as well as keep brass manufacturing consistent.
At RICHCONN we use SPC and other strict inspection methods in every project. Our ISO certified quality systems assure you get defect free parts every time.
Uses of Brass Parts
Electrical Parts
Manufacturers use brass to make terminals, connectors and switches. The material’s resistance to corrosion and high conductivity assures electrical performance.
Automotive Parts
Bushings, radiator cores and hydraulic connectors in modern vehicles mostly use brass. Metal’s thermal conductivity helps control engine heat. Its corrosion resistance and strength allow parts like valve guides & spark plugs to last longer.
Plumbing Fittings
Faucets, valves and pipe fittings in homes and businesses mostly contain brass. This metal resists bacteria and does not rust. These qualities make it a top choice for fixtures and water supply lines.
Musical Instruments
Trombones, saxophones and trumpets are made from brass. The metal’s acoustic properties produce clear sounds. Its workability allows precise shaping of bells and tubes which is necessary for professional instruments.
Decorative Items
Coins, jewelry and ornamental hardware mostly feature brass. The metal’s easy shaping and gold‐like shine make it best for decorative uses.
RICHCONN has worked with clients from all these industries. Whatever your industry we can help you turn your ideas into parts.
Challenges in Manufacturing Brass Parts
Brass has many benefits but you will still face some challenges during manufacturing. Some well known challenges are:
Material Variability
The alloy composition in brass can vary. When the zinc content changes by 1% you will see defects or unexpected mechanical properties. Workability & Strength can change with these small differences.
Corrosion Issues
Brass can have problems like stress corrosion cracking or dezincification. These happen if the alloy mix is off or the environment is not appropriate. Due to these defects, parts become weaker and service life gets shorter.
Dimensional Tolerances
Brass expands when heated so it’s hard to keep tight tolerances. Even small temperature changes during production can cause dimensional errors.
Tool Wear
Brass is abrasive so tools wear out quickly particularly at high speeds. RICHCONN regrinds tools on‐site and adjusts cutting parameters for each brass job.
To Sum Up
Manufacturing brass parts combines the flexibility of the material, advanced methods like CNC machining & casting and strict quality control. These methods produce strong and reliable parts for many industrial fields. By choosing the right brass grade and manufacturing process you can get the best for your needs.
If you need precise brass parts or professional CNC machining services then contact Richconn today.
Related Questions
What tools to use for machining brass parts?
For machining brass use cutting tools made from high speed steel (HSS) or carbide. Make sure the tools have a positive rake angle and sharp edges for best performance.
Is steel parts stronger than brass parts?
Yes steel is stronger than brass parts. Steel has higher tensile strength so it’s more suitable for high impact applications or heavy loads.
Can brass machine easily?
Yes brass can be machined very easily. It causes minimal tool wear, supports high cutting speeds and produces smooth surface finishes.
