Industrial sectors depend on bronze machining to make rust‐proof and strong parts. This versatile metal is special compared to other alloys due to its low friction, great machinability and high wear resistance.
In this blog post we will review the important aspects of bronze, its properties, types, machining methods as well as industrial uses.

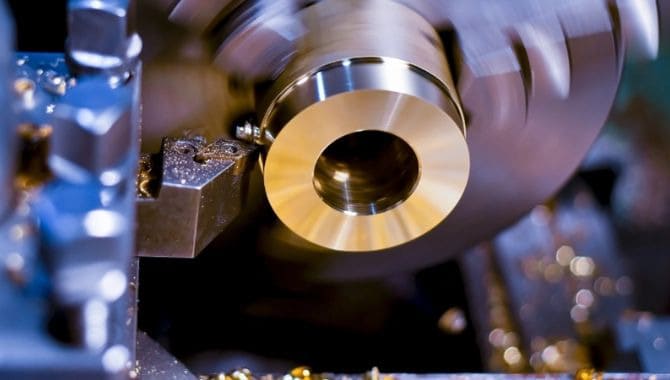

What is Bronze Machining?
To put it simply, bronze machining is a process that converts bronze alloys into useful parts by proper material removal. It uses multiple techniques that include milling, CNC machining, turning as well as drilling. Due to its inherent resistance to corrosion & its strength, bronze is used in a number of fields such as aerospace, marine and general machinery.
Also See: What is CNC Precision Machining
Composition of Bronze
Different alloy types have different bronze compositions. Traditional “classic bronze” contains 12% tin & 88% copper. Newer alloys add additional elements such as aluminum, zinc, lead and silicon to achieve specific performance characteristics.
The composition percentage range of these elements are summarized in the below given table:
| Element | Percentage Range (%) | Classification |
|---|---|---|
| Tin | 3.5% to 12.5% | Primary |
| Copper | 57% to 97% | Primary |
| Aluminum | 5% to 14% | Additional |
| Zinc | 1.5% to 40% | Additional |
| Phosphorus | 0.01% to 0.5% | Additional |
| Lead | 0% to 4.5% | Additional |
| Nickel | 0% to 6% | Additional |
| Iron | 0% to 6% | Additional |
| Silicon | 0% to 3.8% | Additional |
| Manganese | 0% to 3.5% | Additional |
Properties of Bronze
1. Physical Properties
Melting Point
The melting point of bronze varies from 315°C to 1180°C which depends on its composition. This high melting‐point makes it suitable for extreme temperature applications and casting.
Density
Bronze has a density of 7.4 to 8.9 g/cm³ which varies according to composition of the alloy. This higher density is good for heavy use and it also gives better strength.
Electrical and Thermal Conductivity
With thermal conductivity ranging from 1.01 to 208 W/m-K bronze is perfect for applications that demand heat dissipation.
2. Mechanical Properties
Ductility
Bronze is highly ductile which permits complex shapes to be made without breaking. This feature is important in casting of art products and complex parts.
Strength and Hardness
It gives high tensile strength (from 350 to 635 MPa) and Brinell hardness (from 40 to 420).
Corrosion Resistance
Bronze forms a protective patina over time which results in great corrosion resistance.
Friction Properties
Bronze’s low friction coefficient with other metals decreases wear in moving parts such as bearings & gears.
5 Types of Bronze Alloys in Machining

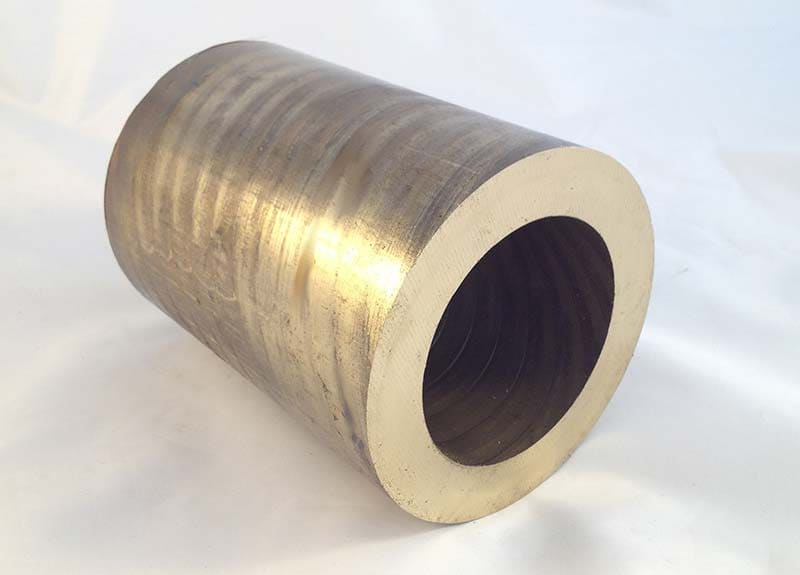

1. Aluminum Bronze
This alloy contains 5% to 12% aluminum with additions of nickel and iron. Its main characteristics include great resistance to rust and excellent tensile strength. The alloy remains non‐magnetic that makes it perfect for marine systems.
Manufacturers commonly use it to make underwater fasteners and propellers. Its unique golden color has also made its place in the production of gems.
2. Phosphor Bronze
This alloy is a mixture of tin (4.2% to 5.8%), copper (93.4% to 95.32%) and phosphorus (0.01-0.35%). The presence of tin prevents corrosion and increases strength whereas phosphorus maximizes machinability & wear resistance. Common uses include springs, electrical connectors, sleeve bushings as well as bearings.
3. Manganese Bronze
This copper-zinc-based alloy also contains specific proportions of other metals_aluminum 3% to 7% and magnesium 2.5% to 5%. Its main qualities are wear resistance, durability and ability to withstand heavy loads.
Although it is more difficult to machine than other types of bronze, it is effective in production of bearings, gears, bushings and heavy industrial parts.

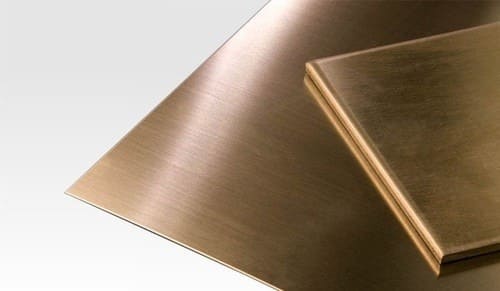

4. Silicon Bronze
The composition of silicon bronze consists of 94% to 98% copper with 2% to 6% silicon. Smaller amounts of iron, magnesium and zinc complete the alloy. Its main advantages include excellent strength, corrosion resistance and easy formability.
Industries use this type of bronze for multiple purposes that include architectural design, automotive parts, marine hardware as well as electrical connection systems.

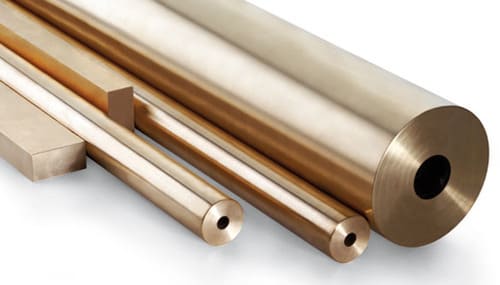

5. Tin Bronze
The primary composition includes tin with copper at 8% to 12%. These alloys are distinguished in three main areas that are wear resistance, strength and ability to withstand heavy loads at low speeds. Manufacturing facilities mainly use tin bronze to make bushings, gears as well as pump impellers.

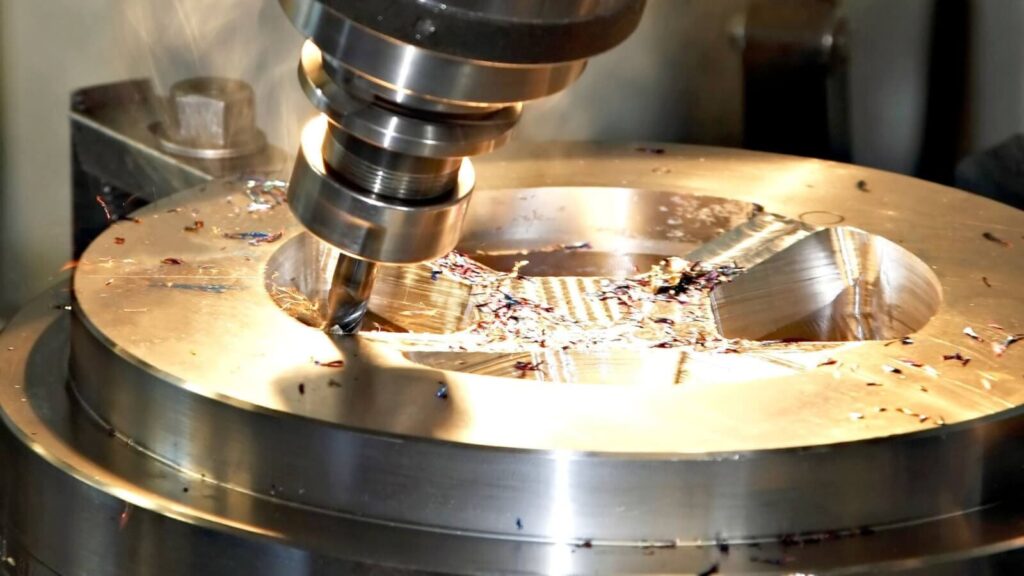

Equipment & Tools for Bronze Machining
Machine Tools
The industry depends heavily on CNC equipment for machining bronze. These include milling machines, lathes and Swiss screw machines. Automated systems give control & precision needed for complex shapes while maintaining precise dimensional tolerances.
Cutting Tools
Carbide cutting tools for bronze machining give the best results due to three important properties which are wear resistance, hardness and edge retention at high speeds.
High Speed Steel (HSS) tools are good for slow speed operations and detailed work.
Moreover TiN coating extends tool life whereas uncoated operations give sharper cutting.
Bronze Machining Processes
Different machining techniques meet the needs of numerous parts in bronze manufacturing.

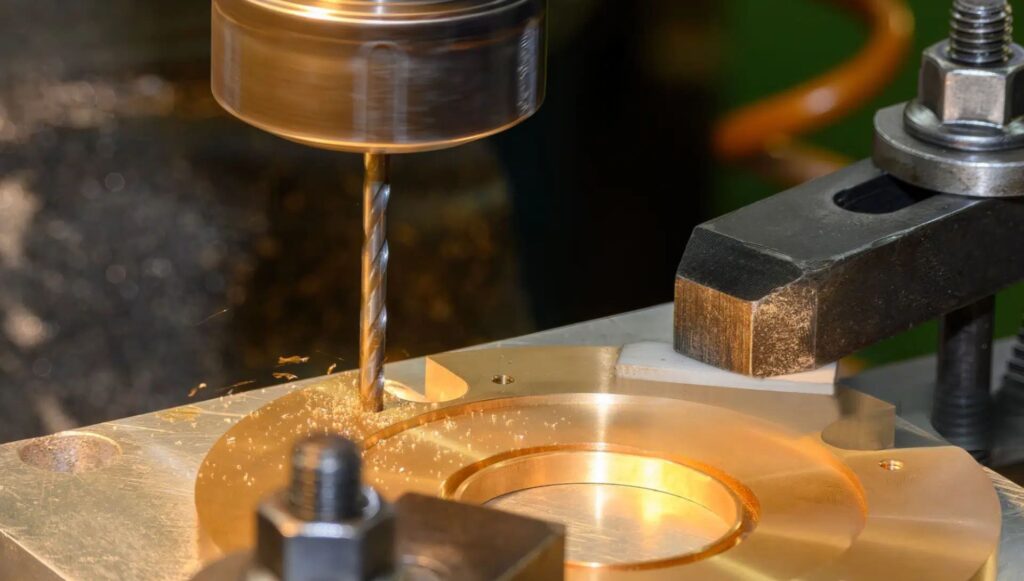

Milling
The milling process removes material through rotating cutting tools. Modern CNC milling achieves precision tolerances of up to 0.02mm. This precision is very important for particular parts such as custom bushings and bearings. Milling is particularly beneficial for parts that must avoid corrosion while maintaining structural strength.
See Also: What is CNC Milling

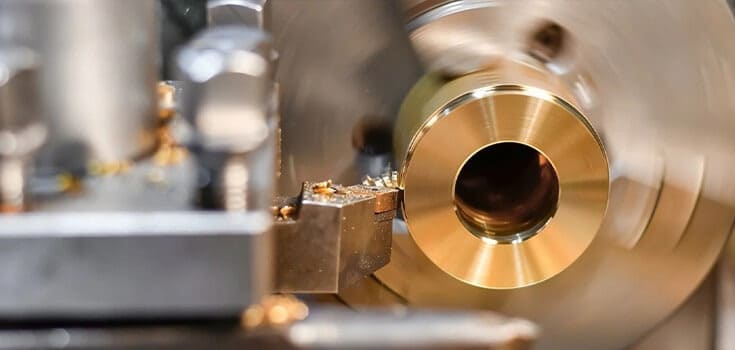

Turning
This process creates cylindrical parts by rotating bronze workpieces against fixed cutting tools. Manufacturers use turning to make items such as bushings, shafts and valves that demand smooth surfaces & uniform dimensions.
Broaching
It is a single‐pass process that contains a multi‐toothed cutting tool to perform broaching operations on bronze parts. This process efficiently creates irregular shapes, splines, keyways or complex profiles. In addition this method gives consistent results across multiple components.
Drilling
In drilling process, drill bits create accurate holes in bronze parts through regulated pressure & rotation. This process performs an important part in creating fluid passages as well as assembly operations.
Marine applications particularly benefit from this process because bronze resists water corrosion well. The success of drilling operations depends on selecting the correct drill bits & speed settings for the hardness level of a particular bronze alloy.

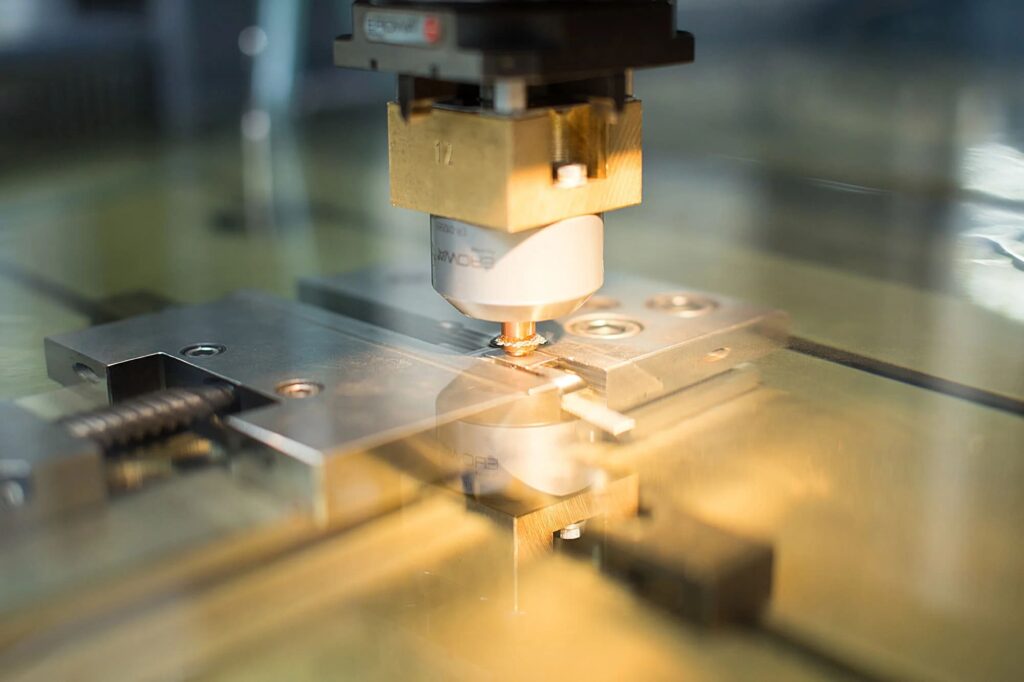

Electrical Discharge Machining (EDM)
EDM technology removes material from conductive bronze alloys through controlled electrical discharges. This technique is able to make complex internal shapes & contours that are not possible with conventional machining. Phosphor bronze parts retain their thermal properties and conductivity through this non‐contact process.
Uses of Machined Bronze Components

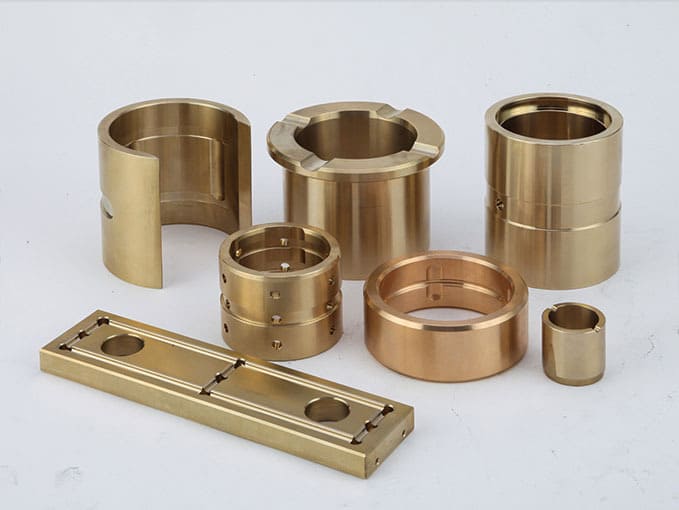

Industrial Bushings and Bearings
Heavy machinery depends on bronze bushings and bearings for high wear resistance & low friction. These components guarantee smooth operation even under heavy loads in hydraulic systems, construction machinery as well as agricultural equipment.

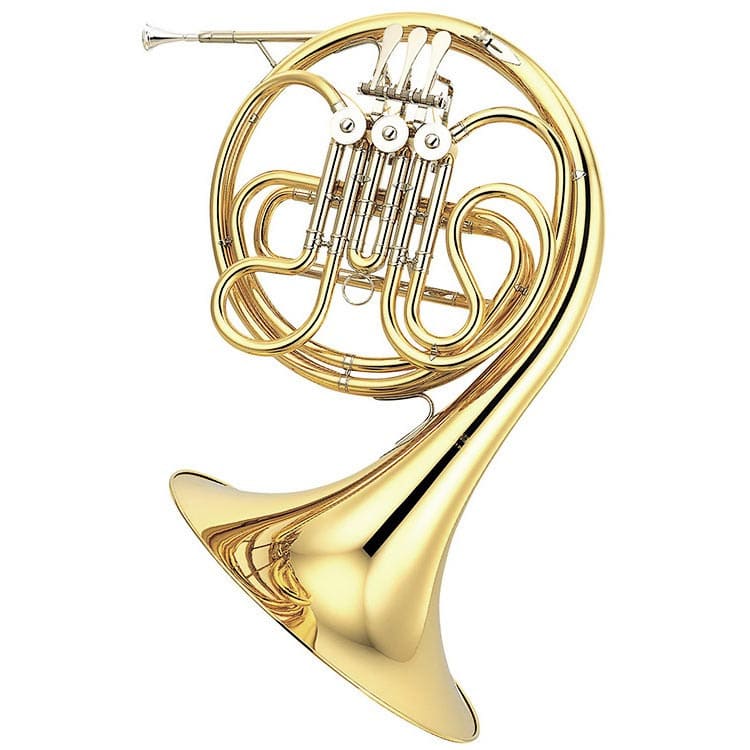

Musical Instruments
The sound properties of bronze create unique, resonant sounds in cymbals, bells as well as stringed instruments parts. Bronze also gives aesthetic appeal to these instruments due to its special appearance.

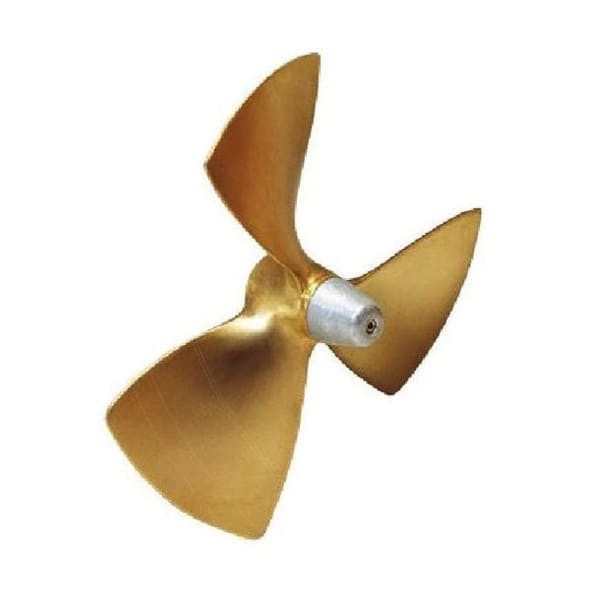

Marine Sector
The marine sector depends on bronze components for its great corrosion protection in salt water. Bronze is used in submarine and ship propellers, pump parts, rudder stock sleeves as well as hull fittings. These components retain their properties even in harsh sea conditions.
Architectural Elements and Artistic Sculptures
Architects and artists pick bronze for its ability to develop an attractive patina in outdoor environments and retain fine details. Common uses include railings, sculptures, door handles and custom cast beams. The durability of this material guarantees long term protection of works of art.

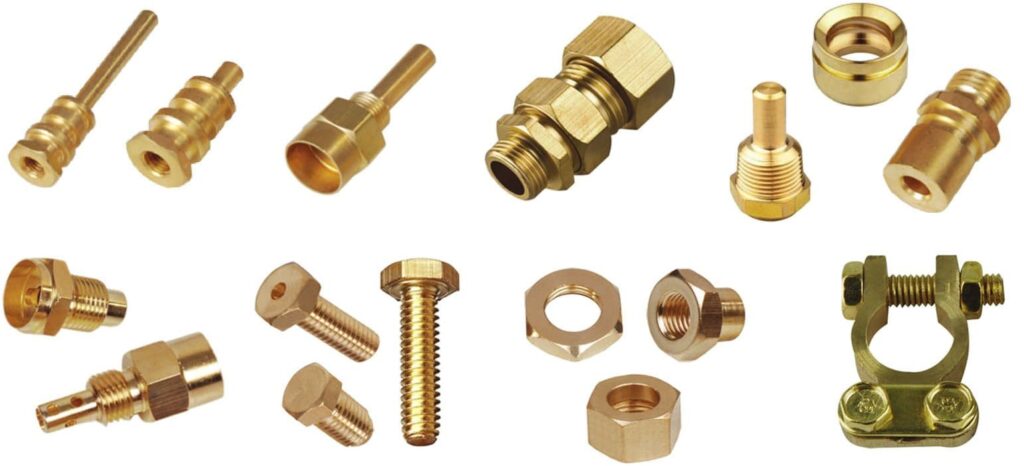

Automotive
Automotive manufacturers use bronze in bearings, gears, bushings and electrical connectors. These parts give wear resistance and dependable performance during high speed rotation. Bronze parts decrease maintenance requirements and increase vehicle life.

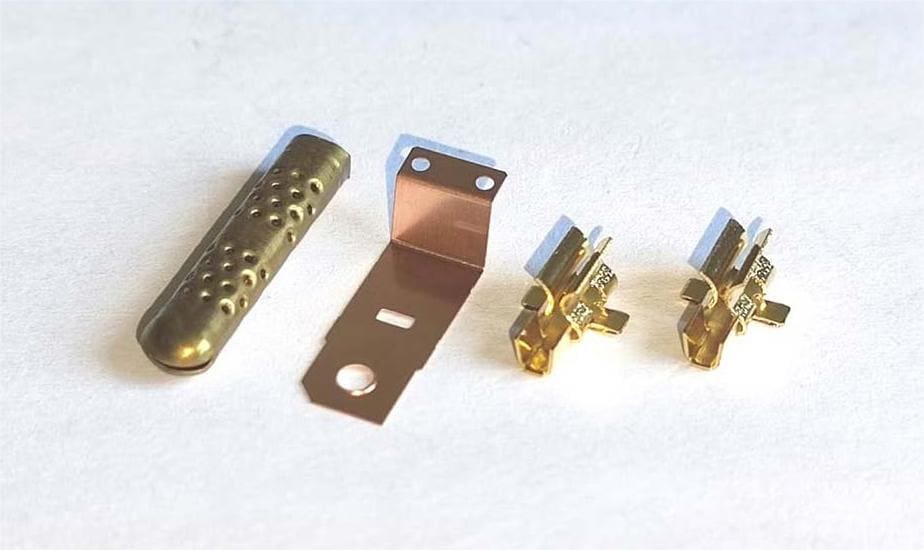

Electrical & Electronic Parts
Bronze’s excellent corrosion resistance and electrical conductivity make it indispensable for connectors, switches and contacts. Electronics as well as electrical systems need precision machining of bronze parts with tight tolerance demands.
Challenges and Their Solutions in Bronze Machining
Surface Finish Quality
Bronze often sticks to cutting tools which makes it difficult to attain smooth surfaces. Using the wrong coolant & blunt tools worsens the issue.
The solution lies in two things－maintaining tools with sharp, high‐positive rake angles & using oil based lubricants. Doing this will guarantee a surface finish that is consistent & smooth.
Tool Wear and Chipping
The abrasive nature and hardness of bronze wears the tool quickly. This problem is more pronounced with aluminum bronze alloys.
To overcome this challenge manufacturers should use carbide tools with TiAlN or TiN protective coatings. These coatings decrease the number of changes and greatly increase tool life. Moreover proper adjustment of feeds and cutting speeds will further decrease stress on tools.
Heat Generation
The thermal properties of bronze generate a lot of heat during machining operations. This excess heat may cause dimensional errors and can degrade the material.
Three useful solutions to prevent these problems are－maintaining moderate cutting speeds, using high‐flow coolant and guaranteeing constant tool adjustments. These measures prevent overheating & protect part integrity.
Chip Formation and Management
The machining process produces long and stringy bronze chips. These chips pose a number of risks which include surface damage, machinery shutdowns as well as increased downtime.
Accurate adjustment of feed rates, implementation of chip breakers and maintaining adequate coolant flow are three strategies that are useful for managing this problem.
Best Practices and Recommendations
Guidelines for Material Selection
The choice of bronze alloy depends on intended application requirements. Marine applications require copper-nickel alloys or aluminum bronze for excellent corrosion resistance. Silicon bronze is best for parts that need corrosion resistance & good wear ability. Bearing parts benefit from the excellent friction characteristics of phosphor bronze.
Quality Control Measures
Create a detailed inspection plan with specific tolerances and measurement points. Use CMMs for precision repairs.
High value components demand additional testing through nondestructive methods such as X ray or ultrasonic inspection. These methods detect internal defects while maintaining material integrity.
Fine‐Tuning Machining Parameter
Keep cutting speeds in 100 to 300 SFM range. Set positive rake angles to maximize surface quality and decrease cutting forces. Use adjustable feed rates to control heat generation and tool wear. For harder bronze alloys, decrease both feed rates and cutting speeds to prevent work hardening.
Also See: Feed Rate and Cutting Speed in CNC Machining
To Sum Up
The bronze machining process gives great corrosion protection & durability to the manufactured parts. Good results in bronze machining depend on three main factors that are the selection of proper alloy, accurate machining parameters & strict adherence to established best practices.
If you need any kind of CNC machined bronze parts, then Richconn is your best option. You can contact us anytime．
Related Questions
Is coolant necessary in bronze machining?
Coolant performs an important role in bronze machining. It maintains material stability, controls heat build‐up and increases tool life as well.
Can regular cutting tools be used for bronze machining?
Regular tools work effectively with soft bronze alloys. Still harder variants such as aluminum bronze need tools with special rake geometry to avoid tool damage & chatter.
Can bronze be machined with tight tolerances?
Advanced techniques permit bronze to be machined to ±0.0005″ tolerances. This precision demands controlled processes as well as additional final steps such as honing or lapping.
Does bronze allow welding after machining?
Bronze accepts both MIG brazing & TIG welding techniques after machining.
What are cost considerations in bronze machining?
Tooling, material costs and post machining requirements make bronze machining costly. Strategic design choices and well planned machining processes help decrease these costs.
Is it possible to anodize bronze after machining?
Some bronze alloys accept an anodization treatment after machining. This process increases both rust protection & appearance.
Are there environmental considerations in bronze machining?
Environmental impacts arise from mining & manufacturing processes of bronze machining. Companies can minimize these impacts through green manufacturing practices as well as use of recycled materials.
