In the refractory industry, two terms often cause confusion: “calcined alumina” and “activated alumina.” Both refer to aluminum oxide (Al₂O₃) materials derived from alumina or aluminum hydroxide, but they serve very different roles depending on their manufacturing process, crystal structure, and intended application. Understanding these differences helps you choose the right material for refractories, ceramics, adsorption systems, or other industrial uses.

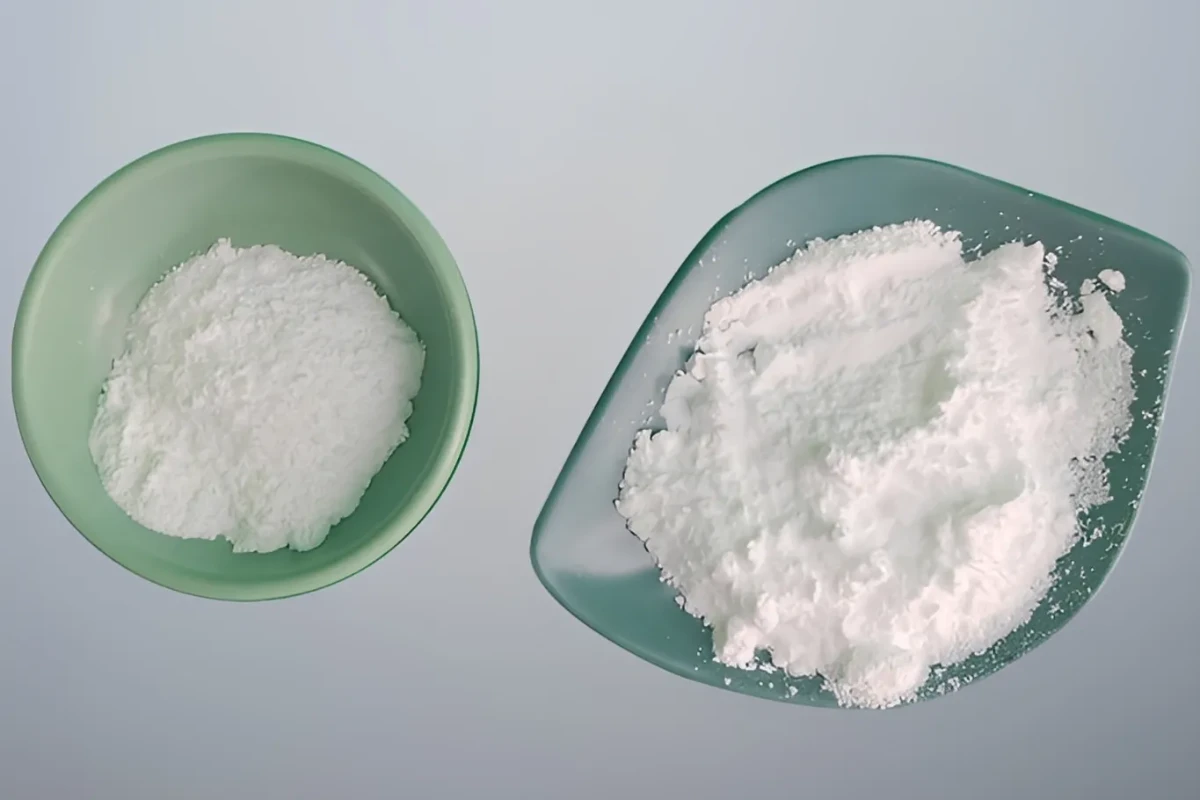

What Is Calcined Alumina?
Calcined alumina is produced by heating aluminum hydroxide or industrial alumina at high temperature. This calcination removes crystal water and transforms less-stable alumina phases into more stable, dense α-Al₂O₃ (corundum) — or sometimes transitional alumina phases if calcination is incomplete.
Calcined alumina powders typically have larger, dense crystals (primary crystal size often in the micron range). Their structure is stable under high temperature, chemically inert, and hard — which gives them excellent thermal stability, abrasion resistance, and mechanical strength.
Because of these properties, calcined alumina is widely used in refractories, ceramics, abrasives, polishing compounds, wear-resistant coatings, and high-temperature applications.
Manufacturers often control calcination temperature, crystal size, soda content, and particle size to produce grades suited for different uses. Lower-surface-area, coarser calcined alumina tends to serve as matrix filler in bricks and castables, while more finely ground variants (still corundum phase) can improve packing density and refractory properties.
What Is Activated Alumina?
Activated alumina is a highly porous, metastable form of aluminum oxide. It is usually derived from alumina hydroxide or transitional alumina (such as γ-Al₂O₃), but unlike calcined alumina, it is not converted into dense α-Al₂O₃. Instead, it retains a porous microstructure with a very high specific surface area — often more than 200 m²/g.
Because of this porosity and high surface area, activated alumina exhibits strong adsorption properties and is commonly used as a desiccant, catalyst carrier, filter medium (e.g., for water purification, gas drying, fluoride/arsenic removal), or in chemical processing where adsorption, surface activity, or catalytic behavior is needed.
Due to its metastable crystalline phases (not α-Al₂O₃), activated alumina does not have the high-temperature, abrasion-resistant, or refractory-grade properties of calcined alumina. Its strength lies in adsorption and catalysis, not sintering or high-heat structural applications.
Why the Confusion? Terms Like “Reactive Alumina” or “Activated Calcined Alumina”
In refractory and ceramics circles, a third term — “reactive alumina” (or “activated calcined alumina”) — sometimes appears. This refers to calcined alumina that has been ground and processed to produce ultrafine particles (sub-micron, e.g. D₅₀ around 0.5–2.5 μm), giving them higher sinterability (i.e. easier to densify and achieve close packing) compared to conventional coarse calcined alumina.
This reactive alumina remains α-Al₂O₃ (or mostly α-phase), but with finer crystal size, high surface area (compared to coarse calcined alumina), and better ability to sinter at high temperature — making it more suitable for advanced ceramics, high-density refractory bricks, or high-performance structural ceramic items.
Because of this diversity — coarse calcined alumina, reactive-fine calcined alumina, and porous activated alumina — the terminology can become confusing. Some suppliers or users use “activated alumina” loosely; others distinguish more carefully. As one refractory-industry note explains, it is more accurate to treat activated alumina as a distinct porous adsorbent material, and reserve calcined / reactive alumina for high-temperature or refractory applications.
Important Differences Side-by-Side
| Feature / Property | Calcined / Reactive Alumina | Activated Alumina (Adsorbent) |
|---|---|---|
| Crystal Phase | Dense α-Al₂O₃ (corundum) after calcination | Metastable alumina (γ-, η-Al₂O₃) with porous structure |
| Microstructure | Dense, crystalline agglomerates — often ground or fine-ground | Highly porous, high-surface-area network of micro- and mesopores |
| Surface Area / Porosity | Lower porosity (denser) — hardness and thermal stability prioritized | High surface area (>200 m²/g), high porosity (60–80%), strong adsorption potential |
| Typical Uses | Refractories, ceramics, abrasives, grinding, high-temperature applications, wear resistance, structural ceramics | Adsorbents, desiccants, catalysts, water-gas filtration, drying, chemical purification, water treatment |
| Thermal & Chemical Stability | Excellent — stable at high temperatures, chemically inert, abrasion and corrosion resistance | Stable under moderate temperature but converts to denser phases under prolonged high heat; not ideal for high-temperature structural use |
How to Choose Between Calcined and Activated Alumina
The choice depends on what you need the material for:
- If the application requires high-temperature resistance, hardness, wear resistance, thermal stability, and the material will be used in refractories, ceramics, abrasives, kiln linings, high-heat furnaces, high-stress wear parts, then calcined alumina (or fine reactive calcined alumina) is the correct choice.
- If the goal is adsorption, desiccation, chemical filtering, water treatment, catalyst support, or gas drying, then activated alumina — with its porous structure and large surface area — is the proper material.
- If you are dealing with advanced ceramics or high-density refractory bricks where sinterability and densification matter, consider reactive (ultrafine) calcined alumina for best results.
It is important to examine the crystal structure, surface area, porosity, particle size distribution, and intended operating environment before selecting. Mis-choosing could lead to poor performance or even failure — for example, using activated alumina in a high-heat refractory can cause structural weakness; using coarse calcined alumina as an adsorbent gives poor adsorption.
Role of Calcined Alumina and Activated Alumina in Industry
Calcined alumina remains the cornerstone material for refractories, ceramics, abrasives, grinding, polishing, and high-temperature structural parts. Its high melting point (about 2050 °C), high hardness (Mohs ~9), chemical inertness, and thermal stability make it ideal for such demanding applications.
Reactive (fine) calcined alumina, with controlled particle size and high sinterability, allows manufacturers to produce high-density, high-strength ceramics, wear-resistant parts, or dense bricks/blocks with minimal porosity.
On the other hand, activated alumina — with its porous microstructure — is widely used in adsorption, catalysis, water treatment, gas drying, fluoride/arsenic removal, dehydration, and purification industries. Its large surface area and hydroxyl-rich surface help it adsorb water, gases, or impurities effectively.
Thus, both materials play distinct but important roles across industries: one emphasizing heat resistance and structural durability, the other adsorption, filtration, and catalysis.
Why Clear Terminology Matters — The Case for “Reactive Alumina”
Because of overlapping uses and vague marketing language, many confuse “activated alumina” with fine-grained calcined alumina suited for refractories. In high-performance refractory and ceramic manufacturing, many producers now distinguish “calcined alumina” (coarse or fine) from “reactive alumina” (ultrafine, sinter-ready) to avoid ambiguity. Others reserve “activated alumina” strictly for the porous adsorbent/catalyst material.
Using correct terminology helps avoid material selection mistakes. For example, describing a fine-grained α-Al₂O₃ powder as “activated alumina” when it is actually reactive calcined alumina may mislead clients who expect high adsorption, porous behavior. Similarly, using porous activated alumina in place of dense calcined alumina for a refractory application could cause serious failures under high temperature.
Therefore a clear distinction improves communication, quality control, and proper use in manufacturing or industrial design.
How Richconn CNC Fits In — Our Services for Alumina-Based Parts & Components
If your project involves parts or components requiring calcined alumina, reactive alumina, or other high-performance alumina powders, Richconn CNC can assist. Though Richconn primarily offers precision CNC machining, metal & ceramic processing, and custom part manufacturing, their capabilities extend to material selection, processing, and machining of high-performance materials — suitable for integrating alumina-based components into larger assemblies.
Richconn’s expertise allows you to combine machined metal parts with alumina-based ceramic or refractory segments — ideal when you need hybrid components, precision tolerances, or custom geometries. Contact Richconn to discuss your material specifications and machining requirements.
Conclusion
In summary, calcined alumina, reactive alumina, and activated alumina — while all derived from alumina — serve very different purposes. If you need high-temperature resistance, hardness, wear resistance, and structural stability, calcined (or fine reactive) alumina is the right choice. If you need adsorption, moisture removal, catalysis or filtration, activated alumina is the material you want. Clear distinction and correct material selection are essential to prevent failure and ensure optimal performance.
For engineered components combining alumina-based parts with metal machining, Richconn CNC offers precision manufacturing services and material guidance, helping you integrate alumina powders into complex assemblies reliably. Contact Richconn to discuss your alumina-based material needs and custom machining requirements — and get professional support for your project.
FAQ
What is the main difference between calcined alumina and activated alumina?
Calcined alumina is dense α-Al₂O₃ made by high-temperature calcination, offering hardness, thermal stability, and suitability for refractories and ceramics. Activated alumina is a porous, high-surface-area material (often γ-Al₂O₃) used as adsorbent, catalyst support, or desiccant.
Can activated alumina be used for refractory bricks or kiln linings?
No — activated alumina’s porous structure and metastable phase make it unsuitable for high-temperature, structural applications. Use calcined (or reactive) alumina instead.
What is “reactive alumina”?
Reactive alumina is finely ground calcined alumina with sub-micron crystal size and high sinterability. It remains dense corundum phase but offers better packing and densification — ideal for high-density ceramics or high-performance refractories.
Which alumina form is best for water purification or adsorption?
Activated alumina — because of its high porosity and large surface area — is ideal for water treatment, gas drying, fluoride/arsenic removal, and other adsorption-based uses.
Why does alumina powder quality vary (surface area, particle size, phase)?
Because production parameters — calcination temperature, time, grinding, and post-treatment — determine the resulting crystal phase, particle size, density, and surface properties. By controlling these, suppliers produce alumina grades tailored to different applications.
