Carbon steel stands out in precision manufacturing because of its versatility, strength & affordability. Many industrial fields depend on it for these reasons. But machining carbon steel is not an easy job as it requires careful planning and skill. Without the right approach you may struggle to achieve tight tolerances and end up with tool wear.
This blog post covers the main techniques, basic challenges and best practices which will assist you in machining carbon steel accurately & efficiently.
What is Carbon Steel Machining?
Machining carbon steel means shaping it into particular parts using different machining methods. Carbon steel is an alloy of carbon and iron. It falls into three main grades: low, medium & high carbon content. Every grade has unique properties which affect its strength, machinability, hardness, corrosion resistance and cost.
Here is a comparative overview of the main carbon steel grades:
| Property | Low Carbon Steel (e.g., C1010, C1018) | Medium Carbon Steel (e.g., C1045 | High Carbon Steel (e.g., C1141, C1144) |
|---|---|---|---|
| Carbon Content | 0.05% to 0.30% | 0.30% to 0.60% | 0.60% to 1.50% |
| Machinability | Excellent | Good | Fair to Poor |
| Corrosion Resistance | Low | Low | Low |
| Strength | Low | Moderate | High |
| Hardness | Low | Moderate | High |
| Cost | Low | Moderate | High |
Knowing how these grades differ helps you choose the right carbon steel for your machining project. This assures you get the best performance and keeps costs under control.
Also See: Stainless Steel Vs Carbon Steel: Which Is Right For You?

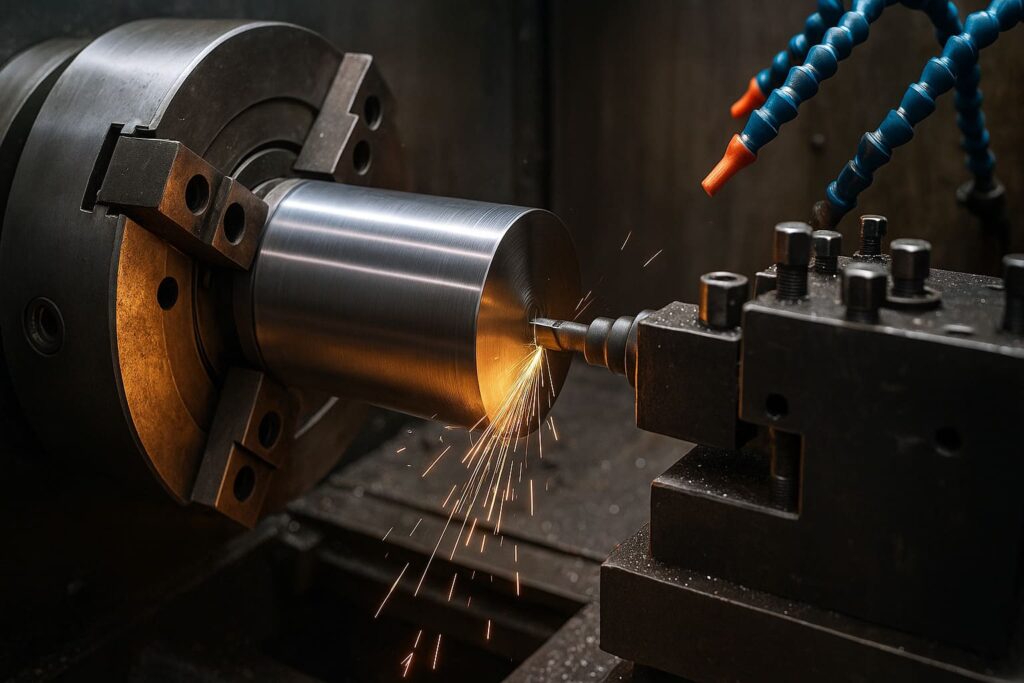

CNC Machining Techniques for Carbon Steel
To get the best results when machining carbon steel you need precision and correct technique. Each CNC machining technique has its own benefits for different needs.

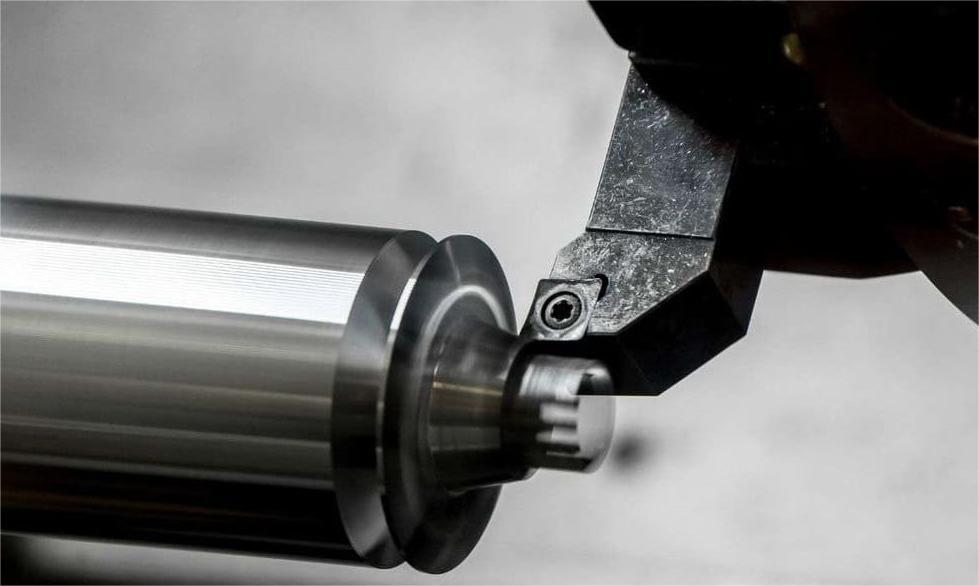

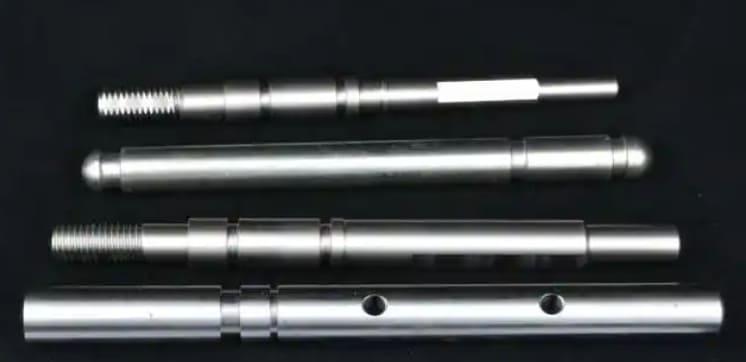

Turning
Turning creates cylindrical parts by spinning the carbon steel workpiece against a cutting tool. You should use tools like carbide inserts to handle different hardness levels. Make sure to set the correct speed & feed rates. This will not only prevent tool wear but give you the desired surface finish too.

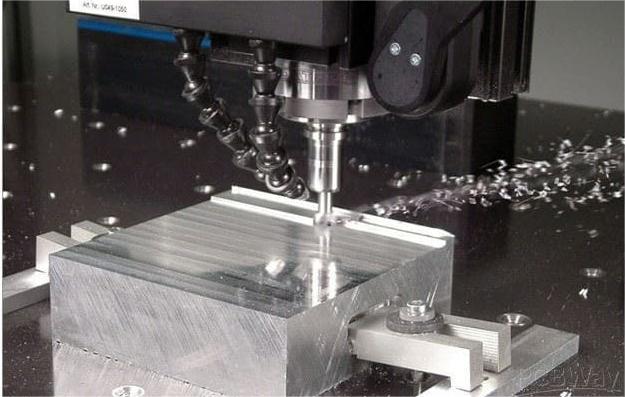

Milling
You can use rotating end mills to remove material from carbon steel during milling. Choice of right helix angle and flute count is important for good surface finish and chip evacuation. For most carbon steel jobs a 4‐flute end mill with a 30° helix angle works well. This setup balances tool strength with chip removal.

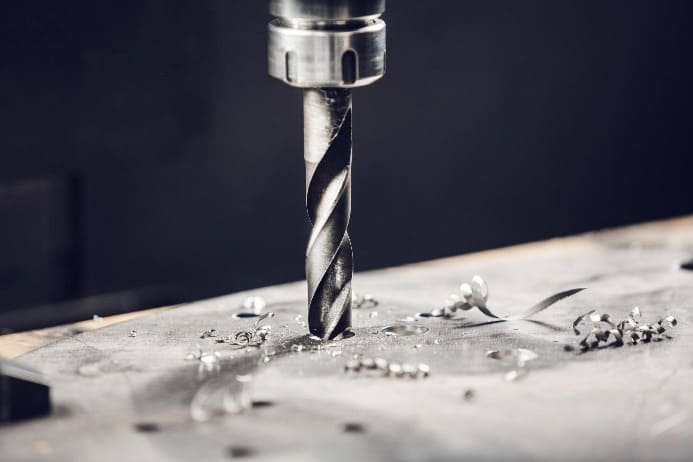

Drilling
Drilling creates holes in carbon steel by using twist drills. You need to set cutting speeds and feed rates according to the hardness of the material. This will prevent tool damage. Moreover using right coolants will remove heat efficiently which will improve tool life & hole quality.
Also See: Drilling vs Tapping: What Are The Differences?

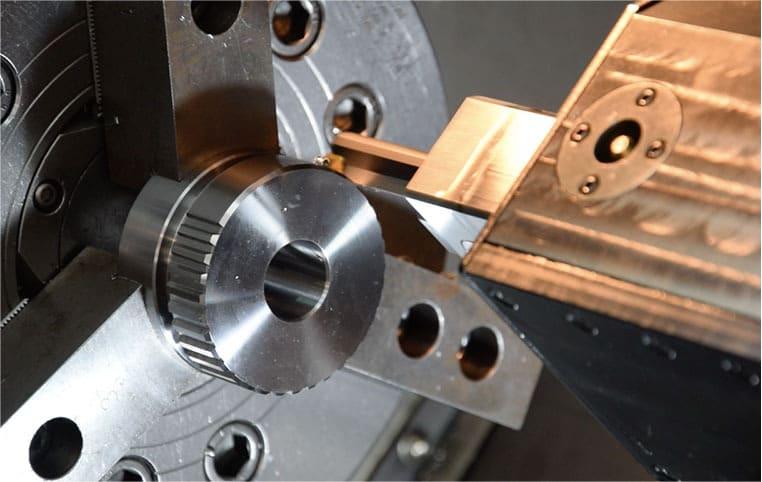

Broaching
Broaching is best for making internal features such as splines and keyways in carbon steel parts. This technique allows high volume production and gives high precision. To get long tool life and accurate profiles you must align the tool properly and choose the right broach.

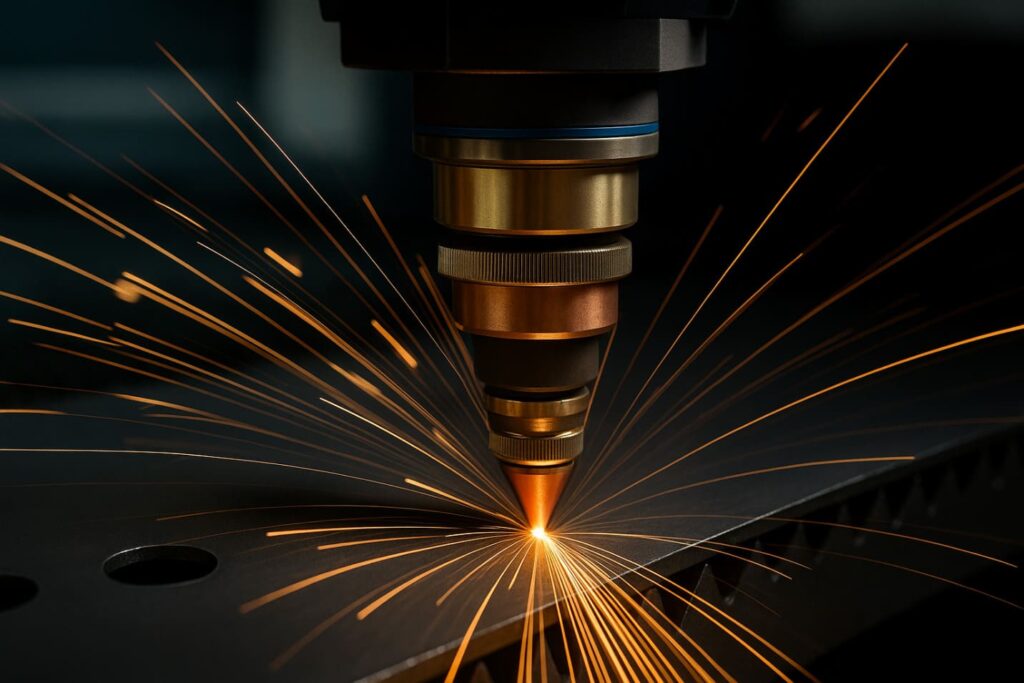

Laser Cutting
A laser beam is focused on carbon steel in the laser cutting process. This gives you high precision particularly for thin to medium thickness materials. This procedure keeps the heat affected zone small so the material’s mechanical properties remain intact and you need less secondary processing.

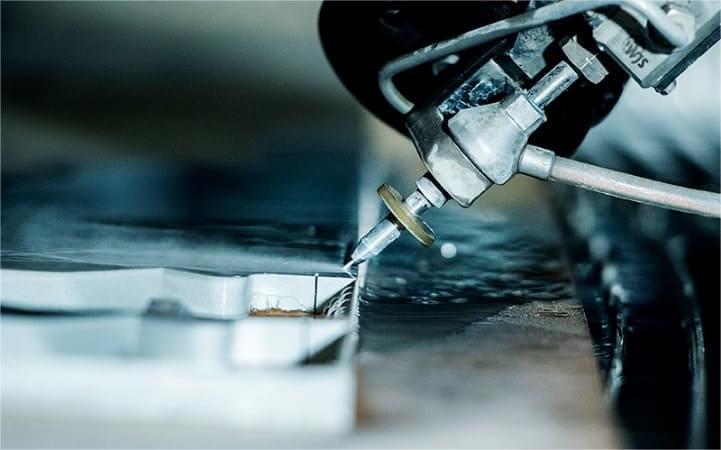

Waterjet Cutting
Waterjet cutting uses a high pressure stream of water mixed with abrasives to cut through carbon steel. Since this process is cold it avoids thermal distortion. You can use it for many thicknesses and for materials that react poorly to heat. Moreover it results in a clean cut which doesn’t change the material’s original properties.
Main Parameters in Carbon Steel Machining
You need to control certain parameters to get precision when machining carbon steel. Each parameter affects surface quality, tool life and how efficiently you work.
Cutting Speed and Feed Rate
Choose the right cutting speed & feed rate to avoid rapid tool wear and to reach your target surface finish. Recommended cutting speeds and feed rates for carbon steel are:
| Steel Type | Cutting Speed (SFM) | Feed Rate (IPR) |
|---|---|---|
| Low Carbon Steel | 100 to 140 | 0.005 to 0.010 |
| Medium Carbon Steel | 70 to 120 | 0.004 to 0.008 |
| High Carbon Steel | 50 to 100 | 0.003 to 0.006 |
Depth of Cut
Set the depth of cut based on how hard the material is and what your tool can handle. For finishing carbon steel you usually use depths between 0.030 and 0.075 inches. For roughing you might need to go up to 0.100 inches or even more as long as your machine is rigid enough.
Tool Geometry
The geometry of your cutting tool has a big role in machining efficiency. For carbon steel:
- Rake Angle: Use a positive rake angle from 10°‐14° to help chips flow smoothly and lower cutting forces.
- Clearance Angle: Keep the clearance angle between 6°‐ 8° to stop the tool from rubbing and to reduce heat.

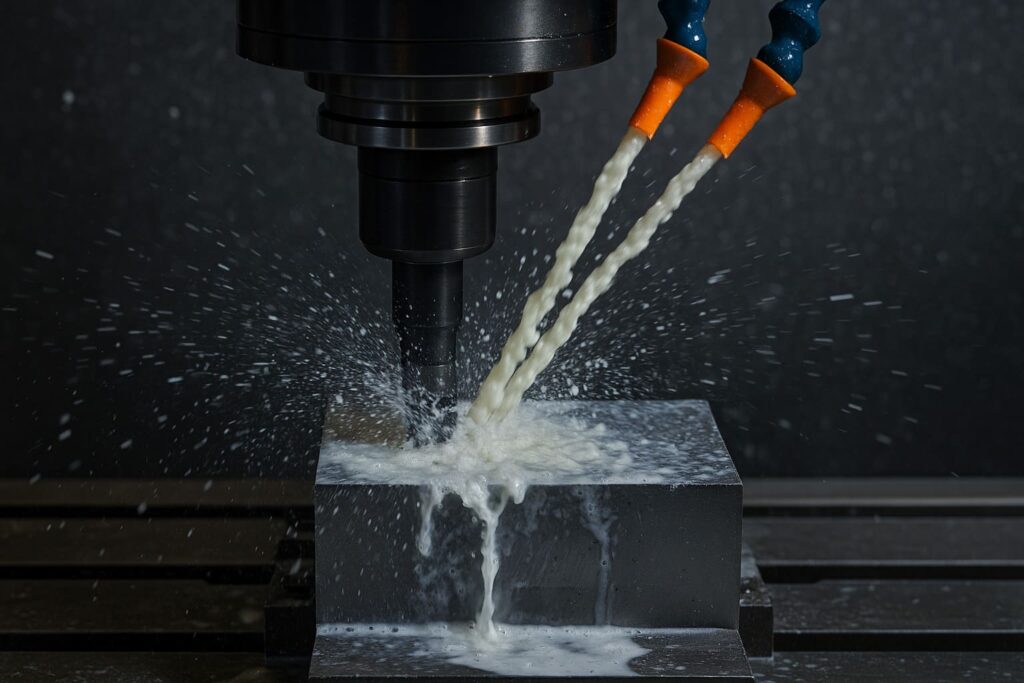

Coolant Usage
Applying coolant correctly is very important for removing heat & extending tool life. Water soluble coolants with right additives work well for machining carbon steel. These coolants cool the work area and help clear away chips.
Working with skilled partners like Richconn helps you follow these best practices and maintain the right parameters.
Machine Tool Selection
Selection of right machines and tools is also very important for precise and efficient carbon steel machining.
Tool Material
High Speed Steel (HSS) tools are good for softer carbon steels and are budget friendly. You can resharpen them easily and they have good toughness. But HSS tools wear out faster than carbide options. Moreover carbide tools last longer because they are harder so they are better for machining harder carbon steels.
Also See: HSS Vs. Carbide Tools: Choosing The Right Tool For Your CNC Application.
Tool Coatings
Coatings like Titanium Carbo‐Nitride (TiCN) or Titanium Nitride (TiN) can improve tool performance. TiN coatings reduce friction and increase surface hardness. TiCN coatings increase hardness and wear resistance even more.
Machine Rigidity
While machining, a sturdy machine frame helps reduce vibration. This stability gives you better accuracy and longer tool life. In addition to this, machines with strong frames and solid foundations help you hold tight tolerances and get consistent results.
Software Integration
Modern CNC systems with advanced software give you control over machining. Adaptive control, real time monitoring and predictive maintenance features help you reduce downtime and optimize performance.
Best Practices in CNC Carbon Steel Machining
You need to follow proven best practices to obtain precision when machining carbon steel. Every step matters, from selecting the right material to quality checks. Every step gets you to the best possible outcome.
Material Selection
Selection of the right carbon steel grade is the first step.
- Low carbon steel (up to 0.30% carbon) is good for parts that need high ductility & weldability. This grade is common in structural parts and automotive panels.
- Medium carbon steel (0.30 to 0.60% carbon) combines ductility and strength. This grade is good for making axles, gears and shafts.
- High carbon steel (above 0.60% carbon) is hard & wear resistant. It’s best for cutting tools and springs.
Tool Maintenance
You should inspect and maintain cutting tools regularly. If you see chipping or a drop in machining quality, it’s time to replace the tool. Using predictive maintenance can help detect tool wear before it becomes a problem.
Process Optimization
Adjusting feed rate, cutting speed and depth of cut can make machining more productive. You can use cooling methods like minimum quantity lubrication (MQL) or flood cooling to extend tool life and manage heat.
Quality Control
Strict quality checks are necessary to assure quality. Coordinate Measuring Machines (CMMs) give you dimensional checks on machined parts. For internal flaws and specifications, advanced tools like X‐ray imaging and laser scanning are effective.

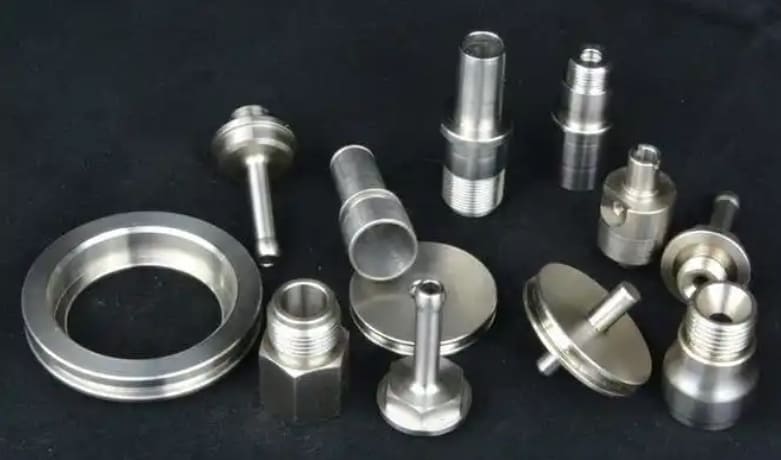

Industrial Uses of Carbon Steel Machined Parts
Many industries use carbon steel because it’s versatile, strong and affordable. You can choose from different grades which lets you match the material to your needs. This flexibility means carbon steel performs well in many environments.
Construction
Construction projects use carbon steel to get strong and stable structures. Builders use low carbon steel for columns, beams and reinforcement bars as it’s strong & formable. For parts that need to handle more weight like heavy frameworks and bridges, medium carbon steel provides the needed strength.
Automotive
Automotive industry uses carbon steel for its formability & durability. Manufacturers use low carbon steel for body frames, panels as well as chassis as it welds easily and bends without breaking. Medium carbon steel is stronger so it’s good for axles, gears and crankshafts. And when you need extra hardness high carbon steel is the best; for example for high strength wires and springs.
Agriculture
Farm equipment must be tough & affordable which is why agriculture uses carbon steel. Low carbon steel is used for structural pieces and frames. Medium carbon steel is good for shafts, gears and other parts that need extra strength. And for cutting tools and parts that wear out fast, high carbon steel’s hardness is ideal.
Oil and Gas
Oil & gas companies value carbon steel for its wear resistance and strength. Medium carbon steel is used in structural parts and drilling equipment. When tools and components are under high stress, high carbon steel’s hardness becomes crucial.
Aerospace
Aerospace engineers need materials that can withstand extreme conditions. They use medium carbon steel for structural parts like engine components and landing gear because it’s tough and strong. High carbon steel (which is even harder) is used for tools and parts that need to withstand heavy wear.
Why Choose Carbon Steel for Machining?
You may need a material that’s strong, affordable and flexible. Carbon steel fits the bill.
Affordable
Because carbon steel is easy to source therefore you can keep costs low for large machining works.
Versatile
You can choose from low, medium or high carbon grades. This range lets you match the material to different uses and performance standards.
Strength and Durability
Carbon steel has high resistive impact and tensile strength. It’s good for functional and structural components.
Easy to Machine
Many carbon steel grades, particularly low & medium carbon types, are easy to machine. This helps reduce production time and extend tool life.
Get Next Level Carbon Steel Machining Services from Richconn
At Richconn, you get high precision carbon steel machining. We use advanced CNC machines, skilled engineers and strict quality checks. Our team manages complicated parts with ease. You can expect tight tolerances & consistent results for every carbon steel grade.
To Sum Up
Machining carbon steel brings flexibility, strength as well as efficiency to many industrial fields when you do it right. Success depends on choosing the right tools, knowing your material grades and setting the right process parameters.
You should choose Richconn as your carbon steel machining partner. We deliver solutions to your exact specifications & industry requirements. You get reliability, precision and top quality parts every time.
Related Questions
Is machining carbon steel parts expensive?
No machining carbon steel parts is usually affordable. This material is common and affordable so you spend less as compared to using special metals or alloys.
Is carbon steel stronger than regular steel?
Carbon steel is under the steel category. Its strength changes with carbon content. More carbon means higher strength & hardness but it also makes the steel less ductile.
How easy is it to machine carbon steel?
Low & medium carbon steels are easy to machine and work well with standard setups. High carbon steel because of its hardness needs right tooling and stronger setups.
