CNC Machining a 6061 Aluminum Panel with Ra1.6 Surface Finish for Automation Equipment
Richconn produced a 6061 aluminum panel for automation equipment. The panel had a large visible A-grade surface, no surface treatment, and a strict requirement for no visible tool marks with surface finish reaching Ra1.6.
6061 Aluminum Automation Panel with No Surface Treatment and Ra1.6 Finish Requirement
This project involved CNC machining of a 6061 aluminum panel used in automation equipment. The customer required the surface to remain untreated after machining, which meant the machining quality itself had to achieve the required visual appearance and surface finish.
Because the A-grade surface area was large, visible tool marks, secondary cutting marks, scratches, or handling damage could directly affect the final appearance and acceptance of the part.
Technical drawing reference for the 6061 aluminum panel, including the mounting hole layout and precision assembly requirements.
Why This Aluminum Panel Was Difficult to Machine
The customer did not require any post-machining surface treatment, but the visible surface needed to have no tool marks and reach Ra1.6 surface finish.
For a large A-grade surface, ordinary milling strategies could leave visible cutter marks or secondary tool-pass lines, making it difficult to meet the customer’s appearance requirement.
Main Manufacturing Risks
- Large A-grade surface made tool-mark control more difficult.
- No surface treatment meant machining marks could not be hidden later.
- Secondary tool passes could leave visible joint lines on the panel surface.
- Panel thickness and flatness needed stable control during two-sided machining.
- Surface scratches during handling or transfer could cause appearance rejection.
- 16 mounting holes required position and diameter tolerance control for assembly fit.
The Core Difficulty Was Surface Finish, Tool Mark Control, and Handling Protection
The main issue was not only dimensional machining, but also visible surface quality. The panel had a large A-grade surface, and the customer required no visible tool marks without surface treatment. If cutter selection, cutting path, fixture support, or handling protection were not controlled properly, the final surface finish could fail to reach Ra1.6.
| Surface Finish Requirement | The customer required no visible tool marks and a surface finish reaching Ra1.6 without post-machining surface treatment. |
|---|---|
| A-Grade Surface Risk | The panel had a large visible surface, making cutter marks and surface scratches easier to notice. |
| Machining Strategy Risk | Secondary tool-pass marks could appear if the surface was not machined with a suitable large cutter strategy. |
| Fixture and Thickness Control | Vacuum fixturing and two-sided repeated machining were needed to support the panel and bring thickness to final size. |
| Handling Risk | Because the surface was not treated, the product needed protective packaging during the machining process to avoid scratches and dents. |
How We Achieved No Visible Tool Marks and Ra1.6 Surface Finish
Richconn adjusted both the machining method and the handling process. The solution focused on cutter selection, surface cutting strategy, fixture stability, repeated two-sided machining, and surface protection during production.
Large Fly Cutter for Surface Milling
A large fly cutter was used to machine the visible surface, with the requirement that no secondary tool-pass joint marks should appear.
Diamond Inserts for Fine Finish
Diamond inserts were selected to improve the machined surface quality and help achieve the Ra1.6 surface finish requirement.
Custom Vacuum Fixture
A vacuum suction fixture was made to support the panel evenly and reduce clamping marks on the visible surface.
Two-Sided Repeated Machining
The panel was machined repeatedly on both sides until the required thickness was reached and the surface remained stable.
Protective Blister Trays
During production, parts were protected with dedicated blister trays to prevent scratches, dents, and handling damage.
Assembly-Focused Hole Control
The process also considered the position and diameter tolerances of the 16 mounting holes to support precise assembly.

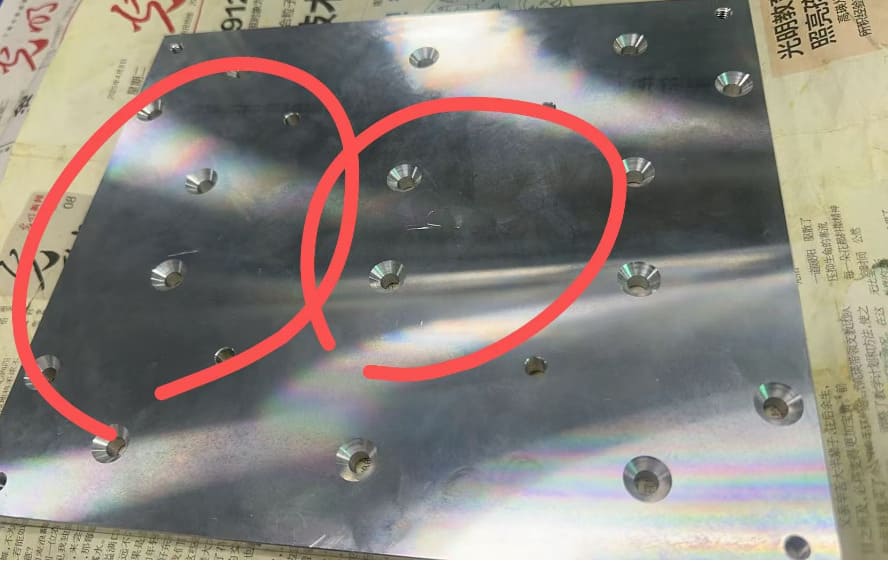

surface finish achieved with no visible tool marks after CNC machining
mounting hole position and diameter tolerances controlled for precision assembly
No Visible Tool Marks and Ra1.6 Surface Finish Achieved
After adjusting the machining and handling process, the panel surface had no visible tool marks, and the surface finish reached Ra1.6. The product met the customer’s requirements for appearance, surface quality, and precision assembly.
- Material: 6061 aluminum alloy
- Process: CNC machining
- Quantity: 30 pieces
- Surface treatment: none after machining
- Surface requirement: no visible tool marks
- Achieved surface finish: Ra1.6
- Fixture method: custom vacuum suction fixture
- Protection method: dedicated blister tray packaging during production
What Buyers Should Know About CNC Machining Visible Aluminum Panels
For visible aluminum panels without surface treatment, machining quality directly determines the final appearance. Cutter marks, joint lines, scratches, clamping marks, and handling damage can all become visible defects.
To produce a large A-grade 6061 aluminum surface with Ra1.6 finish, the process must combine suitable cutter strategy, sharp cutting edges, stable fixturing, controlled two-sided machining, and protective handling throughout production.
Richconn’s Practical Experience
- Use a large cutter strategy to avoid secondary tool-pass marks on visible surfaces.
- Select diamond inserts when fine aluminum surface finish is required.
- Use vacuum fixturing to support large panels and reduce clamping marks.
- Control thickness through repeated two-sided machining when surface stability matters.
- Protect untreated aluminum surfaces immediately during machining and transfer.
- Verify both appearance quality and assembly-related hole tolerances.
Related CNC Machining Services
Richconn supports custom CNC machining of 6061 aluminum panels, automation equipment parts, visible aluminum surfaces, mounting plates, housings, and precision custom metal components based on customer drawings.
FAQ About 6061 Aluminum Panel CNC Machining
Why is a no-tool-mark aluminum panel difficult to machine?
When the panel has a large visible surface and no surface treatment after machining, even minor cutter marks, joint lines, scratches, or clamping marks can become visible defects.
How can Ra1.6 surface finish be achieved on 6061 aluminum?
It usually requires the right cutter strategy, sharp cutting tools or inserts, stable fixturing, controlled cutting parameters, and careful handling to avoid surface damage after machining.
Why was a vacuum fixture used for this aluminum panel?
A vacuum fixture supports the panel more evenly and reduces the risk of clamping marks on the visible surface, which is important when the surface remains untreated after machining.
Can Richconn machine similar visible aluminum panels?
Yes. Richconn can support custom CNC machining of visible aluminum panels, mounting plates, automation equipment parts, and precision 6061 aluminum components based on drawings, surface finish requirements, hole tolerances, and quantities.
Need a 6061 Aluminum Panel with a Clean Visible Surface?
Send us your 2D drawings, 3D files, material requirements, surface finish notes, visible surface requirements, hole tolerances, and quantity. Richconn’s engineering team will review manufacturability and provide a practical CNC machining solution.
