Case Study: Precision Non-Metallic CNC Machining Deformation Improvement
Systematic solution for POM, PP, and PE component machining, delivering tight flatness tolerance of ≤0.02mm for industrial assembly applications

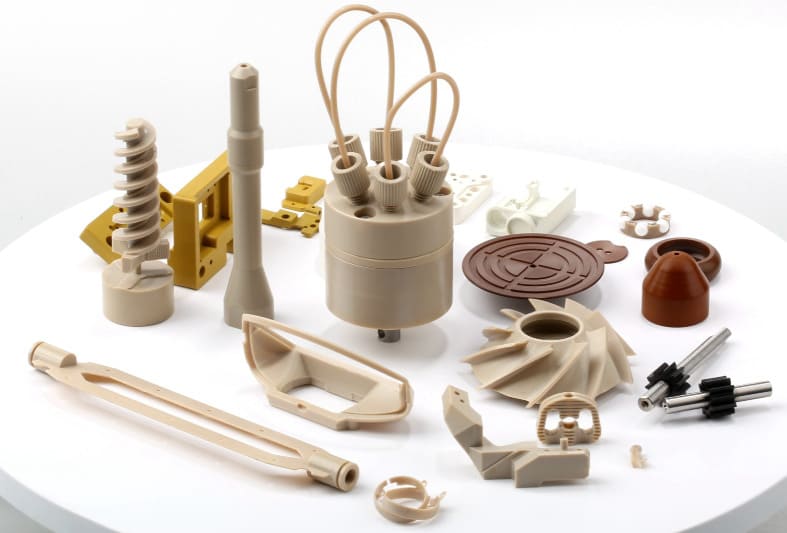

Project Overview
This project was completed by the Richconn precision engineering team for our industrial manufacturing client, who required high-precision non-metallic components for critical assembly applications. Our core expertise in CNC machining for plastic and polymer materials enabled us to solve a long-standing production challenge: uncontrolled part deformation and flatness deviation after milling and turning operations.
Client Core Requirements
- Strict flatness tolerance of ≤0.02mm for all finished components
- Consistent dimensional accuracy across batch production
- Reduced scrap rate and rework to lower production costs
- Reliable production continuity to meet on-time delivery schedules
Core Materials Processed
- POM (Polyoxymethylene / Acetal)
- PP (Polypropylene)
- PE (Polyethylene)
The Core Challenges
Prior to our intervention, the client faced consistent part warping, deformation, and flatness out-of-spec issues, with a maximum flatness deviation of 0.1mm — 5x over the allowed tolerance. Our engineering team conducted a full root cause analysis and identified 4 critical failure points:
1. Inherent Material Property Limitations
POM, PP, and PE feature significantly higher thermal expansion coefficients and lower rigidity compared to metal materials. Cutting heat generated during machining caused thermal expansion and contraction, leading to post-machining warping. Low material stiffness also resulted in elastic deformation under clamping and cutting forces.
2. Suboptimal Fixturing Methods
The original single-point high-pressure clamping design created concentrated stress on the low-rigidity non-metallic parts. This caused elastic deformation during machining, which released after clamping was removed, resulting in permanent dimensional deviation and surface damage.
3. Unoptimized Cutting Parameters & Tooling
Excessively fast cutting speeds, deep cuts, and inappropriate metal-cutting tools created excessive cutting resistance and heat buildup. Dull tool edges increased friction, leading to uneven local stress and material melting, further exacerbating deformation.
4. Inadequate Cooling & Tool Path Design
Unsuited emulsion cooling risked material property changes and residue buildup, while no targeted heat removal allowed cutting heat to accumulate. One-way cutting tool paths created uneven stress distribution, leading to inconsistent stress release and part warping after machining.
Our Systematic Solution & Implementation
Our engineering team developed a 5-dimensional full-process optimization strategy, tailored to the unique material properties of POM, PP, and PE. All adjustments were validated through small-batch trial production before full-scale implementation.
1. Fixturing Optimization: Low-Stress Flexible Clamping
We replaced the single-point high-pressure clamping with a multi-point uniform support + low-pressure flexible clamping system:
- Custom-designed fixturing jigs with 3-4 evenly distributed support points to ensure uniform force across the part
- Rubber gasket wrapping at clamping contact points to eliminate concentrated stress and surface scratches
- Precision-adjusted clamping pressure to avoid elastic deformation during machining
2. Customized Cutting Parameter Tuning for Heat Control
We adopted a “low speed, small feed, layered cutting” strategy to minimize heat generation, with material-specific parameters:
- POM Material: Cutting speed 80-100m/min, feed rate 0.1-0.15mm/r, layered roughing (0.8-1.0mm depth) and finishing (0.2-0.3mm depth)
- PP/PE Material: Cutting speed 60-80m/min, feed rate 0.08-0.12mm/r, maximum cut depth 0.5-0.8mm to prevent material melting
3. Specialized Tooling Selection for Reduced Cutting Resistance
We selected non-metallic machining-specific carbide tools optimized for low-friction cutting:
- Increased tool rake angle to 15°-20° and reduced clearance angle to 5°-8° for ultra-sharp cutting edges
- Polished edge finishing to minimize cutting friction and resistance
- Material-specific tooling: sharp end mills for POM, specialized spiral mills for PP/PE to improve cutting smoothness
4. Targeted Cooling System for Thermal Deformation Prevention
To avoid material property changes from emulsion cooling, we implemented a directional air cooling system:
- Precision-aligned air nozzles directed at the cutting zone to remove heat in real time
- Intermittent machining stops for natural cooling and internal stress release
- Eliminated emulsion residue and material compatibility risks
5. Optimized Tool Path Strategy for Stress Distribution
We redesigned the machining path to ensure uniform stress release throughout the process:
- Symmetric roughing to remove excess material evenly, eliminating one-way cutting stress concentration
- Layered finishing with maximum 0.1mm depth per pass to ensure dimensional precision
- Inside-out machining path to gradually release internal stress and prevent post-machining warping
Measurable Project Results
After full implementation of our optimized process, the non-metallic machining deformation issue was fully resolved, with consistent performance verified across batch production.
- Tolerance Compliance: Finished part flatness stabilized at ≤0.02mm, fully meeting the client’s strict precision requirements, down from a maximum 0.1mm out-of-spec deviation
- Quality Improvement: Product scrap rate reduced from 12% to <1.5%, with significant improvements in surface finish and dimensional consistency across batches
- Efficiency Gain: Production efficiency increased by over 25% by eliminating repeated adjustments and rework, ensuring 100% on-time delivery for the client
- Cost Reduction: Annual production cost savings of approximately $8,000 through reduced material waste, labor costs for rework, and production downtime
Long-Term Business Impact
This project established a standardized process specification for precision non-metallic CNC machining at Richconn, enabling us to deliver consistent tight-tolerance results for our US and EU industrial clients. The client has since expanded their annual production orders with Richconn by 40%, citing our reliable quality and engineering problem-solving capabilities.
Key Takeaways & Engineering Insights
Success in non-metallic precision machining relies on a systematic, material-first approach, rather than isolated parameter adjustments. The core lessons from this project include:
- Deformation control requires full-process optimization, from fixturing and tooling to cutting parameters and cooling, not just single-process changes
- Non-metallic materials require material-specific machining strategies, as generic metal-cutting processes will consistently result in tolerance deviation
- Stress and heat management are the two core pillars of non-metallic machining precision, with every process step designed to minimize stress buildup and heat accumulation
- Small-batch validation is critical to ensure process stability before full-scale batch production, reducing risk for both our team and our clients
