CNC Machining an SS41 Steel Pressure Seat with Consistent Tool Marks and Black Oxide Finish
Richconn produced an SS41 steel pressure seat for automation equipment. As an appearance-related component, the project required consistent machined tool marks across stepped and circular groove surfaces, followed by black oxide treatment and full inspection for color consistency.
SS41 Steel Appearance Part with Step and Circular Groove Tool-Mark Consistency Requirements
This project involved CNC machining of an SS41 steel pressure seat used in automation equipment. The part was an appearance component with A-grade surfaces formed by stepped features and circular grooves.
The customer’s main requirement was not only dimensional machining, but also visual consistency after assembly. If the machined tool marks on the inner and outer stepped surfaces were inconsistent, the finished component would look uneven after black oxide treatment and assembly.
Technical drawing reference for the SS41 steel pressure seat, showing the stepped surface and circular groove structure that required consistent machining texture.
Why This Pressure Seat Was Difficult to Machine
The pressure seat was an appearance part. The customer needed the surface tool marks to remain visually consistent, because inconsistent machining texture would affect the overall appearance after assembly.
The A-grade surface included stepped areas and circular groove structures. This made it difficult to keep the machining texture consistent unless tool selection and toolpath direction were carefully controlled.
Main Manufacturing Risks
- Stepped surfaces and circular grooves made tool-mark consistency difficult.
- Different tool sizes could create different textures on inner and outer surfaces.
- Different toolpath directions could make the finished surface look inconsistent.
- Post-machining polishing could destroy the original controlled tool-mark pattern.
- Black oxide treatment could make surface texture or color differences more visible.
- Color difference after black oxide treatment needed to be fully inspected before shipment.
The Core Difficulty Was Controlling the Same Visual Texture Across Different Features
The key issue was appearance consistency. For this SS41 pressure seat, the A-grade surface was not a flat simple plane. It included raised surfaces, steps, and circular grooves. If the inner and outer areas were machined with different cutters, different cutting paths, or inconsistent directions, the final tool marks would not match visually.
| Appearance Requirement | The part needed consistent machined texture so that the overall appearance would look uniform after assembly. |
|---|---|
| Feature Complexity | The A-grade surface included stepped geometry and circular grooves, increasing the difficulty of keeping tool marks consistent. |
| Tool Selection Risk | Using different inner and outer tools could create different surface textures and visual inconsistency. |
| Toolpath Direction Risk | If the machining direction was inconsistent, the final tool marks would appear uneven or mismatched. |
| Surface Treatment Risk | Black oxide treatment could highlight color difference or texture inconsistency, so final full inspection was required. |
How We Controlled Tool-Mark Consistency and Black Oxide Appearance
Richconn controlled this project from material preparation, programming strategy, machining texture, and final surface treatment inspection. The goal was to keep the machined texture consistent instead of removing it through polishing.
Precision Ground Stock Preparation
The outer profile was machined from precision ground material to support stable appearance and surface control.
Same Tool for Inner and Outer Features
The programming team was required to use the same cutter for both inner and outer features to keep the machined texture consistent.
Consistent Toolpath Direction
The toolpath direction was kept consistent during programming and machining to avoid mismatched tool marks on the stepped bottom surfaces.
No Polishing After Machining
The machined tool marks were kept in their original controlled state. No secondary polishing or grinding was applied to the machined texture.
Black Oxide Surface Treatment
After machining, the SS41 steel pressure seat received black oxide treatment as required by the customer.
Full Inspection for No Color Difference
After black oxide treatment, the part was fully inspected to confirm surface appearance and no color difference before shipment.
Raised Surface Ground Finish
The raised area was maintained as a ground surface, helping separate the visual effect between the raised face and the stepped bottom area.
Step Bottom Texture Control
The inner and outer tool marks at the step bottom were controlled to stay consistent, meeting the appearance requirement after assembly.
visual consistency target achieved for the pressure seat appearance surfaces
full inspection after black oxide treatment before shipment
Consistent Tool Marks and Uniform Black Oxide Appearance Achieved

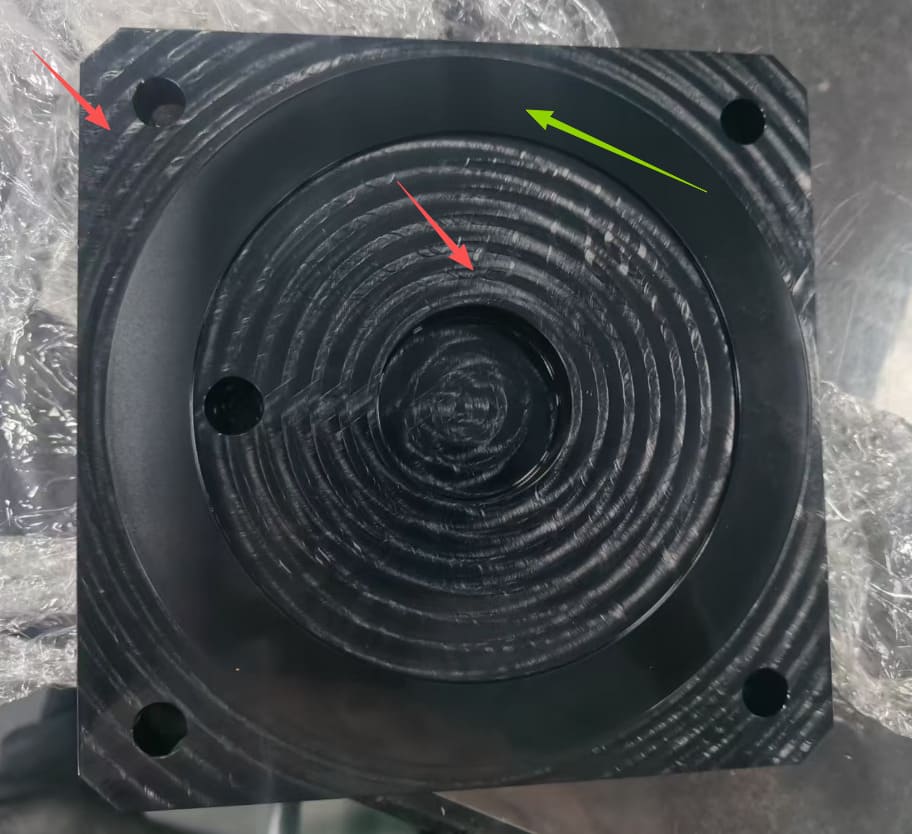

After process control, the raised portion remained as a ground surface, while the inner and outer tool marks at the bottom of the stepped area stayed consistent. After black oxide treatment and full inspection, the part met the customer’s visual and assembly appearance requirements.
- Material: SS41 steel
- Surface treatment: black oxide
- Process: CNC machining center
- Quantity: 1 piece
- Appearance requirement: consistent machined tool marks
- Raised area: ground surface
- Step bottom: consistent inner and outer tool marks
- Final inspection: no color difference after black oxide treatment
What Buyers Should Know About CNC Machining Appearance Steel Parts
For appearance-related steel parts, surface quality is not only about roughness. Tool-mark direction, tool selection, machining sequence, post-machining handling, and surface treatment can all affect the final visual result.
When black oxide is used, inconsistent tool marks or color differences may become easier to see. This is why machining texture control and post-treatment inspection must be planned together from the start.
Richconn’s Practical Experience
- Use consistent cutter selection for related visible surfaces.
- Control toolpath direction when machined texture must look uniform.
- Avoid unnecessary polishing when the original machined texture is part of the appearance requirement.
- Consider how black oxide treatment will affect the visual appearance of tool marks.
- Inspect color consistency after surface treatment before shipment.
- Separate ground surfaces and machined textured surfaces intentionally when the part has multiple visual zones.
