Milling cavities has its own set of challenges. Tool wear, chatter and the struggle to achieve smooth, precise walls are the most common issues that machinists often face. In this blog post we will uncover the main techniques, tooling choices and design tips that will help make cavity milling easier for you. By following these methods you will get reliable and consistent results.
What Is Cavity Milling?
Cavity milling, sometimes known as pocket milling, is a CNC process used to create hollow spaces inside a workpiece. This method uses a rotating cutting tool, like an end mill, to clear out large amounts of material within set boundaries. This action forms enclosed recesses or “pockets” in the part.
Difference Between Shallow vs Deep Cavity Milling
| Aspect | Shallow Cavity Milling | Deep Cavity Milling |
|---|---|---|
| Tool Requirements | Standard end mills (3-5xD length) | Long reach tools (10xD or more) |
| Depth-to-Diameter Ratio | 2 to 3 times the tool diameter for optimal results | Often 5+ times the tool diameter |
| Rigidity Concerns | Minimal tool deflection issues | Significant tool deflection challenges |
| Chip Evacuation | Natural chip ejection because of open design | Needs compressed air or through‐tool coolant |
| Machining Strategy | Conventional toolpaths work well | Needs specialized strategies like trochoidal or plunge milling |

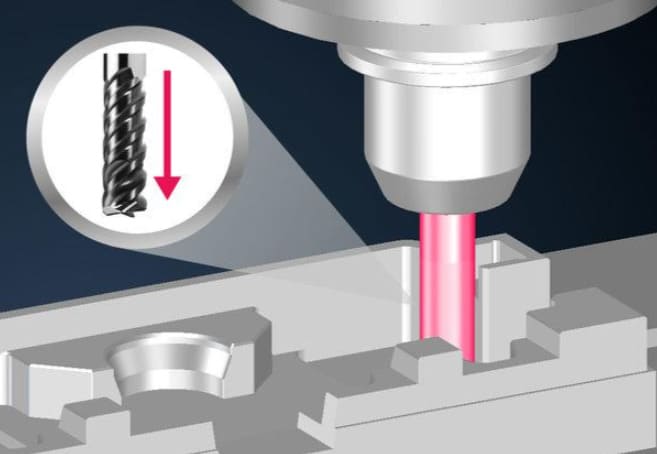

Tools, Tooling & Machining Parameters for Cavity Milling
Selection of right tools and machining parameters is crucial for cavity milling. These choices directly impact precision, efficiency as well as the final part’s quality.
Cavity Milling Tool Types, Tool Material & Geometries
End mills are the main tools used in cavity milling. Several types are common
- Square‐end mills: These create flat‐bottomed cavities and form sharp internal corners.
- Ball‐end mills: Use these for shaping complicated 3D contours and curved surfaces.
- Bull‐nose mills: Best for blending flat & curved features without visible transitions.
- Necked‐down end mills: These can reach deep cavities where extra length is needed.
Moreover flute geometry also affects the tool performance.
- Two‐ or three‐flute tools suit softer materials.
- Four‐flute or variable‐helix tools provide more rigidity and improve surface finish in harder materials.
Tool material selection matters as well. Carbide is the top choice for steel while high speed steel (HSS) works better for softer metals.
At Richconn, we stock multiple carbide and variable‐helix cutters. This reduces lead times and assures that the right tool is always available for each job.
Tool Holders, Adapters & Extensions
Tool holders attach the cutting tool to the machine spindle. Adapters and extensions help reach into deep pockets. High rigidity in these parts is necessary to reduce vibration, maintain dimensional accuracy as well as achieve a smooth surface.
Cutting Parameters
To get the best results, you must balance spindle speed, feed rate and depth of cut. The best parameters depend on both the workpiece material and the chosen tool.
| Parameter | Optimal Range |
|---|---|
| Cutting Speed | 100–180 m.min for steel |
| Feed Rate | 0.05–0.25 mm/tooth |
| Depth of Cut | Typically 0.5–2 mm |
Note: These table values provide a starting point. Actual values will change with the material and tool diameter.
At Richconn, we adjust these parameters with the help of trial cuts and in‐process probing. This assures every part meets accuracy and efficiency requirements.
Entry Strategy & Roughing Vs Finishing Passes
Cavity milling uses two main phases; roughing & finishing. In the roughing phase, most of the material is removed. Machinists use safe entry methods, such as ramping or starting from a pre‐drilled hole, to lower tool stress. After roughing, finishing passes follow. These passes use lighter cuts and a small stepover. The result is a smooth and accurate final surface.
Machining Path / CAM Strategies
Advanced toolpath strategies are available in modern CAM software. High speed adaptive roughing keeps tool engagement steady and removes material quickly. Trochoidal milling moves the tool in circular paths. This method works well for hard materials because it avoids tool overload and helps the cutter last longer.
Design Considerations for Cavity Milling
Choice of right tools is important, but a simple as well as effective design is just as critical for cavity milling success. Good design choices can reduce machining time, lower costs as well as improve the finished part’s quality.
Accessibility and Toolpath Clearance
Designers must make sure the cutting tool can reach every internal feature. The tool needs a clear path to slots, undercuts and shoulders without touching the part walls. If access is blocked, the part may not be machinable.
At Richconn, we provides free design‐for‐manufacturing reviews. These reviews help find features that tools cannot reach before machining begins.
Wall Thickness and Depth‐To‐Width Ratios
Follow wall thickness guidelines for every material to keep parts strong. For most metals, set the minimum wall thickness at 0.8 mm. For plastics, use at least 1.5 mm to prevent warping. Keep the cavity depth less than four times its width. This practice reduces tool deflection.
Corner Radii & Internal Transitions
Cutting tools have a round shape so sharp internal corners should be avoided. Designers need to add an appropriate fillet radius to every internal corner. Use of larger radii makes machining easier and more efficient. For best results, the corner radius should be just a bit bigger than the tool’s radius.
Tolerances & Finish Requirements
Tighter tolerances make machining more time consuming, complicated and expensive. Only specify strict tolerances when they are necessary for the part’s function.

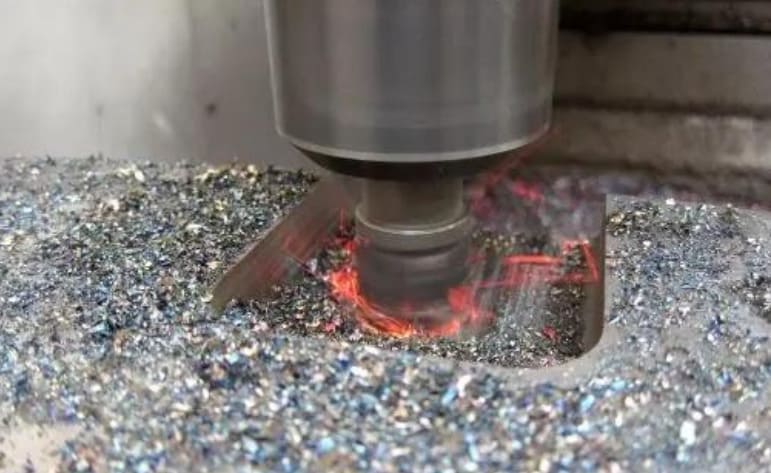

Challenges in Deep Cavity Milling
Deep cavity milling pushes the machining process to its limits. This causes unique challenges that need careful control.
1. Tool Deflection, Rigidity & Overhang
If you want to reach deep pockets then you need longer tools, but long tools are less rigid. This extra length, called overhang, causes the tool to bend under cutting forces. This bending causes tapered walls and dimensional errors which can make the part unusable.
2. Chip Evacuation & Cooling
Chips build up in deep cavity features and block coolant from reaching the cutting edge. This leads to heat buildup. If chips are not cleared, they can be cut again and this damages the tool and also harms the part’s surface finish. Therefore removing chips efficiently is essential for tool life and consistent part quality.
3. Vibration, Surface Integrity & Unwanted Geometrical Errors
Extended‐length tools do not have enough rigidity so vibration or chatter often occurs. These vibrations leave wavy marks on the workpiece and reduce surface quality. Geometric errors can also appear. Vibration speeds up tool wear and can cause the tool to break. Ultimately the process becomes less stable.
Strategies & Best Practices of Pocket Milling
To get the best results in cavity milling, you need to optimize your process. The following strategies help improve accuracy, efficiency along with surface quality.
Minimizing Deflection & Rigidity Management
Keep tool overhang as short as possible. Shorter tools offer more rigidity and resist bending which leads to better accuracy. Choose solid carbide tools when you can. These tools are three times stiffer as compared to high speed steel (HSS) and show less deflection under load. Always pick the largest tool diameter that your design allows.
Enhancement of Chip Removal & Cooling
Efficient chip removal prevents chips from being cut again. Use high‐pressure coolant to push chips out of deep pockets. Through‐spindle coolant or a strong air blast also work well to keep the cutting area clear.
Reduction in Vibration & Improvement of Surface Finish
Vibration control is important to prevent chatter and poor finishes. Adjust speeds & feeds to solve vibration problems. End mills with a variable helix design can also help. These tools break up harmonic vibrations and produce a smoother surface.
Optimization of Efficiency
Modern CAM toolpaths such as adaptive or trochoidal milling keep the tool load steady. This approach increases tool life and allows faster material removal. As a result, cycle times drop significantly.
Applications of Cavity Milling
Mold‐making
Cavity milling shapes hollow forms inside mold cores and cavities with high precision. Manufacturers use these molds in injection molding to create plastic components for many use cases.
Aerospace
Aerospace manufacturers use cavity milling to make parts that are both strong and light in weight. The process cuts deep pockets into structural pieces like aircraft frames and bulkheads. This reduces the total weight of the aircraft and helps improve fuel efficiency.
Automotive
Cavity milling creates engine blocks, transmission parts and other detailed components in the automotive industry. It forms internal cooling channels within engine parts. This process also makes molds for interior trim pieces which helps maintain consistency.
Medical Implants
Medical manufacturing demands high accuracy. Cavity milling produces complicated orthopedic implants such as femoral parts for knee replacements. This process can achieve surface finishes smoother than Ra 0.8 μm. This assures the implants are biocompatible and safe for patients.
Measurement, Inspection & Quality Control
Careful inspection is necessary to guarantee flawless final parts. This step checks that all dimensions and surface finishes match the design requirements.
Methods to Check Dimension & Wall Straightness
CMMs are essential for quality control. These machines use a probe to collect precise 3D data from the part’s geometry. This assures that the cavity’s dimensions and wall straightness match the CAD model. On‐machine probing systems can verify dimensions during machining so the part does not need to be removed.
Surface Finish Measurement
Surface finish is measured with parameters like Ra & Rz. Ra shows the average roughness of the surface while Rz measures the average gap between the highest peaks and lowest valleys. Most milled surfaces have a finish between 1.6 and 3.2 µm Ra.
Detecting Defects
Thorough inspection reduces the risk of part failures in the future. A simple visual check can spot clear surface problems such as cracks or pits. To find hidden defects, inspectors use nondestructive testing. Ultrasonic testing locates internal voids. Dye penetrant testing reveals small cracks that break the surface.
At RICHCONN, every project uses CMM inspection and follows ISO‐9001 quality standards. These steps confirm that parts match the drawings and work reliably in their intended use.
To Sum Up
To produce complicated, high‐quality parts, you need to master cavity milling. Success depends on careful design, the right tools and effective strategies for handling tool deflection and vibration. Using these methods helps you solve common issues like tool deflection and poor surface finish.
Richconn delivers expert cavity milling for complicated parts. Our team uses advanced 5‐axis CNC machines to achieve high precision. We provide fast turnaround and maintain strict quality control. From prototypes to full production, you can rely on us as your manufacturing partner.
Related Questions
Tool runout causes cutting forces to become uneven. This leads to dimensional errors, poor surface quality and faster tool wear. These problems reduce the overall accuracy of your parts.
Switch to 5 axis milling for deep cavities or when parts have complicated, angled surfaces. This setup lets you use shorter, stiffer tools and also removes the need for several setups.
Yes you can use HSM for hardened steels if you have proper thermal control and use tools like PCBN. However you must still manage tool wear and chip removal carefully.
For roughing, use a larger stepover—about 40% to 60%—to remove material quickly. For finishing, select a smaller stepover of 5% to 25% to get a smoother surface.
