Manufacturing industries use centerless grinding for precision machining. It gives high production rates and great surface finishes for cylindrical parts. Let’s see the basics of centerless grinding, its principles and uses.

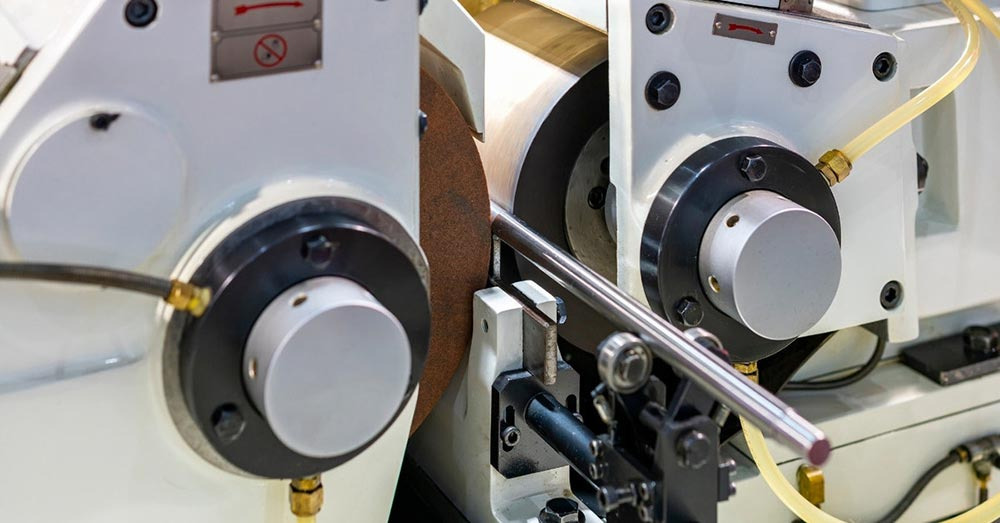

What is Centerless Grinding?
Centerless grinding technique use abrasive cutting to remove material from the outside of workpiece. It uses a grinding wheel and a regulating wheel and doesn’t need spindles or fixtures to hold the workpiece. Workpiece is fixed between these two wheels only.
How Does Centerless Grinding Work?
Centerless grinding works by following these steps:
Basic Setup
Two wheels which rotate in sync but at different speeds, are the basis of this process. The main grinding one is stationary and the regulating wheel is adjustable for pressure. Between the wheels is a work blade platform which supports the workpiece.
Material Removal
High speed rotation of the grinding wheel removes material through controlled downward pressure. The slower moving regulating wheel guides the workpiece positioning and rotation. For best results, the workpiece centerline should be slightly above the wheel’s centerline.
Control Mechanisms
Material removal rates are determined by the speed difference between the two wheels. By adjusting the regulating wheel speed and angle, operators can control the quality of surface finish and feed rates. Today’s CNC systems do this automatically so you get accurate control throughout the grinding process.
Types of Centerless Grinding
Centerless grinding has three special methods for different manufacturing needs and workpiece qualities.

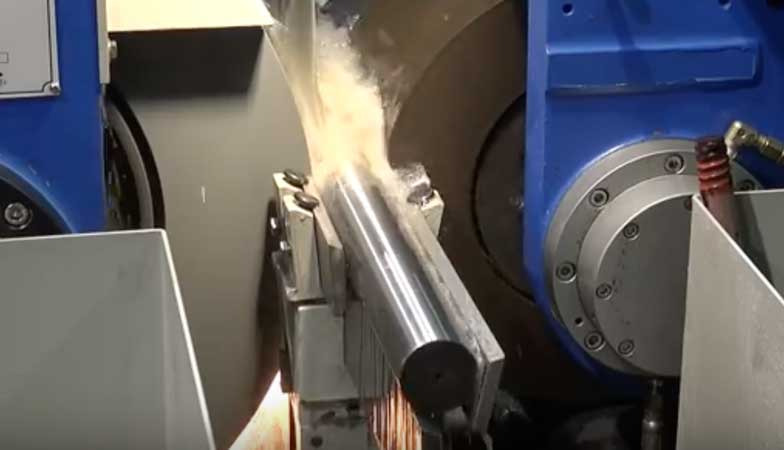

Thru-feed Grinding
For continuous production of cylindrical parts, thru-feed grinding is the way to go. By setting the regulating wheel at a slight angle (1 to 5 degrees) the system generates axial force which moves the workpiece from the grinding zone automatically. This is perfect for straight cylindrical parts( i.e., from precision pins to bearings and shafts) and for surface finish in long production runs and steady diameter tolerances.
In-feed (plunge) grinding
This precision grinding method can grind complicated profiles and multiple diameters at once. During operation, the workpiece is fixed against a stop and the grinding wheel moves radially towards the part until it reaches the desired depth. Manufacturers use this method for valve spools, stepped shafts and automotive parts which require exact diameter transitions. By grinding multiple diameters and shoulder features in one setup, in-feed grinding gives you an outstanding surface finish and tight tolerance.
End-feed grinding
For parts with changing diameters and tapered parts end-feed grinding is the way to go. The process comprises of guiding the workpiece between a fixed blade and a regulating wheel until it hits an end stop. Small parts like pistons, hex bolts and pump shafts( specially those with multiple diameters or heads) are too tricky for standard grinding machines so this type of grinding is used. It is perfect for special situations with the ability to grind diameters under a quarter inch and holds accurate taper angles.
Centerless Grinding Advantages
- Increased Accuracy and Precision: This grinding process gets ±0.00005 inches’ tolerance with its workpiece support system. Because it does not need continuous support for workpiece and has no center points so there is no chance of deflection and parts come out straight and round.
- More Throughput and Performance: Its nonstop operation and automated feeding give up to 300 parts per minute of production rates. Quick loading and no need of workpiece mounting and centering, decreases cycle times.
- Handles Different Workpiece Shapes and Sizes: Centerless grinding is multipurpose and can process parts from 0.04 to 12 inches in diameter without tooling changes. It can handle multiple diameters and complicated geometries in one setup as in case of complicated tapered shafts or straight cylindrical parts.
- Outstanding Surface Finish Quality: The surface finish gets up to 0.1 micrometers Ra with centerless grinding. Accurate wheel control and stable workpiece support prevents surface defects and chatter marks. This level of quality mostly removes the need for secondary finishing and assures smoothness throughout production.
- Minimized Workpiece Damage: With complete workpiece support and zero axial thrust, centerless grinding stops deformation because there are no stress points. Operators can grind the most delicate and brittle materials.
- Affordability: Uncomplicated setup and smart automation make centerless grinding price-effective. By reducing maintenance, extending wheel life and eliminating pre-op, this process saves per part cost without sacrificing production speed.

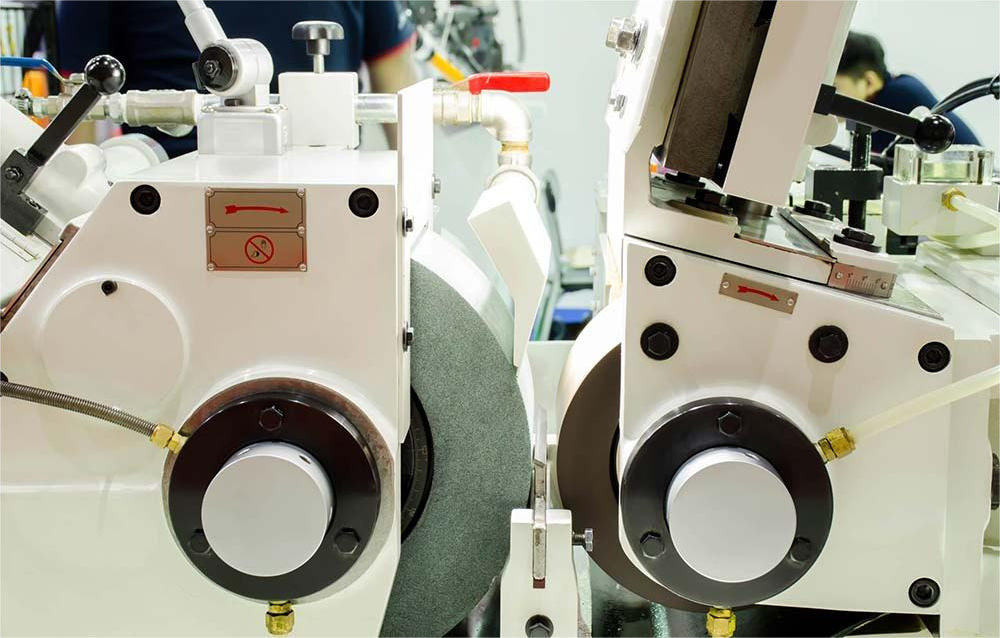

Centerless Grinding Uses
From automotive parts to medical devices, centerless grinding is broadly used in many industries. Here’s how different fields use it:
Automotive Industry
Powertrain parts are the main use of centerless grinding in automotive. Sensitive parts such as crankshafts, piston pins, camshafts and valve stems require ±0.0001 inches’ tolerance.
Aerospace Industry
When it comes to flight safety, aerospace manufacturers use centerless grinding for turbine shafts, landing gear components and hydraulic systems. Under intense conditions, these parts must perform flawlessly which is a requirement met through outstanding surface finish and ultra-accurate tolerances of this process.
Dental and Medical Tools
In medical applications, centerless grinding gets the precision for bone drills, catheter bodies, guidewires and surgical needles. Dental professionals use this process for fiber posts, endodontic files and orthodontic wires. These all need accurate surface finish and diameters for patient safety.
Industrial Production
Bushings, precision fasteners and roller bearings all come out of centerless grinding. It shines for machine parts and hydraulic system parts where dimensional accuracy is critical to functionality.
Die and Tool Making
In die and tool shops centerless grinding shapes precision dies, punches and cutting tools to print. Beyond surface finish for forming and stamping operations, this method holds the sensitive tolerances for forming dies and mold cavities.
Consumer Goods
From household appliances to sporting goods, consumer products are made through centerless grinding. Fasteners, motor shafts and hardware parts get smooth finishes and precise dimensions. Examples are bowling ball cores, kitchen appliance parts and golf club shafts.
Best Practices for Centerless Grinding
You can get success in centerless grinding by systematic maintenance, skilled operators and quality control. Details of which are as follows:
Regular Calibration and Maintenance
Start each day by checking regulating wheels, grinding wheels and work rest blades for wear. Weekly schedules should contain precise calibration of wheel angles and speeds.
Monthly schedule should cover the complete maintenance of lubrication points, hydraulic systems and coolant filtration tools. A maintenance log can help to know quality trends and tool issues before they affect production.
Operators’ Skill Development and Training
There is a need to give hands-on experience to your workers with wheel profiling, machine setup and tooling selection. Training programs work best when they combine theoretical knowledge with practical application. The main areas of focus are equipment maintenance, safety procedures and process refinement.
Operators must be evaluated periodically to establish high production standards by testing their knowledge of quality requirements and grinding parameters.
Quality control Implementation
Modern quality control uses precise measurement tools like CMMs, air gauges and roundness testers; you should implement them. Real time monitoring systems track surface finish and dimensional accuracy during production. Quality checks at main points verify coolant quality, wheel condition and other critical parameters.
Conclusion
Centerless grinding is all about surface finish and precision in cylindrical parts manufacturing. It’s become a must-have in modern manufacturing because of tolerance control and automation.
For precision grinding option customized to your exact need contact RICHCONN. We blend technical knowledge with modern equipment to give best results.
FAQs
How is centerless grinding different from traditional grinding?
Centerless grinding eliminates the need for mechanical fixtures by supporting the workpiece between two wheels and thus gives non stop processing whereas traditional grinding needs chucks or centers for support.
What are the main parts of a centerless grinding machine?
Every centerless grinding machine has four main components i.e., a regulating wheel, grinding wheel, work rest blade and workpiece support system.
What are the main problems in centerless grinding?
Operators need to select the right wheels for different materials, manage work blade height and address technical issues such as work burning, wheel loading and chatter.
How does centerless grinding acquire high precision?
It acquires tolerances of up to ±0.00005 inches through precise wheel control and stable workpiece support which minimizes vibration and deflection.
Is centerless grinding appropriate for small batch production?
No, it has long adjustment times between different parts and complex setups which makes it less useful on a small scale.
