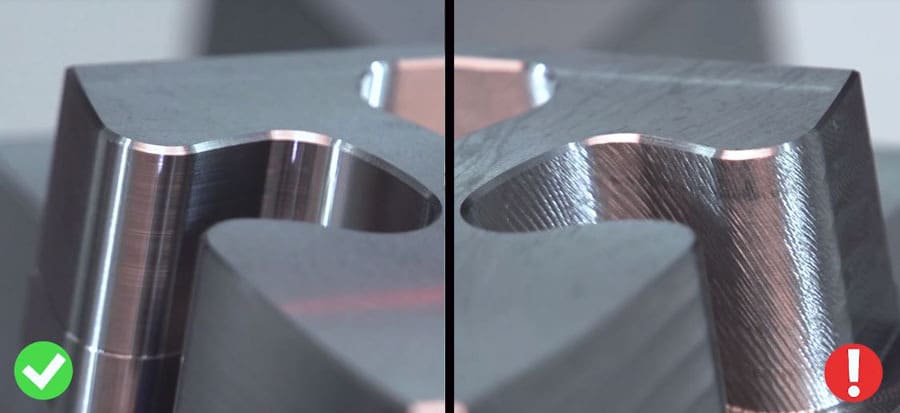

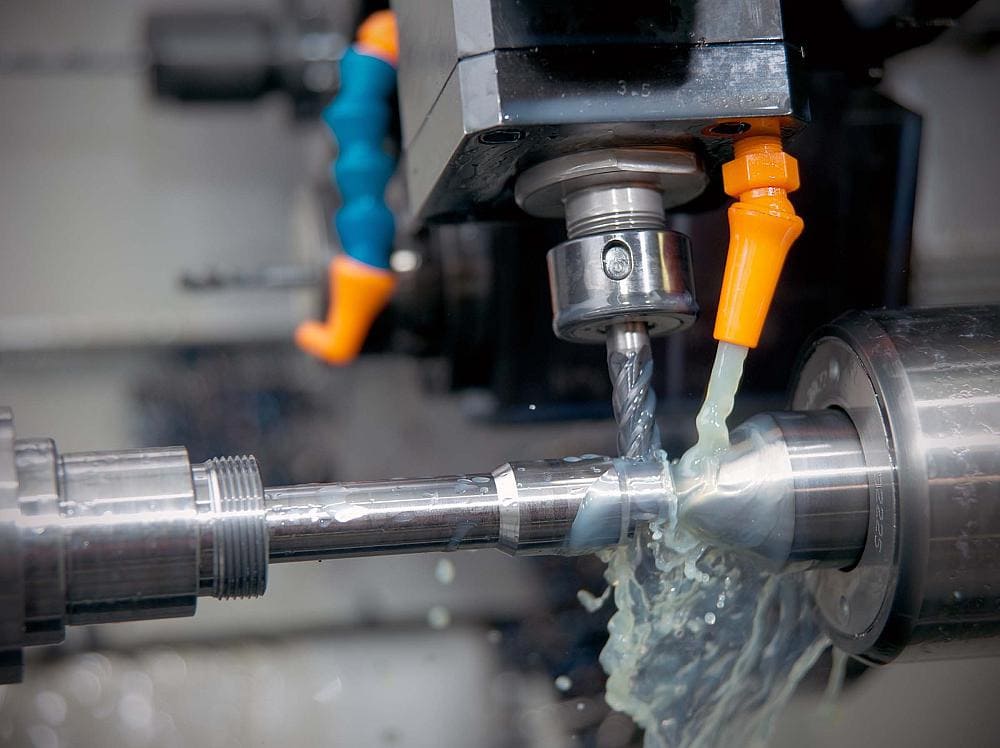

CNC machining operations encounter major challenges from chatter marks on CNC machining parts surfaces. These vibration‐induced patterns accelerate tool wear, decrease product quality and increase production downtime.
In this comprehensive guide, we will break down the types of chatter, their root causes, negative effects as well as effective ways to reduce vibration.
What is Chatter in CNC Machining?

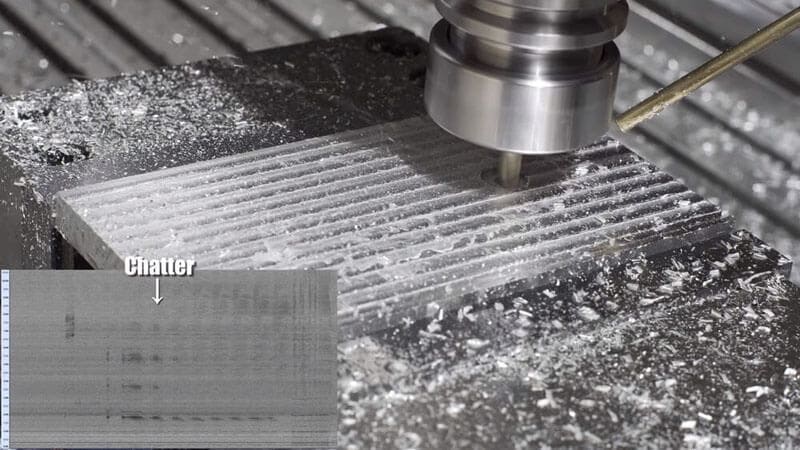

In CNC machining, chatter means undesired vibrations during cutting operations. The workpiece & cutting tool move in an oscillating pattern which creates wavy marks on the machined surfaces. These vibrations arise from forced, free or self-generated movements which affect both surface quality and dimensional accuracy.
Also See: What is CNC Precision Machining
Main Types of Chatter in CNC Machining

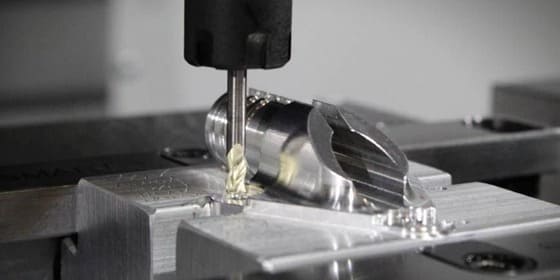

The two main chatter types that affect CNC machining are workpiece chatter & tool chatter.
Workpiece Chatter
Components with thin walls and long shafts are often prone to workpiece chatter. This happens when the workpiece is not appropriately supported during turning operations. The solution requires minimized workpiece overhang & better workholding methods.
Tool Chatter
Incorrect roll geometry & inadequate stiffness lead to tool chatter. Periodic marks and wavy patterns appear on the machine surface due to unstable cutting forces. To solve this problem operators need to adjust tool geometric parameters and increase tool stiffness.
Main Causes of Chatter Marks on CNC Part Surfaces
A number of factors contribute to chatter marks on CNC part surfaces. A clear understanding of these causes permits effective problem identification.

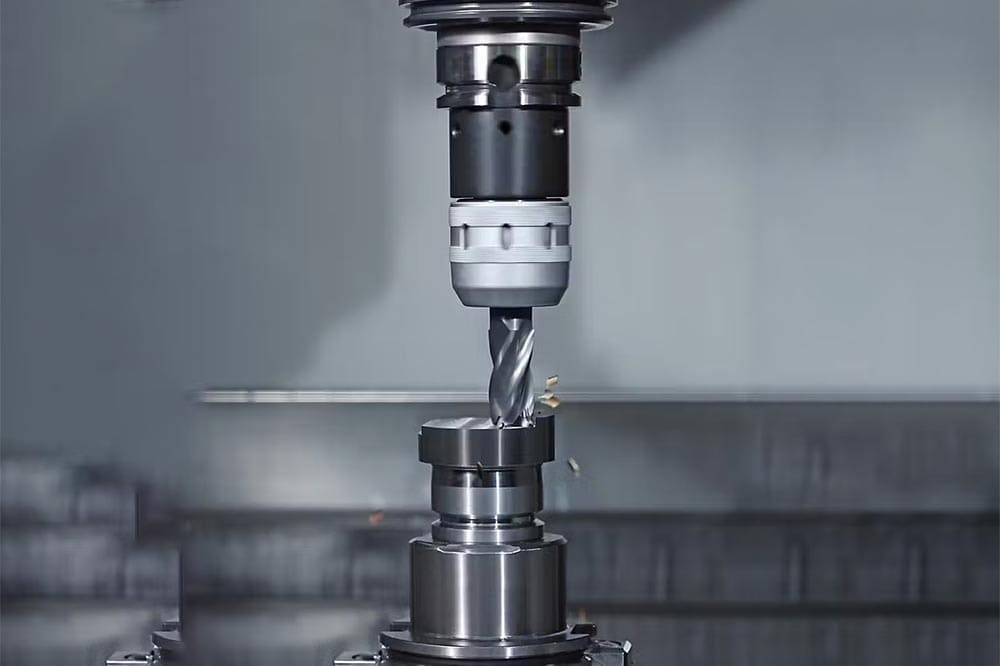

Machine Tool Factors
CNC equipment alignment & rigidity directly affect machining stability. Insufficient CNC equipment stiffness creates vibration problems. Moreover misaligned guide ways, worn spindle bearings as well as loose parts also increase vibration hazards.
Tooling Factors
The stability of machining operations depends a lot on tool geometry, strength and condition.
Tools that protrude too much from their holders do not have adequate strength. A tool holder with not enough stiffness results in instability. Non-uniform tool assemblies & tools with worn cutting edges also introduce vibrations into the system.
Workpiece Factors
Workpiece properties determine vibration susceptibility. Low stiffness in thinned or long walled parts increases the chances of vibration. Material properties also affect stability. Changes in internal stresses & hardness can trigger vibrations during turning operations.

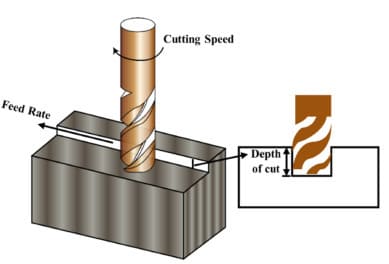

Cutting Parameters
Incorrect cutting parameters lead to development of chatter. Resonance occurs when spindle speeds match the natural frequency of the machine. More than necessary depth of cut causes the process to become unstable. In addition, higher feed rates create destabilizing forces.
Also See: Feed Rate & Cutting Speed in CNC Machining
Environmental Factors
The performance of your CNC equipment can also be impaired by vibrations from nearby machinery. Compromised foundations also transmit unwanted vibrations. Changes in temperature affect both machine geometry as well as material properties. These changes cause variations in cutting conditions.
Effects of Chatter on Machining Procedures
Dimensional Inaccuracy
Chatter vibrations interfere with accurate cutting control. A continuously moving tool deviates from its intended path. These deviations cause dimensional errors that make parts too long, too short or asymmetrical which greatly impacts high precision machining.

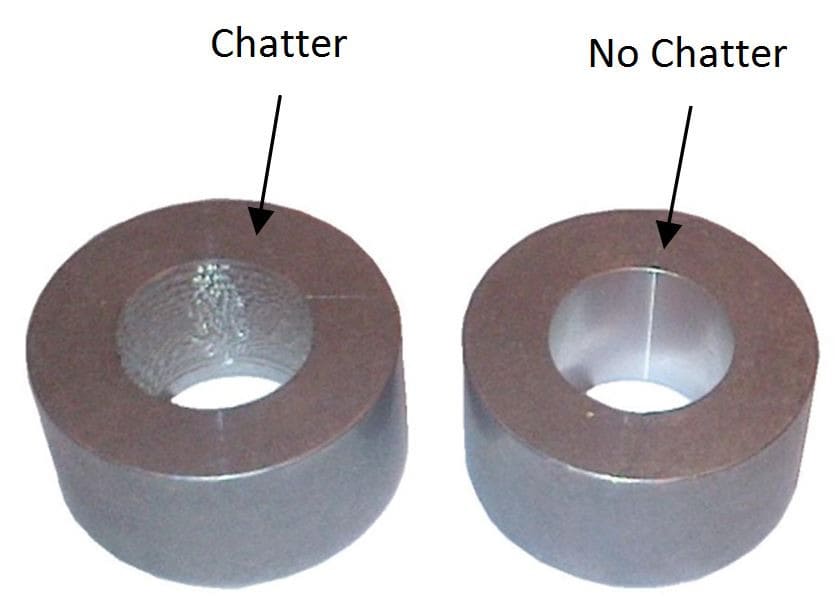

Surface Finish Degradation
Chatter causes irregular patterns & visible waves to appear on machined surfaces. These surface defects further reduce quality greatly. Parts with these defects fail inspection, specifically in technical fields that require polished and smooth surfaces.
See Also: Surface Finish_ Detailed Overview
Machine Tool Failure
Chatter can cause serious damage to machine parts with time. Main parts such as bearings, spindles and motion axes experience substantial wear. This damage leads to increased machine downtime, expensive repairs and possibly complete machine failure.

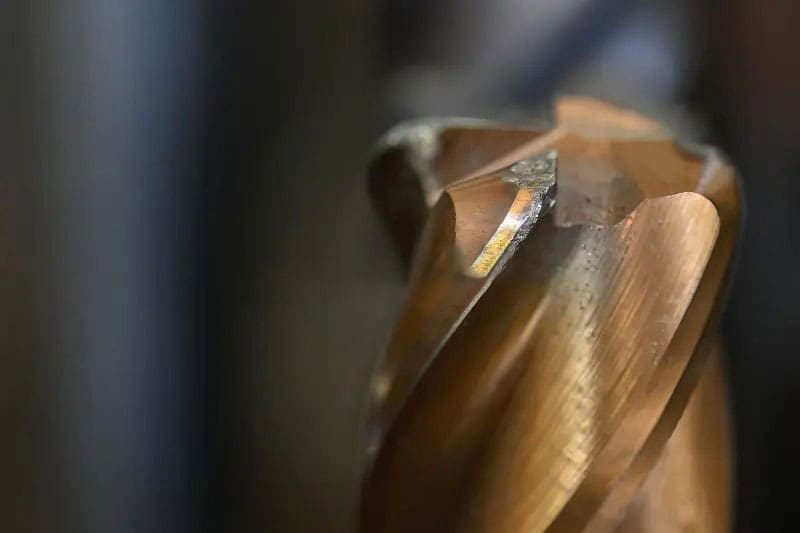

Accelerated Tool Wear & Potential Breakage
Under chatter, tools wear more quickly. Continuous vibrations create shear forces on cutting edges. This results in a condition that needs frequent changes, decreasing tool life as well as increasing cost.
Higher Operational Costs
Operators must decrease cutting speeds to control chatter. Lower feed rates become necessary. These adjustments decrease productivity and increase cycle times. Surface imperfections often need additional finishing operations. Both factors increase machining time & overall cost.
Safety Hazards
Loud chatter noise creates workplace hazards. Operators risk hearing loss from long term exposure. Additionally, tools can break suddenly due to unusual forces. Due to this, workpieces can fly out of the machine. These conditions pose serious safety hazards.
Diagnosing Chatter: Identifying Main Causes
The first step in vibration control is to accurately identify the root causes. A systematic investigation will reveal the particular elements causing vibration problems.
Visual Inspection
In case of chatter, an irregular or wavy pattern will appear on the machine surface. A closer inspection should focus on two main areas. First, check the tool for any damage or wear that may increase vibration. Then, verify the clamping stability of workpiece because not enough securing often causes chatter.

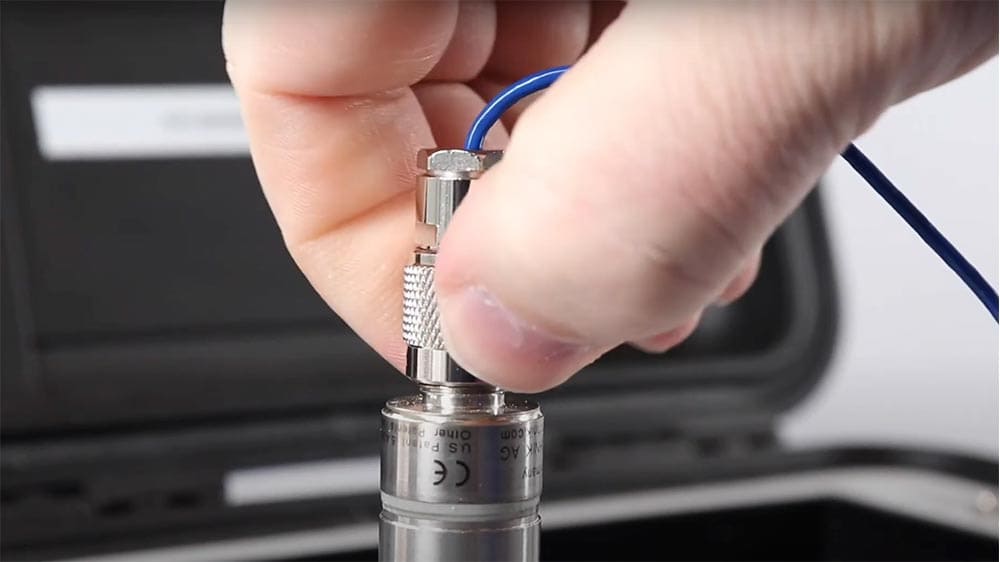

Vibration Analysis
Accelerometers and other advanced sensors provide accurate measurements of amplitudes & vibration frequencies. These measurements help determine whether the problem is due to the workpiece, tool or machine. Latest monitoring systems give immediate data for adjustments.
Cutting Force Evaluation
Direct measurement of machining forces reveals chatter patterns. High or unstable cutting forces indicate possible problems. Force data analysis helps identify which specific parameters need adjustment like cutting depth or feed rate.
Auditory Cues
The machining process produces specific sounds that could indicate chatter problems. High pitched sounds are usually a sign of the presence of vibrations. These sounds provide valuable clues to the location & time of vibration problems which guide further testing.
Tactics for Controlling and Preventing Chatter on CNC Part Surfaces
Increase Tool and Tool holder Rigidity
Chatter control is highly dependent on tool & toolholder stability.
Choose tools with shorter lengths and larger diameters for greater rigidity. Install high quality tool holders which include shrink-fit or hydraulic types for secure tool mounting. Anti vibration tool holders with built in damping mechanisms give additional stability benefits.
These improvements lead to long term tool performance as well as better machining quality.
Optimize Cutting Parameters
Success in reducing chatter depends on selection of appropriate cutting parameters.
Spindle speed should avoid frequencies that increase vibrations and create resonance. Modification of feed rates as well as shallow depth of cutting produce more stable conditions. Systematic testing of different parameter combinations leads to the best results.
These adjustments guarantee high quality surface finish and vibration control.
Incorporate Variable Spindle Speeds
Chatter is created when tools resonate with the machine’s natural frequency. Variable spindle speeds break up these harmful harmonic patterns. This method is particularly effective for slender & long workpieces. Stainless steel as well as titanium materials also benefit from this method. You can stabilize your cutting process with simple speed modifications without installing new hardware.
Proper Workholding Stability
Proper stability of workpiece prevents the development of chatter. Use proper collets, chucks or fixtures to hold the workpiece firmly. Long workpieces need tailstock support to prevent bending during operation. Regular maintenance of clamping devices guarantees constant grip force. Moreover, stable workpiece holding increases part accuracy and creates uniform cutting conditions.
Apply Damping Techniques
Place vibration dampening materials between the tool & holder. Sheets of polymer or rubber absorb unwanted vibration energy. Some tools have internal damping systems as a built in feature. These damping solutions work best in high precision jobs where surface quality is necessary.
Apply Proper Tool Geometry
Tool geometry performs a very important role in minimizing chatter.
Pick tools that have positive rake angles to decrease cutting forces. Sharp cutting edges will also decrease heat generation as well as friction during the process. Moreover correct chip breaker design on inserts allows smooth chip flow.
These geometric features combine to create a stable cutting process thus improving machining results.
Implement Machine Tool Maintenance
Your CNC equipment needs regular inspection to avoid vibration problems. Check for loose parts, worn bearings and alignment problems. Lubricate all moving parts well. Check that the machine is placed on a stable and smooth foundation.
Maximize Tool Path and Engagement
Establish toolpaths that maintain constant contact with workpiece. Avoid sudden changes in cutting direction or depth. Adaptive & trochoidal milling strategies help distribute cutting forces evenly. A stable cutting process increases machining efficiency as well as tool’s life.
To Sum Up
The complete chatter control demands a number of strategies. For better results, implement adaptive speed control. Also, Maintain tool stability and improve your cutting parameters. These general strategies will give longer tool life, better surface finish as well as better machining precision.
If you want perfectly machined CNC parts without any chatter marks then Richconn is your best option. You can contact us any time.
Related Questions
Are there any special tool holders to deal with chatter?
Damping tool holders operate as a useful solution against chatter. These special holders include built in systems that absorb vibrational energy which are specifically effective for machining tasks with long overhangs.
Can a change in spindle speed help reduce chatter?
Continuous changes in spindle speed effectively prevent the formation of chatter. This method breaks the resonance pattern as well as keeps the cutting process out of the chatter zone.
Can the use of coolant affect the chatter?
Proper use of coolant plays an important role in reducing chatter. Coolant stabilizes the cutting process through effective lubrication & heat transfer.
What effect does machine maintenance have on chatter?
Regular machine maintenance directly helps minimize chatter. Properly maintained machinery guarantees correct alignment, maximum rigidity and healthy parts which together reduce chatter caused by vibrations.
How does the length to diameter ratio of the workpiece affect chatter?
The length to diameter ratio directly affects chatter sensitivity. Workpieces with higher ratios are more prone to vibration & deflection during machining.
Are there specific cutting strategies to reduce chatter?
Yes there are several such cutting strategies. These include use of variable helix tools, optimization of parameters and trochoidal milling techniques which reduce vibrations & cutting forces.
Can balancing of rotating parts help reduce chatter?
Balancing rotating parts greatly reduces the risk of chatter. This process extends equipment life, reduces vibrations and increases operational safety and machining efficiency.
Can software solutions help identify chapters?
Advanced software solutions feature automated chatter control. Applications like Chatter Pro can identify chatter events as well as adjust the spindle speed in real time for stopping it.
