Climb milling performs an important part in improving surface finish & quality of a product. It provides better chip removal as well as minimum tool wear. Therefore in this blogpost we’ll cover the climb milling process, its benefits, application and best practices so you can improve your milling operations.
What is Climb Milling?
Climb milling is highly-precise machining technique in which rotation of cutting tool is parallel to the direction of workpiece feed. The other name of this method is down milling. And it is preferred for modern CNC operations that have proper backlash compensation and machine stiffness control.
Climb Milling Process
The process begins when at maximum thickness cutter engages material and the progression of cut slowly reduces the chip thickness to zero. And the cutting teeth “climb down” onto the workpiece surface so it can eject chips behind spindle.
During machining, this creates downward force to press the workpiece towards the worktable to improve machining. The feed direction and rotation of the tool work with each other to decrease chip deformation by creating a shearing action.
Benefits of Climb Milling
- The distinctive chip formation process of climb milling produces outstanding surface quality. Its downward cutting force stabilizes workpiece which in turn produces clean, accurate finishes and less chatter.
- Climb milling decreases wear on tool because of lower cutting forces. Therefore tool lasts longer and does not have to be replaced quite often. This results in lower overall machining costs along with better productivity.
- In climb milling the thick to thin chip formation evacuates debris at the back of cutter to avoid chip recutting. This natural evacuation process during machining operation keeps optimal cutting conditions & decreases heat buildup in cutting zone.
- Climb milling uses direct cutting action with minimum sliding friction to reduce work hardening. And it reduces unnecessary strain on the material and tool to keep the workpiece properties as original as possible.
- Because of downward cutting action, climb milling greatly minimizes cutting forces. This in turn simplifies workholding needs and reduces workpiece deflection as well as power consumption.
Applications of Climb Milling
Automotive Parts Production
Climb milling is used to produce cylinder heads, transmission housings, and components of brakes, suspension parts and engine blocks. All these components need outstanding surface finishes. Apart from that, the risk of part distortion is minimum in climb milling because of lower cutting forces.
Medical Device Fabrication with Precision
In the manufacturing of medical devices, climb milling is used to produce complicated parts with micron level accuracy. Such parts include implants, diagnostic equipment, dental tools, prosthetic devices as well as surgical instruments.
Mold & Die Making
Climb milling performs an important part in production of die casting molds, forging dies, stamping dies and injection molds. This process when machining complicated 3D contours decreases tool deflection and assures outstanding dimensional accuracy. Besides that it also improves chip removal which prevents mold damage during production.
Aerospace Industry
Turbine blades, engine components, structural frames, wing spars and landing gear parts are all produced using climb milling. And it makes accurate cuts for components and structures of aircraft engines with very tight tolerances.
Quality Furniture Production
Cabinet doors, furniture legs, decorative trims, custom furniture parts as well as intricate wood details are all made using climb molding. This method is good for obtaining smooth finishes on wood surfaces & reducing the risk of tear out and splintering.
Complex Part Production & Rapid Prototyping

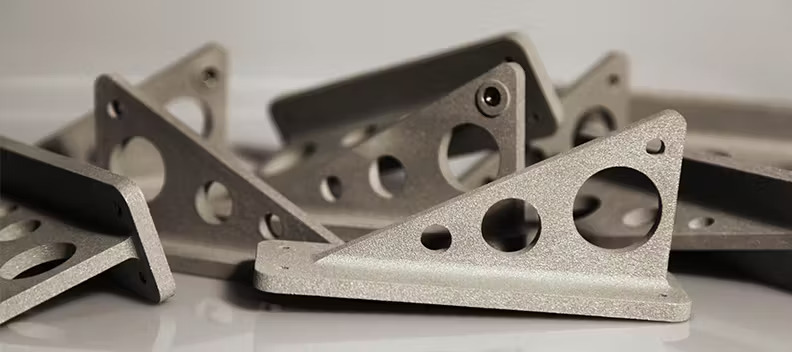

Climb milling is broadly used to produce prototypes, complex parts, intricate tooling, aviation models and small quantity precision parts (e.g. custom brackets). This technique permits fast, high precision machining. Thus it is important in prototype development where quick iterations and detailed features are required.
Best Practices for Implementing Climb Milling
Chip Management
In climb milling, effective chip evacuation is important to maintain cutting performance. You can remove chips from the cutting zone by using high pressure coolants. Moreover you should install chip breakers and program tool paths to improve chip evacuation. And you can use vacuum systems to prevent chip recutting in dry machining applications.
Right Tooling
You should pick tools with outstanding wear resistance and sharp cutting edges which are specially used for climb milling. You must confirm your tool material matches the workpiece. In heavy operations use carbide tools for longevity and precision. It guarantees better cutting performance and reduces wear and tear on tooling as well.
Machine Rigidity & Backlash
Make sure your machine is vibration free and stable. This will not only help you avoid tool deflection but also increase the accuracy of cut. Besides that linear guides and ball screws can also be used to reduce backlash. And this helps you prevent positioning errors too during fast movements.
Cutting Parameters
You have to use correct feed rate, depth of cut and cutting speed for the material you are machining. These parameters should be adjusted per real time feedback from machine and tool performance. You can use higher feed rates too but make sure it does not exceed your machine capacity.
Safe Workpiece Fixturing
You can manage the upward forces in climb milling by robust workpiece fixturing. And avoid workpiece movement using vacuum tables, custom fixtures or precision vises. For large parts, you should implement multiple clamping points and toe clamps in fast speed operations for extra stability.
Conclusion
In short climb milling provides many advantages in terms of precision machining like better chip removal and longer tool life. And manufacturers should use best practices and optimized cutting parameters to increase productivity and quality in different industries.
