In manufacturing CMM inspection is an important process to maintain quality and accuracy. If implemented properly, these concepts can lead to substantial reduction in product costs and improvements in product reliability.

In this blogpost we are going to cover components of CMM inspection, its process, types and applications in different industries.

What is CMM Inspection?

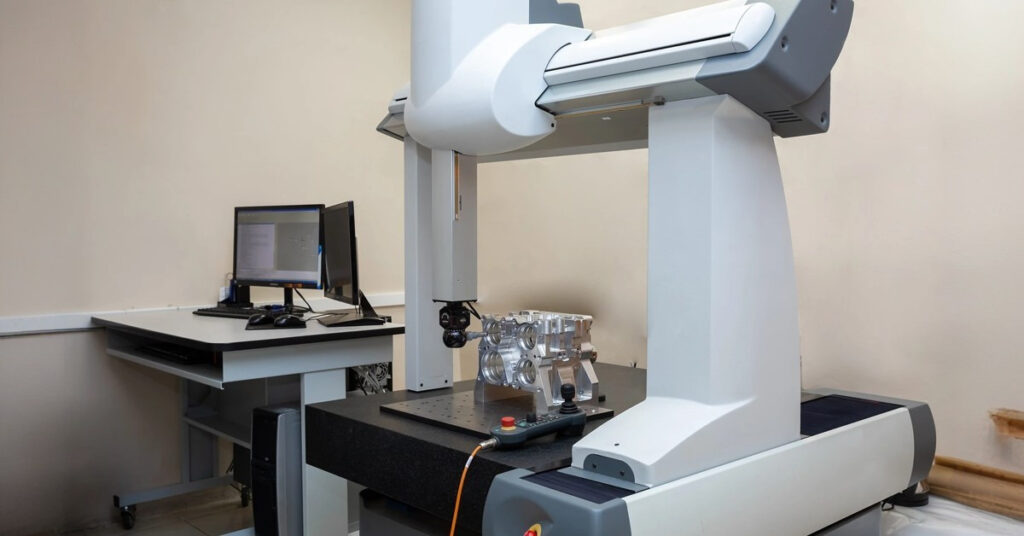

What is CMM Inspection?

In simple terms CMM inspection is measurement and verification of part geometry by a coordinate measuring machine. It consists of taking precise points of data to confirm positional tolerances, dimensional accuracy and form. The technique also provides process validation, engineering standards compliance and quality control.

Components of CMM

Structure

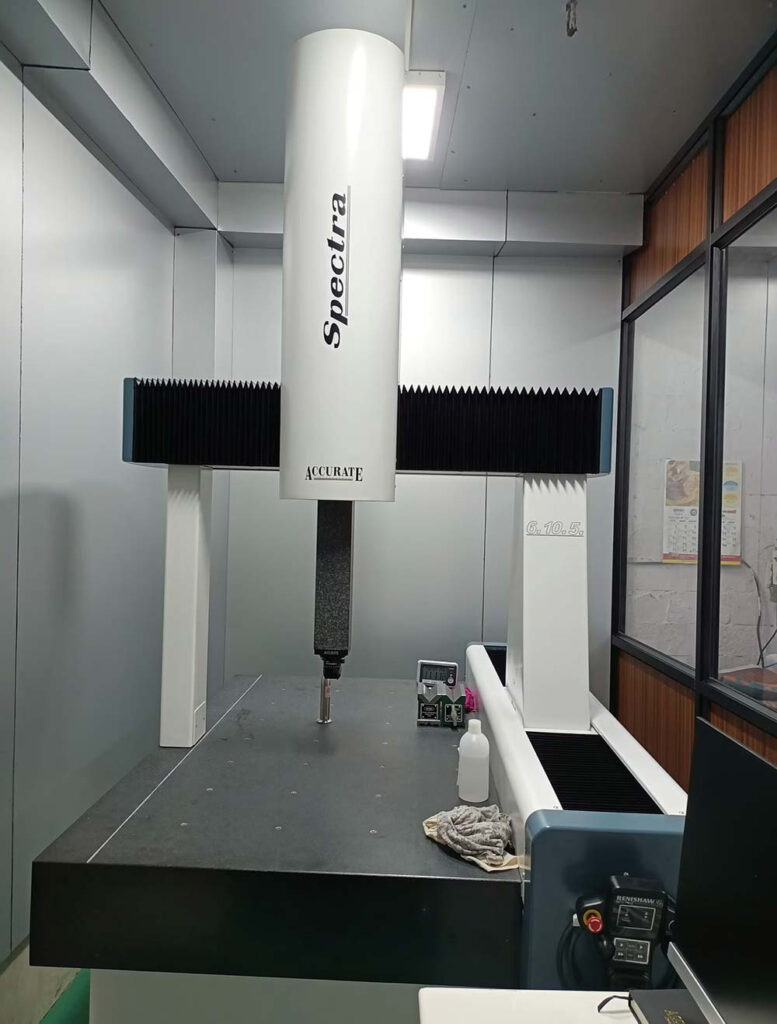

Structure of CMM

The CMM structure gives the framework for complete setup. It makes machine rigid and stable for measurement so that any movement or vibration can not affect its precision.

Probing System

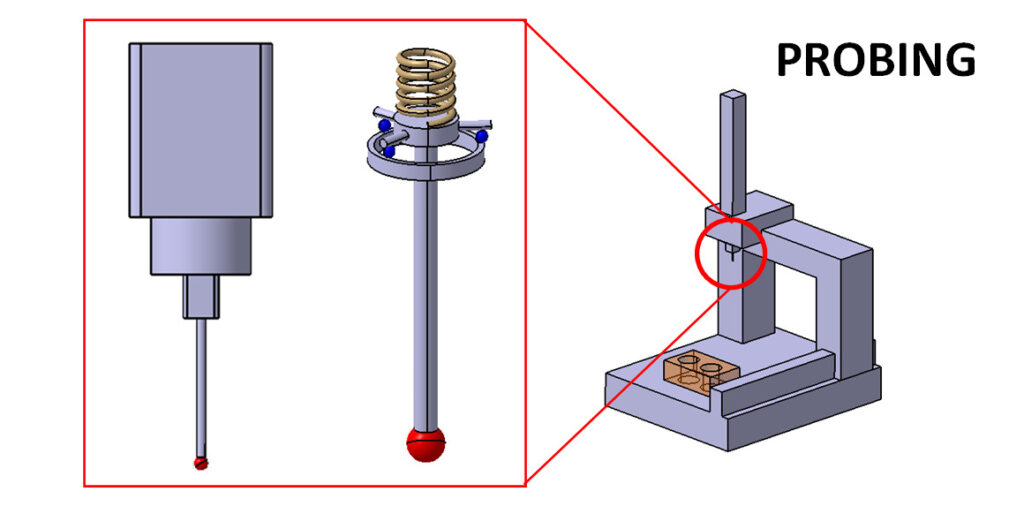

CMM Probing System

The probing system includes touch trigger or scanning sensors that have ruby tipped styli fixed to rigid ceramic stems or tungsten carbide. And these sensitive sensors detect surface contact and then transmit coordinate data to the CMM controller for accurate dimensional analysis.

Data Collection Setup

The system of data collection integrates sensors with sophisticated software to collect, analyze and keep record of measurement data. Using advanced algorithms, it processes coordinate points to produce statistical analysis and real time dimensional reports for quality control.

Types of CMMs

Bridge CMMs

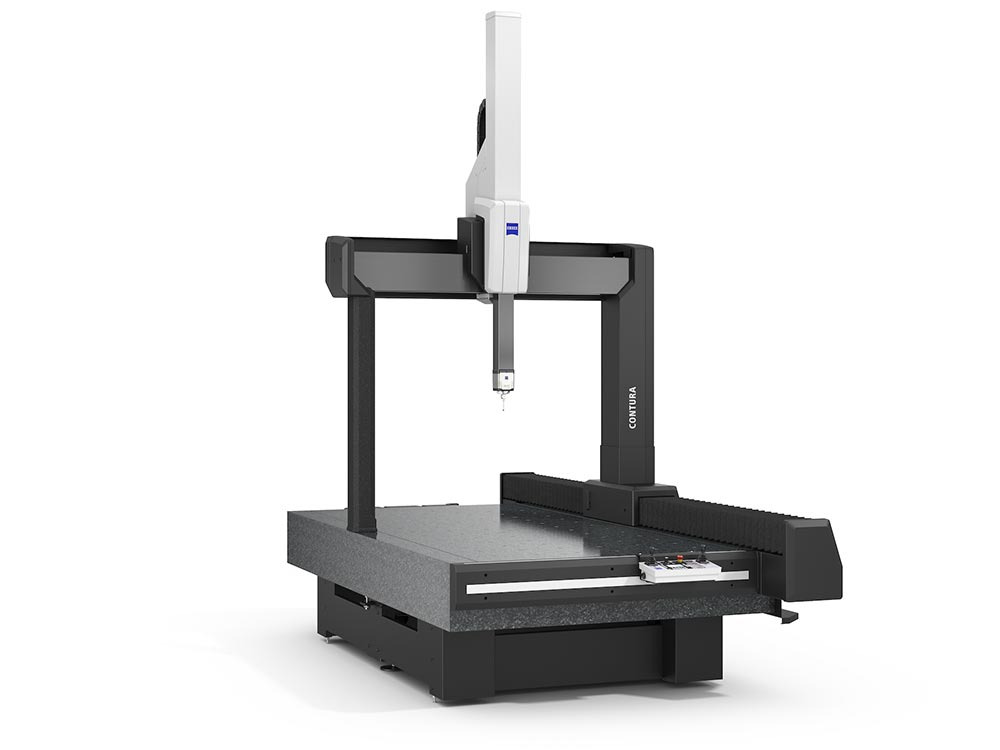

Bridge CMMs

The bridge CMMs have a rigid bridge structure that moves along X, Y and Z axes with high stability. Because of their closed bridge design, they are able to take high precision measurements at fast scan speeds. And their aluminum and ceramic parts decrease moving mass which improves accuracy. Apart from that, these machines perform well in production related applications with advanced temperature and vibration insulation.

Horizontal Arm CMMs

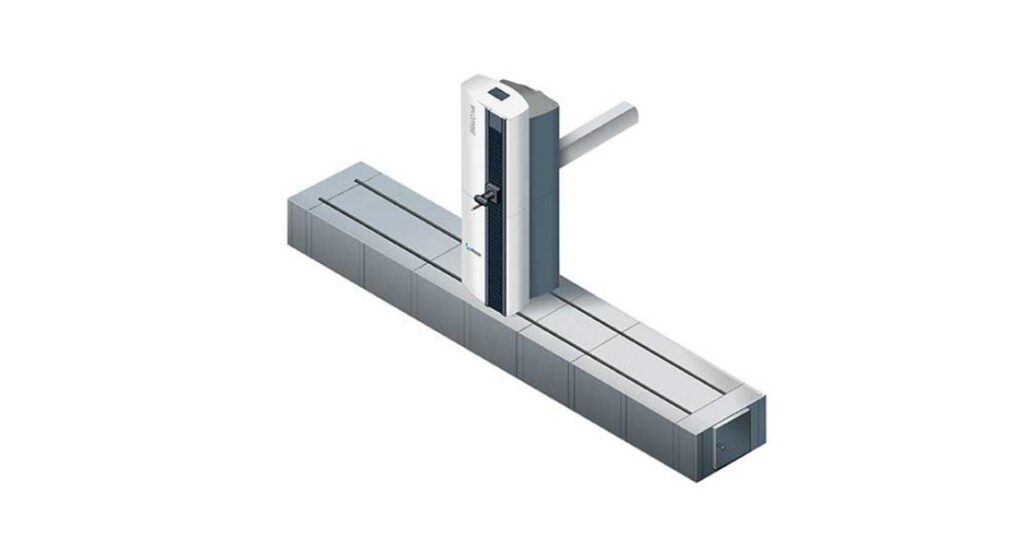

Horizontal Arm CMMs

A horizontal measuring arm mounted onto a vertical column is usually used in horizontal arm CMMs. They have an open structure which permits direct workpiece access for easy loading and unloading. Because of the horizontal reach, these CMMs are good for measuring thin walled components and heavy, large parts.

Portable CMMs

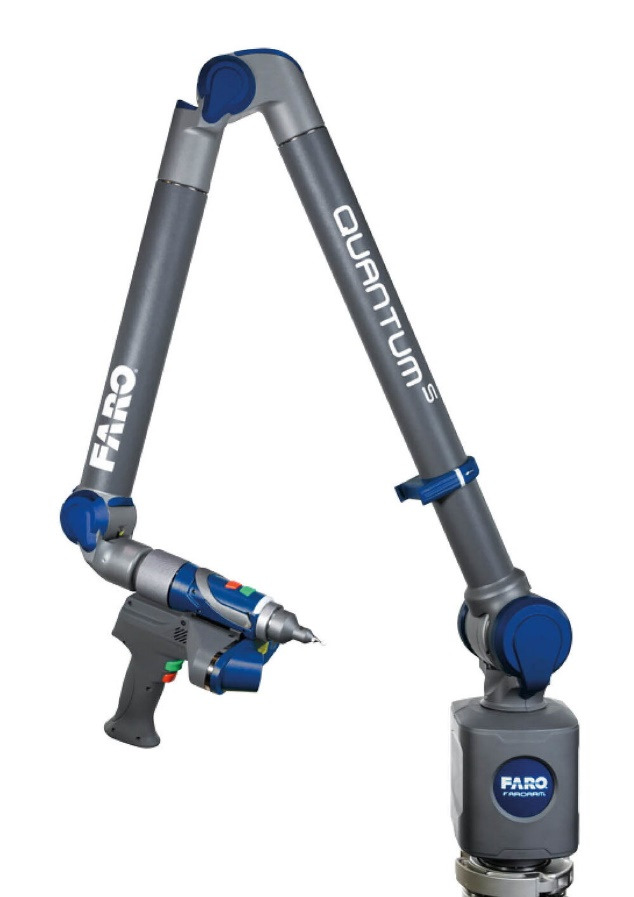

Portable CMMs

Portable CMMs are light weight machines that are used for on site measurement of immovable or large parts. And they include optical setups or articulated arms for accurate 3D data capturing. Their portability decreases downtime, enables reverse engineering, and improves shop floor quality control without the requirement for controlled environments.

Gantry CMMs

Gantry CMMs

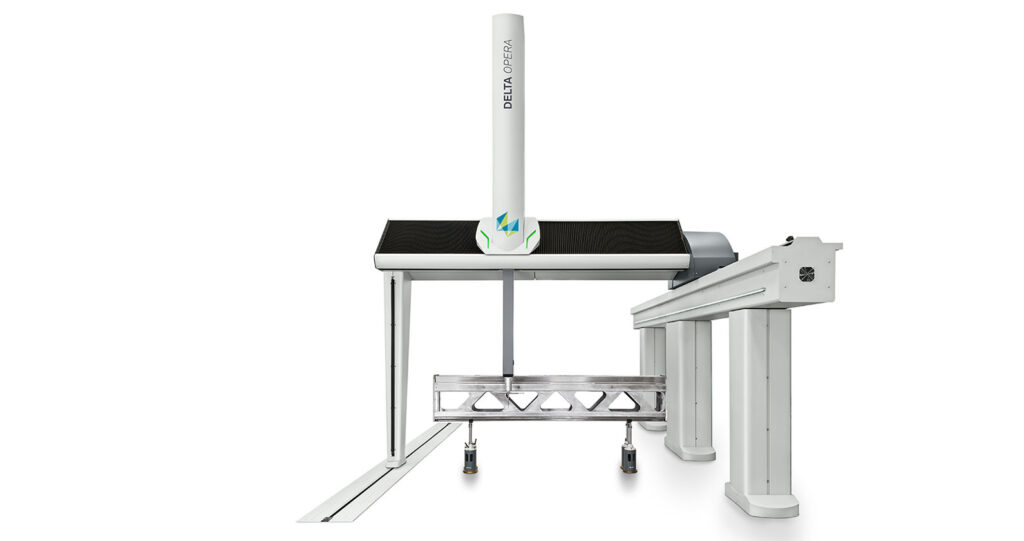

A robust bridge like structure is used in Gantry CMMs to measure large scale components. They normally give outstanding accuracy & stability for large volumes that are over 10 meters in length. In heavy machinery and aerospace industries, these machines are perfect for reaching submicron precision of critical parts such as ship engines and aircraft fuselages.

Cantilever CMMs

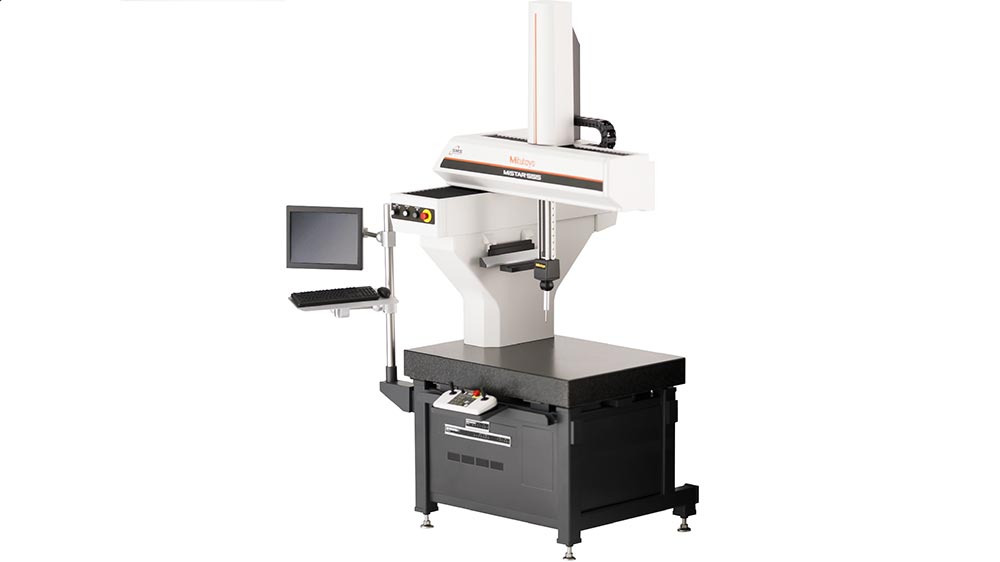

Cantilever CMMs

Cantilever CMMs feature a flexible measuring arm with a single support column that provides three side access. And these machines are very good for measuring small to medium precision components. In some cases, their design reduces weight to improve speed. But beam tilt at maximum extension can slightly limit their accuracy.

Key Concepts in CMM Inspection

I. Coordinate Systems

Contact Probing

CMM inspection relies on two basic coordinate systems—the machine coordinate system (MCS) & part coordinate system (PCS). These systems create a reference framework to position as well as measure parts accurately. MCS represents the X, Y and Z axes of machine movement and PCS aligns with part datums via mathematical transformations. Using this dual system approach, CMMs can measure accurately without physically aligning the part.

II. Probing Techniques

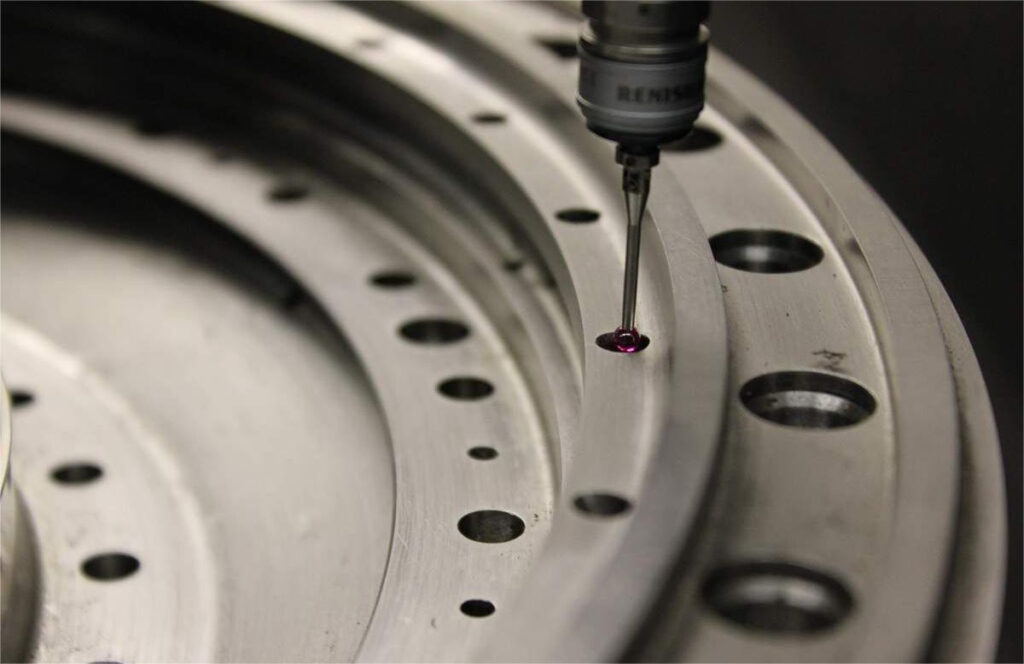

Contact Probing

In contact probing, scanning mechanisms and touch triggers are used for physical interaction with part surfaces. These probes convert surface contact to exact digital signals using strain gauge technology and piezo based sensors.

Non-Contact Probing

Non-Contact Probing

Non contact probes use white light scanning methods and laser triangulation that can acquire thousands of data points without surface contact. This is particularly suitable for components that can be damaged by contact like sensitive or delicate components.

III.  Software Integration

Modern CMM software works seamlessly with CAD models and enterprise systems, and this integration enables comprehensive quality control. The software provides automated path planning, unified programming interfaces and real time verification capabilities. Besides that users can program collision free paths, directly compare measured data to digital designs and generate automated reports across different CMM brands.

IV. Measurement Accuracy & Precision

CMMs rely on ISO 10360 compliance and advanced probing setups to reach outstanding accuracy. Accuracy assures that the recorded dimensions match closely to actual values. Precision, on the other hand, guarantees consistent results in repeated measurements. This reliability is important for manufacturing complicated geometries in industries that require micron level tolerances.

CMM Inspection Process

1. Preparation

Understanding Part Specifications

CMM inspection process starts with detail analysis of CAD models, requirements for GD&T and engineering drawings. They represent datum references, critical dimensions and tolerances for the development of quality validation protocols and measurement strategies.

Probe Selection

And then the right probe, either the laser probe or the touch probe, is picked depending on the part’s material and characteristics. Some other factors that also affect selection include required precision, whether the part can physically withstand contact and the size of the part.

Calibration

After that the CMM and probe are calibrated so they can measure accurately. It consists of checking probe alignment by means of artifacts such as laser interferometers or calibration spheres and comparing “CMM measurements’’ to traceable standards.

Part Fixturing

Once calibration is done, clamps, vacuum systems or modular fixtures are used to securely fix part. So that it does not move during inspection and gives precise measurements.

2. Conducting the Inspection

CMM Programming

When the part is fixed, the CMM is then programmed to follow a certain measurement path. And this programming guarantees that probe measures all important characteristics of the part.

Running the Inspection

Next the inspection is done by running the program. The probe travels along the programmed path to take measurements at each pre defined point. So it can determine the part’s geometry and dimensions.

3. Post-Inspection Activities

Data Analysis

After the inspection, the next stage is analysis of gathered data. It includes trend analysis, GD&T validation and SPC. Then the measurements are compared with part specifications to see if the part meets the necessary tolerances.

Reporting

Finally the results of this inspection are presented in a report. And this report describes any found deviations, chromatic maps, recommended corrective actions as well as conformity to specifications.

Benefits of CMM Inspection

  • CMMs provide micron scale precision measurements without human error. Unlike traditional methods, they give consistent results for complicated geometries using computer controlled operation.
  • Automated CMM inspection uses multi feature analysis and pre defined inspection paths to streamline quality control. This not only decreases inspection time but also allows measurements of complex parts during a single setup.
  • The CMM’s versatility benefits many industries in measuring variety of components from small medical components to large aerospace structures. Thus it completely eliminates the need for special fixtures and dedicated gauges.
  • Modern CMM setups are easily integrated into CAM & CAD software for comparison with digital CAD designs. And this integration allows automated reporting and statistical trend analysis which in turn leads to constant improvement in manufacturing procedures.

Applications of CMM Inspection

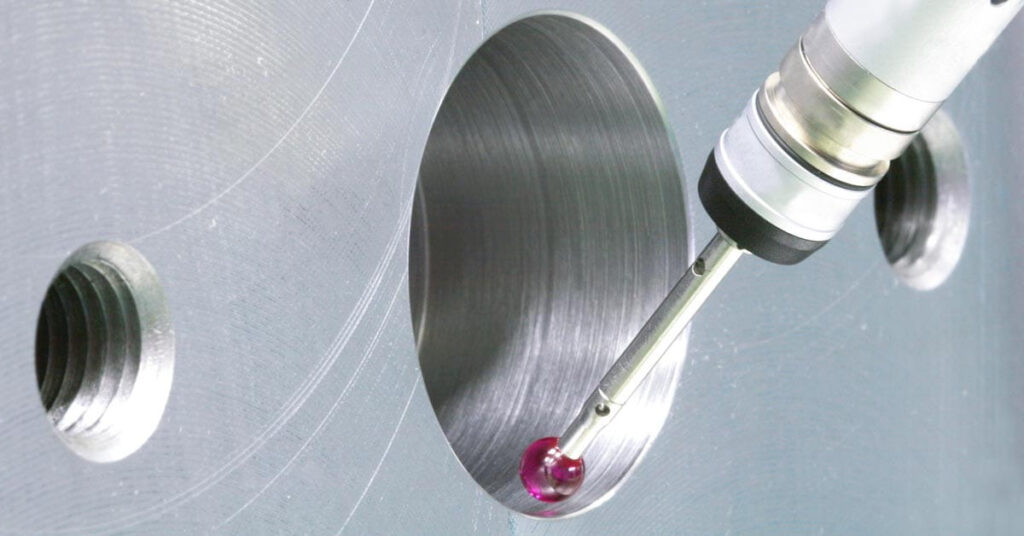

Applications of CMM Inspection

Quality Assurance

CMM inspection uses statistical process control and precise dimensional analysis to create strong quality control. Moreover these systems with detailed measurement data support continuous improvement steps and verify important components against CAD specifications.

Reverse Engineering

CMMs capture the full surface geometry to create accurate 3D virtual models through point cloud data acquisition. This capability permits analysis of obsolete components as well as rebuilding of old parts by detailed geometric analysis.

First Article Inspection

CMM inspection is used to measure the first part off the production line and then compare it with the design specifications. In this way it assures the manufacturing process is good before starting mass production.

Tool and Die Making

CMM inspection performs an important part in the validation of tooling components. It verifies the geometric tolerance and dimensional accuracy of dies, CNC cutting tools and molds. This verification minimizes defects in the final product and thus guarantees best tool performance prior to manufacturing deployment.

Aerospace & Automotives Industry

CMM inspection in aerospace components assures critical safety standards for parts like airframes and turbine blades. While in automotive manufacturing it is used to validate intricate parts from body panels to engine components to fulfill strict quality needs.

Difficulties & Considerations

  • Sometimes parts with irregular or complicated shapes such as undercuts and deep cavities are difficult for CMMs to measure. Thus specialized techniques or probes are needed to obtain accurate measurement.
  • CMM measurements are also affected by varying material characteristics. Different materials for example steel, plastics and aluminium have different properties—hardness and thermal expansion. Hence this variability can cause errors in CMM inspection.

To Sum Up

In short CMM inspection greatly improves quality control because of its outstanding proficiency and accuracy. And it is used in broad range of industries to improve manufacturing and assure compliance with industry standards. CMM helps industries by integrating latest measurement techniques to obtain accuracy and decrease waste.

Related Questions

How is CMM inspection different than traditional measurement methods?

Compared to traditional methods, CMM inspection gives outstanding data integration⸴ accuracy and proficiency. Besides that it has complete 3D measurement and statistical analysis capabilities.

What types of probes are used in CMM inspection and how do they differ?

Touch trigger⸴ scanning and optical probes are all types of probes. But each type has different data collection speed⸴ contact methods and is suitable for different materials and geometries.

How is a CMM calibrated, and why is regular calibration important?

The CMM calibration process measures verified artifacts in different orientations and compares the measurement to the known dimension. It includes error mapping⸴ probe qualification as well as repeatability tests. And calibration on regular basis helps avoid errors.

How does CMM inspection achieves compliance to industry standards?

CMMs verify dimensions against GD&T specifications to meet ISO⸴ AS9100⸴ and other industry type standards.

What is the difference between contact and non-contact CMM inspection methods?

Non contact methods use optical or laser systems for quick⸴ non invasive scanning of the part, whereas contact methods physically touch the part for measurement.

How does CMM inspection facilitate reverse engineering processes?

CMM inspection provides highly accurate 3D point data of existing objects to create the accurate digital model. And it makes design improvements and replication of obsolete parts easy.
