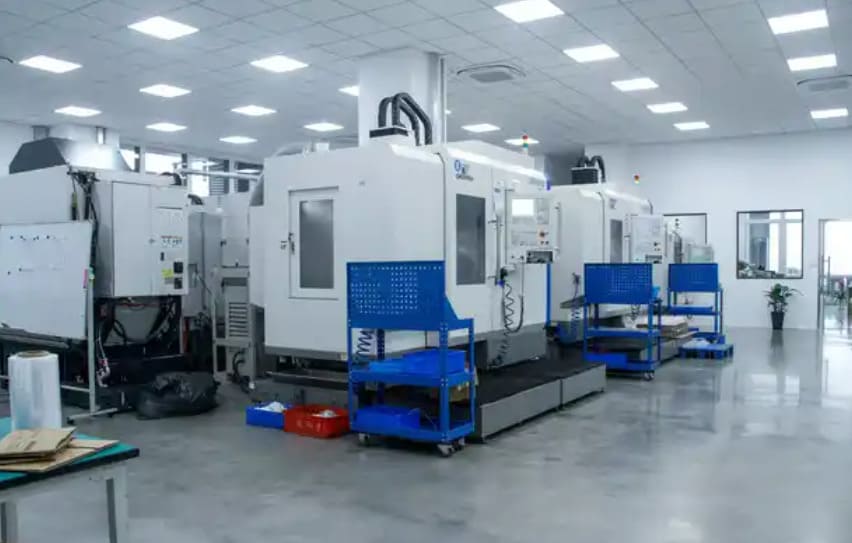

Wide swings in room temperature hurt accuracy in CNC machining work which can cause costly mistakes and waste of material. By keeping the air temperature steady, constant‐temperature workshops stop those heat related problems. In this blogpost we will cover four topics; how temperature affects accuracy, benefits of climate control, design priorities and real world challenges for manufacturers.
How Temperature Affects CNC Machining Accuracy
Workpiece Thermal Expansion
When materials get warm they grow bigger, and they shrink when cooled; this basic behavior is called thermal expansion. Precision machining struggles most with that property. For example raising the temperature of a 100 mm steel part by 1 °C lengthens it by 1.2 micrometers. This tiny growth separates an acceptable piece from rejected scrap when tolerances are tight.
Machine Parts
The bearings, ball screws and spindle—core CNC parts—generate a lot of heat while running.
They show expansion as they warm. This expansion shifts tool position and upset overall alignment. The result is a lower ability to keep tight tolerances for the entire run.
Thermal Deformation of Machine Tools
Heat generated by cutting & by the internal components spreads unevenly across the machine frame. As a result the frame itself warps. Such bending changes the exact distance between workpiece and tool which can cause serious machining errors.
What Does That Mean for Dimensional Accuracy
In the end, heat effects directly hurt a part’s final dimensions. Studies show thermal errors make up 40% to 70% of the total errors in case of precision machining. This is because a component that can measure within specifications at one temperature may move outside of tolerance once that temperature changes.
Surface Finish Takes a Hit
Unstable temperatures also damage surface quality. When the tool holder or spindle expands, it can cause chatter or vibration as cutting goes on. The outcome is a poor, uneven finish which is unacceptable for medical, aerospace or optics parts.

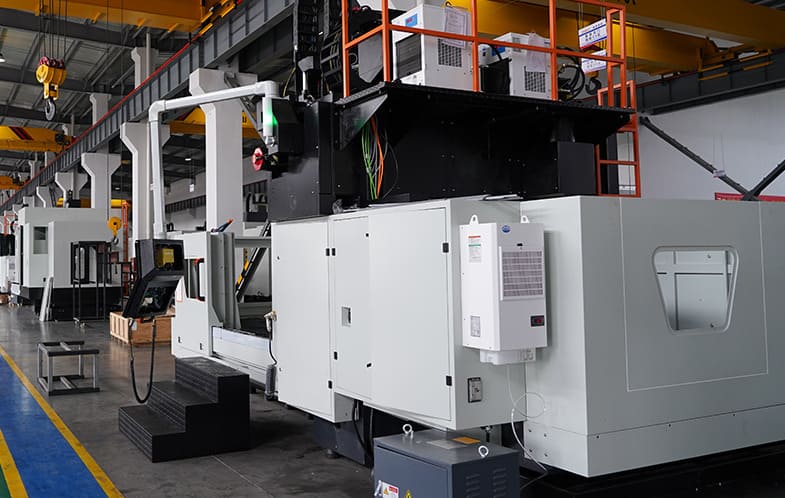

Benefits of Constant Temperature Workshops
Dimensional Consistency
Thermal contraction & expansion are avoided when workshop temperature stays stable. As a result each machined part keeps identical dimensions. Therefore tight tolerances hold from the first piece through the last one. Keeping this consistency is essential during high volume production runs.
Less Scrap and Rework
If machining keeps high dimensional accuracy, scrap rates drop significantly. Material waste goes down with fewer rejects. Machine hours and costly labor spent on rework also fall. Thus production efficiency and profitability rise.
Longer Tool Life and Surface Quality
Cutting tools wear out quickly when too much heat builds up. Keeping the environment controlled lowers thermal stress on tools. Their lifespan grows and the cutting edge stays sharper. Parts then leave the machine with smoother, higher quality surface finishes.
Improved Calibration
Temperature affects the machine itself and the calibration & measurement tools alike. Calibrating in a thermally stable workshop sets the machine’s accuracy correctly. That accuracy then stays reliable for a longer period.
Cycle Time
When thermal conditions stay stable, machines reach full operating condition faster and stay there. Operators therefore spend less time on adjustments that offset thermal drift. As a result each part you make will be more predictable and often have shorter cycle times.
Metrology Environment You can Trust
Achieving true precision needs inspecting finished parts within a controlled environment. Stable temperature keeps quality control measurements accurate. Which in turn show the part’s true dimensions without thermal distortion.
At RICHCONN, we carry out inspections in the same climate controlled conditions used for machining. This assures each shipped part meets the precise specifications that you expect.

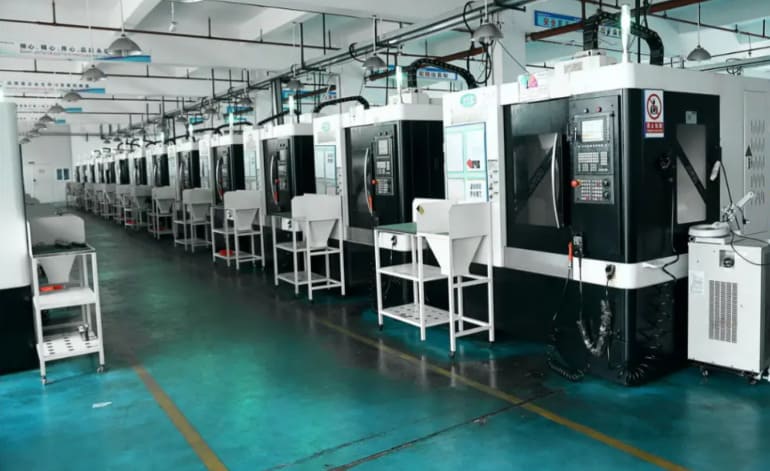

Main Elements of a Controlled Environment for Workshop
Precision depends on a stable workshop. To reach that stability, a number of environmental controls must work together.
Temperature Control Systems
Keeping a consistent temperature is very important. Workshops mostly rely on air handlers, HVAC equipment and chillers so that the room stays at 20 °C ± 2 °C. Keeping that range limits thermal growth in parts and machines as well. Critical components—spindles & hydraulic units for example—mostly use dedicated oil coolers and chillers that remove extra heat and stabilize their temperature.
At RICHCONN, similar chiller networks pair with our Swiss made CNC centers. This keeps spindle fluctuation below 0.5 °C even when cutting carbon fiber intensively.
Coolant and Cutting Fluid’s Temperature Control
Cutting fluids do more than remove chips; they are key to taking away heat. When the coolant’s temperature is regulated, both the machine and the part avoid sudden thermal shocks. For that reason most installations keep coolant only 1 to 2 °C away from room temperature. This prevents new gradients from forming.
Smart Insulation and Layout Strategies
Insulation plays a protective role by blocking direct sunlight as well as drafts and nearby heat. Positioning machines away from outside walls or vents also supports an even temperature field. Partitions or screens also block problematic air currents and reduce local changes when needed.
Monitoring and Thermal Feedback Systems
Current CNC platforms include advanced thermal monitoring. Sensors on spindles, bearings and other hotspots send temperature data continuously. With that information, the control software compensates for any resulting expansion. This improves machining accuracy.
Don’t Forget Humidity Control
Relative humidity should stay near 50 to 55 %. At that level electronics remain safe from corrosion and condensation while static stays manageable. Central air handlers, individual mist collectors and dehumidifiers work together to maintain it and avoid sudden changes that threaten dimensional precision and electronics.
Design Rules and Industry Standards
To use reliable thermal control, engineers must follow accepted standards and plan their designs carefully.
Standards
Clear guidance on how to run temperature controlled machining areas comes from industry standards. Under ISO 230‐3:2020, CNC machines should operate at 20 °C to achieve the best dimensional accuracy. While the general tolerance for such rooms is ±2 °C, many high precision shops routinely limit variation to ±1 °C.
Thermal drift measurements are also defined in ASME 5.54 which treats them as key criteria when evaluating machine tools. Taken together, these documents help different facilities deliver consistent performance regardless of the application.
Drawing Temperature References
Every technical drawing must list the reference temperature for its dimensions, a rule that keeps consistency. Globally that reference temperature is set at 20 °C. By doing so machinists, designers as well as inspectors all measure from a shared baseline.
Structurally Engineered Thermal Stability
Heat management begins with the CNC machine’s own design. Manufacturers favor rigid & heavy frames because the large thermal mass dampens temperature changes. Advanced cooling circuits are then built in to pull heat away from critical parts such as motors and spindles.
Process Planning and Material Picks
Good results rely on careful process planning. First step includes choosing materials with low thermal expansion coefficients—Invar in aerospace, for example. Doing so reduces the risk of size changes when temperature swings.
Before machining, operators should also pre‐condition the stock. Preconditioning simply means allowing the material to rest inside the controlled area until its temperature stabilizes. That simple step avoids thermal shock and reduces dimensional variation while cutting.
Challenges and What It’ll Cost
Running a temperature controlled workshop brings its own challenges. In practice manufacturers face many repeating issues.
Higher Cost
Large up‐front investments are the toughest barrier. High end temperature control gear is pricey; a live laser interferometer costs about $100,000 per axis. After buying the equipment, firms still bear maintenance, energy as well as repair costs.
This is why many companies choose to work with established manufacturers such as Richconn who have already paid for this equipment. Therefore they can access precision capability without the big capital outlay.
Also See: How to Calculate CNC Machining Costs
Heat Sources Management
Several in‐house processes constantly give off heat. Spindle motors, lighting and part friction are the main sources. Controlling all of them is a complicated, ongoing task.
Energy Consumption
Keeping the shop climate steady uses a lot of energy. Pumps, cooling units as well as other support gear draw power and raise running costs.
Environmental Factors
Shifting weather and humidity changes add more challenges. These outside effects impact the CNC machines as well as the materials being cut.
To Sum Up
Without a constant temperature workshop, thermal expansion causes errors and needless scrap. A steady climate makes tools last longer, keeps dimensions accurate and also produces smoother surface finishes. Although this setup is costly, it is essential for tight tolerances and better profits.
If you need any kind of precision CNC machining services then Richconn is your best option. You can contact us anytime.
Related Questions
Most workshops stay between 15 °C & 25 °C. This holds variation to about ±1 °C for accurate parts.
High humidity lets moisture condense on circuits. This increases risks of short circuits and corrosion. Similarly low humidity leads to static discharge that also harms sensitive electronics.
Keeping the temperature steady stops both the workpiece and the machine from expanding which keeps dimensions within specifications.
Unequal thermal expansion shifts the position between part and tool. This causes size errors and warps the component.
Delivering coolant at a set temperature keeps the cutting zone cooler which reduces cutting errors, surface flaws and deformation.
