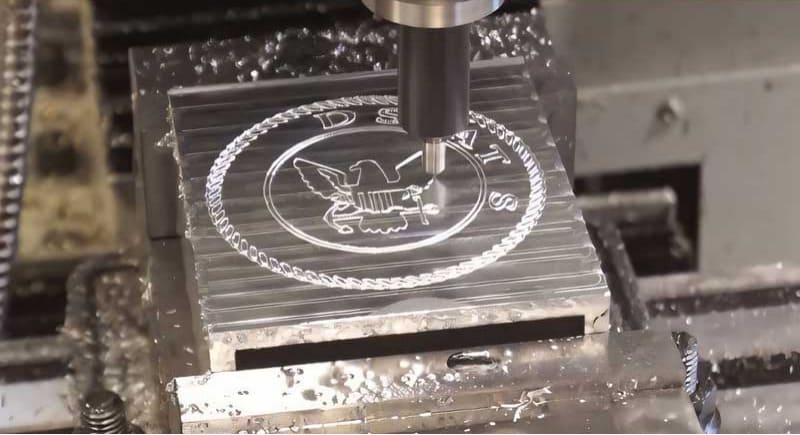

What is CNC Engraving?
CNC engraving is a computer controlled process in which automated tools are used onto material surfaces to cut or carve designs. This technology converts digital designs into mechanical movements using CAM/CAD software, in order to create precise text, images and patterns on workpiece surfaces.
How CNC Engraving Works?
CNC engraving consists of following steps.
- First the design is developed with the help of CAD software. This determines the final dimensions and appearance of these engravings.
- This design is then converted into G code which contains instructions for machine movements. These instructions specify the tool path and cutting depth.
- In next step the material to be engraved is secured to the machine bed. Then the cutting tool is installed & calibrated.
- The CNC machine then follows G code to remove material with accuracy, and engraves the design.
- Finally, the process is completed with postprocessing steps. These include cleaning and finishing that improve engraved surface’s appearance and durability.
Types of Engraving CNC Machines
Desktop CNC Engraving Machines

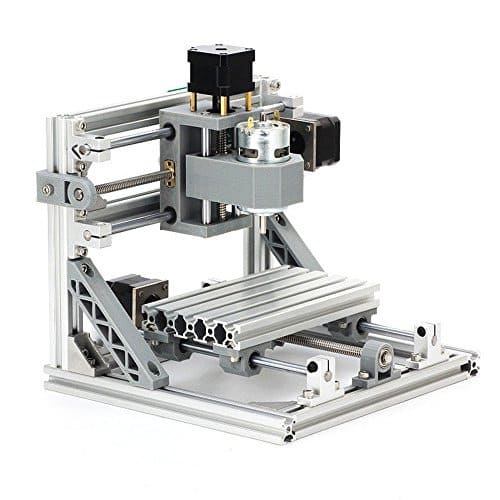

Desktop CNC machines have compact shapes and are designed for small scale projects.
They normally use lasers or rotating tools for engraving materials. They have pre-integrated software for easy operation and design which is very user friendly.
Therefore these machines are mostly used to make small signs and custom jewelry.
CNC Milling Machines

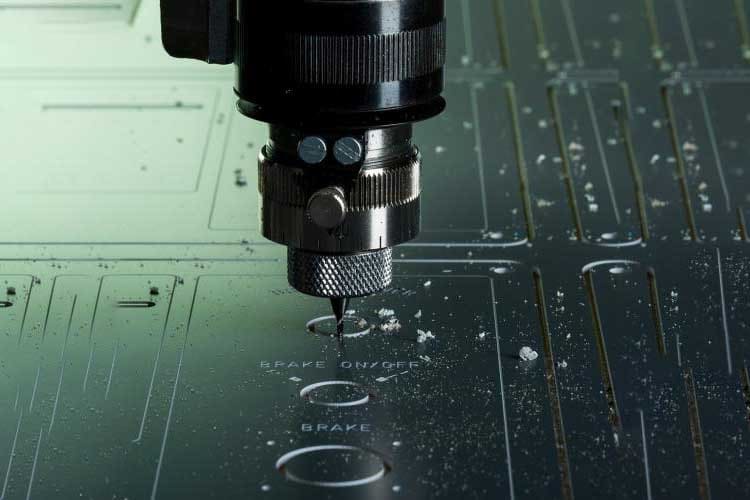

CNC milling machines use high speed rotating cutters that precisely remove material on multiple axes. These strong setups permit them to create complicated 3D patterns as well as deep engravings on metal surfaces.
Their rigid construction and latest spindle technology allow for detailed work in all industrial applications from jewelry to mold manufacturing.
CNC Laser Engravers

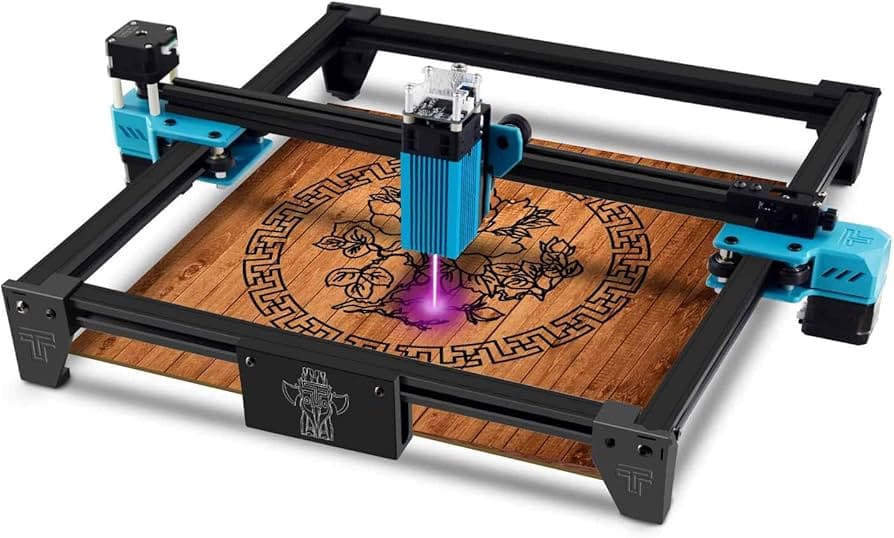

These machines engrave designs on the surface of material using focused laser beam. This laser beam creates clean and precise designs by melting or vaporizing the material.
In addition these machines specialize in creating intricate designs with depth of up to 10 mm and minimum width of 12 mm. Therefore they are normally used for custom engraving like serial numbers, personalized items, logos etc.
CNC Routers
CNC routers are versatile machines that are used for cutting and engraving different materials. These machines create engravings on the surface of material through router bit rotating along three axes (X, Y and Z).
These machines are ideal for working on thicker materials as they provide beveled edges, outstanding accuracy and deep cuts. Moreover they are used for sign production, prototype development and woodworking.
Materials Suitable for CNC Engraving
Acrylics & Plastics

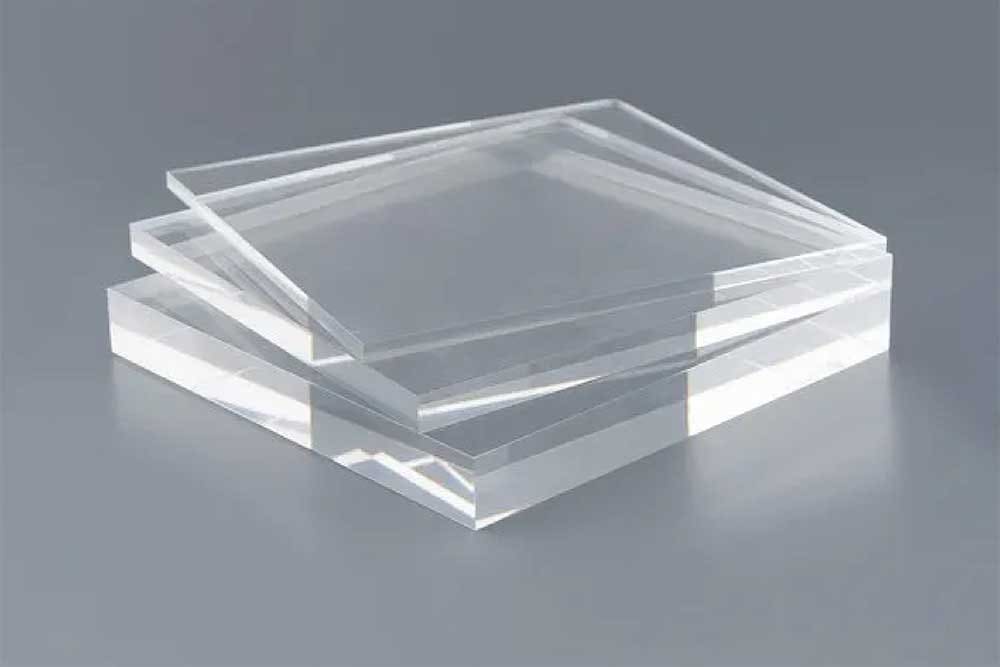

Materials such as polycarbonate, PVC, nylon and acrylic are suitable for CNC engraving. Apart from being easy to machine, they also provide outstanding surface finishes. These materials have lower hardness than metals which in turn permits faster feed rates & decreases tool wear.
Metals
Metals are perfect for CNC engraving because of their ability to hold fine details and good machinability. These include brass, copper, stainless steel, aluminum, titanium etc. Aluminum is easy to engrave and lightweight whereas brass gives great appearance. But hard metals like titanium are resistant to deformation so they need special handling.
Wood

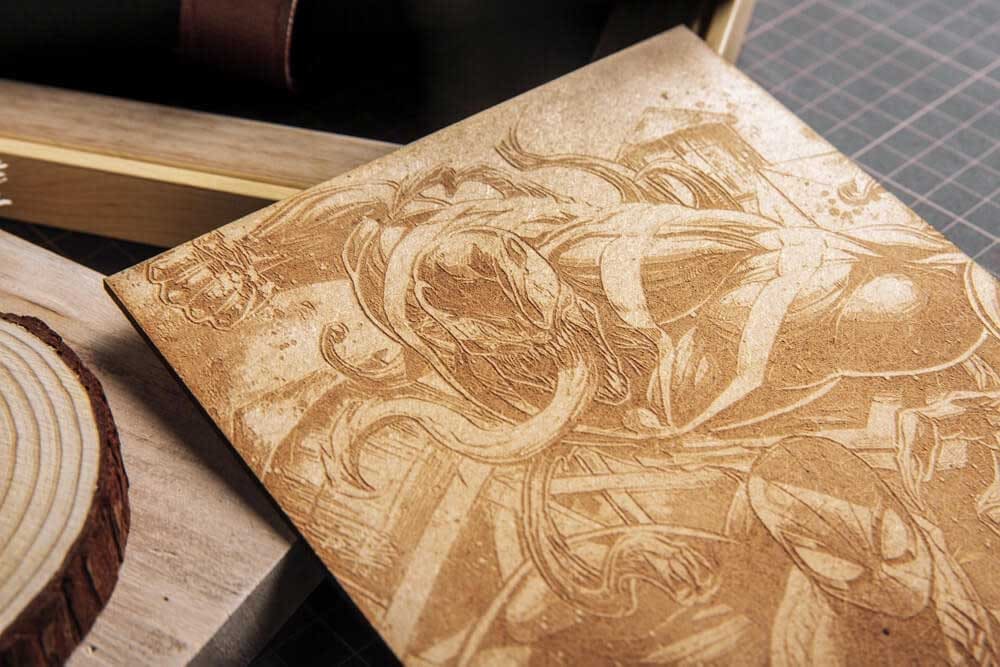

CNC engraving provides impressive results on variety of woods. Those include cherry, birch, softwood, hardwood and maple which provide detailed retention and create smooth finishes. Softwoods like cedar and basswood can be easily machined but require slow feed rate.
Stone & Glass
Glass and stone such as granite and marble provide impressive durability as well as hardness. These materials can withstand high pressure and forces used in engraving process. So that the engravings are long lasting and accurate.
CNC Engraving Techniques
Photo Engraving

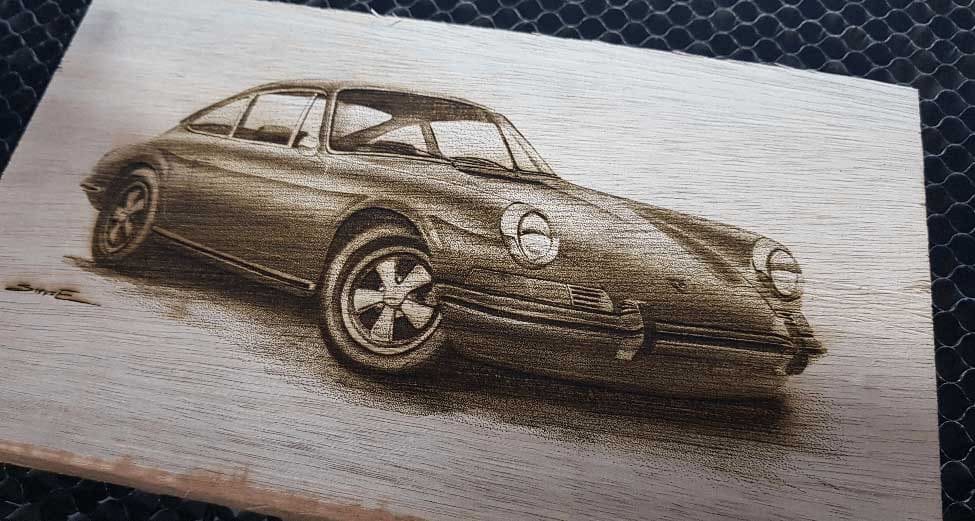

Photo engraving is a process in which images are converted into detailed engravings. The photo is first converted into a format like bitmap or grayscale. And then the design is created on surface of material using laser engraver or CNC machine. This process provides impressive detail and accuracy. So it’s perfect for creating personalized items. For example custom jewelry and photo frames.
Drag Engraving

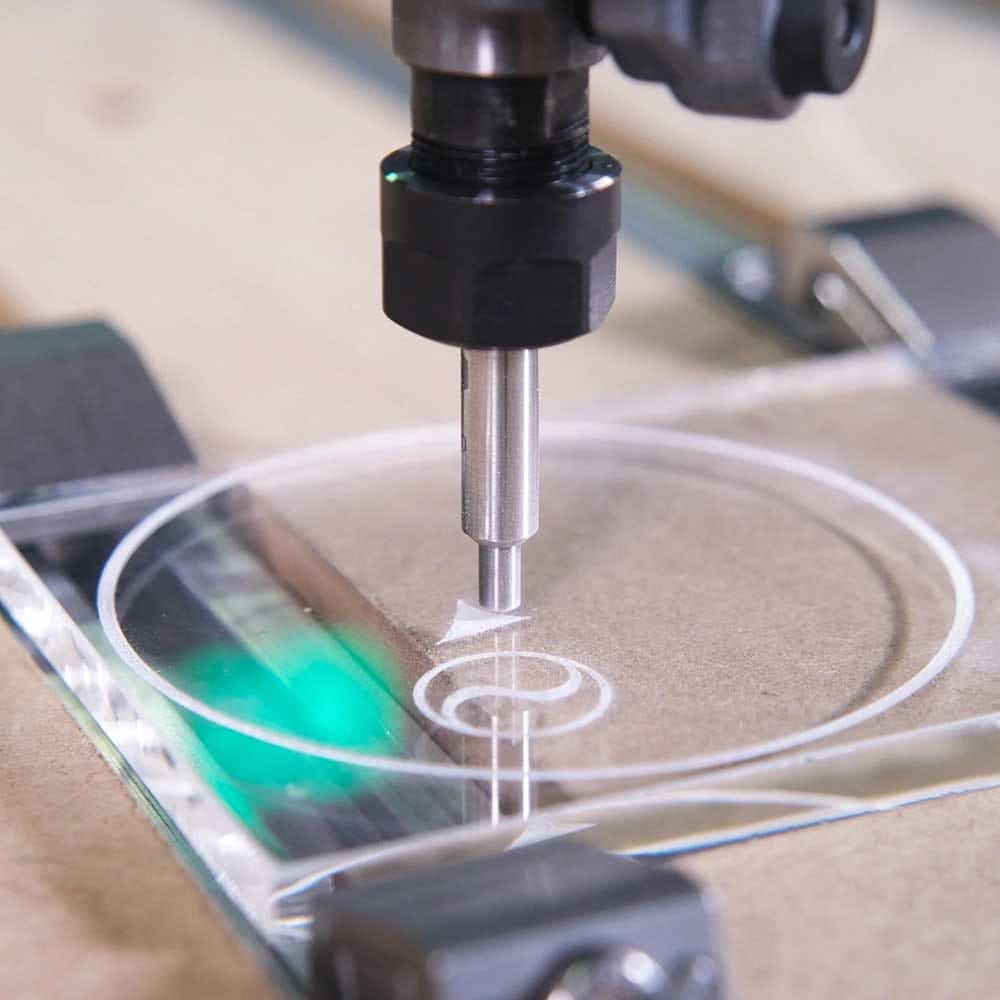

Diamond drag engraving uses spring loaded diamond tip to scratch surface of material without rotation. Its spring mechanism adjusts automatically in accordance to surface variations and diamond tip assures permanent, clean markings. This method works best on hard metals and ceramics because of diamond’s hardness.
V-Bit Engraving
In v bit engraving conical cutting tools are used with special tip angles between 15 and 120 degrees. The bit angle determines the precision of detail. Smaller angles produce finer details while larger angles produce shallower and wider cuts. This method provides varying cut depths which creates dynamic contrast and crisp, clean lettering. Thus it is suitable for decorative woodworking & sign making.
3D Engraving

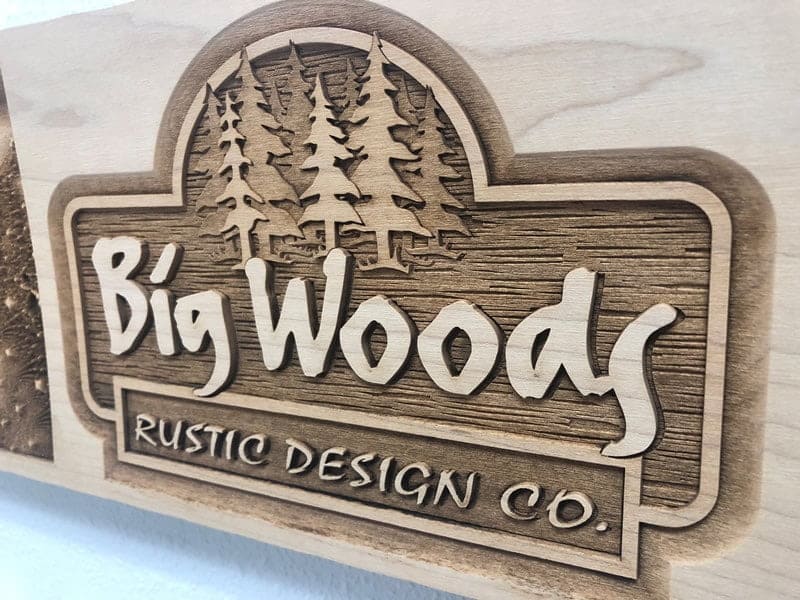

3D engraving features varied toolpaths and cutting depths in order to create complicated 3 dimensional surfaces. This advanced technique creates dimensional patterns and textured reliefs using special CNC milling machines. This process in addition to precise depth control also requires multi axis movement to create complicated surface variations.
CNC Engraving Machine Softwares
CAD Software

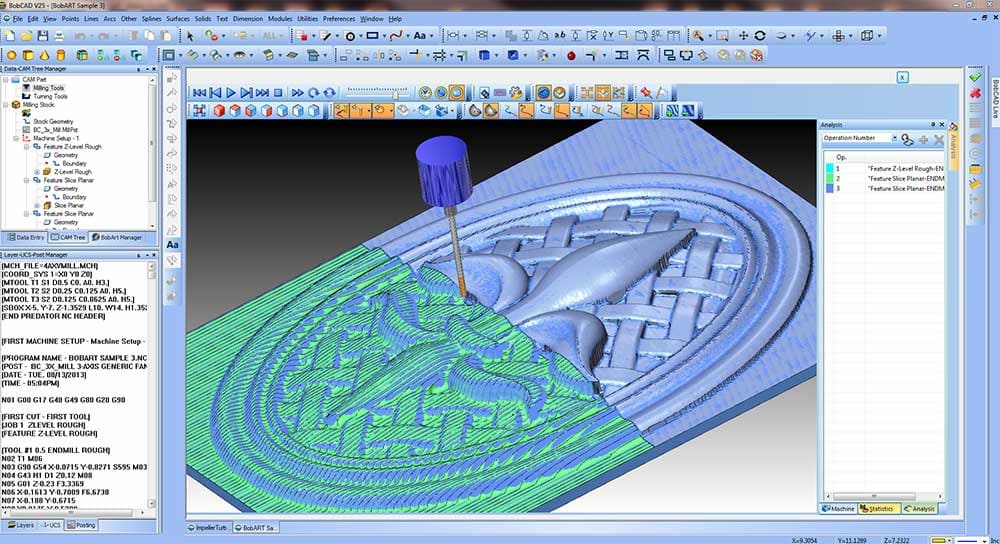

CAD software such as Fusion 360, Solidworks and AutoCAD are used in CNC engraving to create accurate 2D and 3D designs. These tools provide users with important features such as geometric analysis, design customization and parametric modeling in order to guarantee accurate toolpaths and simplify engraving workflows.
CAM Software

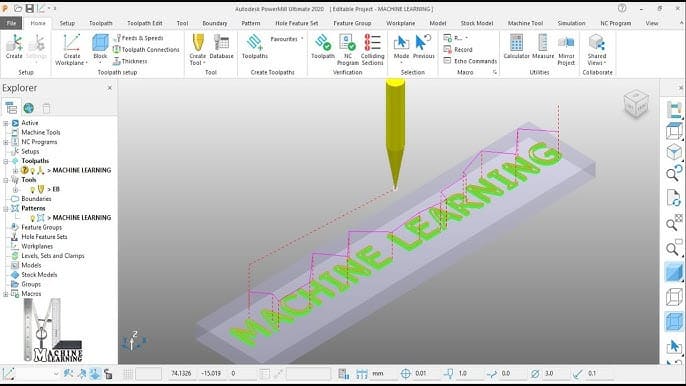

In CNC engraving Cam software such as “Mastercam” & “Siemens NX CAM” performs an important part. Siemens NX CAM has advanced programming capabilities. These features include seamless integration with CAD and automatic tool path generation. Mastercam is well known because of its simulation capabilities. It gives variety of options for basic 2D and advanced 5 axis machining.
See Also: What is CAM
Open Source vs. Commercial Software
Open source software such as “FreeCAD”’ & “LinuxCNC” provides free alternatives. Their source code can be modified. They provide users the benefit of community support. But they generally lack advanced features that are available in commercial products.
On the opposite, commercial software provides better compatibility to different hardware. For example “MasterCam & VCarve”. They provide features such as dynamic motion technology for better cutting. Hence they are useful for long term projects.
Benefits of CNC Engraving
Accuracy
CNC engraving provides outstanding dimensional accuracy using computer controlled motion systems. This level of accuracy in turn assures uniform reproduction of intricate designs and complicated patterns across multiple components.
Flexibility & Customization
In CNC engraving CAM & CAD software enable quick adjustments and design modifications during production. Moreover manufacturers can even switch without retoooling between different specifications and designs. So that is why it is suitable for custom production runs.
Time-Saving and Efficiency
CNC engraving machines along with fast feed rates operate constantly at high speeds. These machines can quickly create multiple uniform pieces after the design is programmed. This automated method, in addition to reducing manual labor requirements, also increases productivity for both large & small scale projects.
Repeatability & Consistency
CNC engraving maintains extraordinary quality over multiple production runs. So during mass production, the automated computer controlled process assures accurate dimensional tolerances & surface quality requirements.
Versatility across Materials
CNC engraving machines are capable of working with variety of materials such as plastic, glass, metal, wood etc. Hence their adaptability makes them perfect for applications ranging from industrial manufacturing to fine art projects.
Minimized Human Error & Reduced Labor Costs
Automated CNC engraving setups decrease workforce requirements and minimize human intervention as well. The computer controlled procedure guarantees consistent output in all production runs and eliminates errors caused by manual intervention.
Applications of CNC Engraving
Instrumentation & Electronics
CNC engraving is broadly used to create necessary component identifiers and circuit board traces. In addition this technology is used to make serial numbers and calibration scales on device housings and measuring conditions respectively.
Prototyping and Model Making
CNC engraving produces detailed surface textures and identification marks on prototypes and models, as well as functional patterns that are necessary for identification. These precision engravings, in addition to helping test surface finishes, also assist with design validations prior to mass production.
Medical Devices and Equipment
CNC engraving is used to mark logos, instructions and serial numbers on different medical parts. Such components are pacemakers, orthopedic devices, surgical tools etc. Moreover the process assures compliance with stringent medical standards through its accuracy and sterile operation.
Arts and Crafts

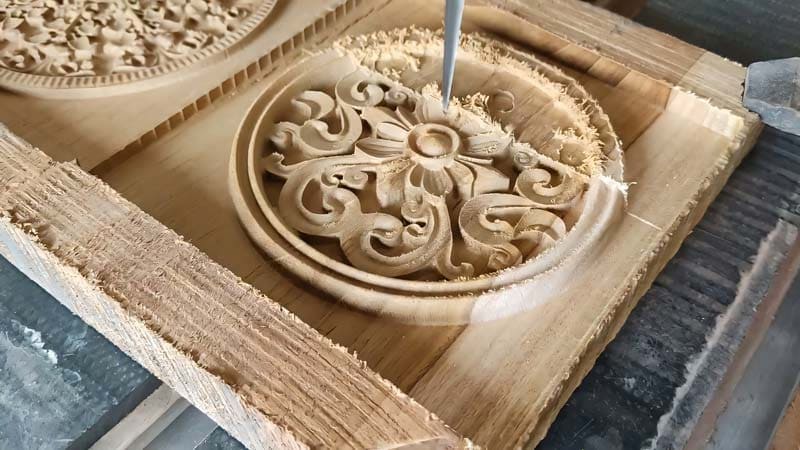

Personalized jewelry, decorative panels, custom souvenirs and complicated sculptures are all made using CNC engraving. This process guarantees detail patterns, durable engravings and accurate texturing which improves artistic expression.
Aerospace and Automotive Industries
CNC engraving is used to inscribe serial numbers on engine blocks & calibration marks on fuel systems. Apart from that, in aircrafts it is used to engrave identification codes on turbine blades and safety warnings on cockpit panels. In high stress environments, these markings assure safety as well as traceability and regulatory compliance.
Best Practices for CNC Engraving
Tool Selection & Maintenance
You should pick tools in accordance to your material and design needs.
In case of metals you should use carbide tools because of their impressive accuracy and longevity. But use HSS (high speed steel) for soft materials such as wood and plastic.
Besides that, regularly check your tools for wear and damage and always do a test run to verify depth of engraving and tool alignment.
Machine Calibration & Settings
You must calibrate CNC machine to confirm correct positioning before starting process. You can align all axes as well as verify spindle alignment using dial indicators.
Apart from that adjust feed rates and spindle speed settings according to your tool and material characteristics. Use higher spindle speeds and lower feed rates in case of metals.
Material Preparation
You must assure that material is free of oil, debris and dust to prevent tool wear as well as guarantee accurate engraving results.
Use vacuum table and clamps to secure material and prevent movement during engraving process.
Moreover you can provide additional support for materials that are prone to warping by installing backing plate.
Safety Considerations
You should always wear proper PPE to prevent injuries from debris and noise which includes ear protection & safety glasses. Also confirm that emergency stop buttons are readily accessible to everyone.
Besides that avoid wearing jewelry and loose clothing during CNC engraving operations to avoid entanglement with moving parts.
To Sum Up
In short CNC engraving shines in different industries because of its precision, proficiency as well as creativity. Its capability to deliver repeatable results on different materials will guarantee distinct and high-quality outputs, no matter whether it is used for artistic or industrial purposes.
