What Is CNC Grooving?
CNC grooving is a precise and economical machining process that produces grooves, slots, or recesses on a workpiece. Basically, It follows a specific path or parameters including cutting speed, feed rate, and depth of cut to achieve the wanted shape and dimensions.
Initially, grooving operations were performed manually, which was time-consuming and prone to errors. With the advent of CNC technology, the process became more efficient and reliable. Nowadays, it’s applied to piston rings and shafts in the automotive industry. Aerospace utilizes it for turbine blades and structural parts. The medical field uses it for intricate surgical instruments and implants. In general production, it’s employed for components in machinery, electronics, and consumer goods.
Process of CNC Grooving Operations
1. Securing the workpiece
The initial stage in CNC grooving operations is to secure the workpiece for stability while cutting. This entails inserting the workpiece into the chuck, securing it in place, and marking the groove position.
2. Loading tooling devices
Next, choose and load the proper grooving tool into the CNC lathe’s turret. Calibrate the tool in accordance with the machining program to ensure precision.

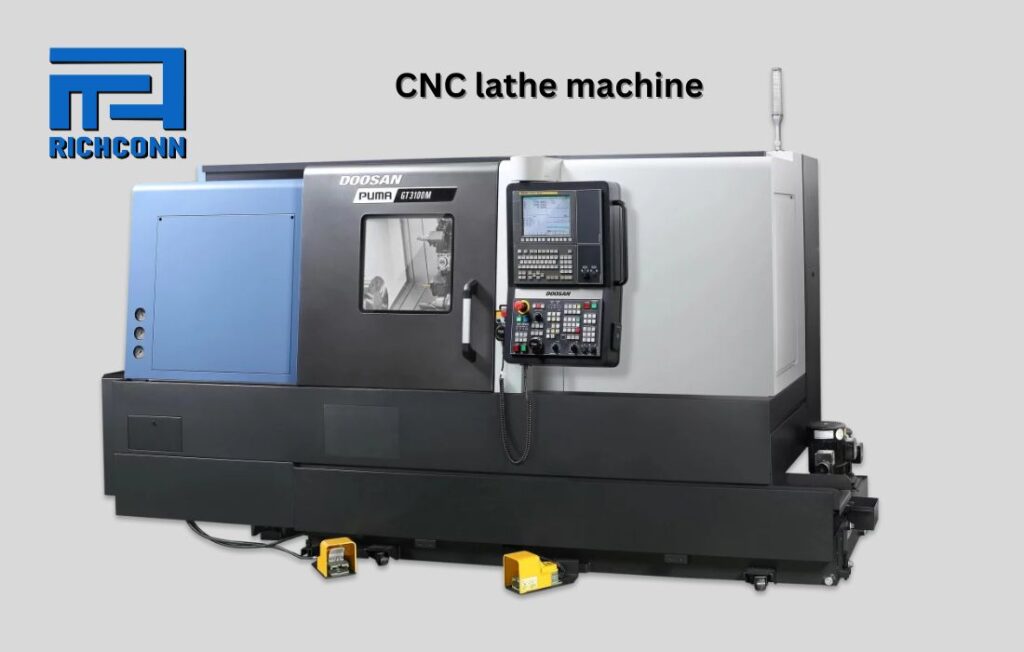

3. Setting up the CNC lathe machine
The CNC lathe must be properly set up to ensure safe operation. Turn on the machine, set all axes to tier 0, and change the RPM according to the groove type and material parameters.

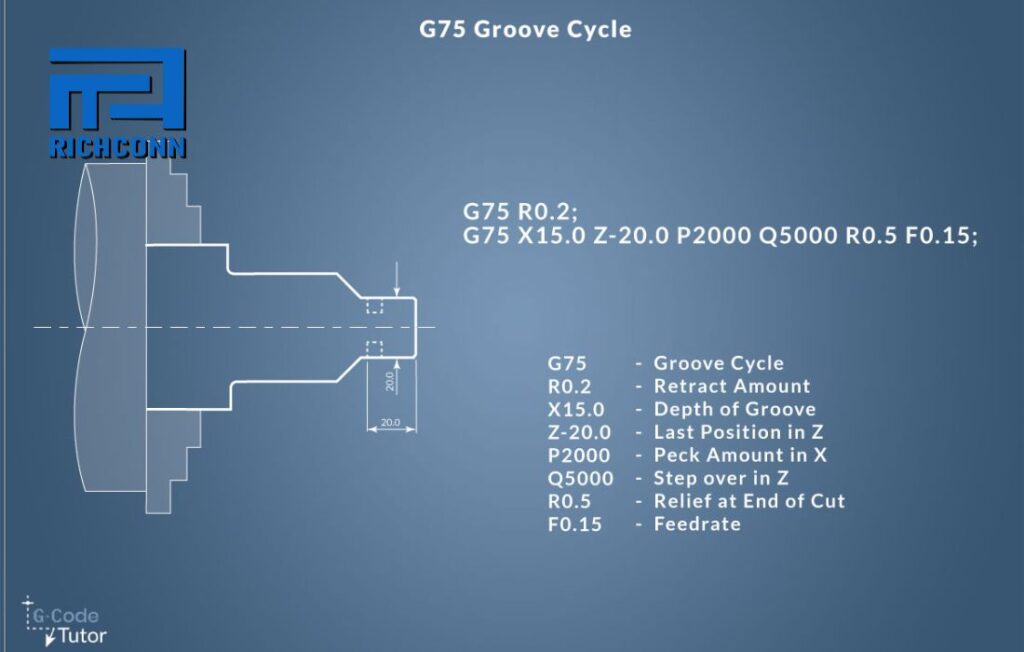

4. Entering and Running the Program
Upload the machining program and run it to complete the grooving process. Fix the tool at the workpiece center, position the grooving tool, and allow the program to guide the tool along the specified path.
5. Cleaning Up
To maintain quality, turn off the machine after grooving, remove the workpiece, and clean both the machine and the tool.
What Are the Benefits of CNC Grooving?
Despite its precision, CNC grooving offers three main benefits, including versatility, flexibility, and cost-effectiveness.
- Versatility in Design
CNC grooving machines can handle complex and intricate designs. This versatility allows manufacturers to produce parts with detailed and sophisticated features, catering to the specific needs of various applications and industries. - Flexibility with Materials
CNC grooving is compatible with a wide range of materials, from soft metals like aluminum to harder materials such as stainless steel and titanium. This flexibility allows manufacturers to choose the best material for their specific application - Cost-Effectiveness
The high precision reduces material waste, and the automation reduces labor costs. Additionally, the consistent quality minimizes the need for rework or scrap, further lowering overall production costs.
By leveraging these benefits, industries such as automotive, aerospace, medical devices, and general manufacturing can achieve higher efficiency, and cost savings, ultimately enhancing their competitiveness in the market.
How Different Materials Affect CNC Grooving?
The physical and chemical properties of materials directly affect the difficulty and outcome of groove machining. Hardness and strength determine tool wear. Now, let’s explore how different materials behave.
Titanium Alloy
Titanium is hard with poor thermal conductivity, leading to tool wear and high temperatures. Use wear-resistant coated tools for better efficiency.
Stainless Steel
Stainless steel’s hardness and toughness, combined with poor thermal conductivity, increase machining temperatures and tool wear. Low speeds and cooling lubricants help improve results.
Aluminum Alloy
Aluminum is soft and conducts heat well but is prone to burrs due to its ductility. Sharp tools and proper settings can minimize issues.
Cast Iron
Cast iron is brittle and produces powdery chips, causing significant tool wear. Lower speeds and durable tools reduce defects.
Brass
Brass is moderately hard with good thermal conductivity, resulting in minimal tool wear. Proper cutting speed and sharp tools further enhance machining quality.
5 Techniques of Grooving
Straight Turning
Straight turning involves creating a straight, uniform groove along the length of the workpiece. This technique is ideal for producing grooves that run parallel to the axis of rotation, perfect for when you need consistent depth and width.
Face Grooving
Face grooving is performed on the face of the workpiece. It’s commonly used in making seals, gaskets, and other components that need precise circular grooves.
Contour Grooving
Contour grooving is the process of cutting grooves along a complex or irregular path, typically used to create custom or intricate designs that need to conform to specific contours or shapes on the workpiece.

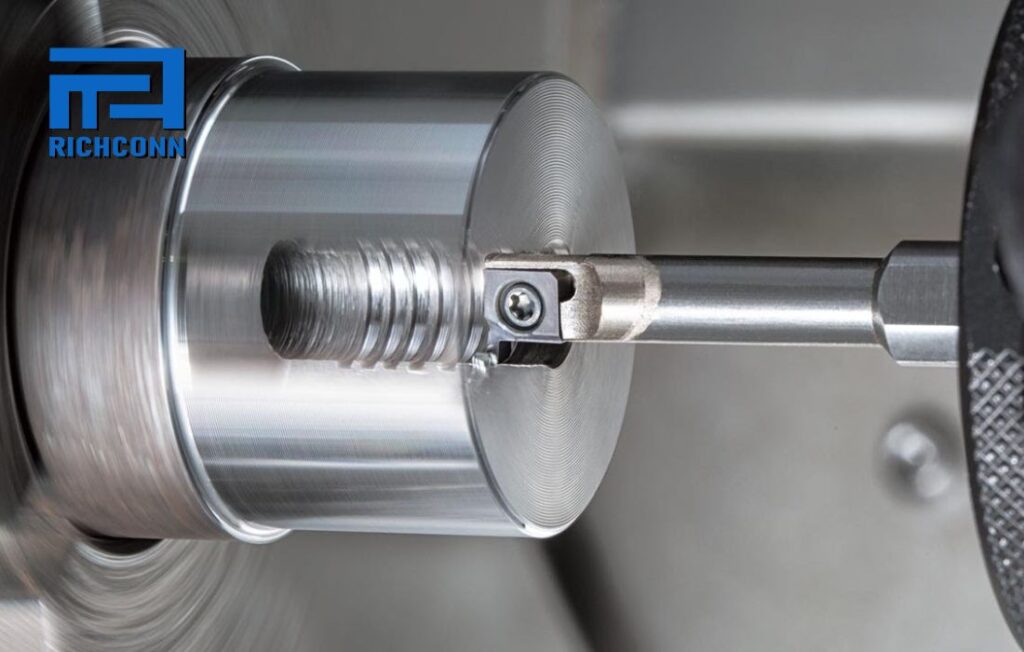

Internal Grooving
Internal grooving, or ID grooving, is performed inside the bore of a workpiece using a specialized tool.This technique is commonly used in the production of components like bushings and sleeves.

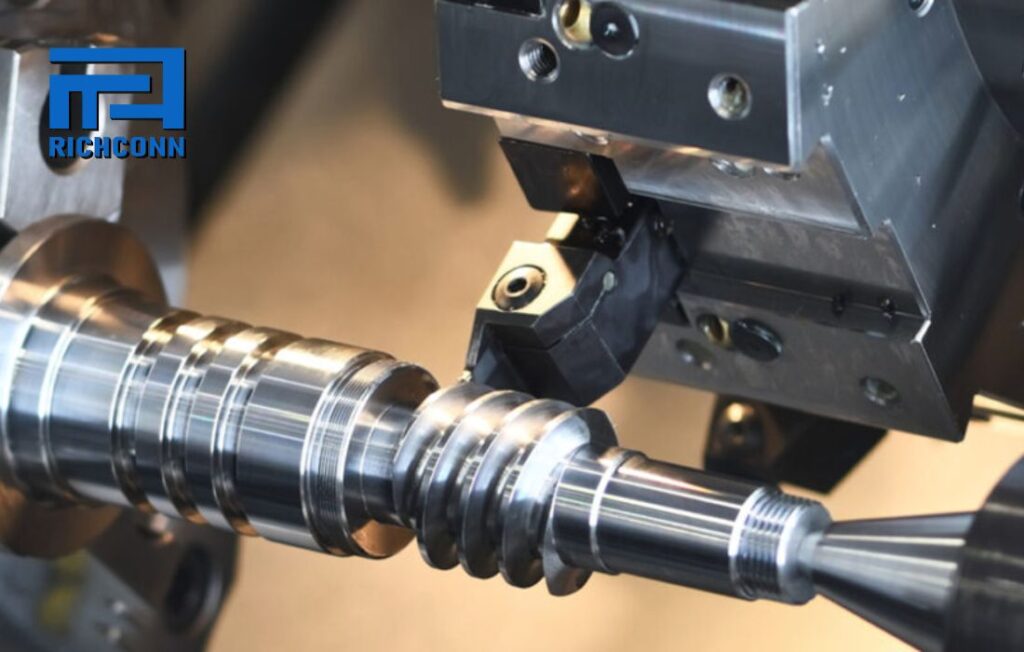

External Grooving
External (OD) grooving is done on the workpiece’s outside. This technique is typically used for creating features like O-ring grooves and retaining ring slots on cylindrical components.
5 Common Types of Grooving Tools
Grooving Turning Tools
Grooving turning tools are versatile. They can create straight, uniform grooves along the length of the workpiece and are available in various shapes and sizes to accommodate different groove dimensions.
Parting Tools
Parting tools are suitable when narrow and deep grooves are required. Parting tools have a thin blade that allows for precise cuts with minimal material waste.

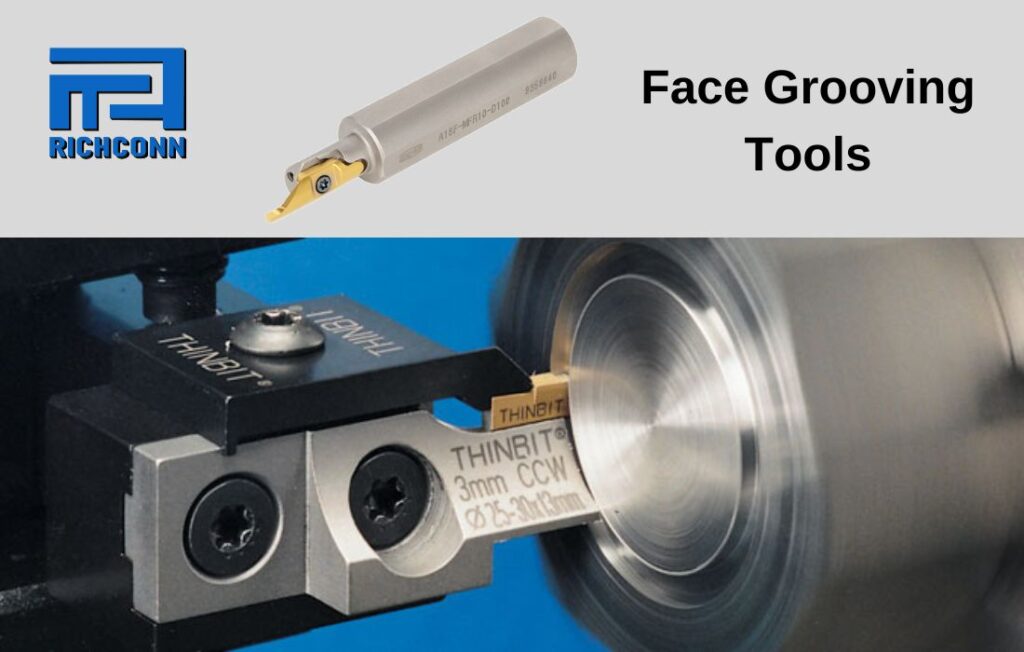

Face Grooving Tools
Face grooving tools are specifically engineered to generate grooves on the surface of the workpiece. They have a radial cutting edge that allows for precise circular grooves.
Outer Diameter Grooving Tools
Outer diameter (OD) grooving tools cut grooves on a workpiece’s external surface. They come in various profiles to create different groove shapes and sizes, commonly used for retaining rings and O-ring grooves.
Inner Diameter Grooving Tools
Inner diameter (ID) grooving tools cut grooves inside a workpiece’s bore. Designed for small diameters, they create precise internal grooves.
5 Tips for Boosting Efficiency of CNC Grooving
- Tool Selection
Choose high-speed steel or carbide tools for their durability and precision, ensuring they are suited for the specific grooving operation. - Materials Property
Consider the workpiece material’s properties, such as rigidity, tensile strength, and heat resistance, and select tools capable of handling these characteristics effectively. - Groove Geometry
Match tools to the groove’s shape and dimensions to ensure accuracy and consistency in the machining process. - Cutting Parameters
Optimize cutting parameters like feed rate and cutting speed. Begin with a low feed rate, gradually increasing it to improve chip breaking and evacuation. Use recommended cutting speeds to extend tool life. - Machine Setup
Ensure proper calibration and alignment of the CNC lathe machine, tool, and workpiece for accurate machining.
4 FAQs for CNC Grooving
Q: Why am I getting a poor surface finish?
A: Poor surface finish can result from dull tools, incorrect cutting parameters, or improper tool alignment. Ensure the tool is sharp, use recommended feed rates and cutting speeds, and check tool alignment.
Q: What causes cutting tool breakage?
A: Tool breakage can occur due to excessive cutting forces, incorrect tool selection, or improper machine setup. Use the appropriate tool for the material, optimize cutting parameters, and ensure proper machine setup.
Q: How can I improve dimensional accuracy?
A: Improve dimensional accuracy by using precision tools, maintaining consistent cutting conditions, and regularly calibrating the CNC machine.
Q: How do I reduce tool chatter or vibration?
A: Reduce tool chatter or vibration with a more rigid setup, optimized cutting parameters, and secure tool attachment. Dampening techniques or tools with vibration-dampening properties can also help.
Q: How do slotting, grinding, parting, and turning differ from grooving?
A: Here’s a simple chart explaining the differences.
| Comparison | Description | Typical Use |
| Slotting vs. Grooving | Slotting: Creates narrow slots Grooving: Cuts wider or deeper channels | Slotting: Keyways, inserts Grooving: Specific grooves or features |
| Grinding vs. Grooving | Grinding: Smooths surfaces with an abrasive wheel Grooving: Cuts precise grooves or channels | Grinding: Surface finishing Grooving: Creating grooves or channels |
| Parting vs. Grooving | Parting: Separates a workpiece into two parts Grooving: Cuts grooves without separating the piece | Parting: Cutting through material Grooving: Internal grooves |
| Turning vs. Grooving | Turning: Shapes a rotating workpiece Grooving: Cuts grooves into the workpiece | Turning: Cylindrical forms and features Grooving: Specific grooves during turning |
Future Trends in CNC Grooving for 2024
Advances in Tool Materials
The development of new tool materials, such as ceramic composites and advanced carbide grades, is set to significantly enhance tool life and performance. These materials will enable faster and more precise grooving operations, reducing downtime and increasing productivity.
AI Integration
AI is poised to revolutionize CNC grooving processes. By analyzing machining data in real time, AI algorithms can dynamically adjust cutting parameters, predict tool wear, and optimize efficiency, leading to more consistent and high-quality outcomes.
Sustainable Manufacturing Practices
Utilizing eco-friendly cutting fluids and energy-efficient machines, manufacturers will aim to reduce waste and minimize the environmental impact of CNC grooving operations, aligning with global sustainability goals.
Conclusion
In this article, we offered a thorough overview of CNC grooving, including aspects like different types of techniques, tools, and material choices, hoping to help you understand its complexity and versatility.
Also, we provided CNC grooving tips and suggestions for improving production efficiency, along with answers to some common questions and their solutions, which we hope will inspire you in terms of CNC machining quality.
