If you follow humanoid robotics, you already know where the industry’s real bottleneck lives. It’s not the AI, the walking, or the balance — those problems are being solved. The bottleneck is the hand.
A dexterous robotic hand has to fit inside a human-sized envelope, articulate across 15 to 25 degrees of freedom, sense contact forces down to fractions of a Newton, and survive millions of grasping cycles. Every gram matters. Every 0.01 mm matters. And every one of the roughly 80 to 150 precision-machined parts inside a modern dexterous hand has to be made to specification before the hand can move.
At Richconn, we spend a lot of time inside the tolerance windows of these parts — pulley bores held to H5, phalanx pivot holes concentric within ±0.005 mm, PEEK finger links machined without delamination, palm shells produced in a single 5-axis setup. This guide is a manufacturer’s-eye view of what actually goes into a dexterous hand: the parts, the materials, the tolerances, and the manufacturing methods that decide whether the finished hand works or sits on a shelf.
Whether you’re designing a new humanoid platform, sourcing components for a research prototype, or evaluating a machining supplier for the first time — the sections below walk through what you need to know.

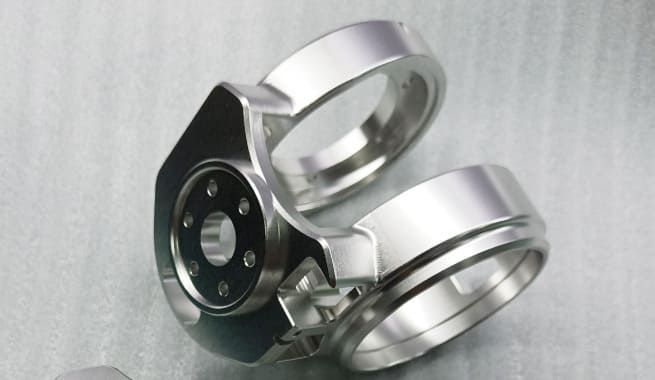

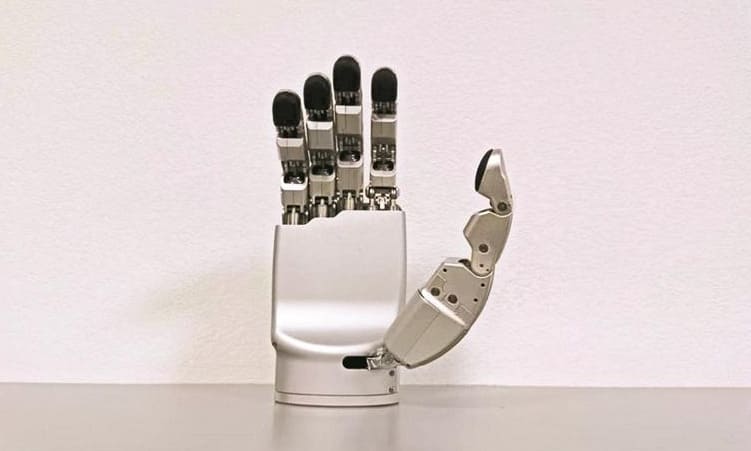

The 2026 Dexterous Hand Landscape: Why This Component Defines Humanoid Robotics
Before diving into individual parts, it helps to see where dexterous hands sit in the broader humanoid picture — and why they’ve become the component that most humanoid programs are quietly struggling with.
Why Dexterous Hands Became the Bottleneck for Humanoid Robots
You can build a humanoid that walks, balances, and manipulates simple objects using conventional grippers. What you can’t do with a conventional gripper is fold laundry, pick up an egg, thread a bolt, or hand someone a glass of water. Every general-purpose humanoid task list eventually collides with the need for human-hand-like dexterity — and that’s when the hand becomes the hardest problem on the platform.
Industry data reflects this. Western Securities’ May 2026 report placed dexterous hands at 14% of Tesla Optimus’s total component value, with the hollow-cup motors inside the hand alone accounting for roughly 48% of hand cost. Mainstream Chinese dexterous hands currently retail between ¥50,000 and ¥100,000 per unit — comparable to what a full industrial robot arm cost a decade ago. Getting that price down to the ¥5,000-30,000 range that mass humanoid deployment requires is fundamentally a supply-chain and manufacturing problem.
This is where CNC machining sits at the center of the story. Casting and forging can’t hit the precision. 3D printing can’t hit the strength-to-mass ratio in production. CNC is the only process that scales from prototype to mass production while holding the tolerances a dexterous hand actually needs.
Reference Architectures: Shadow Hand, Tesla Optimus Gen 3, Inspire, ILDA, DexLink
The dexterous hand market is not one architecture — it’s several, each with different manufacturing implications. A quick tour of the reference designs you’ll see referenced repeatedly:
- Shadow Dexterous Hand — 20 actuated DoF across 24 joints, tendon-driven with forearm actuator pack. The industry benchmark since the mid-2010s.
- Tesla Optimus Gen 3 — 22 DoF per hand, 25 actuators moved to the forearm, tendon and lead-screw hybrid drive. The reference for the current wave of humanoid programs.
- Inspire Robotics dexterous hand — 6 to 12 DoF depending on model, integrated linear servo actuator design, 0.2 mm positioning precision. A commercially mature Chinese platform.
- ILDA Hand (Nature Communications, 2021) — 15 DoF across 20 joints, linkage-driven, 1.1 kg total mass. An academic reference for how far linkage-driven architectures can be pushed.
- DexLink Hand — 16 DoF, linkage-driven, compact and affordable. A modern academic design representative of the cost-conscious end of the market.
Each of these represents different bets about how to route power from motors to fingertips — and each demands a different mix of machined parts.
Three Drive Architectures and What They Mean for Manufacturing
Zoom out from specific hands and you’ll find three dominant drive architectures. The distinction matters, because your architecture choice determines which parts dominate your bill of materials — and therefore which machining capabilities you need from your manufacturing partner.
Direct-drive hands integrate the motors directly into the finger and palm assemblies. The mechanical parts are relatively few but each has to accommodate a motor cavity with tight concentricity and encoder mounting flatness. Machining priorities: precision cavities, encoder seat flatness, cable routing.
Tendon-driven hands — the Shadow Hand and Tesla Optimus Gen 3 approach — move actuators to the forearm and transmit force through tendons routed over pulleys. The mechanical parts inside the hand are lighter and smaller, but there are far more of them. You’ll machine dozens of pulleys, sheaves, tendon guides, and routing tubes per hand. Machining priorities: micro-precision on pulley bores, low-friction cable channel surfaces, and repeatable groove profiles.
Linkage-driven hands — ILDA, DexLink, SyLink — use rigid mechanical linkages to transmit motion from in-hand or in-palm motors. The parts count is lower than tendon-driven designs but each linkage requires tight pin-hole tolerances to maintain kinematic accuracy. Machining priorities: precise pivot holes, matched link lengths, dowel-pin interfaces.
Most current-generation humanoid hands, including Tesla’s, are actually hybrid architectures — combining tendon drive with lead screws or planetary roller screws for high-force joints. The manufacturing implication is clear: a partner working on modern dexterous hands needs to handle all three architectures’ worth of parts.

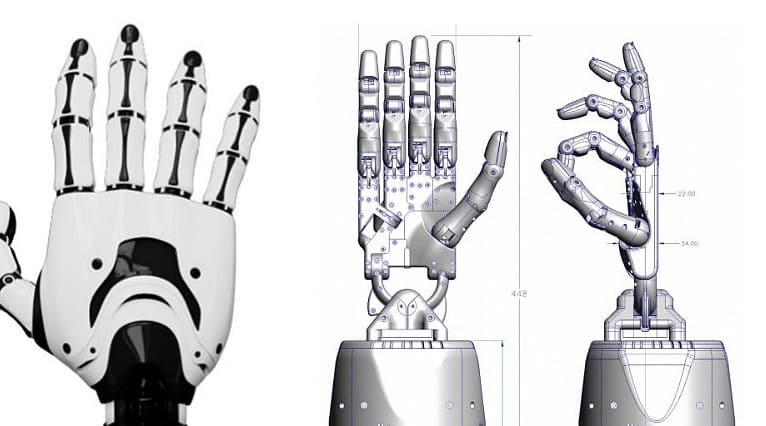

Skeletal and Structural Components
The skeletal parts of a dexterous hand carry every load the hand ever sees — grasping forces, impact loads, and the internal preloads of tendons and actuators. They also define the hand’s overall dimensions and mass, which flow directly into wrist and forearm mass budgets upstream.
Phalanges: Distal, Middle, and Proximal Finger Segments
Human fingers have three phalanges — proximal (closest to palm), middle, and distal (fingertip). Most anthropomorphic robot fingers replicate this structure, giving you roughly 12 phalange parts per hand (four fingers × three phalanges), plus two phalanges for the thumb.
Each phalange is a small structural shell — typically 15 to 30 mm long, 8 to 15 mm across — that has to house pivot bearings on each end, provide routing for tendons or linkages passing through, mount tactile sensors on the palmar side, and connect to neighboring phalanges through precision-machined pivot joints. Wall thicknesses drop to 0.8-1.2 mm on the smallest distal phalanges.
The machining priorities on a phalange are pivot-hole concentricity (typically ±0.005 mm between the two joint bores), matched left-and-right symmetry across the pair of fingers, and a surface finish smooth enough that tendon or linkage motion doesn’t generate wear debris inside the joint.
Palm Frame and Carpal Base Structures
The palm is the structural backbone of the hand. It carries the mounting interfaces for all five finger bases, houses any in-palm actuators (in direct-drive or linkage architectures), routes tendons from the wrist to the fingers, and provides the mechanical connection to the wrist and forearm.
Palm frames are typically machined from aluminum billet — either 6061-T6 for cost-driven designs or 7075-T6 where structural stiffness matters most. On tendon-driven hands, the palm also serves as the primary tendon router, which means dozens of small internal channels and pulley pockets have to be machined into what looks from the outside like a smooth organic shell.
This is one of the strongest arguments for 5-axis CNC machining in dexterous hand production. A well-designed palm shell can be machined from a single aluminum blank in one or two setups with 5-axis capability, or six-plus setups with 3-axis routing. The setup count directly affects cost, lead time, and dimensional consistency between production runs.
Thumb Base and CMC Joint Housing
The thumb is the most mechanically complex part of the hand. Its base joint — the carpometacarpal (CMC) joint — is a saddle joint in humans, allowing two independent rotational degrees of freedom that let you position the thumb tip across a large volume of space. Replicating this in mechanical hardware is genuinely difficult.
Most dexterous hand designs implement the CMC joint using two intersecting rotational axes, which means the thumb base housing has to carry two sets of orthogonal bearing seats within a very compact envelope. The machining challenge is real: two H6 bearing bores whose axes must intersect within a few hundredths of a millimeter, on a single machined part rarely larger than 25 × 30 × 40 mm.
We treat thumb base machining as a specialty within dexterous hand work. It’s typically the highest-tolerance single part in the hand.
Wrist Adapter and Hand-to-Forearm Interface
Where the hand meets the forearm, you need a mechanical adapter that carries structural load, routes cabling from actuators to encoders and tactile sensors, and — in tendon-driven designs — routes the tendon guide tubes that carry force from forearm actuators into the hand.
Wrist adapters are usually machined from 7075-T6 aluminum or, on higher-payload platforms, from Ti-6Al-4V titanium. The critical features are the bolt pattern that mates with the forearm (positional tolerance typically ±0.02 mm), the cable and tendon pass-through geometry, and — where the hand rotates independently on a wrist joint — the bearing seats for the wrist bearing itself.
Actuation Transmission Components
If you’re building a modern tendon-driven dexterous hand, this is where the bulk of your machined-part count lives. Every tendon needs pulleys to change direction, guides to control routing, and — increasingly — precision lead screws to convert rotary actuator motion into linear tendon travel.
Pulleys and Sheaves: The Core of Tendon Transmission
A single tendon-driven finger typically routes through six to twelve pulleys as it travels from the forearm actuator to the fingertip. Multiply across 20+ DoF and you get 120 to 250 pulleys per hand — often more than any other machined part category.
Pulleys for dexterous hands are small (typically 4 to 10 mm outside diameter) and have to run smoothly under tendon tension without wearing the tendon itself. The groove profile matters enormously. A groove that’s too sharp cuts into the tendon. A groove that’s too shallow lets the tendon jump out under vibration. The typical target is a semicircular groove profile matched to tendon diameter within 0.05 mm, with Ra 0.4 μm or better on the groove surface.
Pulley bores are the tightest-tolerance features in most hands. H5 tolerance (±3 μm on small diameters) is common because pulley wobble translates directly into tendon path variation and eventual failure.
Cable Routing Tubes and Tendon Guides
Where pulleys can’t provide continuous support — long straight runs through the palm, transitions across joints — routing tubes and guide bushings take over. These are small cylindrical parts, typically PEEK or acetal, with polished internal bores that let tendons slide with minimal friction.
The machining challenge is bore surface finish. A tendon cycling millions of times against a rough bore will wear both itself and the tube. Target internal bore finishes are Ra 0.2 μm or better, which typically requires a finishing pass with a diamond-coated tool or a post-machining polishing operation.
Guide tube bend radii also matter. Any bend tighter than roughly 8× the tendon diameter dramatically increases friction and shortens tendon life. This is one of the DFM points we frequently raise during design reviews.
Miniature Planetary Roller Screw Nuts and Housings
Tesla Optimus Gen 3 popularized the use of miniature planetary roller screws in humanoid actuators. The architecture converts rotary motor motion into precise linear tendon-tensioning motion, with far higher force density than lead screws and better efficiency than harmonic drives at small sizes.
The screw and roller elements themselves come from specialist manufacturers — machining thread profiles at this precision is a dedicated discipline. But the housings, nut interfaces, and mounting adapters that carry planetary roller screws are exactly the kind of high-precision machined parts we work with regularly. Housing bores for planetary roller screw nuts typically require H6 tolerance with cylindricity within 3 μm, and the mounting shoulder squareness affects screw preload and life in service.
Worm Gears, Bevel Gears, and Reducer Housings
Alongside roller screws, worm gears are common in dexterous hand designs — particularly for compact self-locking joints where you want the finger to hold position without continuous motor torque. Bevel gears show up at right-angle transmission points, especially in thumb bases and wrist joints.
We don’t cut the gear teeth themselves — that’s typically done by specialist gear manufacturers using hobbing or shaping. But we machine the gear blanks that get sent for tooth cutting, and we machine the housings that carry the finished gears. Bore concentricity and shoulder squareness on gear housings directly affect gear mesh contact patterns, which affects noise, backlash, and life.
Couplings and Motor-to-Transmission Adapters
Between motor shafts and transmission components — screws, gears, tendon spools — you need couplings and adapters. In dexterous hand actuators, these are usually miniature rigid or bellows couplings machined from stainless steel or titanium.
The critical features are the clamping mechanism (typically a slit collar with an M2 or M2.5 clamping bolt), concentricity between the motor bore and the transmission bore (typically ±0.005 mm), and — for bellows-style couplings — the compliance of the bellows section, which absorbs small misalignments while transmitting torque rigidly.
Sensor and Electronic Mounting Components
Modern dexterous hands are packed with sensors. Every fingertip has a tactile array. Every joint has a position encoder. Cables have to route from all of these to central controllers without wearing through insulation. The machined parts that support this sensor and electronic layer are small but numerous.
Tactile Sensor Mounting Substrates
Fingertip tactile sensors — capacitive arrays, GelSight optical sensors, MEMS pressure grids — need rigid mounting substrates that hold them in precise alignment relative to the underlying phalange. The substrate provides mechanical support, defines the compliant contact surface geometry, and often carries EMI shielding.
We typically machine these substrates from aluminum or PEEK. The critical features are the top surface flatness (which affects sensor calibration), the peripheral seal groove (which keeps contaminants out of the sensor cavity), and the cable exit geometry (which must not stress the sensor’s flexible connector).
Encoder Brackets and Precision Mounting Flanges
Each actuated joint carries at least one position encoder. In modern hands, this is typically a magnetic absolute encoder with a chip on the printed circuit board and a small magnet on the rotating shaft. The magnet-to-chip air gap has to be held within tight limits — typically 0.5 to 1.5 mm — for the encoder to read reliably.
That air gap tolerance drives the machining spec for the encoder bracket. Flatness of the bracket’s mounting surface, position tolerance of the magnet mounting hole, and squareness of the assembly stack all combine to determine whether the encoder reads or throws errors. We routinely hold these features to ±0.02 mm on encoder brackets.
Internal Cable Channels and Wire Management Features
A dexterous hand carries dozens of small-gauge cables — power and signal for encoders, drivers, tactile sensors. These cables have to route through the hand’s internal structure without pinching, wearing, or blocking mechanical motion.
Cable channel design is one of the areas where 5-axis machining shows its value. Smooth, curved internal channels — with generous radii on the entry and exit points — are far easier to machine on 5-axis equipment than on 3-axis routing that requires multiple setups and produces stepped internal geometry. Cable pass-through channels are typically specified at 1.5 to 3 mm diameter with entry and exit radii of at least 2× the channel diameter.
EMI Shielding Considerations in Machined Housings
High-current motor drivers and low-voltage sensor circuits sharing space inside a small hand creates significant electromagnetic interference challenges. Machined aluminum housings can serve as effective EMI shields — but only if the machining allows for clean electrical contact between mating surfaces.
The practical implication is that housing joints where EMI shielding matters shouldn’t be hard-anodized on the mating surfaces, since Type III anodizing produces an electrically insulating layer. Either mask those surfaces during anodizing, or specify a conductive alternative like clear chromate conversion coating on the mating flanges.

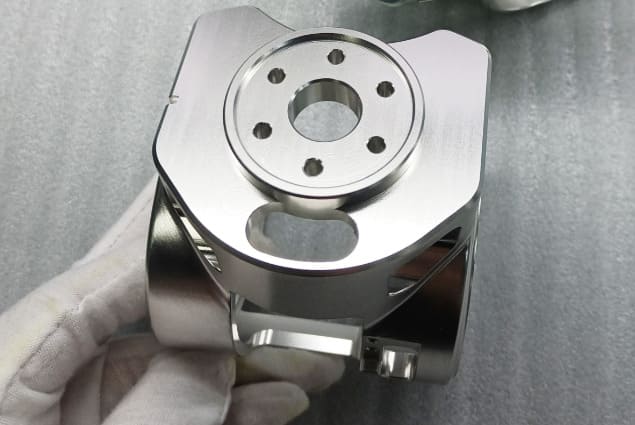

Material Selection for Dexterous Hand Components
Material choice ripples through every other decision in dexterous hand design. It sets the strength-to-mass ceiling, determines which surface treatments are possible, and often decides whether a given feature is even machinable at the scale required.
Aluminum Alloys: 6061-T6 vs. 7075-T6 for Skeletal Frames
Aluminum dominates dexterous hand skeletal construction. Its combination of low density (2.7 g/cm³), excellent machinability, and compatibility with hard anodizing makes it the default choice for palm frames, phalanges, and structural brackets.
6061-T6 is the cost-efficient workhorse. It machines cleanly, holds tolerance through thermal cycling, and takes hard anodizing well. Use it for palm shells, cover plates, and non-critical structural elements.
7075-T6 enters the picture when strength-to-mass matters most — thumb bases, high-load fingertip mounts, wrist adapters, and any part where minimum wall thickness is being pushed to the limit. Its yield strength is nearly double 6061’s, at the cost of higher raw material cost and reduced corrosion resistance.
The typical dexterous hand uses a mix — 6061 for most parts, 7075 for the small percentage of components where the mass savings actually matter. Our aluminum CNC machining page covers both alloys in detail if you want deeper material specs.
Titanium Ti-6Al-4V for Weight-Critical and Medical Applications
Ti-6Al-4V — Grade 5 titanium — is where dexterous hand construction meets aerospace metallurgy. Its density (4.43 g/cm³, about 60% of steel) combined with high strength and outstanding corrosion resistance makes it valuable for weight-critical structural elements and for medical robotics applications where biocompatibility and sterilization compatibility matter.
Practical uses in dexterous hands: wrist adapters on humanoid platforms where every gram in the extremities amplifies through the entire kinematic chain; thumb bases on high-performance research hands; surgical robot end-effector components; and any part exposed to autoclave sterilization cycles.
The manufacturing trade-off is real. Titanium CNC machining runs at a fraction of aluminum’s cutting speed, tool life is shorter, and thermal management requires flood coolant with disciplined chip control. Expect roughly 3-4× the machining cost per part compared to equivalent aluminum geometry. The premium is worth it only where mass savings genuinely earn their way onto the platform.
PEEK and PEEK-CF: Why Tesla Optimus Relies on High-Performance Polymers
PEEK — polyether ether ketone — has become the signature material of the humanoid hand era. Tesla’s Optimus Gen 2 program cut approximately 10 kg from the previous generation’s mass largely by shifting structural components from metal to PEEK and carbon-fiber-reinforced PEEK (PEEK-CF).
The properties that make PEEK attractive for dexterous hand construction:
- Density around 1.32 g/cm³ — less than half of aluminum, less than a third of steel
- Tensile strength around 100 MPa (unfilled) to 240 MPa (30% carbon fiber filled) — competitive with aluminum on a strength-to-mass basis
- Continuous operating temperature above 250°C — nowhere near being a limitation in a hand
- Chemical resistance and biocompatibility — enables medical robotics applications
- Self-lubricating properties — reduces need for separate bushings in some joint designs
Machining PEEK is different from machining metals. Feeds are higher, speeds are moderate, and tool geometry emphasizes clean shearing over chip evacuation. Heat management shifts from tool-wear concerns to material distortion — PEEK can soften and gum if cutting parameters aren’t correct. For PEEK-CF, the abrasive carbon fibers accelerate tool wear significantly, and diamond-coated tooling is often required for consistent finish.
We machine both unfilled PEEK and PEEK-CF for dexterous hand components regularly. If you’re designing a hand that borrows Tesla’s material strategy, our PEEK CNC machining capabilities page details the specific grades and processes.
Stainless Steel 17-4 PH for Shafts, Pins, and Pulley Bearings
Where aluminum and polymer aren’t strong enough — high-load pivot pins, dowel pins on load-bearing joints, small shafts inside actuators — 17-4 PH precipitation-hardening stainless steel takes over. In H900 condition, it delivers yield strength above 1170 MPa with good corrosion resistance and dimensional stability through heat treatment.
We machine 17-4 PH in solution-annealed condition, then age-harden after primary machining is complete. Distortion during aging is minimal on symmetric parts, which most pins and shafts are.
Beryllium Copper and Engineering Ceramics for Specialized Interfaces
At the edges of dexterous hand design, you’ll occasionally see beryllium copper (excellent for small springs and non-magnetic conductive contacts) and engineering ceramics (for high-wear sliding surfaces or electrical isolators). These are specialty materials with dedicated handling requirements, but they show up on the bill of materials for high-performance research hands and specialized industrial applications.
Three Manufacturing Challenges Unique to Dexterous Hands
Machining dexterous hand components isn’t just “small robot machining.” Three distinct challenges shape how manufacturing has to be approached differently from other precision work.
Miniaturization: Machining Features Below 1 mm
The smallest features on a dexterous hand — pulley grooves, cable pass-through holes, tactile sensor mounting screws — routinely drop below 1 mm. Pulley grooves at 0.5 mm width, tapped M1.0 holes, and cable channels at 0.6 mm diameter are common.
Micro-milling at this scale requires ultra-precision spindles running at 40,000 to 80,000 RPM, specialized micro-tooling (typically carbide with diamond coatings for polymer or non-ferrous work), and tight thermal control of both the workpiece and the machine tool. Ambient temperature stability of ±1°C during machining is standard for high-precision micro work. Tool deflection under cutting force becomes a dominant error source, which drives conservative cutting parameters and careful toolpath strategy.
Complex Organic Geometry of Palms and Thumb Bases
The palm shell of a modern dexterous hand looks less like a machined part and more like a biological structure — curved surfaces, sculpted pockets, cable channels, mounting bosses at compound angles. Thumb bases share the same complexity in miniature.
Machining these shapes efficiently requires 5-axis capability. A palm shell that would take five or six setups on 3-axis routing can typically be finished in one or two setups with 5-axis machining, with better dimensional consistency because there are no inter-setup alignment errors.
The other consequence of complex geometry is fixturing. Standard vises and clamping strategies don’t hold irregular palm shells reliably. We often build custom soft-jaw fixtures for production runs of palm shells and thumb bases — a small upfront tooling investment that pays back across a batch.
Precision at Scale: From Prototype to Production Volumes
A prototype dexterous hand is one thing. A hundred hands is another. A thousand hands per month — the volume that emerging humanoid programs are starting to demand — is a fundamentally different manufacturing problem.
Holding H5 pulley bores on a prototype is achievable with careful hand-fitting and inspection. Holding H5 pulley bores on 250 pulleys per hand across 1,000 hands per month requires statistical process control, automated in-process gauging, and — often — pallet-changer machine configurations that let one machine run unattended for extended cycles. It’s a different manufacturing discipline, and choosing a supplier who can scale with your program is a decision worth making early.

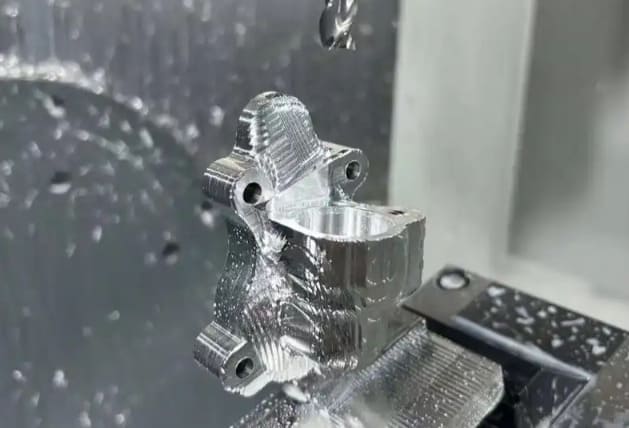

CNC Processes by Component Type
Not every dexterous hand part uses the same process. Matching the right process to the right part is where cost, quality, and lead time get decided.
5-Axis Machining for Palm Shells and Thumb Bases
Palm shells, thumb bases, wrist adapters, and any part with compound-angle features or organic curved surfaces belong on 5-axis equipment. The setup reduction alone typically pays for the higher machine hourly rate — a 5-axis palm shell that finishes in one setup at $80/hour is usually cheaper overall than a 3-axis shell that takes five setups at $50/hour, once you account for alignment errors and scrap.
Beyond cost, 5-axis machining lets designers use geometry that 3-axis can’t produce economically at all — undercut mounting features, angled cable channels, contoured tendon pockets. That geometric freedom often results in a lighter, stronger, more integrated palm design.
Micro-Milling for Phalanges and Finger Joint Details
Phalanges and their internal joint features live in the micro-milling regime. Tool diameters from 0.3 mm to 2 mm, spindle speeds up to 80,000 RPM, and cutting forces small enough that tool deflection becomes the dominant precision limit.
The techniques that matter: climb milling to keep chip loads consistent, trochoidal toolpaths for slot features to keep tools out of full engagement, and tight thermal control across the entire toolpath because thermal expansion at these scales moves parts out of tolerance quickly.
Fixturing at micro-milling scale is often as important as the cutting itself. Vacuum chucks, custom soft jaws, or dedicated micro-fixtures let you hold small parts without distorting them.
Swiss Machining for Pulley Pins, Shafts, and Threaded Elements
Small, high-precision cylindrical parts belong on Swiss-type lathes. Pulley pins, dowel pins, actuator shafts, coupling elements, threaded rods — all of them come off Swiss equipment cleaner, more concentric, and cheaper per part than they can from conventional turning plus secondary operations.
Typical Swiss capabilities relevant to dexterous hand work: length-to-diameter ratios up to 20:1 without noticeable deflection, diameter tolerances within ±2.5 μm, surface finish Ra 0.4 μm as-turned. Threading, cross-features, and knurling all happen in the same setup, which drops per-part cost significantly across production runs.
For a batch of 500 pulley pins, Swiss turning produces a complete part per cycle with no secondary operations required. The economics are compelling once your part count starts scaling.
Wire EDM for Pulley Grooves, Splines, and Sharp Internal Features
Some features simply can’t be produced by rotating tools. Sharp internal corners in tendon guide slots, precision splines on coupling shafts, and complex pulley groove profiles all fall into wire EDM’s domain.
Wire EDM produces surface finishes down to Ra 0.4 μm with dimensional tolerances within ±5 μm. It’s slower and more expensive than milling per part, but it’s often the only viable process for certain geometries — and in some cases the only process that can produce a feature in hardened material without post-heat-treatment machining.
Post-Machining Considerations: Deburring, Cleaning, and Surface Preparation
Machining is only the first step. Dexterous hand components typically require careful deburring — especially on internal cable channels where any raised edge will damage insulation over time. Ultrasonic cleaning removes machining fluid and micro-debris before assembly. Surface preparation for adhesive bonding (increasingly common in composite palm shells) requires specific chemistries and process control.
None of these steps are optional. A perfectly-machined pulley with a small burr in the groove will chew through tendons in weeks.
Tolerances, GD&T, and Quality Control
Generic tolerance statements don’t help anyone. This is what we actually hold on dexterous hand components in production.
Tolerance Targets by Component Type
The table below gives typical target tolerances for the most common dexterous hand machined features. Individual programs may run tighter or looser depending on the joint design and reducer choice.
| Component / Feature | Typical Tolerance | Typical Surface Finish |
|---|---|---|
| Pulley bore (for miniature bearing) | H5 (±3 μm) | Ra 0.4 μm |
| Pulley groove profile | ±0.05 mm | Ra 0.4 μm |
| Phalange pivot bore | H6 (±5 μm) | Ra 0.8 μm |
| Palm shell external profile | ±0.05 mm | Ra 1.6 μm |
| Palm shell tendon channel bore | ±0.02 mm | Ra 0.2 μm |
| Thumb CMC joint bore concentricity | ±0.01 mm | Ra 0.4 μm |
| Encoder bracket mounting flatness | ±0.02 mm | Ra 0.8 μm |
| Wrist adapter bolt pattern position | ±0.02 mm | Ra 1.6 μm |
| Miniature dowel pin diameter | h5 (±3 μm) | Ra 0.2 μm |
| Threaded features (M1.0-M2.5) | 6H internal / 6g external | — |
GD&T Strategy for Assembly-Critical Stack-Ups
A dexterous hand has assembly tolerance stack-ups that would be terrifying if you added them naively. The path from the wrist datum through a palm, base joint, three phalanges, and out to a fingertip crosses 15 to 20 dimensioned features. Even if each feature holds ±0.05 mm, the naive stack-up exceeds ±1 mm — enough to break kinematic accuracy entirely.
The solution is functional GD&T. Every part gets a datum reference frame based on the features that mate with neighboring parts. Position tolerances are referenced to that frame rather than accumulated through size tolerances. Profile tolerances control critical mating surfaces without requiring individual dimensions on every feature.
Done well, a hand with individual ±0.05 mm feature tolerances can assemble to ±0.1 mm accuracy at the fingertip. Done poorly, the same tolerances produce hands that don’t work.
Inspection Protocols: CMM, Optical Measurement, and Surface Profilometry
We inspect dexterous hand parts using layered protocols:
- First-article CMM inspection verifies every GD&T callout on the first part off a production run, with a full deviation report referenced to the design datums
- In-process gauging — bore gauges, pin gauges, height gauges — checks critical dimensions on every part during production
- Optical measurement on non-contact features (external profiles, groove shapes, thin walls) where CMM probes are impractical
- Surface profilometry on critical bearing bores, tendon channels, and pulley grooves to verify Ra targets and full surface texture parameters
- 100% inspection on pulley bores, thumb CMC bores, and any feature where field failure would be catastrophic
Every batch ships with material certifications traceable to mill heat number, Certificates of Conformance, and dimensional inspection reports for critical features.

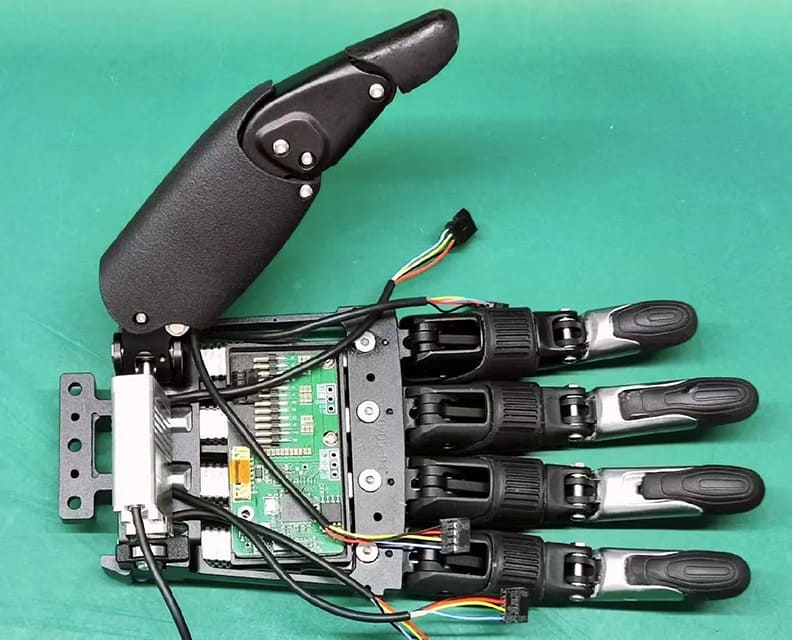

Design for Manufacturability (DFM) Guidance for Dexterous Hand Designers
The most valuable input a machining partner can offer isn’t a quote — it’s the design review that happens before the quote. This section captures the DFM points we raise most often on dexterous hand designs.
Minimum Wall Thickness by Material and Feature Type
Wall thickness minimums vary significantly by material and by whether the wall is a stiffness-critical structural element or a cosmetic cover:
- 6061-T6 aluminum: 0.8 mm minimum for structural walls, 0.5 mm for short cosmetic covers with stiffening ribs
- 7075-T6 aluminum: 0.6 mm minimum for structural walls, 0.4 mm for short cosmetic covers
- Ti-6Al-4V titanium: 0.5 mm minimum for structural walls
- PEEK: 1.0 mm minimum for structural walls, 0.6 mm for cosmetic covers (polymer softens at thinner sections during machining)
- PEEK-CF: 0.8 mm minimum, but be aware of fiber orientation effects near thin walls
Below these limits, you’ll see part distortion during machining, chatter marks on the finished surface, or springback that puts the finished dimension out of tolerance.
Pulley Groove Geometry That Machines Efficiently
Pulley groove profiles look simple on the drawing but hide manufacturing complexity. A few DFM points that save cost:
- Specify a semicircular groove profile matched to nominal tendon diameter — not a sharp V-groove
- Accept a 0.05-0.1 mm profile tolerance rather than pushing to ±0.02 mm; the tendon accommodates the difference
- Groove depth should equal 30-45% of tendon diameter — deeper grooves cause tendon binding, shallower grooves let tendons jump
- Provide chamfered entry edges on both sides of the groove to eliminate tendon abrasion at entry and exit
Cable Routing Bend Radius and Guide Tube Geometry
Tendon and cable routing determines whether your hand works after 10,000 cycles or after 10,000,000 cycles:
- Minimum tendon bend radius: 8× tendon diameter (tighter radii dramatically shorten tendon life)
- Cable routing bend radius: 5× cable outside diameter minimum
- Guide tube internal bore finish: Ra 0.2 μm or better
- Guide tube entry and exit chamfers: 45° × 0.3 mm minimum
- Avoid abrupt transitions between guide tubes and free-routing sections — provide a short trumpet-shaped transition
Selecting Miniature Fasteners: M1.0 to M2.5 Threads
Dexterous hand assembly uses dozens of miniature fasteners. A few points that matter:
- Prefer M1.6, M2.0, and M2.5 over M1.0 and M1.2 where possible — the smaller threads strip easily and are much harder to inspect
- Use socket-head cap screws for structural connections; slotted or Phillips heads strip during assembly at these sizes
- Specify threaded inserts (helical or press-in) in polymer and aluminum parts subject to repeated disassembly
- Torque specifications matter: over-torquing an M1.6 fastener is easy and destructive
Part Consolidation to Reduce Assembly Tolerance Stack-Up
Every joint in an assembly adds tolerance to the stack-up. One of the highest-value DFM interventions is combining multiple machined parts into a single more-complex machined part.
A palm assembly designed as five separate machined pieces plus fasteners has more tolerance stack, more assembly time, and more failure modes than the same palm designed as a single 5-axis-machined shell. The single-part version is more expensive per unit than any one of the five pieces, but cheaper than the sum of them, and produces a better-performing assembly.
When to Bring in Your Manufacturing Partner: Design Review Timing
The sooner the better. Manufacturing input during CAD design routinely saves 20-40% of production cost through part consolidation, feature simplification, and material substitution. The same input after the design is frozen usually saves less than 10%, and often requires design changes that ripple through neighboring components.
We prefer to enter design reviews at the point where the kinematic architecture is settled but the detailed component geometry is still fluid. That’s when a manufacturing perspective adds the most value.
Volume, Cost, and Lead Time Reality
Honest information about what a program actually costs and how long it actually takes.
Prototype Quantities: What to Expect (1-10 Hands)
Prototype production of a full dexterous hand set — every machined component for one hand — typically runs 4-8 weeks in our shop. Cost varies enormously by design complexity, but a 20-DoF tendon-driven hand typically produces $8,000-25,000 worth of machined parts per hand at prototype quantities.
The cost distribution is uneven. Palm shells, thumb bases, and wrist adapters are expensive per part but few in count. Pulleys and pins are cheap per part but numerous. Motor housings and planetary roller screw nuts sit in the middle.
Low-Volume Production: 50-500 Hands per Batch
At 50-500 hands per batch, per-hand machining cost drops significantly — typically 40-60% below prototype cost. The savings come from batch efficiency: setup costs amortize across more parts, custom fixtures are worth building, and inspection sampling replaces 100% CMM verification on most features.
Lead time for 50-500 hand batches is typically 8-14 weeks depending on the depth of design refinement between prototype and production start.
Scaling to Mass Production: 1,000+ Hands per Month
Mass production changes the manufacturing model fundamentally. Dedicated machining cells with pallet-changer configurations, statistical process control, automated in-process gauging, and dedicated inspection protocols become the standard. Per-hand machining cost at 1,000+ hands per month typically drops another 20-30% from low-volume production.
Establishing a mass-production supply relationship takes time. Expect 3-6 months from initial design lock to first mass-production shipment.
Primary Cost Drivers: Feature Count, Tolerance, Material, and Volume
If you want to cut manufacturing cost on a dexterous hand, these are the levers in order of impact:
- Volume — 500× more hands doesn’t mean 500× less cost per hand, but 5-8× less is realistic
- Feature consolidation — combining parts often cuts cost more than any individual part optimization
- Tolerance relaxation — dropping non-critical features from H6 to H8 or from ±0.02 mm to ±0.05 mm reduces machining time significantly
- Material substitution — moving from 7075 to 6061 where strength allows, or from Ti-6Al-4V to 7075 where mass allows
- Process choice — the right process for each part beats forcing everything through one process
Choosing a CNC Partner for Dexterous Hand Production
The manufacturing partner decision matters more for dexterous hand production than for most other precision work. The parts are small, numerous, tight-tolerance, and critical to a system where every component has to work.
Capability Checklist for Evaluating Machining Suppliers
The capabilities that matter for dexterous hand production:
- 5-axis CNC machining with ±0.005 mm positioning capability, preferably with pallet-changer configurations for production scaling
- Micro-milling capability including 0.3-2 mm tooling, ultra-precision spindles above 40,000 RPM, and thermally-controlled machining environments
- Swiss-type turning for pulley pins, shafts, and threaded elements
- Wire EDM for splines, sharp internal features, and hardened-material work
- Full material capability across aluminum alloys, titanium, PEEK, PEEK-CF, and hardened stainless steels
- In-house or trusted-partner surface treatment — hard anodizing, chemical smoothing, dry film lubrication
- CMM inspection with sub-micron capability and surface profilometry for tendon channel work
- Documented traceability with material certifications and dimensional inspection reports
- Engineering support during design review rather than quote-only relationships
Richconn’s Approach to Dexterous Hand Components
At Richconn, we approach dexterous hand production as a partnership rather than a job shop transaction. Our capabilities cover the full range of dexterous hand machined components — palm shells and thumb bases on 5-axis equipment, phalanges and joint details on micro-milling platforms, pulley pins and shafts on Swiss lathes, precision splines and sharp features on wire EDM.
Material capability spans the alloys and polymers that dexterous hand programs actually use: 6061-T6 and 7075-T6 aluminum, Ti-6Al-4V titanium, 17-4 PH stainless, PEEK, and PEEK-CF. Surface treatment options include Type III hard anodizing, chemical smoothing on complex geometries, and specialty dry-film lubricants for tendon-contact surfaces.
Our inspection capability includes CMM verification of GD&T-defined features, surface profilometry on critical bearing and tendon-channel surfaces, and full traceability documentation with every batch.
If you’ve read our previous Robot Joint Components guide, you’ll recognize the same discipline applied at smaller scale. The parts are different — but the manufacturing philosophy is the same.
How to Start: Design Review, NDA, and Quotation Process
The typical engagement path:
- Initial contact through richconn.com/contact with a brief description of your program
- Mutual NDA to protect your design and roadmap
- Design review — usually 1-2 sessions covering DFM feedback, material recommendations, and process selection per component
- Quotation covering prototype quantities with clear pricing and lead time
- Prototype production followed by iteration cycles as your design matures
- Production planning — capacity commitment, tooling investment, and process qualification for volume scaling
Programs that engage early in this sequence — before design freeze — consistently reach production faster and at lower per-hand cost than programs that hand over finalized CAD packages for quoting.
Conclusion
Dexterous hands are where humanoid robotics currently lives or dies as a viable technology. The AI is nearly ready. The bipedal locomotion is solved. The hand — with its 80 to 150 precision-machined components, its micro-tolerance requirements, and its need to survive millions of grasping cycles — remains the component that decides whether a humanoid platform ships or stays on the demonstration floor.
If you take one thing from this guide, let it be this: manufacturing partner selection matters more than any single design decision. The right partner catches DFM issues before they become expensive rework. The right partner scales with your program from prototype to production without forcing a supplier switch mid-program. The right partner treats your dexterous hand components as the precision products they are, not as generic small-part machining work.
