Creating gears of high quality comes with a number of challenging aspects. CNC machining addresses these difficulties by giving flexible design options, computer controlled operations & consistent product quality. In this blog post we will see essential design considerations, appropriate materials and detailed manufacturing processes for CNC machined gears.

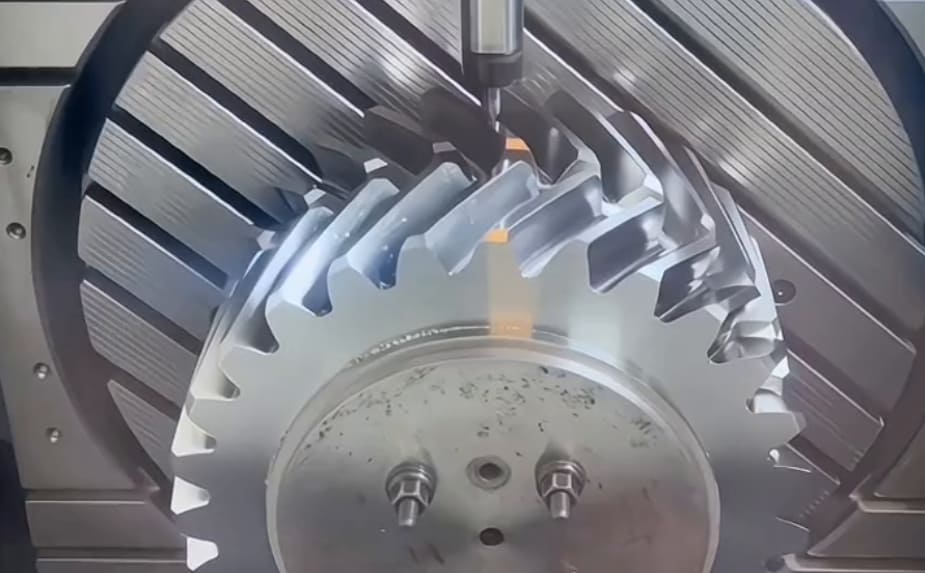

What Are CNC Machined Gears?
CNC machined gears are precision engineered parts formed with the help of computer controlled machines to get desired specifications. Aerospace, automotive and robotics industries use these gears to transfer torque and motion proficiently within their machinery. Gears produced this way can reach tolerances of ±0.005mm—that’s incredibly precise and assures outstanding meshing between gears and also reduces wear as well.
See Also: What is CNC Precision Machining
Top 5 Methods Used for CNC Machining Gears

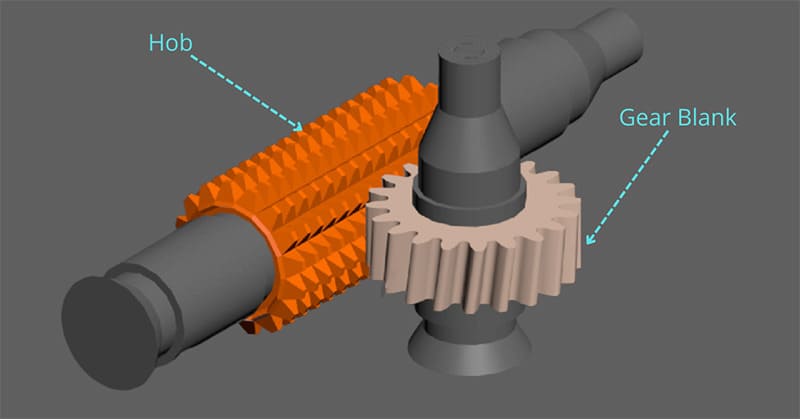

1. Gear Hobbing
Gear hobbing is great for producing external gears like helical, spur and worm gears. It works by rotating the gear blank and the hob (a cutting tool) at the same time. Hob gradually forms the gear teeth as they rotate. Because it’s fast and affordable, therefore gear hobbing suits high volume gear manufacturing.

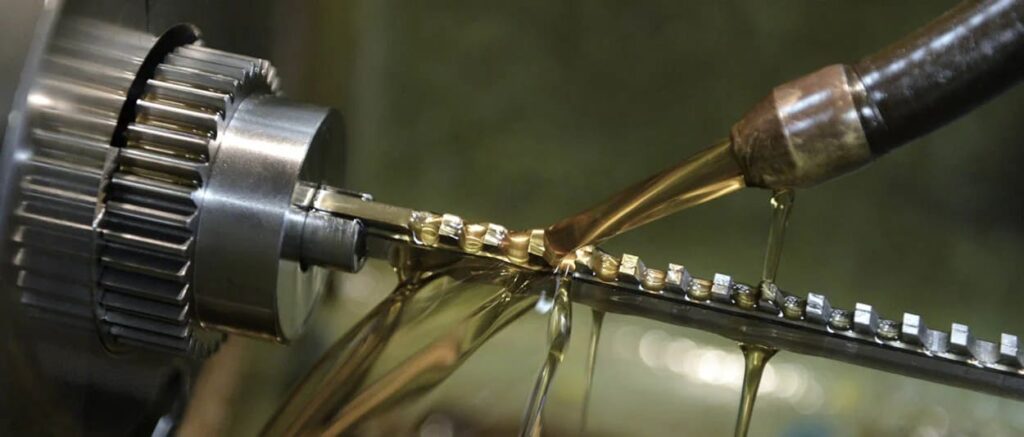

2. Gear Broaching
Gear broaching is used to manufacture keyways and internal gear teeth. A broach (multi tooth cutting tool) is pulled or pushed through the gear blank. All gear teeth are shaped in a single pass. This makes it particularly appropriate for large scale production as it gives high accuracy, smooth finishes as well as fast machining.

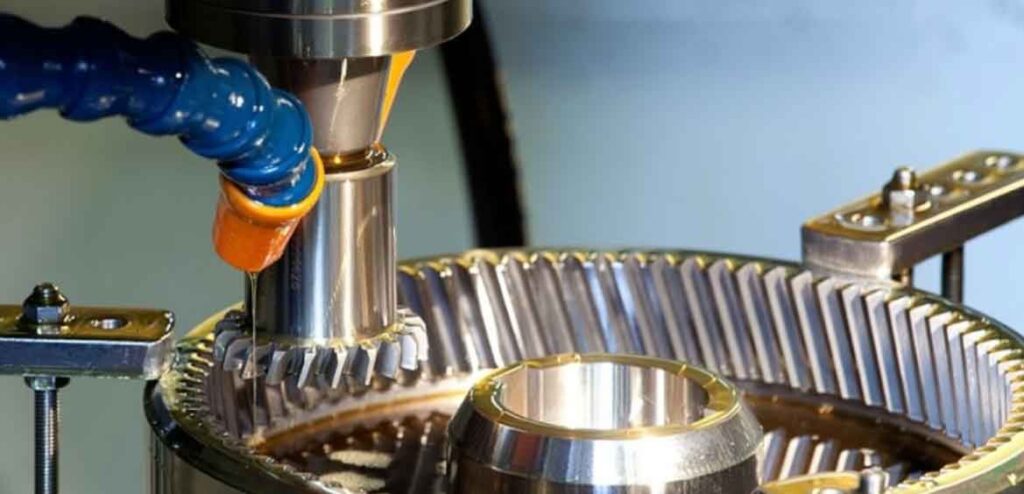

3. Gear Shaping
Gear shaping creates gear teeth by moving a cutter back and forth in a reciprocating motion. This method can produce both internal and external gears. Shaping is good for gears with complicated tooth profiles or gears that hobbing can’t make.

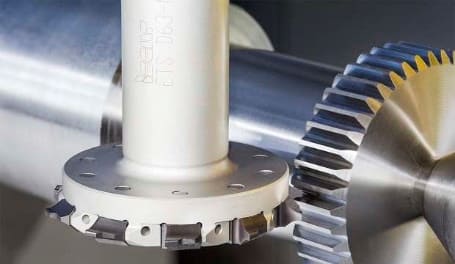

4. Gear Milling
Gear milling uses a rotating cutter to cut every tooth space on the gear blank individually. It’s slower than hobbing but it’s highly resourceful. You can produce different gear types such as spur, helical and bevel gears, specially those with large dimensions or extraordinary shapes. This makes it useful for custom designs and smaller production quantities.

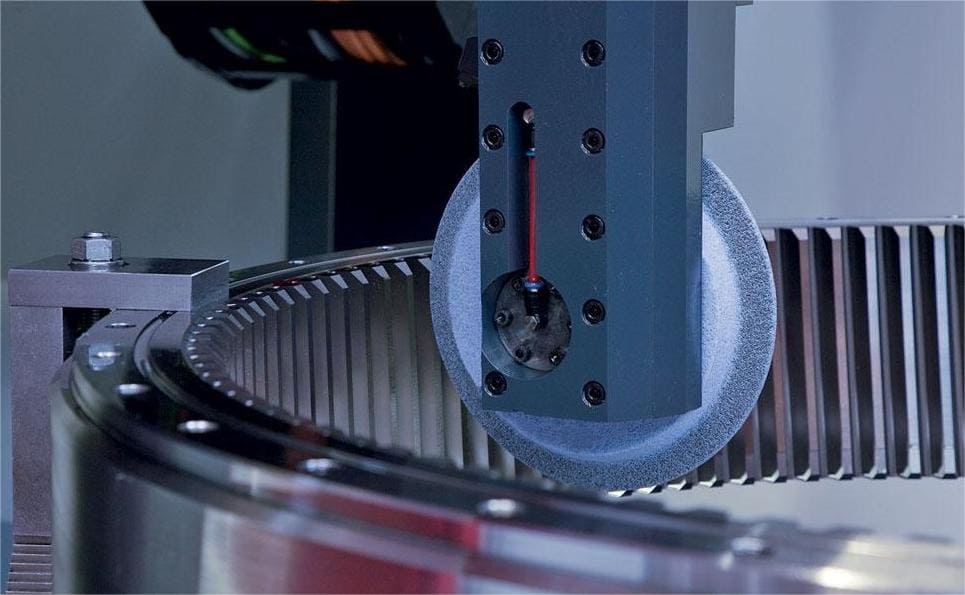

5. Gear Grinding
Gear grinding, a finishing process used to improve dimensional accuracy and gear surface finish. It uses abrasive grinding wheels to remove small amounts of material from the gear surface. This process refines the gear smoothness and shape. Gear grinding is necessary for high performance gears; in particular for those industries which need high durability and precision．
Also See: Large Diameter Gear Machining
Best Design Practices for CNC Machined Gears
When designing CNC machined gears there are different best practices to follow to get the best results. Following guidelines will help your gears perform well and be affordable to manufacture.
Material Selection
Your gear’s application should guide your material choice. Steel alloys are good for high strength gear applications and aluminum alloys are the best for lightweight gears. Plastics such as PEEK or nylon are good for chemical resistance or quieter gear work. Make sure the chosen material is practical for machining and meets your gear’s performance needs.
Surface Finish
Match the required surface finish to your gear’s application. For gears running at high speeds or heavy loads, smoother surfaces of about Ra < 0.8 µm will extend gear life and minimize friction.
Gear Geometry Optimization
Define gear geometry accurately to assure smooth power transmission. Pay attention to tooth profiles, pitch and pressure angles. Simplify gear geometries whenever possible as complex shapes can increase machining cost and time.
Tolerance Attributes
Specify tolerances to balance cost and accuracy. High performance gears need tight tolerances of ±0.01 mm for example. But tighter tolerances usually mean longer machining time and higher cost. Specify tight tolerances only in areas where precision is important.
Lubrication
Add grooves or lubrication channels right into your gear design to improve lifespan and operational speed. Lubrication is necessary under high load conditions as it reduces heat buildup and wear during use.
See Also: Top 10 Gear Manufacturers and Suppliers In China
Right Materials for Gear Machining
Right material’s choice focuses on what you need your gear to do as metals and plastics both have their benefits as well as drawbacks:

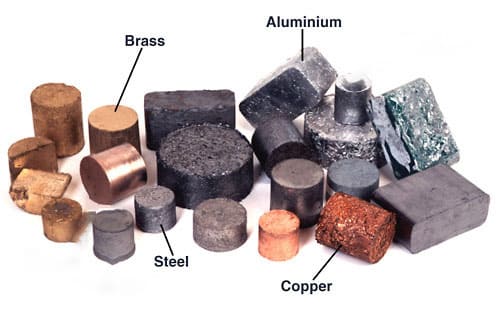

Metals
Steel Alloys
Steel alloys are most popular gear materials out there. That’s because they’re incredibly hard, strong and resistant to wear. Carbon steels like 1045 are a good fit for medium duty gears where you don’t need the highest level of performance. But if you do need that level of performance‐ say in an automotive transmission‐ alloy steels like 4140 can be heat treated to deliver it.
Copper and Brass
Copper alloys such as phosphor bronze have outstanding wear resistance which is why they’re mostly used in high friction gear types like worm gears. Brass, on the other hand, has low friction properties and is highly machinable. This makes it a good fit for precision applications like clock mechanisms.
Aluminum
Aluminum alloys like 6061-T6 are a good choice when you need to save weight. They’re also corrosion resistant and work well in electric vehicle and aerospace applications where weight reduction is key.

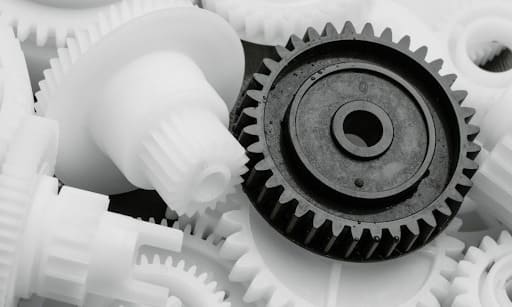

Plastics
Nylon
Nylon is a good choice for quiet and low load gear applications. You’ll normally find it in household devices.
PEEK
If you need something that can handle extreme conditions then PEEK is a good option. It’s more expensive but has outstanding chemical resistance, thermal stability as well as strength.
Delrin (POM)
Delrin gives dimensional stability and high stiffness which makes it a good fit for precision gear applications in small motors.
Types and Uses of CNC Machined Gears

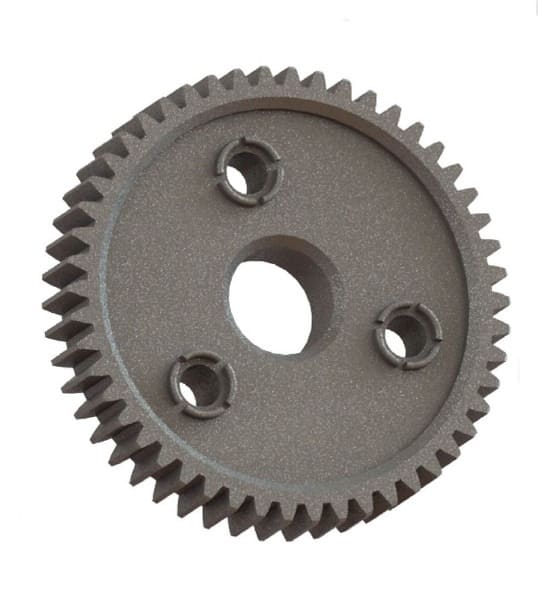

Spur Gears
Spur gears have straight teeth which run parallel to their rotation axis. This makes them the most basic and broadly used gear type. They proficiently transfer torque and motion between parallel shafts. You’ll find spur gears in conveyor mechanisms, pumps as well as in gearboxes. Choose them when you need continued reliability and precision.

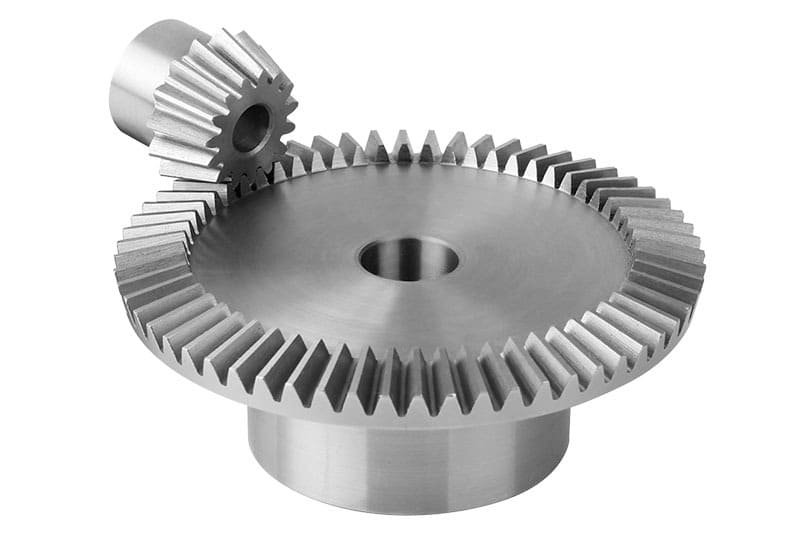

Bevel Gears
Bevel gears transfer power between shafts at intersecting angles—thanks to their conical teeth shape. This capability is exactly what you need for applications where there is a need to change direction of rotation. Automotive differentials, marine propulsion units and hand drills are all examples of where that’s the case.

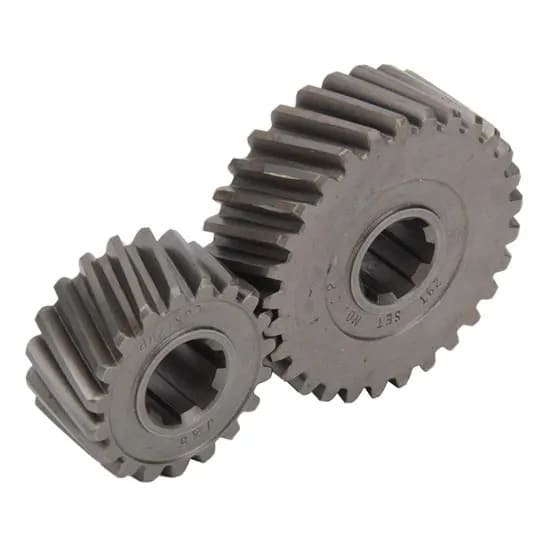

Helical Gears
Helical gears have angled teeth. This angled design lets the teeth engage gradually which provides increased load capacity and smoother operation. As a result they work more quietly. This makes them a good fit for automotive transmissions, conveyor belts as well as elevators where noise reduction and smooth behavior are very important.

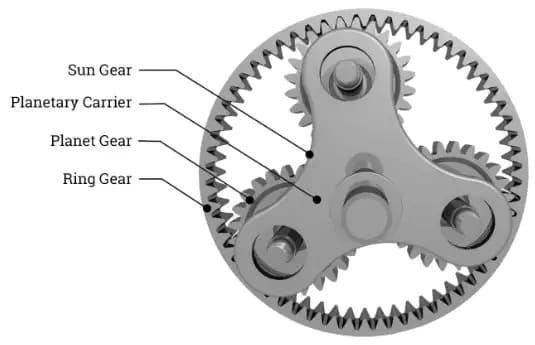

Planetary Gears
Planetary gears are made up of a central sun gear surrounded by multiple planet gears and an outer ring gear. This arrangement gives you a compact design which distributes power proficiently and provides high torque density. Planetary gears are particularly useful in wind turbines, automotive transmissions and robotic actuators where compactness and torque output are priorities.

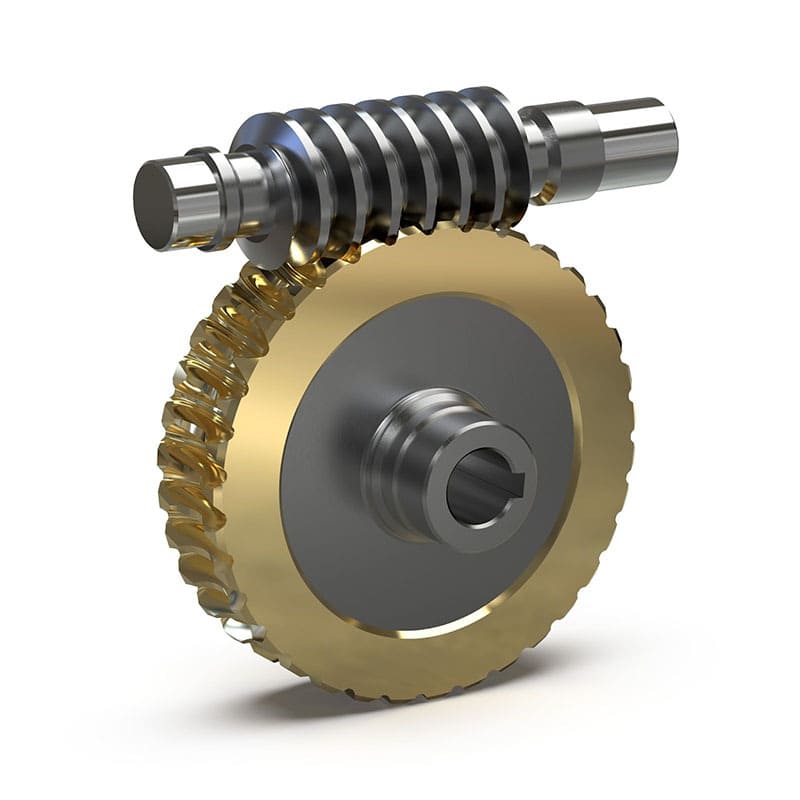

Worm Gears
Worm gears are made up of just two main parts_ a threaded shaft called a worm and a worm wheel. They transmit motion between shafts that don’t intersect usually at right angles. Worm gears have a self locking feature and give high gear reduction ratios. This combination of compact size, smooth performance and the ability to handle heavy loads is why worm gears are mostly chosen for robotics, elevators as well as automotive steering systems.

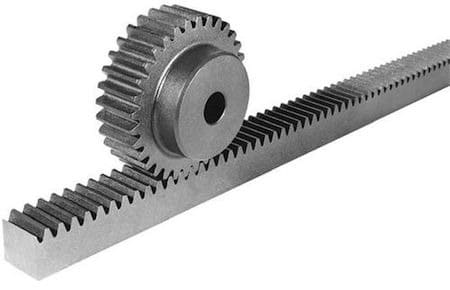

Pinion and Rack Gears
Rack and pinion gear systems turn rotational motion into linear movement. A pinion (circular gear) interacts with a rack (straight gear) to achieve that.
Automotive steering systems, CNC machines and elevator mechanisms all use rack and pinion setups.

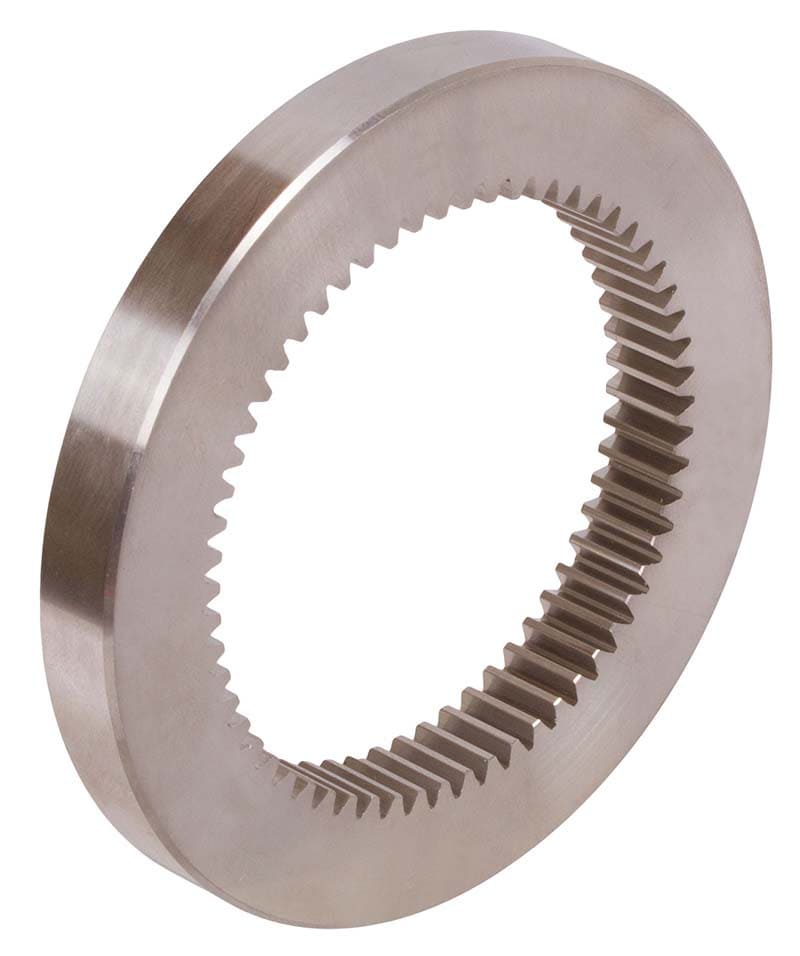

Internal Gears
Internal gears have their teeth on the inner surface of a conical or cylindrical ring. They mesh well with external gears. They’re mostly integrated into planetary gear systems to get compactness and torque multiplication. This space saving design makes internal gears particularly relevant for industrial machinery, automatic transmissions as well as robotic arms where space is limited.
Order Your Custom CNC Machined Gears from Richconn
Precision engineering is at the heart of what we do at Richconn. Our custom CNC machined gears are designed to meet your exact needs. We have a 99.8% level of precision and it comes from the expertise of our engineering team and our high tech machinery.
You can choose from a range of materials, flexible scheduling and that personal touch from our engineers. To change your gear concepts into reality, contact us now and see our professional CNC machining capabilities firsthand.
To Sum Up
Industries broadly use CNC machined gears because of their high adaptability and precision. Manufacturers can produce gears suited to their particular uses by carefully selecting machining methods, appropriate materials as well as following recommended design guidelines.
Related Questions
What determines the gear machining technique you choose?
This depends on the material you’re working with, the type of gear you’re making, how accurate you need it to be as well as how many you want to produce.
Can CNC machining handle specialized custom gear designs?
Yes it can. Our CAD/CAM software lets us produce outstanding geometries and detailed profiles.
In what ways does CNC machining make gear manufacturing more efficient?
Accuracy, automation, fewer human errors and shorter production times all contribute to this.
What cost factors should you consider when choosing materials for CNC machined gears?
You should evaluate the initial material expense, machining trickiness and total suitability of material for your intended use. Raw material’s durability, balancing cost as well as ease of processing help you get economical gear production.
How should CNC machined gears be maintained to maximize their lifespan?
Inspect gears regularly, keep them clean, lubricate them properly and repair issues promptly. These steps reduce wear and prolong gear life.
