CNC machined shafts perform an important role across different industries. They give dependable performance, precision and smooth operation to mechanical systems.
In this blog post you will know about the main factors that affect CNC shaft design, processes involved in their production, selection of suitable materials as well as their broad range of industrial uses.
What are CNC Machined Shafts?
To put it simply, a CNC machined shaft is a cylindrical component that is manufactured with accurate measurements to transfer power, torque and motion in mechanical assemblies. Manufacturers use modern CNC procedures such as turning & milling to make these shafts.
As a result these parts attain best stability, dimensional accuracy as well as efficient operation.

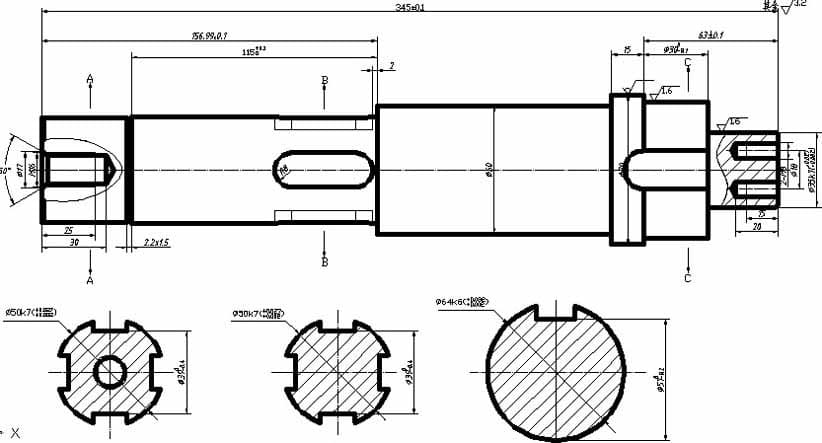

Designing Shafts for CNC Machining: Important Considerations
Picking the Right Material
The first step in shaft design is picking suitable material. Commonly used materials are steel alloys for strength, stainless steel for corrosion protection and aluminum for light weight. You must pick a material that meets the particular operational requirements of your shaft.
Surface Finish Requirements
Reducing wear, friction and fatigue stress concentrations heavily depends on attaining accurate surface finish.
For fitting journals the roughness should be between 0.4 μm‐3.2 μm.
For bearing journals the surface roughness is generally between 0.2 μm & 1.6 μm.
You should clearly define the surface finish demands according to the intended use of your shaft.
Dimensional Accuracy
Guaranteeing dimensional accuracy is very important for proper system functionality as well as assembly.
Bearing journals usually need tight tolerances of IT5‐IT7 to attain accurate positioning. Fitting journals designed for pulleys or gears typically have a little bit of loose tolerances between IT6 & IT9.
If dimensional accuracy is insufficient then increased part wear, misalignment and decreased system performance may happen.
Geometric Features
Proper geometric properties－including coaxiality, roundness & cylindricity－are very important for uniform load distribution and balanced rotation. If your application requires extra features such as keys or splines you must add these elements into the shaft design from beginning.
Tolerance Requirements
A clear definition of tolerance specifications is very important to guarantee compatibility between CNC shaft and the components it connects to－such as bearings or gears. For instance interference fits demand tighter tolerances as compared to clearance fits to stop parts from slipping during operation. Incorrectly specified tolerances can negatively impact mechanical safety & safety performance.
CNC Techniques Used to Produce Machined Shafts

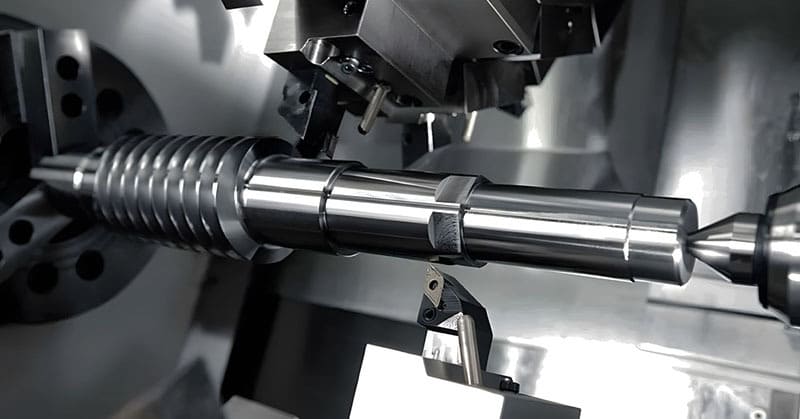

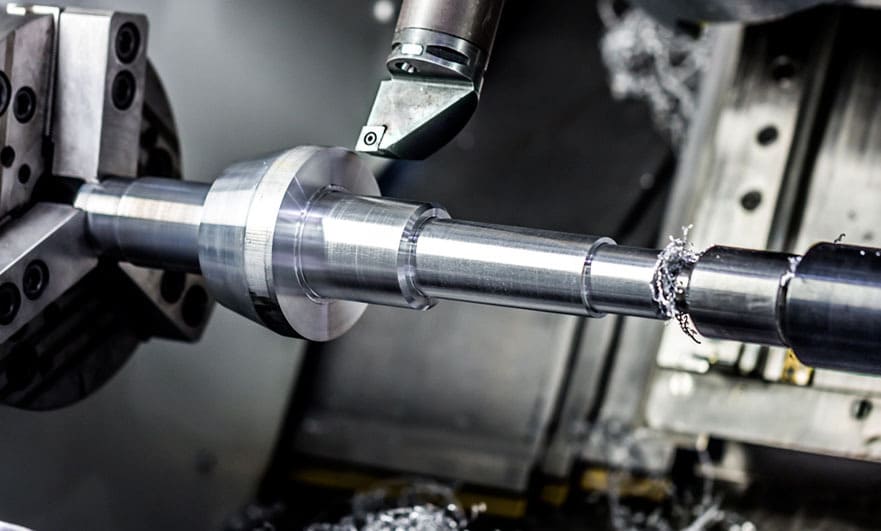

CNC Turning
In manufacturing of cylindrical shafts, CNC turning is a main technique.
In this technique your intended workpiece rotates while the cutting tool remains stationary. This rotation permits the tool to accurately remove material. CNC turning gives tight tolerances of ±0.01 mm and can attain very high concentricity.

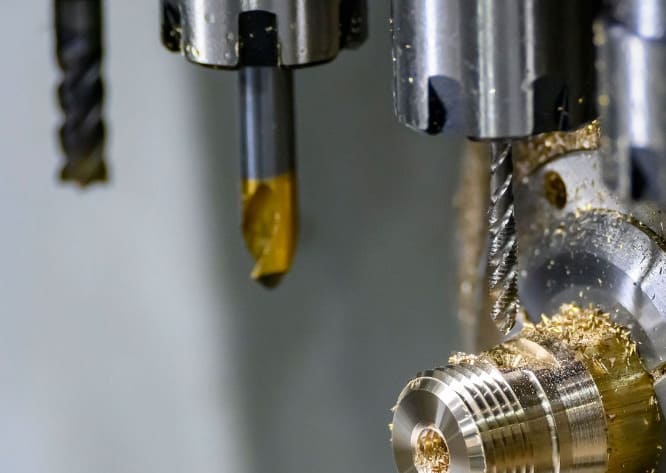

CNC Drilling
Manufacturers use CNC drilling creates precise holes in shafts－such as attachment points or lubrication channels. During this process computer‐controlled drill bits rotate and drill holes in the shaft that results in exact hole depth, diameter as well as position.
CNC Grinding
If your shaft application needs tight tolerances and superior surface finish then you should consider CNC grinding. It involves abrasive wheels that accurately smooth and refine the shaft surface.
This finishing process is particularly important for shafts used in seal contact areas or bearing surfaces. It also decreases operational wear which ultimately increases service life of your shaft.
See Also: What is Precision Grinding
CNC Milling

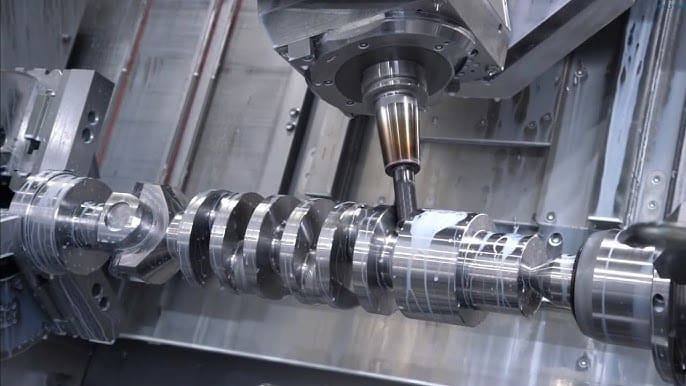

To add detailed geometric features to shafts, manufacturers use CNC milling. Features such as splines, keyways as well as grooves depend on this technique. Different from turning, CNC milling uses a rotating cutting tool to remove material from a fixed shaft. This technique permits you to create complex designs & shapes.
Also See: A Complete Guide to CNC Milling
Appropriate Materials for Producing Machined Shafts

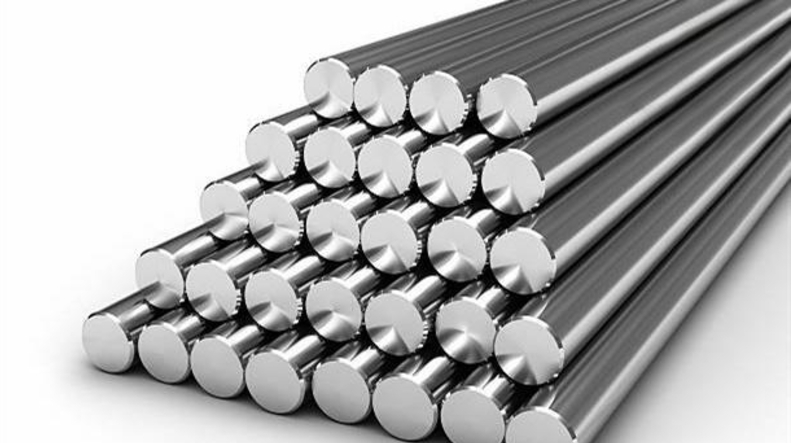

Stainless Steel
If your shaft will be subjected to corrosive materials or moisture then stainless steel is a perfect material. For example 316 & 304 stainless steel grades give high strength, corrosion resistance as well as durability.
Moreover stainless steel also gives good ductility and wear resistance which makes it best for shafts in food processing, medical and automotive industries.
See Also: Different Types of Stainless Steel

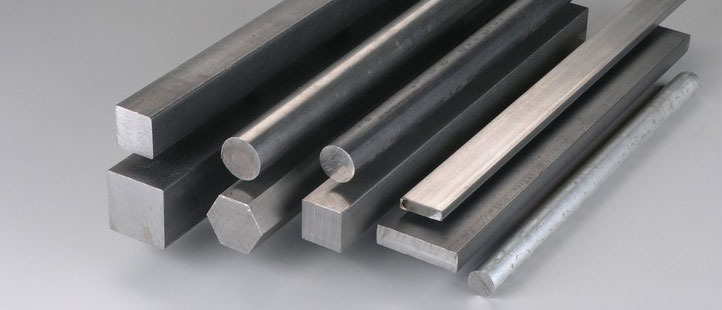

Steel Alloys
Steel alloys are broadly selected for shaft production due to their hardness, strength and versatility. 4140 & 4130 steel alloys give high fatigue resistance as well as tensile strength. These properties make steel alloys best for high‐stress shafts in industrial machinery parts and automotive drive systems.
Brass and Copper
Brass is a perfect choice for shafts where low friction is needed such as decorative parts or plumbing fixtures. It provides good corrosion resistance and machinability. On the other hand copper alloys give excellent thermal & electrical conductivity. This makes copper alloys useful in heat transfer applications or electrical systems.

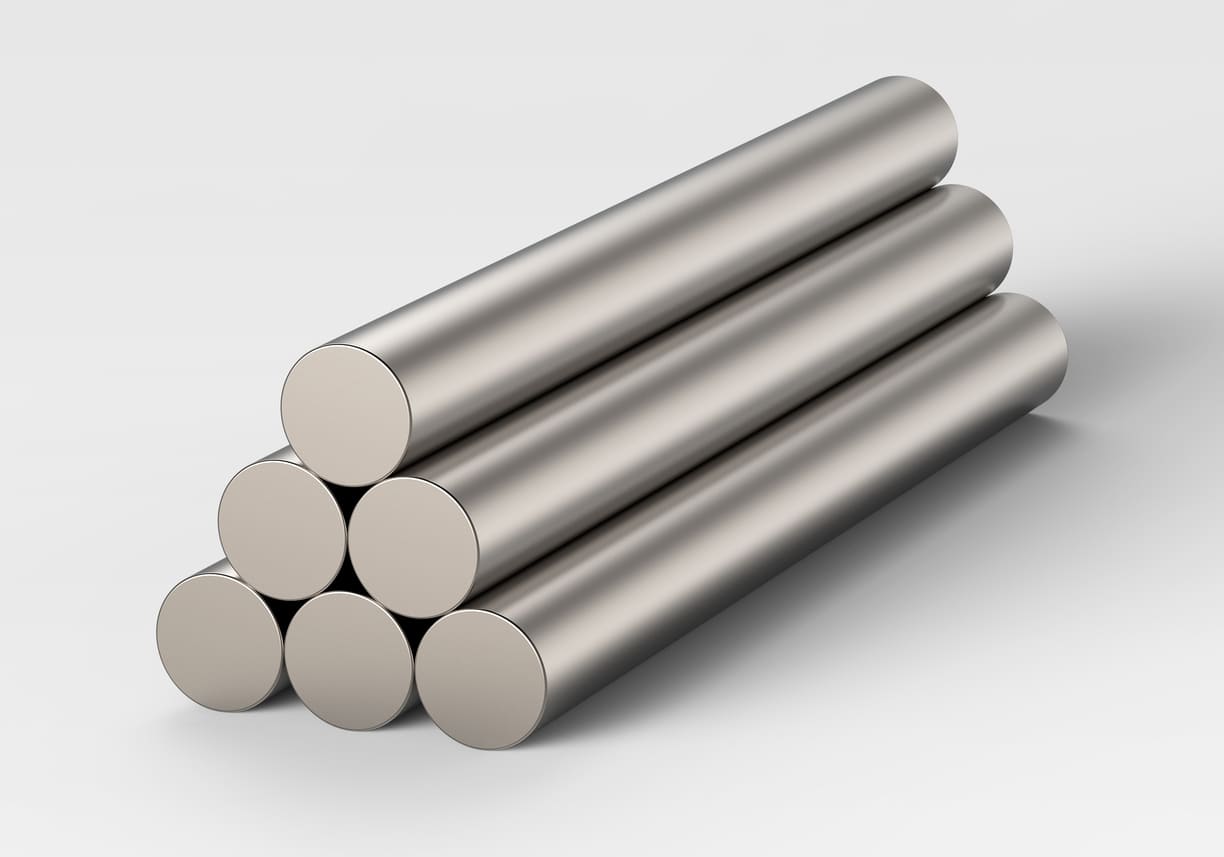

Titanium Alloys
Titanium alloys－particularly Ti‐6Al‐4V－are valued for their corrosion resistance & high strength‐to‐weight ratio. These properties make titanium alloys best for specialty shafts in medical and aerospace uses. Even so, because of their machining challenges and high cost, titanium alloys are generally reserved for applications where performance and weight reduction are more important than these disadvantages.

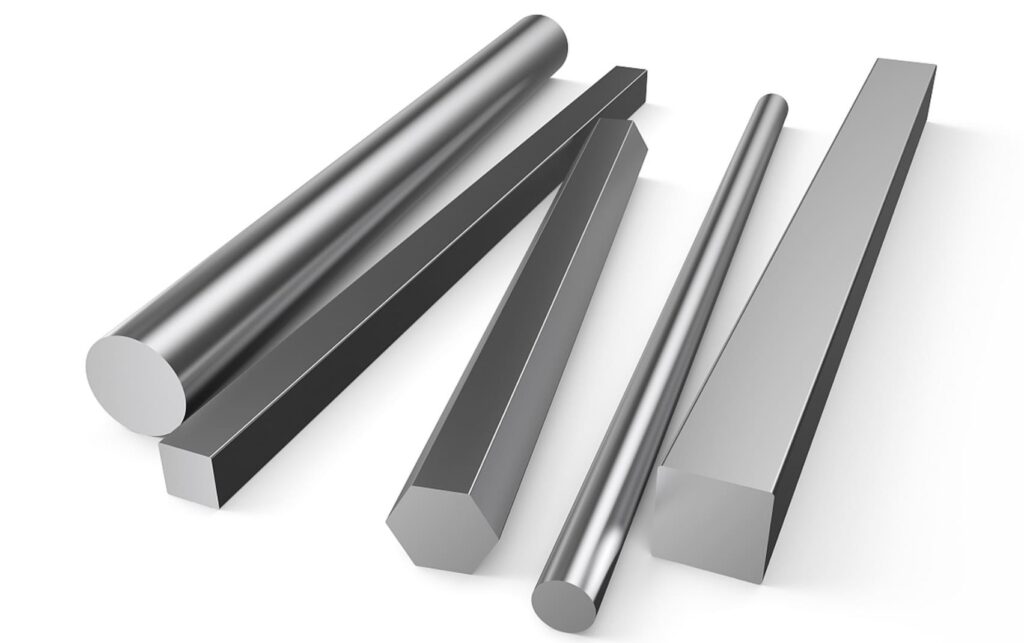

Aluminum Alloys
When weight reduction is necessary then aluminum alloys such as 7075 & 6061 make perfect shaft materials. These alloys are light and strong which makes them useful in automotive and aerospace shafts. Aluminum alloys also give good corrosion resistance and easy machinability which guarantee durability even in harsh conditions.
Top 5 Applications of CNC Machined Shafts
1. Automotive
CNC machined shafts are important parts of automotive transmission, engine and drivetrain assemblies. Their main purpose is to make sure of smooth transfer of power from engine to wheels.

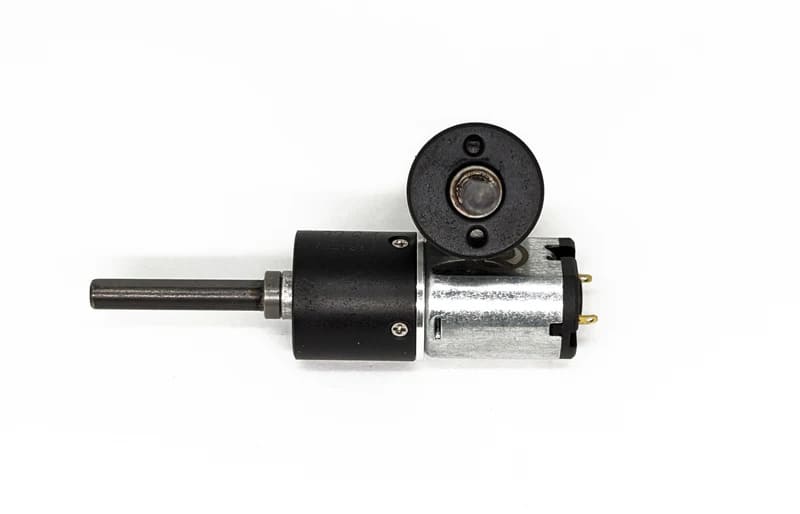

2. Robotics
In robotics industry, joints, motors and gears rely on CNC‐machined shafts for precise motion. Manufacturers usually customize end‐sharps with particular features such as keys or grooves. Such personalization allows an accurate as well as easy integration into automated systems and robotic arms.

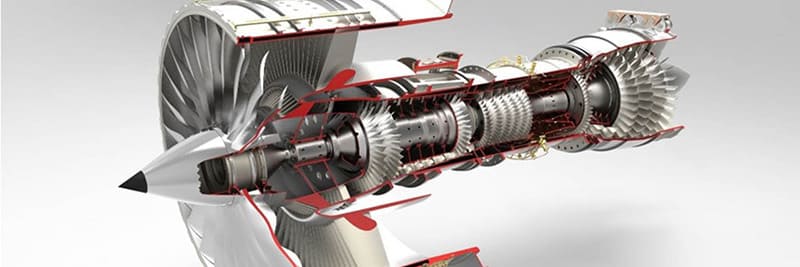

3. Aerospace Industry
CNC machined shafts are mainly used in aircraft landing gear systems, engines as well as turbine assemblies in aerospace industry. These shafts guarantee transfer of power between main components. They have to tolerate great rotational speeds, high temperatures and constant vibrations in aerospace environments.

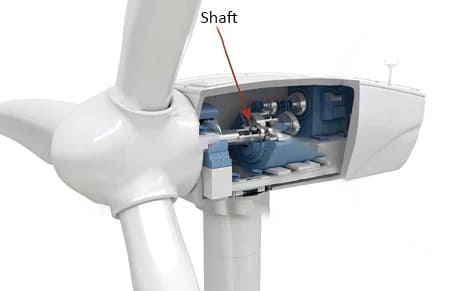

4. Renewable Energy
Hydroelectric generators & wind turbines depend on machined shafts to transfer mechanical energy from rotor to the power generation units. Due to harsh environmental situations renewable energy systems often use stainless steel shafts to resist corrosion.
5. Industrial Machinery
CNC machined shafts are important power transmission components in multiple industrial machines, for instance food processing equipment, pumps as well as textile machinery.
Useful Considerations During CNC Machining Shafts
When machining shafts using CNC technology you need to consider multiple important points.
Tool Selection
Your choice of cutting tool directly affects the quality of finished shaft. High‐speed steel and carbide tools are best because they are suitable for high cutting speeds and are also durable.
Heat Treatment Procedures
The heat treatment process notably increases the properties of shaft such as wear resistance and strength. According to the material of shaft, techniques such as tempering & quenching are commonly used. For shafts that need high precision, low‐temperature treatment after grinding helps to get higher dimensional stability.
Machining Feeds and Speeds
Precise adjustment of feed rates & machining speeds minimizes problems such as excessive vibration, tool deflection & overheating. For thin shafts slower feed rates are recommended to decrease deflection and vibration. On the opposite side stronger shafts benefit from higher spindle speeds which increase the material removal rate.
Cost Efficiency
In CNC shaft manufacturing it is very important to maintain a balance between product quality and affordability. By minimizing material waste, maximizing machining toolpaths and utilizing automation you can decrease production costs and maintain high‐quality standards at the same time.
Quality Control Practices
During the CNC machining process strict quality assessments are very important. You should periodically verify dimensions, check roundness & also measure surface roughness to guarantee that shafts meet the correct specifications. Continuous inspections during manufacturing help identify defects early which saves you both money & time.
To Sum Up
CNC machine shafts have a very important significance in multiple industries because of their great stability, precision as well as performance. Each & every aspect－from material selection to quality control－affects manufacturing of shafts that dependably transmit motion and power even under difficult environments．
