Alloy steel’s superior properties are only useful when parts are made with precision. And achieving this precision needs a deep understanding of how the material behaves during CNC machining. In this blog post we will offer a systematic walkthrough of the entire process. It will help you get optimal results every single time.
What is CNC Machining?
CNC machining is a subtractive manufacturing process where computer controlled tools remove material from a solid workpiece to form precise parts. It uses pre‐programmed code to control speed, motion & cutting paths and usually gives tolerances of around ±0.01 to 0.05 mm for industrial components.
Also See: A Complete Guide to Precision CNC Machining

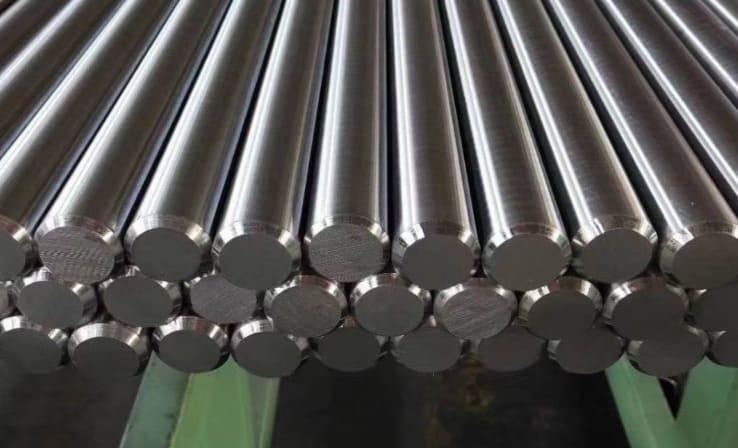

What is Alloy Steel?
Alloy steel is a carbon steel with extra alloying elements, normally 1 to 5% nickel, chromium, molybdenum or vanadium added by weight. These elements boost tensile strength, hardenability and fatigue resistance which make alloy steels best for demanding & high load CNC machined components.
Why CNC Machining for Alloy Steel
CNC machining is ideal for alloy steel because of the material’s inherent strength and hardness. This process provides the rigidity and power needed to cut tough materials with high precision and repeatability. This enables the creation of complicated parts with tight tolerances which are difficult to achieve manually.

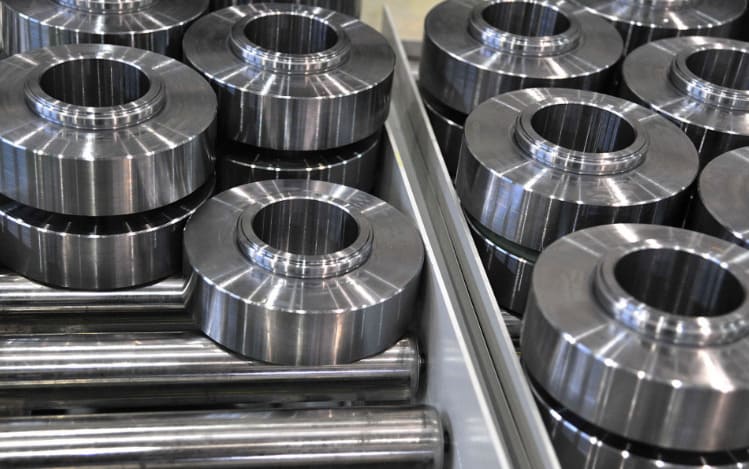

Material Properties Relevant to CNC Machining
Material properties have a big role in how alloy steel behaves during CNC machining. Understanding these helps in choosing the right process and parameters for better results.
1. Mechanical Properties
Tensile Strength
This property measures the maximum stress the steel can handle before fracturing. High strength alloys like 4140 can exceed 930 MPa; therefore they require more cutting force and robust machine setups to prevent tool failure during operations.
Yield Strength
Yield strength, normally around 250 to 550 MPa in most steel alloys, marks where permanent deformation starts. Staying below this limit helps prevent bend, twist or dimensional creep during clamping, roughing as well as finishing passes.
Hardness & Toughness
Hardness measures the material’s resistance to surface indentation while toughness is its ability to absorb energy and resist fracture. High hardness increases tool wear whereas high toughness demands more energy to achieve a clean cut.
2. Machinability Factors
Tool Wear
Alloy steel’s high hardness and abrasive carbides accelerate tool degradation. This wear reduces dimensional accuracy and can lead to catastrophic tool failure if not managed with proper speeds and coated tools.
Heat Generation
Machining these tough materials generates extreme heat at the cutting zone. Without proper cooling, high temperatures can reduce tool life, distort the workpiece and also compromise surface integrity.
Chip Formation
Alloy steels often produce long, continuous chips that can be difficult to control. Therefore effective chip breaking is essential to prevent tangling which can damage the tool or mar the part’s surface.
Surface Finish
Achieving a smooth surface on alloy steel requires optimized parameters. Feed rates, tool sharpness and minimizing vibration are critical for a high quality finish without needing secondary operations.
3. Thermal & Chemical Behavior
Alloy steel generally has low thermal conductivity which means heat concentrates in the cutting zone instead of dissipating quickly. This focused heat can cause thermal expansion and this affects dimensional accuracy with common grades like 4140 expanding about 12 µm/m°C. At high temperatures, alloying elements can also react chemically with cutting tools which then accelerate wear.

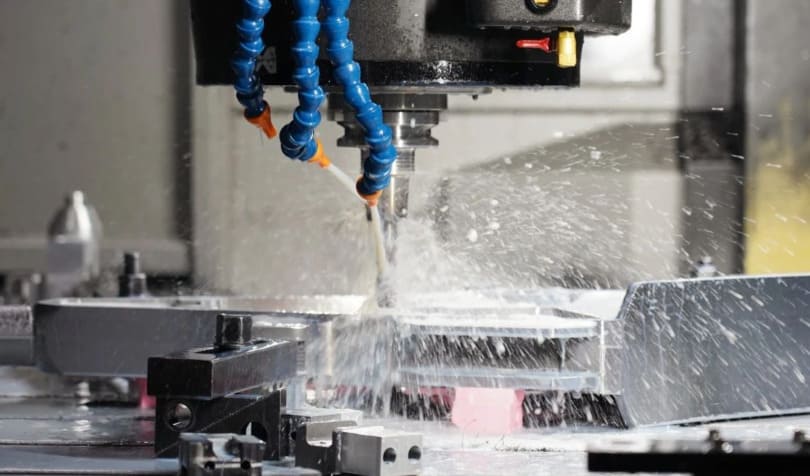

CNC Machining Processes for Alloy Steel
Several CNC processes can shape alloy steel; each suited for different geometries and part requirements. Here are the three most common methods used in industry.
1. CNC Milling
In CNC milling, a rotating cutting tool removes material from a stationary workpiece. This process is best for creating complicated features, including pockets, slots as well as contours. Due to alloy steel’s toughness, it needs rigid machines, sharp carbide tooling and controlled cutting parameters to achieve precision.
2. CNC Turning
CNC turning creates cylindrical parts by rotating the workpiece against a fixed cutting tool. This method is ideal to produce strong, symmetrical components like valves and shafts from alloy steel. A robust lathe and constant cooling are necessary to manage cutting forces and temperature.
3. Secondary & Finishing Operations
After primary machining, parts often undergo secondary processes to meet final specifications. Heat treatments like tempering and quenching increase mechanical properties such as strength and hardness. Operations like deburring, grinding as well as polishing are then used to achieve tight tolerances and a particular surface finish.
At RICHCONN we manage these integrated steps in‐house, which ensures a seamless workflow from machining to final finishing for your components.
CNC Machining Parameters for Alloy Steel
To get the best results when machining alloy steel, careful attention to feeds, speeds and tool selection is essential. These factors directly affect tool life, surface finish and part accuracy.
Speeds & Feeds
For alloy steel, moderate surface speeds are essential to control heat. Typical speeds range from 90 to 150 m/min (300 to 500 SFM) depending on hardness. Feed rates should generally stay between 0.05 & 0.3 mm per tooth to maintain stability and surface finish.
Also See: What is Feed rate and Cutting Speed in CNC Machining
Tool Selection
Carbide tools are the standard for machining alloy steel effectively. Coated tools, particularly those with TiAlN or AlTiN, are recommended to withstand high machining temperatures. For hardened alloys above 50 HRC, Cubic Boron Nitride (CBN) or ceramic inserts offer superior durability.
Coolant & Chip Control
Effective coolant use is non‐negotiable for alloy steel. Flood cooling with soluble oils removes heat, lubricates the cut and also flushes away abrasive chips. For superior performance, high‐pressure coolant systems help break the tough, stringy chips that are typical of alloy steels. This prevents tool entanglement.
Workpiece Preparation & Machinability Improvement
Proper workpiece preparation is key to efficient and smooth CNC machining of alloy steel. These steps improve tool life and ensure the final part meets tight quality standards.

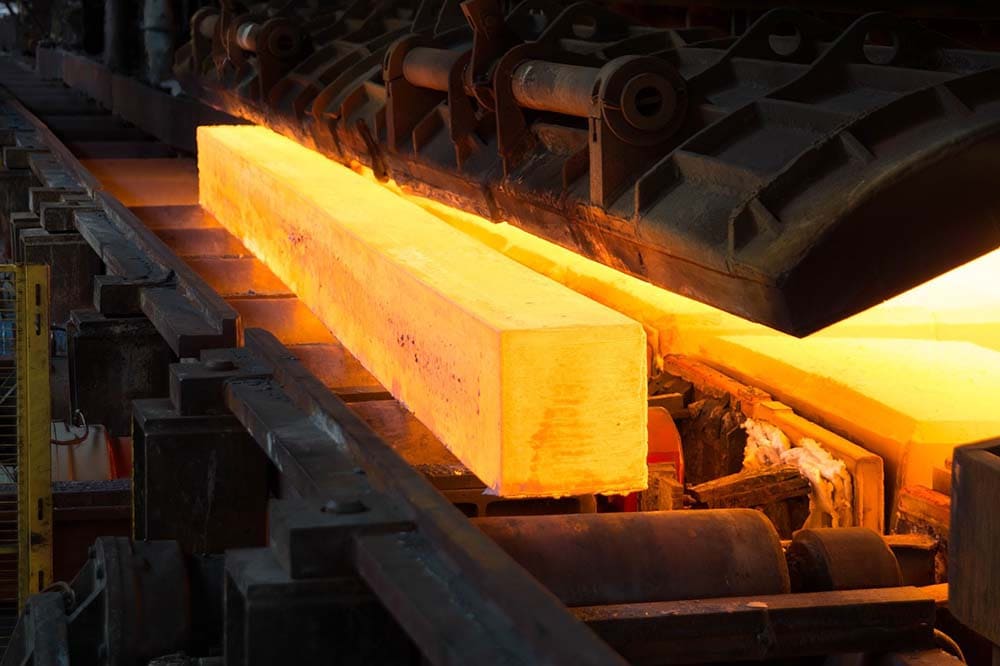

Annealing & Stress Relief
Annealing softens alloy steel which makes it easier to machine and reduces tool wear. It also relieves internal stresses from previous manufacturing steps and this prevents distortion during or after CNC operations. For best results, you should anneal before extensive machining and also after complicated part geometries.
Alloy Selection for Machinability
Not all alloy steels are the same; some are engineered for better machinability. Grades with small additions of elements like sulfur, such as 12L14 steel, create smaller, more manageable chips. This significantly improves cutting speeds and reduces tool wear during production.
Quality & Precision Control
To assure high‐quality CNC machined alloy steel parts, strict quality and precision controls are needed. Here are three key aspects every machinist should know.
Tolerances & Surface Finish Expectations
CNC machining of alloy steel can achieve very tight tolerances, normally between ±0.005 and ±0.001 inches (±0.127 to ±0.025 mm). Surface finish, measured as Ra, is also critical. A standard machined finish is around 3.2 μm while smoother finishes below 0.8 μm may need secondary grinding.
Also See: A Complete Guide to Tolerances in CNC Machining
Inspection Techniques
To assure parts meet specifications, different inspection tools are used. Calipers and micrometers handle basic dimensional checks. For complicated geometries and high precision features, a Coordinate Measuring Machine (CMM) is used. This device uses a probe to take precise 3D measurements of the part for verification.
GD&T in CNC Machined Alloy Steel
Geometric Dimensioning and Tolerancing (GD&T) is a symbolic language that clarifies design intent beyond simple dimensions. For alloy steel parts, GD&T is essential for defining critical relationships like concentricity and perpendicularity. This ensures components fit and function correctly in high‐performance assemblies.
At Richconn we apply GD&T on every alloy steel drawing then verifies parts with CMM inspection so the delivered hardware matches the design intent, not just nominal dimensions.
Common Machining Challenges
Alloy steel CNC machining comes with several challenges that need careful attention. Let’s see the most common ones and their impact on production.
Hardness & Tool Wear
High hardness of alloy steel causes rapid abrasive wear on cutting tools. This wear dulls the cutting edge which leads to poor surface finish, dimensional inaccuracies as well as increased production costs from frequent tool changes. Managing wear is also critical for maintaining process stability.
Heat Generation & Distortion
Energy needed to cut alloy steel generates intense heat at the tool‐chip interface. Since alloy steel is a poor thermal conductor, this heat concentrates in the workpiece which causes it to expand. This thermal distortion can lead to dimensional inaccuracies and warping.
Experienced manufacturers (e.g. RICHCONN) mitigates this by applying pre‐machining stress relief and programming optimized toolpaths to manage heat. This preserves the part’s final accuracy.
Chip Evacuation
Poor chip evacuation is a major challenge in alloy steel’s CNC machining. Long, continuous chips can clog the tool, cause overheating and damage the surface finish. For reliable results, use chip breakers, peck milling cycles and adequate coolant pressure to clear chips efficiently.
Applications & Industry Use Cases
Automotive Industry
In automotive manufacturing, CNC machined alloy steel is used for engine blocks, crankshafts, gears as well as suspension components. These parts need high strength and wear resistance to handle the rigors of vehicle operation.
Aerospace & Defense
The aerospace and defense industries depend on alloy steel for its high strength‐to‐weight ratio in safety‐critical applications. Precision CNC machining is used to manufacture parts like aircraft landing gear, engine components and structural fittings from high‐strength alloys like 300M and 4340.
Heavy Machinery & Oil & Gas
In heavy machinery, alloy steel provides the toughness needed for excavator parts and large gears. Moreover the oil and gas industry uses it for critical components like drill collars and valves. It must withstand extreme pressure, high temperatures and corrosive environments.
Custom & High‐Precision Manufacturing
CNC machining is best for creating custom alloy steel parts where strength is paramount. This includes functional prototypes for performance testing and specialized manufacturing aids like high‐strength jigs, fixtures and tooling that must withstand repeated use without wear.
To Sum Up
CNC machining of alloy steel delivers strength, precision and reliability for most demanding applications. By understanding this material’s behavior, selecting the right process & parameters and controlling common challenges, high‐quality parts become achievable.
For expert CNC machining of alloy steel, you can trust Richconn’s precision manufacturing services. Feel free to contact us anytime.
Related Questions
Its high strength and wear resistance make it ideal for durable parts. CNC machining can precisely cut this hard material and can transforms its toughness into reliable, high‐performance components.
Commonly machined steel grades include 4140 for its toughness and wear resistance, 4340 for its high strength & fatigue life and 8620 for its hard, wear‐resistant surface.
Alloy steel is generally harder to machine than low‐carbon steel but easier than many tough, high‐chromium stainless steel grades which tend to work‐harden more severely.
Coated carbide tools are the standard choice for their wear and heat resistance. For machining very hard alloy steels (over 45 HRC), Cubic Boron Nitride (CBN) inserts are recommended.
Heat treatment modifies mechanical properties. Annealing before machining softens the steel for easier cutting while hardening after machining increases strength and wear resistance in the final part.
To minimize wear, use tough coated carbide or CBN tools, optimize cutting speeds and feeds to control heat and also apply proper cooling & lubrication to reduce friction.
The right coolant, often a soluble oil or semi‐synthetic, reduces heat, lubricates the cutting interface and aids in chip evacuation. This, in turn, improves tool life and surface finish.
