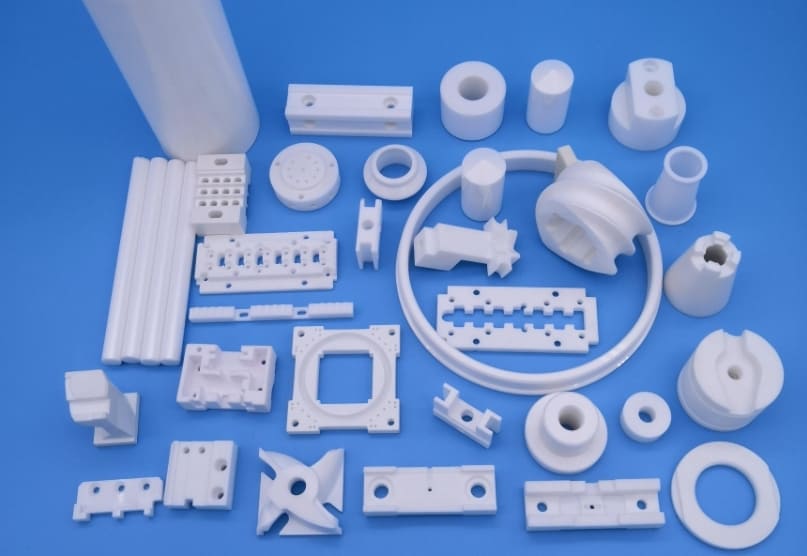

Making ceramic parts is hard especially when you work with advanced materials like Aluminum Nitride (AlN). CNC machining helps by allowing you to shape AlN parts with precision. In this blog post we will explain the process, benefits as well as basic challenges in making AlN ceramic parts.

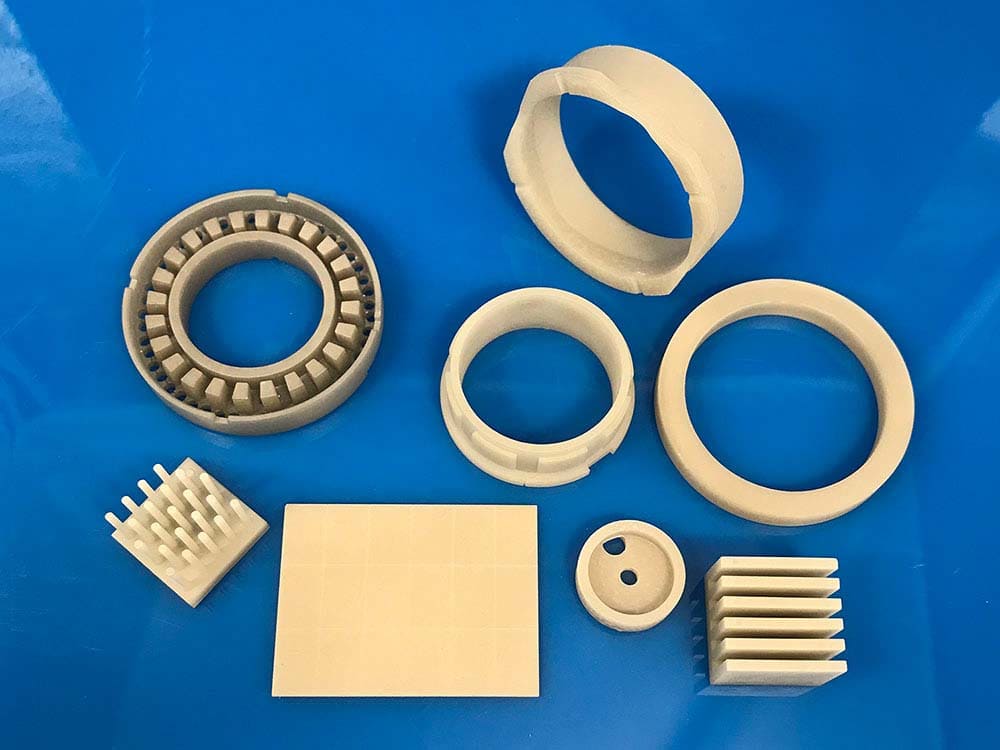

What is Aluminum Nitride (AlN) Ceramics?
Aluminum Nitride is a ceramic material made from nitrogen and aluminum. It stands out because it has strong electrical insulation and high thermal conductivity. In semiconductor applications AlN is a non toxic replacement for Beryllium Oxide. Its crystalline structure is similar to sapphire.
Material Properties
High thermal conductivity
AlN ceramics have a thermal conductivity of about 170 W/mK which is very high. This lets electronic parts release heat efficiently. As a result devices don’t overheat & their lifespan increases.
Low thermal expansion coefficient
AlN has a low thermal expansion coefficient of 5×10^−6 per Kelvin. Because of this the risk of stress or cracks during sudden temperature changes is very low.
Electrical insulation
Even with their high thermal conductivity AlN ceramics are outstanding electrical insulators. Their average dielectric strength is around 15 W/mK. This very rare combination is very beneficial for those semiconductors which need both electrical isolation and heat control.
Corrosion resistance
AlN ceramics maintain their performance and structure even when exposed to oxidation & chemical attacks. It is important for demanding applications like aerospace and semiconductor manufacturing.
Chemical stability
AlN ceramics are very stable chemically. They resist breakdown very well in harsh environments which can be alkaline, acidic or very high temperature (up to 1000 °C) environment.

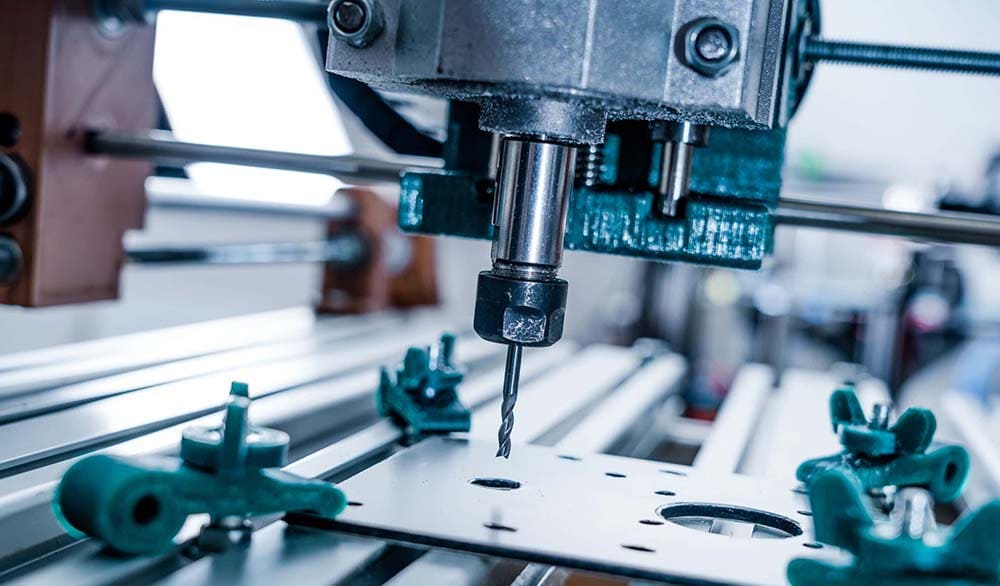

CNC Machining Process for AlN Ceramics
1. Pre Machining
Check AlN ceramics for porosity and cracks before you start machining. Use fixturing which is vibration-damped & rigid and add compliant supports to reduce stress. Also apply clamping pressure that is evenly spreaded & low.
Use diamond coated or PCD tools with medium helix angles for clean cuts. Make sure your CNC machines have high spindle runout and rigidity under 3 µm and run at 20,000 rpm or higher. Use water based coolant at 5 – 8 bar & 3 to 5 L/min along with fine filtration. This setup removes debris proficiently and controls thermal load.
2. Machining Methods
Grinding and Milling
Grinding and milling are two necessary procedures to shape AlN ceramics with CNC machines. Diamond wheels are used for precision grinding to get smooth surfaces and higher tolerances because AlN is brittle and hard so this is important.
Moreover milling with diamond coated tools creates complicated shapes by removing large amounts of material. It also prevents your AIN ceramics from chipping and cracking.
Also See: A Complete Guide to CNC Milling
Cutting and Drilling
Cutting uses laser machining for high precision with detailed shapes. Abrasive waterjet cutting is another option because it not only produces clean cuts without adding stress but avoids heat too. Whereas drilling AlN ceramics need ultrasonic assisted or diamond tipped drills. These tools improve accuracy and reduce chipping.
3. Process Parameters
When machining AlN ceramics with CNC, use moderate spindle speeds of 1,000 to 3,000 RPM & low feed rates of 10 to 50 mm/min as well as keep cuts shallow i.e., less than 0.1 mm. Also use air jets or coolants to keep temperatures stable. This stops thermal damage and reduces mechanical stress during precision work.
CNC providers like RICHCONN use adaptive feed control and real time temperature monitoring. This reduces thermal stress and keeps the procedure stable in delicate AlN parts.
Also See: What is Feed Rate and Cutting Speed in CNC Machining
4. Quality Control

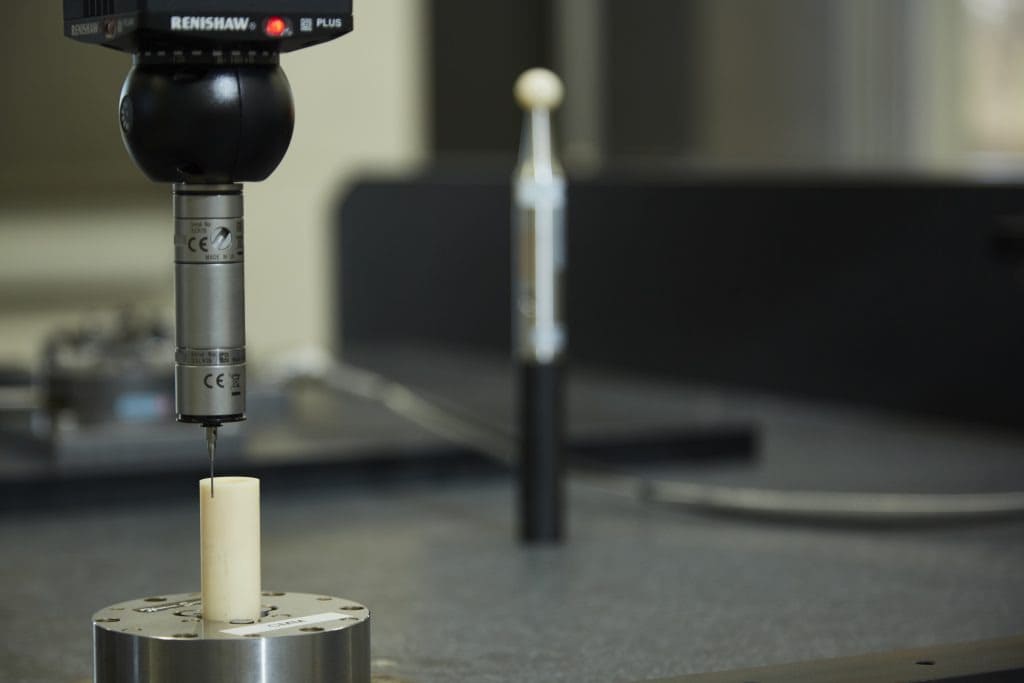

Quality control is done by dimensional inspection with CMM (Coordinate Measuring Machines) to verify tight tolerances. Profilometers are also used to check surface finish. Additionally non destructive tests such as dye penetrant or ultrasonic inspections are done to find micro cracks and confirm that every part is reliable.
Also See: CMM Inspection Explained

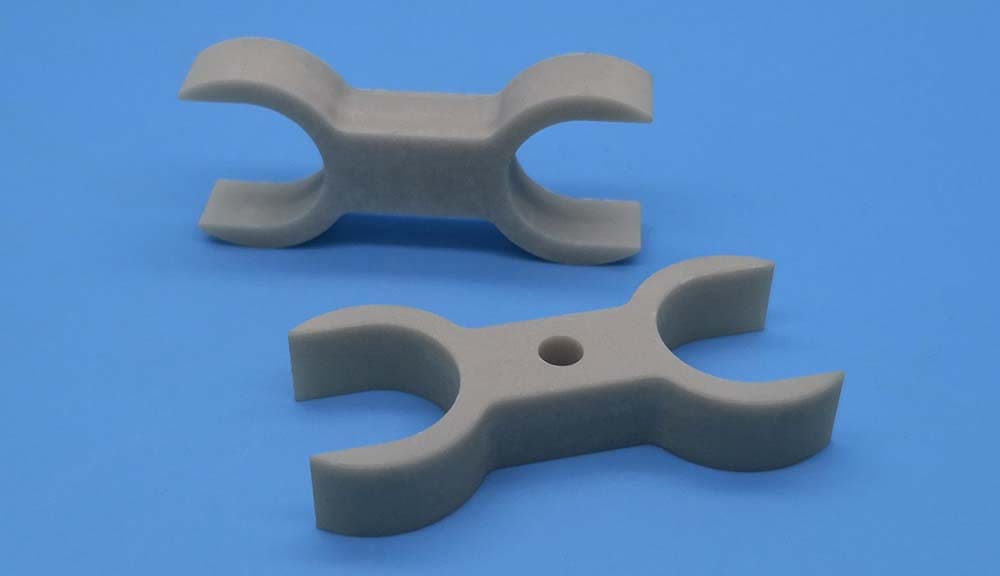

CNC Machined AlN Ceramics Benefits
Better Surface Finish
CNC machining can get Ra 0.4 µm surface finish on AlN ceramics. This is good for electrical insulation and heat dissipion. Power electronics and RF modules benefit from this.
Reliability and Longevity
CNC machining gives you precise parts of AlN ceramic with less stress points and fewer defects. This careful approach not only increases durability but makes components last longer even in harsh environments too.

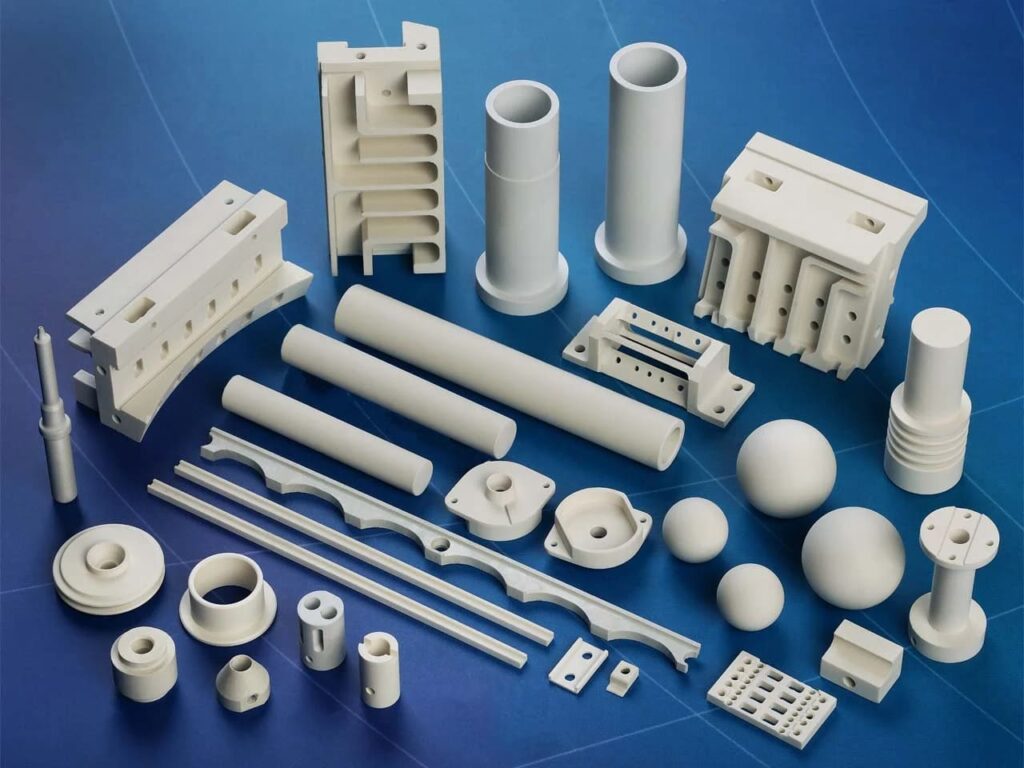

Design Flexibility
With advanced CNC systems you can get complicated shapes in AlN ceramics with ±0.01 mm tolerance. This allows you to make custom heat sinks, seals as well as insulators. These parts fit the requirement of semiconductor wafer handling equipment or aerospace actuators.

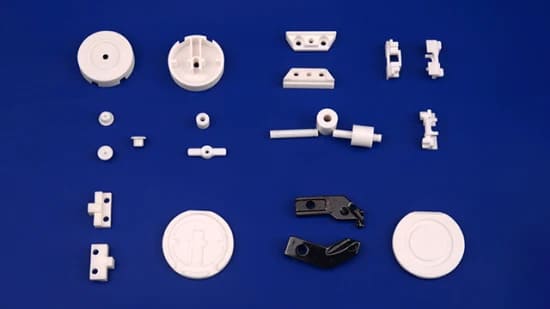

Uses of CNC Machined AlN Ceramics
Electronics and Semiconductors
CNC machined AlN ceramics are very important in high power electronic devices. Manufacturers use them for substrates and heat sinks. They provide electrical insulation and manage heat in LED lighting systems and power modules.
For example RICHCONN’s AlN heat sinks are mostly used in EV power inverters. Their thermal conductivity of 170 W/mK prevents overheating even in compact device designs.
Medical Devices
Implantable devices, imaging systems and sensors like neurostimulators and pacemakers are manufactured using CNC machined AlN ceramics. AlN ceramics also help to control temperature in diagnostic tools such as blood analyzers or DNA analyzers.
RICHCONN’s ISO certified machining assures AlN parts for neurostimulators are biocompatible. And our machines can achieve surface finish below Ra 0.4 µm is to reduce microbial adhesion.
Defense and Aerospace
Defense and aerospace industrial fields use AlN ceramics in satellite parts, radar systems as well as high frequency communication devices. Thermal shock resistance and durability of material make it fundamental for mission critical aerospace parts.
Industrial Machinery
In industrial machinery AlN ceramics are used as material for grinding wheels, cutting tools as well as drawing dies. Their wear resistance and high hardness make them important in these applications. Moreover AlN are non-wettable with metals so it’s also appropriate for casting molds and crucibles.

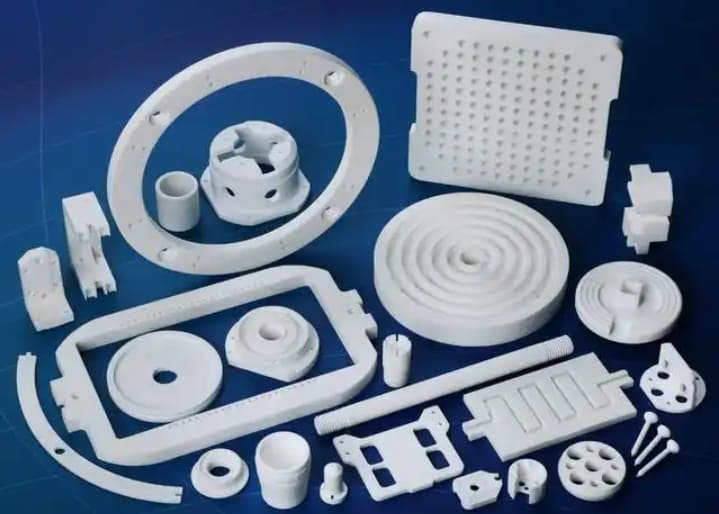

Challenges in Machining AlN Ceramics
Material Brittleness and Hardness
AlN ceramics have hardness which mostly goes beyond 11 GPa. This makes them difficult to machine with standard methods. Their brittleness and hardness increase the risk of cracking, chipping or breaking during machining. So you must handle the material carefully and use optimized procedures to avoid damage.
Thermal and Mechanical Stress
AlN is brittle and prone to mechanical and thermal stress during machining. These stresses can cause fractures and micro cracks. Working with a machining provider like RICHCONN which uses customized fixturing and stress reducing coolants keeps production smooth and minimizes these risks.
Equipment Needs and Tool Wear
You need PCD (polycrystalline diamond) tools to cut AlN ceramics because of their extreme hardness. These tools wear out quickly so frequent tool changes are necessary. Moreover to prevent damage and keep precision high, robust CNC machines with strong vibration control are fundamental.
To Sum Up
AlN CNC machining stands out when you need parts which demand extraordinary electrical insulation, good thermal management & long life. This technique easily handles tough & brittle materials and delivers the reliability which high tech industrial fields demand. AIN ceramic’s benefits far outweigh its machining challenges which makes it a top choice for modern applications.
