A bracket looks like the simplest part in an assembly. It’s often the last thing designed, the first thing value-engineered, and the part nobody wants to spend money on.
It’s also, disproportionately often, the part that fails.
Not by breaking — machined brackets rarely break. They fail by letting go. Bolts lose preload and the assembly drifts out of alignment. A mounting face that measured flat on the CMM sits on three points instead of four and pulls the whole assembly into a twist when it’s torqued down. A motor mount lands its first natural frequency squarely on the drive’s operating range and turns a quiet machine into a loud one.
Every one of those failures traces back to a machining specification. Not the one on the drawing, usually — the one that should have been there.
This guide covers CNC machined brackets and mounts from a manufacturer’s perspective: how to decide whether to machine them at all, what materials actually buy you, how stiffness and natural frequency drive geometry, what the bolted joint demands from the part, how to specify hole patterns so they assemble, and where the cost really goes. It includes real tolerance and process data from two bracket programmes we ran — one magnesium aerospace part, one thin chrome-plated steel part — because specifics are more useful than capability claims.
Brackets and Mounts Are Not the Same Part
Most articles use the two words interchangeably. They shouldn’t. The engineering priorities differ enough that treating them as one category is how you end up with a part that’s over-specified in the ways that cost money and under-specified in the ways that matter.

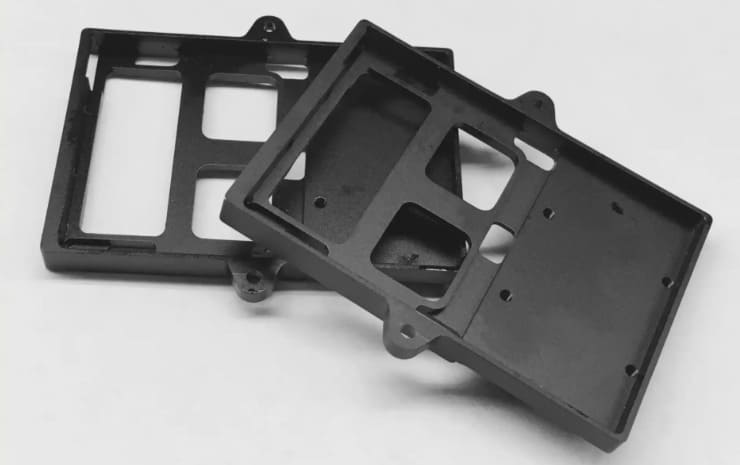

Brackets: Structural Connectors That Transfer Load
A bracket’s job is to carry load from one place to another. A shelf bracket, a gusseted support, an L-bracket tying a panel to a frame — all of them are load paths first.
What governs a bracket is strength and stiffness under load. Will it carry the design load without yielding? Will it deflect more than the assembly tolerates? Will it survive the fatigue cycles? Dimensional precision matters, but usually at the level of “the holes need to line up,” not micrometres.

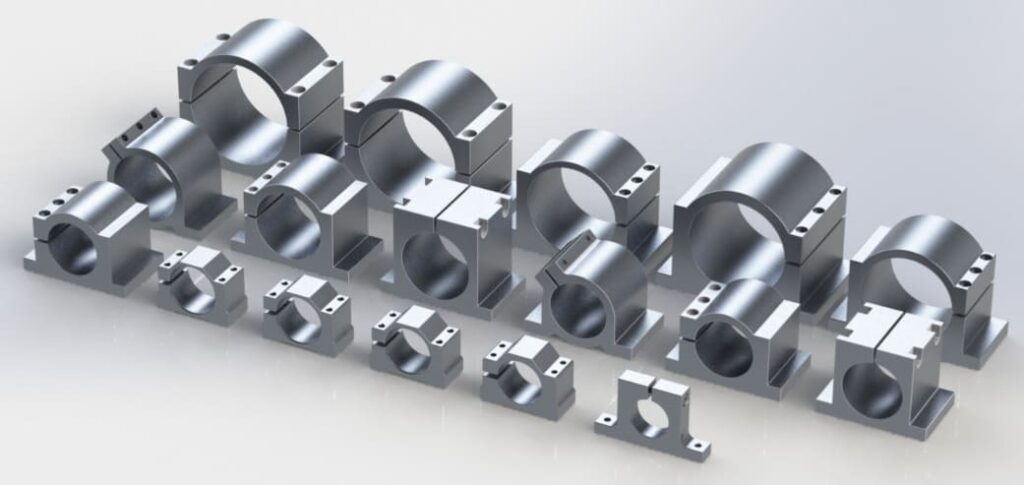

Mounts: Interfaces That Position, Align, or Isolate
A mount’s job is to hold something in a defined position and dynamic relationship. Motor mounts, sensor mounts, optical mounts, isolation mounts — the load path is often trivial compared to the positioning requirement.
What governs a mount is alignment accuracy and dynamic behaviour. Is the motor concentric to what it drives? Does the sensor sit in the position its calibration assumes? Does the mount’s natural frequency stay clear of the excitation it will see? Strength is often the easy part.
Why the Distinction Changes Your Specification
Take a simple case: a steel bracket carrying a 200 N load versus an aluminium mount holding a camera.
The bracket needs section modulus in the right place, adequate fastener sizing, and holes positioned well enough to assemble. Flatness of ±0.2 mm is probably fine. Cost per part matters more than anything else.
The mount needs a flat, coplanar mounting interface so it doesn’t distort when bolted, hole positions tight enough that the camera lands where calibration expects, and a first mode well above whatever the machine vibrates at. It might carry almost no load at all — and still be the more demanding part to make.
Specify the mount like a bracket and it will bolt down fine and never quite point where it should. Specify the bracket like a mount and you’ll pay three times what it needed to cost.
Quick Reference: Requirement Priorities by Part Type
| Part type | Primary driver | Secondary | Usually over-specified | Usually under-specified |
|---|---|---|---|---|
| Structural bracket | Strength, stiffness | Cost | Surface finish, hole position | Fastener sizing, edge distance |
| Motor / actuator mount | Concentricity, alignment | Stiffness | Overall dimensions | Mounting face flatness |
| Sensor / optical mount | Position stability | Thermal stability | Load capacity | Coplanarity, datum definition |
| Isolation mount | Stiffness matching, damping | Durability | Precision | Frequency separation target |
| Adapter plate | Hole pattern accuracy | Flatness | Material grade | Position tolerance and datums |
What Brackets Actually Fail At
Reframing the problem, because it determines everything downstream.
Most Bracket Failures Are Joint Failures
When a bracket “fails” in service, the part is usually intact. What failed is the joint it was holding — the preload dropped, the interface slipped, the alignment drifted, or the assembly found a resonance.
This is why a bracket drawing that specifies only material, dimensions, and hole sizes is an incomplete specification. The part’s function is to maintain a stiff, aligned, preloaded connection. Nothing on that drawing describes that function, and the features that actually control it — bearing surface flatness, coplanarity between mounting faces, thread engagement depth, surface finish under the fastener head — are often left to whatever the shop does by default.
Preload Loss: The Failure That Looks Like Nothing
A bolted joint works because the fastener is stretched, clamping the members together. That clamp load is the product. The bolt is just the device that delivers it.
Preload is lost in ways that leave no visible evidence. Surface asperities under the bolt head and at the joint interface crush flat under load, and every micron of that flattening is stretch the bolt loses — an effect called embedment, typically costing 5-10% of installed preload, sometimes more on rough or coated surfaces. Thermal cycling adds relaxation as differential expansion works the joint. Nothing rotates, nothing looks wrong, and the joint quietly stops doing its job.
The machining connection is direct: rougher and less flat bearing surfaces embed more. A bracket whose mounting face was left at Ra 3.2 μm with 0.3 mm of flatness error will lose substantially more preload than one finished flat and smooth — from the same bolt, at the same torque.
Misalignment and Position Drift
The second failure mode is positional. The assembly goes together, works initially, and drifts.
Sometimes this is preload loss expressing itself as slip at the interface. Sometimes it’s a bracket that was flat when measured free-standing but distorts when bolted to a surface that isn’t. Sometimes it’s a hole pattern that was in tolerance on paper but stacked badly against the mating part.
For mounts, this failure mode is the whole game. A sensor mount that shifts by 0.1 mm after thermal cycling has invalidated its calibration.
Resonance: When the Bracket Amplifies Instead of Supporting
The third mode, and the most misunderstood. A bracket has mass and stiffness, so it has natural frequencies. If one of them falls near an excitation frequency in service, the bracket doesn’t just transmit vibration — it amplifies it.
The symptoms are noise, accelerated fastener loosening, fatigue cracking at fillets, and degraded performance of whatever the bracket holds. The diagnosis is usually slow, because the bracket looks fine and the problem is blamed on the motor, the bearing, or the controller.
We’ll come back to this with numbers, because the design response is often the opposite of what intuition suggests.
What This Means for How You Specify a Bracket
Four features deserve explicit specification on almost every bracket drawing, and are routinely absent:
- Flatness of bolted bearing surfaces, because it controls embedment and therefore preload retention
- Coplanarity between separate mounting faces, because non-coplanar faces distort the part when torqued
- Surface finish under fastener heads and at joint interfaces, for the same reason as flatness
- Thread engagement depth where threads are cut into the bracket, especially in aluminium
None of these cost much to hold if they’re specified up front. All of them are expensive to discover later.
The Process Decision: Five Ways to Make a Bracket
Before anything else, decide whether the bracket should be machined at all. Machining is often the right answer and often not, and the honest version of this comparison is more useful than a pitch.
We Make Brackets Both Ways
Worth stating plainly, because it changes how you should read this section: Richconn runs both CNC machining and sheet metal fabrication. We have no commercial reason to steer you toward either process.
Most process comparisons you’ll read on a machine shop’s website conclude that machining is superior, and most on a fabricator’s website conclude the opposite. Both are answering a question about their own capacity utilisation rather than your part.
Sheet Metal Fabrication
Flat blank, laser or punch cut, bent to shape.
Strengths: Lowest cost by a wide margin at volume. Fast cycle times. Excellent material utilisation — good nesting typically wastes only 15-25% of the sheet. Naturally light, since the part is thin by construction. Weldments and hardware inserts extend what’s achievable.
Weaknesses: Geometry limited to what unfolds from a flat pattern. Every bend brings springback, a minimum inside radius (typically about 1× material thickness), and tolerance accumulation. Hole position tolerances across bends are hard to hold tighter than around ±0.3 mm. Uniform wall thickness only. Localised thickness for a bearing or threaded feature isn’t available without secondary operations.
Realistic window: Simple to moderate geometry, hole tolerances of ±0.3 mm or looser, quantities above roughly a few hundred.
Extruded Profile Plus Machining
An underused route. Start from an extruded aluminium profile — standard structural extrusion or a custom die — and machine only the features that need precision.
Strengths: The extrusion provides the cross-section geometry, including ribs and internal channels, at near-zero cost per unit length. You machine only mounting faces, holes, and interfaces. Material utilisation is far better than billet. For brackets with a constant cross-section, this can cut cost dramatically versus machining from solid.
Weaknesses: Only works for constant-section geometry. Custom dies carry tooling cost and lead time. Extruded tolerances are loose, so any precision feature still needs machining. Extruded temper and grain structure differ from plate.
Realistic window: Brackets and rails with a consistent profile, moderate to high volume, where the cross-section does real structural work.
Welded Fabrication
Cut plate or tube, welded into shape, then machined where precision is needed.
Strengths: Very material-efficient for large or bulky brackets. Handles geometry that would require enormous billets. Steel weldments are cheap in absolute terms.
Weaknesses: Welding introduces distortion and residual stress, which means stress relief and post-weld machining on critical faces. Weld quality varies. Fatigue performance at weld toes is significantly lower than parent material. Aluminium welding degrades heat-affected zone strength badly — a welded 6061-T6 bracket is substantially weaker at the weld than the parent temper.
Realistic window: Large steel brackets, heavy structural supports, low to moderate volume where part size makes billet machining impractical.
Casting
Molten metal into a mould, then machined on functional features.
Strengths: Excellent per-part cost at volume. Complex three-dimensional geometry with ribs and bosses comes free. Good material utilisation.
Weaknesses: Tooling cost and lead time. Cast mechanical properties are below wrought equivalents, and porosity can appear in thick sections — a real concern for fatigue-loaded brackets. Dimensional tolerances are loose, so precision features still require machining. Design changes mean new tooling.
Realistic window: Thousands of units annually with a frozen design.
Machined from Billet
Material removed from solid plate or bar.
Strengths: No tooling. Full wrought material properties with no porosity or heat-affected zones. Any tolerance you’re willing to pay for — ±0.02 mm and tighter on any feature. Localised thickness exactly where the load path wants it. Design changes cost reprogramming time, nothing more. Precision features and structural features are the same operation.
Weaknesses: Per-part cost stays roughly flat with volume. Material waste is severe — a complex machined bracket can consume three to four times its finished weight in billet. Large brackets consume a lot of machine time.
Realistic window: Prototypes through low-to-moderate volume, plus any quantity where tolerance, material properties, or geometry rule out the alternatives.
The Hybrid Route: Laser Cutting Plus Machining
The option that gets overlooked, and one we use regularly on bracket work.
Cut the outer profile by laser, leave machining allowance on the features that need precision, then machine only those. You get sheet metal’s material efficiency on the bulk profile and machined precision where it counts, without paying for either across the whole part.
This is exactly the route we ran on the SS400 automation bracket described below — laser-cut outer profile, 0.5 mm allowance retained on the internal cavities, then CNC gantry milling to final size. For a flat or near-flat bracket with an irregular outline and a few precision features, it frequently beats both pure processes.
Where the Crossover Actually Falls
For a typical bracket, machining and sheet metal cross over somewhere around 250-400 pieces. Below that, machining is often the lower total cost even before you account for flexibility — sheet metal still needs flat-pattern development, bend deduction, nesting, and bend-sequence validation even for one part, and that engineering time doesn’t amortise at low quantity.
Above the crossover, sheet metal economics shift decisively. Nesting packs many blanks per sheet, cutting cycles are seconds, and bending runs repeatably.
Treat that range as a starting point rather than a rule. It moves substantially with geometry complexity, material thickness, and how many precision features the part carries.
Decision Criteria: Six Questions That Settle It
- Does the geometry unfold from a flat pattern? If yes, sheet metal is in play. If no, machining or casting.
- Is any hole or interface tolerance tighter than ±0.15 mm? If yes, machining, or a hybrid with machined precision features.
- Does the part need localised thickness? Bearing bosses, threaded sections, load-path thickening — sheet metal can’t do it without secondary operations.
- Is the design frozen? If not, avoid anything requiring tooling.
- What’s the annual quantity? Under a few hundred pushes toward machining; thousands pull toward tooled processes.
- Is the part fatigue-critical? If so, be cautious with castings and weldments — porosity and weld toes are crack initiation sites.
Two Bracket Programmes and What They Required
Abstract guidance is easy. Here are two real bracket jobs with the actual numbers, because the tolerance and process detail is what’s genuinely hard to find.
Magnesium Aerospace Bracket: H7 Holes, js6 Spacing, 0.05 mm Deformation
A magnesium alloy module side bracket for an aerospace application. Order quantity: one piece.
The requirements were demanding for a part with no production volume behind it. All datum surfaces finish-machined. H7 precision holes. js6 tolerance on the related pin-hole spacing. Total deformation controlled within 0.05 mm. The part had a large square profile, which made flatness the dominant risk — large flat areas in magnesium are exactly where residual stress expresses itself.
The process route that got there:
- Rough machine the outer profile, leaving 0.5 mm allowance for finishing
- Anneal after roughing to release internal stress before precision work
- Finish with tool runout controlled within 0.01 mm to support stable H7 hole machining
- Full in-process inspection verifying holes, spacing, and deformation as the part progressed
One detail worth drawing out: the machined tool marks were preserved without secondary polishing. Where a customer might reflexively specify polishing for appearance, additional finishing on a part like this risks both dimensional consistency and the surface texture already achieved. Sometimes the right finishing operation is none.
SS400 Automation Bracket: 5 mm Thick, Chrome Plated, 0.05 mm Flat
An SS400 steel bracket for automation equipment. Three pieces, 5 mm thick, irregular outer profile with internal cavities, flatness within 0.05 mm, chrome plated.
Thin steel brackets are routinely underestimated. At 5 mm, the part has very little stiffness against cutting force, and every operation — laser cutting, milling, plating — is a chance to introduce distortion.
The route:
- Laser cut the outer profile to establish the rough shape efficiently
- Leave 0.5 mm allowance in the internal cavities for final milling
- CNC gantry milling of outer profile and cavities to final dimensions
- Manual flatness correction to bring the part within 0.05 mm
- Chrome plating per the surface requirement
- Post-plating correction — flatness corrected again after plating
- Dimensional and appearance inspection on every piece
Step six is the one most specifications miss entirely, and we’ll return to it in the surface treatment section. Plating is not a dimensionally neutral operation. Assuming a part that was flat before plating is still flat afterward is how flatness requirements get missed on parts that were made correctly.
What Both Had in Common
Two different materials, two different industries, two different process routes. The same underlying strategy:
Stage the work, stabilise in the middle, finish last.
Both parts were rough-processed with a deliberate 0.5 mm allowance. Both had a stabilisation step before or after final machining — annealing in one case, manual correction in the other. Both had final precision established after the part had settled rather than before. Both were inspected during production rather than only at the end.
That sequence is the general answer to distortion on brackets. The specific stabilisation step varies with material and geometry, but the shape of the process route doesn’t. A bracket machined straight from raw stock to final dimensions in one pass will hold tolerance until the stress in the material decides otherwise.

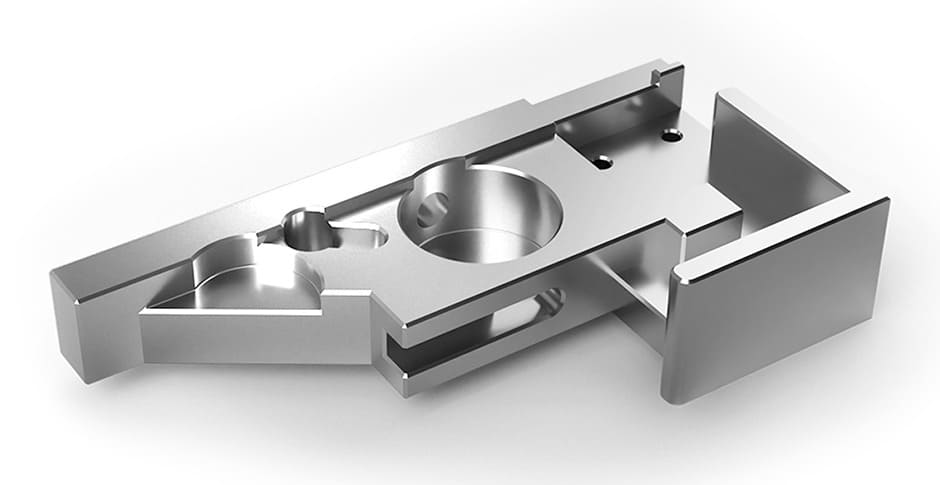

Bracket Geometries and What Each One Demands

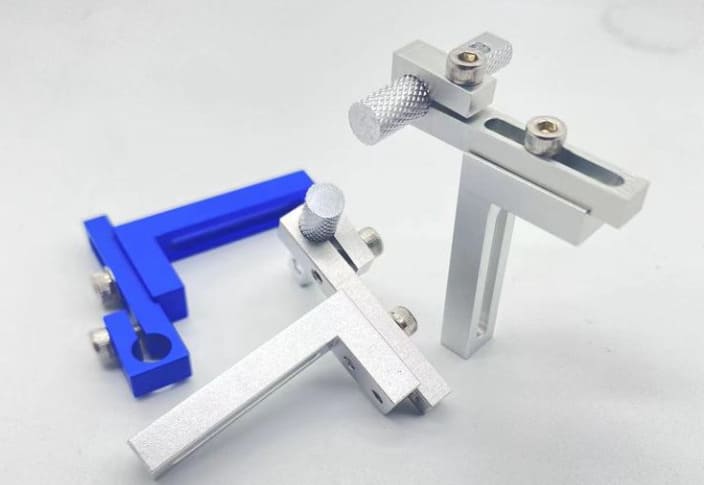

L-Brackets and Angle Brackets
The simplest form, and the one most often better made from sheet metal. Machining an L-bracket from solid makes sense when the corner needs to be genuinely stiff (no bend radius weakness), when localised thickness is needed at fastener locations, or when hole tolerances are tighter than bending can hold.
The machining consideration is that an L-shape from billet wastes most of the block. If the geometry is simple and the quantity is meaningful, price it both ways.
Gusseted and Ribbed Brackets
Gussets and ribs add stiffness without adding much mass — the single most effective structural move available on a bracket.
Machining considerations: rib thickness below about 1.5 mm in aluminium starts causing chatter and deflection problems. Internal corners where ribs meet walls need a radius at least equal to the tool radius, which means specifying corner radii you can actually cut. A 0.5 mm corner radius requires a 1 mm tool, which is slow and fragile in anything but shallow features.

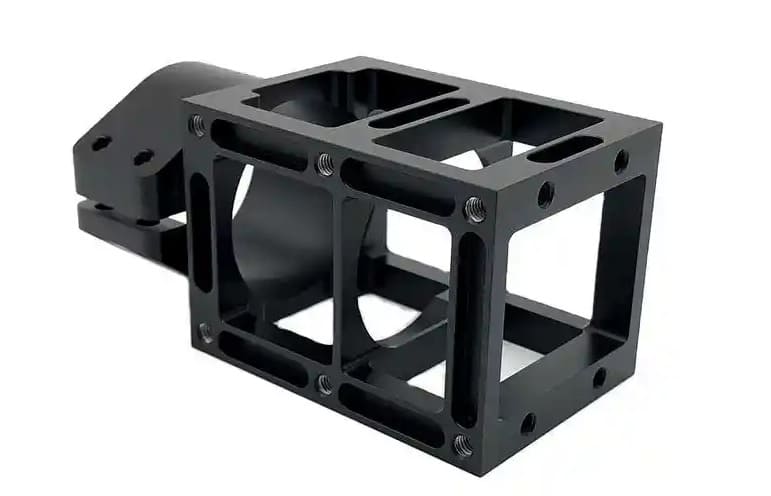

Flanged and Multi-Plane Brackets
Brackets with mounting faces on more than one plane are where machining decisively beats forming — and where setup strategy determines both cost and accuracy.
If the faces can be machined in a single setup, their relationship to one another is limited only by machine accuracy. If they need separate setups, every face-to-face relationship inherits the fixturing error between setups. For a bracket whose whole job is holding two things in a defined relationship, that difference matters.
This is the main argument for 5-axis machining on brackets: not exotic geometry, just getting every functional face in one setup.

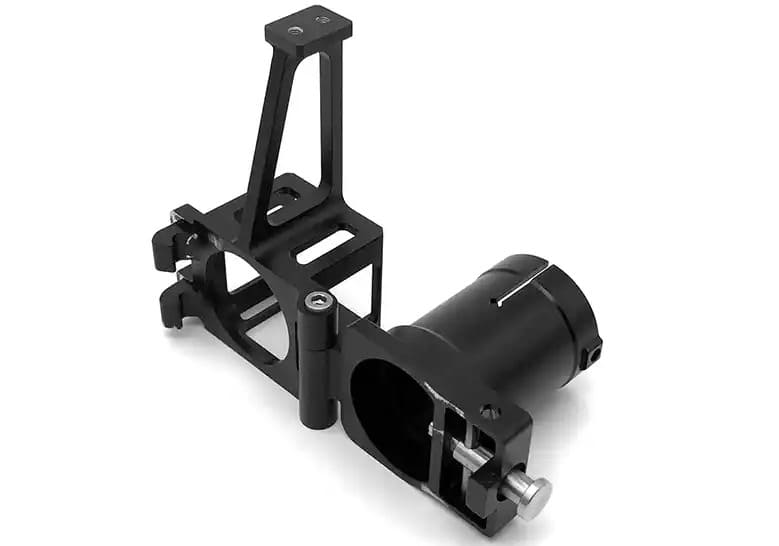

Motor and Actuator Mounts
Motor mounts are alignment parts. The pilot diameter that locates the motor, its concentricity to whatever the motor drives, and the flatness of the mounting face together determine whether the drive train runs true.
Typical requirements: pilot bore to H7, concentricity to the driven axis within 0.02-0.05 mm depending on coupling type, mounting face flatness within 0.05 mm, and bolt pattern position tolerance around ±0.05 mm. Motor mounts also see the machine’s operating excitation directly, so natural frequency deserves a look.
Sensor and Optical Mounts
The most demanding category relative to their apparent simplicity. A sensor mount’s function is to hold a device in a position that a calibration assumes, and to keep holding it through thermal cycling and vibration.
The features that matter: mounting face flatness (a sensor bolted to a non-flat face is a sensor in an unpredictable position), position tolerance of the mounting pattern referenced to a functional datum, and thermal stability of the material and geometry. Load capacity is usually irrelevant.
Adapter Plates and Transition Brackets
Adapter plates exist to connect two hole patterns that don’t match. Their entire function is hole position accuracy, and they’re a pure GD&T exercise — two patterns on one part, each referenced to its own mating interface, with the relationship between them controlled.
We machine a lot of these as custom tooling plates and fixture bases, where the same logic applies at larger scale.
Isolation and Damped Mounts
Mounts incorporating elastomeric or spring isolators are a different design problem: the isolator provides the compliance, and the machined part must be stiff enough not to participate.
The common failure is a machined bracket whose own natural frequency falls within the range the isolator was selected to handle. The isolator does its job, the bracket resonates, and the assembly vibrates worse than it would have rigidly mounted. Machined mount structures in isolated systems should be substantially stiffer than the isolation frequency — a factor of five or more in frequency separation is a reasonable starting target.
Stiffness, Mass, and Natural Frequency
The technical content most bracket articles skip, and the part that most often determines whether a mount works.
Why Stiffness Matters More Than Strength on Most Brackets
Brackets are rarely strength-limited. Take a typical machined aluminium bracket carrying a few hundred newtons — run the stress numbers and you’ll usually find safety factors in the range of five to fifteen. The part is nowhere near yielding.
What it may well be is too flexible. Deflection under load moves whatever the bracket holds. Low stiffness means low natural frequency, which brings resonance into the operating range. And a flexible bracket cycles through larger strain ranges, which is a fatigue concern even at low stress.
Design brackets for stiffness and strength usually takes care of itself. Design for strength alone and you’ll produce parts that are strong, flexible, and disappointing.
Specific Stiffness: Why Aluminium, Steel, and Titanium Are Nearly Identical
Here is the fact that surprises most engineers the first time they check it.
Specific stiffness — elastic modulus divided by density — is remarkably similar across the common structural metals:
| Material | Elastic modulus E (GPa) | Density ρ (g/cm³) | Specific stiffness E/ρ |
|---|---|---|---|
| 6061-T6 aluminium | 68.9 | 2.70 | 25.5 |
| 7075-T6 aluminium | 71.7 | 2.81 | 25.5 |
| Steel (all grades) | ~200 | 7.85 | 25.5 |
| Ti-6Al-4V titanium | 113.8 | 4.43 | 25.7 |
| Magnesium AZ31 | 45 | 1.77 | 25.4 |
They’re all within about 1% of each other. This is not a coincidence — it reflects the underlying atomic bonding physics of metals.
The implication is significant and counter-intuitive: at equal mass and equal geometry, all of these materials give you the same stiffness. Choosing steel over aluminium for a stiffer bracket doesn’t work if you keep the mass the same, because the steel version will be a third of the thickness.
Where the difference actually comes from is that aluminium at equal mass gives you three times the volume — which means much thicker sections. And section stiffness in bending scales with thickness cubed. A 30 mm thick aluminium bracket is dramatically stiffer than a 10 mm steel bracket of the same mass, not because aluminium is stiffer, but because you got to use more of it.
That’s the real reason aluminium dominates stiffness-critical brackets. Not the material — the geometry the material lets you afford.
Steel still wins where thickness is constrained by envelope, where strength genuinely governs, where wear resistance matters, or where thermal expansion needs to match a steel assembly.
Section Geometry Beats Material Selection
Following from the above: on a stiffness-driven bracket, geometry decisions dominate material decisions by a wide margin.
Bending stiffness scales with the second moment of area, which for a rectangular section goes as thickness cubed. Doubling a section’s depth multiplies its bending stiffness by eight. No material substitution available to you comes close to that leverage.
Practical consequences:
- Depth beats width. Making a bracket deeper in the bending direction is far more effective than making it wider.
- Material at the extremes does the work. Material near the neutral axis contributes almost nothing to bending stiffness — which is why I-sections and ribbed structures are efficient and solid blocks are not.
- Pockets are close to free. Removing material from the middle of a section costs little stiffness and saves real mass and machining time.
- Closed sections beat open ones in torsion, by an order of magnitude or more.
Natural Frequency and Frequency Separation Targets
A bracket’s first natural frequency follows the familiar relationship:
f = (1/2π) × √(k/m)
Stiffness up, frequency up. Mass up, frequency down. Both matter, and they pull in opposite directions when you add material — which is why “make it beefier” is not reliably the fix for a resonance problem. Adding a thick plate adds mass and may lower the frequency into a worse place.
The correct move is almost always to add stiffness without adding much mass — ribs, gussets, deeper sections, shorter unsupported spans, better constrained boundary conditions.
For separation targets, keep the bracket’s first mode well above the highest significant excitation frequency. A factor of two is a common minimum; three or more is comfortable. Where a machine ramps through a speed range, the bracket needs to clear the top of that range, not just the operating point.
Excitation sources worth checking: motor running speed and its harmonics, gear mesh frequency, blade or vane pass frequency, servo bandwidth, and structural modes of whatever the bracket attaches to.
Ribbing Strategy: Where Material Actually Earns Its Mass
Ribs are the most efficient stiffening tool available, but only when placed correctly.
- Align ribs with the load path. A rib perpendicular to the direction of bending contributes very little.
- Height beats thickness. A tall thin rib is much stiffer per unit mass than a short thick one, up to the buckling limit.
- Triangulate corners. Gussets at the junction of two planes are the highest-value stiffening feature on most brackets.
- Respect machinability. Rib thickness below about 1.5 mm in aluminium invites chatter. Rib height-to-thickness ratios beyond roughly 8:1 need careful toolpath work.
- Rib intersections need radii. Sharp internal corners are both a stress concentration and unmachinable.
When Damping Matters More Than Stiffness
Occasionally you can’t move the natural frequency out of the excitation range — the excitation is broadband, or the envelope won’t allow more stiffness. Then the answer is damping.
Metals have very low inherent damping, and the differences between them are small in absolute terms (magnesium and cast iron are somewhat better than aluminium or steel, but not enough to solve a problem on their own). Effective damping usually has to be added: constrained-layer damping treatments, elastomeric interface elements, or tuned mass dampers.
The design consequence for a machined part is providing the mounting provisions — flat bonding surfaces for damping treatments, attachment features for tuned dampers, defined interfaces for elastomeric elements.
The Bolted Joint: What Your Bracket Is Really Holding
Every bracket ends in bolts, and this is where the machining specification meets the part’s actual function.
Preload Is the Product, Not the Fastener
A properly designed bolted joint carries load through friction between clamped members, not through the bolt in shear. The bolt’s job is to generate and maintain the clamp force that makes that friction possible.
This reframes what the bracket has to deliver. The bracket must provide surfaces that let preload be generated accurately and retained over time. Everything below follows from that.
Bearing Surface Flatness and Embedment Relaxation
No machined surface is truly flat at the microscopic scale. Under preload, the high spots crush, and every micron of that flattening is stretch the bolt loses.
Embedment happens quickly — most of it during tightening and in the first few load or thermal cycles — and typically costs 5-10% of installed preload, more on rough or coated surfaces. Add thermal relaxation and creep, and 10% preload loss allowance is a common design assumption.
The machining lever is straightforward: smoother and flatter bearing surfaces embed less. For joints where preload retention matters, specify the bearing surface, not just the part. Ra 1.6 μm or better under fastener heads and at clamped interfaces is a reasonable target, with flatness called out over the bearing area rather than the whole part.
Coplanarity and Soft Foot in Multi-Point Mounts
The failure that catches more assemblies than any other on this list.
When a bracket bolts down at three or more points, those mounting faces need to be coplanar. If one sits proud, the bracket rocks on the others — and torquing the fasteners pulls the part into a distorted shape. This is the machinery equivalent of “soft foot” in rotating equipment installation.
The consequences: the bracket is preloaded into a bending state before it ever sees service load, the distortion propagates into whatever it holds, alignment shifts as fasteners are tightened in sequence, and preload distribution across the pattern becomes unpredictable.
Two things fix it. Specify coplanarity as a profile tolerance across all mounting faces simultaneously, not flatness on each face individually — flat faces at different heights are still non-coplanar. And where the mating structure can’t be trusted flat, design for it: fewer mounting points, spherical washers, or deliberately compliant regions between mounting pads.
Thread Engagement in Aluminium: The 1.5-2× Rule
When a steel fastener threads into aluminium, the aluminium threads are the weak element. Engagement has to be long enough that thread shear capacity in the aluminium exceeds the bolt’s tensile capacity — otherwise you strip the part before the bolt yields, and the joint can never reach its design preload.
The working rule for steel into aluminium is 1.5 to 2 times nominal diameter of engagement, versus roughly 1× for steel into steel. Magnesium and plastics need more still.
Practical numbers: an M6 fastener into aluminium wants 9-12 mm of thread engagement. An M4 wants 6-8 mm. This is a real design constraint on thin brackets, and it’s where a lot of drawings quietly specify something unachievable — an M6 tapped hole in a 6 mm thick bracket cannot deliver the engagement the fastener needs.
Related points that matter as much: don’t count the first thread or two, which carry little load. Chamfer tapped hole entries. And on blind holes, ensure the drilled depth accommodates the tap’s lead.
Threaded Inserts: When the Parent Material Isn’t Enough
Where the section is too thin for adequate engagement, or where the joint will be disassembled repeatedly, threaded inserts move the thread into a stronger material.
Options in rough order of frequency: helical wire inserts (cheap, effective, need a specific tapped hole), key-locking inserts (higher strength, better for repeated assembly), press-in and self-clinching inserts (fast, need a controlled hole and adequate material around it), and heat-set inserts (for plastics).
All of them require a controlled hole and adequate boss material around them. Specify the insert on the drawing rather than leaving it to assembly — the hole preparation differs by type and isn’t interchangeable.
Counterbore and Spotface Requirements
Small features, disproportionate effect.
A fastener head bearing on an unmachined, angled, or radiused surface produces uneven preload and side-loads the fastener. On any bracket surface that isn’t already flat and perpendicular to the hole axis — cast surfaces, angled faces, curved profiles — specify a spotface.
Requirements worth stating: spotface diameter at least 1.5× the fastener head diameter, perpendicular to the hole axis within about 0.5°, surface finish Ra 1.6 μm or better, and no burrs at the hole edge. A burr under the bolt head is embedment waiting to happen.
Preload Scatter and Why Torque Control Isn’t Precision
Torque wrenching is the standard method of setting preload and it is much less accurate than most people assume. Because most applied torque goes into overcoming friction under the head and in the threads, and friction coefficients vary widely with surface finish, coating, lubrication, and cleanliness, preload scatter of ±25-30% is typical with torque control even using calibrated tools.
The design response is to leave margin — assume preload could land well below nominal and check that the joint still works, and well above nominal and check nothing yields.
The machining response is that consistent surface finish and coating produce consistent friction, which produces less scatter. This is a case where a specification that seems cosmetic is doing structural work.
Specifying Flatness as a Preload Requirement
Pulling this section together into drawing practice.
For a bracket whose function depends on maintaining preload, the drawing should carry:
- Flatness on each bolted bearing surface, typically 0.05-0.1 mm over the bearing area
- Profile tolerance controlling coplanarity across all mounting faces as a group
- Surface finish under fastener heads and at clamped interfaces, Ra 1.6 μm or better
- Thread engagement depth stated explicitly, with insert callouts where used
- Spotface requirements on any non-flat or non-perpendicular fastener seat
- A note that flatness applies after any surface treatment
That last item matters more than it looks, as the SS400 case demonstrated. Plating and coating change flatness, and a specification silent on the point will be interpreted as applying to whichever state the supplier measures.
Materials for Brackets and Mounts
6061-T6: The Default and Why It Usually Wins
6061-T6 is the correct answer for most brackets and it isn’t close. Yield strength around 276 MPa, excellent machinability, good corrosion resistance, readily available in plate and bar, and it anodises consistently.
Combined with the specific stiffness point above — aluminium’s advantage is that equal mass buys you far more section — 6061 covers most bracket requirements at the lowest total cost.
Use something else when you have a specific reason, not by default.
7075-T6: When Strength Justifies the Cost
7075-T6 nearly doubles 6061’s yield strength at essentially the same density and stiffness. That buys you thinner sections in strength-limited areas, which matters when envelope is tight.
The trade-offs: higher material cost, worse corrosion resistance, poor weldability, and inconsistent anodising appearance due to zinc content. And note that it does not buy stiffness — the modulus is nearly identical. If your bracket is stiffness-limited rather than strength-limited, 7075 costs more and changes nothing.
Steel and Stainless: Where Aluminium Runs Out
Steel earns its place when the envelope constrains thickness so severely that aluminium can’t get the section it needs, when wear or galling resistance matters, when thermal expansion must match a steel assembly, or when absolute cost per part dominates and the mass penalty is acceptable.
Common grades on bracket work include general structural steels like SS400 (as in the automation bracket above), 1045 for higher strength, and 304 or 316 stainless where corrosion resistance is required. 17-4 PH covers cases needing both high strength and corrosion resistance.
Steel brackets machine more slowly than aluminium and are correspondingly more expensive per unit of machining time — but material cost is lower, which sometimes offsets it on simple geometry.
Titanium: Rarely Justified, Occasionally Essential
Ti-6Al-4V has excellent strength-to-density and outstanding corrosion resistance. Its specific stiffness, as shown above, is the same as aluminium’s — so titanium brackets are about strength, fatigue, temperature, or corrosion, never stiffness.
Machining cost runs roughly three to four times aluminium for equivalent geometry. Justified in aerospace, medical, marine, and high-temperature applications. Rarely justified elsewhere.
Magnesium: The Lightest Option, With Real Handling Requirements
Magnesium alloys are roughly 30% lighter than aluminium at essentially identical specific stiffness, with good vibration damping and low cutting forces.
The constraint is safety. Magnesium chips are combustible and fine dust is a genuine fire and explosion hazard, which requires appropriate coolant selection, dedicated chip handling, Class D extinguishing capability at the machine, and trained operators. Comparatively few shops offer it.
We machine magnesium bracket components in production — the aerospace module side bracket described earlier was magnesium, held to H7 holes and 0.05 mm deformation. If you’re evaluating suppliers for magnesium work, ask what coolant they run and how chips are handled; the answers separate real capability from claimed capability quickly.
Engineering Plastics and Thermal Isolation Mounts
Occasionally the right answer. Plastics are used for brackets where electrical isolation, thermal isolation, corrosion immunity, or weight reduction outweighs stiffness.
Common choices: acetal (dimensionally stable, machines beautifully), PEEK (high strength and temperature capability, expensive), and glass-filled nylons (good stiffness for a polymer, abrasive to tooling). Note that all polymers have elastic moduli one to two orders of magnitude below metals, so plastic brackets are flexible by comparison and creep under sustained load.
Material Selection by Governing Requirement
| Governing requirement | First choice | Alternative | Avoid |
|---|---|---|---|
| Stiffness in an unconstrained envelope | 6061-T6 | Magnesium AZ31 | Steel at equal mass |
| Strength in a tight envelope | 7075-T6 | Steel, Ti-6Al-4V | 6061-T6 |
| Minimum mass | Magnesium AZ31 | 7075-T6 | Steel |
| Lowest cost, moderate volume | Steel (SS400 or similar) | 6061-T6 | Titanium |
| Corrosion resistance | 316 stainless | Ti-6Al-4V, anodised 6061 | Magnesium (without protection) |
| Thermal match to steel assembly | Steel | 17-4 PH | Aluminium |
| Electrical isolation | PEEK, acetal | Glass-filled nylon | Any metal |
| Fatigue-critical | Ti-6Al-4V | 7075-T6 | Castings, weldments |
Hole Patterns, Tolerances, and GD&T
Brackets are, functionally, hole patterns with material connecting them. How those holes are specified determines whether the part assembles and what it costs.
Position Tolerance vs. Coordinate Dimensioning
Coordinate dimensioning — X and Y with ± tolerances — produces a square tolerance zone. True position tolerance produces a round one.
The difference is not academic. A ±0.1 mm coordinate tolerance allows up to 0.141 mm of diagonal error at the corners of the zone while rejecting 0.11 mm of pure-X error. The functional requirement — the hole is close enough to its nominal location — doesn’t care about direction. So coordinate tolerancing simultaneously rejects acceptable parts and accepts marginal ones.
True position with a round tolerance zone matches the function, and gives you about 57% more usable tolerance area for the same worst-case deviation. That’s free manufacturing margin for a drafting change.
Datum Selection: Why the Mounting Face Is Usually Datum A
Datums define how the part is measured and, ideally, how it’s used. The default for a bracket:
- Datum A: the primary mounting face — the surface that seats against the mating structure
- Datum B: a locating feature within that face, often a dowel hole or the pattern’s own centre
- Datum C: a secondary feature controlling rotation
The principle is that datums should replicate how the part is constrained in assembly. A bracket dimensioned from an arbitrary edge will measure differently than it functions, and the tolerance you specified won’t be the tolerance that matters.
MMC Bonus Tolerance: Free Tolerance You’re Probably Not Claiming
The most under-used tool in bracket dimensioning.
When position tolerance is specified at maximum material condition (MMC), the part earns additional position tolerance as the hole grows above its minimum size. For a clearance hole, this is exactly right functionally — a larger hole has more clearance around the fastener, so it can afford more positional error and still assemble.
Concretely: a Ø6.2 +0.2/0 clearance hole with position ⌀0.2 at MMC. At the minimum size of 6.2 mm, position tolerance is 0.2 mm. At the maximum size of 6.4 mm, the bonus adds 0.2 mm, giving ⌀0.4 mm total — double the tolerance, at no functional cost.
Most bracket drawings specify position with no material condition modifier, which forfeits this entirely. For clearance holes, MMC is nearly always appropriate and nearly always free money.
The exception: dowel and locating holes, where the fit itself is functional. Those should be at regardless of feature size (RFS), because a bigger dowel hole doesn’t help you.
Tolerance Stack-Up Across a Bracket Assembly
A bracket connecting two subassemblies participates in a stack that includes the mating pattern on each side, the bracket’s own two patterns, and the clearances at each interface.
The two useful analyses:
Worst-case sums all tolerances at their extremes. Conservative, guarantees assembly, and often drives tolerances tighter than they need to be.
Statistical (RSS) takes the root-sum-square of the contributors, assuming they won’t all be at extremes simultaneously. More realistic for production volumes, and typically allows meaningfully looser individual tolerances.
For brackets, the practical approach is worst-case on anything where failure to assemble is unacceptable, and RSS elsewhere. And remember that clearance is a legitimate design tool — slotted holes at one interface can absorb an entire stack-up that would otherwise force expensive tolerances everywhere.
Realistic Tolerance Targets by Feature
| Feature | Standard | Precision | Notes |
|---|---|---|---|
| Clearance hole position | ±0.1 mm | ±0.05 mm | Specify at MMC to gain bonus |
| Dowel / locating hole | H8 | H7 | H7 was the requirement on the magnesium bracket |
| Hole-to-hole spacing | ±0.1 mm | js6 or ±0.02 mm | js6 spacing was held on the magnesium bracket |
| Mounting face flatness | 0.1 mm | 0.05 mm | 0.05 mm achieved on both case parts |
| Coplanarity across faces | 0.15 mm | 0.05 mm | Profile across all faces as a group |
| Pilot bore for motor mount | H8 | H7 | Concentricity to driven axis matters more |
| General profile | ±0.2 mm | ±0.05 mm | Rarely needs to be tight |
| Surface finish, bearing faces | Ra 3.2 μm | Ra 1.6 μm | Finer reduces embedment |
| Thickness | ±0.1 mm | ±0.03 mm | Usually non-critical |
Where Tight Tolerances Are Worth Paying For — and Where They Aren’t
Machining cost climbs steeply as tolerances tighten, and the climb isn’t linear. Roughly: ±0.1 mm is essentially free on a milled part, ±0.05 mm requires attention, ±0.02 mm requires process control and inspection, and tighter than that means dedicated strategy and often additional operations.
Worth paying for: locating features that establish position, mounting face flatness on preload-critical joints, coplanarity across mounting faces, bore fits for bearings and pilots.
Usually not: overall profile dimensions, non-critical thickness, clearance hole sizes, cosmetic surface finish, features that don’t touch anything.
A common and expensive pattern is a drawing with a blanket ±0.05 mm title-block tolerance applied to every dimension. It signals that nobody identified which features actually matter, and it prices the part as though all of them do.
Machining Strategy and Distortion Control
Setup Strategy: Why Single-Setup Machining Matters for Hole Patterns
The relationship between features machined in one setup is limited by machine accuracy — typically well under 0.01 mm on a good machining centre. The relationship between features machined in different setups inherits the fixturing and datum-pickup error between them, which is usually an order of magnitude larger.
For brackets, where face-to-face and pattern-to-pattern relationships are the whole function, this drives strategy directly. Getting all functional faces in one setup is often more valuable than any other single decision.
3-Axis vs. 5-Axis for Multi-Plane Brackets
A bracket with mounting faces on two or three planes typically needs three to five setups on a 3-axis machine, or one to two on a 5-axis.
The cost comparison is usually closer than it appears — 5-axis machine rates are higher, but setup count drops sharply, and setup labour plus fixturing often dominates. The accuracy comparison isn’t close at all: single-setup machining removes inter-setup error entirely.
For simple flat brackets, 3-axis is correct and 5-axis is a waste. For multi-plane brackets with related features across planes, 5-axis usually wins on both counts.
Residual Stress and Flatness Stability
The distortion mechanism that catches people out, because the part measures correctly and then moves.
Rolled plate and extruded bar carry locked-in residual stress from processing. Machining removes material asymmetrically, the remaining stress redistributes, and the part changes shape — sometimes on the machine, sometimes hours later.
The severity scales with how much material you remove and how asymmetric the removal is. A bracket machined from a thick plate down to a thin ribbed structure is a worst case.
The countermeasures, in the order we apply them:
- Specify stress-relieved stock. Plate in a stress-relieved temper behaves far more predictably than as-rolled.
- Rough with allowance, then stabilise, then finish. Both case study parts used 0.5 mm allowance before final machining.
- Add an intermediate stress-relief operation where precision requires it. The magnesium bracket was annealed after roughing specifically for this reason.
- Remove material symmetrically where geometry allows, alternating sides rather than finishing one face completely first.
- Allow settling time between roughing and finishing on high-precision parts.
Fixturing Thin and Asymmetric Brackets
Clamping force distorts parts, and the distortion springs back after release. A thin bracket clamped hard in a vice will machine correctly and be out of tolerance when unclamped.
Approaches that work on bracket geometry: vacuum fixturing for parts with a flat face, custom soft jaws matched to the part contour, sacrificial tabs holding the part in stock and removed last, and low clamping force with a larger number of contact points.
For thin plate brackets specifically — the 5 mm SS400 part is representative — the cutting force itself matters as much as clamping. Light finishing passes with sharp tooling reduce deflection more effectively than trying to clamp the part rigidly enough to resist heavy cuts.
We use the same principles on jigs and fixtures, which are typically thin plate structures with precision hole patterns and the same distortion sensitivity.
Achieving and Holding Flatness on Large Mounting Faces
Flatness on a large face is a combination of machining strategy and stress management, and sometimes needs a correction step.
What contributes: stock condition and residual stress, fixturing and clamping distortion, cutting force and thermal input, tool condition, and post-machining processes including surface treatment.
The strategies: face-mill with a large-diameter cutter in a single pass where possible rather than stepping over, take a light final pass to remove cutting-force deflection, machine both sides where practical to balance stress, and — where required — apply mechanical correction after machining.
That last option is legitimate and sometimes necessary. On the SS400 bracket, manual flatness correction was applied after machining, and again after chrome plating, to hold 0.05 mm on a 5 mm thick part. Some geometries won’t reach the requirement by machining alone.
Surface Treatment and Its Effect on Fit
Surface treatment is where brackets that were made correctly stop being correct.
Coating Changes Dimensions
Every coating changes part dimensions, and the change is often larger than the tolerance it lands in.
For hard anodising, the dimensional effect is severe: because anodising converts the substrate rather than adding to it, growing roughly half outward and half inward, hole diameters reduce by approximately the full coating thickness. A 50 μm Type III coating takes about 50 μm out of a hole — more than three times an H7 band on a typical bracket dowel hole.
Plating behaves differently and, per unit thickness, worse — deposited coatings add their full thickness to each surface, so a hole diameter reduces by twice the plating thickness.
We’ve covered this in depth in our guide to hard anodising dimensional control, which includes growth rates by coating type and the four strategies for handling it. For brackets specifically, the features that need attention are dowel and locating holes, threaded holes, and any interface with a specified fit.
Correcting Flatness After Plating: A Step Most Specifications Miss
Coating changes shape as well as size, and this is where thin brackets get caught.
Plating processes involve chemical baths, temperature changes, and — for electroplating — internal stress in the deposited layer. On a thin or asymmetric part, all of these can move the geometry. A bracket that was flat within 0.05 mm before plating may not be after.
The SS400 automation bracket is a direct example. The process route included manual flatness correction after machining, and a second correction after chrome plating. Without that second step, the 0.05 mm flatness requirement would not have survived the finishing operation — on a part that was made correctly.
Two practical implications. First, state on the drawing whether flatness applies before or after coating; if it’s silent, you’re relying on the supplier’s assumption. Second, on thin plated brackets with real flatness requirements, budget for post-plating correction as a planned operation rather than a recovery.
Coating on Bearing Surfaces and Its Effect on Preload
Coatings change friction behaviour at the interfaces where preload is generated, which changes the torque-to-preload relationship.
The effects are real but not always intuitive: a coating that lowers friction increases achieved preload at a given torque, which can over-stress the fastener or the tapped threads. A coating that raises friction reduces preload, leaving the joint under-clamped. Some coatings are also softer than the substrate, which increases embedment and accelerates preload loss.
If a joint is preload-critical, either mask the bearing surfaces or establish the torque specification against the coated condition — not the bare-material value from a fastener table.
Electrical Continuity Through Bracket Interfaces
Where a bracket is expected to provide grounding, bonding, or EMI continuity, the coating matters.
Anodising is an electrical insulator. A bracket specified “anodise all over” that also needs to ground its payload will not ground it. The standard fix is chromate conversion coating on the contact surfaces, which maintains conductivity at under a micrometre of thickness and therefore has essentially no dimensional effect — or masking those surfaces and leaving them bare.
Either approach has to be on the drawing from the start.
Corrosion and Galvanic Considerations at Dissimilar Metal Joints
Brackets sit at material transitions by nature — an aluminium bracket bolted to a steel frame with stainless fasteners is a common and galvanically active arrangement.
Where dissimilar metals meet in the presence of moisture, the less noble material corrodes preferentially. Aluminium against stainless steel is a meaningful couple; magnesium against almost anything is a severe one.
Mitigations: isolating washers and bushings at the fastener, coatings on one or both surfaces, sealants at the interface, or material selection that reduces the potential difference. For magnesium brackets specifically, isolation from steel fasteners is not optional in any environment where moisture is present.
Design for Manufacturability
Minimum Wall and Rib Thickness
| Material | Comfortable minimum | Achievable | Notes |
|---|---|---|---|
| 6061-T6 aluminium | 1.5 mm | 0.8 mm | Most predictable |
| 7075-T6 aluminium | 1.2 mm | 0.7 mm | Higher stiffness helps |
| Magnesium AZ31 | 1.5 mm | 1.0 mm | Low cutting force helps |
| Steel | 1.0 mm | 0.6 mm | Stiff, but slow to machine |
| Ti-6Al-4V | 1.0 mm | 0.6 mm | Heat management critical |
| Acetal / PEEK | 2.0 mm | 1.5 mm | Thermal softening is the limit |
Below the comfortable minimum, expect chatter marks, deflection-induced dimensional variation, and higher cost from conservative cutting parameters. Unsupported span matters as much as thickness — a thin rib that’s short and well-supported is far easier than the same thickness spanning 200 mm.
Internal Corner Radii and Tool Access
Internal corners must have a radius at least equal to the cutting tool’s radius, and preferably larger. This is the most common DFM issue on bracket drawings.
Guidance: specify internal corner radii at least 1.2× the largest tool that can reach the feature. Bigger radii let bigger tools cut faster with better finish. Every reduction in specified corner radius forces a smaller tool, which cuts more slowly, deflects more, and breaks more often.
For a pocket 20 mm deep, a 3 mm corner radius requires a 5 mm or smaller tool at 4:1 length-to-diameter — workable. A 1 mm corner radius in the same pocket requires a 1.6 mm tool at 12:1, which is slow, fragile, and expensive.
Pocket Depth-to-Width Ratios
Deep narrow pockets are expensive. Tool length-to-diameter ratio drives rigidity, and rigidity drives how fast material can be removed.
As a guide: up to 3:1 depth-to-tool-diameter is straightforward, 3:1 to 5:1 needs care, 5:1 to 8:1 is slow with reduced parameters, and beyond 8:1 needs specialised tooling and a serious cost premium.
If a pocket needs to be deep, make it wide enough to use a large tool.
Consolidating a Weldment into a Machined Part — and When Not To
Replacing a welded assembly with a single machined part eliminates weld distortion, removes heat-affected zone strength loss, improves fatigue performance, removes assembly labour, and eliminates the tolerance stack across welded joints.
It also usually costs more per part and wastes far more material.
The consolidation is worth it when the assembly is fatigue-critical, when precision across the weld joints is required, when quantity is low enough that welding setup dominates, or when the welded version keeps failing.
It isn’t worth it when the part is large enough that billet cost becomes prohibitive, when the geometry is simple and load paths are undemanding, or when quantity is high and the welded version performs adequately.
Designing for a Single Setup
Since setup count drives both cost and accuracy, designing to reduce it pays twice.
- Keep functional features accessible from as few directions as possible
- Avoid features on opposite faces requiring tight relationships to each other
- Provide a clear datum face and a workholding surface that doesn’t carry critical features
- Allow enough material for fixturing — a part with no grip surface needs custom fixturing
- Where a second setup is unavoidable, put the non-critical features there
Standardising Hardware Across a Bracket Family
An underrated cost lever on programmes with many brackets.
Using three fastener sizes instead of eight across a bracket family reduces tooling changes, simplifies assembly, cuts inventory, and reduces the chance of assembly error. The same applies to corner radii — standardising on a small set of radii means fewer tool changes and better toolpath reuse.
For customers running families of brackets, this is usually the largest available saving that requires no compromise on function.
Cost Drivers and Lead Time
What Actually Drives Bracket Cost
In rough order of impact:
- Setup count — the dominant variable on most brackets
- Material removal volume — machine time scales with what you cut away, not what you keep
- Tolerance and finish — steeply nonlinear beyond ±0.05 mm
- Tool accessibility — small radii and deep pockets force slow tooling
- Material — both stock cost and machinability
- Quantity — setup amortisation and process refinement
- Surface treatment — including any masking and post-treatment correction
- Inspection — full inspection versus sampling
Note what’s near the bottom: material grade. Designers often optimise material cost while ignoring setup count, which usually has several times the impact.
Material Utilisation and the Billet Problem
A complex machined bracket typically consumes three to four times its finished weight in stock. A 1 kg finished bracket may start as a 4 kg plate.
This is why machining cost tracks the starting envelope rather than the finished part. Two brackets with identical finished mass can differ substantially in cost if one fits in a smaller block.
Practical levers: design to standard plate thicknesses so you’re not machining down from an oversize blank, keep the overall envelope tight, and consider whether an extruded profile or a laser-cut blank could provide the rough shape.
Setup Count as the Dominant Variable
Each additional setup adds fixturing, part handling, datum pickup, program change, and first-article verification. On a bracket with modest machining time, setup can easily exceed cutting time in total cost.
This is why a design change that lets a part be machined in one setup instead of three often saves more than any other optimisation available — and why 5-axis machining is frequently cheaper for multi-plane brackets despite the higher machine rate.
Tolerance and Finish Cost Multipliers
Approximate multipliers on a milled feature, relative to standard ±0.1 mm:
| Tolerance | Approximate cost multiplier |
|---|---|
| ±0.1 mm | 1.0× (baseline) |
| ±0.05 mm | 1.2-1.4× |
| ±0.02 mm | 1.8-2.5× |
| ±0.01 mm | 3× and up |
These apply to the features carrying the tolerance, not the whole part — which is exactly why blanket tight tolerances are so wasteful. Tightening the ten features that matter costs a fraction of tightening all sixty.
Quantity Breaks and Where They Fall
Bracket pricing typically steps at these points:
- 1-5 pieces: setup dominates completely; per-part cost is highest
- 5-25 pieces: setup amortises meaningfully; often the biggest single price drop
- 25-100 pieces: custom fixturing becomes worthwhile; process gets optimised
- 100-500 pieces: approaching the sheet metal crossover for suitable geometry
- 500+: evaluate tooled processes seriously
Both case study parts sat at the extreme low end — one piece and three pieces. At those quantities, the entire cost is process planning, fixturing, and inspection, and the way to control it is manufacturability rather than negotiation.
Sourcing Brackets and Mounts
What to Send with an RFQ
A complete RFQ package gets a better price and a faster quote, mostly because it removes the risk allowance a supplier adds for ambiguity:
- 3D model in STEP or Parasolid
- 2D drawing with tolerances, GD&T, datums, and notes
- Material specification including alloy and temper
- Surface treatment with standard and thickness, and whether dimensions apply before or after
- Quantity, including likely follow-on volumes
- Critical features identified — which tolerances are functional and which are default
- Assembly context where relevant — what it mounts to, what loads it sees, what excitation it will experience
That second-to-last point is worth more than most people expect. A supplier who knows which three of your forty dimensions actually matter can machine and inspect accordingly. A supplier facing a drawing where everything looks equally critical will either price it all as critical or guess.
Questions That Reveal Whether a Supplier Understands the Joint
Useful for evaluating any bracket supplier:
- How will you control flatness and coplanarity on the mounting faces?
- What’s your approach to residual stress on a part with this much material removal?
- Do the flatness and hole tolerances apply before or after surface treatment, and how do you verify it?
- What thread engagement do you recommend for these fasteners in this material?
- Which of my tolerances would you relax if you could, and which would you tighten?
- How many setups will this take, and what would change that?
The last two separate suppliers who think about your part from suppliers who just quote it.
Richconn’s Approach to Brackets and Mounts
We machine brackets and mounts across aerospace, industrial machinery, robotics, and automation equipment applications, from single prototype pieces through production quantities.
Relevant capabilities: CNC milling including gantry milling for large or irregular bracket structures, 5-axis machining for multi-plane brackets requiring single-setup accuracy, Swiss machining for small precision mount hardware, wire EDM for sharp internal features, and sheet metal fabrication where that’s genuinely the better process. Materials span aluminium alloys, steels and stainless, titanium, magnesium, and engineering plastics.
The two case studies referenced throughout this article are representative of how we approach bracket work. On the magnesium aerospace bracket, a single-piece order still warranted a staged process route with post-rough annealing and 0.01 mm tool runout control, because H7 holes and 0.05 mm deformation don’t care about quantity. On the SS400 automation bracket, a hybrid laser-plus-machining route and correction both before and after chrome plating held 0.05 mm flatness on a 5 mm thick part.
Both illustrate the same thing: on brackets, the process route matters more than the machine list.
How to Start
- Send your files through richconn.com/contact — 3D model, 2D drawing, material, treatment, quantity
- Manufacturability review — we flag tolerance and coating conflicts, setup-count reductions, and material or process alternatives before quoting
- Quotation with lead time and any fixture cost broken out
- First article with dimensional inspection against the critical features
- Production with an inspection plan matched to what actually matters on the part
Conclusion
Brackets and mounts get treated as commodity parts, and most of them are. But the ones that cause problems cause them for consistent, predictable reasons — and almost none of those reasons are about whether the part was machined accurately.
They’re about whether the mounting faces were coplanar enough that torquing the bolts didn’t twist the part. Whether the bearing surfaces were flat and smooth enough to hold preload. Whether the thread engagement in aluminium was deep enough to reach design clamp load. Whether the first natural frequency landed clear of the excitation. Whether the plating operation moved the geometry after everything else was correct.
None of those appear on a typical bracket drawing. All of them are cheap to specify and expensive to discover.
The practical summary:
- Brackets and mounts are different parts — one is a load path, the other is a positioning interface
- Specific stiffness is nearly identical across structural metals — aluminium wins on stiffness because equal mass buys more section, not because the material is stiffer
- Section geometry beats material selection, since bending stiffness scales with thickness cubed
- Flatness and coplanarity on mounting faces are preload specifications, not cosmetic ones
- Steel into aluminium needs 1.5-2× diameter thread engagement — check it against your wall thickness
- Specify clearance hole position at MMC and collect the bonus tolerance you’re currently forfeiting
- Stage the machining — rough with allowance, stabilise, finish last
- Coating changes both size and shape — say whether tolerances apply before or after, and budget for correction on thin plated parts
- Setup count drives cost more than material grade does
And if the geometry unfolds from a flat pattern and your tolerances are ±0.3 mm, use sheet metal. We’ll tell you that too — we make them both ways.
If you have a bracket or mount programme in progress, send us the drawing. We’ll review it for manufacturability before quoting, and tell you which of your tolerances are doing real work.
