Are you struggling to make budget for a CNC machining project? Many manufacturers and consumers face difficulty in calculating costs accurately. This uncertainty can cause project delays and financial stress.
This blogpost will cover important factors like design optimization and material selection that will help you make the right decisions and decrease the production costs.
What is CNC Machining?

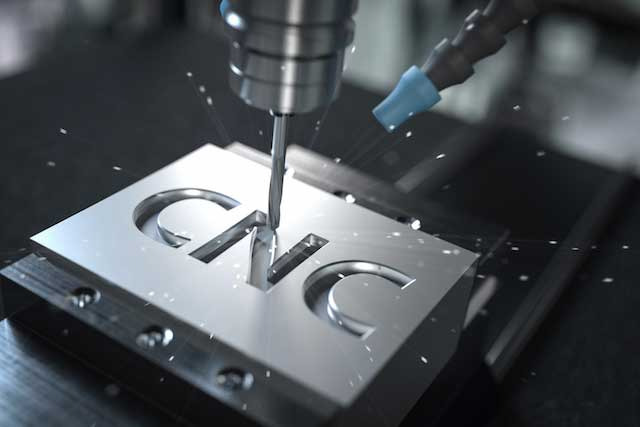

CNC machining is a subtractive manufacturing process that removes material by using computer controlled machines. It uses G-code instructions from 3D CAD models to guide cutting tools with accuracy. These machines perform operations like drilling, milling and turning on aluminum, brass and steel. They provide strict tolerances down to ±0.001 inches and make intricate shapes. This makes them appropriate for production and prototyping in many industries.
Key Factors Influencing CNC Machining Costs
Many important variables impact CNC machining costs. Knowing these factors will help manufacturers decrease costs and give their customers accurate quotes. Here are some important factors.
1. Material Selection
Material choice greatly impacts CNC machining costs through cutting parameters, machinability and tool wear. Harder materials need particular tooling and slower cutting speeds which increases machining cost. These factors usually increase machining time and the total production costs. For example, titanium has a low thermal conductivity (7.2 W/m·K) and it needs slower cutting speeds than aluminum (with 205 W/m·K thermal conductivity). This lower cutting speed lead to higher production costs and longer cycle times.
2. Complexity of the Design
Design complexity directly determines CNC machining costs. Complicated geometries need particular tools and advanced multi axis machines. Some features like tight internal radii, deep cavities and thin walls can decrease cutting speeds and increase programming time. These designs may also demand multiple setups which increases overall cost. When possible simplifying geometries can largely decrease machining costs without compromising the part’s performance or functionality.
3. Machining Time and Cycle Time
Machining time and cycle time both affect CNC costs. Machining time is actual cutting time, tool changes and rapid traverses, while cycle time include non-cutting operations like workpiece loading/unloading, setup and surface finish requirements. By optimizing these times with automated workpiece handling, proficient toolpaths and high speed machining strategies, manufacturers can increase machine utilization and decrease total production costs.
4. Tolerance and Precision Requirements
CNC machining costs increase substantially with tighter tolerances. Standard tolerances of ±0.005” need advanced equipment and shorter cycle times than standard tolerances of ±0.001”. High precision parts like spindle speed and feed rate mostly need tool changes and multiple setups to acquire accuracy of ±0.001”. This process demands longer machining times, particular equipment and careful inspection.

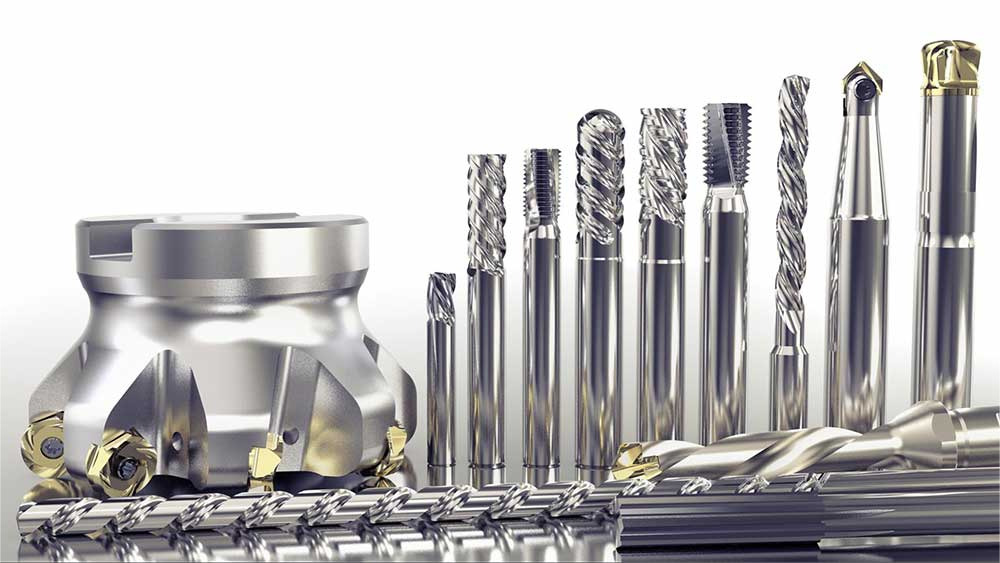

5. Tooling and Setup Costs
Choosing the right tools and minimizing setups can help decrease machining costs. For complex parts, custom workholding devices, fixtures like drill chuck fixtures and particular cutting tools are usually needed. The initial setup phase which includes loading material, calibrating tools and programming the CNC machine also increases the total cost. These fixed costs increase per unit price for small production runs as these costs are distributed across fewer parts.
6. Volume of Production
Production volume greatly impacts CNC machining costs through economies of scale. Large volumes distribute fixed costs like programming and setup cost across more units which reduce per-part cost. For example, increasing production size from 1 to 5 units can decrease cost by more than 50%. Manufacturers can further reduce cost in high volume production by implementing flexible manufacturing systems and advanced scheduling. These strategies can increase cost effectiveness and proficiency without compromising lead time or quality.
CNC Machining Cost Calculation Methods
Accurate cost calculation is important to profitable CNC machining. There are many methods to calculate right machining costs to help manufacturers make better decisions.
Traditional Cost Estimation Techniques
For traditional cost calculation in CNC machining, experts mostly rely on historical data and experience. These traditional methods are cost per unit and cost per hour which also involve machine time, material costs, overheads and labor rates. But these conventional methods may lack accuracy for distinct or complicated projects.
Cost Per Unit
In this method cost per unit is calculated by dividing total costs with the quantity produced. It includes direct costs like labor, material and overhead. This approach is appropriate for standard production but it can oversimplify complicated machining processes.

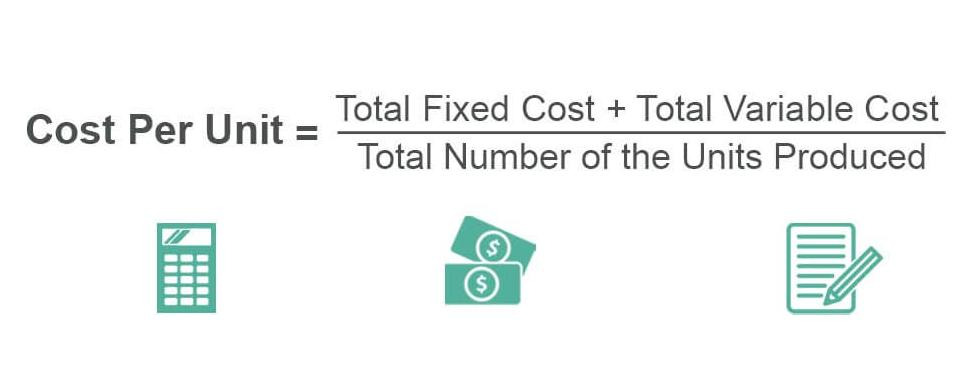

The formula to calculate cost per unit is simple:
Cost per Unit = (Total Fixed Costs + Total Variable Costs) / Number of Units Produced.
Cost per Hour
This method determines machining costs based on hourly rates for labor and equipment. It also considers maintenance costs, operator wages and machine depreciation. The formula to calculate cost per hour is:
Total Cost = (Machine Rate + Labor Rate) × Machining Hours.
It is particularly useful for complicated parts with different production times.
Applicability
For standard parts with repeatable production processes, traditional cost calculation methods are best to calculate CNC machining costs. These methods are preferred for high volume production and situations where historical data is available. But they may not be accurate for custom, low volume or complicated projects that need particular materials or tooling.
Advanced Cost Estimation Methods
Advanced cost estimation for CNC machining benefit from data-driven models and data analysis to improve accuracy. These modern methods use parametric estimation and machine learning algorithms for factors like tolerances, material and geometry.
Parametric Cost Estimation
In CNC machining, parametric estimation uses statistical models to calculate cost based on part attributes. This method analyzes parameters like machining time, material volume and surface complexity. By using historical data, it also provides quick and accurate estimates for standard parts. The formula for this method is:
C = aX1 + bX2 + c*X3. Where C is the total cost, a, b and c are coefficients for different cost factors and X1, X2 and X3 are variables like time taken or produced quantity.
Data Driven Models
These models mostly use machine learning algorithms particularly neural networks in CNC machining cost analysis. These advanced systems analyze part features, material and manufacturing parameters to calculate cost. Software like TrueCost uses these models with techniques like random forest regression. This approach can handle complicated interactions and give accurate estimates for broad range of parts.
Benefits
Advanced cost estimation techniques provide scalability and sub millimeter accuracy for different part geometries. They give real time cost analysis for 5 axis machining so manufacturers can make data driven decisions on cutting parameters and tool paths. They also facilitate micro analysis of cost drivers like coolant usage and tool wear rates to support lean manufacturing initiatives in CNC operations.
Strategies for CNC Machining Cost Optimization
CNC projects can decrease CNC costs without compromising quality by implementing different cost optimization techniques. We will cover each method one by one.
Design Optimization
In CNC machining, design optimization focuses on simplifying part geometry, decreasing setups and complex features. Techniques like feature based cost analysis and design for manufacturability (DFM) help manufacturers identify areas for cost savings. They also decrease part distortion risk, tool changes and machining time. So it can lead to lower CNC machining costs while keeping part functionality.
Batch Production Optimization
Optimizing batch sizes can substantially decrease machining costs. Larger production runs spread the setup and tooling cost across more parts which decreases the per part cost. This approach improves machine utilization and minimizes changeover time between batches with outstanding production proficiency. Advanced CNC systems with workpiece changers and automatic tools can process multiple parts in one setup. This can further decrease machining costs.
Material Reconsideration
The material choice has a big impact on CNC machining costs. Consider alternative materials with similar properties but with better machinability or lower cost. For example, replacing titanium with aluminum in non-critical components can decrease machining and material costs while keeping performance. This substitution can increase cutting speeds up to 5 times and decrease total costs without compromising strength to weight ratio.
Supplier Selection
Choosing the right CNC machining supplier is important to manage costs. To make an informed decision, decide suppliers based on their production capacity, equipment capabilities, and quality control processes. Moreover, also consider their industry experience, location and certifications. To get a full cost assessment, request detailed quotes and compare total landed costs like shipping and potential tariffs.
Conclusion
CNC machining costs are determined by production volume, material selection and design complexity. So, to save machining costs, manufacturers should focus on right material selection, design optimization, batch production and machining time. Advanced techniques for cost calculation like data driven models and parametric calculation methods give accurate cost estimates. As CNC technology advances, multi axis machining and automation are changing the cost of machining which emphasize the need for adaptation.
Richconn is a CNC machining manufacturer with 20 years of experience, has been dedicated to producing high-quality precision parts at reasonable prices for our clients. Contact us now to get a free and detailed quote!
FAQs about CNC Machining Costs
Q1. What factors contribute the most to the overall cost of CNC machining?
Part complexity, machining time, production volume and material selection are important factors that increase CNC machining cost. Some other factors like complicated design and particular materials can further increase the cost.
Q2. How does complexity of part design affect its CNC machining cost?
Complex shapes need multiple setups, longer programming time and special tools. This increases total costs and machining hours substantially.
Q3. How do advancements in CNC technology, such as automation impact machining costs?
Automation decreases labor cost and improves proficiency which help decrease overall cost. But the initial investment in advanced CNC systems is high which can influence short term project costs.
