Engineering plastics are widely used in aerospace, electronics and medical components but machining them isn’t as straightforward as it seems. These materials react very differently from metals and need a very specific machining approach.
In this blog post we’ll break down exactly how engineering plastics behave and share practical techniques to help you consistently achieve tight tolerances & clean finishes.
What Are Engineering Plastics?
Engineering plastics are high performance thermoplastics that bridge the gap between standard polymers & metals. Unlike common plastics, they retain superior tensile strength (often >49 MPa) and rigidity at temperatures exceeding 100°C (212°F). Advanced grades like PEEK can even withstand continuous use up to 250°C without losing structural integrity.
Engineering Plastics vs Commodity Plastics_ Where CNC Shines
While commodity plastics like polyethylene suit disposable packaging, engineering grades offer the dimensional stability needed for precision CNC machining. These rigid materials resist deformation under cutting forces. This lets you hold tight tolerances that softer plastics cannot achieve. They are the standard for durable, machined industrial components.
When to Choose Plastics over Metals?
Select engineering plastics when mass reduction is critical; because they are typically 50% lighter as compared to aluminum and 85% lighter than steel. These materials also offer inherent chemical resistance which eliminates the need for protective plating. Furthermore, they provide necessary electrical insulation for sensitive electronics where conductive metal components would risk short circuits.

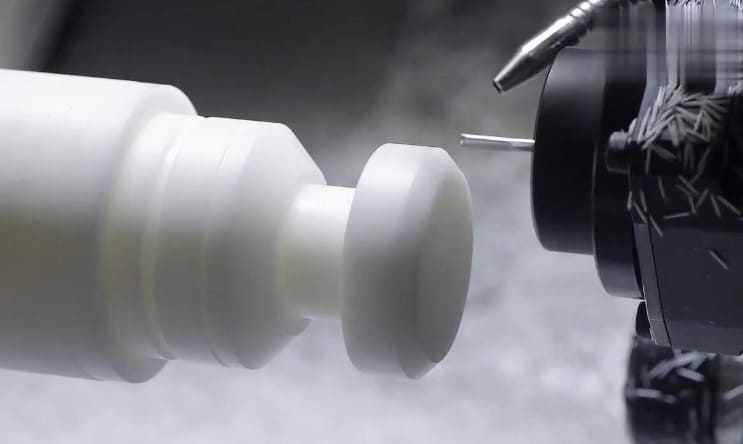

Engineering Plastic Material Selection for CNC Machining
Selection of the right plastic requires balancing chemical resistance, mechanical strength as well as thermal stability for your particular application.
1. POM/ Delrin & ABS
POM has low friction and high stiffness which makes it perfect for precision bearings and gears; while ABS is best for lower cost prototypes that need impact resistance rather than tight dimensional tolerances.
2. Nylon (PA)
Nylon resists wear and abrasion exceptionally well. This makes it ideal for moving parts like bushings. However you should avoid it for parts that require high stability in humid environments as it absorbs moisture.
3. Polycarbonate & PMMA
Select PMMA (Acrylic) when aesthetics and optical clarity are top priorities. And choose Polycarbonate for extreme impact toughness and heat resistance even if it scratches more easily.
4. PEEK & High Performance Polymers
PEEK can withstand harsh chemicals and extreme heat and therefore it can replace metal in aerospace & medical jobs. But use it only when standard plastics fail as its high cost is unnecessary for simple applications.
5. PTFE & UHMW-PE
PTFE features an ultra‐low friction coefficient (near 0.04) and low wear, which is perfect for seals and valve seats. However its tendency to creep limits its use in tight fits. Similarly UHMW-PE offers low friction and outstanding abrasion resistance. It excels in wear strips and guide rails that face millions of impact cycles.
If you’re unsure which plastic to choose for your use case, RICHCONN’s engineers can review your part and suggest a suitable grade and polymer for your design.

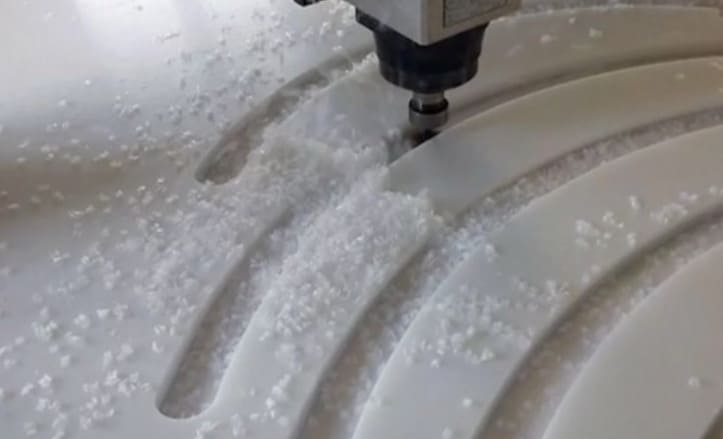

Pre‐Machining Preparation for Engineering Plastics
Preparation is as critical as the cutting process itself. It directly impacts the dimensional stability of your final part.
Material Conditioning
Moisture and internal stress are silent killers of precision. Therefore hygroscopic materials like Nylon must be dried (typically 80°C for ~4 hours) to prevent post‐machining movement. For high stress polymers like Acetal or PEEK, annealing blanks at 150°C for 2 hours relieves internal tension. This makes sure that parts don’t warp after material removal.
Stock Selection
Extruded rods often carry significant “skin stress” in their outer layers. Always choose oversized stock i.e., at least 3 to 6mm larger as compared to the final diameter. Also remove this outer skin first. Ideally you should use a centerless ground rod to assure a neutral stress state before cutting critical features.
Design for Machining
Avoid sharp internal corners which create stress concentrations; aim for internal radii at least 0.5x the wall thickness. Also, maintain a minimum wall thickness of 0.5 mm to prevent chatter and deformation— though 1mm is safer for softer plastics like PTFE.
Workholding Strategy
Standard metal vises can crush plastic. Therefore use soft jaws machined to the part’s profile to distribute pressure evenly. For thin plates, vacuum tables are essential to prevent bowing. It provides a uniform hold‐down force without inducing clamping stress.
Also See: A Complete Guide to CNC Workholding Methods

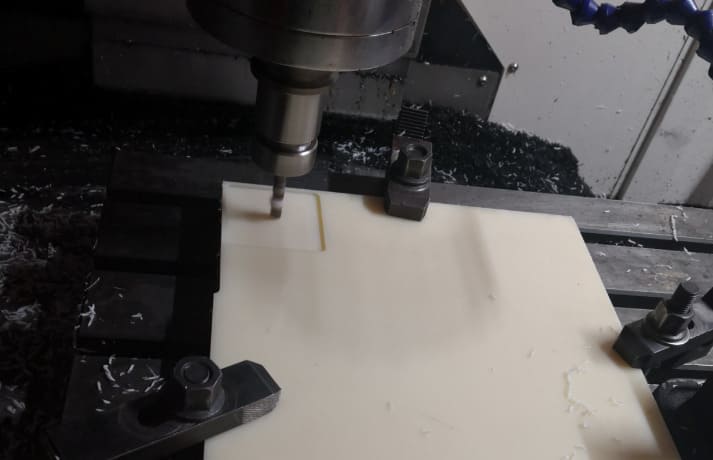

Tooling & Machine Setup for Engineering Plastic Machining
Correct setup and stooling can transform heat‐sensitive polymers into precision components that rival metal performance.
Tool Materials & Geometry_ Polished Carbide, PCD & Edge Prep for Plastics
Standard metal tools generate excessive heat that can melt plastics rather than shearing them. Therefore use polished, uncoated carbide inserts with high positive rake angles (15° to 30°) to reduce friction and slice cleanly. For abrasive glass‐filled polymers or mirror finishes, Polycrystalline Diamond (PCD) tooling provides superior wear resistance and surface quality.
Air, Coolant & Mist_ Chemistry Compatibility & When to Run Dry
Chemical compatibility is critical. Aromatic coolants cause immediate stress cracking in amorphous plastics like Polycarbonate (PC) and PMMA. Instead, use water soluble, non‐aromatic coolants. For this purpose compressed air is often the best option as it effectively clears chips without introducing chemical risks.
Burr Control, Chip Evacuation & Stringing Mitigation
Plastics like PTFE and UHMW often string which create “bird nests” around tooling. Single flute “O flute” end mills with large gullets are essential for rapid chip ejection.
At Richconn we combine these techniques with aggressive air blasts to force chips away instantly; this prevents re-cutting & welded surface defects.
Tolerances, Thermal Expansion & Temperature Controlled Inspection
Plastics have a coefficient of thermal expansion (CTE) that is 10 times higher than metals. Therefore parts measured hot may shrink out of tolerance upon cooling. To avoid this issue, always stabilize parts at 68°F (20°C) before final inspection to assure accuracy. Moreover assigning loose tolerances for non critical features also helps account for this natural movement.
Machining Parameters & CAM Playbooks
Universal Starting Points
| Parameter (milling unfilled PEEK) | Recommended starting range (metric) |
| Surface speed (v_c) | 150 to 300 m/min |
| Feed rate | 0.05 to 0.15 mm/tooth |
| Depth of cut | 0.5 to 2.0 mm per pass |
Note: These “universal starting” values are specific to unfilled PEEK stock shapes; adjust accordingly for other engineering plastics.
Milling Parameters by Polymer Group
| Polymer Group | Machining Strategy | Key Adjustments |
| Amorphous (PC, PMMA, PSU) | High RPM, Controlled Feed | Limit heat to prevent stress cracking; use polished flutes for clarity. |
| Semi Crystalline (Nylon, PEEK, POM) | Aggressive Feed, Moderate RPM | Maintain distinct chip formation to carry heat away from the workpiece. |
| Soft/ Slick (PTFE, UHMW) | High Feed, Sharp Tools | Use “O flute” cutters & high chip loads to prevent gummy buildup. |
Turning, Drilling & Tapping
- For drilling, use slow, steady feeds and retract frequently (peck drilling) to clear chips and prevent packing which causes melting.
- When turning, high surface speeds (200 to 400 m/min) combined with moderate feeds help dissipate heat into the chip rather than the part.
- For threads, avoid cutting taps in soft plastics; instead, use thread mills or install helical/ heat‐set inserts for stronger, wear resistant threads.
Also See: Drilling vs Tapping
Example Recipe Cards
- PEEK: Anneal stock between 150°C & 200°C for 2 to 4 hours before machining to relieve stress. Then cut at 50 to 250 m/min (165 to 820 SFM) to assure dimensional stability.
- PTFE: Maintain a conservative cutting speed of 200 to 400 SFM while keeping feeds moderate (0.004 to 0.012 IPT) to prevent the soft PTFE from deforming or “squishing” away from the tool.
- UHMW-PE: Target 300 to 700 SFM for milling operations with a chip load of 0.003 to 0.010 IPT. This plastic needs sharp tools to slice through its abrasion‐resistant material without melting.
- PC/ PMMA: Run spindle speeds between 10,000 & 20,000 RPM with feeds of 75 to 300 IPM to achieve a translucent finish that minimizes the need for post‐process polishing.
Post‐Machining Processes of Engineering Plastics
Finishing stabilizes dimensions and ensures final part functionality.
Deburring & Edge Finishes
Standard tumbling often fails on tough plastics. Instead, use cryogenic deburring to remove burs without damaging geometry. For internal features, manual thermal deburring with hot air knives seals edges effectively.
Polishing for Optical Plastics
For transparent parts like PC or PMMA, vapor polishing chemically smooths surfaces for glass‐like clarity. Flame polishing is quicker for acrylic edges but induces stress, thus making subsequent annealing mandatory to prevent crazing.
Secondary Operations
Install threaded brass inserts via heat-setting at 20°C above the material’s melt temperature (e.g., 265°C for ABS) for maximum pull‐out strength. Also avoid solvent bonding on stressed parts; ultrasonic welding ensures structural integrity.
At RICHCONN we handle all key secondary operations in-house—from inserts to welding—so that your plastic parts arrive fully prepared for assembly and built to consistent standards.
Post Process Annealing
To lock in tight tolerances (±0.05mm), anneal machined PEEK parts at 200°C for 4 hours, followed by slow cooling (1°C/ min). This releases machining stresses that cause creep.
Quality Control & Metrology
Reliable quality control for engineering plastics needs particular protocols to handle their unique thermal sensitivity and elasticity.
Measuring Plastics Accurately
Plastics are sensitive to clamping heat and pressure. Therefore use non‐contact vision systems or low‐force CMM probes to avoid distorting soft features. Verify critical dimensions only after a 24 hour “temperature soak” at 20°C (68°F) to normalize thermal expansion.
Surface Finish Targets
Metal‐like finishes are challenging; therefore expect a standard milled roughness (Ra) of 1.6 to 3.2 µm for most engineering plastics. However rigid materials like PEEK and POM can achieve a finer Ra of 0.4 to 0.8 µm using sharp, polished diamond tooling.
Tolerance Consideration
Plastics possess Coefficients of Thermal Expansion (CTE) up to 10 times higher than metals. Hygroscopic materials like Nylon also swell 0.5 to 1.5% from moisture. Therefore designers must widen tolerance bands to account for these variables in final assemblies.
Documentation & Traceability
For regulated industries like aerospace, maintaining full traceability is mandatory. This includes lot‐specific resin certificates, detailed anneal cycle logs (time/ temp curves) as well as dimensional reports. All these are needed to prove compliance before the parts leave the temperature‐controlled inspection room.

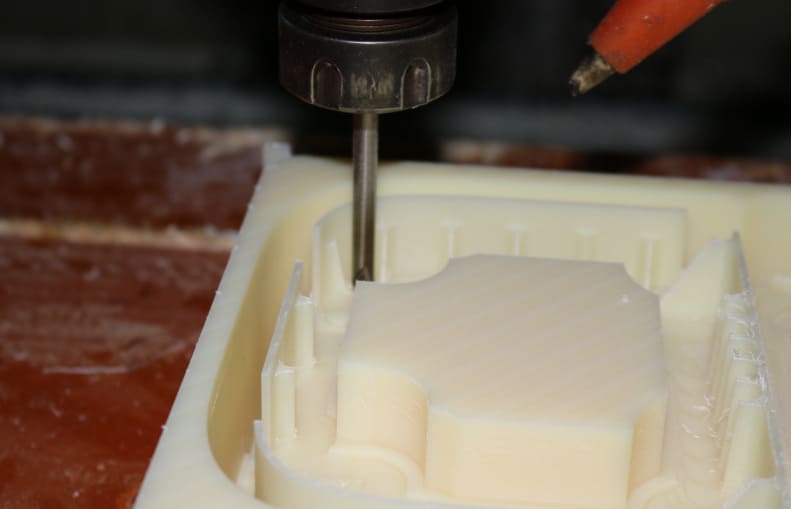

Common Issues & Proven Fixes Related to Engineering Plastic Machining
Machining plastics poses unique challenges but proactive parameter adjustments can resolve them.
Melting, Smearing & Poor Finish
Melting occurs when frictional heat builds up faster than chips can evacuate it. To fix this, maintain a high feed rate to make sure that the tool constantly cuts into cool material rather than rubbing against a hot surface. Also reduce spindle speed if melting persists and always use sharp, positive rake tools to shear material cleanly without generating excess heat.
Warping, Creep & Out-Of-Tolerance
Warping often results from releasing internal stresses during aggressive material removal. Counteract this by rough machining to within 0.125″ (3mm) of final size then letting it stabilize for 48 hours. For severe cases, anneal the rough cut part to relieve stress. Plus use vacuum fixtures or soft jaws to distribute clamping force evenly to prevent deformation.
Burrs, Stringing & Chip Wrap
Soft plastics like PTFE and UHMW-PE are prone to stringing. Use “peck drilling” cycles to break long chips into manageable pieces. Switch to climb milling to direct chips away from the cut and apply a strong air blast to clear the cutting zone instantly. This prevents chips from wrapping around the tool.
Stress Cracking & Chemical Attack
Amorphous plastics like Polycarbonate are highly sensitive to chemical attack. Avoid all petroleum based coolants and solvents (like aromatic hydrocarbons or ketones) as they can cause immediate crazing and stress cracking. Use only air or water soluble, synthetic coolants specifically rated safe for plastics.
Uses of CNC Machined Thermoplastic Parts
CNC machining transforms engineering plastics into mission‐critical components for industries that need specialized performance and extreme precision.
Medical & Life Sciences
CNC machining produces biocompatible components like spinal implants and surgical grips from PEEK and Polycarbonate. These materials withstand repeated sterilization cycles (autoclave, EtO, gamma) without degradation. Additionally, strict material traceability ensures full compliance with ISO 13485 standards.
Aerospace & Defense
Lightweight Ultem and Vespel replace metal alloys in aircraft fasteners and jet engine pads. These parts resist extreme heat and flammability and also lowers weight for fuel efficiency. CNC turning creates these high‐stress components with exact tolerances for safety critical flight hardware.
Electronics & Semiconductors
Antistatic PEEK & Torlon are machined into delicate wafer carriers and IC test sockets. CNC processing achieves the micron level flatness needed for handling silicon wafers without risking electrostatic discharge (ESD) damage. These dimensionally stable plastics can also withstand the harsh chemical environments found in wet processing tools.
Food, Packaging & Automation
High speed automation uses self‐lubricating UHMW‐PE conveyor tracks and Acetal timing screws for jam‐free operation. These custom FDA compliant components can resist abrasive wear and aggressive cleaning agents better as compared to traditional metal hardware.
Costing, Sustainability and Process Alternatives
Balancing unit costs, scalability & environmental impact determines the commercial viability of your plastic components.
Cost Drivers for CNC Plastic Parts
Material choice primarily drives expense; medical-grade PEEK costs drastically more than generic ABS. Furthermore, plastics require slower feeds to manage heat buildup and this extends cycle times compared to aluminum. High scrap rates from heavy material removal or poor nesting further inflate the final piece price.
When to Switch to Injection Molding or 3D Printing
CNC is most cost effective for runs under 500 parts or when tight tolerances (± 0.001”) are mandatory. For complex geometries or prototypes (1-20 parts), 3D printing offers a cheaper & faster alternative without tooling costs. Once volumes exceed 1,000 units, injection molding becomes the superior choice, amortizing high tooling costs over a lower per-part price.
Recyclability & Waste
Plastic chips must be kept strictly segregated by polymer type to remain valuable for recyclers. Contaminated chips—mixed with coolants or other plastics—often end up in landfills while clean, sorted regrind can be reprocessed into new stock.
Supplier Qualification
Ensure suppliers provide material certifications (CoC) and maintain full lot traceability to verify resin authenticity. Also verify that they hold ISO 9001 certifications and have specific protocols for moisture control and stress‐relieving plastics before machining.
To Sum Up
Engineering plastics are no longer just cheap substitutes for metal; they are high performance materials essential for medical, aerospace and semiconductor innovation. Success in machining lies in respecting their unique mechanical and thermal behaviors.
For high precision plastic components that meet these exacting standards, contact Richconn today for their expert CNC machining services.
Related Questions
POM (Delrin) and PEEK are the top choices because they are stiff and hold their shape well during machining. Polycarbonate is also excellent for parts that need high impact strength, though it needs careful stress management.
You should use compressed air, cool mist or water soluble coolants specifically made for plastics. Never use aromatic oils or organic solvents as they chemically attack these materials and cause stress cracks or “crazing”.
Use very sharp, polished tools to slice the material cleanly instead of rubbing it. Combine this with lower cutting speeds and higher chip loads to keep heat down and eject plastic chips quickly.
You can hold standard tolerances of +/- 0.005 inches easily. Tighter tolerances (+/- 0.001 inches) are possible with stable materials like PEEK but only if you strictly control temperature and moisture during machining.
