Precision and cleanliness are essential for every component in the semiconductor industry. CNC machining delivers the accuracy and consistency needed to meet these strict standards. Therefore in this blog post we will explain the key materials, machining processes, design strategies and inspection steps that help create dependable, high performance parts for semiconductor use.
What Is CNC Machining
CNC (Computer Numerical Control) is a machining approach where we use automated software to guide machine tools. This system removes material from a workpiece with precise control and shapes custom parts. It can achieve very high accuracy & repeatability, often holding tolerances within a few microns.
Also See: A Complete Guide on Precision CNC Machining
Materials Used in Semiconductor CNC Machining
Choice of the correct material is vital to get reliable semiconductor parts.
1. Aluminum Alloys
Manufacturers often select aluminum alloys like 6061 for their low weight and easy machinability. These alloys maintain stable dimensions which is an important trait for parts–such as heat sinks and vacuum chamber components–that must perform reliably.
2. Stainless Steel
Stainless steel provides strong resistance to corrosion and high strength; both of which are important in cleanroom settings. Its grades such as 304 and 316 are widely used to make tough parts like gas nozzles and vacuum seals that must withstand harsh chemicals.
3. Titanium & Ceramics
Titanium stands out for its strength‐to‐weight ratio and corrosion resistance. It is a common choice for wafer handling robots and reactor parts. In contrast, ceramics (including Alumina) are extremely hard and insulate electricity well and this makes them ideal for electrostatic chucks.
4. Engineering Plastics
Plastics like PEEK and Vespel offer extraordinary thermal stability and are also resistant to chemicals. These also help prevent metal contamination. Manufacturers use them for wafer handling tools and insulation parts to maintain purity during production.
Common Machined Components in Semiconductor Equipment
CNC machining creates essential parts for semiconductor equipment. Precision is critical for these components. They help maintain accuracy & stability throughout the manufacturing process.
Wafer Chucks

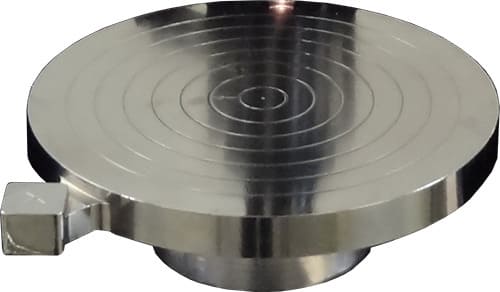

Wafer chucks are plates designed to hold fragile silicon wafers firmly in place. They use vacuum or static electricity to grip the wafer. This method prevents damage during manufacturing.
Cooling Plates

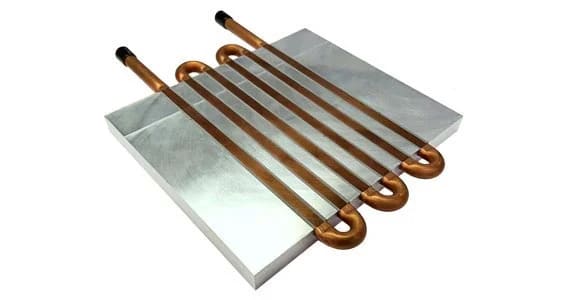

Cooling plates help control heat inside semiconductor equipment. Circulating liquid flows through them and removes excess heat from important parts. This keeps the machinery from overheating and supports reliable operation.
Vacuum Chambers
A vacuum chamber is a container that seals out air and gases. Removing these elements creates a very clean, low‐pressure space. This environment is vital for processes like applying thin films to wafers without contamination.
Wafer Handling Parts
Robotic parts, such as arms and grippers, move wafers between stations inside the equipment. These components transport wafers safely. They prevent scratches and keep particles away.
Types of CNC Machining Processes
Several CNC machining processes are used in the semiconductor industry. Every process has particular strengths for making precise parts needed in manufacturing equipment.
1. CNC Milling

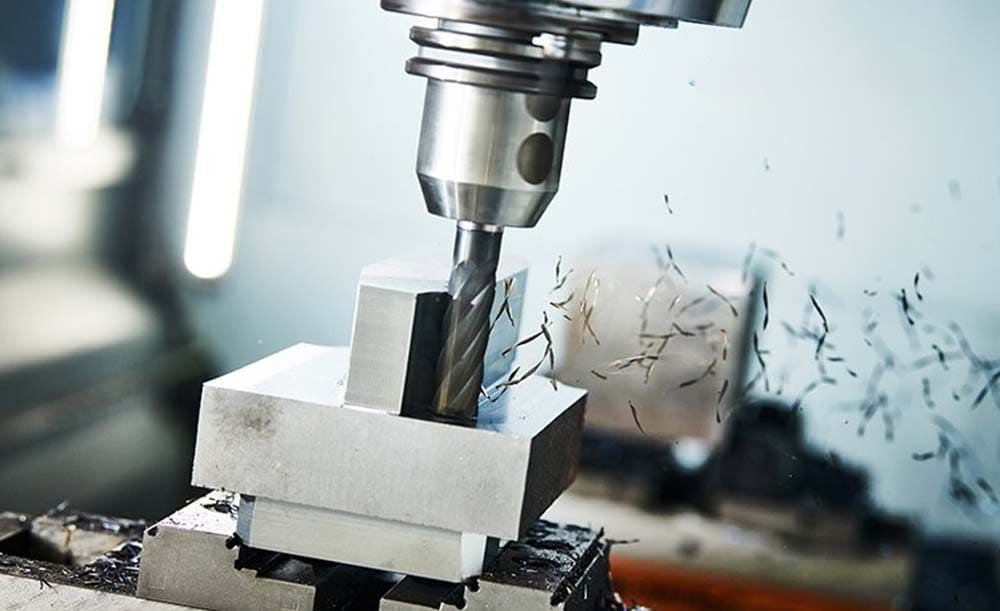

CNC milling removes material from a stationary workpiece with rotating multi‐point cutting tools. This method is important to shape complicated forms, flat surfaces as well as detailed features. It is often used for parts like vacuum chambers and cooling plates.
2. CNC Turning
CNC turning spins the workpiece while a single‐point cutting tool shapes it. This process works best for making cylindrical parts, including alignment pins, fasteners and fittings. It delivers high precision and smooth finishes for rounded components.
3. Multi-Axis Machining
With multi‐axis machining, the cutting tool can move in at least four different directions. This movement lets manufacturers produce complicated shapes in just one setup. As a result both accuracy & efficiency increase.
4. Micro Machining
Micro‐machining creates features that measure at the sub‐micron scale. This technique delivers ultra‐precise results. Therefore manufacturers depend on it to build tiny components and delicate features that can hold tolerances as close as 1 to 5 microns. These tight tolerances help assure devices perform at their best.
Advanced CNC Techniques for Semiconductor Manufacturing
To meet the semiconductor industry’s strict precision standards, manufacturers use advanced CNC techniques. These methods make it possible to produce the detailed and accurate parts that modern electronics demand.
High Speed & Ultra‐Precision Machining
High speed machining uses spindles that reach speeds up to 60,000 RPM. Combination of this speed and a rigid machine frame allows for parts with very tight tolerances. This can be within a few microns. This level of precision is necessary for building the complicated features found on semiconductor wafers.
5 Axis Machining for Complicated Geometries
Machines equipped for 5 axis machining can move a workpiece along five axes at once. This ability lets them create intricate shapes in a single operation which reduces the number of setups needed. This process improves accuracy, shortens lead times and also results in smoother surface finishes.
Micro‐Drilling & Sub‐Micron Features
Many semiconductor components need extremely small features. For this purpose micro‐drilling is used because it can easily make tiny holes, sometimes less than 1mm in diameter, for parts like CVD shower heads. For even smaller, sub‐micron features that connect electrical layers in chips, laser micromachining is used.
Surface Finishing Techniques

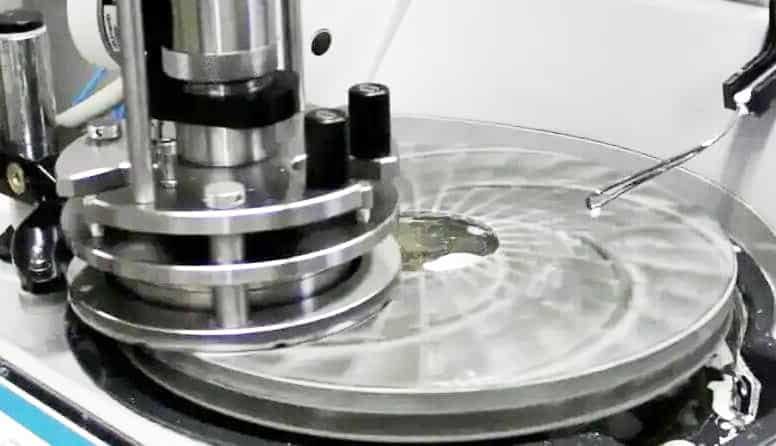

Once the part has its final shape, the surface must be refined. At this stage lapping & polishing are used to achieve mirror‐like finishes—which are critical for photonics applications. Additionally for the smoothest surface, ion‐beam smoothing can reduce roughness down to the atomic level.
Managing Heat & Tool Deflection in Fine Machining
Controlling physical forces is essential during fine machining. Tool deflection (tool bending) can also cause problems. Therefore use of short and rigid cutting tools helps reduce this issue. Machinists must also keep heat and cutting forces under control. By doing so, they assure the finished part matches precise specifications without errors.
Design for CNC Machinability in Semiconductor Parts
Designing semiconductor parts for CNC machining needs a focus on manufacturability. Careful planning from the beginning helps guarantee that the final components are high in quality and are affordable as well.
Key Design Considerations
Good design starts with basic principles that shape the final outcome.
- Tolerance Stack-Up
Tolerance stack‐up happens when the tolerances of different features combine and then create total variation. Managing this is important so that all assembly parts can fit together as intended. - Wall Thickness & Sharp Corners
Thin walls can vibrate or break while being machined; therefore maintaining a minimum thickness is necessary. Sharp internal corners should also be avoided because they need special tools and increase both machining time & cost.
Balancing Material Properties
Material choice affects how easily a part can be machined. Hard materials like titanium require slower speeds and tougher tools as compared to softer ones like aluminum. Therefore finding the right balance between performance and machinability is very important.
Toolpath Optimization
Planning the cutting tool’s path efficiently is key. An optimized toolpath shortens machining time, improves surface finish as well as extends tool life by reducing wear.
CAM Programming for Complicated Parts
Advanced Computer‐Aided Manufacturing (CAM) software is essential for programming parts with complex shapes. This software lets you simulate and check toolpaths before starting the machining process. Detecting possible collisions or mistakes at this stage prevents expensive errors.
At Richconn, we use detailed simulation reports to identify any collisions or errors before manufacturing begins.
Quality Assurance & Inspection in Semiconductor CNC Machining
Rigorous procedures are necessary to guarantee part quality in semiconductor machining. The quality assurance process covers different verification stages to satisfy the industry’s strict standards.
Essential QC Measures
Quality control starts by checking raw materials before machining begins. After that, tools such as Coordinate Measuring Machines (CMMs) perform accurate dimensional inspections. Moreover Statistical Process Control (SPC) tracks the complete manufacturing process to maintain consistency and precision from start to finish.
Each batch from RICHCONN comes with complete CMM dimensional reports, SPC data and traceable material certificates.
Cleanroom Inspection Protocols
Inspections should take place in ultraclean environments to avoid contamination. Strict rules for ISO Class 5 or better cleanrooms must be followed. Additionally specialized equipment, including non‐shedding wipes, is used and inspectors follow set cleaning paths to keep particles out.
Certification, Documentation
Detailed documentation is required at every stage for full traceability. This paperwork records the entire journey of each part, from raw material to final inspection. Moreover certifications confirm that components meet tough industry standards and particular client requirements.
Common Machining Defects
Defects can still appear even with careful planning. Dimensional errors and poor surface finishes are common problems. Machine vibration may also cause chatter marks and tools can wear out early as well; both of which can affect the quality of the finished part.
Prevention Strategies
Preventing defects is the most effective solution. Regular machine calibration and selecting the right tools for each material are important steps. Operators also need thorough training and cutting speeds should be optimized to reduce manual mistakes.
CNC Machining Applications in Semiconductor Industry
CNC machining has a crucial role in making precise parts needed for semiconductor manufacturing. Different components rely on this technology.
Wafer Processing Equipment
CNC machines create important parts for lithography and etching equipment. They make molds for polishing pads and also make perfectly flat wafer chucks. These components help achieve even wafer surfaces.
Gas Delivery & Control Systems
Manufacturers use CNC machining to build complicated parts for gas delivery. This includes shower heads with thousands of tiny holes to assure even gas flow in CVD reactors. They also produce high purity valves that keep contaminants out.
Wafer Handling Robotics

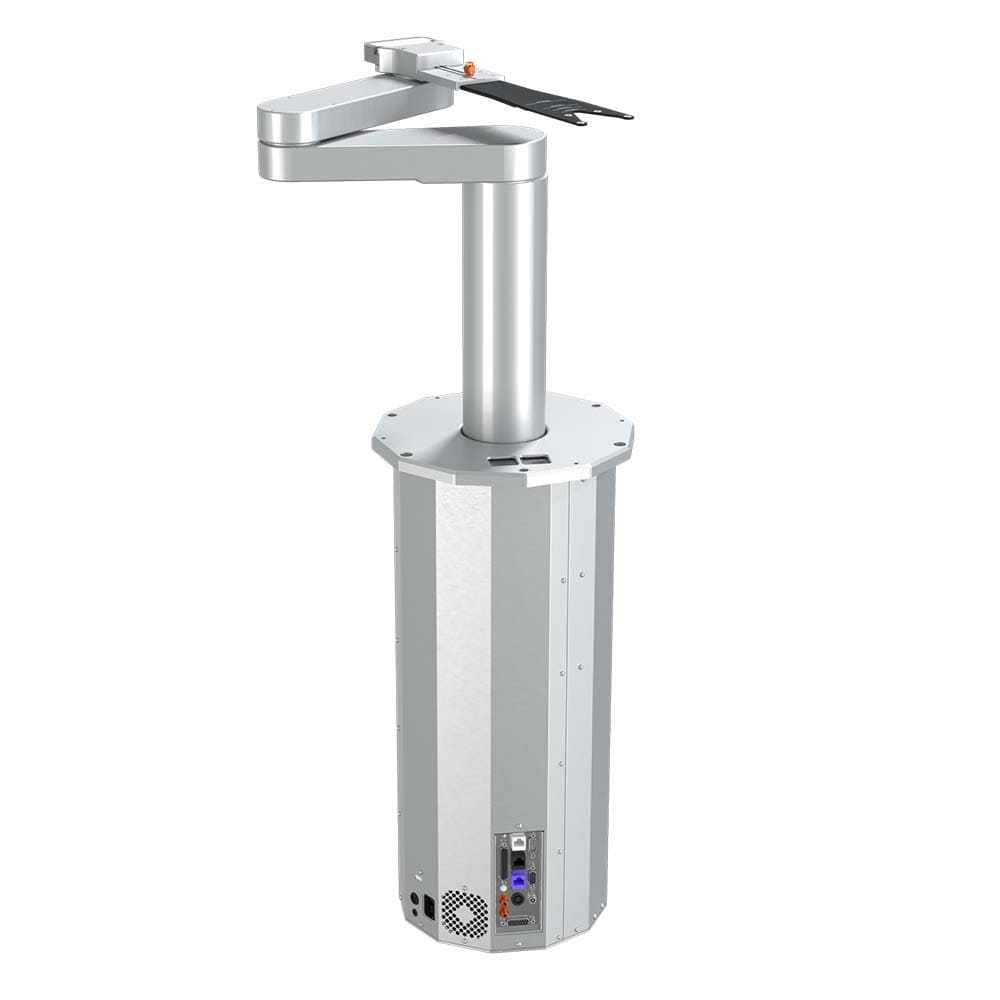

CNC machining helps produce robotic arms and end‐effectors for moving wafers automatically. These parts need smooth finishes and complicated shapes that CNC machining delivers.
Vacuum & Thermal Systems
CNC machines make vacuum chambers with perfect sealing surfaces to keep environments free from contamination. They also produce cooling plates with detailed internal channels. These features control heat and keep equipment stable and reliable.
Selecting CNC Machining Partners for Semiconductor Projects
Finding the right CNC machining partner is vital for meeting the strict needs of semiconductor projects. A number of important factors help assure a successful partnership.
- Industry Experience: Choose a partner with a strong background in the semiconductor field.
- Precision Capabilities: Make sure they can produce complex parts with tight tolerances.
- Quality Assurance: Check for strong quality systems such as ISO 9001 certification.
- Cleanliness Protocols: Confirm they provide cleanroom assembly and inspection.
- Full Traceability: They should supply complete documentation for every component.
To Sum Up
The semiconductor industry relies on CNC machining as a core process. It provides the precision needed to produce advanced, high performance parts. Such accuracy guarantees that every component works correctly inside complex systems. For any CNC machining needs in your semiconductor projects, Richconn offers the right solution. You can contact us at any time.
Related Questions
CNC machining holds the extreme precision and accuracy that semiconductor parts demand. This capability supports the reliable function of intricate and tiny designs.
Parts made for the semiconductor industry often need tolerances as tight as ±0.001 mm. Surface finishes usually must be exceptionally smooth with values below Ra 0.2 μm.
Multi-axis machines can produce complex shapes in just one setup. This approach raises precision, enhances surface quality and reduces the time needed to make detailed parts.
Quality control involves thorough inspections using CMM and optical tools. Every batch should include full traceability and detailed process records to maintain strict standards.
