HDPE is used a lot in both consumer and industrial markets because it resists chemicals and meets FDA standards. However its flexible nature and low melting point can make it challenging to machine.
In this guide we will explain the essential machining settings for HDPE, list recommended tools and cover finishing techniques. By following this guide, you can get smooth, high-quality HDPE parts and approach your projects with confidence.
Overview of HDPE Machining
Basically, High-Density Polyethylene (HDPE) is a semi-crystalline thermoplastic known for its high strength-to-density ratio. Its linear molecular structure lets polymer chains pack closely together which makes the material dense and rigid. This structure gives HDPE greater toughness and chemical resistance than standard low-density polyethylene.
Main HDPE Properties for Machining
- Tensile Strength: HDPE offers moderate yield strength (26–33 MPa). This property helps machined parts withstand heavy loads without deforming.
- Chemical Resistance: HDPE stays inert when exposed to most acids, bases and solvents. This makes it suitable for demanding industrial settings.
- Thermal Stability: The material expands significantly with heat (~100-130 × 10⁻⁶/°C). Therefore accurate temperature control is necessary to prevent warping during machining.
- Moisture Absorption: It absorbs less than 0.01% water, so it keeps its shape even in humid conditions.
- FDA Compliance: Being naturally odorless and non-toxic, HDPE meets safety standards for food-contact applications
| Property | Typical Value for HDPE |
| Tensile Strength | 26 to 33 MPa |
| Density | 0.941 to 0.965 g/cm³ |
| Melting Point | Approx 130°C |
| Water Absorption | <0.01% |
Machinability Rating
HDPE earns an excellent machinability rating because it cuts cleanly with minimal force. However shops must manage friction heat carefully. Without proper cooling and sharp tools, its low melting point can cause chips to stick together and ruin the surface
At RICHCONN, our team addresses these heat issues by using very sharp and calibrated tools and by monitoring temperatures in real time. This approach ensures every HDPE part is accurate and has a clean finish.

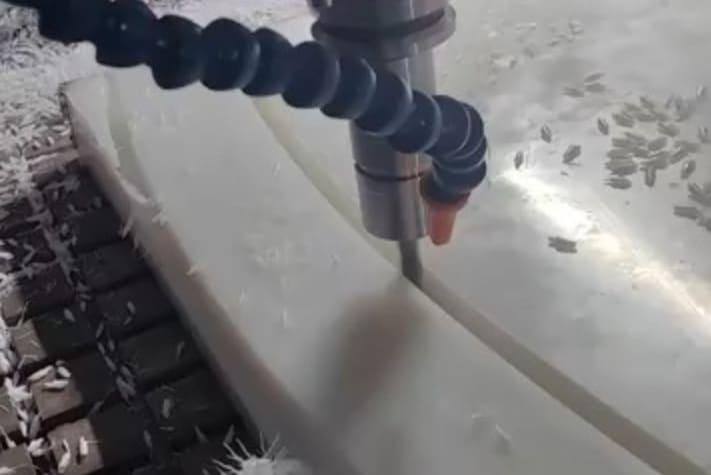

CNC Machining HDPE Parameters
Proper machine settings are essential to avoid HDPE’s common problems and to achieve good surface finishes.
Spindle Speeds (RPM)
When milling HDPE with a CNC machine, set spindle speeds between 8,000 and 18,000 RPM; the exact speed depends on the diameter of your cutting tool.
Higher RPMs generate more heat from friction. Therefore to stop the plastic from melting, you should pair fast spindle speeds with aggressive feed rates. Moreover always choose sharp carbide tools to get clean cuts and to avoid melting the HDPE.
Feed Rates
Use high feed rates (typically from 1,000 to 3,000 mm/min) to remove chips quickly during HDPE milling. If you feed too slowly, the tool stays in one place for too long. This creates extra heat and can cause chips to fuse back onto the part.
Related Blogpost: What is Feed Rate and Cutting Speed in CNC Machining
Depth of Cut (DOC)
For roughing, set the depth of cut between 3mm and 5mm. This removes material quickly without overloading the cutter.
When finishing, lower the depth to about 0.5mm. This step smooths the HDPE surface and removes tool marks.
Cooling Strategies
Use compressed air instead of liquid coolants for HDPE. Air clears chips from the cutting area and stops them from sticking to the tool or part. Water-soluble coolants are an option, but they are usually not needed. They can also make cleanup harder or cause stress cracking.
Table– Quick-Reference Parameters for 3-Axis Milling HDPE
| Parameter | Recommended Range |
| Feed Rate | 1,000 – 3,000 mm/min |
| Spindle Speed | 8,000 – 18,000 RPM |
| DOC | 0.5 – 5 mm |
Understanding the HDPE Machining Processes
Machining HDPE requires specific strategies to manage its low melting point and tendency to deform under stress.
CNC Milling HDPE
Milling HDPE demands aggressive chip removal strategies to prevent the material from welding or melting. Standard end mills cause friction, so use single-flute “O-flute” carbide tools for smoother evacuation. These tools clear debris instantly and allow high feed rates that cut rather than rub. Combine this speed with air blasts to keep the heat-sensitive HPDE plastic rigid.
CNC Turning HDPE
Turning shapes HDPE by rotating the workpiece against a stationary cutter to form cylindrical parts. Since this soft plastic deforms easily, you must use extremely sharp, positive-rake tools.
High rotational speeds generally improve the surface finish but can cause thermal expansion issues. So always apply consistent liquid coolant to stabilize the HDPE part dimensions during these continuous cuts.
CNC Drilling HDPE
Standard twist drills often grab HDPE, so use bits with modified 60–90° point angles. Peck drilling is essential for holes deeper than three times the diameter. This technique retracts the bit frequently to clear ribbons of plastic and reduce heat. Run spindles between 1,000 and 3,000 RPM for best results.
CNC Routing
Routing is the preferred method for cutting large, flat HDPE sheets into complex two-dimensional profiles. Single-flute up-cut bits work best here as they pull chips upward to prevent re-welding. Run spindles up to 24,000 RPM with fast feed rates to minimize dwell time. A strong vacuum table is also critical to hold these flexible sheets flat during cutting.

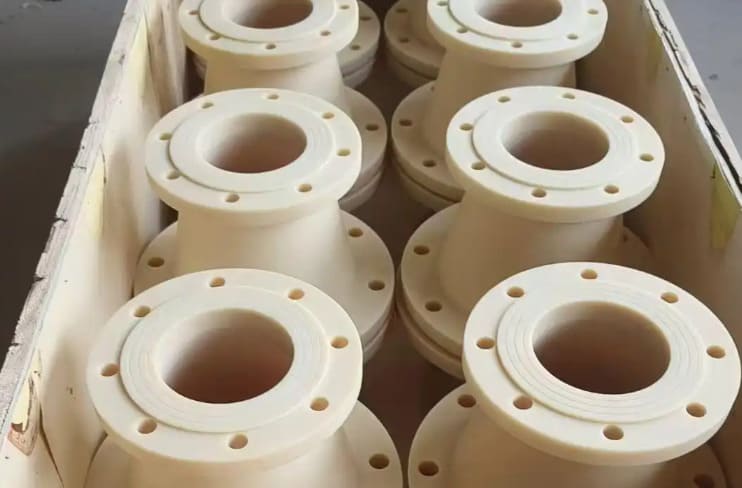

Surface Finishing Methods for HDPE Machined Parts
While HDPE is naturally matte and waxy, selecting the right finishing method can enhance both its functionality and aesthetics.
Flame Polishing
Flame polishing works by applying an oxygen-rich flame to the HDPE surface. The heat briefly melts the outer layer which smooth out micro-ridges and brings back a glossy finish. However the operators must work quickly. If the flame stays too long, the material can oxidize which leads to brittleness or discoloration. This method works well for removing frosted edges left by cutting tools.
Bead Blasting
Bead blasting shoots fine glass beads at the HDPE surface to create a consistent matte texture. This method hides small machining lines and gives the part a non-slip grip. It does not remove much material. Bead blasting also deburrs the part and makes the surface look uniform.
Related Blogpost: A Complete Guide on Bead Blast Finishing
Polishing
Mechanical polishing uses buffing wheels and compounds made for plastics. HDPE is soft, so polishing is difficult. This method can give a semi-gloss finish and remove light scratches. However it does not create the clear look possible with acrylics.
Sanding
Wet sanding works better than dry sanding for HDPE. Water helps control heat and keeps sandpaper from clogging.
Start with 400 grit and move up to 2000 grit, keeping the surface wet throughout. This process keeps the plastic cool, removes machining lines and stops the surface from gumming up.
As Machined
For many industrial applications like internal components or wear strips, the standard “as machined” finish is sufficient. HDPE cuts cleanly with sharp tools, leaving a smooth, opaque surface that meets most functional requirements without extra cost.
RICHCONN can also supply HDPE parts in a clean “as-machined” state or with extra finishes like bead blasting, flame polishing or custom textures. All finishing is done in-house to ensure steady and reliable quality.
Specialized Tooling for HDPE Machining
Selecting proper cutter geometry is essential for avoiding heat buildup and to achieve a smooth finish on HDPE.
Flute Geometry
Standard metal end mills often fail in plastics. So instead you should use O-Flute (Single Flute) carbide cutters. Their wide, open flute shape lets large chips clear out quickly. This rapid chip removal takes heat away before it can soften the workpiece.
Upcut vs Downcut
- Upcut Spirals move chips upward. They work best for fast material removal and thick parts when heat control is most important.
- Downcut Spirals force chips downward. This action keeps the top edge from lifting or fraying. Choose these for thin sheets or if the workpiece is not held tightly.
Tool Sharpness
Cutting tools must be extremely sharp to slice through the polymer cleanly. If the edge is dull, it causes heat and friction. This results in fuzzy edges and melted burrs that are hard to remove.
At RICHCONN we use a dedicated set of tools for HDPE—mainly single-flute and polished O-flute cutters. We handle resharpening in-house. This approach keeps edge quality stable during long production runs.
Main Challenges Related to HDPE Machining & Their Solutions
Machining HDPE brings unique challenges. The material behaves differently from metals—especially in how it handles heat and its flexibility.
1. Thermal Expansion
HDPE expands quickly when heated, with a coefficient of thermal expansion around 100–130 × 10⁻⁶/°C. Friction heat can cause the material to grow during machining. After cooling, parts may shrink and fall out of tolerance.
Solution: Use fast feed rates to carry heat away with the chips. Always measure critical dimensions only after the part has cooled to room temperature.
2. Burr Formation
The HDPE’s pliability often leads to fuzzy edges rather than clean cuts—particularly on tool exits.
Solution: Implement “Climb Milling” strategies so the cutter enters the material at the thickest point. Additionally program chamfering passes or use specialized deburring tools to slice rather than scrape the edge.
3. Warping & Stress Relief
Long HDPE parts often bend after machining. This bowing, called the “Banana Effect,” happens because internal compressive stresses are released.
Solution: Choose annealed stock when possible. Another method is to rough-machine the part, let it rest for 24 hours and then finish it. Machining both sides evenly also helps balance and relieve stress.
4. Chip Clogging
HDPE produces long, stringy chips that can wrap around the tool. If not removed, these chips may melt and cause problems.
Solution: Aim a strong blast of compressed air at the cutting area. This quickly removes chips and cools the tool. It also prevents hot plastic from re-welding.

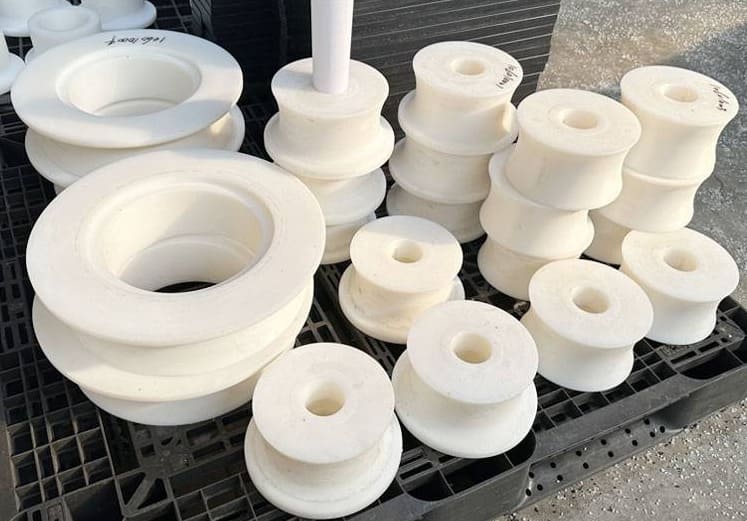

Main Applications of HDPE Machined Parts
Machined HDPE serves diverse industries due to its unique balance of chemical inertness, durability and compliance with safety standards.
Food & Beverage
HDPE meets FDA (21 CFR 177.1520) and USDA requirements so it is safe for direct food contact. Its low moisture absorption rate (<0.01%) stops bacteria from growing. Manufacturers use it for conveyor star wheels, cutting boards and chute liners to keep processing areas sanitary.
Medical & Chemical
HDPE resists alkalis, acids and solvents very well. This property is important for manifolds, valve bodies and fittings for chemical storage tanks. Its non-porous surface handles strict cleaning in cleanrooms and does not release contaminants.
Marine Industry
Marine Board or StarBoard (which is UV-stabilized HDPE) stands up to saltwater very well. It does not rot, corrode or delaminate which makes it the top choice for instrument panels, custom boat hatches, and cabinetry. These parts need no maintenance, even outdoors.
Automotive
HDPE is machined to create lightweight components for fluid reservoirs and fuel systems. Its high impact resistance makes it a strong alternative to metal and helps reduce vehicle weight. The material stays tough even in cold weather; therefore fuel tanks made from HDPE can avoid brittle failure during winter.
Electrical
HDPE insulates high-voltage parts well, thanks to its dielectric strength of about 50 kV/mm. Manufacturers often machine it into insulators, standoffs and covers for electrical housings. Its resistance to moisture helps prevent short circuits in these applications.
CNC Machining HDPE vs LDPE & UHMWPE
HDPE, LDPE, and UHMWPE are all types of polyethylene, but HDPE offers the best mix of machinability and strength. LDPE is softer and UHMWPE is more abrasive. The CNC machining process for each plastic has key differences which we will now examine.
| Main Feature | HDPE (Machining Standard) | UHMWPE | LDPE |
| Thermal Stability | Melt 120–130°C; stable in typical hot-process fluids. | Melt approx 144–152°C; service approx 80–90°C | Melt 105–115°C. |
| Machinability | Excellent; cuts cleanly with standard tools | Difficult; need sharp tools to avoid wrapping | Poor; too soft, melts and gums up easily |
| Durability | High rigidity and good impact strength | Extreme wear resistance and highest impact strength | High flexibility and poor structural support |
| Material Cost | Low; most cost-effective for rigid parts | High; 2 to 3x more expensive than HDPE | Low; cheapest but not for machining |
| Tooling Cost | Low; standard carbide tools suffice | High; wears tools faster due to toughness | N/A (rarely machined) |
Get HDPE Machining Services from Richconn
For precision HDPE components, you can trust Richconn’s ISO 9001:2015 certified experts. We regularly machine HDPE, composites and metals using advanced 3- and 5-axis systems to tolerance of around ±0.005″ (0.125 mm). Whether you need a prototype or a full production run, our surface finishing ensures your every part arrives ready to use. Reach out today for a quick, expert consultation.
To Sum Up
In short, CNC machining HDPE is a cost-effective way to produce strong, chemical-resistant parts. To avoid warping, you must use sharp tools and manage heat with proper cooling. When you control both speed and temperature, you achieve accurate results.
Related Questions
Yes you can thread or tap HDPE using CNC milling or turning. Make sure to use sharp cutters and set the right speeds to prevent melting and weak threads.
Most HDPE parts fall within ±0.005 to ±0.015 inches, depending on the size and how you set up the job. If you need tighter than ±0.010 inches, costs go up because HDPE expands with heat.
HDPE parts are highly durable, with lifespans of 20-50+ years in various uses. They resist impact, moisture, chemicals and UV for long-term reliability.
Yes HDPE is very suitable for machining due to its consistent structure, low friction and ease of cutting. It yields clean finishes without chipping at high speeds.
