Invar provides unmatched dimensional stability which makes it essential for projects that demand high precision. To maintain accuracy in challenging environments, industries such as optics, aerospace and science are highly dependent on Invar.
In this guide we will explain Invar’s special properties, its main benefits, reliable machining methods and practical challenges. With this information, you can decide if Invar is suitable for your next precision task.

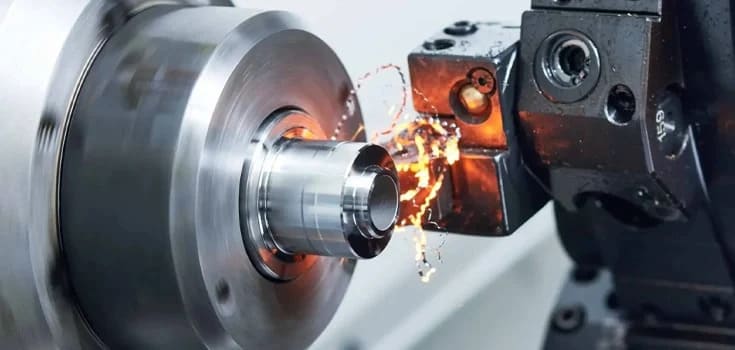

What is CNC Machining Invar
Basically CNC Invar machining refers to the process of shaping Invar, a nickel-iron alloy, into precise parts by using computer controlled equipment. This approach produces components with excellent stability and tight tolerances. As a result, for industries that need exact dimensional control, invar is the best option.
Also See: What is CNC Precision Machining
Material Properties of Invar
Composition Table
| Element | Percentage |
|---|---|
| Nickel (Ni) | 36% |
| Iron (Fe) | 64% |
| Cobalt (Co) | 5 to 6% (optional in Super-Invar) |
| Selenium (Se) | Trace (in Free-Cut) |
Main Characteristics
Invar have a very low coefficient of thermal expansion about 1.2 ppm/°C. Its density measures close to 8.1 g/cm³. It melts at roughly 1,427 °C and its tensile strength usually ranges from 450 to 590 MPa. Invar’s magnetic nature also performs an important part in certain specialized uses.
Variants
The most widely used grade is Standard Invar 36 which is valued for its stability. Free-Cut “36” contains selenium which improves speed and ease of machining. For specialized applications, Kovar and super-Invar provide even lower expansion or unique magnetic qualities.
Invar Machining Process Overview
Machining Invar demands techniques tailored to its specific properties. Manufacturers use several established methods to get precise outcomes.
CNC Machining
CNC or computer controlled machining is the primary means of manufacturing Invar parts. Even when fabricating complicated shapes, this technology guarantees high accuracy.
Capabilities
- 3-axis to 5-axis milling: These machines can shape intricate parts and hold tight tolerances sometimes as low as 0.0005. For optics or aerospace components, such precision is very important.
- CNC drilling: In this method, operators use sharp carbide or high-speed steel drills with lubrication to make precise holes. For critical assemblies, such a combination is very important.
- CNC turning: This process creates accurate cylindrical parts. Since Invar does not conduct heat well therefore cooling is necessary during the turning process to prevent surface flaws and heat buildup.
- Swiss machining: This method is preferred for making detailed, small parts. In photonics and scientific fields, it works best.
Also See: Difference Between 3-Axis and 5-Axis CNC Machining
EDM (Sink/Wire)
Electrical Discharge Machining (EDM) handles features which traditional cutting cannot achieve. Through electrical sparks, it removes Invar material, thus providing extreme precision. For complex optics or aerospace parts, this technique is particularly important.
Specialized Techniques
Diamond-turning
Diamond-turning sets the standard for producing optical quality surfaces. On Invar it creates mirror-like finishes which are necessary for advanced optics and IR lenses.
Acid Etching
In acid etching, patterns are formed through chemical reactions. Invar’s resistance to corrosion makes distortion-free, detailed etching possible. In electronics and aerospace tooling, this method is very common.
Finishing and Quality Control
Thermal management becomes essential once machining is complete. To prevent dimensional changes, manufacturers must keep temperatures steady.
Many finishing methods are available for Invar parts which includes
- Grinding: It provides a smooth, flat surface and supports tight tolerance requirements.
- Polishing: It lowers surface roughness which is important for optical components.
- Electropolishing: produces a clean, reflective finish which resists corrosion.
- Bead blasting: provides a uniform, matte look for parts that should not reflect light.
Both finishing and thorough inspections guarantee that each part meets demanding standards for quality and durability.
Working with a manufacturer like Richconn who can deliver precision machining as well as a complete set of in-house finishing services, such as polishing, grinding and bead blasting, can simplify your workflow. This approach helps maintain high quality, consistent output from beginning to end.
Main Benefits of CNC Machining Invar
Durability and Corrosion Resistance
Invar resists wear from frequent use and holds up very well against acids. For chemical processing and harsh environments where other metals might not last, invar works well because it does not corrode easily.
Cost Efficiency
Free-cut Invar grades allow machining speeds to increase by 200 to 250% compared to standard Invar while material properties remain nearly unchanged. As a result manufacturers achieve faster production and lower costs particularly for large orders.
Working with an experienced partner like Richconn can further increase these gains as they adjust machining settings for each job. This ensures you get the right mix of quality, speed and cost-effectiveness.
Dimensional Stability
With a thermal expansion rate of about 1.2 ppm/°C, Invar parts keep their shape despite temperatures change. For telescope mounts, aerospace molds and scientific tools where even small shifts can cause problems, this property is very important.
Weldability and Machinability
Compared to other metals, it is relatively easy to weld and machine Invar. When best practices are followed, CNC milling and turning produce good results. Manufacturers can also cast Invar for complicated shapes. This range of options lets them handle many different requirements.

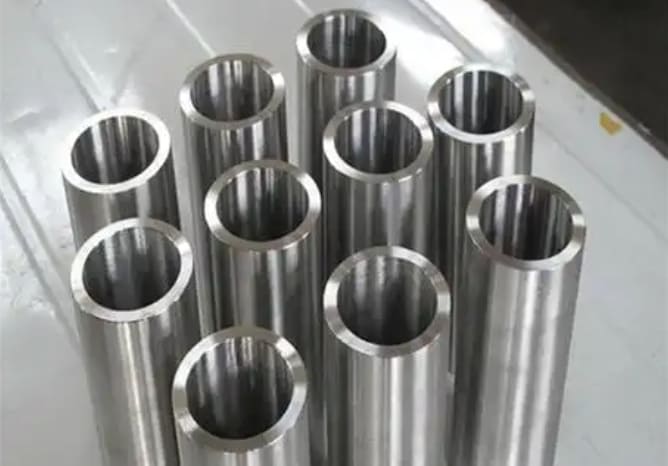

Main Applications of CNC Machined Invar Parts
Many industries choose Invar for its special qualities. CNC machined Invar parts perform an important part in many demanding fields.
Optics and Photonics
In telescope frames, optical mounts and LiDAR parts, Invar is very common. Its low thermal expansion keeps sensors and lenses in place even when temperatures change. For sharp imaging and precise measurements, this property is very important.
Defense and Aerospace
Defense and aerospace applications depend on Invar’s stability. There it is mostly used for engine valves, satellite optics and molds for composite parts. For these applications such components are needed that stay unchanged during temperature shifts, thus ensuring reliable operation in critical missions.
Cryogenic and LNG Applications
Invar performs well in cold conditions which is why it is used for sensor housings and cryogenic storage tanks. Even at very low temperatures, it stays stable and does not crack.
Scientific Instruments
Invar supports seismic sensors, pendulum clocks and precision gauges. Its stable dimensions keep readings accurate over long periods. For scientific work, this level of accuracy is very important.
Electronics and Manufacturing Tooling
For etching plates, lead frames and injection molding tools, the use of Invar is very common. Its toughness allows for repeated use and its stable dimensions helps with high volume production. Both manufacturing and electronics industries benefit from these features.
Selecting the Right Grade and Machining Service Provider
The success of your project depends on picking both the correct Invar grade and a capable machining partner. Make informed choices by using these steps that guarantee high quality and reliability.
Choose Grade Based on Application
First identify which Invar grade best fits your project’s requirements. For high-volume jobs free-cut Invar works well because it machines faster than standard options. Select Kovar or super-Invar, if your application needs nonmagnetic properties and lower thermal expansion. Before you decide, review each grade’s machinability, thermal expansion and magnetic characteristics.
Supplier Capabilities
Machining Invar demands specific expertise and not every provider can meet these needs. Find suppliers who hold certifications such as ASTM, AS9100 or NADCAP. Ask if they have handled similar projects and if they provide advanced services like EDM, CNC and finishing. Moreover check whether they can achieve tight tolerances down to 0.0005 inches for your components.
For CNC machining, casting and additive manufacturing, compare the lead times and costs. The right supplier will help you find the best balance between speed, quality and budget for your project.
Challenges and Mitigation Strategies
Machining Invar brings specific challenges which need skilled planning and careful attention even though the material offers significant advantages.
Machining Difficulties
Invar can wear down tools quickly because it has low ductility and it hardens as you work on it. To avoid this, machinists use high speed steel or carbide tools. Moreover they set positive feed rates and choose sharp cutting edges.
At RICHCONN, we rely on fine-tuned feeds and specialized carbide tooling. This approach ensures consistent quality and keeps tool life steady when we machine Invar.
Temperature Control
Small changes in temperature can impact precision because Invar does expand a little with heat.
To manage this, use plenty of coolant and keep the shop at a stable temperature. These steps keep both the tool and part cool. They also help prevent distortion or warping.
Surface Treatment
Machined Invar parts may need stress relief. To achieve this, annealing is done at 315°C for one hour. This process stops unwanted expansion over time and helps parts hold their exact shape.
Cost vs Alternative Materials
Invar’s stability stands out but sometimes graphite tools are a better choice for certain aerospace molds. Before choosing a material, always consider required precision, cost and long-term performance.
Get CNC Invar Machining Services from Richconn
Richconn provides advanced EDM and CNC services for precise Invar machining. Our team delivers expert finishes, achieves tolerances down to 0.0005 and maintains reliable quality for demanding industries around the world. Feel free to request a quote today.
To Sum Up
In short, CNC machining of Invar provides stable dimensions and high precision which makes it suitable for optics, aerospace and scientific uses. By applying proper techniques and by selecting the right grade, manufacturers can produce reliable and complex parts. However it is important to work with an experienced partner.
If you need CNC machining services for Invar or for any other material then Richconn is your best option. You can contact us anytime.
Related Questions
For Invar, use sharp and rigid high-speed steel or carbide tools with a positive rake. Applying TiCN or TiAlN coatings and choosing helical cutters help a lot as they control heat, minimize work-hardening and improve the final surface finish.
Compared to standard Invar 36, Free Cut Invar which contains selenium is much easier to machine. It increases productivity and forms brittle chips. The trade-off is a slight reduction in both corrosion resistance and toughness.
Yes CNC machining of Invar usually costs more. The alloy’s toughness, the need for special tools & tight tolerances as well as slow cutting speeds all contribute to higher expenses.
