Monel stands out as a nickel-copper alloy known for its strength and resistance to corrosion. However machining this material is not easy. It work-hardens quickly, holds heat and wears down tools fast. Therefore In this guide we will cover practical CNC techniques, tooling tips & essential cutting settings to help you machine Monel reliably and with confidence.
What Is CNC Machining Monel?
To put it simply, CNC machining Monel means shaping Monel using computer-controlled tools for superior accuracy. Primarily composed of nickel (up to 67%) and copper (30%), Monel offers outstanding durability but also presents unique manufacturing challenges.
Common Monel grades include:
- Monel 400 for balanced strength
- Monel 405 (R-405) which includes sulfur to improve machinability
- Monel K-500, which contains extra aluminum and titanium. This grade reaches up to 1,310 MPa in tensile strength.
Also See: A Complete Guide to Precision CNC Machining
Why CNC Machining Is Used For Monel
CNC machines deliver strict process control which makes it possible to work with Monel’s tough structure without losing quality. Moreover automated cutting ensures high repeatability and tight tolerances down to ±0.0005 inches. This precision is very important for critical components like aerospace and marine propeller shafts.
Properties of Monel
- Monel exhibits exceptional corrosion resistance and can withstand acids, seawater and alkaline environments without degradation.
- Monel hardens quickly during cutting. Each pass increases surface hardness which speeds up tool wear and makes machining harder.
- This alloy is strong and tough, with tensile strength between 579-827 MPa in its cold-drawn state.
- The material does not conduct heat well. As a result heat builds up at the cutting edge while machining, which further increases tool wear.
Material Properties of Monel Relevant to Machining
Understanding Monel’s physical characteristics is critical for predicting its behavior during machining.
Low Thermal Conductivity
Monel’s thermal conductivity is low (around 21.8 W/m·K). Because of this, heat builds up at the tool tip instead of moving away with the chip. The resulting high temperatures cause tools to fail faster. Therefore using coolant effectively is necessary to manage this heat.
Work Hardening & Toughness
Monel alloys are tough and work-harden rapidly—roughly 2.5 times faster than mild steel. If a tool dwells, this work-hardening creates an abrasive surface layer that destroys cutting edges. Consequently machinists must use constant & heavy feed rates to cut underneath this hardened zone.
Mechanical Properties Comparison of Monel with Stainless Steel and Inconel
| Material | Machinability Rating | Tensile Strength (MPa) | Hardness |
| Monel 400 | ~45% | 485 to 585 | ~140 HB |
| Inconel 625 | ~17 | 827 to 1000+ | ~145 to 220 HB |
| 316 Stainless | ~40 | 485 to 620 | ~217 HB |
CNC Machining Processes For Monel
Machining Monel with CNC equipment requires strict control to handle its toughness and heat generation.
Turning Operations
When turning Monel 400, use a rigid setup to resist cutting forces and stop chatter. Select lower cutting speeds (usually 65 to 130 ft/min for carbide tools). Moreover keep the feed rate steady (typically 0.1 to 0.25 mm/rev) so the tool can cut under the work-hardened layer. Positive rake angles also help lower cutting pressure. If the budget allows, CBN inserts can increase speeds up to three times.
Also See: What is CNC Turning
Milling Operations
Climb milling is preferred for Monel as it directs heat into the chip rather than the workpiece. This minimizes cutting forces and work-hardening. Maintain heavy chip loads to ensure the cutter bites cleanly into the material. Rigid tool holders are also essential to prevent chatter which degrades the finish on these nickel-copper alloys.
Drilling & Holemaking
Since drilling monel generates significant heat, high-pressure through-tool coolant is essential for chip evacuation and temperature control. Always use a positive feed rate and avoid stopping because the hole bottom will harden instantly if the tool dwells. For holes deeper than 3xD, implement peck cycles. Carbide drills with specific geometries are usually recommended over standard HSS bits to prevent galling on monel.
Finishing & Surface Quality Techniques
To achieve a high-quality finish on monel, use a dedicated final pass that is both light and deep enough—at least 0.05 mm—to prevent surface glazing. Do not dwell at any point. Secondary operations like electropolishing or abrasive flow machining can further refine the surface without introducing mechanical stress.
At Richconn, we usually follow tight-tolerance CNC machining with controlled polishing and surface treatments. This approach enhances both appearance and protection while maintaining the required tolerances.

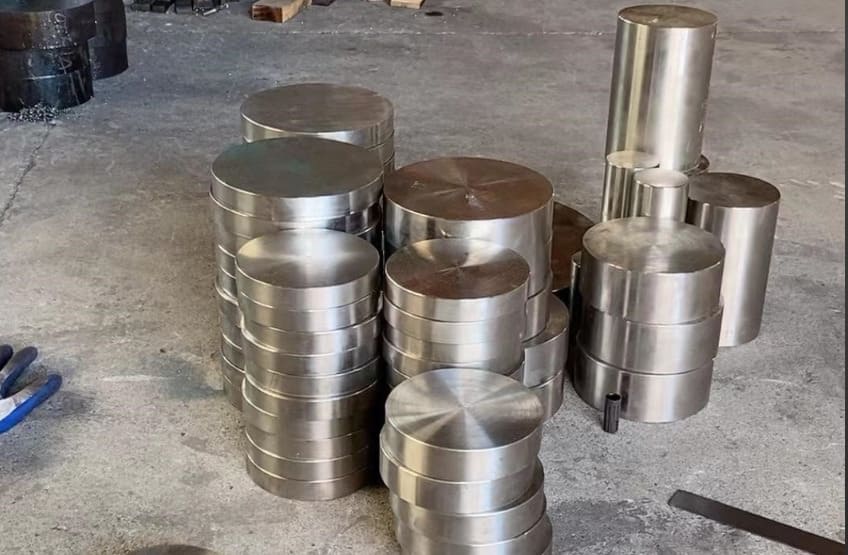

Monel Machining Parameters & Recommendations
Successful machining of Monel requires adjusting standard parameters to handle its tough, work-hardening nature.
Speeds & Feeds Overview
Due to rapid heat buildup, Monel requires lower cutting speeds than standard steels. For turning, maintain speeds between 65–130 feet per minute for carbide and 33–65 feet per minute for high-speed steel tools. Feed rates should be moderate: 0.1 to 0.25 mm/rev for carbide and 0.05 to 0.15 mm/rev for HSS tools.
Also See: A Complete Guide Feed Rate and Cutting Speed in CNC Machining
Depth of Cut & Its Impact
Choosing the right depth of cut is very important to avoid work hardening in monel. For roughing, use a depth between 1–4 mm so the tool cuts below the hardened surface. For finishing, keep passes between 0.5–1 mm. Moreover avoid very shallow cuts as these can cause the tool to glaze the surface instead of cutting it.
Coolant & Lubrication Optimal Use
Flood coolant is standard but high-pressure systems (70 bar/1000 psi) are superior for breaking the heat barrier in monel. Direct high-pressure delivery to the cutting edge aids in chip evacuation and prevents tool overheating in deep cuts.
Special Considerations for Different Grades
Monel 400, when annealed, is softer and easier to machine. In contrast Monel K-500 is age-hardened and stronger, with a tensile strength of about 690 MPa compared to about 550 MPa for Monel 400. To avoid rapid tool wear, you should use speeds that are 20-30% slower for Monel K-500 than for 400 grade.
Suitable Tools and Tooling Strategies for CNC Machining Monel
To machine Monel effectively, you must select tools that resist high heat and maintain rigidity under heavy cutting forces.
Carbide vs HSS Tools
Tough micro-grain carbide (grades C-2 or C-3) is the standard choice for most CNC operations. It withstands the intense heat generated by Monel 400 and the harder K-500. High-Speed Steel (HSS) is generally too soft for high production rates. Use HSS only for low-speed drilling or interrupted cuts where tool toughness is prioritized over speed.
Recommended Coatings & Tool Material
Select PVD TiAlN (Titanium Aluminum Nitride) coatings for superior heat resistance. They protect the tool and keep the edges sharp. TiCN coatings are also effective, particularly for threading, because of their hardness. Do not use thick CVD coatings. These coatings round off the cutting edge and cause work hardening to happen quickly.
Tool Geometry & Chip Breaker Designs
Monel is “gummy” and tough, so positive rake angles are essential to shear material cleanly. Positive geometry reduces cutting pressure and prevents heat buildup that causes work hardening. Always ensure cutting edges are sharp, not honed. And use inserts with aggressive chip breakers to snap stringy chips before they wrap around the tool.
Tool Holders, Inserts & Clamping
Maintaining rigidity is essential to avoid chatter which can harden the Monel surface right away. Use hydraulic or shrink-fit tool holders for the best grip. Keep tool overhangs as short as possible to improve stability. Also clamp the workpiece securely to withstand the high cutting forces that nickel alloys require.
Best Practices for Machining Monel
Machining Monel successfully demands a strict adherence to proven best practices.
Preventing Work Hardening
Monel’s tendency to work harden requires an aggressive machining approach. You should never allow the tool to dwell or rub on the workpiece surface as this triggers rapid hardening. Moreover maintain a constant, positive feed rate and a depth of cut sufficient to get underneath the previously hardened layer.
Only use extremely sharp cutting tools. These tools slice through Monel cleanly and do not push the material which would cause more hardening.
Heat and Chip Management
Effectively managing heat is crucial due to Monel’s low thermal conductivity. Use high-pressure coolant, often above 1,000 psi, directed precisely at the cutting edge. This not only cools the tool and part but also forcefully ejects chips from the cutting zone. Proper chip control also prevents re-cutting—which otherwise increases heat buildup and makes your machining process even more prone to hardening.
Inspection & Quality Control
Tools wear out fast when machining Monel, so frequent checks are necessary to keep part quality high. Watch cutting tools closely for signs of flank wear or chipping and replace them before problems occur. Moreover use in-process dimensional checks to spot any changes caused by tool wear. This approach keeps accuracy consistent and reduces material waste.
For example, our team at Richconn runs regular CMM spot-checks throughout production to detect small shifts caused by tool wear early on. This helps us maintain accuracy and prevent avoidable scrap.
Safety Considerations
- Utilize proper ventilation systems to manage fine metal dust containing nickel.
- Always wear the right personal protective equipment (PPE) such as gloves and safety glasses.
- Ensure machine enclosures are secure when using high-pressure coolant systems.
- Handle hot, sharp chips with care to prevent cuts and burns.
Monel CNC Machining Challenges and How to Overcome Them
Despite its benefits, machining Monel presents distinct challenges that require strategic solutions.
Rapid Tool Wear
Monel’s high strength and abrasive nature cause rapid tool wear. Its low thermal conductivity also concentrates heat at the tool’s cutting edge, softening it and accelerating wear.
To mitigate this, use tough, wear-resistant coated carbide tools and apply high-pressure coolant to dissipate heat effectively. Slower cutting speeds and constant feed rates also help prolong tool life.
Built-Up Edge Formation
Monel tends to weld to the tool’s cutting edge, forming a built-up edge (BUE). This ruins the surface finish and can lead to sudden tool failure.
You can prevent this by using extremely sharp & positive rake tools and by maintaining a constant feed rate.
Part Deflection and Vibration
The high cutting forces required for Monel can cause the workpiece to deflect or vibrate, resulting in chatter. This is especially problematic on thin or poorly supported parts.
To avoid this, ensure that the workpiece is securely clamped and always use rigid tool holders with minimal overhang.
Industries & Applications of CNC Machined Monel
Monel’s unique properties make it a critical material across several demanding and high-performance industries.
Marine & Seawater Systems
CNC machined Monel is essential for marine applications due to its excellent seawater corrosion resistance. It is used for pump shafts, propeller shafts, valves and underwater fittings. CNC machining provides the tight dimensional tolerances, often within ±0.002 inches, needed for reliable rotating shafts. It also creates precise sealing surfaces on fittings to prevent leaks under immense pressure.
Chemical & Petrochemical Processing
In chemical processing, Monel’s ability to endure a wide range of acids and alkalis is invaluable. It is used to produce durable valves, heat exchangers, piping systems and reactor vessels. Its resistance to chemicals such as hydrofluoric and sulfuric acid makes it indispensable in petroleum refining and other harsh chemical environments.
Aerospace & Defense
Monel delivers high strength over a wide range of temperatures in aerospace and defense. Manufacturers use it for landing gear components, high-strength fasteners and fuel systems. CNC machining ensures these parts meet strict dimensional requirements. As a result the components can handle extreme stresses and rapid temperature changes.
Oil & Gas Equipment
Monel is essential in the oil and gas sector for its resistance to corrosive environments, even in sour gas (H2S). It is often machined into downhole tools, pump components, drill collars and valves. The stronger Monel K-500 grade is particularly suited for oil extraction tools where high toughness and strength are required.
Cost Considerations & Machinability Metrics
Machining Monel demands careful cost planning due to its premium pricing and tough characteristics.
Material Costs
Monel is a premium alloy due to its high nickel and copper content. It typically costs three to five times more than 316 stainless steel (Monel 400 bars cost $28–50 per kg and stainless steel 316 bar cost at $4–9 per kg). This higher material expense is a primary factor in the overall project budget.
Because the raw material is costly, partnering with an experienced manufacturer (like Richconn) that plans tool paths carefully and focuses on reducing waste can make a noticeable difference in keeping your overall project costs under control.
Tooling & Production Cost Impact
Monel has a machinability rating of about 45-50%, which is lower than many other metals. To control work hardening and heat, operators must use slower cutting speeds. This approach increases cycle times and causes tools to wear out faster, which raises tooling costs.
ROI & Part Lifecycle
Although the upfront costs are high, Monel provides excellent value in harsh, corrosive settings. Components made from Monel can last three to five times longer than similar stainless steel parts. This durability greatly reduces maintenance downtime. Over time, Monel becomes a cost-effective option for important marine and chemical uses.
To Sum Up
In short, machining Monel with CNC equipment presents many challenges but its advantages for demanding uses are also undeniable. Successful machining depends on controlling high temperatures, limiting work hardening and selecting strong tooling methods. When you set the right parameters, you can make parts that are both corrosion-resistant and extremely durable.
If you need expert CNC machining services for monel or any other material then Richconn is your best option. You can contact us anytime.
Related Questions
Yes monel is significantly more difficult to machine than most stainless steels. It work-hardens very rapidly and becomes tough and abrasive during the cutting process.
Machined parts made from Monel are very durable. They provide strong resistance to corrosion, maintain strength in harsh settings and perform well under long-term stress.
While carbide tools are used, standard grades are not recommended. You should use premium, sharp, positive-rake carbide inserts specifically designed for tough nickel alloys.
Monel R-405 is the easiest grade to machine. It is known as the “free-machining” alloy due to added sulfur which acts as a chip breaker.
