Modern CNC standards require micron-level accuracy that standard industrial connectors cannot achieve. Precision couplings let CNC machines handle high speeds and frequent directional changes. In this blog post we will explore the different coupling types and details how to select the correct one for your system.
What Is CNC Machining Precision Coupling
A precision coupling is a mechanical component that connects two rotating shafts in CNC machines. It transmits torque while maintaining zero backlash and high torsional stiffness. It also compensates for misalignment to assure the rigorous positioning accuracy needed for manufacturing.
How Precision Couplings Work
Precision couplings work by transmitting torque between a driving shaft (motor) and a driven shaft (gearbox or screw) while maintaining a strict 1:1 rotational relationship.
They use flexible elements—like elastomeric spiders or metallic bellows—to absorb angular, parallel as well as axial misalignments without backlash. This design ensures that if a servo motor rotates 90 degrees, the load rotates exactly 90 degrees and thus preserving positional accuracy.
Also See: What is a Transmission Shaft
Core Types of Precision Couplings
Precision couplings fall into three main categories, each designed for particular torque and misalignment needs.
1. Rigid Couplings

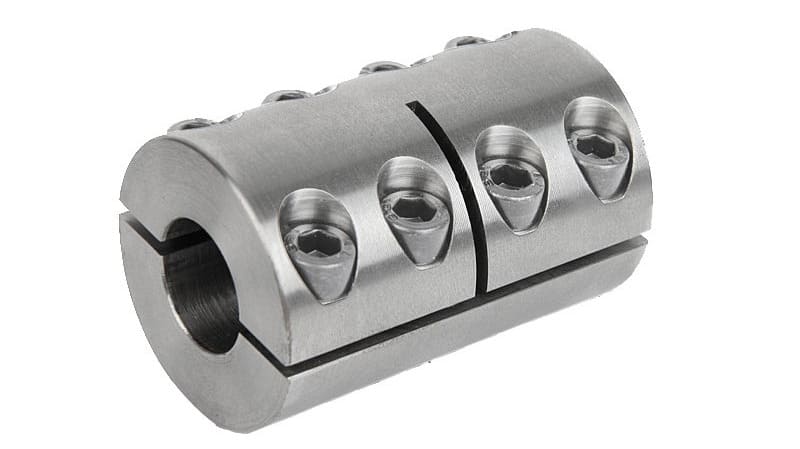

Muff Couplings
Also known as sleeve couplings, these are simple hollow cylinders clamped or keyed over shaft ends. They need a lightweight, low-profile solution for light-to-medium torque applications. This ensures solid transmission with no rotational play.

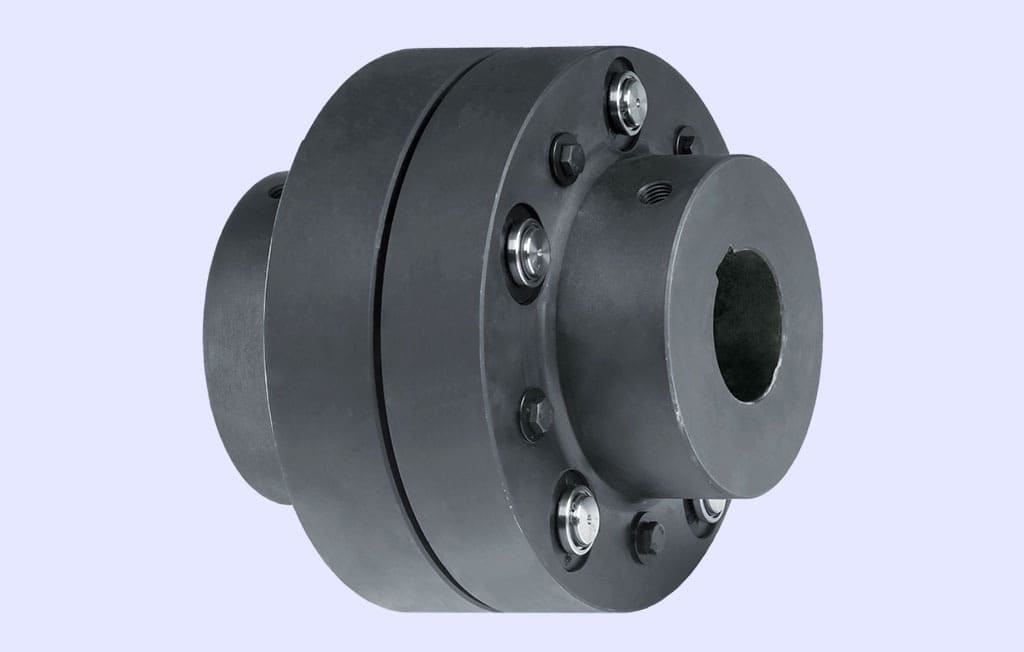

Flange Couplings
These consist of two heavy duty keyed disks bolted together face-to-face. Designed for high-torque industrial setups, they offer extreme rigidity and stability. They are ideal for large driving shafts where vibration dampening is unnecessary.
2. Flexible Precision Couplings
Helical Couplings
Also known as beam couplings, these feature a single-piece design with spiral cuts that accommodate angular misalignment up to 20 degrees. They are best for light-duty applications like connecting encoders where flexibility and low inertia are critical.
Bellows Couplings
Constructed with thin walled metallic bellows, these offer exceptional torsional stiffness and zero backlash. They are the top choice for high precision CNC servo drives. This ensures exact position transmission while absorbing slight shaft misalignments.
Elastomer Couplings
These “spider” couplings use a polyurethane insert to absorb vibration and shock loads. They protect drive components from torque spikes. Their fail-safe design and damping properties make them perfect for stabilizing dynamic systems that are prone to resonance.
3. Special Precision Couplings

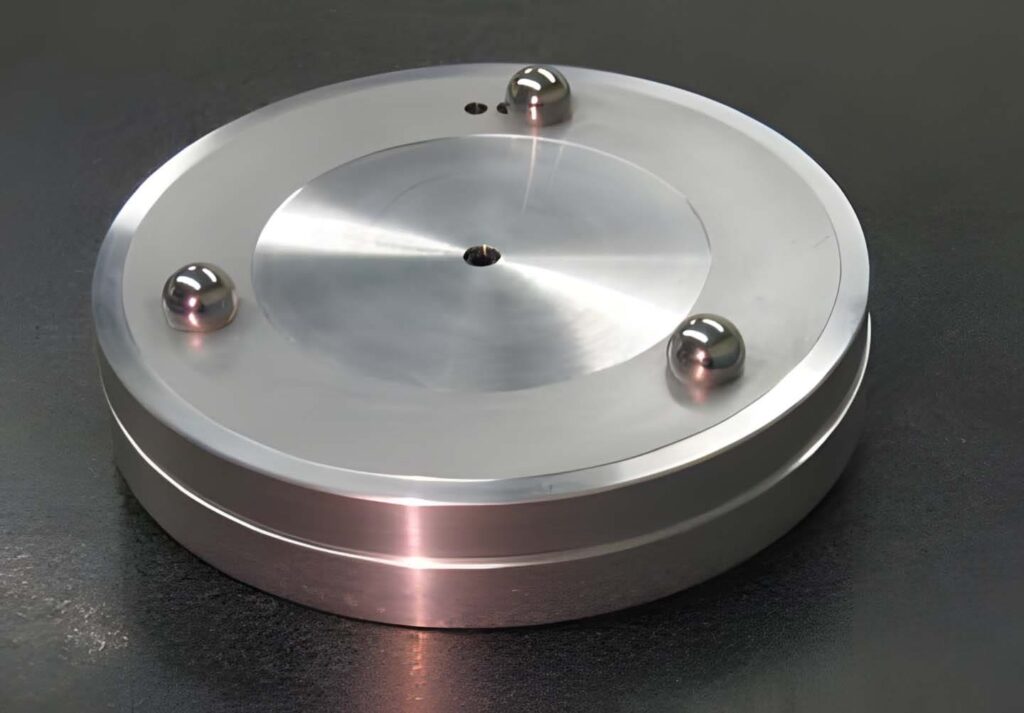

Kinematic Couplings
Designed for exact constraint and sub-micron repeatability, these couplings use point contacts (typically spheres in V-grooves) to dock removable components. They are essential for precision fixtures and metrology probes where absolute positioning accuracy is critical upon re-connection.
Schmidt Couplings
Uniquely designed to handle extreme, variable parallel shaft offsets, these couplings maintain constant angular velocity without imposing side loads on bearings. They are ideal for adjustable roll feeds and machinery that require dynamic shaft positioning.
Gear & Grid Couplings
Built for heavy-duty CNC mills, these transmit immense torque through interlocking teeth or steel grids. Gear variants provide rigid, high power connection while grid types absorb heavy shock loads. Both deliver the durability needed for roughing operations.
Key Benefits of Precision Coupling in CNC Machining
Precision couplings are engineered to optimize the performance of high speed, automated systems. They offer critical advantages for modern manufacturing.
Enhanced Motion Accuracy
Precision couplings eliminate backlash completely which ensures the cutting tool moves exactly as commanded. This zero-play connection guarantees sub-micron repeatability for complicated contouring and fine finishing.
Vibration Dampening & Shock Absorption
Flexible couplings, especially elastomer types, are designed to absorb vibrations and shock. This dampening protects sensitive components, reduces operational noise as well as contributes to a smoother machining process.
Torque Transmission Efficiency
High quality couplings provide high torsional stiffness and they transmit motor power without elastic twisting or delay. This ensures that torque commands are executed instantly. This maintains consistent force and speed during heavy cutting operations.
Misalignment Compensation
Precision couplings flex to accommodate unavoidable shaft errors like angular, parallel as well as axial offsets. This flexibility prevents dangerous reaction forces from destroying sensitive motor bearings and ball screws.
Extended Machine Reliability
By absorbing shock and compensating for misalignment, couplings reduce wear and tear. This significantly extends the life of expensive parts like motors and ball screws. This boosts overall machine reliability.
Impact on CNC Process Quality
A high quality coupling directly translates to better machining outcomes. It improves surface finish and ensures dimensional accuracy by providing smooth, consistent power transmission and minimizing errors in motion.
Practical Selection Guide
Choice of the right precision coupling isn’t just about fitting shafts; it’s about matching mechanical properties to your particular machining goals.
Identify System Requirements
Begin by quantifying the application’s core parameters; torque (continuous & peak), maximum speed (RPM) and shaft diameters. For high-dynamic CNC systems, calculate the needed acceleration rates and ensure the coupling’s rated torque exceeds peak loads by a safety factor of 1.5 to 2.0.
If you’re unsure about sizing or manufacturability, our engineering team at Richconn can review your shaft drawings for DFM feedback.
Misalignment Considerations
Measure the expected shaft deviation—angular, axial and parallel—using dial indicators or laser alignment tools. Select a coupling type that can accommodate these errors without exceeding its fatigue limit; for example, bellows for slight offsets or helical beams for larger angular deviations.
Torsional Stiffness Needs
Evaluate the coupling’s resistance to twisting under load. High stiffness is non-negotiable for precision motion control to prevent positioning errors, hysteresis as well as resonance. Rigid and bellows couplings generally offer superior stiffness as compared to elastomer types. This makes them better for dynamic, high-speed applications.
Environmental & Operational Factors
Standard couplings may fail in harsh conditions. For high heat or vacuum environments, select specialized materials like PEEK or stainless steel bellows that resist outgassing and thermal deformation. Similarly, use corrosion resistant coatings if the coupling is exposed to coolants or chemical washdowns.
At Richconn, we often apply specialized finishes like passivation or hard anodizing to custom shafts and hubs. This ensures they survive these harsh environments without altering critical dimensions.
Material & Design Constraints
Consider the coupling’s inertia, especially for high speed reversing applications. Lightweight aluminum couplings minimize inertia for rapid starts and stops while stainless steel is essential for high torque or corrosive environments. Additionally, check available space as compact designs may be needed where axial length or diameter is restricted.
Installation & Maintenance Factors
Consider attachment methods like clamp, setscrew or keyway designs based on your installation accessibility and alignment precision requirements. Gear and grid couplings need lubrication every 6 to 12 months while maintenance-free bellows designs reduce long term operational costs.
Applications Across Industries
CNC Milling & Turning Centers
In these machines, high stiffness bellows couplings are standard for connecting servo motors to ball screws. They provide the zero-backlash transmission which is essential for maintaining tight tolerances (often ≤0.005mm) while absorbing the heavy cutting forces and vibrations. This is especially important for metal removal processes.
Robotics & Automation
Automated arms rely on low-inertia couplings to connect actuators to precision gearboxes efficiently. They enable rapid, precise starts and stops while maintaining high torque rigidity. This durability supports continuous 24/7 assembly line operation which significantly reduces costly maintenance downtime.
Aerospace Component Machining
Aerospace machining demands vibration-damping couplings to handle tough alloys like Inconel. These components ensure smooth surface finishes on turbine blades while maintaining micron-level tolerances. They prevent resonance during high speed operations and this protects critical engine parts from fatigue.
Medical Parts Production
Swiss-type lathes rely on zero-backlash bellows couplings to manufacture tiny implants like bone screws. They ensure exact synchronization for delicate threading operations. This motion control maintains accuracy within 1 micron. This meets strict FDA manufacturing mandates.
Automotive Precision Parts
High-volume automotive lines use precision couplings to machine engine blocks and EV motor shafts. These units dampen vibrations during rapid directional changes to maintain ±0.01mm tolerances. Such stability guarantees flawless surface finishes on critical pistons and camshafts.
To Sum Up
Precision couplings are essential for maximizing CNC accuracy, dampening vibrations and extending equipment life. Selecting the correct type ensures superior performance across aerospace, automotive and medical applications.
You can trust Richconn’s advanced CNC machining services to deliver high precision components for your critical systems.
Related Questions
Rigid couplings need a solid, zero-backlash connection but cannot handle misalignment. Flexible couplings, in contrast, accommodate angular, parallel and axial misalignments while dampening vibrations.
Not all but high-precision, high-speed CNC machines absolutely need them. Lower-end or hobbyist machines may use simpler couplings. This sacrifices accuracy and surface finish quality for cost.
You can use dial indicators or laser alignment tools to measure backlash and runout. Monitoring torsional stiffness and vibration levels during operation also reveals how well the coupling performs.
Yes. Retrofitting is common during upgrades to improve accuracy. Ensure the new coupling matches the shaft diameters, torque requirements and physical space of the original setup.
