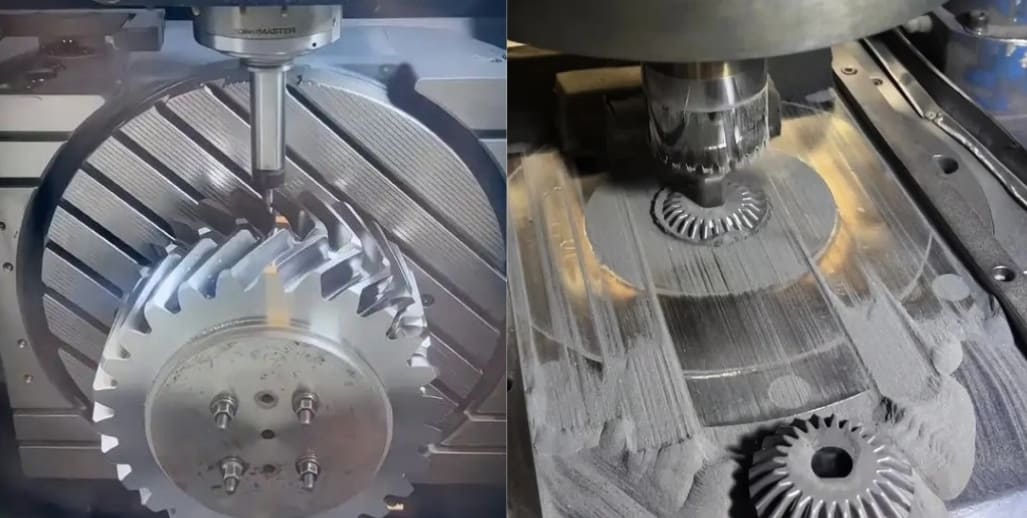

Choosing the right metal manufacturing process directly affects cost per part and geometric complexity. There are two popular methods, powder metallurgy and CNC machining; both have their strengths and limitations. In this technical comparison you will learn the main differences and applications for both. This will help you decide the best process for your particular needs.
What is Powder Metallurgy?

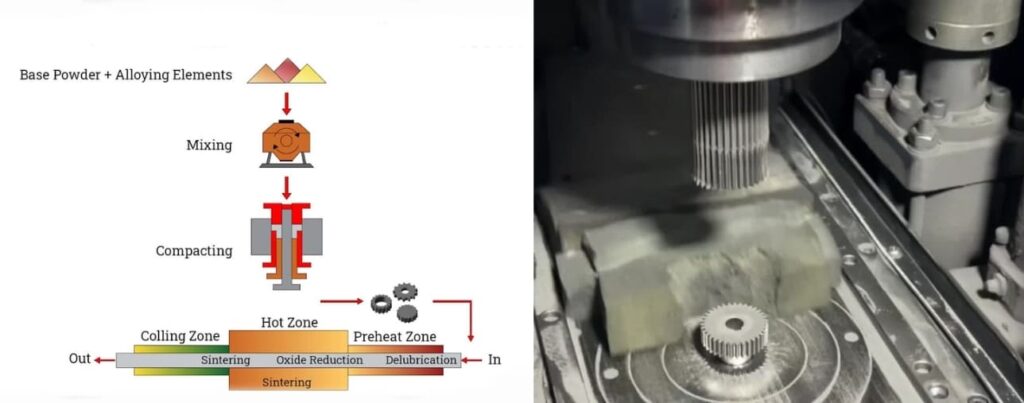

Powder metallurgy is compressing fine metal powders into a desired shape and then sintering them. During sintering the pressed powder is heated to just below its melting point to form a solid component. This method is mostly chosen when producing large quantities of intricate or small parts. Powder metallurgy is useful as it also generates minimal material waste.
What is CNC Machining?

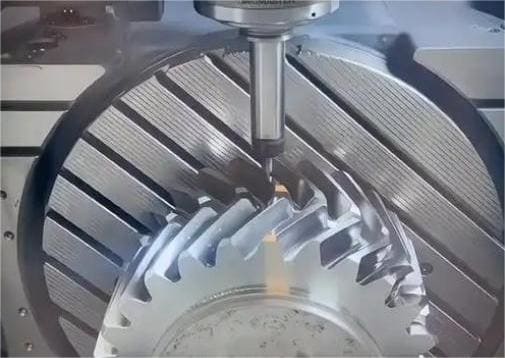

CNC machining is removing material from a solid block using computer guided cutting tools. This subtractive manufacturing procedure can be used with metals, plastics as well as composites. CNC machining produces parts with tight tolerances. Sometimes this tolerance can be as tight as ±0.005 mm. You would choose CNC machining when your project needs fast production, high accuracy and repeatability in complicated shapes.
Also See: What is CNC Precision Machining

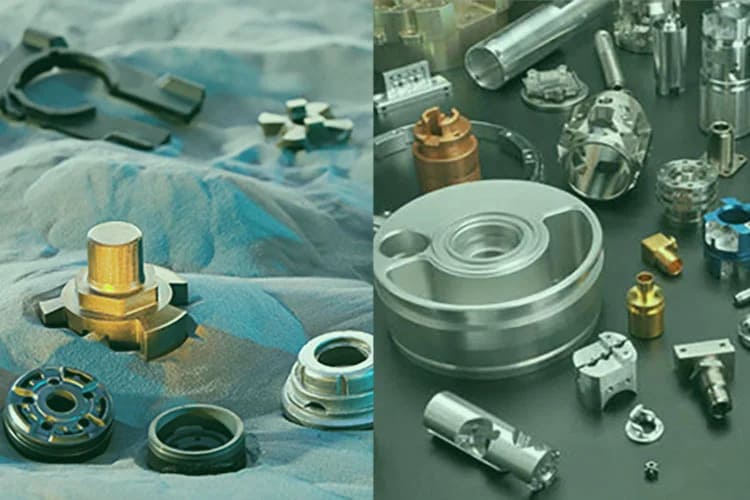

Main Differences Between Powder Metallurgy and CNC Machining
1. Tolerances and Precision
CNC machining gets extremely tight tolerances, as strict as ±0.0025 mm. At RICHCONN we get this level of accuracy with our advanced machining centers & strict quality control. This level of precision is important in demanding industrial fields where even small dimensional changes can affect functionality.
In contrast powder metallurgy has good dimensional accuracy but can’t match CNC machining’s ultra fine tolerances. During sintering there is a slight distortion or shrinkage. To get greater tolerances secondary machining is mostly needed.
2. Production Volume
Powder metallurgy is best for high volume production. Once the tooling is set up it can produce thousands or even millions of identical parts. As volume increases powder metallurgy reduces the cost per part.
In contrast, CNC machining is appropriate for low to medium volume production where frequent design changes and short setup times are mostly needed. CNC machining also reduces per‐part cost at higher volume but not as much as powder metallurgy.
Also See: What Is Low Volume Manufacturing & Why Should You Care
3. Material Waste and Output
Powder metallurgy uses over 97% of the initial material. This means it loses only 1-5% as waste. Plus leftover powder can be recycled which further improves cost and material productivity.
On the other hand CNC machining starts with a solid block and removes material to form the final component. This subtractive process mostly results in a lot of material waste particularly when working with expensive metals such as stainless steel or titanium.
4. Geometric Adaptability and Design
Powder metallurgy lets you make complicated internal geometries in one press. But some shapes or undercuts can’t be made because of its die removal limitations.
CNC machining can also make complex shapes. But it may need special tooling or multiple setups for some traits. For example complicated internal channels or deep cavities can be hard to machine in particular with 3 axis CNC. Although 5 axis CNC machines have more adaptability, but even they have limitations in tool access.
5. Mechanical Properties of End Parts
When you machine parts with CNC, you start with solid metal blocks. So your end parts keep durability and full strength of the original material. So if you need maximum strength then CNC is the way to go.
In contrast powder metallurgy uses a method of compressing metal powders into shape and then sintering them. Standard ferrous alloys made this way can reach 900 N/mm². And powder forged steels can even go higher. But parts made with powder metallurgy mostly have inherent porosity. This porosity can reduce fatigue strength and ductility as compared to fully dense parts made with CNC machining.
6. Compatibility of Material
Powder metallurgy limits your material choices to metals and alloys which can be powdered & sintered. Some examples are stainless steels, some other steels as well as special alloys such as cobalt‐chrome.
On the other hand CNC machining supports a much wider range of materials. You can machine different alloys, metals and even engineering plastics. It can process aluminum, titanium, stainless steel and advanced polymers. So CNC is very beneficial if your industry needs multiple materials.
7. Surface Finish Quality
CNC machining mostly gives a better surface finish. Surface roughness values can be as low as Ra 0.4 to 0.6 μm. If your parts need tight tolerances or a smooth finish, CNC is the way to go.
Whereas powder metallurgy gives rougher surfaces of around Ra 0.8 to 1.6 μm. To get finer finishes with powder metallurgy, additional post processing is usually needed. At RICHCONN we overcome this limitation with our integrated finishing line. By combining CNC assisted grinding & patented electrochemical polishing we get Ra of 0.2 μm in 93% of powder metallurgy projects.
Also See: Surface Roughness Explained_ Ra, Rq, Rz & More
8. Lead Time and Setup
Powder metallurgy demands a lot of upfront work. Designing molds, sourcing the right powders and tooling can take weeks for new parts or complicated projects. Once the tooling is done then powder metallurgy is best in high volume production as it makes parts fast.
Meanwhile CNC machining has quicker turnaround times. For simple projects, it can deliver finished parts in days. Its setup is simple and no custom tooling is needed. So CNC is perfect for you if you need customized parts or urgent prototypes with short lead times.
Comparison Table
| Aspect | Powder Metallurgy | CNC Machining |
|---|---|---|
| Tolerances & Precision | Moderate tolerances | Extremely tight tolerances mostly ±0.005 mm or better |
| Production Volume Compatibility | Best for high volume runs | Best for prototypes & small to medium batches |
| Material Waste | ≤ 3% material waste | up to 50% material waste |
| Geometric Adaptability & Design | Outshines at complicated, intricate or net shape designs | Good for complicated shapes but some features need extra steps |
| Mechanical Properties | May have porosity | Fully robust & dense parts; keeps base material’s strength |
| Compatibility of Material | Limited to materials which can be powdered & sintered | Broad range; alloys, metals, engineering plastics, etc. |
| Surface Finish Quality | Gives rough surfaces | Gives smooth finishes |
| Lead Time & Setup | Longer lead times because of die/tooling & sintering | Fast setup, best for urgent or custom orders |
Uses of Powder Metallurgy and CNC Machining
Powder Metallurgy (PM)

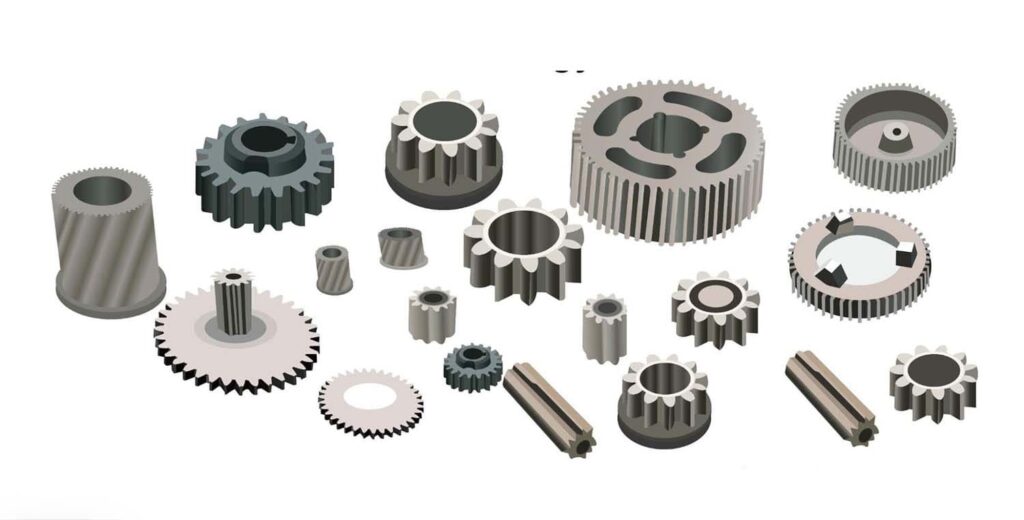

For high volume production, complicated geometries and better material usage, powder metallurgy is the way to go. Its primary application is in the automotive industry which uses PM mostly for gears, piston rings, bushings and connecting rods.
Electronics manufacturers also use powder metallurgy because of its favorable electromagnetic characteristics particularly for motors and related assemblies. Other major PM produced components are bearings, cutting tools, electrical contacts and filters.
CNC Machining
Automotive, aerospace and medical industries mostly use CNC machining for highly precise & strong parts. You can mostly see CNC produced parts like engine blocks, surgical tools, aircraft components and electronic housings.
CNC machining is also used for prototype development, smaller production batches as well as custom component fabrication. Its greatest advantage is accuracy in these specialized or limited run projects.
Choosing Between Powder Metallurgy and CNC Machining
Choose Powder Metallurgy If
- You want large scale production with minimal per unit cost.
- Your component design has controlled porosity or complicated internal structures.
- Increasing material proficiency and reducing waste is your top priority.
- Your company prioritizes sustainability & minimal material waste.
Choose CNC Machining If
- Your parts need tight tolerances and high precision.
- You need a broad range of materials e.g metals and plastics.
- Your production is limited to prototypes or small to medium quantities.
- Fast turnaround times and quick setup are important to your schedule.
Get Next Level Powder Metallurgy and CNC Machining Services from Richconn
Richconn serves clients worldwide with accurate and reliable powder metallurgy and CNC machining solutions. Our modern setups have 5 CMMs and over 150 machines to assure high quality. We support automotive, medical as well as aerospace industrial fields. We also support rapid prototyping as well as large‐scale processing. Contact us now to discuss how we can meet your project’s needs quickly and proficiently.
To Sum Up
Powder metallurgy and CNC machining both have their own advantages. Powder metallurgy is useful for high volume production of complicated shapes and it gives minimal waste. In contrast CNC machining is used for small volume and where accuracy is more important. Finally your project needs will decide the best method for you.
Related Questions
What are tooling costs for Powder Metallurgy?
Tooling cost for powder metallurgy is between $5,000 to $15,000 for ordinary parts. Simple shapes can be made for as low as a few thousand dollars but larger and multilevel complicated parts can be up to $30,000.
How do green compact tolerances compare to sintered part tolerances in Powder Metallurgy?
Green compacts have looser tolerances because of elastic recovery after ejection. In contrast sintered parts can obtain tighter tolerances of ±0.01 mm but slight residual porosity may persist.
Can high volume production be automated with CNC Machining?
Yes robotic automation systems can fully automate CNC machining for high volume production.
