CNC Piston Machining: Crafting High-Quality Engine Components

1. What Is CNC Piston Machining?

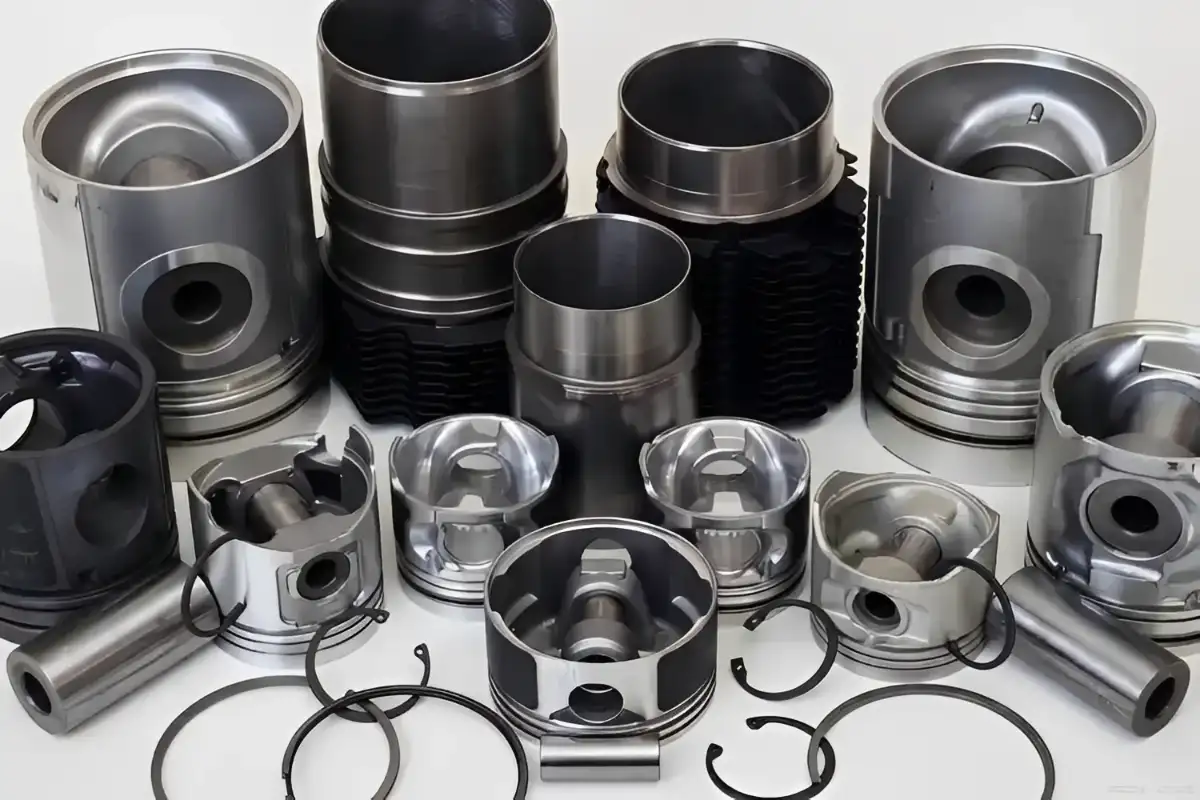

CNC piston machining is a technology-driven manufacturing process used to produce engine pistons with high precision and consistency. Pistons are critical components in internal combustion engines, and their geometry, strength, and surface quality directly affect engine performance and reliability.

CNC machining, short for Computer Numerical Control machining, enables manufacturers to produce pistons with exceptional dimensional accuracy and repeatability. By using automated machinery and advanced software, CNC machining can achieve tolerances and details that are difficult to match with manual methods.

2. How Does CNC Piston Machining Work?

At its core, CNC piston machining transforms digital designs into finished physical components. The process begins with detailed engineering and programming. Skilled engineers create digital models that define every aspect of the piston’s geometry, from dimensions to surface finish requirements.

These designs are then processed through CAD and CAM software. The software generates machining instructions, often in the form of G-code, which direct the CNC equipment throughout the production cycle. This digital workflow ensures that piston manufacturing remains consistent, repeatable, and highly accurate.

3. Key Steps in CNC Piston Machining

Each stage of CNC piston machining plays an important role in shaping the final component and ensuring that it meets demanding engineering standards.

Material Preparation

The process begins with selecting a suitable material, commonly aluminum or steel, based on strength, heat resistance, and application requirements. The raw stock is then cut into workable sizes for machining.

Turning and Boring

CNC lathes are used to shape the piston’s outer diameter and machine the inner bore, helping ensure an accurate fit inside the engine cylinder.

Milling

Critical features such as piston ring grooves and pin bores are machined through precision milling operations. This step is essential for achieving the functional geometry required for engine performance.

Drilling and Tapping

Holes for wrist pins, oil passages, and other functional details are accurately drilled, and threads are created where required.

Surface Finishing

Surface treatments such as anodizing or thermal barrier coatings may be applied to improve durability, wear resistance, and thermal performance.

Quality Control

Rigorous inspections are carried out to verify dimensions, tolerances, and overall machining quality. This step ensures that each piston meets or exceeds the design specification.

Precision Grinding

Where necessary, the piston undergoes precision grinding to achieve the required surface finish and tighter dimensional control. This can help improve the piston’s contact behavior with the cylinder wall.

Assembly and Testing

Once the piston body is finished, additional components such as wrist pins and rings may be assembled. The completed piston is then tested to verify its functionality and quality.

Customization and Special Features

CNC piston machining also allows for project-specific customization. High-performance pistons may include advanced coatings, oil cooling channels, or other engineered features designed to enhance service life and operating performance.

4. Richconn’s CNC Piston Machining Services

Richconn provides CNC machining services tailored to demanding piston and engine component projects. From early-stage design support to final production, our team focuses on precision, reliability, and consistent quality.

With modern equipment, experienced engineers, and strict quality control procedures, Richconn delivers CNC piston machining solutions built around your project requirements. Whether you need prototypes or production-ready parts, we aim to provide dependable results at every stage.

5. Applications of CNC Piston Machining

CNC piston machining serves multiple industries that require reliable engine performance and tight dimensional control.

Marine Engines

The marine industry depends on durable and efficient engines. Precision piston machining helps marine engines operate smoothly under demanding service conditions.

Industrial Power Generation

In power generation equipment, precisely machined pistons contribute to consistent performance and long-term reliability in generators and related systems.

Motorcycles and Small Engines

Motorcycles and small engine applications require a balance of lightweight design, durability, and efficiency. CNC piston machining helps achieve these goals through accurate and repeatable manufacturing.

6. Future Trends and Developments

CNC piston machining continues to evolve alongside advances in manufacturing technology and engineering demands.

Sustainable Materials

As sustainability becomes more important across manufacturing industries, engineers are increasingly exploring lighter and more environmentally responsible material options for piston production.

3D Printing Advancements

Additive manufacturing is opening new possibilities for rapid prototyping and more complex piston geometries, especially in early design and testing stages.

IoT Integration

The integration of IoT systems and data analytics into CNC machining environments is enabling real-time monitoring, predictive maintenance, and improved productivity across the shop floor.

Conclusion

CNC piston machining is a critical part of modern engine and component manufacturing. It combines digital design, automated production, and strict quality control to create pistons that meet demanding performance requirements.

By understanding the processes and technologies behind CNC piston machining, manufacturers and buyers can make better decisions about material selection, production methods, and supplier capabilities. Richconn is committed to delivering the precision and quality required for projects where reliability matters.
