CNC Prototype Machining: Materials, Costs, and Effective Methods

If you’re still relying on 3D printing alone for your prototypes, you’re already falling behind. CNC prototype machining gives you something additive manufacturing can’t: real-world performance with production-grade materials and tolerances. Whether you’re developing a new medical device, testing automotive parts, or refining consumer electronics, CNC machining helps you test, tweak, and launch faster with parts that behave like the final version. It’s not just about speed; it’s about getting it right the first time. In this guide, we’ll walk you through how CNC prototype machining works, the materials you can use, design tips, costs, and what makes it so effective.

What is Prototyping?

Prototyping is the process of making a model of a product that will be tested globally and serve as the base for how the final product will look. Prototype design happens during product development when designs are checked and improved. This stage helps confirm and support the design. The goal is to allow people to touch, feel, test, and show a product before it is made in large quantities or from costly materials. We want to ensure that our design meets our needs and works well.

Prototypes are often shown at trade shows or to potential investors. Creating prototypes helps test whether an engineer’s idea is valid and allows them to pass certain tests. Prototypes can also identify what needs improvement and gather feedback from customers or the market.

Benefits of CNC Machining for Rapid Prototyping

Speed and Efficiency

CNC machining can greatly cut down the time needed to create prototypes when compared to older methods, since it converts CAD/CAM (Computer er Aided Manufacturing) designs straight into real parts. The automation of CNC machines lowers the time spent on breaks and lets designers quickly make changes, speeding up the whole process of developing products. This speed is important for launching products faster and remaining competitive in the market.

Accuracy and Precision

CNC machines can create parts with very precise measurements and high accuracy, making sure that prototypes align closely with the desired design. This level of precision is important for testing and assessing prototypes, as it helps engineers spot any problems early in the development stage. CNC machining delivers reliable results, guaranteeing that every prototype maintains the same high quality as the ones before it.

Material Versatility

CNC machining can handle many different materials, such as metals, plastics, composites, and even wood. This capability enables prototyping using the same materials as the final product, which is important for testing how well it works and performs. With CNC machining, you can rest easy knowing that your prototypes won’t be too fragile for the surface finish you want, which can sometimes be an issue with certain 3D printing methods.

Quick and Easy Modification

CNC machining is an excellent option for rapid prototyping because it makes it simple and fast to change designs. When developing a product, you want to try out different versions and quickly see how they work. By making a few easy adjustments to the G-code program, you can get your updated part right away. This speeds up the overall product development process without increasing costs.

Cost-Effectiveness for Small Runs

Although the upfront cost of CNC machines can be high, they can save money when creating prototypes, particularly for small to medium production runs. This is because they remove the need for costly tools and molds, and they help cut down on material waste.

CNC Machining vs. 3D Printing for Prototyping

Key Differences Between CNC Machining and 3D Printing for Prototyping

CRITERIA	CNC MACHINING	3D PRINTING
Material Options	Uses real engineering materials like aluminum, steel, PEEK, and ABS.	Primarily uses plastic, with a few metals based on the printer type.
Functionality	Creates fully functional prototypes that are great for real testing.	Usually limited to concept or visual models.
Tolerances	Achieves tolerance of ±0.01mm which is more precise.	Achieves tolerance of ±0.1-0.3 mm, which is less precise.
Surface Finish	Provides a smooth and even finish that can be anodized, polished, or coated.	Shows layer lines that often need extra finishing after printing.
Geometry Complexity	Limited by access to tools.	Excels at creating complex and organic shapes.
Speed (Lead Time)	Takes 1-3 days for simple parts and longer for more complicated parts.	It takes the same day or 1-2 days for simple plastic parts.
Setup Cost	Moderate costs that depend on how complex the part is.	Very low cost for single prototypes.
Cost Efficiency	More cost effective for larger quantities and critical tests.	Best suited for making 1-5 low-risk visual models.
Scalability	Easily scales up for low-volume production runs.	Not suitable for parts intended for final use or large production volumes.
In-house Feasibility	Can be easily done in-house using CNC machines.	Depends on the quality of the 3D printer. Industrial printers can be costly.

Recommended Uses of CNC Machining and 3D Printing for Prototyping

Use cases for CNC Machining include:

• Fully functional prototype for tight specs. This is because it has real materials and exact tolerances needed for mechanical testing.
• Prototyping for investor demo or final looks. This is because it has professional finish and presentation grade quality.
• Patent sensitive prototype. This is because it is easier to control and because of the secure manufacturing environment.
• Scaling to low-volume production. This is because of the fast transition from prototype to batch manufacturing.

Use cases of 3D Printing include:

• Early concept or visual prototype. This is because it is fast, affordable and doesn’t require high tolerance.
• Organic and complex shapes. This is because it is easier to produce shapes impossible with traditional tools.
• Low budget and one-off samples. This is because the no tooling or set up costs makes it ideal for small-scale testing.

Read our guide on CNC Machining vs. 3D Printing to know which is better for manufacturing.

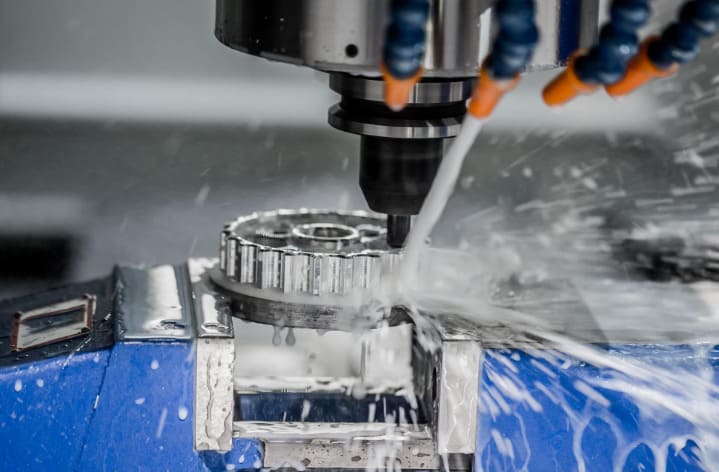

How Does the CNC Prototype Machining Process Work?

CAD Design Creation

Every CNC machining project starts with a 3D CAD (Computer-Aided Design) model, which is made using software such as SolidWorks, Fusion 360, or AutoCAD. CAD is used in CNC machining to:

• Enable designers to create precise 2D and 3D models, which can be converted into code that CNC machines understand.
• Optimize designs to ensure that part geometry and dimensions meet machining requirements.
• Plan a precise path which ensures tools move in the most efficient manner, reducing machining time and improving surface quality.

CAM Programming and Toolpath Generation

Once the CAD file is ready, it’s imported into CAM (Computer-Aided Manufacturing) software. CAM software figures out the best route for the cutting tool to take on the workpiece. This helps to make sure the cuts are precise and reduces material waste. It looks at things like the shape of the tool, how fast it cuts, and how much material is fed into it. To know more, read this Complete Guide to Computer-Aided Manufacturing.

Machine Setup and Material Preparation

Machine setup includes workspace preparation to clear the area around the machine, machine inspection to check for loose components and proper lubrication, mounting the correct cutting tools, workholding to securely mount the workpiece, and calibrating the machine to ensure accurate machining. Material preparation involves choosing the appropriate material for the project, considering its machinability, strength, and desired finish.

Machining Operations

After the machine is programmed and ready, it starts the subtractive manufacturing process which involves cutting tools to take away material one layer at a time. Coolants or lubricants are used to keep dimensions stable and to stop the tools from wearing out. Machining operations usually include milling, drilling, turning, tapping and threading, and surface finishing passes.

Post-Processing and Finishing

After machining, the prototype might go through finishing steps depending on how it will be used:

• Deburring or polishing to smooth out sharp edges.
• Anodizing, plating, or painting to protect against rust.
• Tolerance checks using CMM (Coordinate Measuring Machines). These processes make sure the part meets design standards and is prepared for testing or showcasing.

Quality Inspection and Delivery

Final quality checks may involve:

• Measuring dimensions with micrometers or a CMM.
• Inspecting visually for any defects.
• Testing surface roughness.

After everything is confirmed, the part gets cleaned, packaged, and shipped out.

Most Common CNC Machines Used for Prototypes

CNC Milling vs. CNC Turning for Prototype Development

CNC MILLING

• Best For: It is best for precision parts and components, rapid prototyping, and engraving and surface finishing. CNC milling machines can work with a wide range of materials, including metals like aluminum, steel, and titanium, as well as plastics, wood, and even some ceramics.
• How it Works: It uses computer-controlled cutting tools to remove material from a workpiece, shaping it into a desired 3D object.
• Typical Axes: It usually operates with 3-axis, 4-axis, or 5-axis for cuts in different directions.
• Part Complexity: It is perfect for parts with multiple surfaces and different features.
• Setup Time: It takes longer for complicated shapes due to various operations needed.
• Accuracy and Tolerance: It offers high precision, often around ±0.01 mm.
• Examples of Use: It is used for brackets, housings, heat sinks, and structural frames

CNC TURNING

• Best For: It is perfect for producing cylindrical shapes, complex geometries, high precision and tight tolerances, high-volume production, and reduced material waste.
• How it Works: A cutting tool is used to remove material from a rotating workpiece to create a desired shape.
• Typical Axes: It generally uses 2-axis or 3-axis (some machines can reach up to 5-axis).
• Part Complexity: It is best suited for symmetrical, round, or tube-like shapes.
• Setup Time: It is faster for simple cylindrical designs.
• Accuracy and Tolerance: It provides great control over roundness and concentricity.
• Examples of Use: It is commonly found in pistons, rods, pulleys, and valves.

For more information, read our guide on What is CNC Turning? All You Need to Know.

How to Decide Between CNC Milling and CNC Turning for Prototyping

• You should choose CNC Milling if your prototype has shapes that are not round, pockets, or flat surfaces.
• Opt for CNC Turning when the part is symmetrical around a central axis, like shafts or rollers.
• Some mixed parts might need both processes so you should begin with turning and then use milling for flat areas or drilled holes.

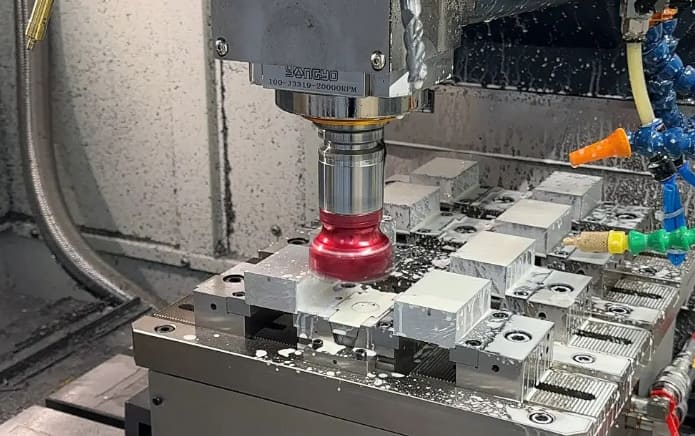

Best Materials for CNC Prototype Machining and Their Cost

The best materials for your project usually depend on what you need, but people often choose aluminum, steel, and plastics like ABS and Delrin. These materials are popular because they are easy to work with, strong, and affordable.

Metals

• Aluminum: This material is a popular option because it is easy to work with, has a strong strength-to-weight ratio, and resists rust. These qualities make it ideal for many uses, such as in airplanes, cars, and electronic devices.
• Steel: Steel is famous for being strong, long-lasting, and flexible. People use it in many ways, including for car parts, machine pieces, and industrial tools.
• Copper: Copper is valued for its excellent ability to conduct electricity and heat, making it useful in electrical parts, plumbing fixtures, and heat sinks.
• Brass: Brass is a mix of copper and zinc that is easy to work with, strong, resistant to corrosion, and has a low friction level. These qualities make it a great choice for parts in plumbing, electrical systems, and musical instruments.
• Titanium: This is a strong, light metal that doesn’t rust and can withstand high temperatures makes it perfect for jobs that need strength and heat resistance.

Plastics

• ABS: This is a flexible and budget-friendly plastic that has strong impact resistance and durability, making it great for creating prototypes, cases, and everyday products.
• Delrin (Acetal): Delrin is popular because it stays stable, is strong, and has low friction. People often use it for making gears, bearings, and other precise parts.
• Nylon: It brings together strength, flexibility, and durability, which makes it perfect for many engineering uses, such as parts in cars and industrial equipment.
• PEEK (Polyether Ether Ketone): This is a strong plastic that can take the place of metals in tough situations because it is very strong, resists wear, and has low friction.
• Polycarbonate: This is a strong material that can withstand high temperatures, making it a great substitute for glass in certain situations.

How Much Does CNC Prototype Machining Cost?

CNC prototype machining cost varies depending on factors like material cost, machine time, labor, and design complexity. Metals usually cost more than plastics, especially rare alloys such as titanium or Inconel. For instance, aluminum 6061 is significantly less expensive than stainless steel 316 or copper. However, it typically ranges from $100 to $500+ per part and initial setup for a CNC project can range from $50 to $1000+ depending on the job complexity.

Design Tips to Make CNC Prototyping More Cost-Effective

Simplify the Design

You can do this by removing unnecessary features, and avoiding complex geometries, deep pockets and internal features that need multi-axis machining.

Optimize Material Usage

You can do this by choosing appropriate materials, minimizing material waste, and using standard stock sizes for raw materials can reduce material handling time and costs.

Reduce Machining Time

You can do this by limiting hole depth because deeper holes take longer to machine. Also, add rounded internal corners, and avoid small features with high aspect ratios.

Consider Alternative Manufacturing Methods

For some designs, using methods like sheet metal fabrication can be a cheaper option.

Conclusion

CNC prototype machining provides a great combination of speed, precision, and material options that other prototyping methods struggle to match. Whether you are working on early designs or functional tests, CNC can produce high-quality parts quickly and help your product reach the market sooner and with fewer unexpected issues.
