CNC machining has been revolutionary in the manufacturing sector. Thanks to this technology’s unique precision and efficiency, part creation has been changed.
CNC machining involves shaping materials with computer-controlled tools. These machines are accurate and versatile. So they can handle everything from basic components to intricate aerospace parts.
The two fundamental steps of CNC machining are roughing and finishing. Machinists must comprehend these operations, from shop floor workers to part designers.
Thus, we will discuss everything about CNC roughing and finishing. It includes their functions, distinctions, techniques, and more.

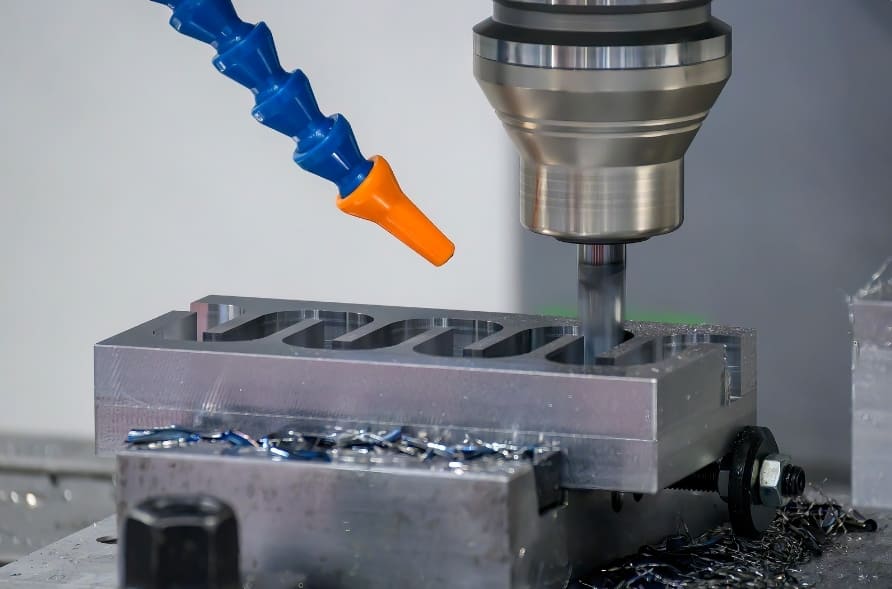

Understanding Roughing in CNC Machining

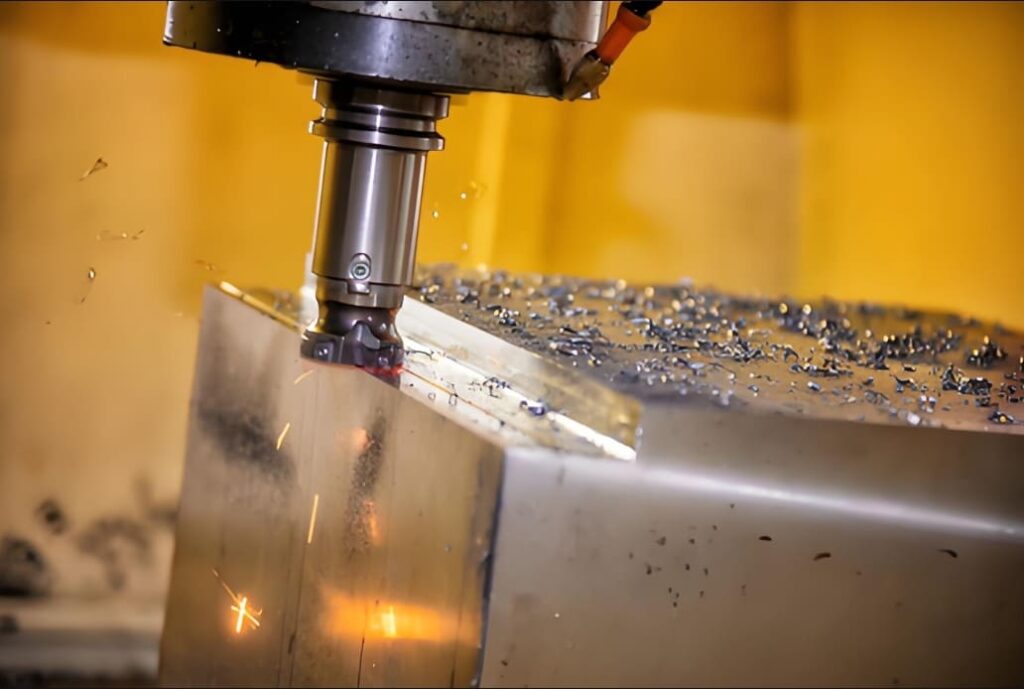

Roughing is the first step in the CNC finish machining spectrum. It entails swiftly and efficiently removing excess material from the workpiece. The primary aim of roughing is to get the item near its ultimate form. It doesn’t primarily focus on achieving precise dimensions or surface finish.
CNC roughing removes thick material layers using its robust cutting tools. These tools are often crafted from long-lasting materials, such as carbide. Also, these tools have several flutes. They move across the workpiece in ways that quickly get rid of material. This process is done without hurting the parts or the machine.
During roughing processes, parts often have extra material left on them. This excess material is called machining tolerance. This excess material is helpful for two reasons. First, it is a cushion for the following finishing steps. Secondly, it prevents warping or distortion when material is quickly removed.
Popular roughing techniques include adaptive clearing and trochoidal milling. Roughing isn’t just about speed. It prepares the way for finishing activities to go smoothly. Roughing makes the finishing process more reliable and effective by removing excess material.
Understanding Finishing in CNC Machining

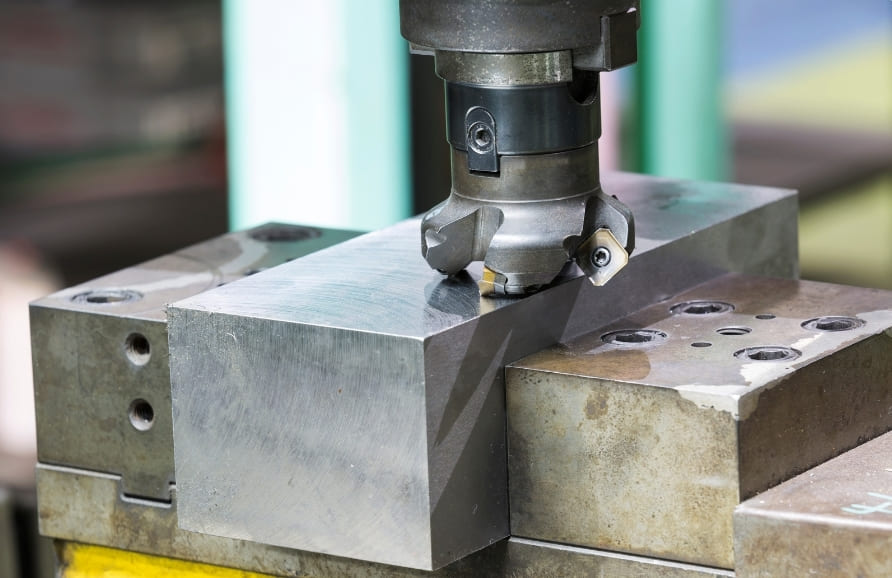

Finishing in CNC machining is the process that follows roughing. It aims to achieve the desired finished dimensions, surface quality, and tolerances. CNC finishing tools are precision-made rather than material-removing.
These tools usually have fewer blades and sharper cutting edges than roughing tools. They carefully plan their paths as they move across the object. They take off tiny bits of material with each pass. With this gentle method, there’s more control over the part’s end shape and finish.
A popular finishing method is “climb milling.” The cutting tool spins in the same direction as its path in this method. It can make the surface smoother and reduce tool wear. Another standard method is “finish contouring.” In this, the tool follows the exact shape of the finished part to make smooth, accurate surfaces.
Finishing tasks usually involve more than one pass with progressively finer cuts. This step-by-step method makes it easier to get tight limits and smooth surfaces. Some finishing procedures involve honing or polishing instead of cutting. Doing this makes the surfaces mirror-like when needed.
Comparing Roughing and Finishing
Roughing and finishing are both crucial parts of CNC cutting. However, they are very different in technique and outcome. Let’s explore these differences across critical aspects:
1. Material removal rates
Fast and efficient material removal is the goal of roughing. They are made to hog out a lot of material quickly. A few cubic inches of material could be removed in a normal roughing process every minute. Roughing tools are robust and can make significant cuts without breaking. It allows them to remove materials quickly.
Finishing processes, on the other hand, take out a lot less material. Quantity is no longer the primary goal; quality is now. A few thousandths of an inch could be removed during finishing cuts. This slower, more controlled method enables more precision and better surface quality.
2. Surface quality
When roughing, speed is more important than surface quality. After roughing, the surfaces are often rough and not level. It’s possible to see the tool lines or the design of the cutting tool. At this point, this level of roughness is fine because it will be processed further.
However, finishing methods focus on surface quality. The goal is to create smooth and even areas and meet the design requirements of the part. Finishing can create a mirror-like shine or machined finish. It all depends on the provisions of the part.
3. Tool selection and wear
Roughing tools are made to be strong. Often, they have more than one blade to handle cutting heavy things. These tools endure the heat and force that come from quickly removing material. Even though they are solid and roughing tools wear out faster. They wear out faster because of the nature of the tasks they handle.
Finishing tools value precision over toughness. Often, they have fewer flutes but ends that cut more sharply. These tools are made to make clean, light cuts. They might not be as strong as roughing tools but they tend to last longer when used correctly. This is because they don’t have to handle as much stress.
4. Machining time and efficiency
In general, roughing processes take less time than finishing tasks. Roughing is when most of the material is removed and can be done quickly. Speed, however, means less accuracy and a rougher surface.
However, finishing operations usually take longer to finish. For more accuracy, the machine moves more slowly and makes cuts that aren’t as deep. This process takes longer, but it’s needed to get the end size and surface quality. Finishing processes are only as good as their ability to meet the end specifications. It doesn’t focus on how much material is removed.

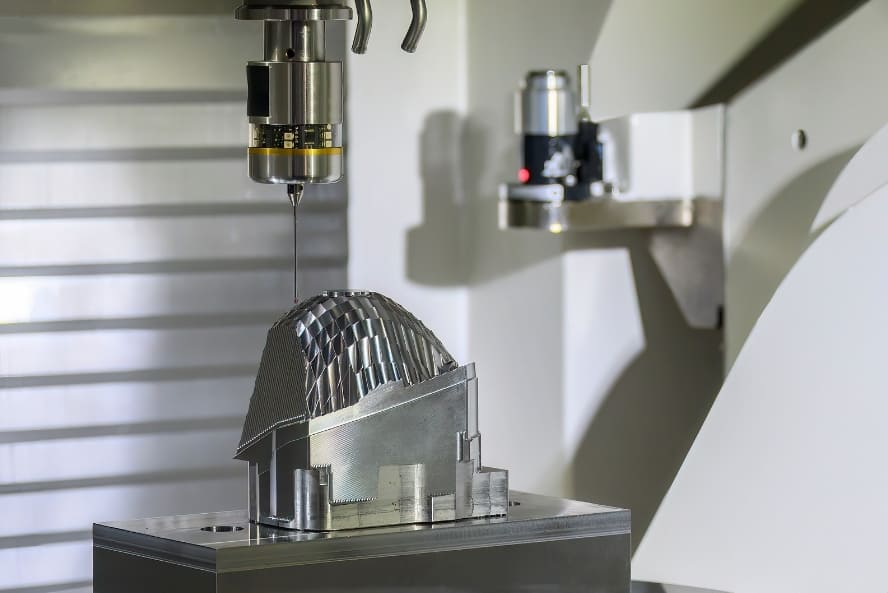

5. Dimensional Accuracy and Tolerance
When roughing, the goal is to get as close as possible to the end size. Yet, tight tolerances are not a priority. It should leave a machining allowance, which will be removed after the process. It depends on the size and needs of the part. But, this limit can be anywhere from a few thousandths to several hundredths of an inch.
In contrast, during finishing, dimensional accuracy becomes essential. This step aims to make the part’s end size within the set limits. Finishing can have tight tolerances, sometimes as little as ten-thousandths of an inch. To get these tight tolerances, careful planning is essential. There’s the need for precise tool control and often make more than one finishing pass.
Factors Affecting Roughing and Finishing Performance
Several factors can impact CNC roughing and finishing. The following explores the factors affecting finishing and roughing performance:
1. Workpiece material properties
In roughing and finishing, the material properties being machined are crucial. Different properties of different materials change how they react to cutting forces. For example, aluminum and other soft materials are more straightforward to machine.
Material hardness, flexibility, and heat conductivity impact machining. Harder materials require more robust tools and slower speeds to prolong cutting tool life. Ductile materials properly can make long, stringy chips that can interfere with cutting.
Titanium and other materials that don’t conduct heat well can cause heat to build up at the cutting edge. Machine operators can choose roughing and finishing cutting settings based on material qualities.
2. Machine tool capabilities
CNC machine capabilities significantly influence roughing and finishing. Different variables affect material removal rates and surface finish quality. These include machine stiffness, spindle power, and axis acceleration rates.
A rigid machine structure helps to reduce vibration during the cutting process. It is essential for getting smooth surfaces. High spindle power lets you cut more aggressively during roughing processes. It could reduce the total time needed for grinding.
High-pressure coolant systems or through-spindle cooling are two advanced features. They can significantly improve the performance of both roughing and finishing. These methods help control heat and chip removal. It allows machines to cut faster and leave better ends on the workpiece.
3. Cutting tool selection and condition
In roughing and finishing, the cutting tool and its maintenance are critical. Tools with many blades and chip-breaking shapes are often better for roughing. That’s because they can remove a lot of material quickly. These roughing tools can remove chips from the cutting zone under high pressure.
Sharp cutting blades and fewer holes achieve smooth surfaces in finishing operations. The tool’s cutting-edge shape is essential for the end surface finish.
It’s also important to know the condition of the cutting tool. Tools lose their ability to do their job as they get older. Thus, it can cause surface finishes to be rough or measurements to be off.
4. Coolant and lubrication strategies
Roughing and finishing perform best with proper coolant and lubrication. During roughing, cooling helps control the heat made by fast material removal. This not only makes the tool last longer, but it also helps keep the dimensions accurate.
Coolant is an integral part of the finishing process. It helps us get good surface finishes and cutting edges. The main purpose of coolant is to lower friction. Coolants come in different types based on the material being made and the job demands.
Modern ways of delivering coolant can make both roughing and finishing much better. They comprise high-pressure coolant systems or through-tool cooling. These systems cool deep pocket milling or hard material cutting zones.
Optimizing the CNC Machining Process
In CNC machining, the key is to find the best mix between speed and quality. Optimizing these processes can significantly enhance the quality of the final products. Learn more about this below:
1. Balancing Roughing and Finishing
Balancing roughing and finishing processes is essential for CNC machining to work well. This balance isn’t just about splitting up time between the two tasks. It’s also about making sure they work well together. A well-planned roughing step can make finishing go more quickly and easily.
The use of gradual roughing passes is a good approach. This method takes the material away in steps, getting closer to the final shape. Thus, it lowers the stress on the tool and the workpiece. This eventually leads to a better surface finish and accuracy of size.
2. Toolpath Strategies
How roughing and finishing are combined has changed thanks to advanced toolpath techniques. Adaptive clearing is one of these strategies. The method changes the toolpath based on the cutting conditions at the moment. It makes roughing go faster and last longer while also lowering tool wear.
Rest machining is another well-known and effective method. This is done by using smaller and smaller tools to remove the debris that bigger tools leave behind. Combining this with finishing passes can achieve high precision even in complex geometries.
Notably, CAM software is essential for making these toolpaths work better. Modern CAM can automatically create the best toolpaths by considering different factors. These include tool engagement, cutting forces, and material properties.
3. Considerations for Different Materials
The roughing and finishing process depends a lot on the qualities of the material. Aluminum and other soft materials often allow for more harsh roughing methods. This is possible because they don’t wear down tools as quickly. To get an excellent top finish, they may need extra care when they are being finished, though.
More complex materials, like titanium, need more careful roughing methods. It keeps the dimensions accurate and stops the tools from breaking. In roughing, trochoidal milling controls cutting pressures and heat.
When roughing out or finishing some materials, you must pay extra attention to them. If the roughing process isn’t handled well, finishing can be harder.
Future Trends in CNC Machining for Roughing and Finishing
CNC machining has changed the game in manufacturing. It evolves and advances with each new obstacle. Let’s examine the future trends in CNC machining for roughing and finishing:
Technological Innovations
CNC machining has come a long way. High-speed cutting improves roughing by eliminating material quicker without sacrificing quality. These machines can move cutting tools at very high speeds. Thus, it reduces the time needed to machine things while maintaining precision.

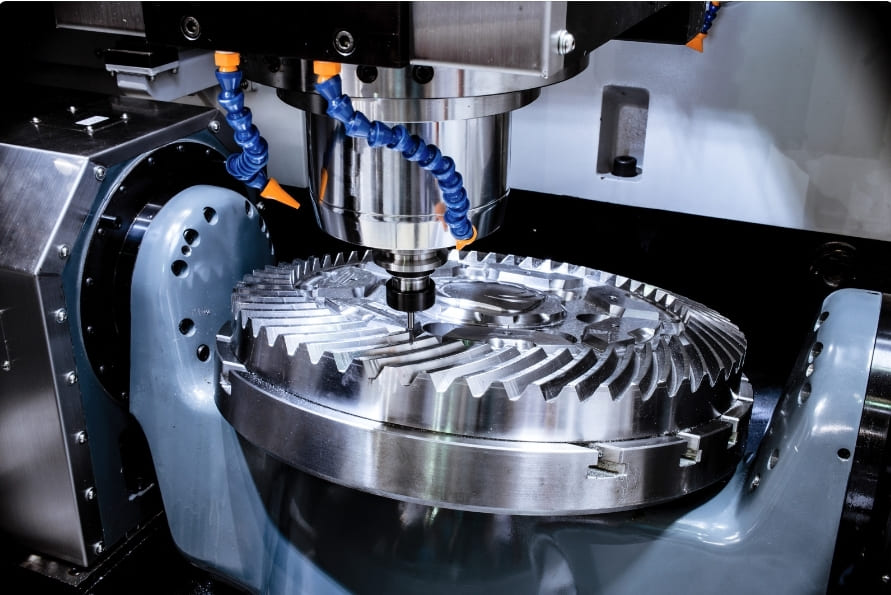

Multi-axis CNC machines have also changed the game. These machines can move in five or more directions at the same time. Thus, they can create complex forms and smooth finishes previously unattainable or time-consuming. New tool materials are expanding the limits of what can be done in roughing and finishing.
Automation
Automation is becoming more and more critical in CNC machining. Before, factory companies only needed automation for large CNC machining jobs. Automation has changed and has become helpful in meeting many needs in recent years. One use case is for low-volume work that needs to be done repeatedly.
Automation allows for improved flexibility and faster processes. It is expected that CNC machines will be able to handle even more complicated tasks in the future. They would be able to work faster and more efficiently.
Final Thoughts!
CNC roughing and finishing are different but linked steps needed for modern machining. The goal of roughing is to get rid of stuff quickly so that fine work follows. But finishing gives the part its finished size, limits, and surface quality.
This mix of the two methods must be just right for CNC cutting to work well. Understanding the elements that impact both processes improves efficiency and quality. The line between roughing and finishing may become less clear as technology improves.
