CNC Steel Machining: Tools, Techniques and Best Practices

Steel machining presents unique challenges. The heat, vibration and tool wear push both machinists and equipment to their limits.

CNC machining provides the necessary control and precision to overcome these issues. However it is very important that you use the right methods & techniques for successful CNC machining.

In this blog post you will find the key tools, techniques and best practices for machining steel with confidence and efficiency.

What is CNC Steel Machining

CNC steel machining refers to an automated process where computer controlled systems are used to shape steel parts. This method removes material from a raw workpiece according to a digital design. It can produce complicated shapes with high accuracy and maintains tight tolerances.

Also See: What is Precision CNC Machining

Tools & Tooling for CNC Steel Machining

Right tools are vital for effective CNC steel machining. Tool selection affects the part quality, accuracy, efficiency as well as its profitability. Here are the main tooling components needed to cut steel.

1. Tool Materials & Coatings

The first step in CNC steel machining is picking the right tool material.

• HSS is known for its low cost.
• Carbide works best when higher speeds and longer tool life are needed.
• For very hard steels, advanced materials like ceramics, CBN or PCD are the top choice.

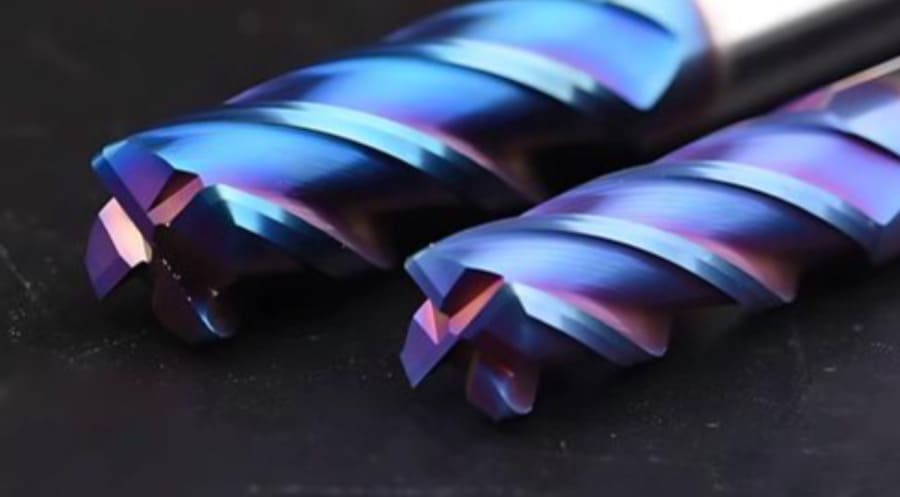

Tool coatings such as TiN and TiAlN also have a key role. They lower friction and protect the cutting edge. These coatings help tools last longer during tough steel machining jobs.

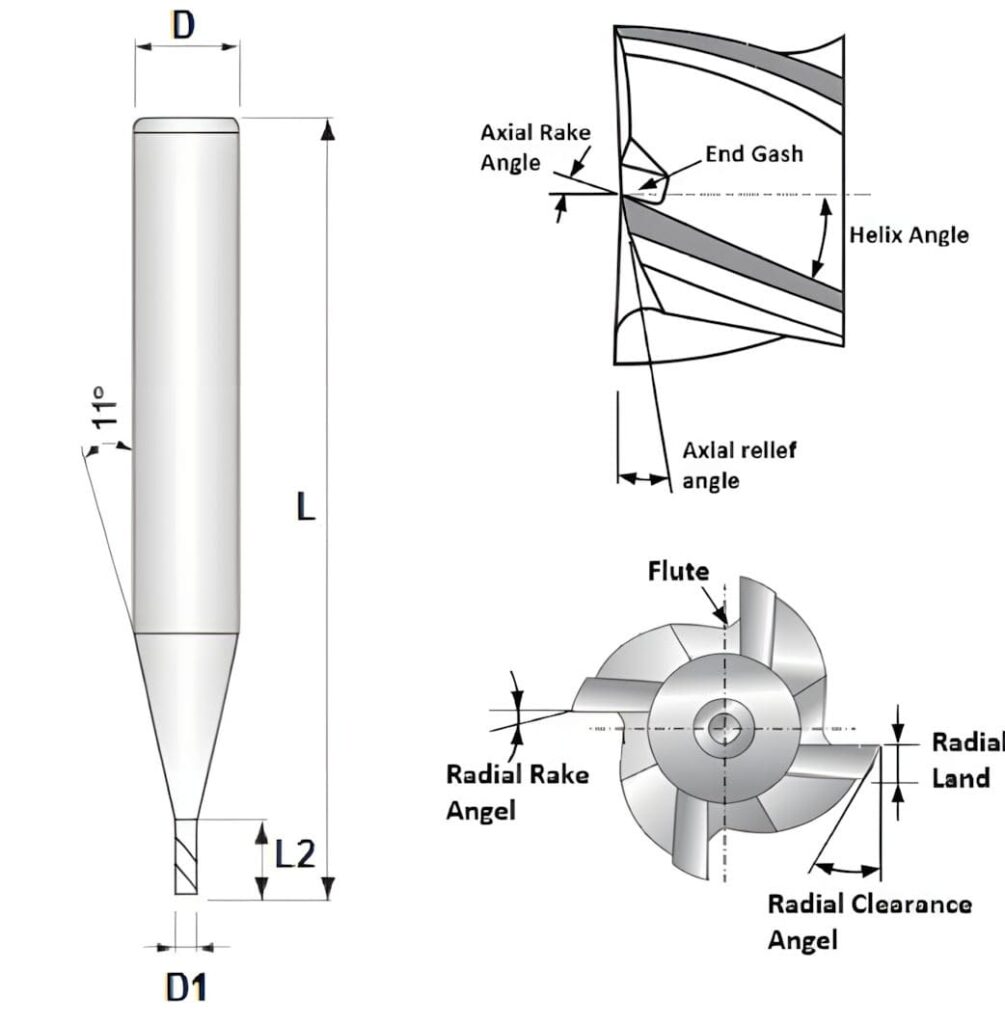

2. Tool Geometries & Cutting Edge Parameters

After the selection of material and coating, the focus shifts to tool geometry. Adjusting the rake and clearance angles helps chips flow and reduces cutting forces. The helix angle and flute count are set to improve chip removal which is critical when machining steel.

Features like corner radius and edge preparation (hone or chamfer) are fine tuned to strengthen the tool and to create a smoother finish. These adjustments assure every cut is reliable and precise.

3. Cutting Tool Types & Use Cases

Machinists choose the tool type based on the machining operation:

• End mills handle profiling, slotting and contouring tasks.
• Drills and reamers create holes and size them accurately.
• Taps cut precise internal threads.
• Indexable inserts provide versatility for both turning & milling.
• Specialized tools like boring bars and form tools address complicated features or unique shapes.

With this range of tools, machinists can produce many kinds of steel parts efficiently and can also maintain high accuracy.

4. Tool Life, Wear & Maintenance

Tool wear becomes more significant as machining progresses. The most common types are

• Flank wear: affects the part’s dimensions.
• Crater wear: alters the cutting edge and surface finish.

To prevent defects and unplanned downtime

• Use predictive maintenance along with frequent inspections and tool monitoring.
• Apply regrinding or reconditioning to keep tools sharp and effective.

By following these steps, machinists extend tool life and lower costs in steel machining shops.

5. Tool Change Systems & Automation

Automated tool change systems keep production running smoothly

• Automatic Tool Changers (ATCs) switch tools quickly and reduce idle time.
• Tool magazines hold several tools for quick retrieval.
• Presetter systems and digital tool libraries in CAM software make setup and management easier.

These automation tools work together to assure CNC steel machining stays fast, precise and affordable.

CNC Machining Techniques & Strategies for Steel

Once you have the right tools, you need to learn the techniques that can shape steel effectively.

1. CNC Machining Techniques & Strategies for Steel

Milling (Face Milling, Slotting, Pocketing, Profiling)

Milling uses a rotating cutting tool with multiple points to remove material from a stationary workpiece. This method works well for many shapes including flat surfaces, detailed contours and cavities.
Face milling is used to create flat areas while pocketing is used to hollow out sections.

Turning, Boring

In Turning a steel workpiece is rotated while a fixed cutting tool shapes it. This process forms cylindrical items like shafts. Boring, on the other hand, enlarges or finishes an existing hole with high accuracy.

Drilling, Tapping, Reaming

These operations are used to create & refine holes. Drilling forms the first hole. Tapping then adds internal threads for bolts or screws. Reaming slightly widens the hole to reach an exact diameter and a smooth finish inside.

Grinding, EDM or Hybrid Finishing

Grinding and EDM help achieve tight tolerances and smooth surfaces.

• Grinding uses an abrasive wheel that rotates to create fine finishes.
• Electrical Discharge Machining (EDM) shapes hard steels or complicated features by using electrical sparks instead of force.

2. Roughing vs Finishing Passes_ Strategy & Purpose

Machining steel mostly happens in two main stages. Roughing passes remove large amounts of material quickly with the help of deep cuts and fast feed rates. This step focuses on speed, not accuracy. Finishing passes come next and this makes lighter cuts to reach the final size and surface quality.

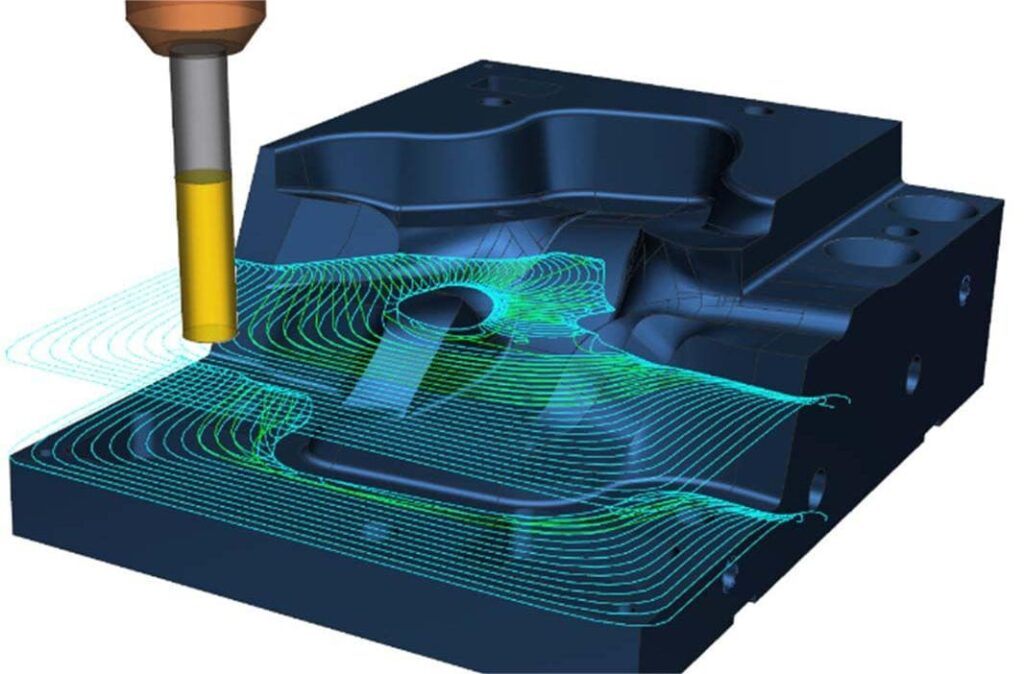

3. Toolpath Planning & Strategies

Planning the toolpath well is key to efficient machining. Adaptive milling keeps the tool load steady which lowers tool wear and shortens cycle times.

Moreover the choice between conventional and climb milling affects both tool life and surface finish. For steel, climb milling is usually the better option.

4. Parameter Optimization_ Feed, Speed & Depth of Cut

Careful adjustment of cutting parameters is necessary for good results. Spindle speed, feed rate and depth of cut must match the steel grade in use. The goal is to remove material quickly while avoiding too much heat or tool bending.

Also See: What is Feed Rate and Cutting Speed in CNC Machining

5. Chip Control, Chip Breaking & Evacuation

Managing chips properly keeps machining safe & steady. Long chips can damage both the tool and the part. Therefore it’s wise to use smaller chips with the help of chip breakers on inserts and changing the feed rate. These chips are easier to clear from the cutting zone.

6. Cooling, Lubrication and Cutting Fluids

Cooling and lubrication has a vital role in steel machining. Water based coolants, semi synthetic fluids and high pressure oil based options help manage heat and cut down friction. This extends tool life and stops thermal distortion. Minimum Quantity Lubrication (MQL) also decreases coolant waste and improves efficiency.

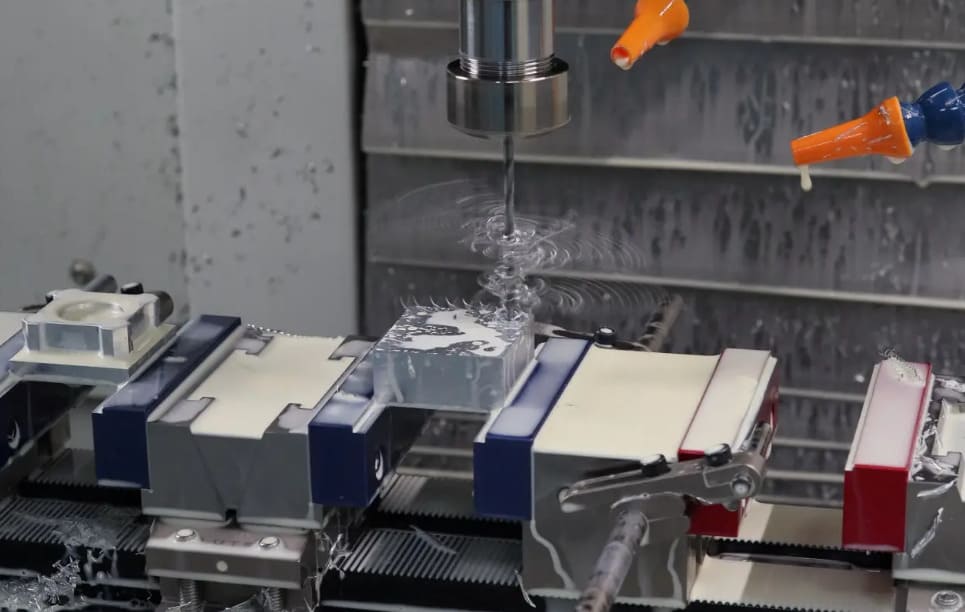

7. Fixturing, Workholding & Vibration Control

Stable fixturing is needed to keep the workpiece secure. Rigid clamps and damped supports stop movement and vibration during machining. Some shops use vibration monitoring and foundation isolation to hold tight tolerances and prevent chatter. These steps assure smooth surface finishes.

8. Tolerance, Accuracy and Thermal Compensation

Steel parts can change size as they heat up therefore CNC machines use thermal compensation. Temperature sensors track both machine and room temperatures. Automated systems then adjust to keep part dimensions within strict limits. Moreover some setups hold errors under 10 microns, even for long runs.

Richconn’s high precision CNC centers use real‐time thermal monitoring to maintain steel part accuracy within microns even during extended machining cycles.

9. Quality Control, Inspection & Measurement

In-process probing, post machining inspection with Coordinate Measuring Machines (CMMs) and surface finish testing form the foundation of quality control. Checks for dimensions, surface quality as well as material properties take place throughout production. These steps assure every steel part meets the customer’s strict requirements and complies with industry certifications.

Challenges, Pitfalls & How to Overcome Them

Machining steel, even with advanced CNC technology, brings unique difficulties. Addressing these issues is necessary to produce high quality parts on a consistent basis.

Material Challenges

Steel’s properties, such as the tendency of stainless grades to work harden, make cutting difficult. Similarly, variations in microstructure can cause unpredictable tool wear and flaws in finished parts.

To solve these problems, you should

• use carbide or cobalt tools with high wear resistance
• select sharp coated cutters with optimized feeds
• check steel stock for uniformity.

Managing Heat & Thermal Damage

Steel does not conduct heat very well therefore heat builds up at the cutting zone and can harm both tools and parts. Richconn’s machining teams solve this by selecting optimized toolpaths and by using high pressure coolant systems. These measures keep tools and components stable during tough steel machining operations.

Tool Wear & Tool Breakage

Steel’s hardness and abrasiveness speed up tool wear. Using high speeds or the wrong tool materials increases the risk of frequent and expensive tool changes.

To prevent this you should

• choose coated carbide tools with high durability
• use predictive monitoring to lengthen tool life and avoid sudden failures.

Vibration, Chatter & Deflection Errors

Strong cutting forces may cause vibration in the tool or workpiece. This leads to poor surface finishes and inaccurate part dimensions. Its solution is to use rigid workholding, selecting sharp tools with the right geometry as well as adjusting cutting parameters to achieve stable cutting.

Tolerance Variation Across Long Runs

Keeping tolerances consistent in large production runs is difficult. Tool wear and machine heating can cause part dimensions to drift. Therefore continuous in process measurement and automated thermal compensation are necessary to maintain accuracy from start to finish.

Distortion of Thin or Delicate Features

Thin walls and delicate features often distort because of cutting forces or thermal expansion. You can prevent this by choosing sharp cutting tools and using light finishing passes. Moreover, select those toolpaths that lower stress on the part.

Surface Integrity Issues

Getting a flawless surface is usually the last hurdle. Problems like residual stress, sharp burrs or built‐up edge (BUE) can lower part quality. Machinists solve these issues by picking the right tools, adjusting finishing passes and applying coolant correctly.

Best Practices & Guidelines

Professionals should follow these best practices to produce high quality steel parts.

Design for Manufacturability (DFM) for Steel CNC Parts

In the design phase, following Design for Manufacturability (DFM) principles makes production smoother. Avoid using thin walls (less than 1.5mm), sharp internal corners or overly tight tolerances. These steps make machining easier, cut costs as well as reduce lead time—as they prevent complicated setups.

Process Planning & Simulation

Careful planning helps avoid expensive mistakes. CAM software lets machinists simulate the full machining process and build a digital twin before cutting. This checks toolpaths, finds possible collisions and improves operations so the machine runs smoothly.

Richconn uses advanced CAM simulation and digital twins to check toolpaths before production. This assures smooth operation, less setup time and fewer machining mistakes.

Start Conservative then Ramp Up Parameters

When starting a new setup or working with an unfamiliar steel grade, use conservative speeds & feeds. This protects both the tool and the workpiece. After confirming the process is stable, gradually raise the parameters to reach the best mix of efficiency along with reliability.

Use of Monitoring & Adaptive Control

Real time process monitoring and adaptive control systems have a key role in CNC steel machining. These systems track spindle load and adjust feed rates automatically. By doing this, they optimize cutting, prevent tool breakage from hard spots and help reduce cycle times.

Regular Maintenance & Calibration of Machines & Tools

Maintaining machines regularly is essential for accuracy. You should calibrate machines every 3 to 6 months to keep their original precision and to avoid dimensional errors. This routine maintenance extends equipment life and helps in delivering consistent, high quality parts.

Documentation, Standard Operating Procedures & Feedback Loops

Standard Operating Procedures (SOPs) outline each step, from setup to operation. Good documentation, such as setup sheets and program notes, keeps processes consistent. These practices create a feedback loop that standardizes best practices and strengthens quality control.

Training & Skill Development for Operators

Operators need ongoing training to stay effective. Training should cover machine use, blueprint reading as well as G code programming. Well trained operators can solve problems, improve cycle times and also maintain safety. Therefore investing in operator skills raises both productivity and part quality.

Continuous Improvement & Lessons Learned Collection

Encourage continuous improvement by using data to find the root causes of defects. Recording the lessons learned from each project stops mistakes from happening again. Over time, this approach increases efficiency and improves the quality of parts.

To Sum Up

Success in CNC steel machining depends on the selection of suitable tools, use of effective techniques and on following established best practices. Every stage, from picking the right tool coating to using adaptive toolpaths and DFM guidelines, has a role in the determination of both quality & efficiency. By mastering these factors, you can consistently produce precise, high quality parts.

For expert-level CNC steel machining services, Richconn stands out as the top choice. You can contact us at any time.
