Aluminum anodizing is very important for the better performance and longevity of aluminum products. This surface treatment method protects aluminum against wear and corrosion and saves major costs related with replacements and repairs.
Engineers and manufacturers can use anodizing to acquire advantages such as better durability and rust resistance. Understanding this process is very important to maximize aluminum product design and making.

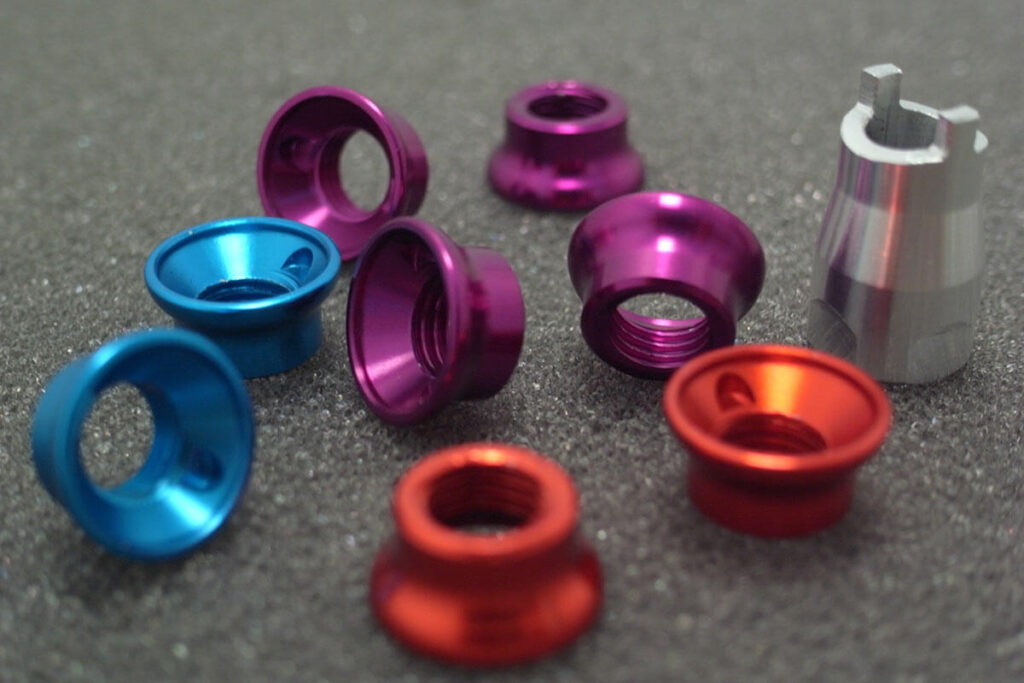

What is Anodizing?
Anodizing protects aluminum surfaces through an electrochemical process by producing a protective oxide layer. This layer is generally 5 to 30 μm thick which greatly increases the corrosion resistance and durability of the metal. This procedure comprises submerging aluminum in an electrolyte bath and applying an electric current which causes oxygen ions to bond with the metal surface.
Beyond protection, anodizing has additional advantages. It permits coloring the aluminum surface and increases adhesion characteristics. These make it indispensable in fields such as architecture and aerospace.
A Complete Overview of Anodizing Process
Anodizing aluminum has many steps and all of them play an important role in the final quality of anodized aluminum. The first step is to treat the aluminum before anodizing it.
1. Pre-treatment
Firstly, aluminum is pre-treated. This process consists of making the surface uniform by completely cleaning the aluminum. For this, a 3-step approach is mainly used: First, degreasing removes oils and dirt. Next, etching (using sodium hydroxide) takes off 1 to 2 μm of surface material and results in a matte look. Lastly, desmutting removes unwanted oxides to prepare a clean surface for anodizing.
2. Anodizing
In the anodizing process, aluminum is dipped completely in an electrolyte bath that’s usually 10 to 20% sulfuric acid. The aluminum acts as an anode and direct current (1-2 A/dm2) is applied. This causes oxygen ions to react with aluminum cations. It forms a 10 to 300 nm thick porous oxide layer. Different aspects such as current density, duration (30-40 minutes) and temperature (12-25°C) determine the final characteristics of coating.
3. Sealing
The final phase of anodizing is called sealing. It performs a very important role in increasing corrosion protection. This step comprises dipping the anodized aluminum in either hot deionized water or chemical solutions. This output a stable and hydrated oxide that seals the porous oxide layer. There are three common sealing methods: hot sealing (960-1000°C), mid-temperature sealing (70-80°C) and cold sealing (27-32°C). Hot sealing uses boiling water to produce boehmite, mid-temperature uses metal salts and cold sealing uses nickel fluoride. These procedures distinct benefits for different uses.
Types of Anodizing and Their Characteristics
The composition of electrolytes and resulting attributes differentiate anodizing processes. There are three main methods for anodizing:

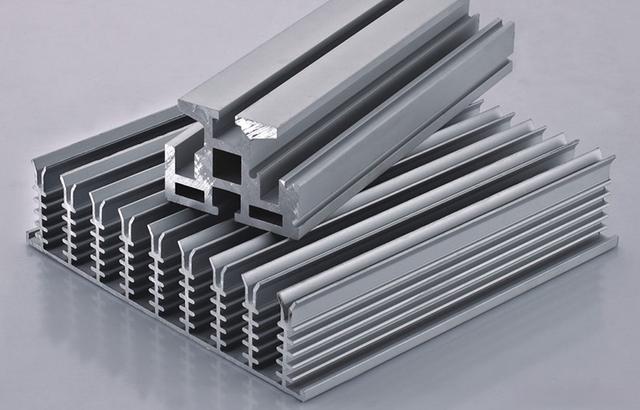

Chromic Acid Anodizing
Also called Type I anodizing, chromic acid anodizing makes the thinnest oxide layer that ranges between 0.00002″ and 0.0001″ per surface. This process uses a 3 to 10% chromic acid solution at 40°C with 40V DC. Its extraordinary fatigue strength and corrosion protection make it great for aerospace operations such as aircraft skins.

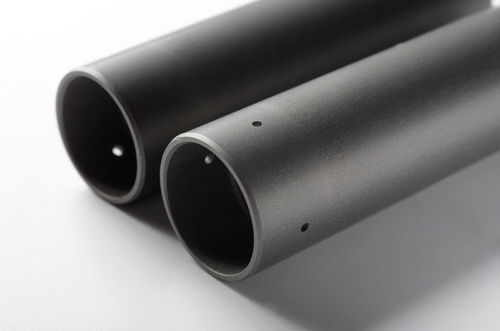

Hard Anodizing
Type III anodizing is generally called hard anodizing which generates the thickest oxide layer. This layer ranges from 30 nanometers to several micrometers thick. This procedure uses sulfuric acid at low temperatures (around 10°C) and applies high current densities (24 to 36 amps per square foot). It produces a coating that has extraordinary hardness (400 to 600 HV), great protection from rust and better wear resistance. Given these traits, hard anodized surfaces are best for aerospace and automotive where they can handle harsh circumstances while staying dimensionally stable.

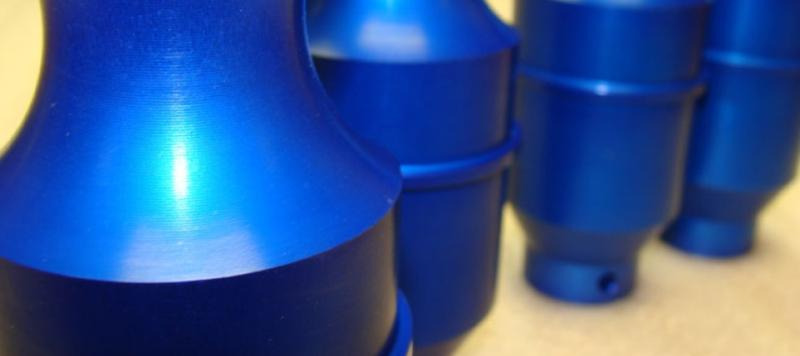

Sulfuric Acid Anodizing
Of the anodizing methods, sulfuric acid anodizing is the most common. It produces oxide layers ranging from 2.5 to 25 μm thick which is more than chromic acid anodizing. The procedure uses 15 to 20% sulfuric acid electrolyte at 20-22°C with current densities between 1.3 and 2.7 A/dm2. Remarkably, this approach gives surfaces better wear protection and corrosion resistance. These qualities make it very appropriate for operations in architecture and automotive. An additional advantage is it’s simpler to dye the resulting finish which permits more aesthetic flexibility.
Advantages of Aluminum Anodizing
The anodizing process for aluminum has many advantages across different industrial fields.
Corrosion Resistance
Anodizing greatly increases defense of aluminum against rust. This occurs because anodizing makes a thick protective oxide layer on the surface of metal that acts like a strong barrier and decreases corrosion rates to less than 0.001 mpy even in harsh marine circumstances. Also, the anodized surface is not only durable but chemically stable. In increased salt spray tests, anodized aluminum shows a rust resistance 10,000 times higher than untreated aluminum.
Increased Durability
Anodizing transforms aluminum’s surface by increasing its hardness to 70 Rockwell C. So wear resistance goes up ten times and makes anodized aluminum a top choice for main parts in automotive and aerospace industries from aircraft landing gear to engine pistons.
Aesthetic Versatility
Anodizing provides unparalleled aesthetic versatility and it allows for a spectrum of colors and finishes. It unlocks many aesthetic possibilities from flashy smartphone cases to classy architectural exteriors. Automotive trim benefits from subtle tones while custom and standard colors give ample creative options. This adaptability permits easy use of anodized aluminum for different aesthetics.
Environmental Benefits
Anodizing sets itself apart as an environmentally responsible choice for aluminum treatment. By using non-toxic chemicals and producing little waste, the process matches stable manufacturing goals. The resulting oxide layer not only lengthens product life but also keeps recyclability of aluminum without quality loss. Solar panel frames and electric car parts show how anodized aluminum helps facilitate a greener future across different fields.
Electrical Insulation
The oxide layer produced during anodizing gives aluminum outstanding electrical insulation abilities. In lab tests, this layer can withstand up to 2,000 volts as compared to the insulation capacity of hard rubber. Such traits make anodized aluminum indispensable in electronic uses from electromagnetic sensor windings to insulating parts in smartphones and laptops. Its multifunctionality in electrical uses shows the material’s value in modern technology.
Applications of Anodized Aluminum
The extraordinary qualities of anodized aluminum make it necessary across many industrial fields. Now, we’ll see some of its applications in different sectors of industry.
Aerospace Industry
Aerospace depend heavily on anodized aluminum for its remarkable corrosion resistance and strength to weight ratio. This substance is used in critical aircraft parts such as wing spars, landing gear, fuselage frames and engine components. For non-structural elements, Type II sulfuric acid anodizing is mostly preferred as it greatly increases durability under extreme conditions.
Consumer Electronics
Laptop chassis, smartphone cases, audio equipment housings and tablet enclosures mainly use anodized aluminum. This process yields vibrant colors and scratch resistant finishes by increasing the device life and aesthetic appeal. Moreover, the extraordinary thermal conductivity aids in heat dissipation which is necessary for maximum performance.
Automotive Industry
The automotive industry benefits greatly from corrosion protection and the lightweight nature of anodized aluminum. Engine parts such as cylinder heads and pistons, as well as exterior elements such as wheel trim and rims usually use this anodized aluminum. By promoting durability and decreasing vehicle weight, anodized aluminum facilitates better performance and fuel efficiency in modern cars.
Architecture
Aesthetic adaptability and longevity of anodized aluminum is of great help in modern architecture applications. This multipurpose substance is common in construction projects from building facades and window frames to curtain walls and handrails. Architects and designers value the anodizing process for producing a wide spectrum of colors and finishes to elevate the visual appeal and functionality.
Sports Equipment
The extraordinary strength to weight ratio of anodized aluminum sets it up as a top choice for high performance sports equipment. Golf club shafts, bike frames, ski poles and tennis racket frames mostly use anodized aluminum. Anodizing greatly increases durability and corrosion resistance which is necessary for gear exposed to outdoor circumstances and sweat.

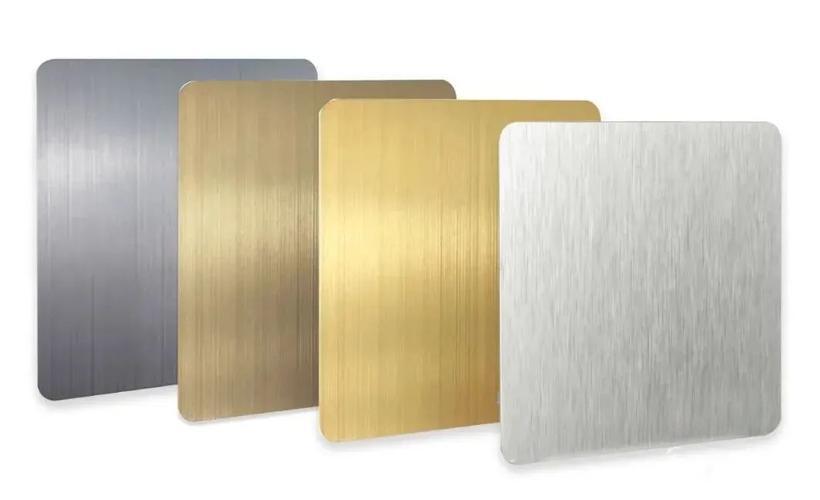

Types of Aluminum Suitable for Anodizing
Anodizing suitability varies between aluminum alloys. We’ll look at different series of aluminum and their anodizing properties.
Series 1000: Pure Aluminum for Anodizing
1000 series alloys with at least 99% pure aluminum have extraordinary anodizing potential and it resist rust very well. When anodized, these alloys develop a clear or see through oxide layer which makes them best for decorative uses such as electronics casings and building facades. Although softer than other series, 1000 alloys outshine in welding and formability. Grade 1050 is very common in sheet form.
Series 5000 and 6000
In marine settings, the magnesium alloyed 5000 series is best with extraordinary corrosion protection. Ship hulls and offshore platforms mostly use this series owing to its protective qualities. On the other hand, the 6000 series, combining magnesium and silicon, is remarkable for anodizing operations. Its durable and clear coatings make it a main resource for many industrial fields. Both series have impressive strength to weight ratios which lead to its broad uses in architectural and structural projects.
Challenges and Limitations of Anodizing
Anodizing while useful in many ways, has its own challenges. Let’s look at some main restrictions:
Wear Over Time
Anodized finishes are robust but can break down under particular conditions. The Taber wear index may reach 1.5mg per 1000 cycles for hard Type III coats in high wear uses. Factors like UV light, high temperatures and harsh chemicals can increase this wear. So the protective qualities of the coating may decrease over time.
Limited to Aluminum and Non Ferrous Metals
Anodizing only works on aluminum, titanium, magnesium and other non-ferrous metals that form stable oxide layers. Unfortunately, steel and iron alloys don’t respond to anodizing due to their composition. This limits the process’s uses in some fields and operations.
Thickness Constraints
Generally anodized coats are 2 to 5 μm thick. Thicker coats give better corrosion resistance but they also increase costs and part dimensions. Finding the right balance between thickness and performance requirements is very important for best results.
Maintenance of Anodized Aluminum
Proper maintenance guarantees the longevity of anodized aluminum surfaces:
- Clean regularly with pH-neutral detergents (5 to 8 pH)
- Avoid harsh chemicals and abrasive substances.
- Check periodically for signs of damage or wear
- Shield from extended UV exposure
- In high wear areas, apply clear protective coatings
Why Choose Anodizing?
Anodizing sets itself apart as an extraordinary aluminum surface treatment. This process greatly boosts corrosion resistance, hardness and wear resistance of aluminum. Moreover, anodizing creates vibrant, long lasting colors and increases adhesion properties. Anodized aluminum retains electrical insulation capabilities which makes it a top choice for different industrial operations such as aerospace.
Conclusion
Anodizing aluminum increases its aesthetics, durability and multifunctionality. Its widespread operations across different fields ranging from aerospace to consumer electronics show its importance. Proper maintenance and understanding of limitations assure peak performance despite difficulties. Anodizing continues to perform a very important role in improving the properties of aluminum and expanding its usefulness in modern manufacturing and design.
FAQ’s about Aluminum Anodizing
1. How does aluminum anodizing improve corrosion resistance in harsh environments?
The anodizing process makes a tough oxide coating on the aluminum surface that greatly improves its ability to resist rust. This protective layer successfully protects the underlying metal from chemicals, moisture and other damaging stuff that could otherwise cause wear.
2. How do the color options and thickness of anodized aluminum affect its aesthetic appeal and performance?
Thicker anodized finishes give better corrosion protection and durability. The broad color options increase visual appeal of aluminum without affecting performance. This is because the color integrates into the oxide layer and make sure of fade-resistant and long-lasting finish.
3. Is anodizing an environmentally friendly process and what are the sustainability benefits?
Yes, anodizing is environment friendly process as it gives advantages like low VOC emissions, recyclability, very little waste production and energy efficiency. The byproducts produced can also be easily treated or recycled.
