Computer aided manufacturing – or “CAM” for short – improves production processes through advanced technology. It not only saves cost but also improves quality of the product and increases productivity. Therefore in this blogpost we’ll see how CAM works, its integration into other manufacturing processes and its advantages and applications in different industries.

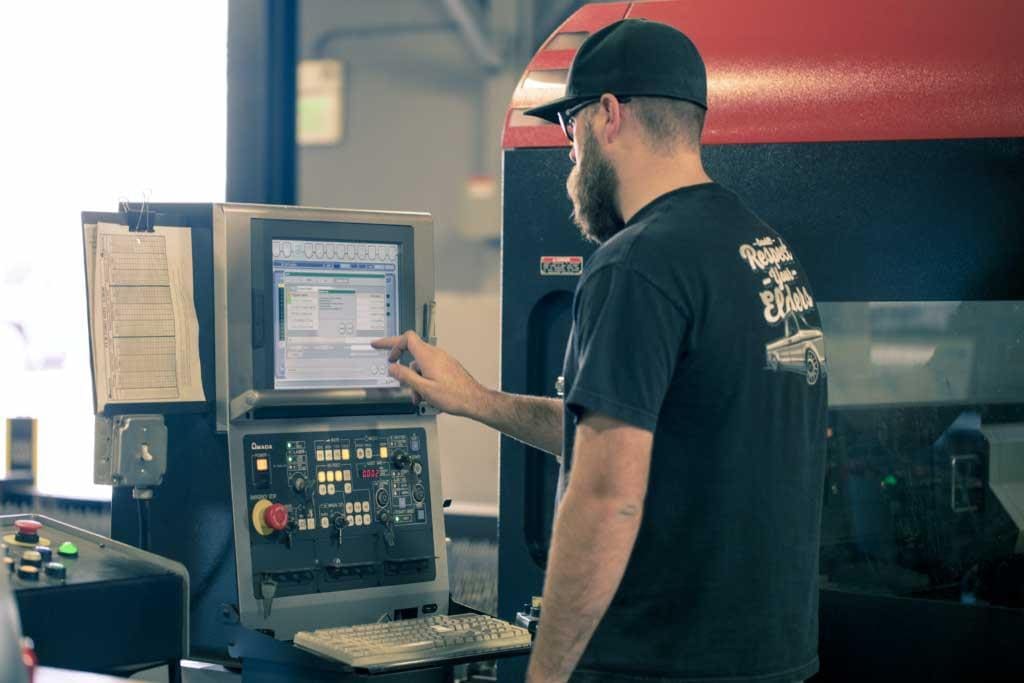

What is Computer Aided Manufacturing?
In simple terms it is a technology driven process that uses machinery and computer software to automate manufacturing. And this CAM setup converts CAD designs into instructions for CNC machines to assure accuracy during production. It not only controls the machine tools but also optimizes the toolpath and manages the complete production procedure from design to final product.
How Does CAM Work?
Step 1: CAD Import
The process starts by importing a CAD model design into a computer. This model contains a lot of important geometrical information such as shapes, features and dimensions. After importing the design file CAM software starts analyzing it.
Step 2: Toolpath
Once CAD is integrated, tool-path generation begins. These paths guide cutting tools to convert raw material into its final form. Machining parameters and the geometry of part determine these precise paths.
Step 3: G-Code Creation
Next we make the G code which is basically a set of instructions for guiding CNC machines. This code defines speeds, tool changes and movements which assure accurate machining operation.
Step 4: Simulation & Verification
Cam software then runs a virtual simulation based on the generated toolpath and G code. This step checks for potential problems such as incorrect tool paths, errors and collisions in machining procedure.
Final Step: Machining
And after verification the cam software sends G code to the CNC machines. These machines then carry out machining and precisely shape, cut or mill the part following G code instructions.
Manufacturing Processes That Use CAM
1. CNC Milling

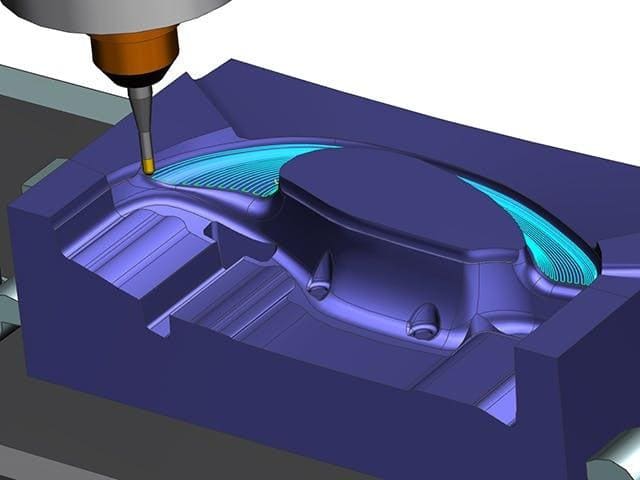

CAM software converts CAD models into toolpaths for milling machines. It optimizes the movement of the cutter along precise paths so that it can remove material proficiently. This process reduces material waste and errors while increasing the speed and quality of production.

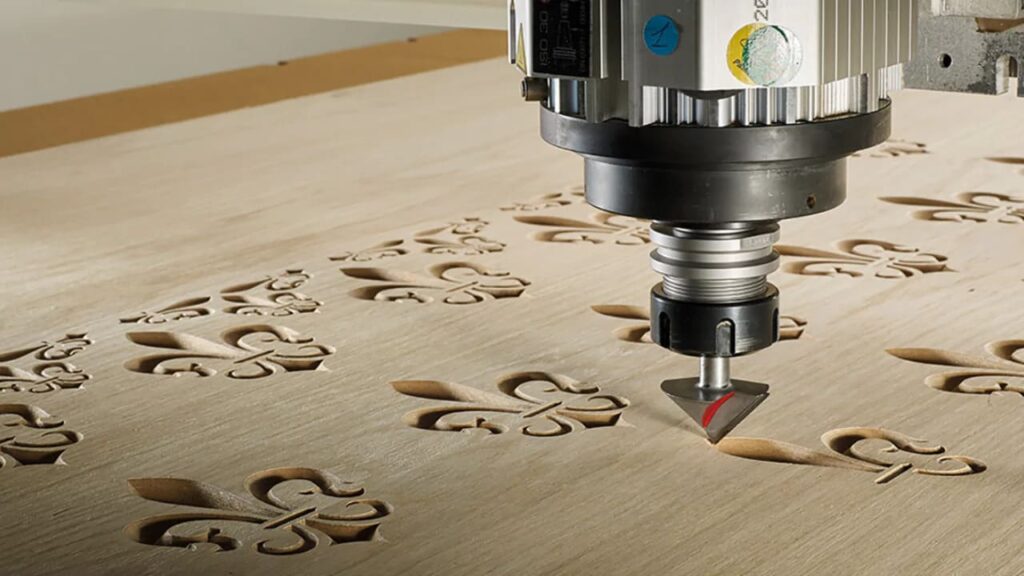

2. CNC Routing
In CNC routing CAM software generates G-code to precisely cut, trim and shape materials such as composites, plastics and wood. It guarantees outstanding performance, repeatability and accuracy while making complicated patterns and designs.
3. CNC Turning
For CNC turning CAM software creates tool paths to guide the cutting tool around the part, to perform operations like contouring and facing. CAM software automates the process which in turn improves both precision and proficiency during the shaping of cylindrical components.

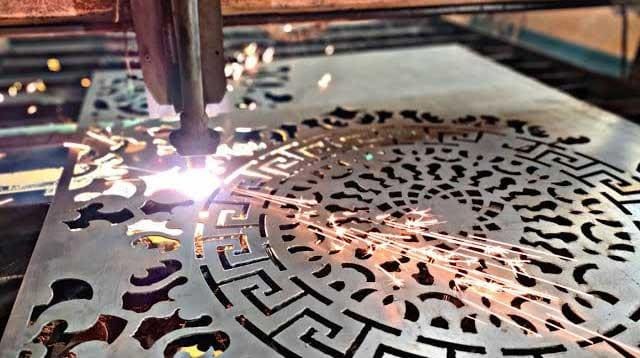

4. Laser or Plasma Arc Cutting
CAM software assures that plasma or laser torch moves precisely along the material. It also manages cutting settings, gas flow and arc stability. So it can make quality cuts with less kerf and slag on different materials and thicknesses.
5. EDM
CAM software automates electrical discharging machining by controlling spark erosion and generating accurate electrode paths. This assures a controlled electrical discharge that allows complex parts like dies or molds to be made with very precise details.
6. 3D Printing
In 3D printing CAM software converts CAD models into layer-by-layer toolpaths. These paths then guide movements of the 3D printer to create the part. And it also ensures precision in layer deposition, support structure generation and material flow which subsequently improves both print quality and speed.
Applications of Computer-Aided Manufacturing in Different Industries
Electronics Industry

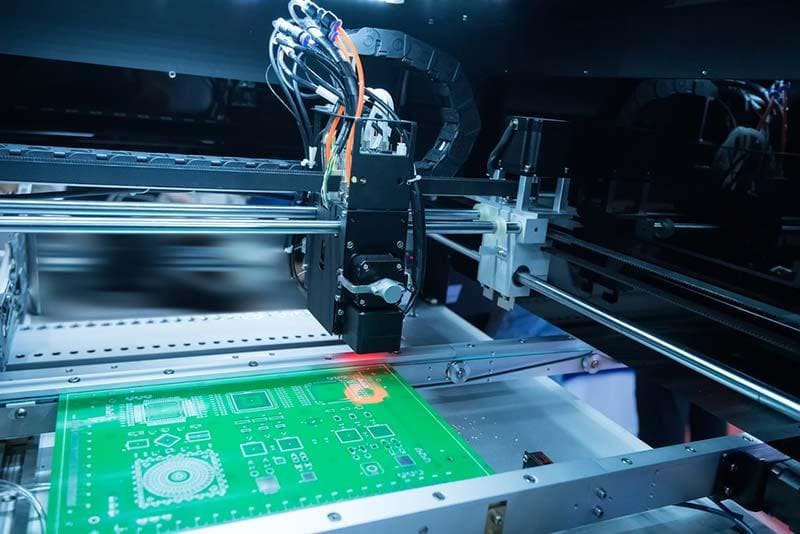

In the electronics industry CAM is broadly used in manufacturing of connectors, heat sink, PCB (Printed Circuit Board) substrates, battery terminals, enclosures and semiconductor components.
Tool and Die Making

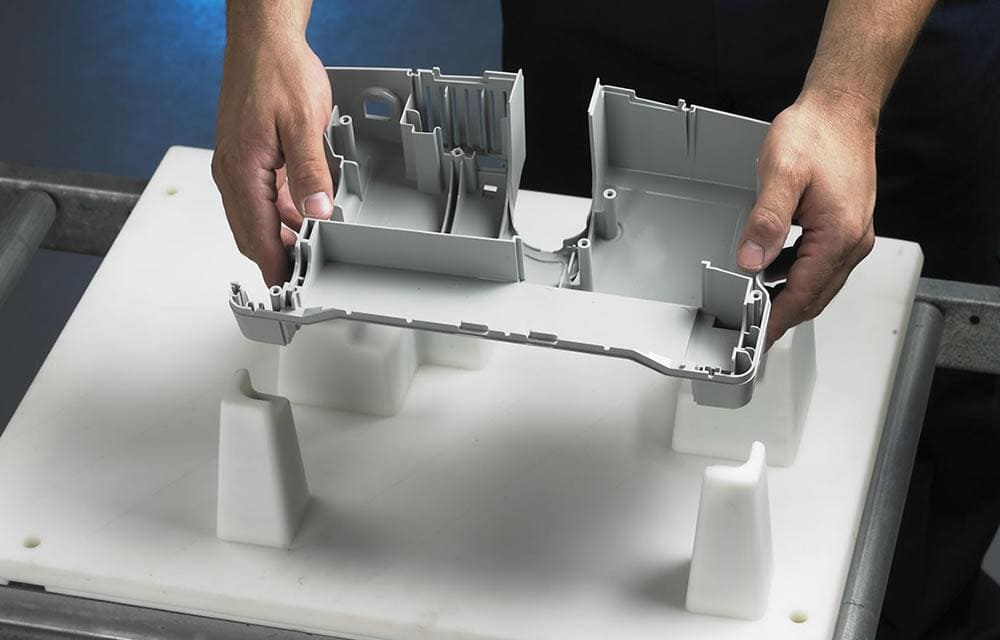

CAM setups are broadly used in tool and die making. These systems produce highly-precise punches, dies, chips, stamping tools, fixtures and molds. Apart from better quality and productivity, they also provide outstanding surface finish.
Medical Industry

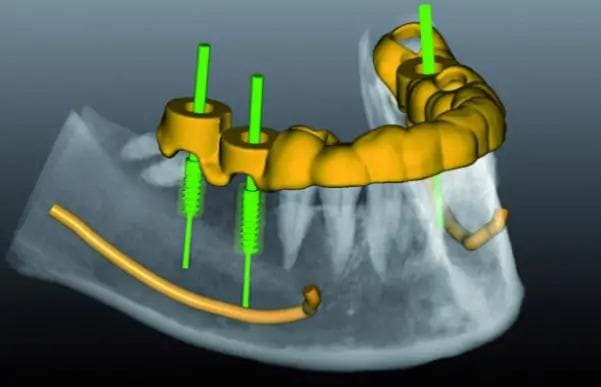

CAM software is extremely important in medical device manufacturing. It manufactures complicated biomedical devices like implants, surgical instruments and prosthetics. And this software also allows for customization of devices like implants to meet patients’ individual needs.
Automotive

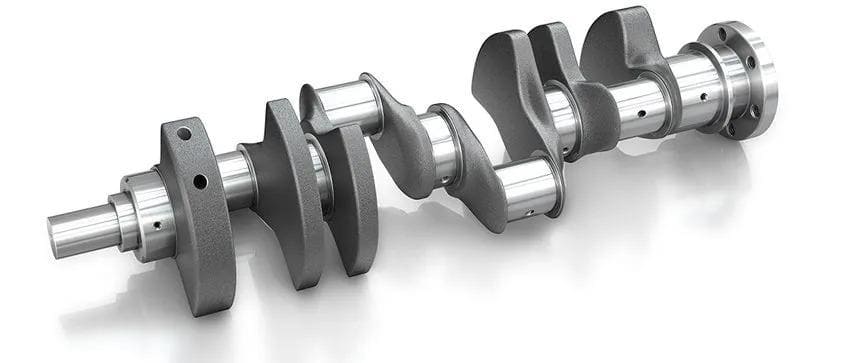

In vehicle manufacturing it is common that complicated parts such as engine components, cylinder heads, transmission parts, crankshafts and body panels are produced by CAM systems.

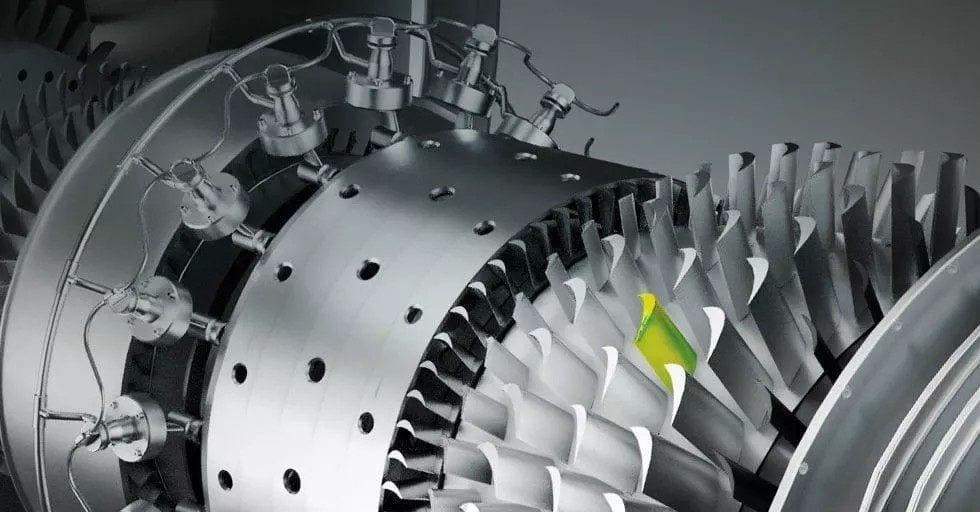

Aerospace
Wings, fuselage panels, turbine blades and airframe structure are all manufactured by CAM setups. CAM provides outstanding safety, accuracy and performance in production while meeting strict industry standards.
CAM’s Benefits
- CAM systems improve cutting speed, reduce tool wear and provide accurate control of the tool path which leads to improved machining capabilities. As a result, manufacturers experience greater accuracy and better surface finish.
- Flexibility is another important advantage of CAM setups. They allow quick changes in design and support different versions of products. Manufacturers can quickly move to market and adapt to customer needs because of their adaptability.
- CAM setups improve safety by limiting human exposure to hazardous environments and automating hazardous tasks. Besides that they also monitor equipment conditions and prevent accidents through real-time alerts.
- CAM systems permit fast prototyping and automate repetitive tasks to streamline design and production. Because of this they can shorten development cycles and make rapid design changes.
- CAM speeds up the process from the design to production. It decreases human errors and lessens the setup times as well. This results in less downtime and quicker production-cycles.
- CAM systems improve toolpaths and automate procedures to decrease cost. Thus they are able to reduce labor costs and use resources proficiently which ultimately increases profitability.
5 Best Software for Computer-Aided Manufacturing
Mastercam

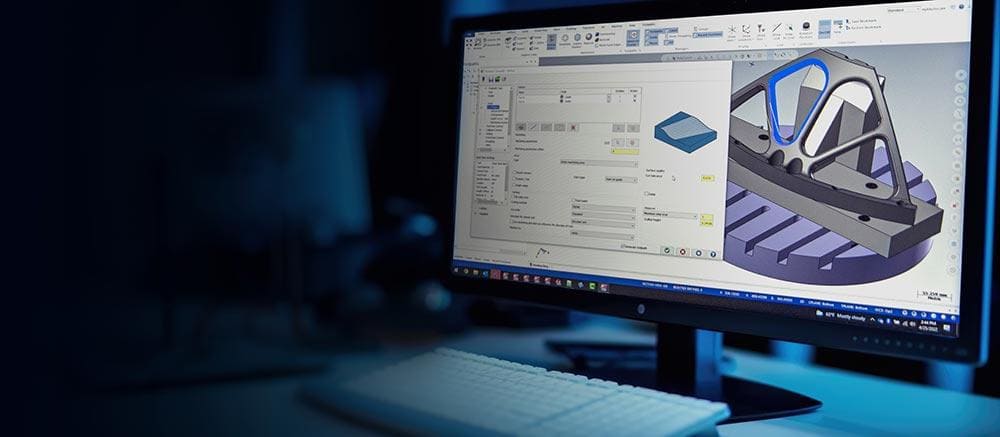

Mastercam is CAD/CAM software which is well known for its outstanding accuracy. Apart from that, it provides advanced toolpath generation along with features like automatic toolpath operations and simulation devices to check results.
Fusion 360

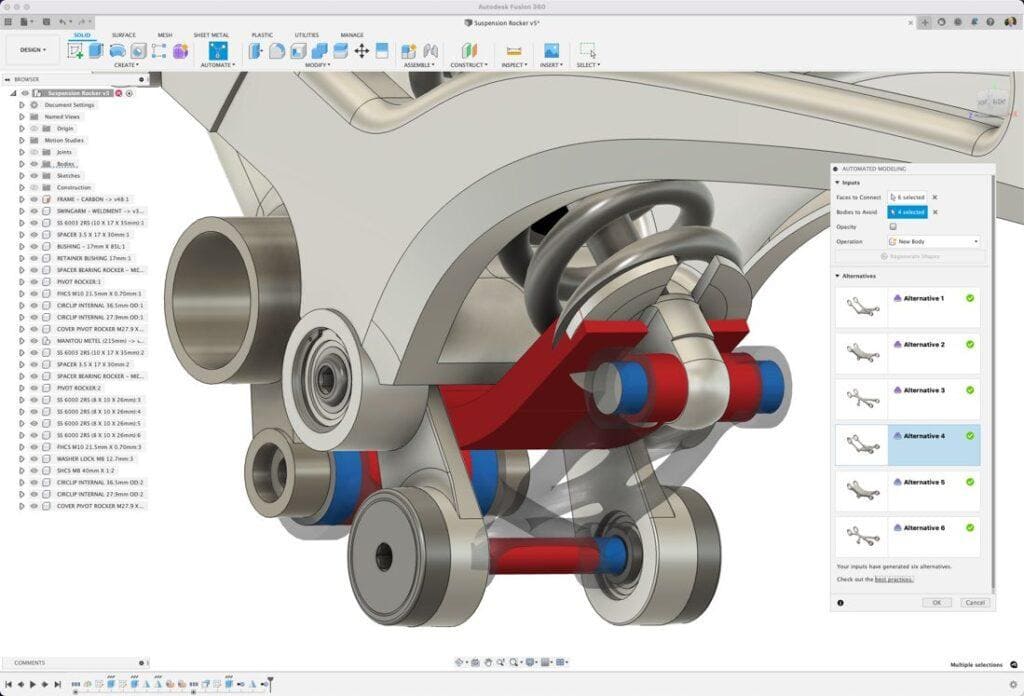

CAD, CAM, CAE and PCB design are integrated in Fusion 360. The software provides advanced machining capabilities, simulation tools and cloud based collaboration. It also supports multi axis machining, additive manufacturing and 2D and 3D modeling. So it is an excellent tool for comprehensive product development.
CATIA

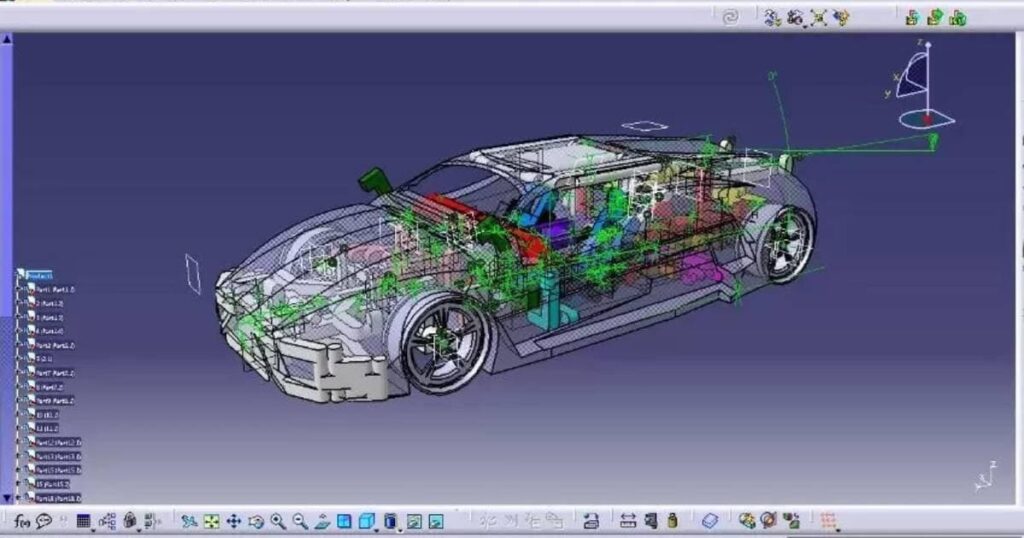

CATIA is a complete software suite used for product manufacturing and design. CATIA’s CAM module includes the capability for complex machining such as electrical discharge machining and multi axis milling. It enables real time collaboration, complicated design tasks and links with PLM for product lifecycle management.

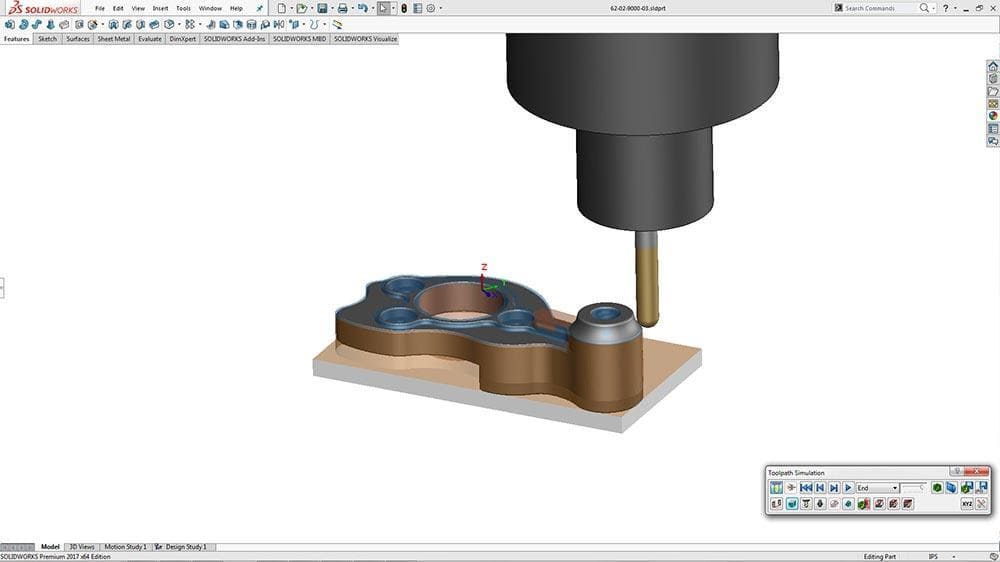

SolidWorks CAM
SolidWorks CAM is integrated with SolidWorks CAD to help move smoothly from design to manufacturing. Besides that it has both 2.5D and 3D machining capabilities along with automatic feature recognitions, which eliminates the need for manual input.
GibbsCAM

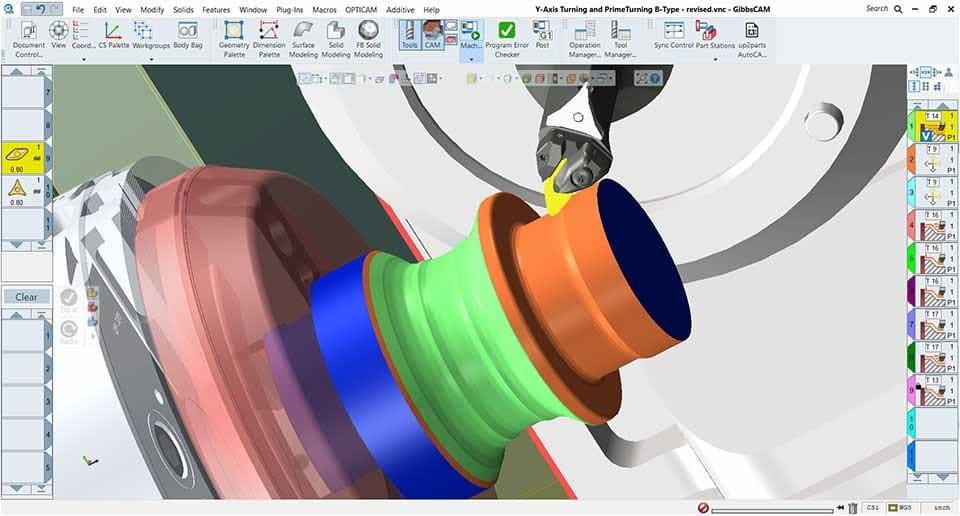

GibbsCAM provides full CNC programming capabilities for 2-5 axis milling, turning, and multi task machining. It is flexible and easy to use CAM software. And it has accurate simulation, AI driven automation and high speed machining features to increase part quality and productivity.
To Sum Up
Computer aided manufacturing has greatly improved modern manufacturing by automation and accuracy. CAM technology continues to progress because of improved software capabilities, multi-axis machining and digital integration. These advances guarantee better product quality in all production industries from aerospace components to medical devices.
If you require any kind of CNC machining services, then RICHCONN is best option. You can contact us at any time.
Related Questions
What is the difference between CAM and CAD?
CAD is used to make 2D/3D models and designs whereas CAM produces toolpaths and instructions for the machine. The machines then use these toolpaths to make parts from the CAD models.
What is the difference between CAM and CAE?
CAM creates toolpaths and machine instructions for production while CAE simulates and analyzes the performance of designs that will be produced (e.g.⸴ heat fluid⸴ dynamics and stress).
What are the common file formats used in CAM?
IGES, STL, G-code and STEP are used by CAM software. And they also guarantee compatibility between CAM and CAD systems.
How does CAM interact with Computer Numerical Control machines?
G code is generated by CAM and then later is interpreted by CNC machines to execute certain precise movements⸴ tool changes as well as machining operations.
How does CAM handle multi-axis machining?
CAM makes intricate toolpath that controls multiple axes of movement at the same time. It is also effective for accurate shaping⸴ cutting and detailing of parts.
