Connectors are the backbone of today’s advanced technology. They permit power and signals to flow smoothly between different systems and devices. For engineers and buyers, knowing about connector manufacturing, types, materials as well as uses helps in selecting right connectors for your project.

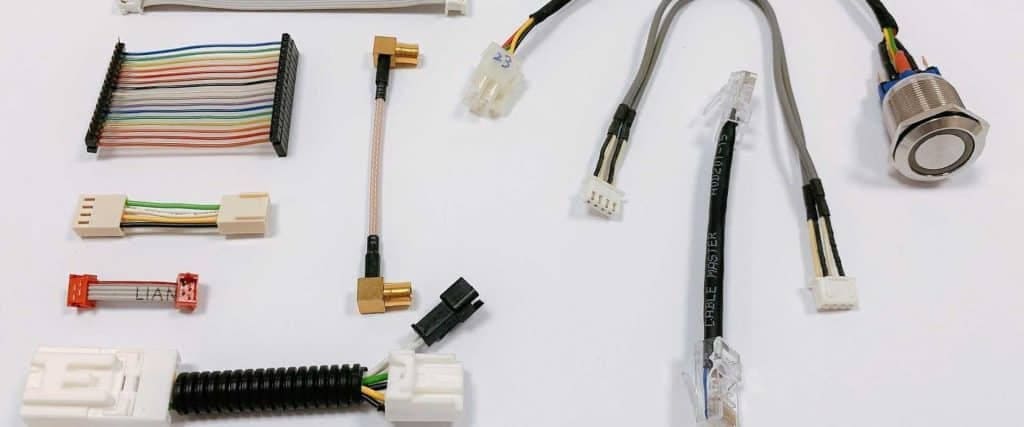

What are Electrical Connectors?
Electrical connectors are devices which link electrical circuits. Their main function is to give permission to electricity or signals to pass from one circuit to another. They are designed for easy connection and disconnection. Hence they offer flexibility during maintenance and design of electrical systems.
Connectors have become necessary in different industries such as industrial automation, automotive, consumer electronics and medical devices.
Connector Manufacturing Overview
Manufacturing connectors needs precision and planning to get compact and high performing parts. Here are the stages of connector manufacturing process:
1. Design and Prototyping
First engineers design the connector as per application requirements. Then they form prototypes to test the connector’s functionality and general performance.
2. Material Selection
Material selection is an important step as manufacturers must choose insulating and conductive materials carefully to meet both mechanical and electrical requirements.
3. Component Manufacturing
This stage has three further steps:
- Stamping: High speed presses cut metal contacts from metal sheets.
- Injection Molding: Manufacturers inject molten plastic through molds to form the connector housings.
- Plating: Metal contacts get coatings of metals like nickel or gold. These coatings protect contacts from corrosion and improve conductivity.
4. Assembly
Automated systems insert metal contacts into plastic housings and automation assures accuracy and consistency during assembly.
5. Testing and Quality Control
Finally connectors are tested thoroughly. Manufacturers test durability, electrical performance & compliance to industry standards.
Throughout the manufacturing process following industry standards such as RoHS, ISO and UL is mandatory. Adhering to these standards assures connector safety and reliability.
Five Types of Electrical Connectors
Connectors vary greatly depending on the application. Different technical requirements and industries need particular connector types.

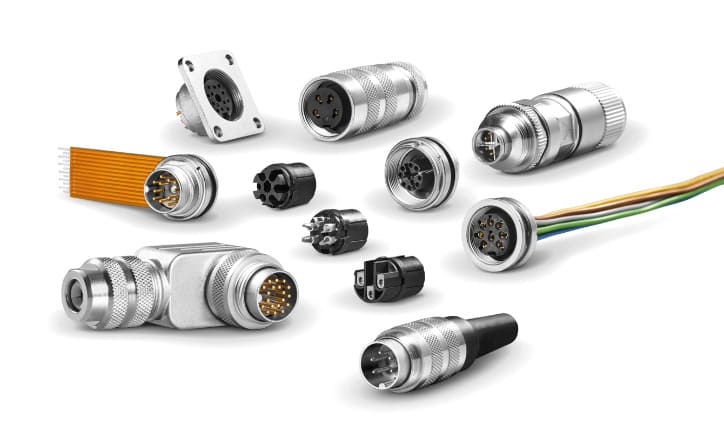

Circular Connectors
Circular connectors are cylindrical in shape and are used in industrial and aerospace sectors. They are known for their ruggedness & reliability.

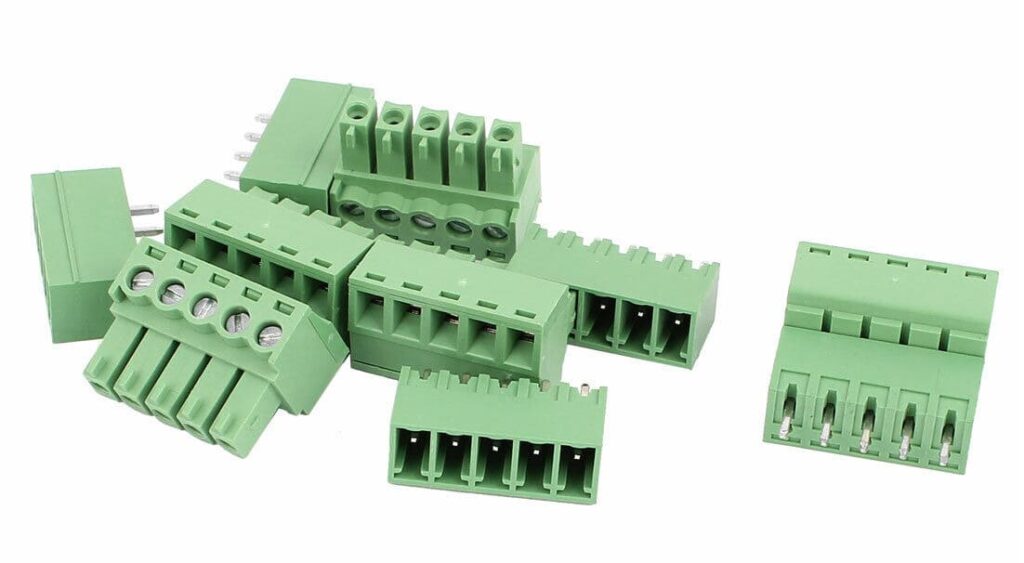

Printed Circuit Board (PCB) Connectors
PCB connectors connect cables or wires to printed circuit boards. They are necessary in computing devices & consumer electronics.

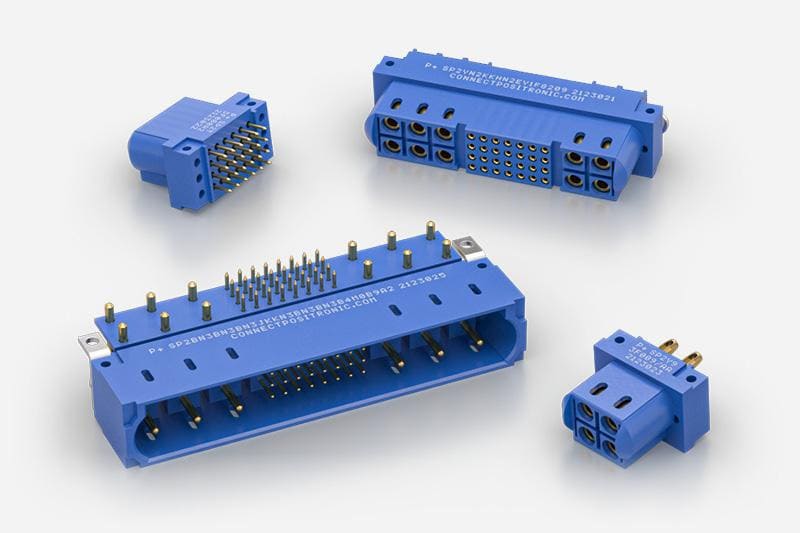

Rectangular Connectors
Rectangular connectors are space saving and have a rectangular design. Because of this they are not only used in telecommunications but in computer equipment too.

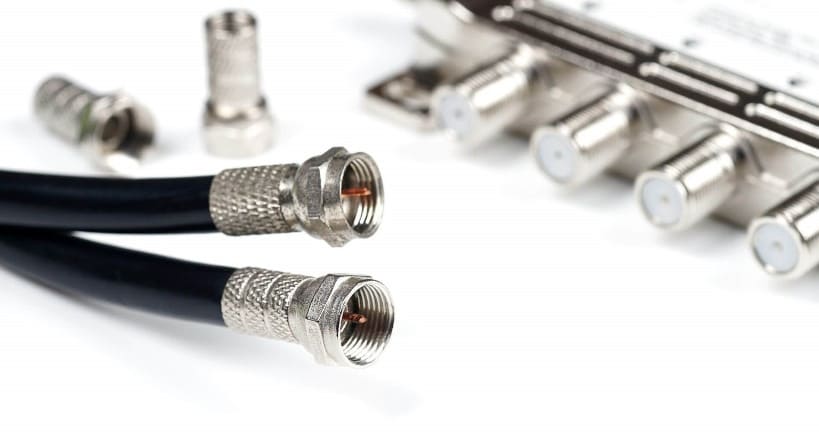

Radio Frequency (RF) Connectors
RF connectors are used for high frequency signals. Broadcasting equipment and communication systems rely on these connectors.

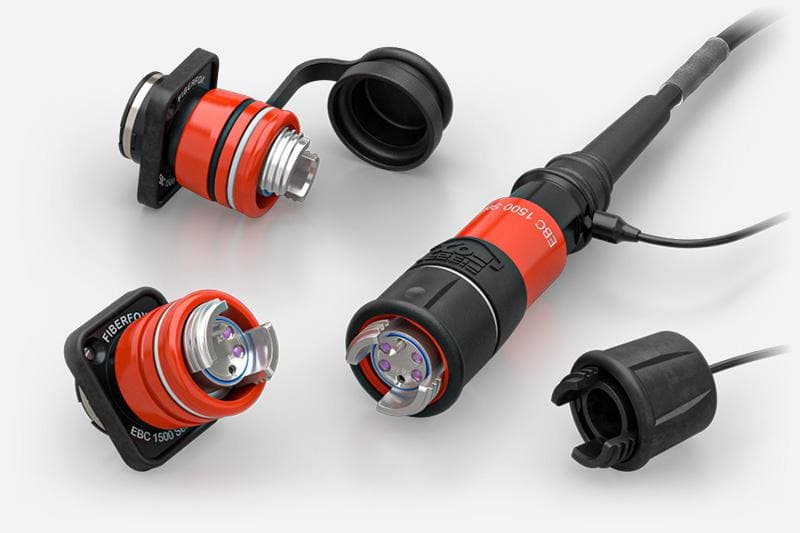

Fiber Optic Connectors
Fiber optic connectors join fiber optic cables and let high speed data transmission. They minimize signal loss and are necessary in data centers and telecommunications.
Materials for Connector Manufacturing
Right material choice is important to get lasting and functional electrical connectors. Contacts & housings are two main connector parts which need materials to make sure of durability and performance.

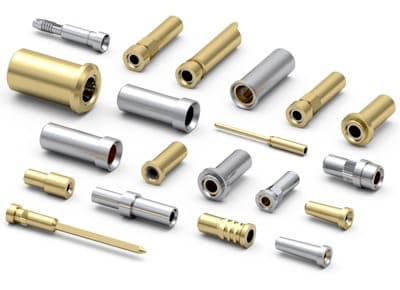

Contacts:
Copper alloys are chosen for connector contacts because of their mechanical strength and electrical conductivity. Most used materials are:
- Brass: Brass is an affordable alloy of zinc and copper with good conductivity. However it has lower tensile strength so it’s not best for scenarios with high mechanical stress.
- Phosphor Bronze: This alloy contains copper, phosphorus as well as tin. It gives elasticity, corrosion resistance and strength.
- Beryllium Copper (BeCu): BeCu has extraordinary conductivity and high mechanical strength. Although more expensive, it’s suitable for demanding connector applications.

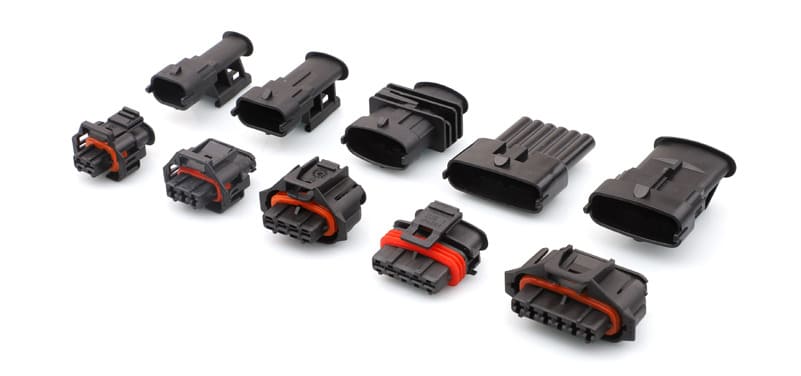

Housings:
Connector housings are insulating enclosures usually molded from high performance plastics.
Polybutylene Terephthalate (PBT)
PBT is used in connector housings because of its thermal stability and mechanical strength.
Liquid Crystal Polymer (LCP)
LCP is useful for applications with high temperature resistance and dimensional stability because of its high heat resistance.
Plating:
Manufacturers plate connectors’ contact surfaces with particular metals to increase electrical behavior and corrosion resistance.
- Gold: Gold plating is used for low resistance connections because of its oxidation resistance and high conductivity.
- Nickel: Nickel plating is mostly used as an undercoat. It not only improves corrosion resistance but adds durability too.
Connector Manufacturing Methods

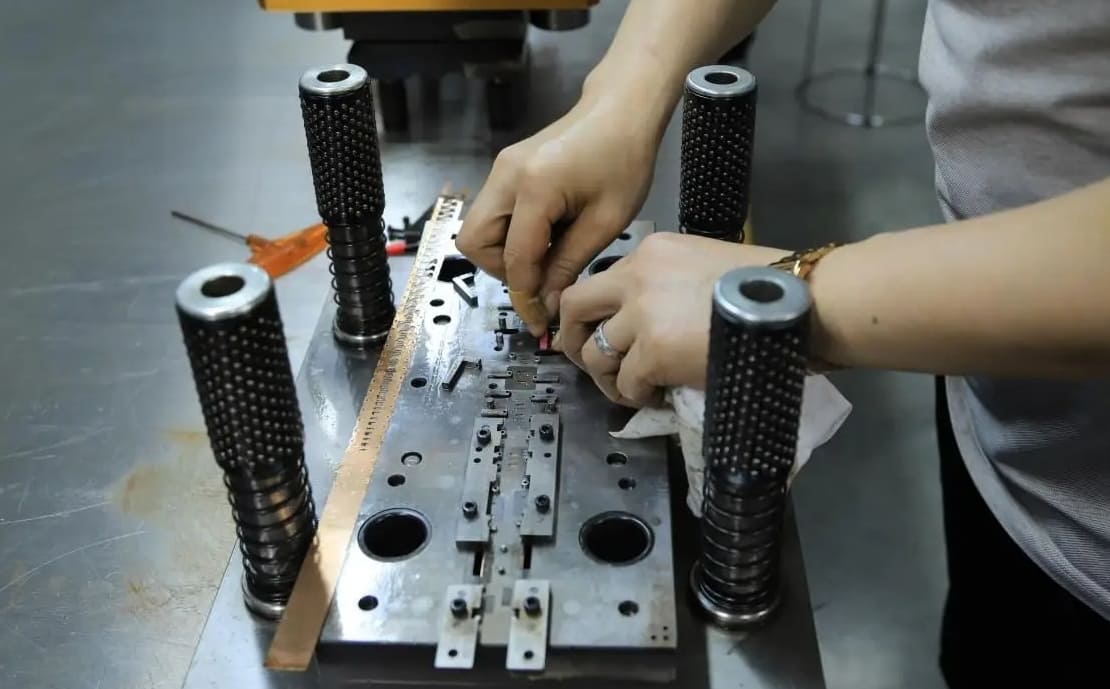

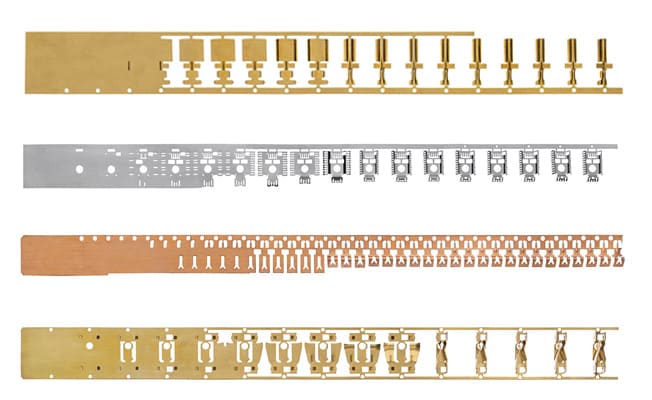

1. Stamping
Metal contacts in connectors are first formed through stamping. High speed presses shape thin metal strips into terminals or pins. This process is accurate and fast. It’s also give consistant quality when producing connectors in larger quantities.
Related: What is Metal Stamping? A Complete Guide
2. Electroplating
Metal parts are electroplated after stamping. Materials such as gold, tin or nickel are applied to metal parts during this step. Electroplating increases conductivity and protects the connectors from corrosion. This is compulsory for dependable electrical usability particularly in delicate or harsh conditions.

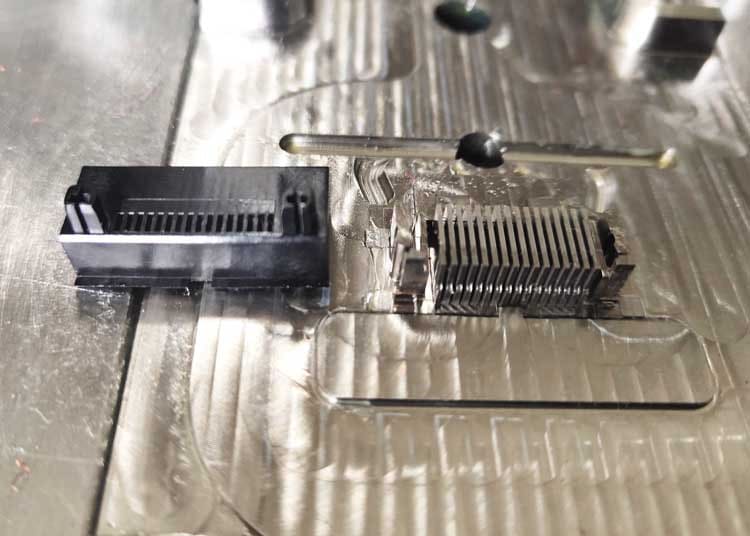

3. Injection Molding
Injection molding produces the outer housing of connector components. In this process molten plastic is injected into customized molds to get the outer shell of the connector. Injection molding assures uniform shape, precise dimensions as well as strength.
4. Overmolding
The overmolding manufacturer applies an outer molded layer to reinforce and seal the connector assembly. This outer molded layer covers both cable and connector to form a single unit. As a result the connector gets improved protection, durability and strain relief.

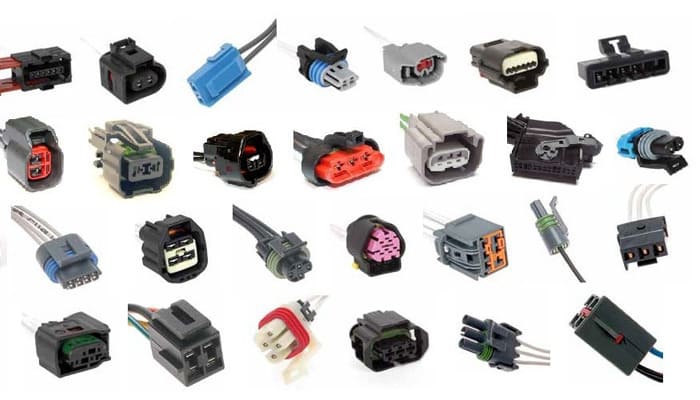

Connectors in Different Industries
Connectors support innovation in many industries. They connect precision‐driven systems in different environments.
Automotive
Modern cars rely on connectors. These components link complicated electronic systems, infotainment systems, ADAS (Advanced Driver Assistance Systems) and engine control units. Connectors connect control modules and sensors to increase vehicle functionality and safety. Connectors in automotive applications must withstand temperature, vibration and fluids.
Consumer Electronics
Connectors encourage efficient & compact connections in consumer electronics such as smartphones, home entertainment systems as well as laptops. They not only support power delivery and high speed data transmission but accommodate small device designs too. Trend for smaller devices has driven development of micro and nano connectors which meet high usability standards.
Defense and Aerospace
Connectors in defense and aerospace applications must meet high durability and reliability requirements. They perform an important part in navigation equipment, avionics as well as in communication systems where reliability is key. Defense and aerospace connectors are designed to resist electromagnetic interference, high vibration and extreme temperatures.
Industrial Automation
Connectors connect control systems, actuators and sensors in industrial automation. They support precise and dependable operations. Connectors for industrial automation must withstand harsh conditions, moisture, dust and extreme temperatures to assure steady behavior in production environments.
Medical Devices
Medical equipment depends on connectors to transmit signals accurately and securely. Connectors are part of surgical instruments, patient monitoring devices as well as imaging systems. They must meet strict regulatory standards such as ISO‐80369 and should withstand sterilization procedures.
Things to Keep in Mind When Manufacturing Connectors
Manufacturing electrical connectors need attention to several technical details. These details directly impact functionality and reliability of the end product.
Mechanical Stress and Mating Force
If extraction and insertion forces get too high, connector parts can physically bend. This bending mostly causes mechanical failure or unreliable electrical contact. To avoid this you need to design connectors with right tolerances. And choose materials which can withstand multiple mating cycles.
Tolerances and Alignment
Alignment of connector parts during assembly is vital. Poor alignment can cause mechanical stress, bent pins or incomplete mating. These can lead to intermittent connections or total mechanical failure. To prevent this, manufacturers should use alignment guides in the connector design and maintain tight tolerances.
Environmental Conditions
Connectors must work in different operating conditions. These conditions can be extreme temperature, chemicals, moisture and physical stress. For example connectors in medical applications get sterilized so stainless steel is a great material to use.
Standards Compliance
Connectors must comply with industry standards like NEMA. Meeting these standards assures your connectors meet safety and functionality needs. Compliance is particularly important for connectors in harsh industrial environments.
Keep in mind these factors so you can make connectors which meet particular needs of your application.
To Sum Up
Connectors are used in almost every advanced system. Whether in robotics or vehicles, they need to be consistent & accurate. Choice of right connector materials, types and manufacturing process will give you dependable results. Knowledge of the whole process also reduces risk & delays.
If you need custom, industrial grade & high precision connectors then Richconn is your best option. You can contact us anytime.
Related Questions
Can I use smart or sensor features in custom connectors?
Yes. You can now use sensors in custom connectors to measure vibration, temperature or signal integrity.
How much do custom connectors cost compared to standard connectors?
Custom connectors have higher upfront costs because of tooling. But they give precise fitting and potential cost savings in the long run.
How can I shorten connector lead times?
Forecasting is key. You should also choose suppliers with local warehouses or those which give flexible low volume manufacturing.
Can I buy connectors with full traceability & lot history?
Yes. Certified manufacturers like Richconn give connectors with full traceability covering testing documentation, batch records and certifications.
Do connector manufacturers give validation or testing services?
Yes. OEMs do qualification tests like EMI, thermal, vibration and mating cycle testing.
