Countersink holes may be small but they perform an important role in mechanical designing. These features let screws and bolts sit level with the surface; which creates assemblies that look clean and perform reliably.
You can avoid mistakes and work with greater confidence if you understand their standards, shapes and uses. Therefore in this blog post you will learn what countersinks are, why they matter and how engineers & manufacturers use them.

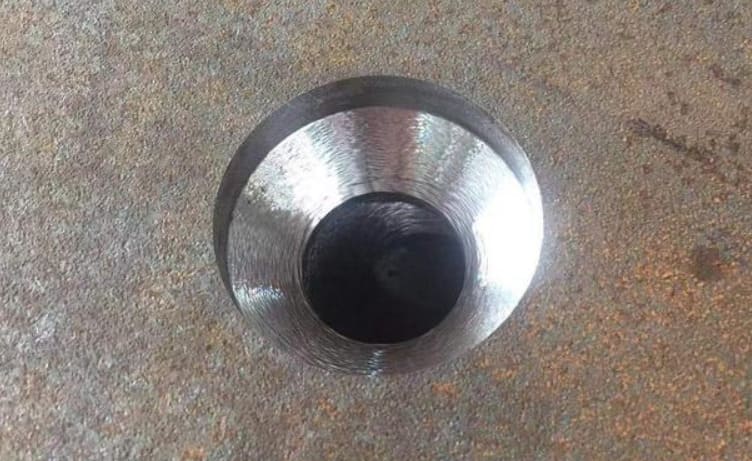

What is a Countersink
A countersink forms a cone-shaped recess around a hole. This shape lets flat-head screws rest flush or below the surface which keeps assemblies smooth and free from snags. The countersink’s angle matches the screw head—mostly 82° for imperial or 90° for metric screws. Unlike a counterbore’s flat-bottom or a spotface’s shallow recess, a countersink is designed for angled screw heads.
Essential Geometric Parameters
Three main geometric parameters define a countersink hole and assure a precise fit.
Diameter
The countersink’s largest diameter should equal the screw head’s diameter. This match lets the fastener fit snugly and sit flush with the surface.
Angle
The cone angle must align with the fastener’s head. Most imperial screws use an 82° angle while metric screws use 90°. Whereas in aerospace, a 100° angle is more common.
Depth
The depth must let the screw head be flush or slightly recessed. It should not go so deep that it weakens the part. Usually, the depth stays under 60% of the material’s thickness.
Manufacturing Methods, Tooling and Machining Considerations
To create the ideal countersink, you must choose the right manufacturing method and tools. Material type, production volume as well as required precision all affect this decision.

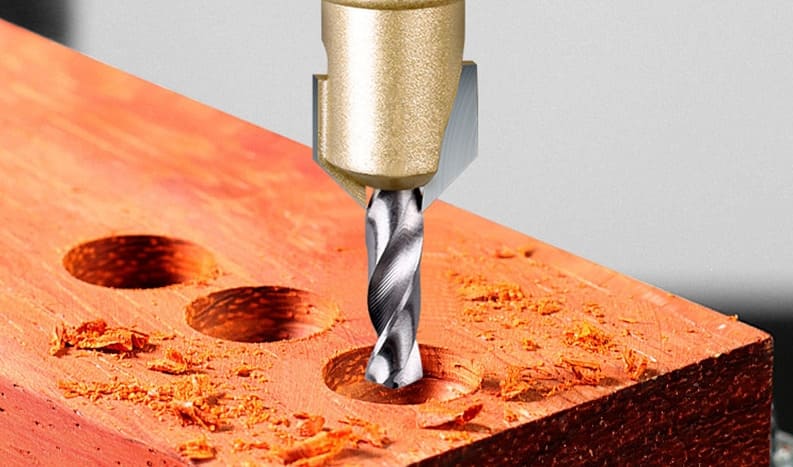

Manual/ Conventional Methods
Manual methods work well for small projects or soft materials like wood. Machinists use handheld drills or drill presses with a countersink bit for these jobs. This method keeps costs low and suits simple tasks. However, the final result depends heavily on the operator’s skill and steady hand, as chatter can occur.

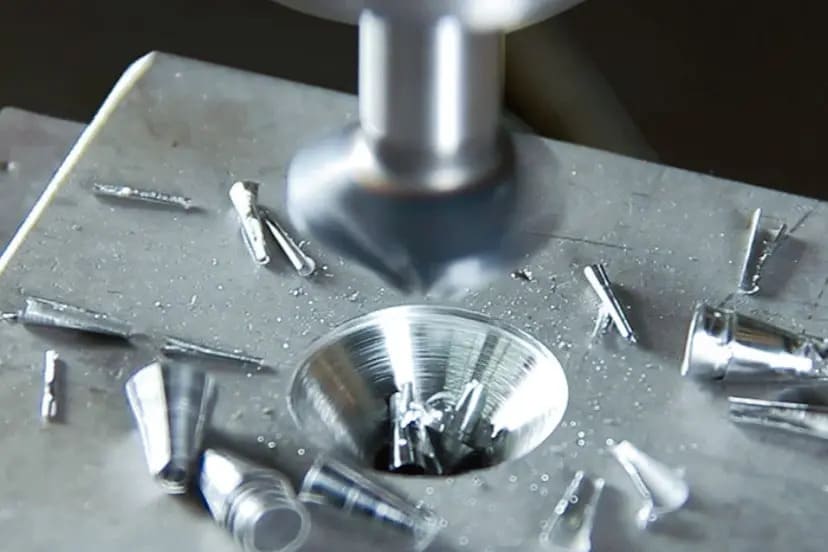

CNC/ Machine Tool Methods
CNC machining delivers high precision and repeatability, particularly with metals and hard composites. Automated machines follow programmed instructions to make consistent countersinks every time. This approach is important for large production runs and for parts that demand tight tolerances.
Also See: What is Precision CNC Machining
Tool Selection & Material Considerations
Choice of correct tool is necessary if you want a clean countersink. Hard materials like steel require sharp, multi-flute carbide tools and cutting fluid to control heat. Plastics, on the other hand, can melt or chip therefore single-flute bits and slower speeds work better for them.
Inspection & Quality Control of Countersinks
Quality control checks assure a proper fit for fasteners. A simple screw test is often the first step. For critical uses such as in aerospace, machinists rely on go/ no-go gauges or digital depth gauges. These tools confirm that the countersink’s diameter and angle are correct.
At Richconn we use calibrated gauges & CMMs to check angle, diameter and flushness and can also provide full inspection reports for demanding industries.
Typical Angles and Conventions
Choice of the right countersink angle is important for a secure fit. The best angle depends on the type of fastener, the material and the standards used in the industry.

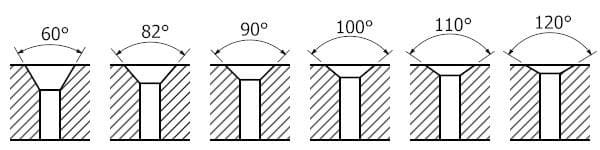

Commonly Used Countersink Angles
Manufacturers most often use 82° and 90° countersink angles. Other options, like 60°, 100°, and 120°, serve special purposes; these include deburring or fitting certain rivets.
Regional and Industry-Specific Preferences
Regional standards have a major role in angle selection. In North America, 82° countersinks are standard for imperial (ANSI) fasteners. For metric (ISO) screws, 90° is the common choice worldwide.
Factors Influencing Angle Choice
Several things affect which countersink angle is best
- Fastener Match: The angle should match the screw head whether it is imperial or metric.
- Material Properties: Hardness and thickness of the material matter. Wider angles can help protect thin or brittle materials from damage.
- Application Requirements: Some industries, like aerospace, prefer 100° angles. This helps spread stress over thin surfaces.
Standards & Specifications (What Governs Countersinks)
Specific standards control countersink sizes and tolerances to keep products safe and compatible worldwide.
ASME/ ANSI
ANSI & ASME standards are common in the United States. They usually call for an 82 degree angle with imperial fasteners. These rules make sure screws fit their holes as intended.
ISO/ International Standards
ISO (International Organization for Standardization) standards are important for products used globally. They often require a 90 degree angle, particularly for metric fasteners. ISO 15065 details the dimensions and designations for countersinks that work with ISO screws.
Military/ Aerospace Standards
Military & aerospace fields demand the highest accuracy. Standards like AS9100 or MIL-SPEC require much tighter tolerances for countersinks. This level of precision assures smooth surfaces and strong structures.
GD&T (Geometric Dimensioning & Tolerancing)
Engineers use GD&T as a symbolic system on technical drawings to define features with precision. When specifying countersinks, GD&T callouts detail the angle, diameter and positional tolerance required. This clear notation removes uncertainty and guarantees that each part matches the designer’s intent which is essential for proper assembly.
Engineering Drawing Practices
Manufacturers rely on precise technical drawings for accurate production. Special symbols and callouts direct how countersinks should be machined. This approach leaves no possibility for mistakes.
How Countersinks are Represented
Technical drawings show the position of a countersunk hole with a leader line. This line points to a note called a feature callout. This callout lists all the important dimensions the machinist must use. Thus the finished part matches the design exactly.

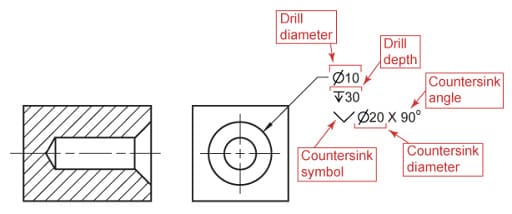

Symbols, Notation & Callout Examples
A ‘V’ shape serves as the standard symbol for a countersink. The callout starts by stating the inner hole’s diameter. Next, it gives the outer diameter and the countersink angle. For example a callout such as Ø9mm, V Ø19mm x 90° provides all the key details in a compact form.
Best Practices for Unambiguous Communication
Always list the pilot hole and countersink details separately to keep instructions clear. Specify the outer diameter, angle as well as any needed tolerances to assure fasteners fit correctly. This method prevents confusion and reduces the risk of expensive errors.
To help with this, RICHCONN’s engineers regularly check and advise on customer drawings so that countersink callouts lead to accurate and efficient machining.
Application in Different Industries
Many industries depend on countersink holes. Their use improves safety, supports function and gives products a neat, finished look.
General Manufacturing & Fastening
Countersinks in manufacturing create a smooth, professional surface. Fastener heads fit flush, therefore they do not catch on clothing or other objects. This design choice also makes it easier to assemble items, from industrial machines to cabinets.
Electronics & Precision Equipment
Compact electronics rely on countersinks for their design. Laptops, smartphones as well as PCBs use them to achieve slim, smooth cases. Fasteners sit level with the surface which saves space and avoids interference with nearby components.
Aerospace & Automotive Industries
Countersinks has a key role in aerospace and automotive work. Aircraft use flush fasteners to lower aerodynamic drag on the skin. In cars, countersinks on body panels and inside assemblies produce a smooth, gapless appearance.
Construction & Heavy Machinery
Countersinks in construction help prevent tripping by removing raised screw heads from stairs and walkways. On heavy machinery, flush fasteners keep panels from blocking moving parts. This design supports safe and reliable equipment operation.

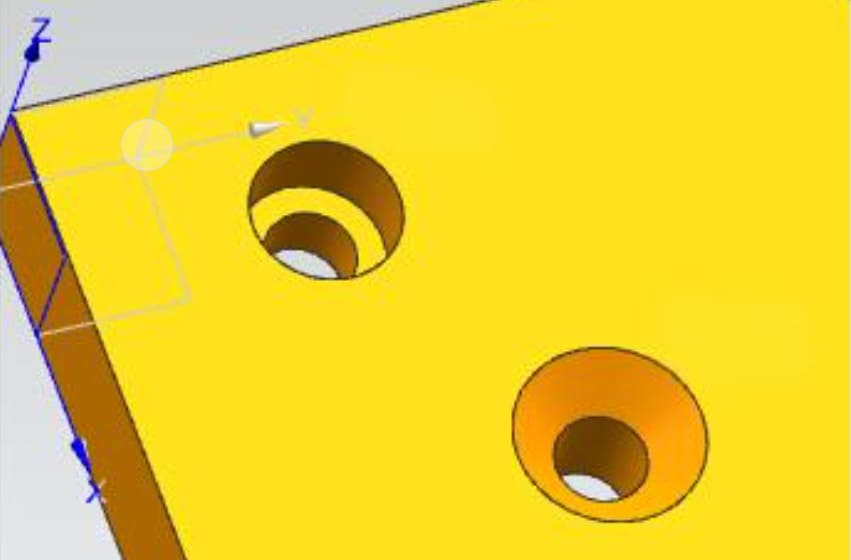

Countersinks in Mechanical & Structural Assemblies
Countersinks serve two main purposes in mechanical and structural assemblies. They let fastener heads sit even with or below the material’s surface. This creates a smooth finish which helps avoid interference with moving parts and increases safety.
The conical countersink shape also centers the fastener. This assures accurate alignment and spreads the clamping force across a wider area. As a result stress on the material decreases and joints become stronger and more dependable in tough conditions.
To Sum Up
Countersink holes let fastener heads sit flush with the surface. This improves both the strength and look of assemblies in many industries. Choice of right angles, standards and tolerances makes assemblies safer and more reliable.
For accurate countersink machining in metals or plastics, reach out to Richconn. We offer CNC machining services designed to fit your requirements. You can contact us anytime.
