A strong engine depends on an accurately manufactured crankshaft. Obtaining that accuracy requires precise workmanship, careful planning and completing every step in the correct sequence. In this blog post we will explain every stage of crankshaft’s CNC machining and show how a raw blank is transformed into a balanced crankshaft.

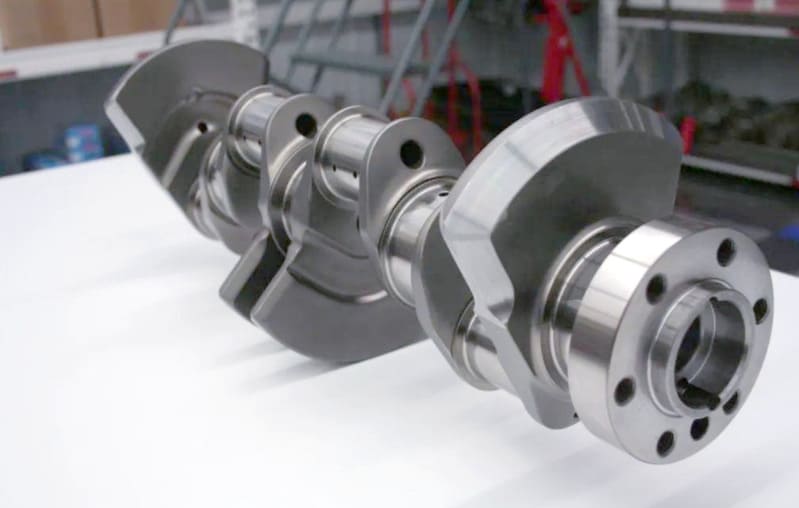

What Is A Crankshaft?
A crankshaft is a key engine component that converts the pistons’ vertical motion into rotational power. It includes rod journals, main journals, crank throws as well as counterweights.
Rod journals connect to the pistons while main journals let the crankshaft rotate smoothly. Crank throws determine the stroke length for every piston. And lastly counterweights balance the moving parts and this reduces vibration and helps the engine run smoothly.
Why is Machining Precision Important?
Accurate machining of the crankshaft is necessary for both durability and performance. Even small errors in the position or shape of the journals can create vibrations in the engine. These vibrations put extra stress on the bearings and can lead to premature failure.
Overview of CNC Machining a Crankshaft
Transforming a raw blank into a fully finished crankshaft needs different precise machining stages.
Step 1 – Blank Preparation & Fixturing
This process begins with selection of a metal blank. This blank may be cast, forged or cut from a billet; this choice affects both cost and strength.
Once selected, the blank is firmly fixed inside the CNC machine. Clamps, fixtures and centers keep it stable during cutting. Secure fixturing prevents the blank from shifting which assures every feature is machined in the correct position.
Step 2 – Rough Turning & Profiling
Next, the CNC machine begins rough turning. This step shapes the main journals and crankpins and removes large amounts of material to form the basic profile. Machinists pay close attention to the offset geometry of the journals. Accurate alignment of these axes is critical for proper crankshaft performance inside the engine.
Related Blogpost: A Complete Guide to CNC Turning
Step 3 – Drilling & Oil‐Passage Machining
Once rough turning is complete, the crankshaft needs deep holes and passages for lubrication. Technicians drill these channels with high precision so the oil paths remain straight and correctly positioned. Gun‐drilling is often used to create deep, clean holes that let oil flow proficiently.
Step 4 – Finish Turning/ Milling of Complicated Features
After forming the main structure and adding the oil passages, attention shifts to the detailed features. Modern CNC machines with 4 or 5 axes perform finish milling and turning at this stage. They produce intricate features such as counterweights and bring the crankshaft to its final dimensions. This assures every surface is finished with high accuracy.
Step 5 – Grinding & Finishing
The next stage is precision grinding of the journals. This is done to obtain the needed roundness, surface finish and run‐out tolerances. For hardened crankshafts, grinding wheels made from Cubic Boron Nitride (CBN) are commonly used. These tools help create a mirror‐like surface.
Step 6 – Balancing, Heat Treatment & Final Inspection
Heat treatment such as nitriding follows next to increase the crankshaft’s strength and resistance to wear. After that, dynamic balancing is performed to reduce vibration.
Lastly final inspection checks all dimensions, surface finishes and oil‐hole quality. Non‐destructive testing (NDT) may also be carried out to detect any hidden defects.
Related Blogpost: What is Non Destructive Testing
CNC Programming & Toolpath Considerations
Throughout the entire process, CNC programming has a vital role. CAM software generates and simulates the toolpaths that control the machine’s movements. This simulation step prevents collisions and assures accurate machining. Choice of the right tools, use of proper coolant and setting up the machine securely are also important to get the best results.
Common Crankshaft Materials & Their Machinability
Crankshafts are produced from different materials and each one offers different machining characteristics and strength levels.
1. Forged Steel
4340 forged steel provides high strength which makes it suitable for high performance engines. However its toughness makes machining more challenging. Moreover rigid setups and high quality tools also become essential. It is best to machined forged steel before the final heat treatment.
2. Cast Iron
Cast iron is affordable and machines easily because of its natural lubricity. However it is more brittle and not as long‐lasting as forged steel. This material is only appropriate for low‐stress engines.
3. Billet Steel
Machining a crankshaft from a solid billet gives extraordinary grain structure and strength. On the downside this process takes more time and is more expensive because a large amount of material must be removed. Long cycle times are common in this method.
4. Surface‐Hardened or Nitrided Crankshafts
Nitriding creates a hard, wear‐resistant surface layer. Machining this layer is difficult and needs special care. Grinding after nitriding must be done carefully to preserve the benefits of treatment.
At Richconn we give detailed material selection guidance to our clients—which helps them balance cost, machinability and durability for different engine needs.
Tool Materials for Key Crankshaft Operations
Choice of the right cutting tool is also very important for precise crankshaft machining.
Turning
The insert material selected for turning directly influences crankshaft’s performance.
- Coated Carbide Inserts (TiAlN, AlCrN): These inserts are appropriate for most semi‐roughing and finishing operations. They combine wear resistance with thermal stability.
- CBN Inserts (Cubic Boron Nitride): For finish‐turning hardened journals—particularly after nitriding—CBN inserts are necessary. They maintain very tight tolerances and create a mirror‐like finish.
- PCD (Polycrystalline Diamond): This material is normally not used for crankshafts. It is too brittle for machining ferrous metals like iron and steel.
Grinding
Grinding uses specialized abrasive wheels to get a smooth and accurate finish on the journals.
- CBN Grinding Wheels: Ideal for hardened crankshafts. They retain their shape during long production runs and deliver consistent results.
- Aluminum Oxide or Ceramic Wheels: These offer an affordable solution for softer materials or less demanding jobs.
Drilling
- Carbide Deep Hole Drills/ Gun Drills: Essential for creating long, straight oil passages. They often include internal coolant channels that clear chips and keep the drill cool.
- Special Helical Drills: Some crankshafts need curved or intersecting oil holes. Specialized helical drills and multi‐axis machines are best for handling these complicated features.
Tool Geometry
Tool geometry is also very important just like tool material. Selection of the correct edge radius and rake angle helps control vibration and clear chips proficiently.
For long shafts, balanced tool holders and anti‐vibration bars prevent chatter. This is crucial for smooth cuts and optimal crankshaft performance.

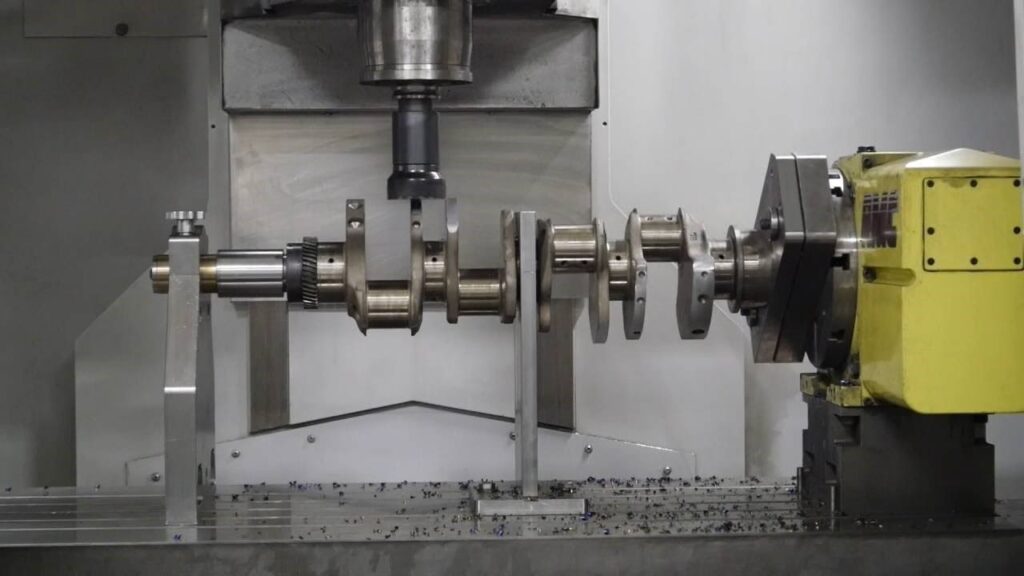

Tool Holding & Fixturing for Crankshaft Workpieces
Accurate machining depends on securely holding both the crankshaft and the tools. A proper setup prevents vibration and assures every cut is precise.
- Long‐reach boring bars with built‐in anti‐vibration features are used to handle deep oil galleries. Internal dampers reduce chatter and improve surface finish.
- Hydraulic and shrink‐fit holders grip tools tightly and minimize tool runout. This level of accuracy is essential for machining journals.
- Live centers & steady rests support the crankshaft during turning. They keep the shaft straight and prevent bending caused by tool pressure.
- Modular fixtures are ideal for multi‐axis CNC machines. They hold the workpiece firmly and reposition it accurately for each operation.
For complicated crankshaft machining, RICHCONN uses precision modular fixturing, steady rests and vibration‐damping tool holders. These tools keep long parts stable and secure—even at high speeds.
Related Blogpost: A Complete Guide on CNC Workholding Methods
Critical Quality & Process Control Considerations for Crankshaft Machining
Production of a flawless crankshaft requires strict control over different key production factors. Skipping any of these steps can compromise the final quality.
1. Consider Tolerances, Surface Finish & Roundness
To function properly, a crankshaft must meet tight tolerances. Journal diameters should remain within 0.0005 to 0.001 inches. The journal roundness should not exceed half of the allowed dimensional tolerance. Any deviation can damage the oil film and affect bearing integrity. Surface finish should also be Ra 0.2‐0.4 μm or better as it reduces friction and prevents early wear.
2. Plan for Material Distortion after Heat Treatment
Heat treatment can warp or distort the crankshaft’s long, complicated shape. To address this, leave extra material so final machining passes can correct any changes. Using advanced cooling methods with precise control also helps limit warping from the start.
3. Manage Tool Wear & Fixturing Stability
During long machining cycles, tools wear down and the workpiece may expand because of heat. Use in‐machine probing and measurement loops to adjust for these changes in real time. Make sure that the fixturing is completely rigid as any movement in the setup can reduce accuracy.
4. Prevent Common Defects
Grinding burns—out‐of‐round journals and poorly formed oil holes—are common defects. These issues normally arise from incorrect machining parameters or worn tools. You can prevent them by enforcing strict process controls, regularly inspecting tools and by checking oil‐hole straightness.
5. Document for Traceability & Quality Assurance
For high performance applications, a traceability system is essential. Record each crankshaft’s progress from raw material to final inspection. This creates a complete production record, assures accountability and makes it easier to track the cause of any quality issues.
At Richconn we document every stage—from raw material to final inspection. Therefore customers receive full traceability and confidence in the quality of every part.

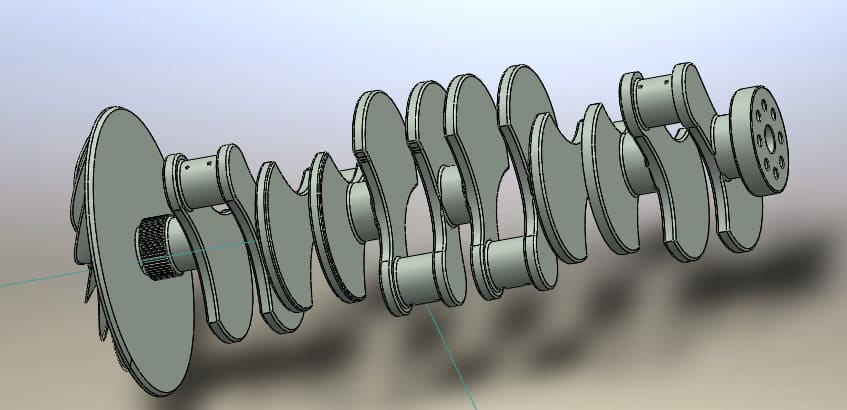

Best Practices for CNC Machining a Crankshaft
Choosing the Right Machine & Setup
Selection of the right machine is essential. Multi‐axis CNC machines can handle complicated features effectively. Likewise dedicated crankshaft grinders provide higher accuracy for journals. No matter which machine you use, alignment and calibration must be perfect. Check spindle run‐out regularly to maintain tight tolerances and prevent errors during long machining cycles.
Tooling & Coolant Strategy
Choice of tooling directly affects both quality and performance.
- Use high performance inserts for turning.
- Select CBN wheels for grinding hardened steel to get a superior finish.
A reliable coolant system is also essential—it prevents overheating, extends tool life as well as removes chips that could damage the surface.
Program Simulation & Monitoring
Before machining begins, simulate the entire machining program with CAM software. This step helps detect potential collisions and errors early and this saves both time and material.
Additionally during machining, use in‐process probes and measurement loops. These tools provide real‐time feedback which lets you correct tool wear or thermal drift and maintain accuracy.
Maintenance & Set‐Up Planning
Managing downtime effectively is crucial for profitability. Schedule regular maintenance to keep machines performing consistently. Optimize setup and fixture change‐over routines to minimize non‐productive time, particularly when machining large or heavy crankshafts.
Documentation & Training
Assure that all operators and engineers receive complete training for every process. Maintain detailed documentation for every procedure and record all measurement data. This approach improves reliability and consistency while also helping build credibility.
Real‐World Applications of CNC Machined Crankshafts
Automotive & High Performance Engines
Modern automotive engines depend heavily on CNC machining to produce strong crankshafts from billet steel. CNC machining gives extremely tight tolerances which results in engines that run smoothly and remain reliable even at high speeds.
Marine, Locomotive & Heavy Duty Crankshafts
CNC machining isn’t limited to automobiles. It is also used to manufacture large crankshafts for industrial applications. Marine engines, locomotives as well as heavy‐duty trucks all depend on these components. CNC precision assures that these large crankshafts can withstand the extreme forces encountered during operation.
To Sum Up
Machining a crankshaft with CNC technology involves multiple precise stages. Every step—whether it’s material selection or final inspection—directly affects the engine’s reliability and performance. If you need a custom crankshaft or any other precision part, Richconn provides expert CNC machining services. You can contact us anytime for your precision manufacturing needs.
Related Questions
Crankshaft journal diameters normally need extremely tight tolerances, often between 0.0005 and 0.001 inches. Ovality or conicity is generally limited to less than 0.03 mm.
Grinding is mostly performed after heat treatment. Since heat treatment can distort the material, post‐treatment grinding assures the final dimensions remain accurate.
Common defects include surface burns from grinding, dimensional inaccuracies and journals that are not perfectly round. Misaligned or poorly finished oil holes can also lead to major issues.
These features need deep‐hole drilling because their length‐to‐diameter ratio is high. This makes them difficult to machine. They also create stress points and can lead to cracking during heat treatment.
