    Milling flat surfaces is relatively straight forward. But curved shapes—like ergonomic housings or turbine blades—are far more complicated. Multi axis CNC systems and advanced toolpaths have now made it possible to machine these intricate forms as well.

    In this blog post we will walk you through every step of curved surface machining, from CAD preparation to tooling, programming and inspection. You’ll find practical insights here that will help you build expertise in curved surface machining.

    What Is CNC Curved Surface Machining?

    What Is CNC Curved Surface Machining

    In CNC curved surface machining, computer‐controlled tools are used to create parts whose profiles are irregular or non‐flat. Unlike basic flat or prismatic surfaces, this method generates complex 3D shapes that serve both visual and functional purposes. This process primarily produces three types of curves:

    • Concave: this surface bends inward, similar to the inside of a bowl.
    • Convex: this surface bulges outward, like the exterior of a dome.
    • Compound 3D: this one bends in multiple directions at the same time which creates a complex form.

    How do CNC machines cut curved geometry

    It begins with a 3D CAD model that provides accurate surface geometry. Then CAM software converts this model into a G code toolpath. The CNC machine then follows this code and makes thousands of tiny, connected straight or arced cuts. Gradually, these cuts form the smooth curve defined by the software.

    Where does curved surface milling fit

    Curved surface machining falls under contour milling, where the edges of a part are shaped according to a defined path. It is also closely related to 3D surfacing where the toolpath moves across the entire face of the 3D model, not just its outline.

    High‐Value Applications of CNC Curved Milling

    Many industries depend on curved surface machining to produce high performance parts.

    Aerospace

    CNC curved machining shapes complex aerospace components such as airfoils, blisks and turbine blades. These parts need precisely curved surfaces to achieve maximum aerodynamic efficiency. Accuracy of these surfaces also helps the components withstand the demanding conditions of flight.

    Automotive

    Automotive manufacturers use curved milling for multiple components such as engine parts and exterior panels. This process makes it possible to create intricate engine geometries that improve both performance and efficiency. It also gives designers the freedom to create smooth, continuous lines that define the body design of modern vehicles.

    Medical

    In the medical sector, CNC milling is used for custom orthopedic implants and dental components that involve complex curves. This process provides the high precision needed for implants such as hip and knee replacements. Such accuracy ensures proper fit and greater comfort for patients.

    Consumer Electronics & Industrial Design

    Curved surface machining produces ergonomic and aesthetically refined enclosures such as those used in smartphones and laptops. This technology creates smooth curves that increase both appearance and comfort. CNC machining also allows companies to produce these parts in large quantities with reliable quality.

    Functional Advantages of Curved Surfaces in Machined Parts

    Curved surfaces provide significant advantages for machined parts. They improve appearance, performance as well as durability across many applications.

    Aerodynamics & Fluid Flow

    Curved surfaces have a key role in controlling the movement of air & fluids. In aerospace, the precise curve of a wing generates lift. For ships and vehicles, smooth curves reduce drag and this increases fuel efficiency and improves performance.

    Strength, Load Distribution & Fatigue Performance

    Curved corners and edges help distribute stress evenly across a part. This design prevents stress from concentrating in a single spot. As a result the part becomes stronger and is less likely to fail under repeated loads.

    Optimized Material Use

    Curved shapes increase strength without requiring additional material. Their geometry naturally adds stiffness and resists bending. This keeps parts lightweight while still durable and strong.

    Ergonomics & Aesthetics

    Curved surfaces improve both appearance and comfort. Rounded shapes fit better in the hand. They also give products a modern, high quality look which increases the overall user experience.

    CNC Fundamentals for Curved Surface Machining

    Machining curved surfaces with precision needs specialized CNC techniques. Choosing the right machine is very important to achieve consistent, high quality results.

    Machine Types for Curved Surfaces

    Machine Types for Curved Surfaces
    1. 3-Axis Machines: Move along the X, Y and Z axes to create simple curves.
    2. 4-Axis Machines: An extra rotational axis (A‐axis ) lets these machines work on the sides of a part.
    3. 5-Axis Machines: Three linear and two rotary axes let them create complex curves in a single setup.

    Coordinate Systems & Axis Motions

    CNC machines depend on coordinate systems to control the cutter. A Work Coordinate System (WCS), such as G54, sets the zero point for the part.

    Linear axes (X, Y, Z) provide primary motion here; whereas rotary axes (A, B, C) rotate the part or tool. This rotation is crucial for keeping the tool properly engaged on curved surfaces. This improves both reach and surface finish.

    Curved Surface Machining Modes

    There are three primary modes for machining curves

    • 3‐axis machines use multiple passes to shape the part.
    • Indexed (3+2) machining locks the part into different positions using rotary axes, making cutting more efficient.
    • Simultaneous 5‐axis milling moves all five axes at once which produces complex contours in a single setup.

    Also See: What is 3+2 Axis CNC Machining

    Design & CAD Considerations for Curved Parts (DFM for Milling)

    Creating accurate curved parts efficiently requires careful design and thorough CAD planning. These steps ensure that the finished part meets both functional and visual standards.

    1. Modeling High‐Quality Curved Surfaces in CAD

    To achieve a smooth finish, start with accurate and clean curves in your CAD model. Use G1 or G2/ G3 continuity so surfaces transition seamlessly. This prevents sudden changes in curvature. Abrupt transitions can leave visible tool marks or scallops. When your design contains high quality surfaces, the final part will reflect the same quality.

    2. Geometry Choices that Simplify Machining

    Choose large radii in your design because sharp internal corners are difficult for cutting tools to reach. Ensure that internal radii are always larger than the cutter’s radius. Keep wall thickness uniform—at least 1.5 mm for plastics and 1.0 mm for metals. This helps prevent distortion and vibration in the part.

    3. Designing for Fixturing & Tool Access

    Add design features that help hold the part securely. For curved parts, add flat areas or datums to make clamping easier and more reliable. Consider tool access as well because 3‐axis machines need a clear line of sight to the work area. More complex curves may need a multi‐axis setup to reach every surface.

    4. Tolerance & Surface Finish Specifications

    Set practical tolerances and surface roughness (Ra) for curved surfaces. Extremely tight tolerances increase both machining cost and time. Most parts fall within an Ra of 1.6 to 3.2 μm. You can specify a smoother finish if needed but it will need smaller step‐overs and longer machining cycles—which ultimately increases part cost.

    For best results, review your design early with an experienced manufacturer like RICHCONN. Our engineers can identify potential machining challenges and recommend suitable tolerances. This keeps your part precise without unnecessary expense.

    Also See: A Complete Guide to Surface Roughness

    Tooling for Curved Surfaces in CNC Milling

    Choice of the right tool is crucial when machining curved surfaces. This choice affects accuracy, quality and speed.

    Common Cutter Types for Curved Geometries

    Specific cutting tools are needed to achieve precise and smooth curved surfaces.

    • Ball nose end mills have a rounded tip and are best for finishing complex 3D contours.
    • Bull nose end mills have a flat bottom with rounded corners and can be used for both finishing and roughing.
    • Insert-type end mills use rounded inserts. These tools offer greater stability during heavy duty roughing.

    Selecting Flute Count, Tool Diameter & Length

    After choosing the type, select a cutter size that supports accuracy and stability. Larger diameters increase rigidity which helps during aggressive roughing. In contrast smaller diameters are better for detailed work. Tool length is equally important—using the shortest possible tool reduces vibration and chatter which in result gives a cleaner surface finish.

    Tool Materials & Coatings

    Material and coating of a tool protect it from wear and heat.

    High Speed Steel is a budget friendly option. Whereas carbide is harder and keeps its edge longer; this makes it better for finishing.

    Moreover a thin coating like AlTiN improves lubricity and heat resistance. This coating extends tool life and helps achieve a smoother cut.

    Toolpath Strategies & CAM Programming for Curved Surfaces

    Machining Sequence_ From Roughing to Finishing

    Machining curved surfaces involve several stages to maintain both quality and efficiency.

    This process begins with roughing where large step downs remove most of the material quickly and leaves a small amount of stock. This is followed by semi finishing which uses smaller step‐over moves to bring the part closer to its final form. The final stage is finishing where very light cuts are applied. These passes deliver the needed accuracy and smoothness.

    Curved surface machining path

    Selection of the correct toolpath affects both machining speed and surface quality.

    • For shallow & open regions, zig-zag or parallel toolpaths provide best coverage.
    • Contour toolpaths maintain a constant Z‐height. This makes them suitable for steeper walls.
    • Radial and spiral patterns work best for circular features.

    Managing Scallop Height for a Smooth Finish

    Scallops are the small ridges left between tool passes and are a key factor in surface finish. Tool radius and step-over distance determine scallop height. Reducing the step-over lowers scallop height and produces a smoother surface but increases machining time. When defining finishing passes it’s important to balance surface quality with cycle time.

    Collision & Gouge Prevention in CAM

    Modern CAM systems include simulation tools that help prevent costly mistakes. This software checks the entire process to assure no collisions occur between the holder, tool, workpiece or fixtures. It also detects gouges which happen when the tool cuts too deeply. Setting safe lead-in & lead-out moves guarantees that the tool engages smoothly.

    At Richconn our CAM specialists use detailed simulation and verification for every setup. This reduces scrap rates and keeps curved surfaces accurate—particularly for complex prototypes and short production runs.

    Post Processing & Machine Considerations

    A post processor converts CAM toolpaths into G‐code compatible with your machine controller. Always select the correct post processor for your machine type—whether 3‐axis or 5‐axis—so that all axes are handled properly. During programming, check machine travel limits to assure toolpaths stay within the machine’s operational range.

    Machine Setup, Fixturing & Workholding for Contoured Parts

    Accurate, high quality contoured parts depend on proper machine setup and secure workholding.

    Locating & Clamping Irregular Shapes

    The first step in machining contoured parts is holding them securely. Machinists often use custom soft jaws that are shaped to match the profile of irregular pieces. This method grips the part firmly and protects the surface from damage. Vacuum workholding is also effective. It uses suction to hold thin or delicate parts in place and prevents distortion from clamping pressure.

    Achieving Stability & Reducing Vibration

    Thin‐walled contoured parts need strong stability to prevent vibration. Temporary support ribs or fixtures with rigid backing help reduce chatter beneath curved areas. Before machining, ensure the machine is properly leveled. Additionally a solid foundation is also essential to limit vibrations that could harm the surface finish.

    Fixturing for Large or Long Curved Surfaces

    Large or heavy contoured parts need robust workholding solutions. Using a rotary table with a tombstone fixture on a 4‐axis machine lets you machine multiple sides in a single setup. This improves both accuracy & efficiency and also reduces manual repositioning for items such as blades or large molds.

    Process Parameters, Surface Finish & Accuracy Optimization

    To achieve accurate finishes, high precision and good efficiency on curved surfaces, it’s essential to optimize the process parameters.

    Feeds, Speeds & Depth of Cut

    Selection of the right feeds, speeds and depth of cut is critical for producing high quality results on curved surfaces. These settings control how material is removed and directly influence the final finish. For curved profiles, use a low depth of cut with an appropriate feed rate. This combination reduces tool deflection and helps the tool stay on the contour. This results in a smoother and more precise surface.

    Step‐Over & Step‐Down

    Step‐over and step‐down determine how the tool moves across the material with each pass. For finishing, machinists use a smaller step over—typically between 5% and 20% of the tool diameter. This reduces spacing between toolpaths and produces a smoother curve.

    Managing Tool Wear & Heat

    To maintain accuracy on curved surfaces, it’s important to control tool wear and heat. As tools wear down, friction and heat increase, which can cause defects and dimensional errors.

    Reducing cutting speeds helps lower heat, especially when working with hard materials. Moreover proper cooling keeps the tool edge sharp and ensures every part remains precise.

    Vibration & Chatter Control

    Chatter— a type of vibration—can severely impact surface finish during the final machining stages. To avoid this, machinists use shorter and more rigid tool holders to maximize stability. Well balanced cutting tools also help reduce vibrations. These steps are essential to achieve a smooth finish on curved surfaces without chatter.

    Special Cases_ Machining Large, Deep & Steep Walled Curved Surfaces

    Some part geometries need special techniques to guarantee successful curved surface machining.

    Machining Large Curved Surfaces

    Large curved parts such as dies and molds are difficult to machine. Long machining times can heat the part and cause dimensional changes—which reduces accuracy. To address this, machinists start with roughing passes using large & efficient cutters. They often divide toolpaths into smaller sections and use blended finishing to maintain consistent surface quality across the entire part.

    Deep Cavities & Steep Walls

    Deep cavities and steep walls need special tools and a careful setup. Long‐reach tools are used to access deeper areas but they are more prone to bending or vibrating. To reduce this risk, tapered end mills are usually used because of added rigidity. For steep walls, machinists use high helix cutters to clear chips faster and produce a smoother finish.

    Quality Inspection & Finishing for CNC Machined Curved Surfaces

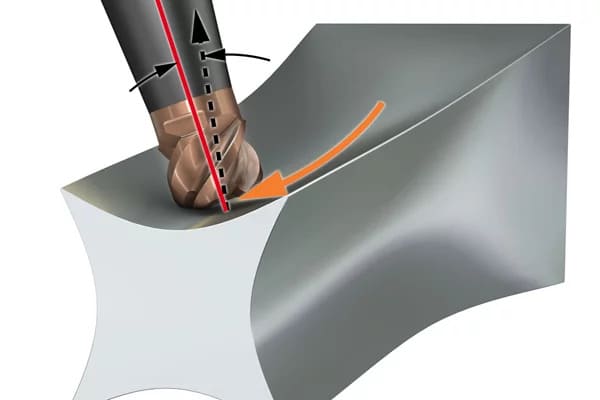

    Quality Inspection & Finishing for CNC Machined Curved Surfaces

    The final stage of CNC curved parts machining focuses on complete quality checks and finishing steps to assure the surfaces are accurate and fully refined.

    Measurement of Complex Curved Shapes

    Technicians use advanced tools to verify complex curved surfaces. A Coordinate Measuring Machine (CMM) probes specific points on the part and compares them with the CAD model.

    For fragile surfaces, laser scanning provides a non‐contact method. This technique creates a detailed 3D map and checks accuracy without any physical touch.

    Surface Finish Inspection

    Inspectors measure surface roughness using a profilometer, checking values like Ra and Rz at critical locations. They also look for visible flaws such as tool marks, scallops or faint blend lines where toolpaths meet. These inspections ensure the finished part meets quality standards.

    Finishing Operations After Milling

    Additional finishing steps are applied after milling to achieve the desired surface quality. For complex curves that need a mirror finish, both hand polishing and machine polishing are often necessary. Two more types are bead blasting—which produces a consistent matte appearance—and anodizing which adds both color and protection.

    If you need curved parts delivered ready for assembly, we offer in house polishing, bead blasting and anodizing to assure consistent, fully finished surfaces every time.

    Quality Documentation for Traceability

    Industries such as aerospace and medical require complete traceability. This includes detailed inspection reports, FAI Reports and a full digital record of the part’s geometry and manufacturing steps. Such accurate documentation maintains quality and ensures compliance.

    Common Defects & Their Solutions

    Despite thorough planning, some common defects may still occur during curved surface machining.

    Chatter Marks & Vibration

    Vibrations during cutting can leave wavy lines known as chatter marks. These often result from a loose tool, unstable workpiece or incorrect machine settings.

    To fix this issue, use a rigid, short tool holder. Adjusting the cutting speed can also reduce vibrations and produce a smoother surface.

    Mismatch between Passes

    Visible lines may form where toolpaths intersect, particularly on parts that require multiple setups. To avoid this, ensure the machine is properly calibrated between operations. Additionally, planning toolpath blending in CAM software also helps create a continuous & uniform surface.

    Over‐Cutting & Under‐Cutting

    Removing too much material results in over‐cutting while leaving excess stock causes under‐cutting. These problems often come from tool deflection or incorrect cutting parameters.

    To prevent them, use a lower depth of cut and set an optimized feed rate. There are also simulation softwares that can check toolpaths and help prevent gouges.

    Richconn Curved Surface Machining Services

    Richconn provides high precision machining for complex curved surfaces. Our simultaneous 5‐axis machines maintain tolerances up to ±0.01 mm and achieve surface finishes as fine as Ra 0.8 μm.

    We use CMM inspection to compare every critical dimension with your CAD model. This ensures you receive accurate, production ready parts—which is particularly important for aerospace, medical and other industries with strict requirements. You can contact us for any kind of precision CNC machining services.

    To Sum Up

    Machining curved surfaces requires attention at every stage of the process. You need a precise CAD model, the right tooling, carefully planned toolpaths and proper process parameters. When all these elements are managed correctly, you can produce parts that are not only accurate but also visually appealing.

    Can you machine curved surfaces on a standard 3 axis CNC mill?

    Yes you can create simple curved surfaces using a 3-axis mill. However machining complex shapes takes more time because it requires additional setups and multiple passes.

    When is 5 axis machining truly necessary for curved surfaces?

    For deep curves and highly complex shapes, 5 axis machining becomes essential. It keeps the tool tangent to the surface which improves both accuracy and finish.

    How do you choose the correct ball nose tool diameter for curved surfaces?

    For finishing and detailed work, choose a smaller diameter ball nose tool. For roughing and faster material removal, a larger diameter tool is more suitable.

    Which parameters affect surface finish the most on curved parts?

    Cutting speed, feed rate and the stepover distance between tool passes are the most critical factors. Tool sharpness and machine stability also have a major role in determining the final surface quality.
